2021 Haas ST-30Y with Milling Capability, Y Axis, Chip Conveyor, Parts Catcher, Tailstock, 10" Chuck, 3" Bar Cap.

Full C Axis Spindle Rotation

Live Milling/Drilling Capability

Y Axis Capability

Programmable Tailstock

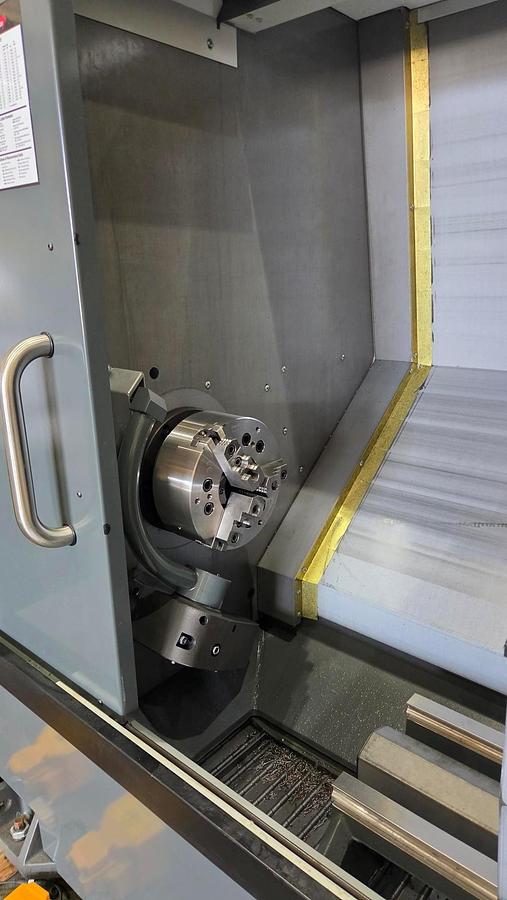

10" 3 Jaw Hydraulic Chuck

Chip Conveyor

Parts Catcher

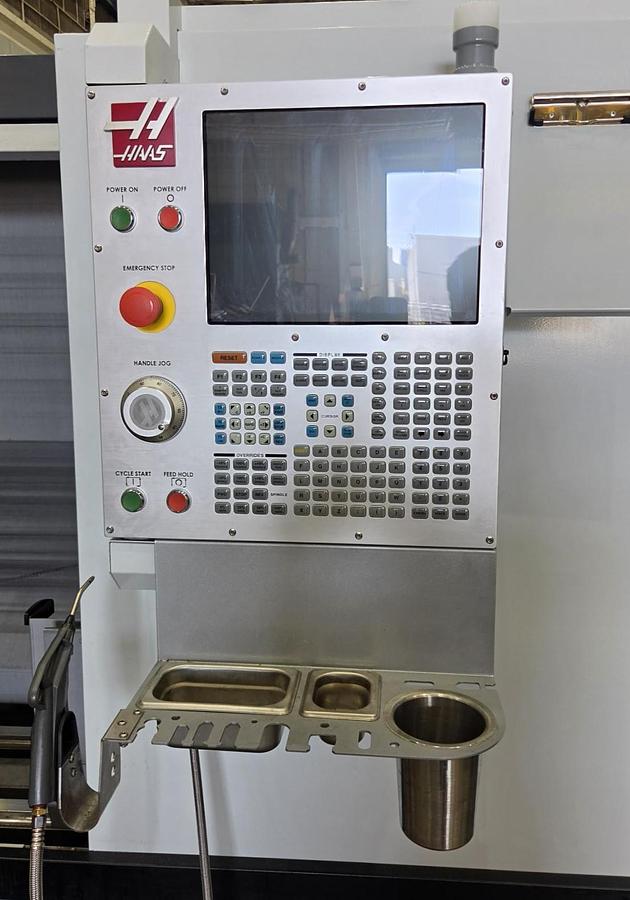

Visual Part Programming System

Spindle Orientation

Rigid Tapping

User Definable Macros

Early Power Failure Detection Module

Ethernet Interface

USB Port Interface

Coolant System with Tank & Pump

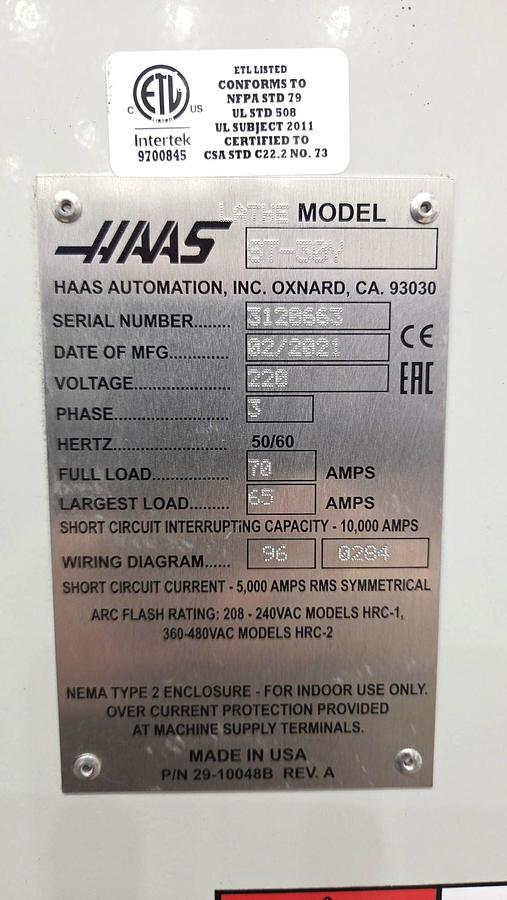

Wired 220V Electrics

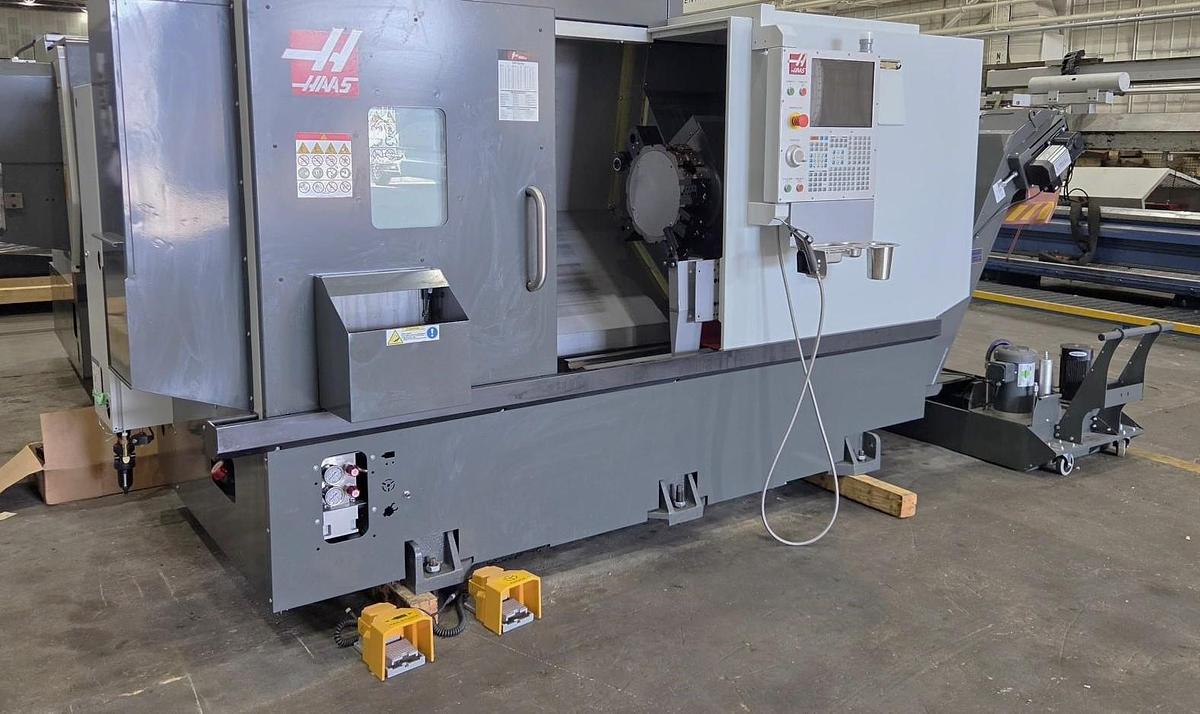

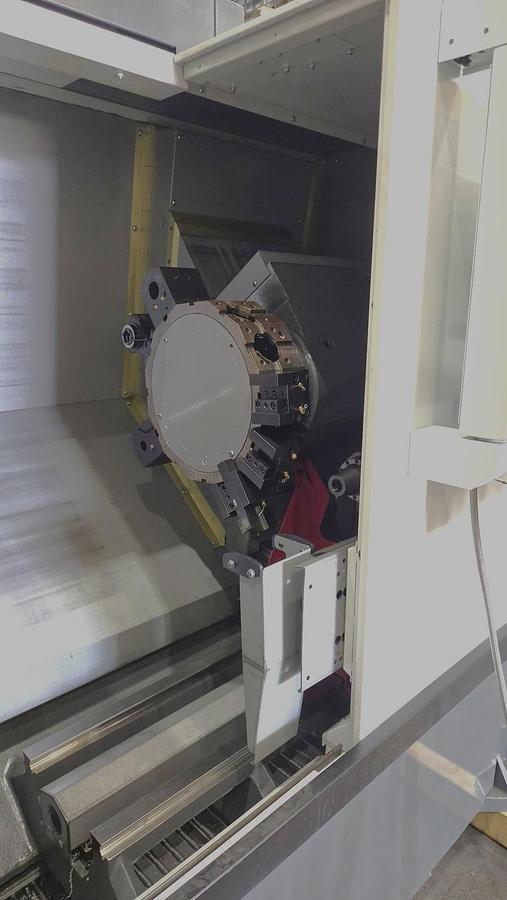

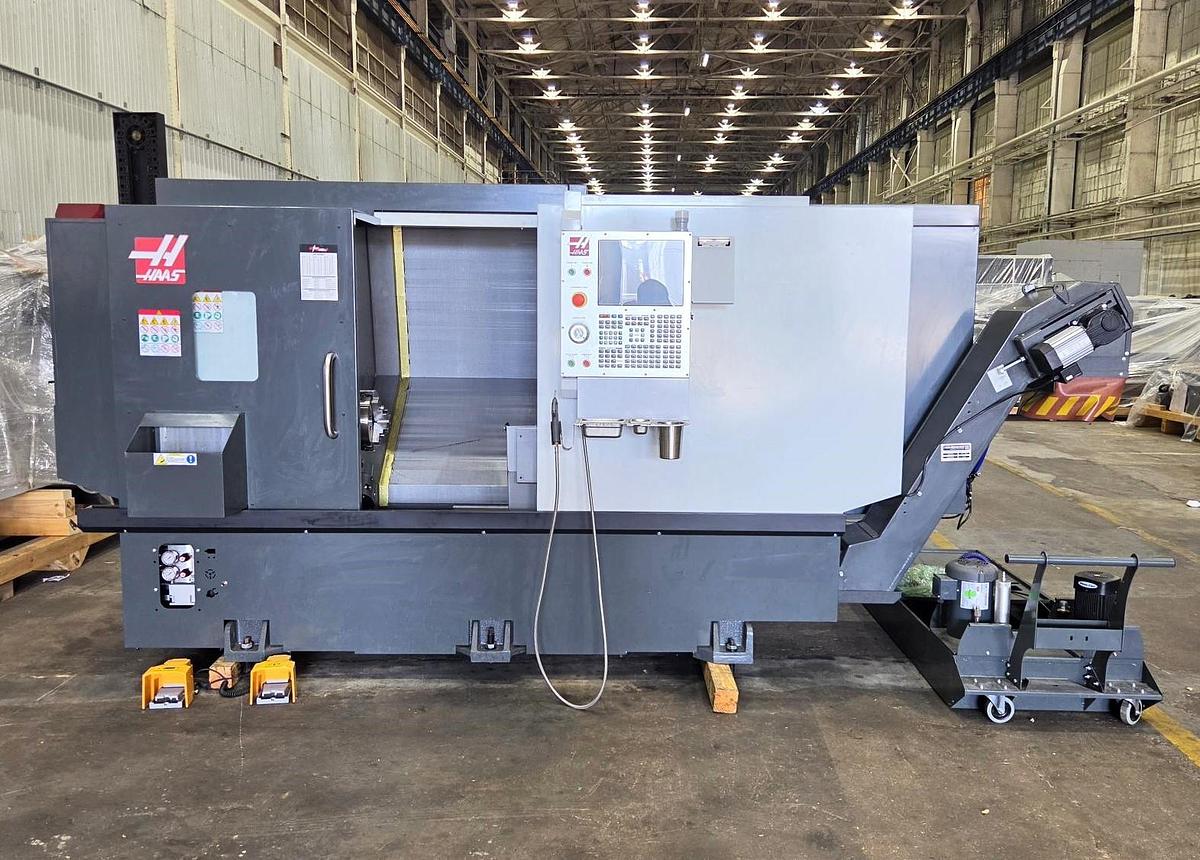

The 2012 Haas ST-30Y is a versatile 4-axis CNC lathe offering robust milling capabilities. Equipped with a Haas CNC Control system, it features a 10" 3 Jaw Hydraulic Chuck, accommodating workpieces with a maximum swing of 31.75", a turning diameter of 18", and a machining length of 23". The machine is designed to handle bars up to 3" in diameter, making it suitable for a variety of industrial applications. The machine boasts a C-axis with full rotation capabilities, adding flexibility for complex tasks. It features travel capabilities of 12.5" on the X-axis, +/- 2" on the Y-axis, and 26" on the Z-axis. Spindle speeds vary from 30 to 3,400 RPM, driven by a powerful 30 HP motor, while the rotary tool speed reaches up to 4,000 RPM powered by a 5 HP rotary motor. With a 12 station turret, rapid traverse rates of up to 945 IPM, and additional features like a chip conveyor, parts catcher, and tailstock, this machine offers efficiency and precision in demanding environments. With machine dimensions of 171" x 90" x 83" and a weight of 14,300 lbs, the Haas ST-30Y incorporates practical design elements for industrial settings. Its comprehensive set of features and robust construction make it an excellent choice for operations requiring dependable performance and precision.
