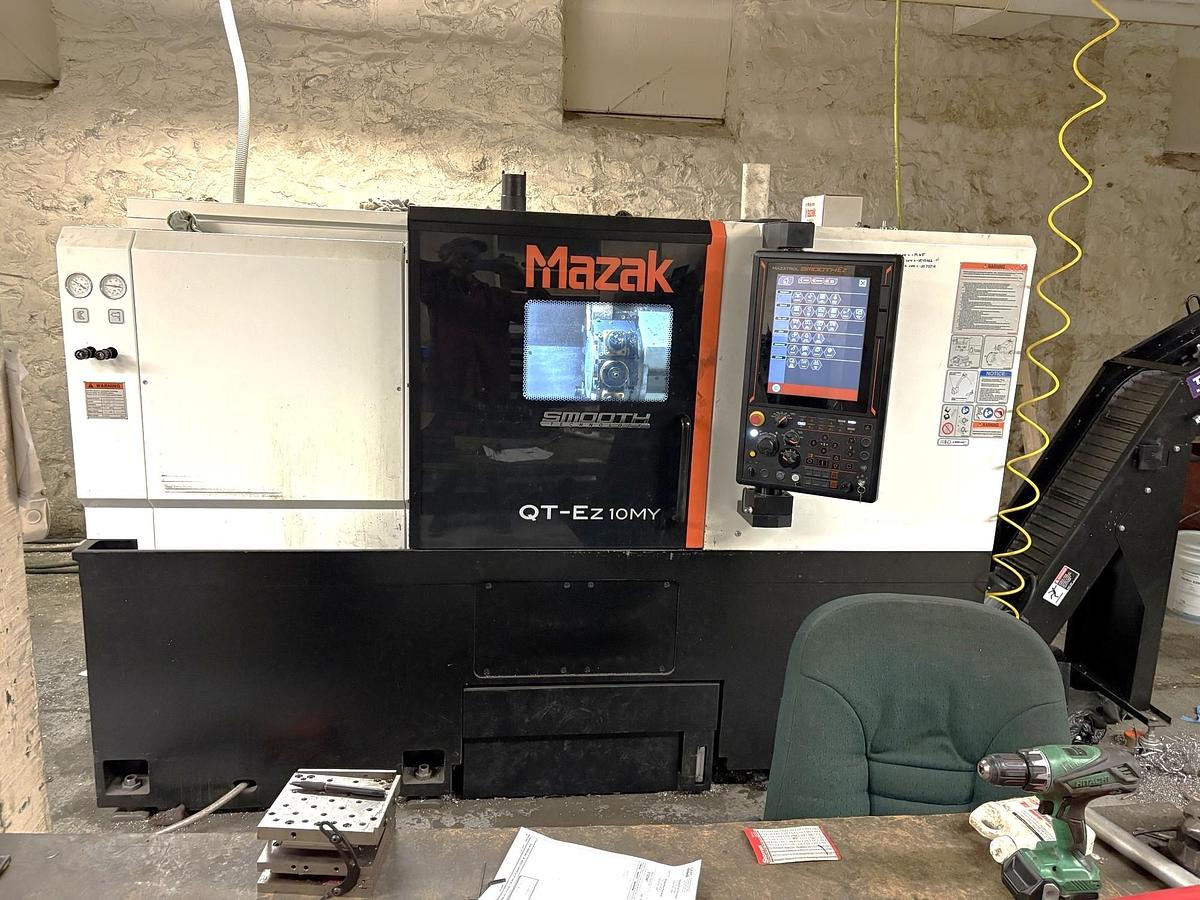

2022 Mazak QT-EZ 10MY with C Axis, Milling/Drilling Capable, Y Axis, Chip Conveyor, 10 Chuck, 3" Bar Capacity, Tailstock, Tool Presetter

Full C Axis Spindle Rotation

Live Milling/Drilling Capability

Y Axis Capability

6" 3 Jaw Hydraulic Chuck

Chip Conveyor

Automatic Tool Eye

Programmable Tailstock

Transformer

USB Port Interface

RS 232 Port Interface

Relocation Device

Coolant System with Tank & Pump

All Available Manuals

Some Static Tool Holders

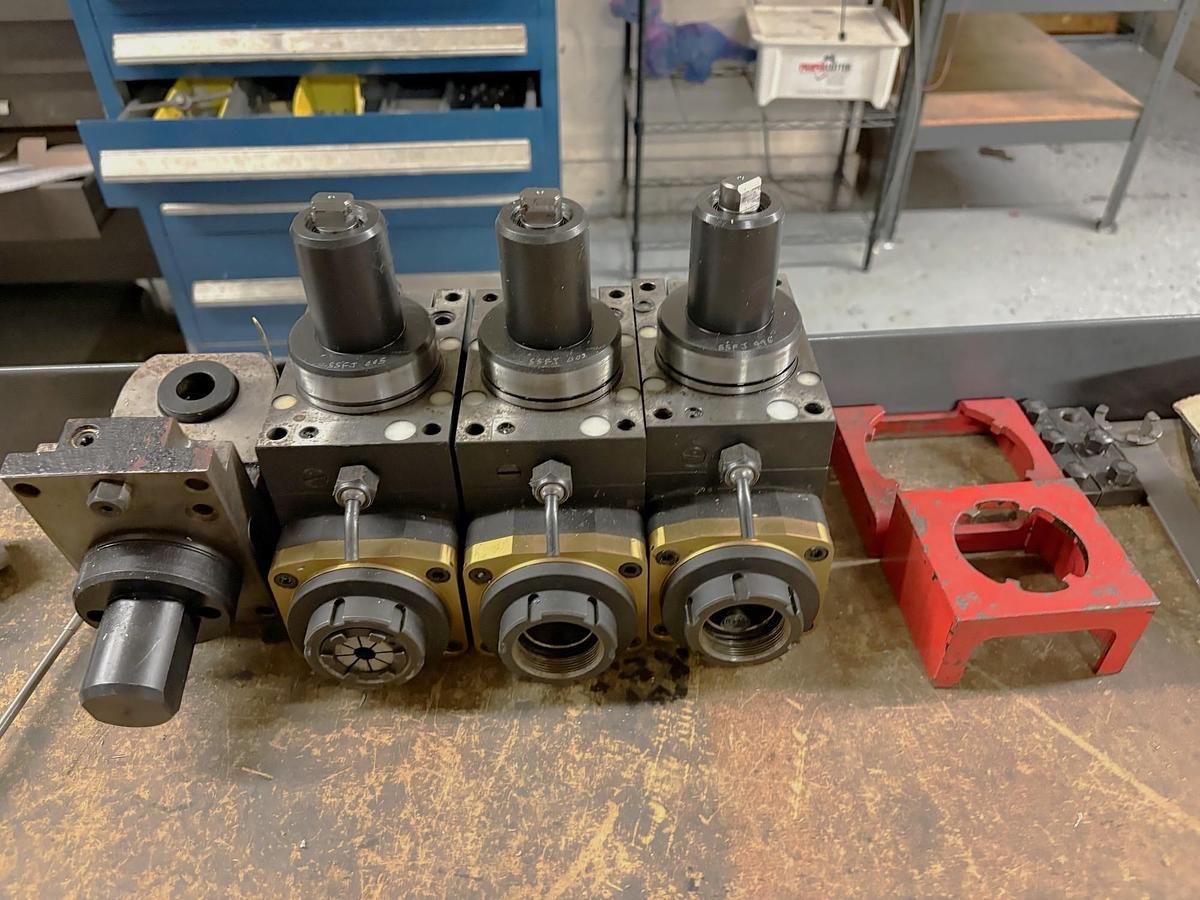

(6) Live Tool Holders

Wired 208V Electrics

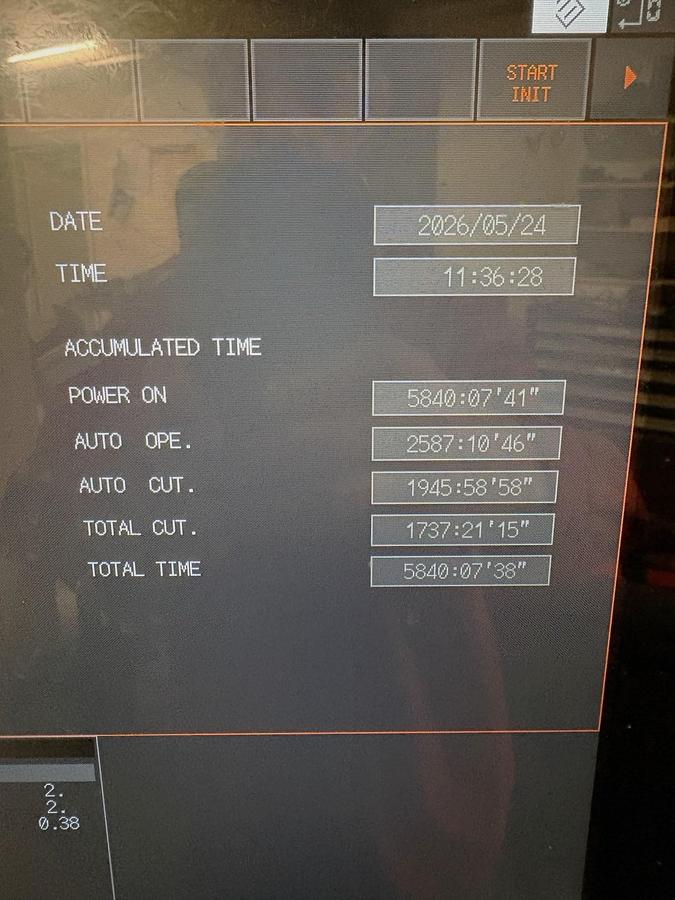

**Power On Hours 5,840**

**Auto Operation Hours 2,587**

**Total Cutting Hours 1,737**

**Manufactured New in January of 2022**

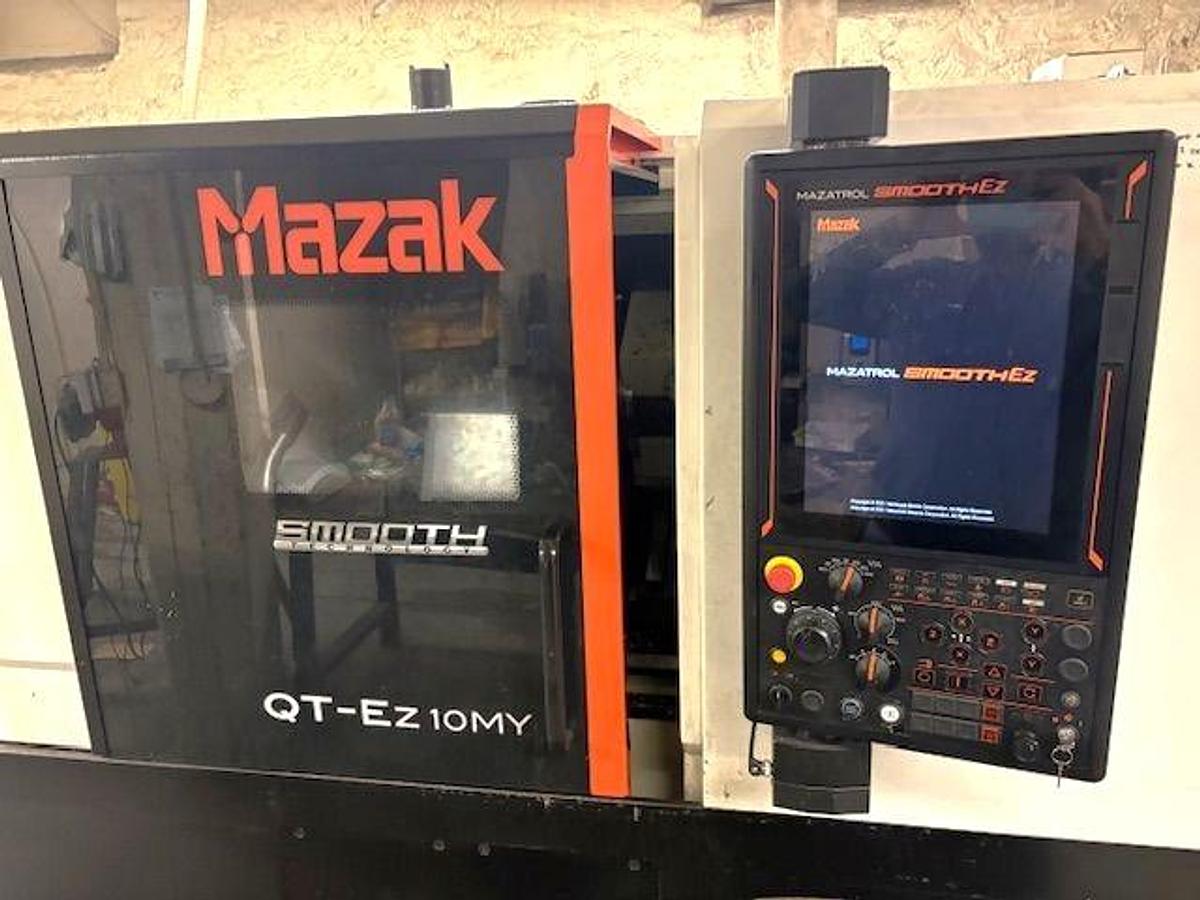

The 2021 Mazak QT-EZ 10MY is a versatile CNC lathe designed for precision machining with advanced capabilities. It's equipped with the Mazatrol Smart EZ Control system, providing user-friendly operation and efficient workflow management. The lathe features a main spindle with a 10-inch 3-jaw hydraulic chuck and supports a 27.4-inch maximum swing, accommodating various workpiece sizes. This model boasts a maximum cutting diameter of 16.13 inches and a cutting length of 22.83 inches. The machine supports X, Y, and Z-axis travel of 8.5, 4.0, and 25 inches, respectively, and incorporates a precise C-axis with 0.001-degree rotation. With spindle speeds reaching up to 4,200 RPM and a 20 HP motor, it offers impressive performance for demanding tasks. The Mazak QT-EZ 10MY includes a 12-station turret for versatile tool applications and efficient processing, housed within dimensions of 110 x 75 x 68 inches and a weight of 11,650 pounds. Its robust construction and advanced functionalities make it a reliable choice for complex machining operations.
