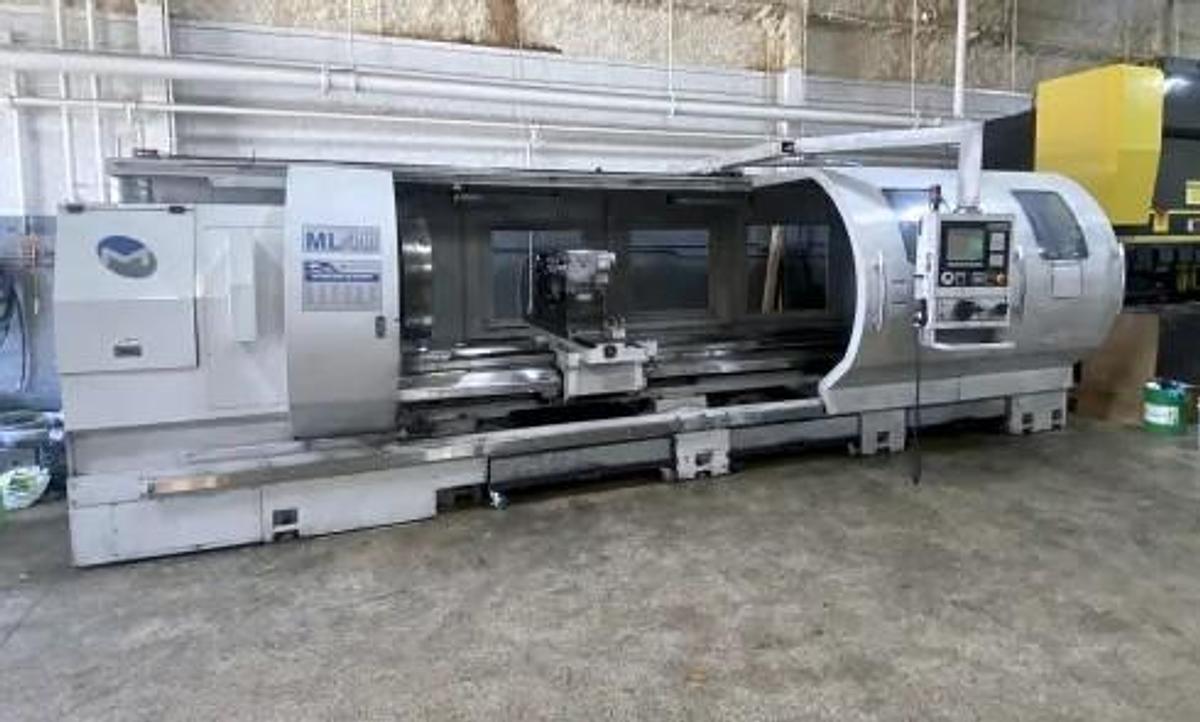

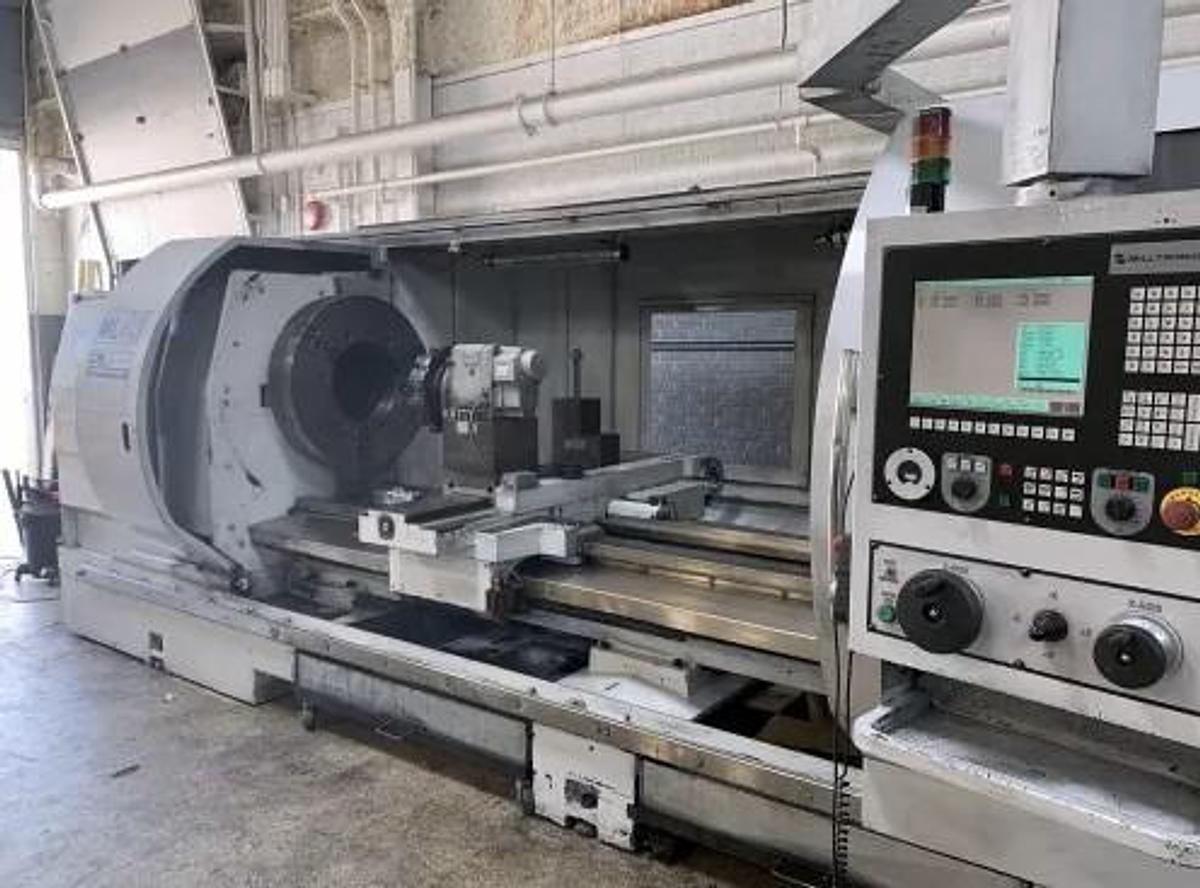

2010 Milltronics ML40/160
2010 Milltronics ML40/160
$139,500 (USD)
Location:Illinois
or
Call (863) 439-6066
Description
12" LCD Active Matrix Color Display
14" Spindle Bore
Software Package A
Thread Chasing
Constant Surface Speed
Rigid Tapping
High Torque AC Digital Servo Drives
Edit Lockout Key
Work Lights
Remote Jog Handle
Rear Mounted Chuck Flange A2-20 Mount
2" to 12" Steady Rest

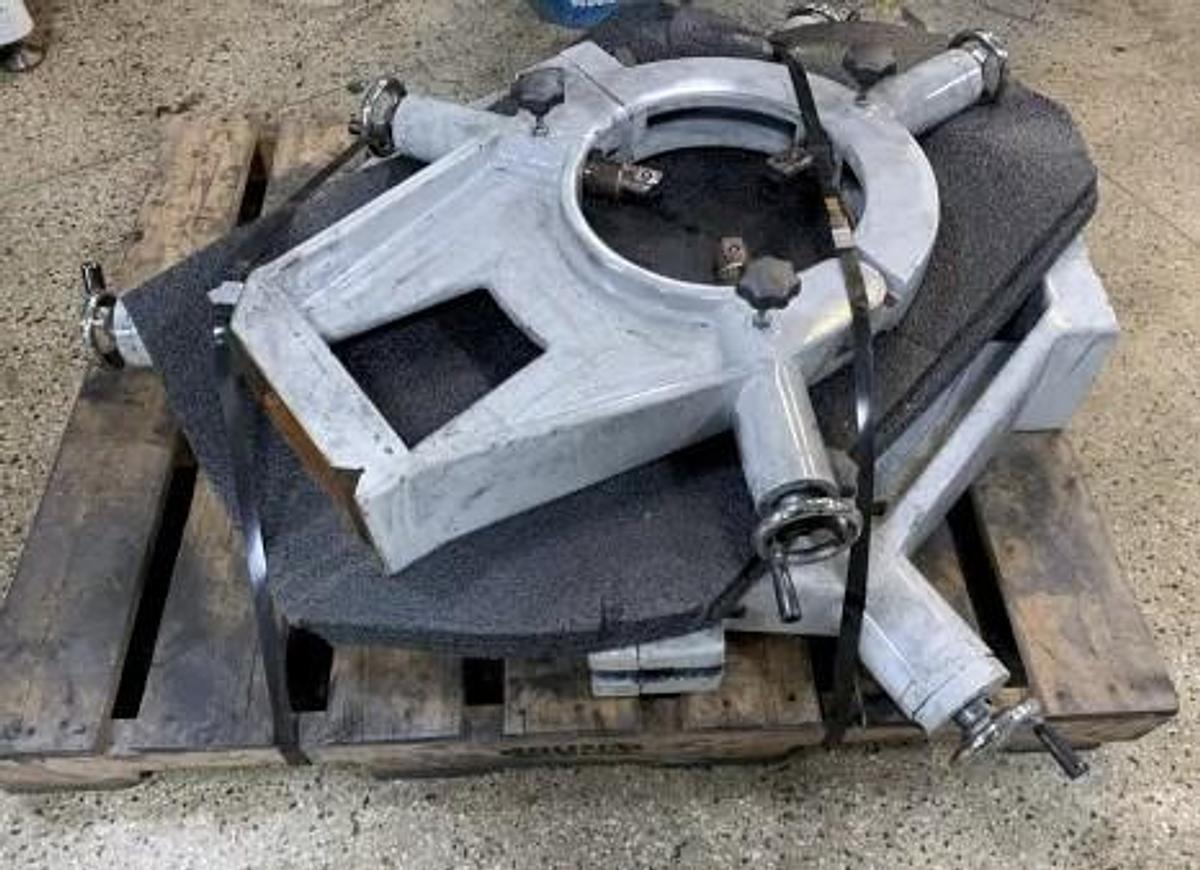

9.8" to 19.69" Steady Rest
Live Center
All Available Manuals
Specifications
| Manufacturer | Milltronics |
| Model | ML40/160 |
| Year | 2010 |
| Condition | Used |
| Stock Number | 120863 |

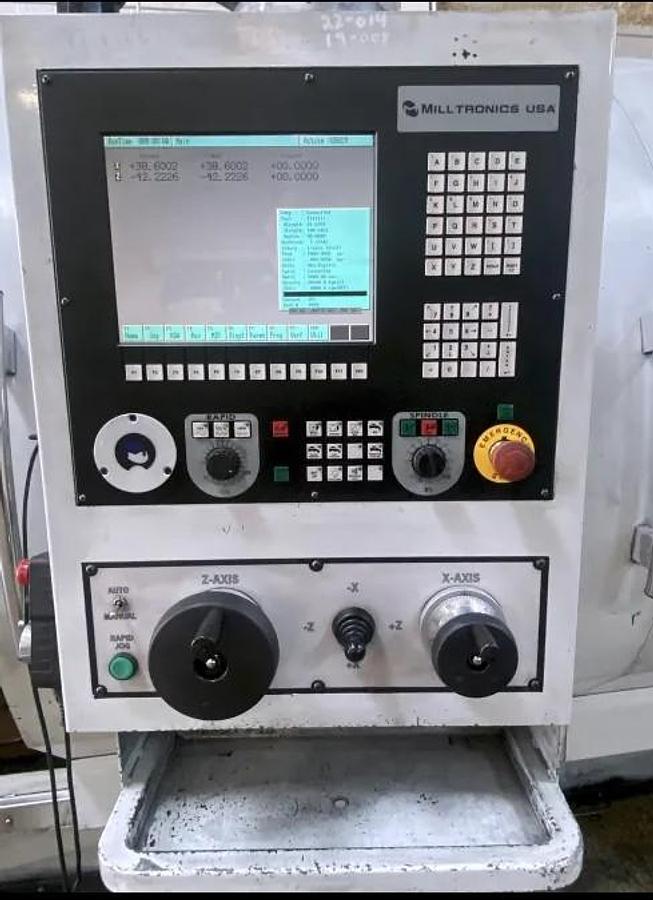

| Machine Control | Centurion 7200 Conversational |
| Chuck Size | 24" 3-Jaw |
| X-Axis Travel | 21" |
| Z-Axis Travel | 160" |
| Maximum Swing | 39.7" |
| Swing in Gap | 50" |
| Maximum Swing Over Cross Slide | 26.6" |
| Distance Between Centers | 160" |

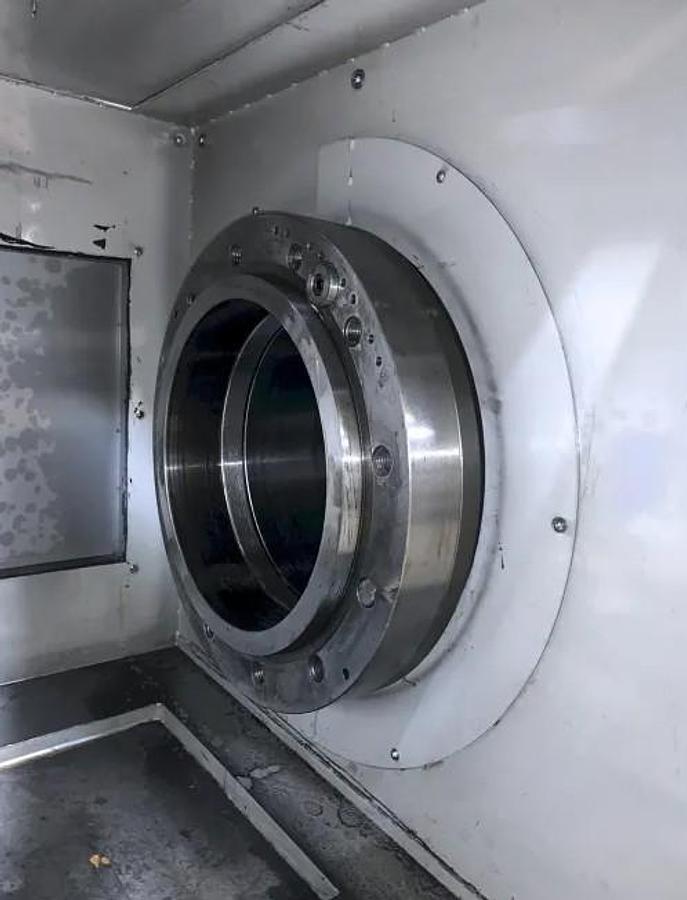

| Spindle Nose / Bore / Bar Capacity | A2-20" / 14" / 14" |
| Spindle Speed | 2-Speed 10-500 RPM |
| Spindle Motor | 25/35 hp |

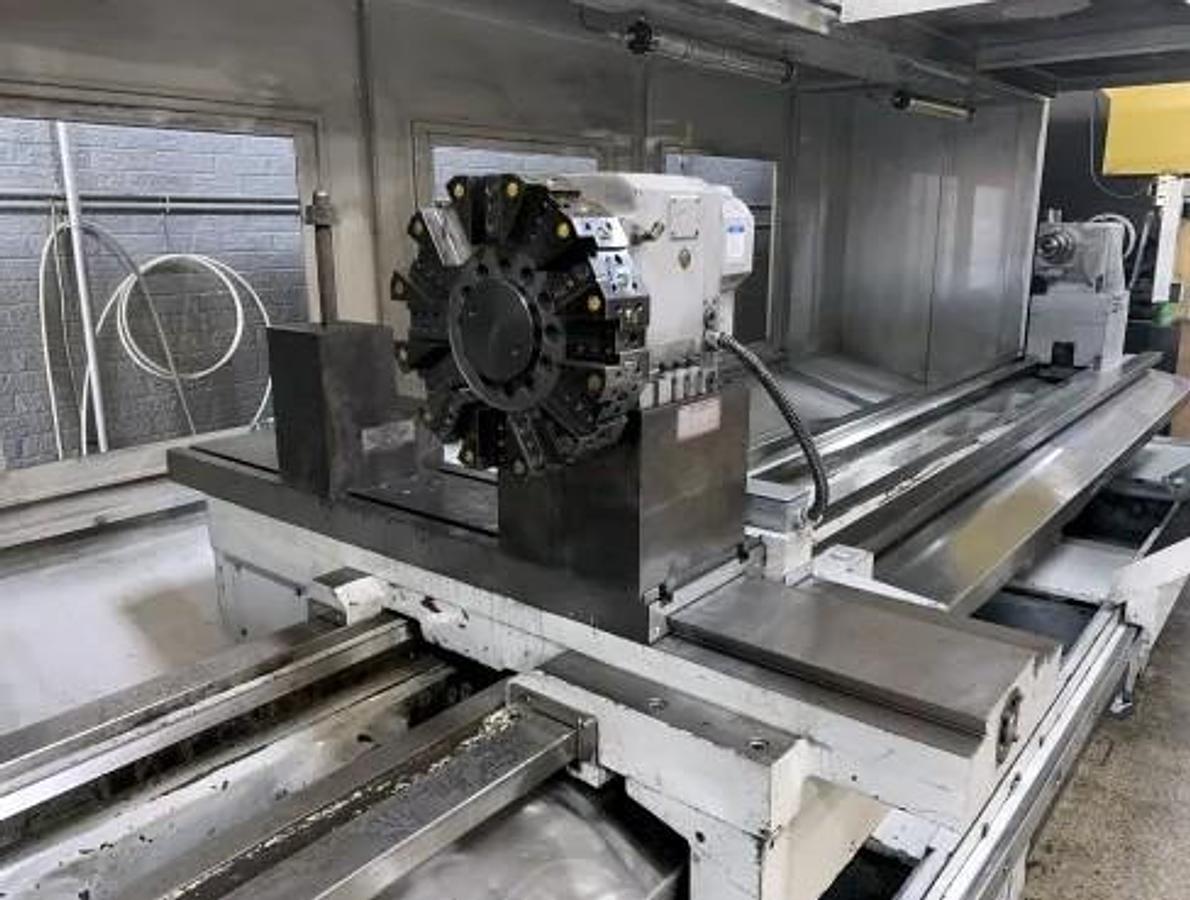

| Number of Turret Positions | 12 |
| Rapid Traverse Rates | 500 ipm |

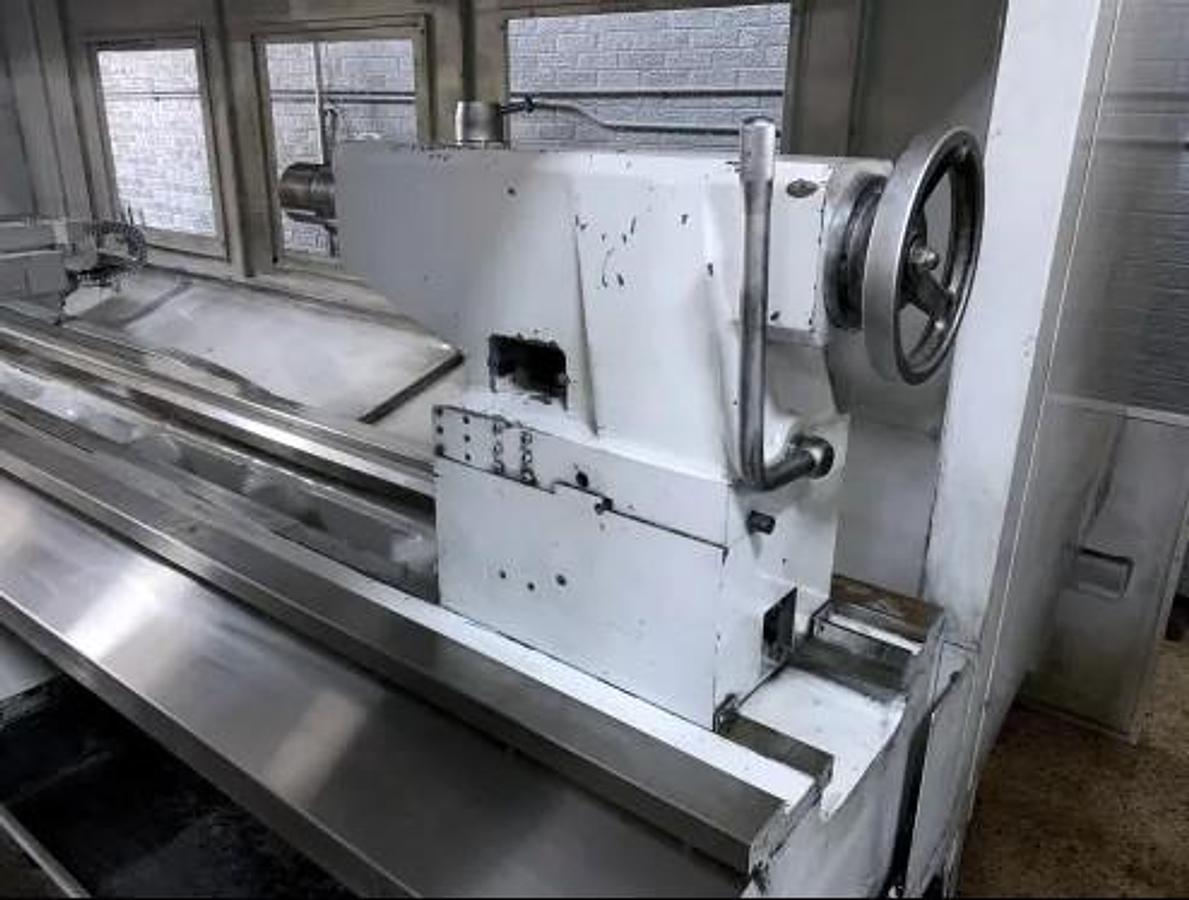

| Tailstock Quill Diameter / Quill Travel / Taper | 4.92" / 9" / #6MT |
| Machine Dimensions LxWxH | 272"x110"x90" |
| Machine Weight | 28,900 lbs |
