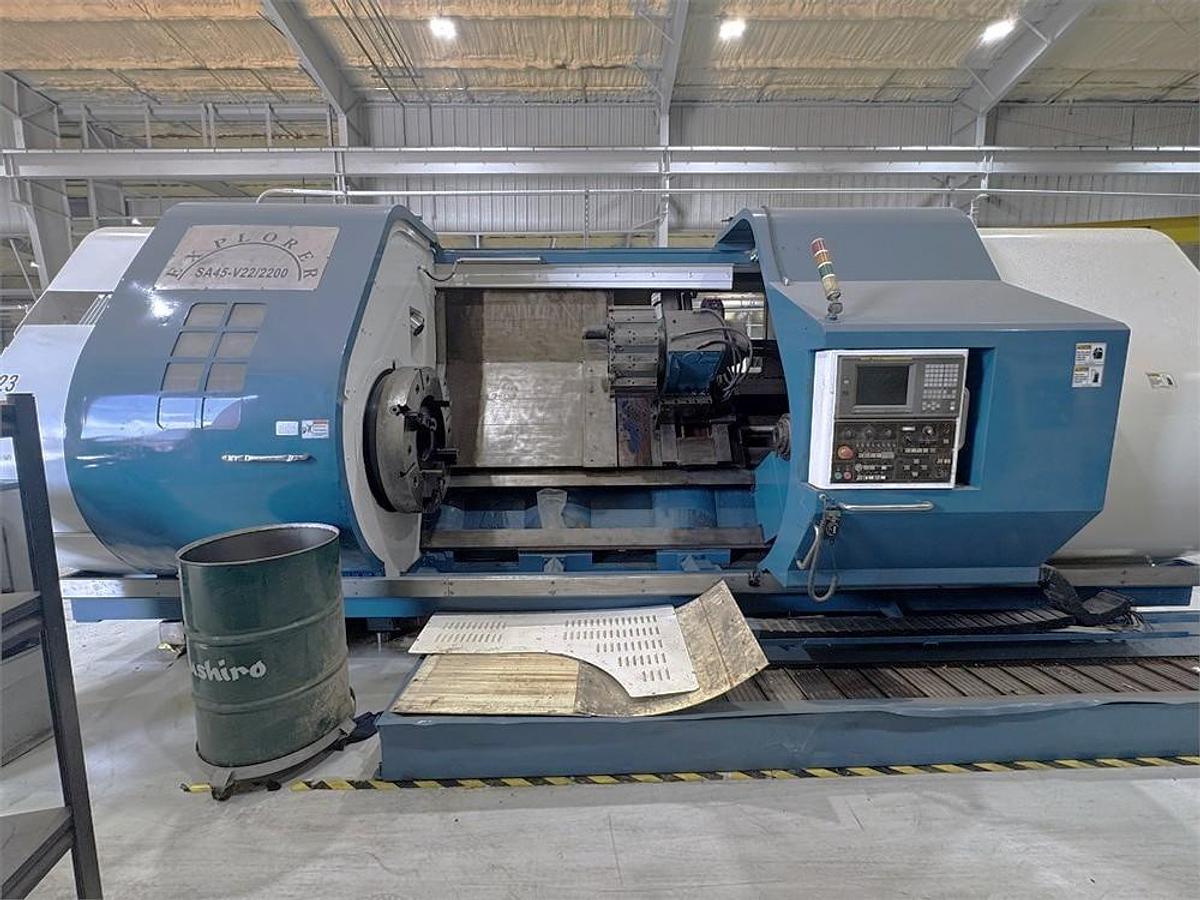

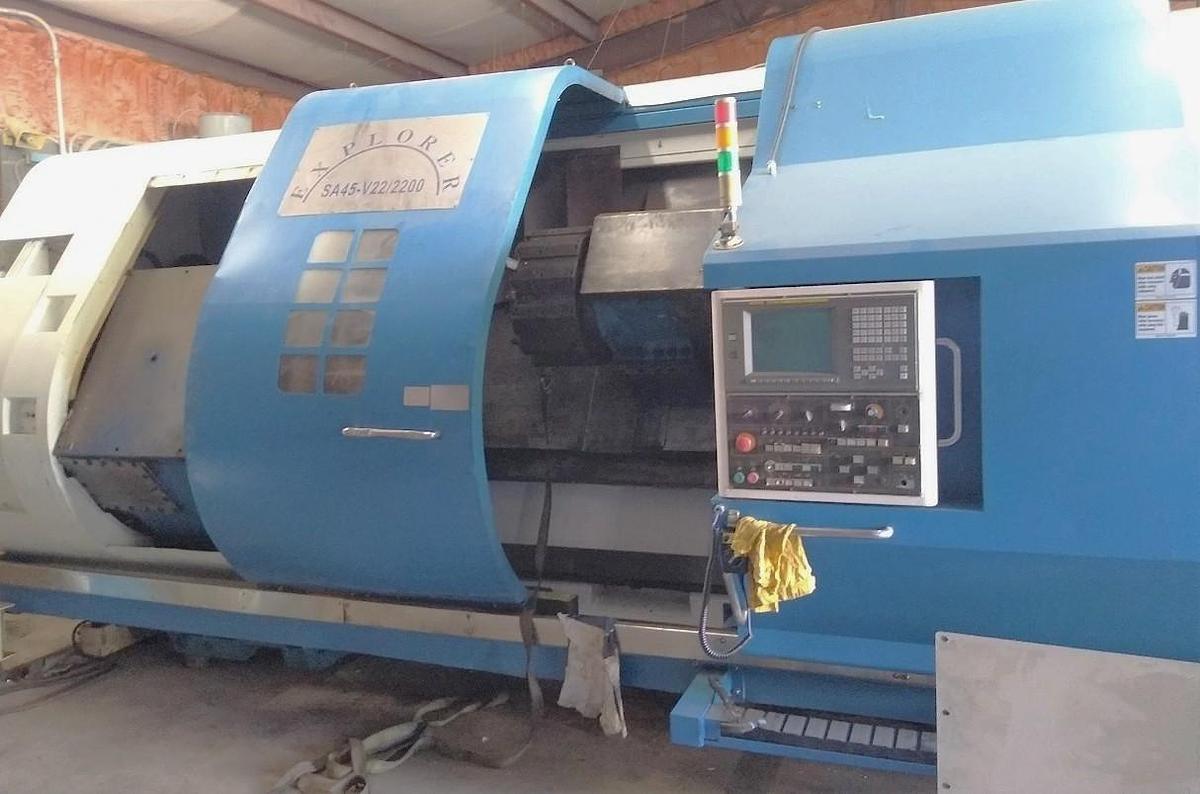

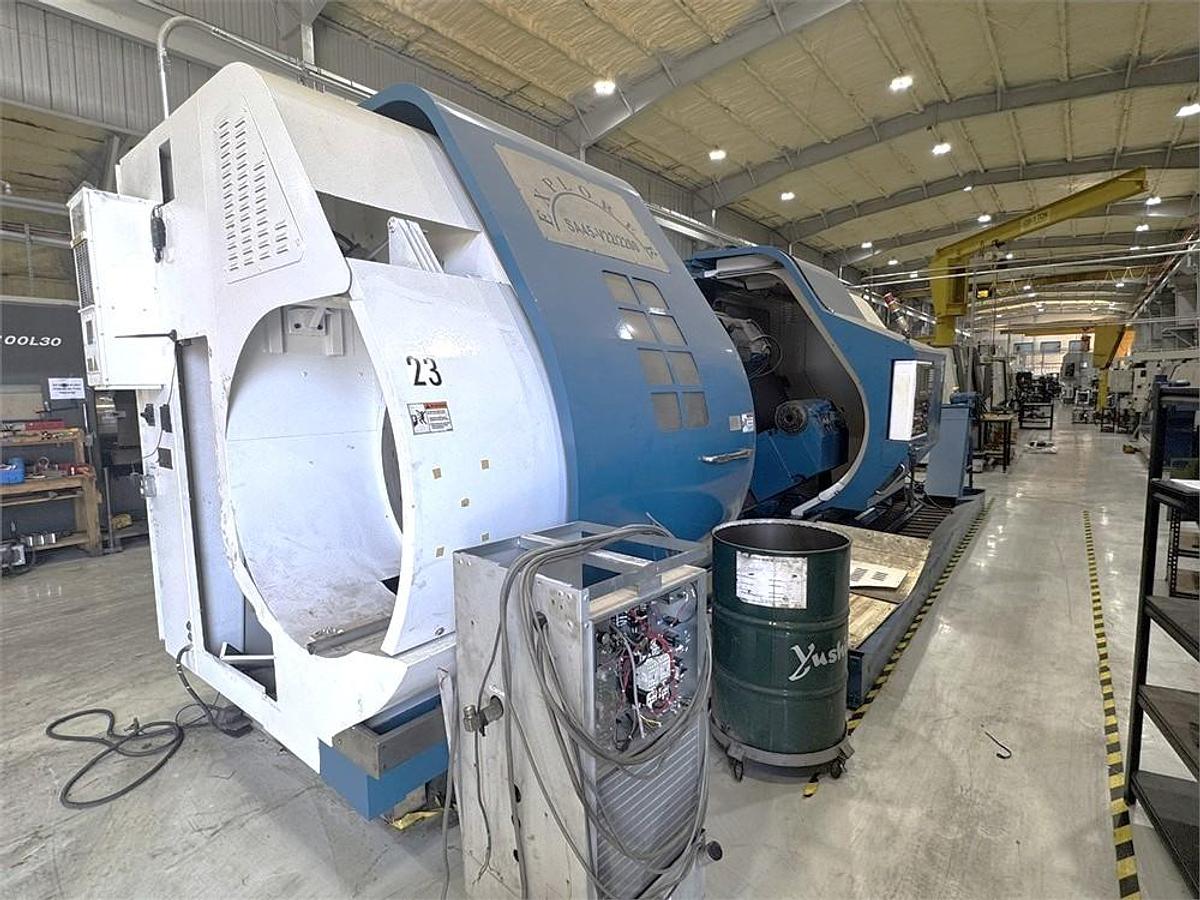

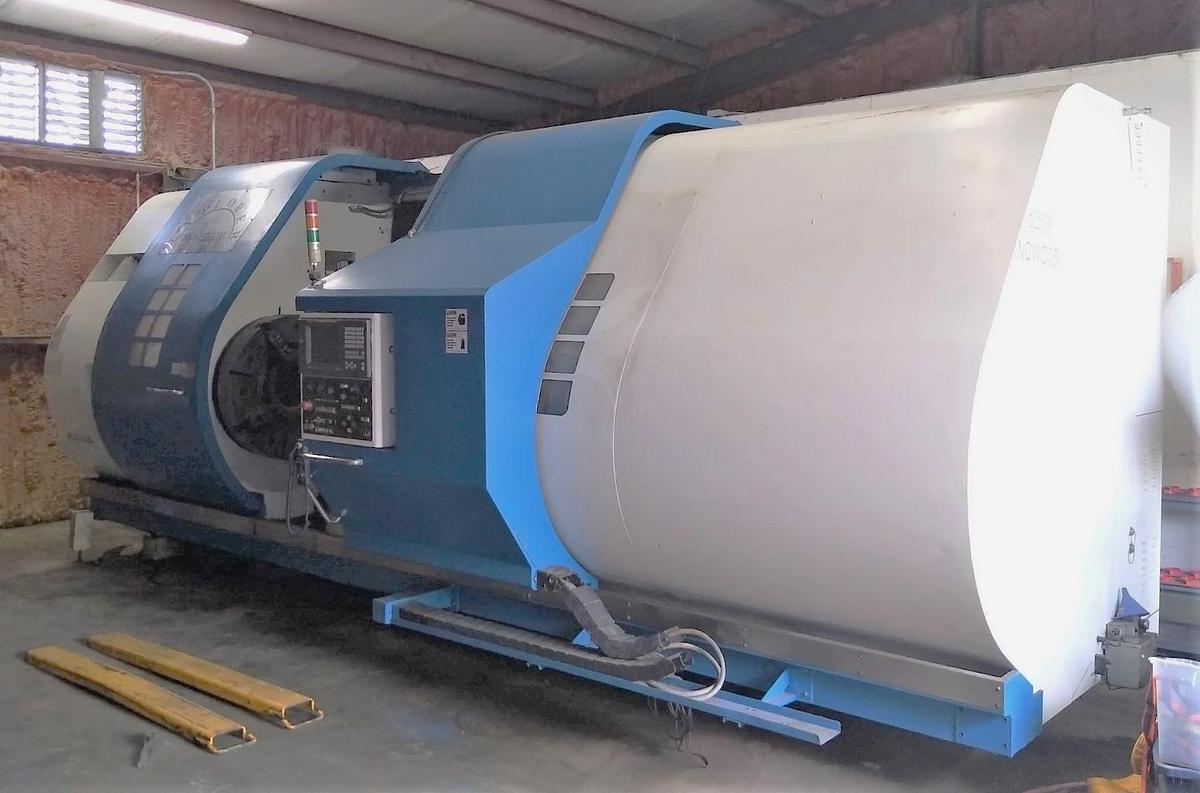

2006 Vantage Explorer SA45-V22/2200 CNC Big Bore Lathe with 21.06" Bore,

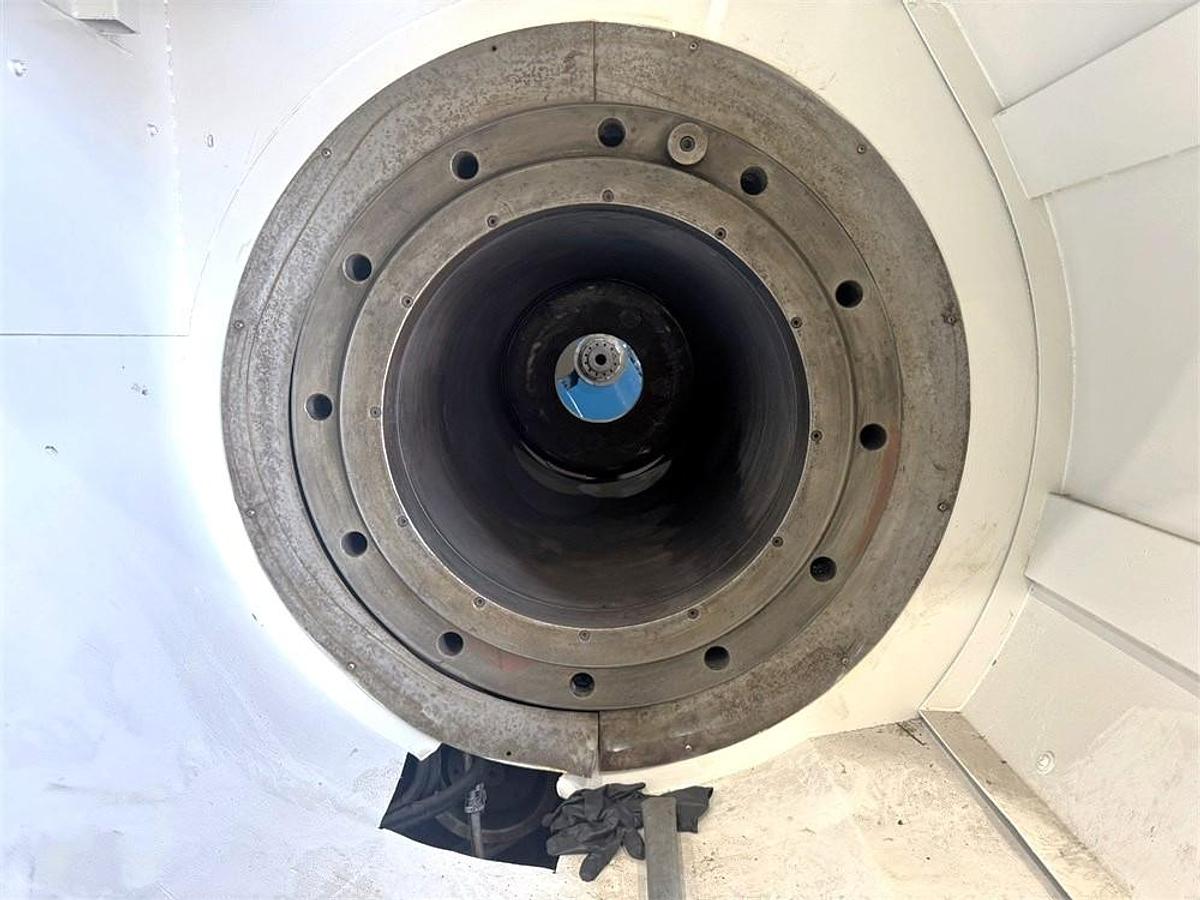

21.06" Big Bore Spindle Bore

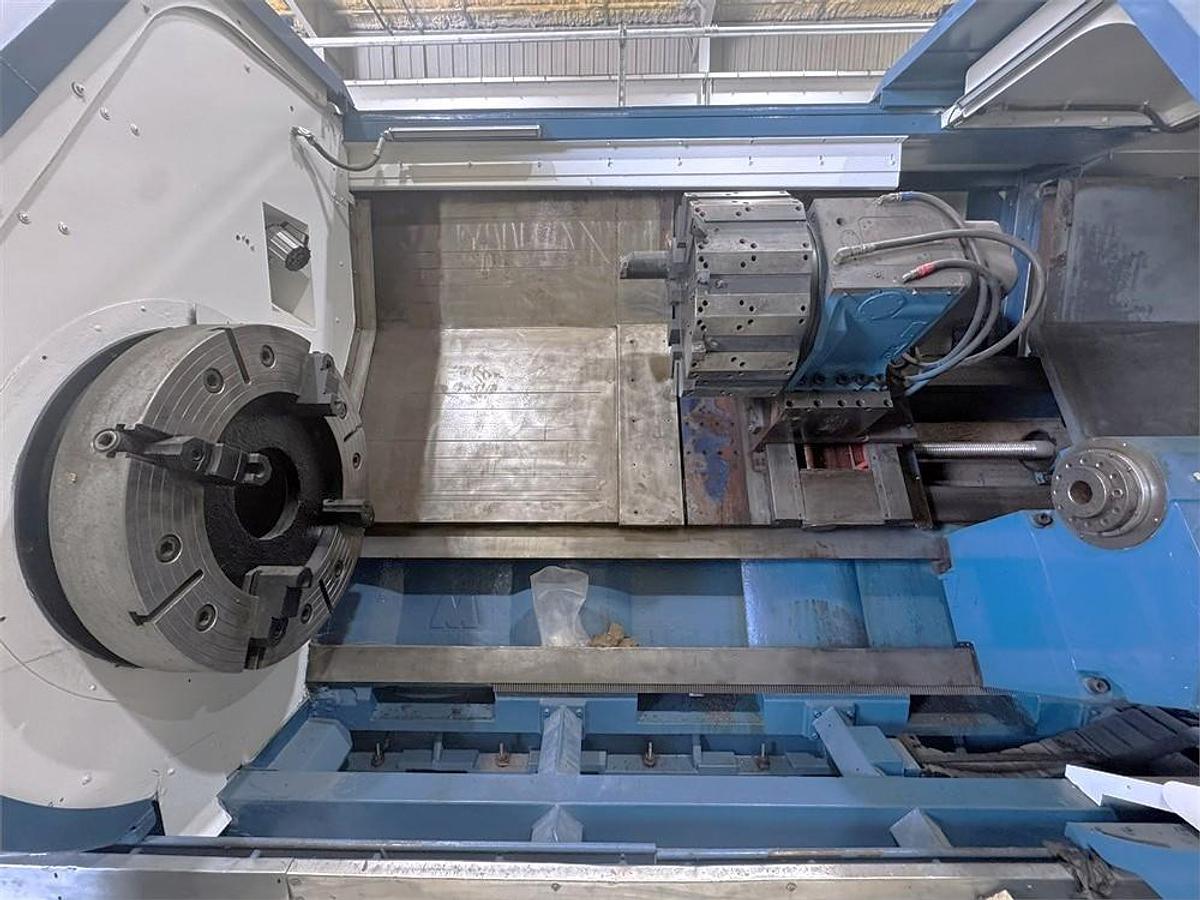

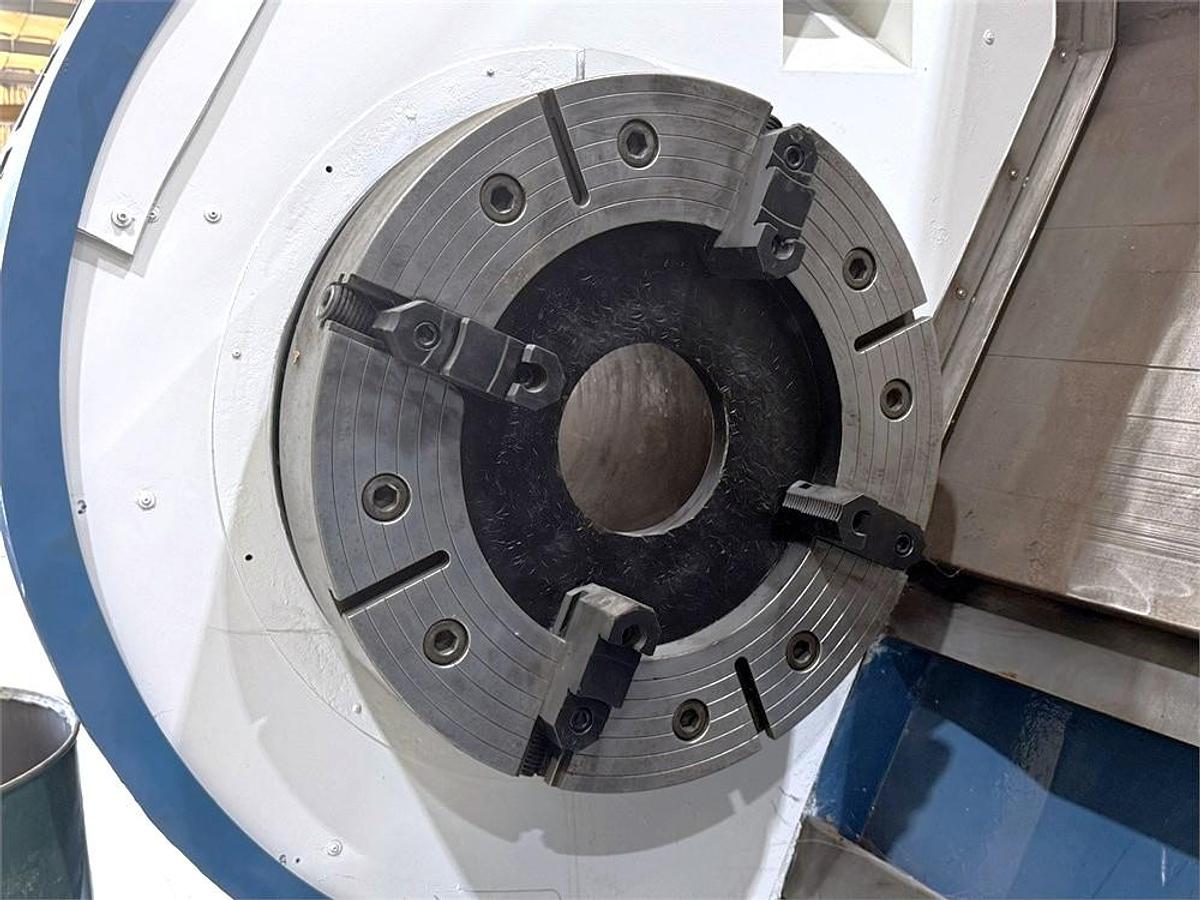

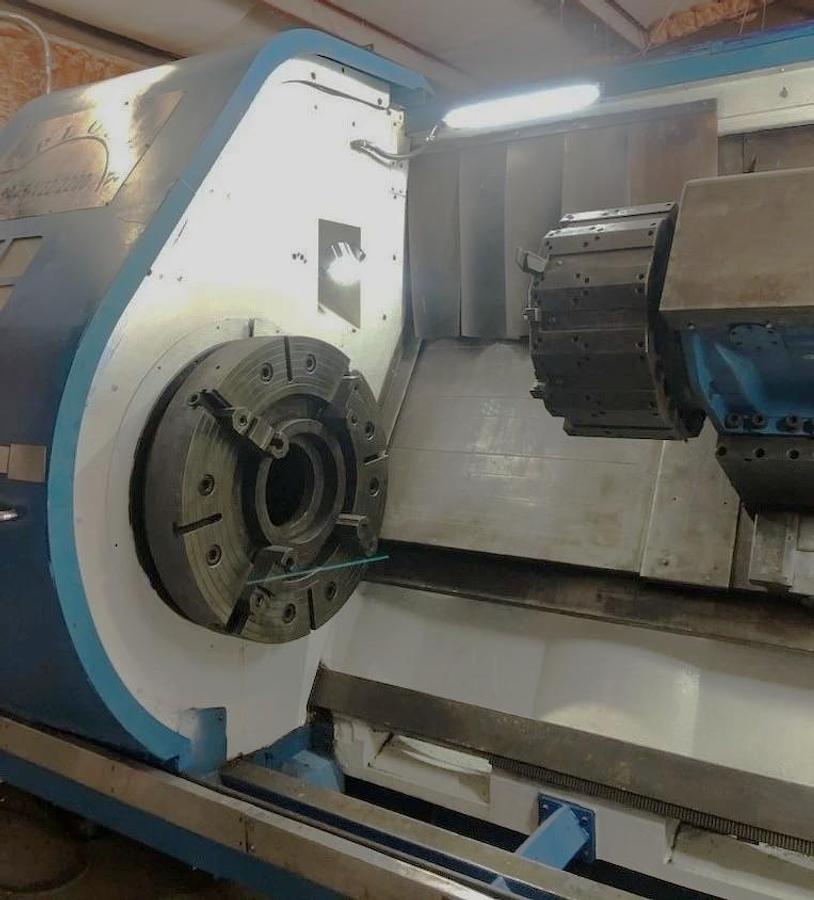

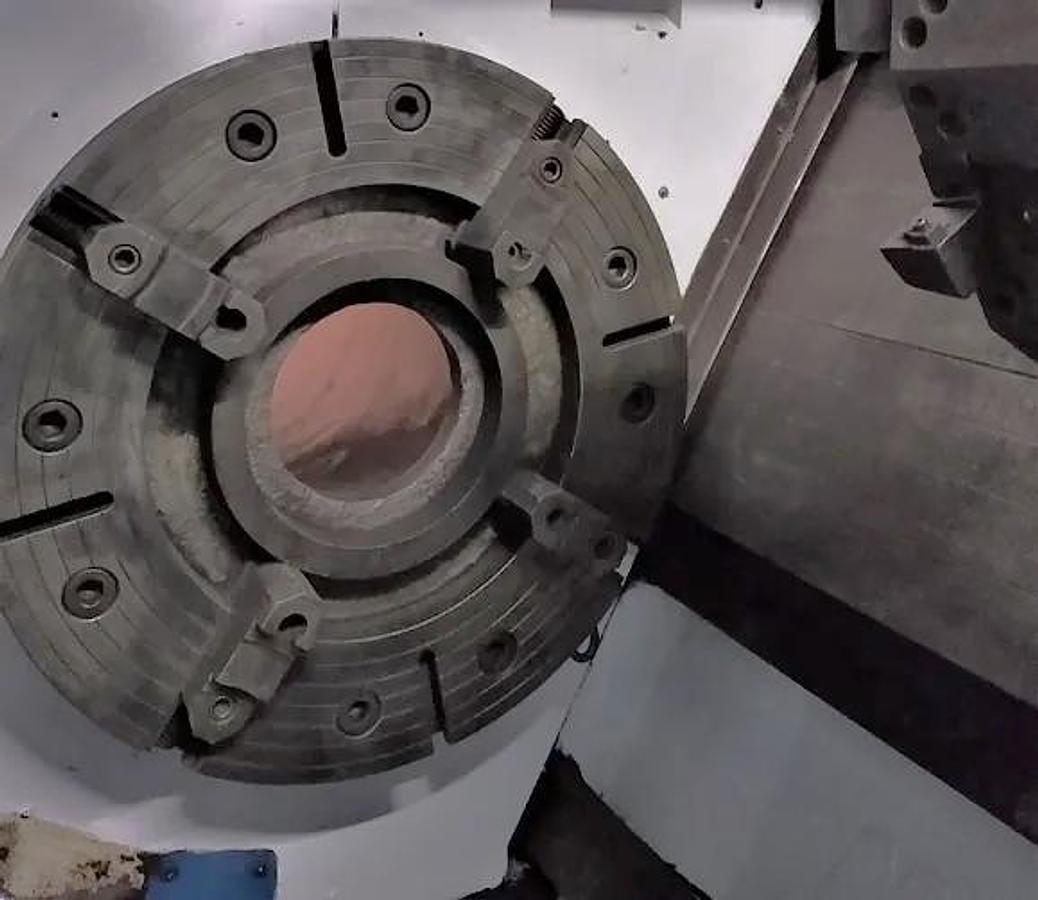

40" 4 Jaw Manual Through Hole Chuck

Tailstock

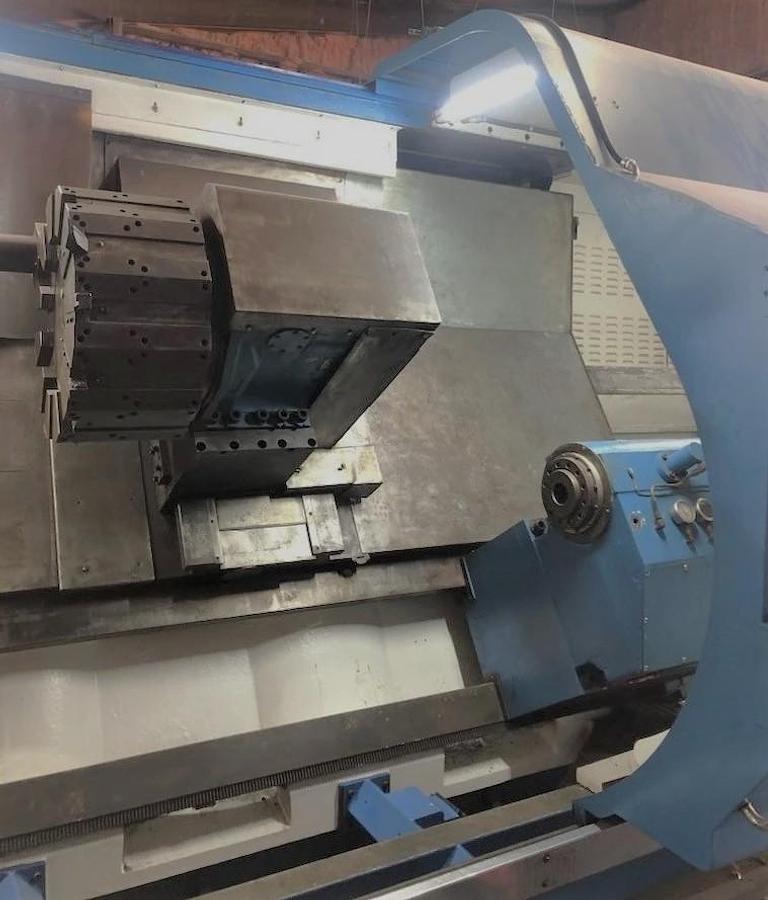

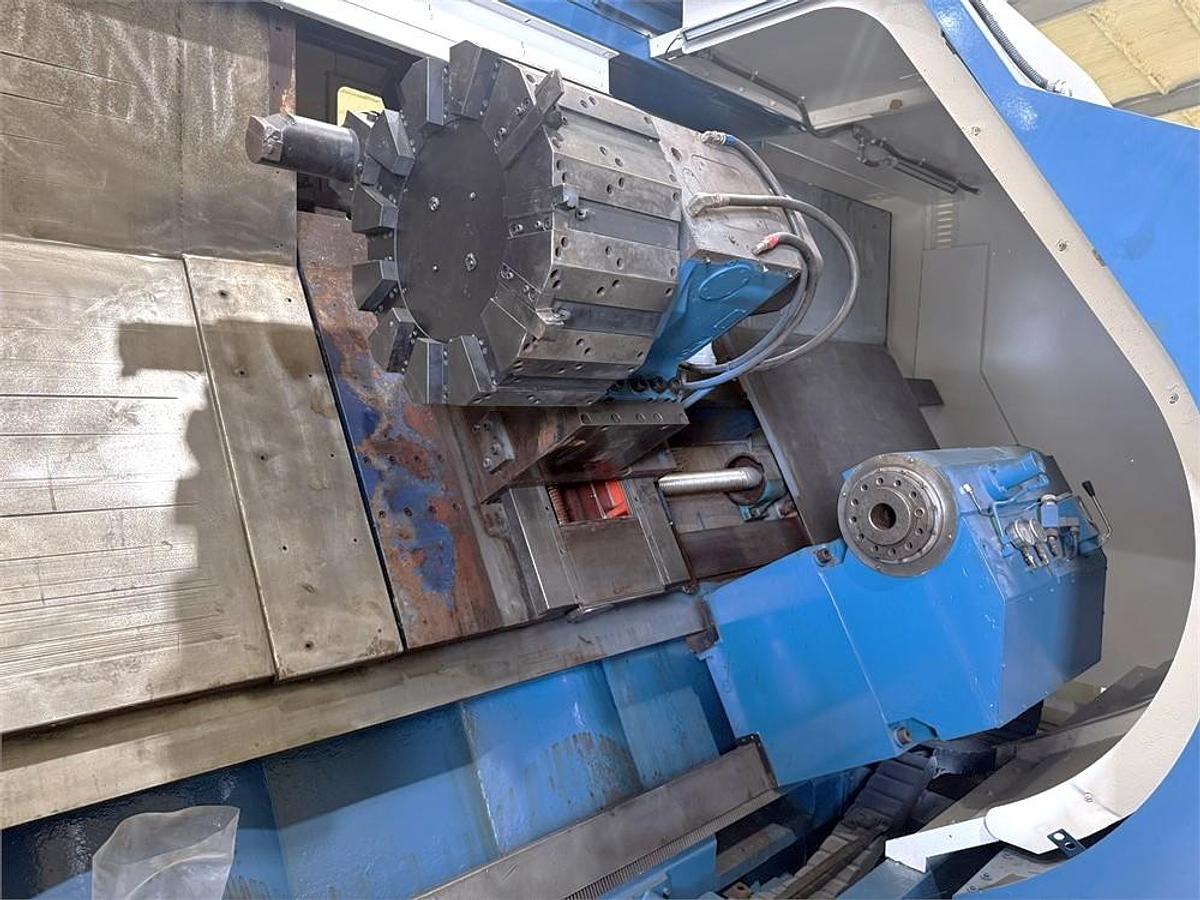

12 Station Turret Chip Conveyor

Coolant System with Tank & Pump

RS 232 Port Interface

Machine Status Condition Lights

Work Light

Heavy Duty Boxed Ways All Available Manuals & Tool Holders

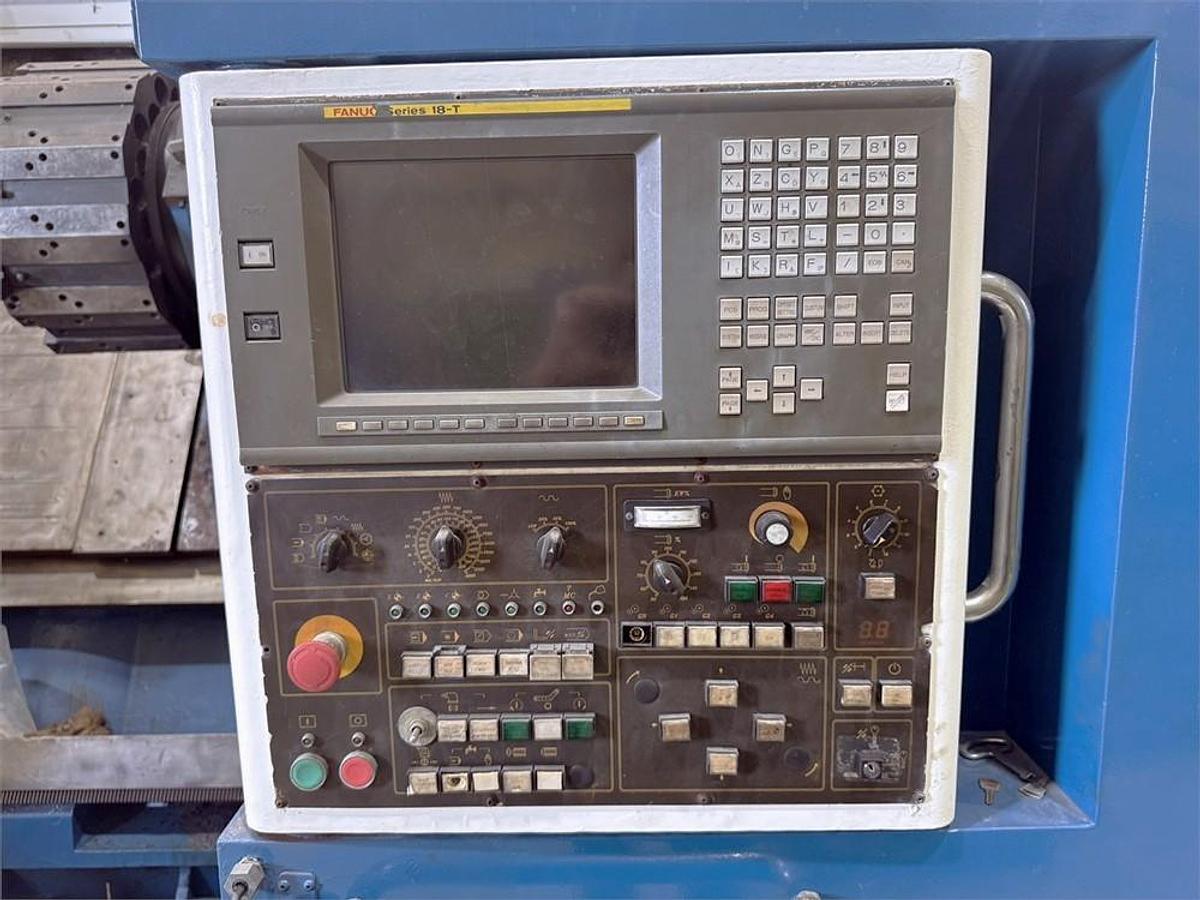

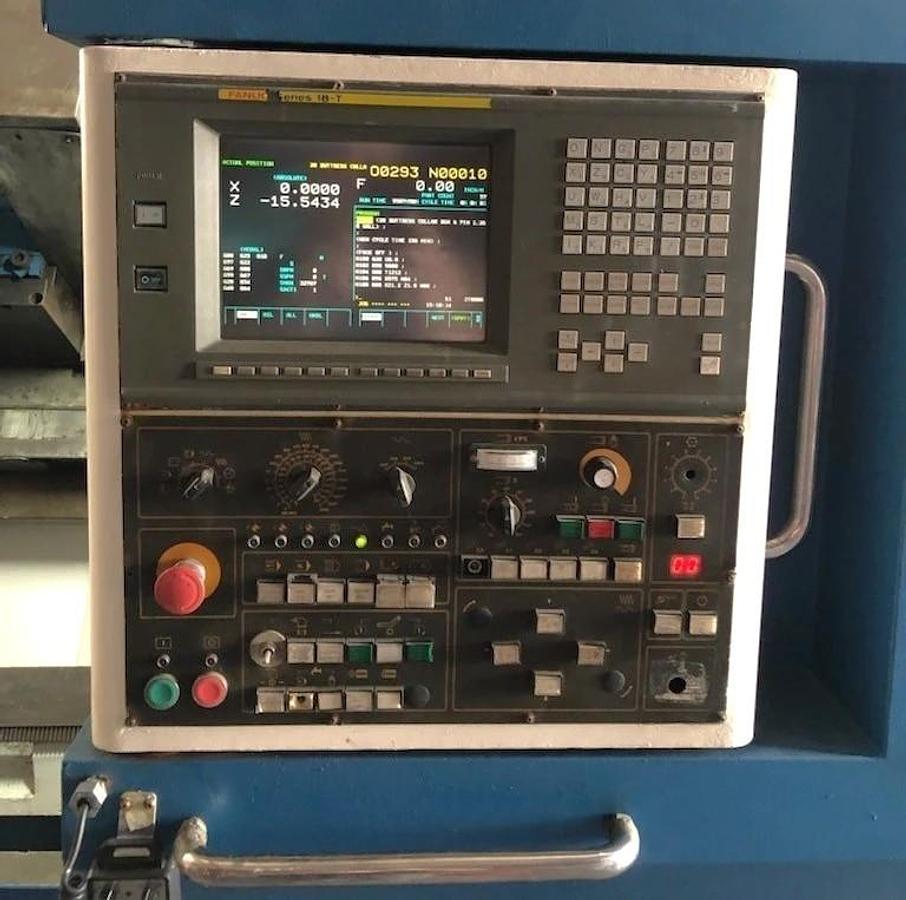

The 2006 Vantage Explorer SA45-V22/2200 is a CNC big bore lathe designed for high-performance machining tasks. It features a Fanuc Series 18-T Control for precision management. With a maximum swing over the bed of 45 inches and a machining diameter and length of 45 inches and 86 inches respectively, this lathe is suited for handling large workpieces. The machine integrates a 40-inch 4 jaw manual chuck and a spindle bore of 21.06 inches, allowing considerable bar capacity. The lathe operates at spindle speeds ranging from 2 to 300 RPM, driven by a robust 60 HP spindle motor. The 12-position turret supports tool shanks up to 4 inches in diameter, accommodating various tooling setups. For rapid operations, the machine boasts traverse rates of 315 inches per minute on the X-axis and 394 inches per minute on the Z-axis. Tailstock functionality includes a spindle travel distance of 7.87 inches, enhancing versatility in different machining applications. Weighing 38,500 pounds, this machine is built with durability and stability in mind, though the exact dimensions are not available. Its robust construction and comprehensive specifications provide reliability and efficiency for demanding industrial applications.
