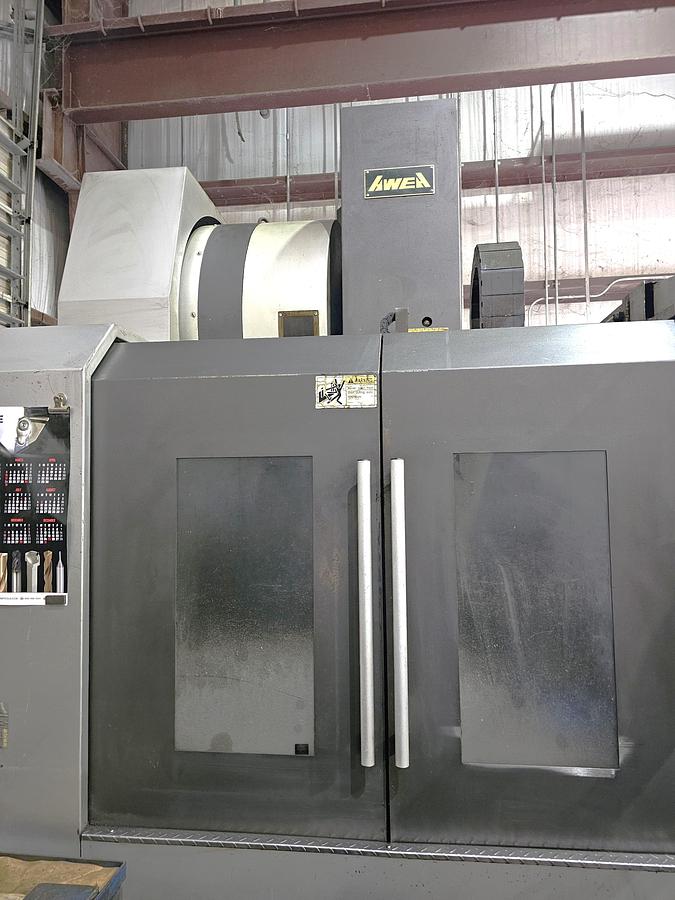

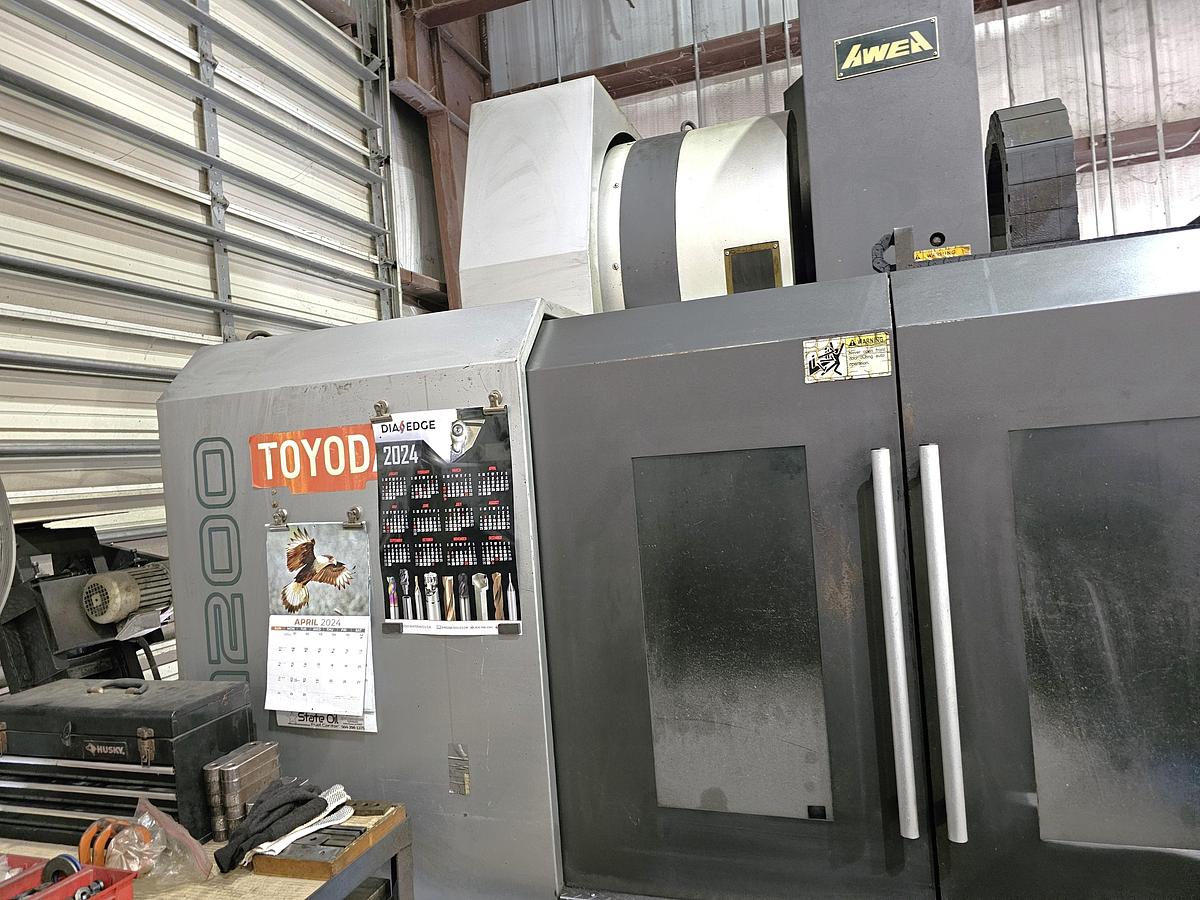

2006 Awea (Toyoda) BM-1200 with Chip Conveyor, 24 Station Side Mount ATC, RJH, Boxed Ways, Fanuc Control

Chip Conveyor 24 Station Side Mounted Tool Changer

1000 PSI Coolant Through the Spindle Manual Pulse Generator

Boxed Way Construction

Rigid Tapping

Flood Coolant

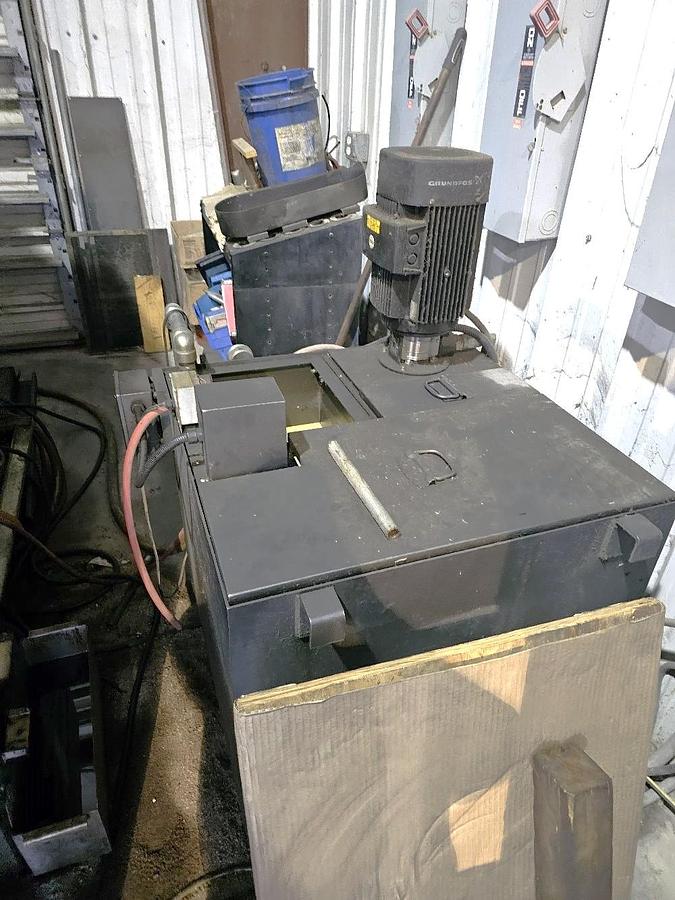

Coolant System with Tank & Pump

Helical Interpolation

Work Light

RS-232C Port Interface

All Available Manuals

Wired 220V / 25 KVA Capacity

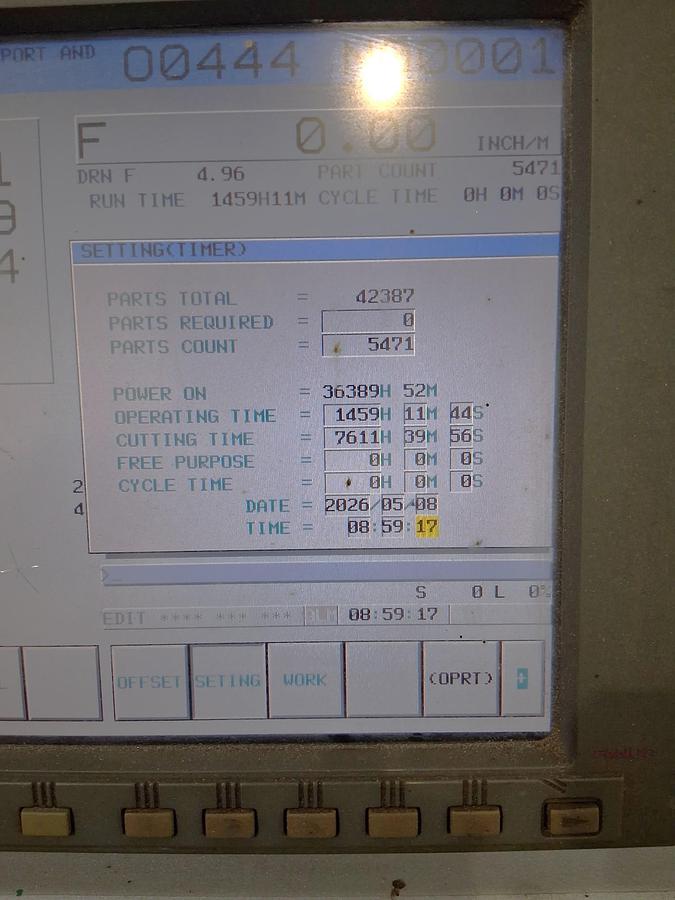

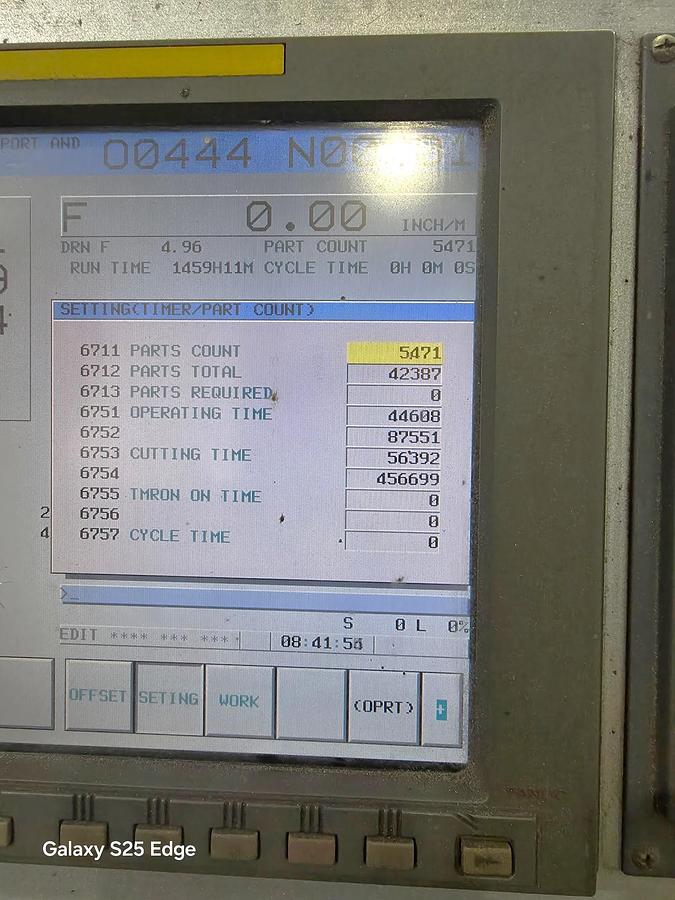

**Cutting Hours 8,551**

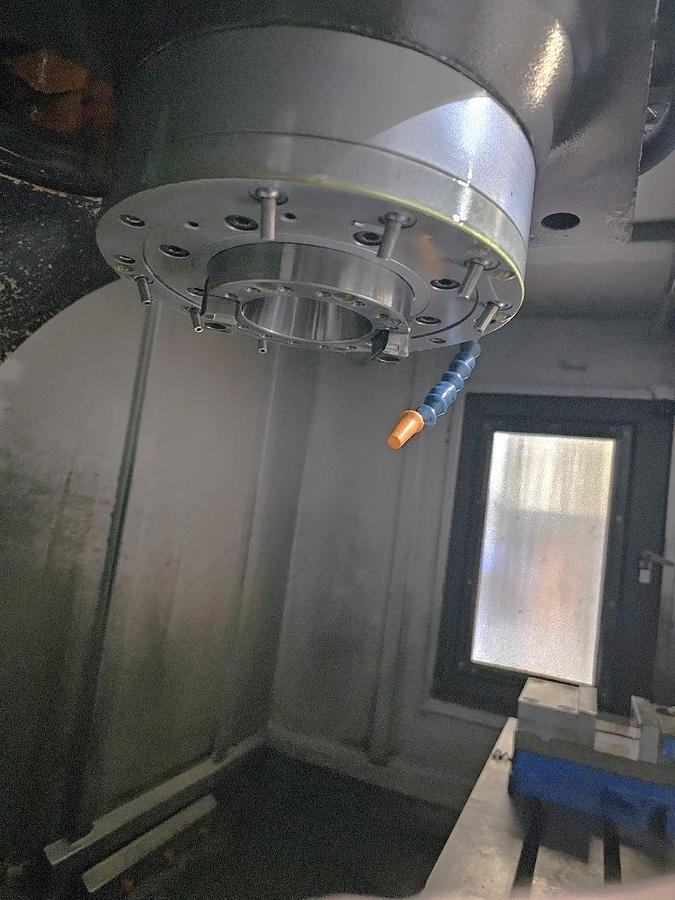

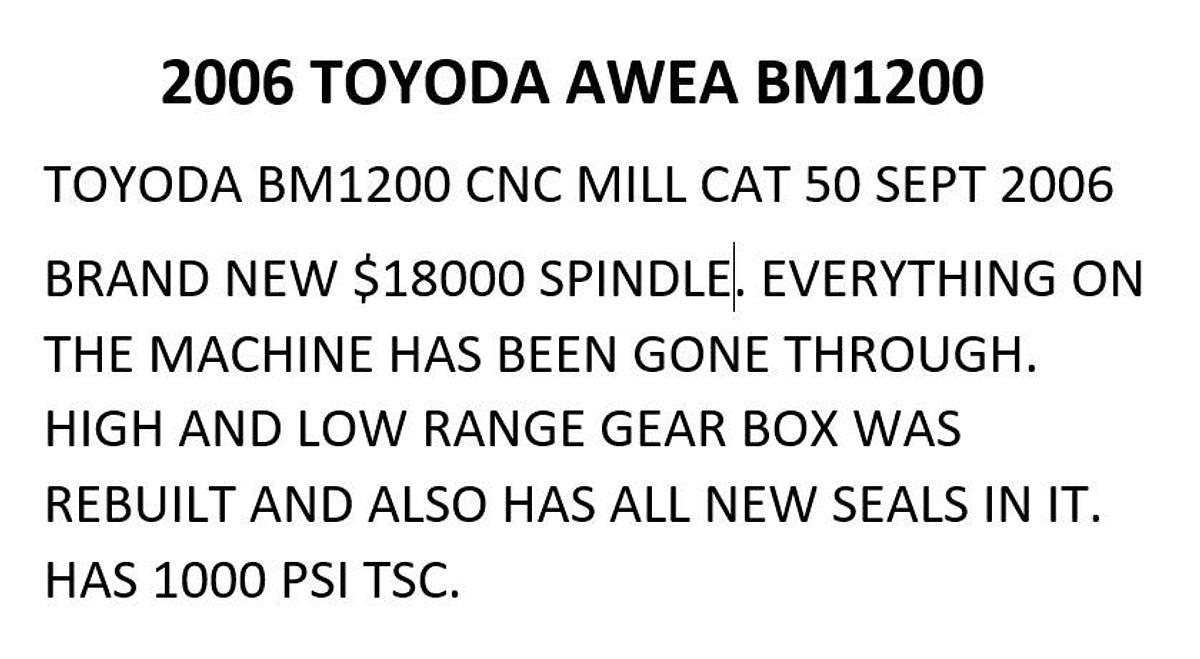

**Recently Replaced Spindle At Cost Of $18,000, Machine Runs Great High/Low Gearbox Sas Rebuilt With New Seals**

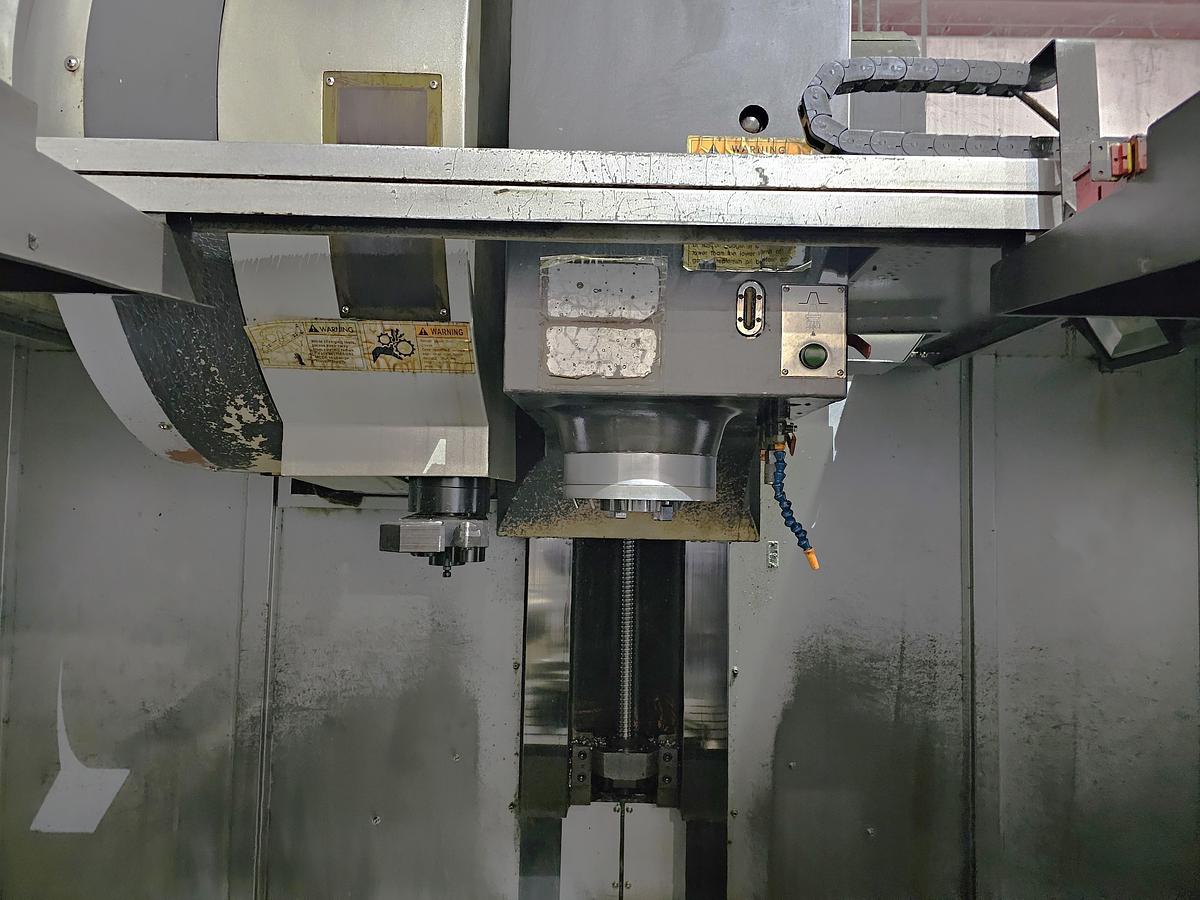

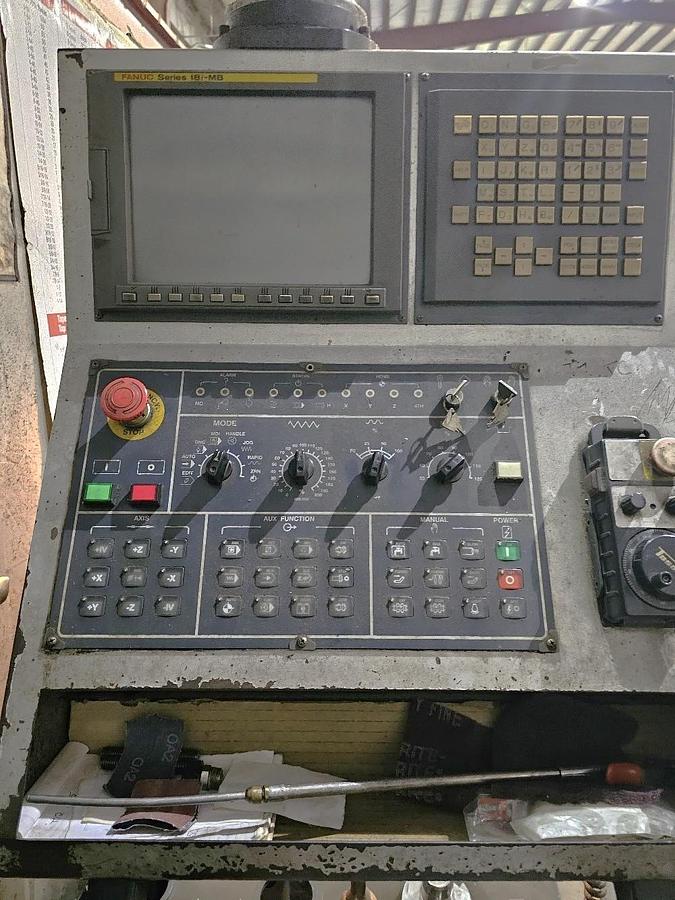

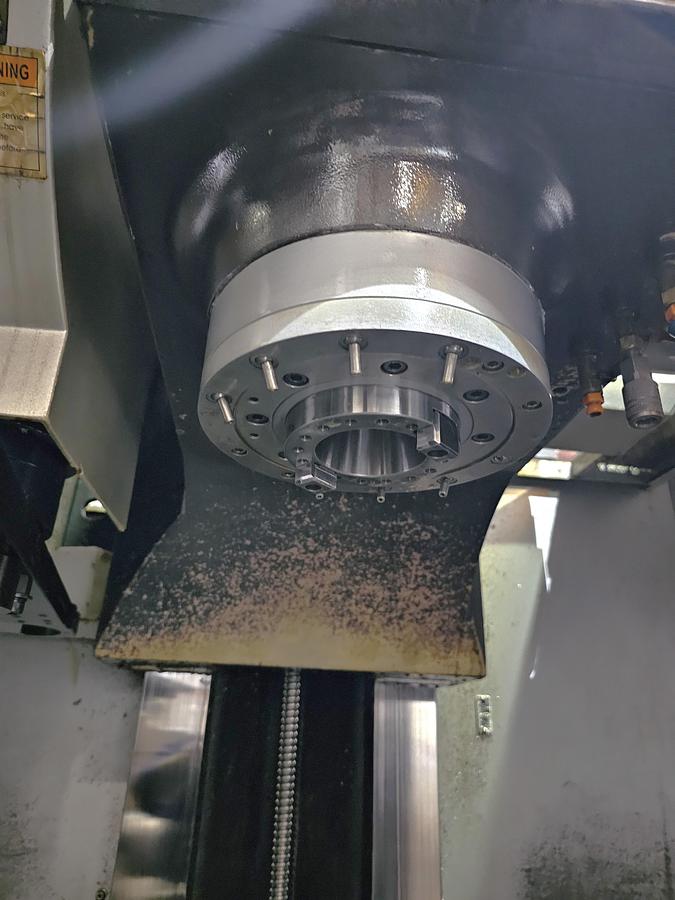

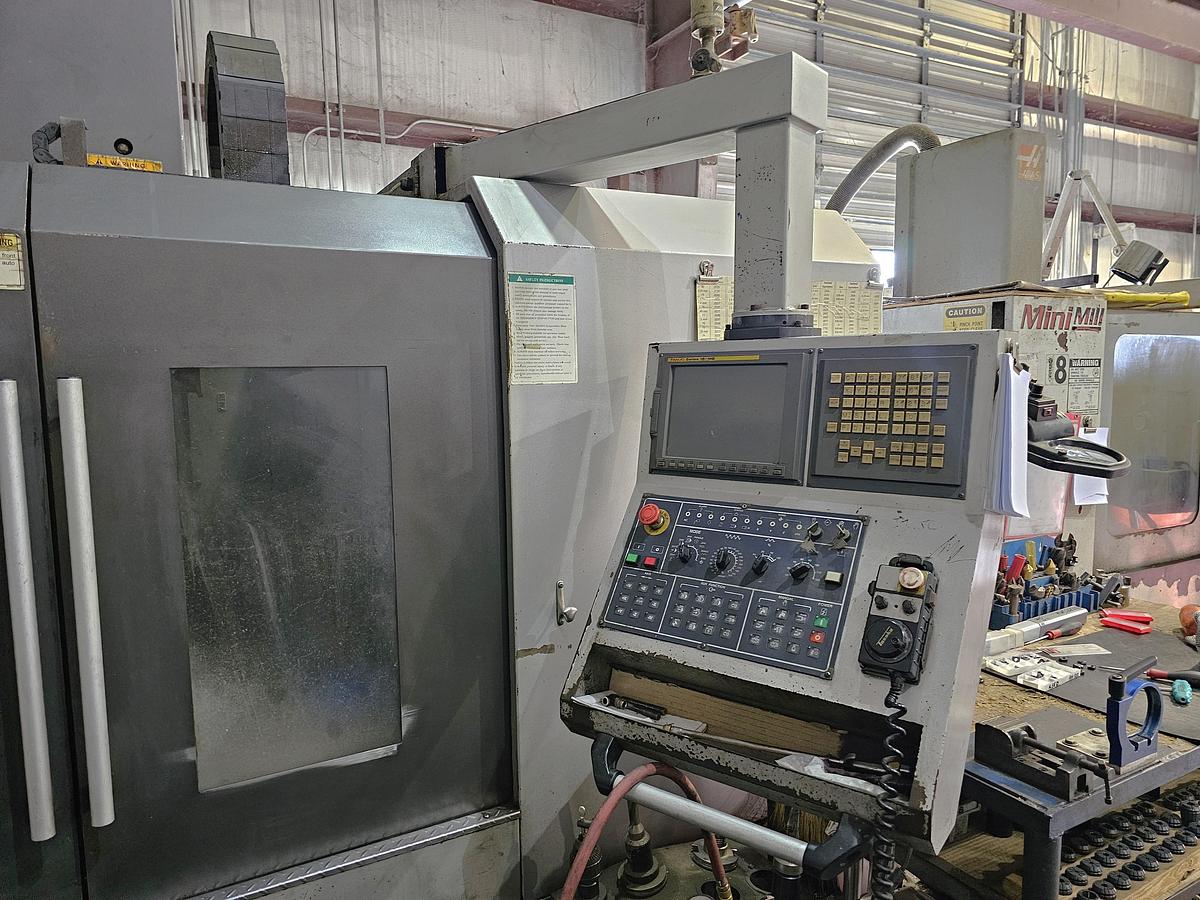

The 2006 Awea (Toyoda) BM-1200 is a robust CNC Vertical Machining Center designed for precision machining tasks. It is equipped with the Fanuc 18i-MB control system, which provides reliable and efficient operation. The machine features a 51.22" x 25.61" table capable of bearing loads up to 2,640 lbs. It offers significant travel along its axes, with 51.22" on the X-axis, 25.61" on the Y-axis, and 24.03" on the Z-axis, accommodating various workpiece sizes. Built with a CAT 50 spindle taper, the spindle operates at speeds ranging from 60 to 6,000 RPM, driven by a 15 HP motor with a two-speed gear, ensuring smooth and powerful performance. The machine also includes a 24-position side mount automatic tool changer (ATC), allowing for quick tool changes with a chip-to-chip time of 7 seconds, enhancing productivity. With rapid traverse rates of 1182 IPM for the X and Y axes, and 945 IPM for the Z-axis, along with cutting feed rates of 591 IPM, the BM-1200 is efficient in handling demanding projects. Designed with durability in mind, it weighs 16,500 lbs and measures 185" x 128" x 122". The included boxed ways and chip conveyor further enhance its functionality, maintaining smooth operations and clear workspaces. This used machine offers great value with its comprehensive set of features, suitable for a variety of industrial machining applications.
