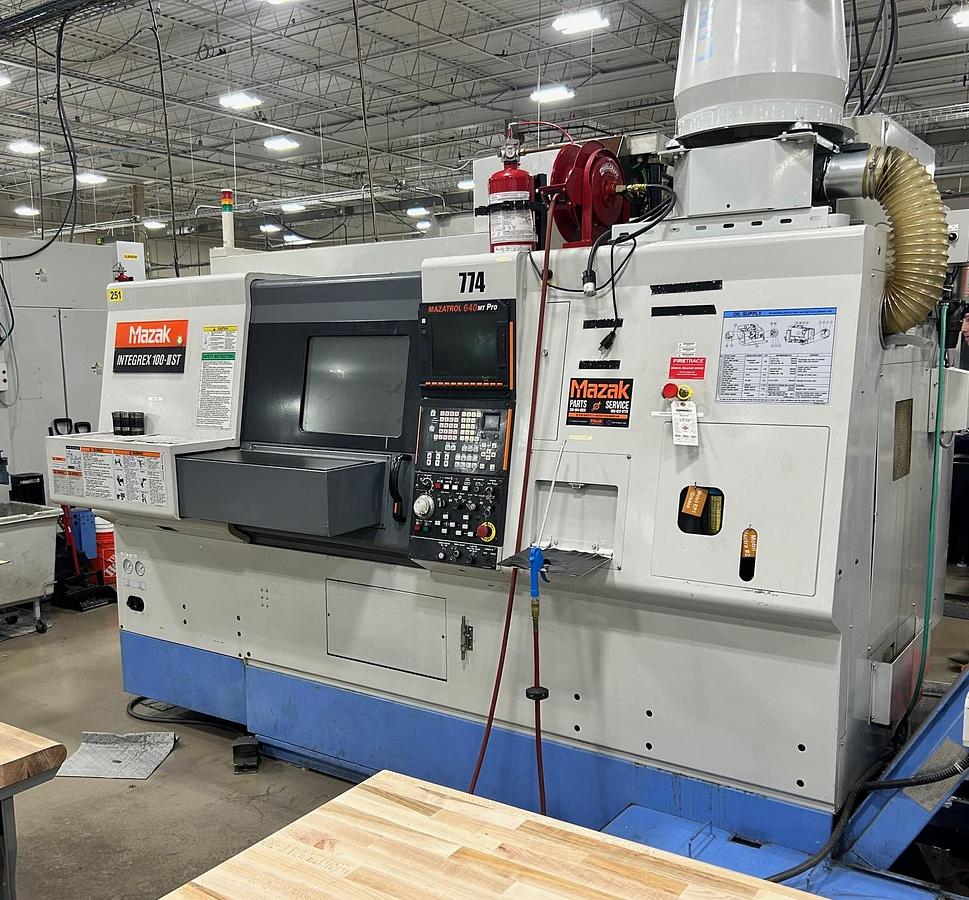

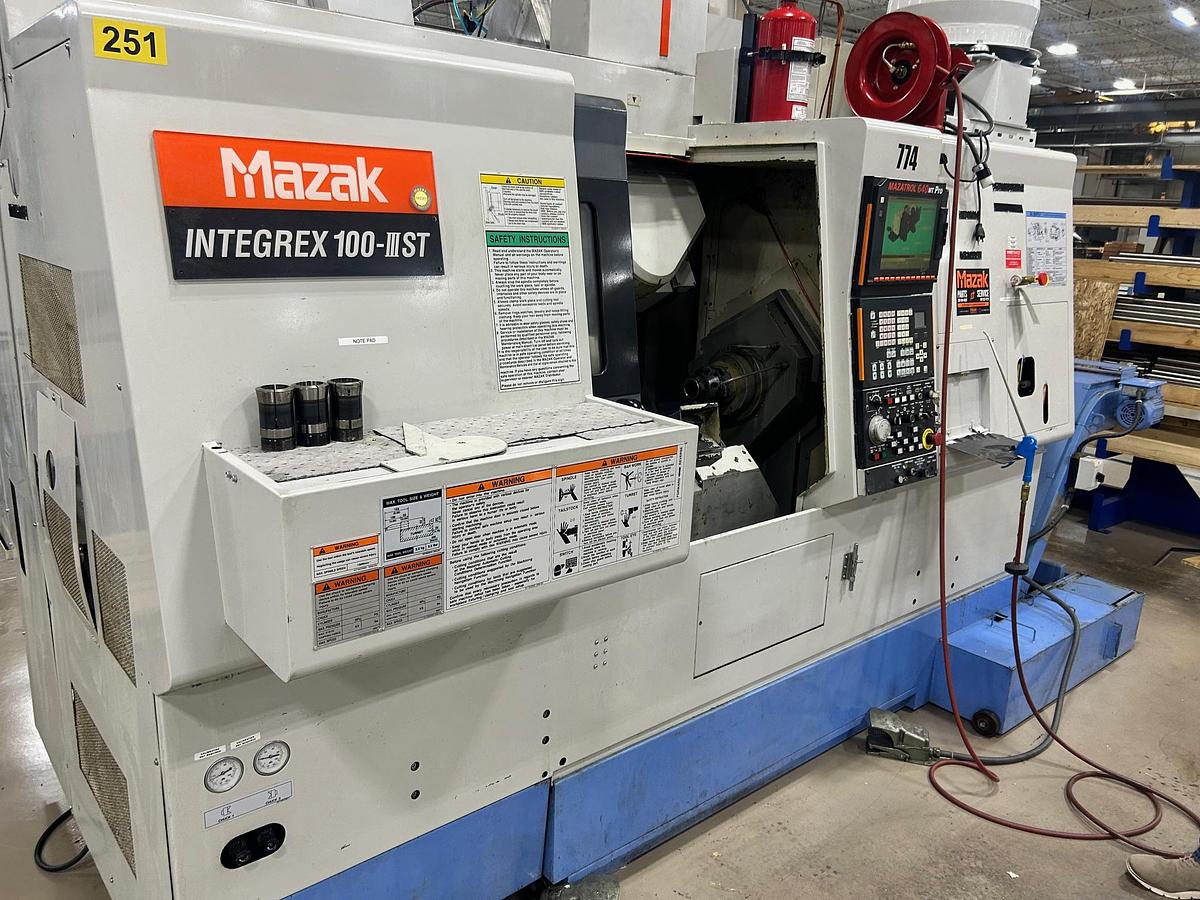

2007 Mazak Integrex 100-IIIST, Parts Catcher, Chip Conveyor, Fire Suppression System

Y-axis Capabiliity

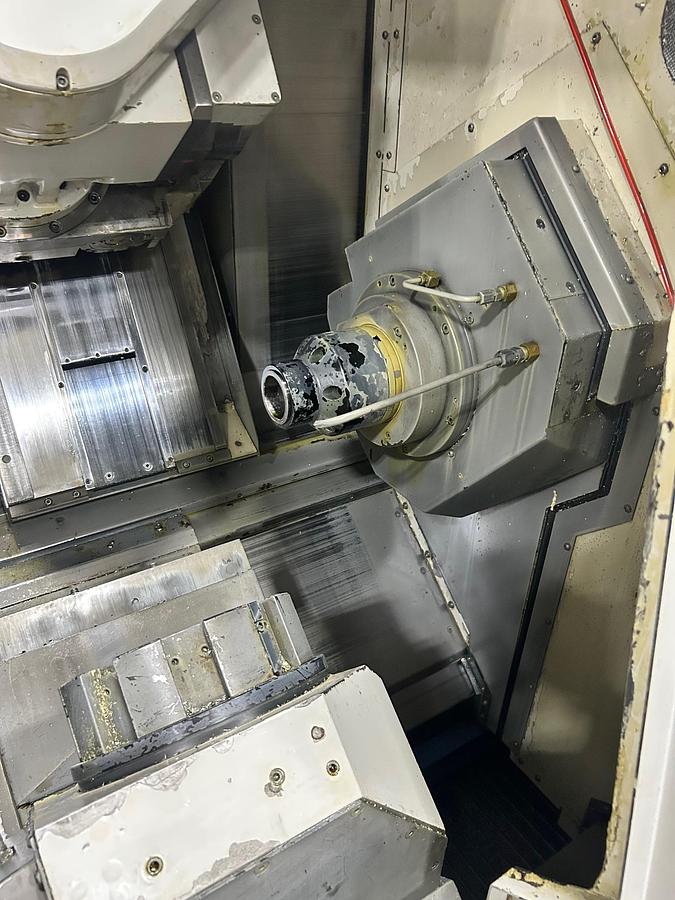

Subspindle

Fire Suppression System

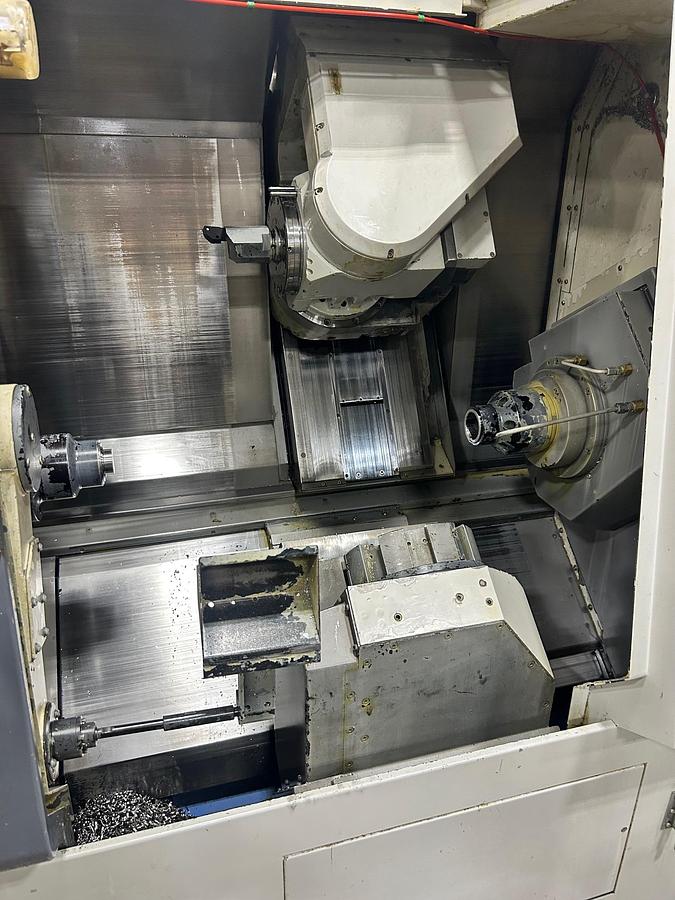

9 Station Lower Turret

C Axis 0.0001 Degree Increment - Main

Live Milling/Drilling Capability

40 Station Tool Magazine

Automatic Tool Eye

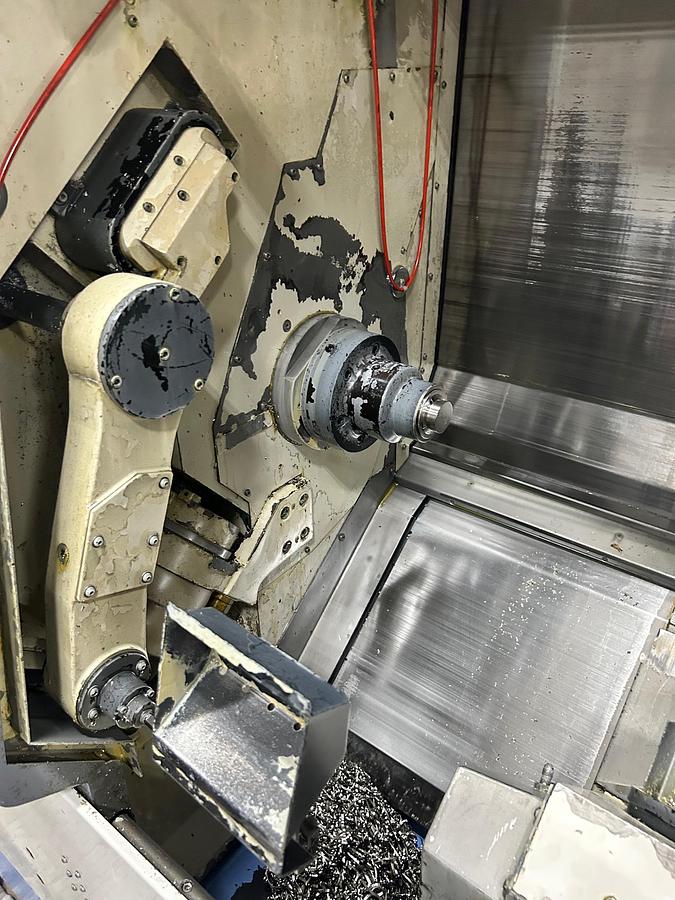

Automatic Parts Catcher w/ Eject

Chip Conveyor

EIA/ISO Input Function

Milling Spindle Synchronous Tapping

Cardbus I/F (2 slots)

USB Port Interface

Coolant Through Milling Head

2nd Spindle Position 0.001 deg.

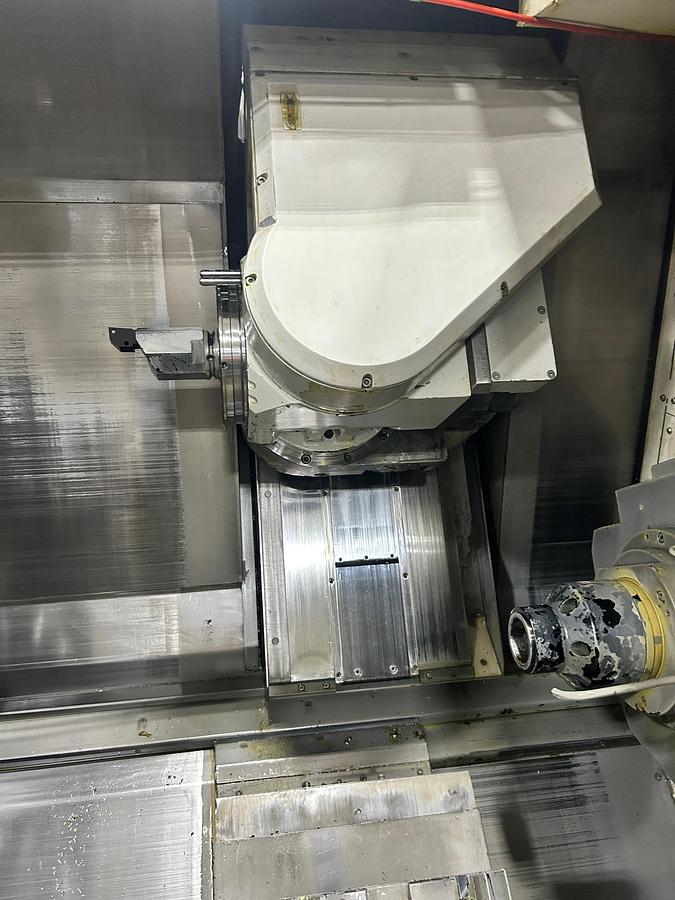

B Axis Head Index 5 degree by Clamp

Auto Chuck Jaws Open and Close

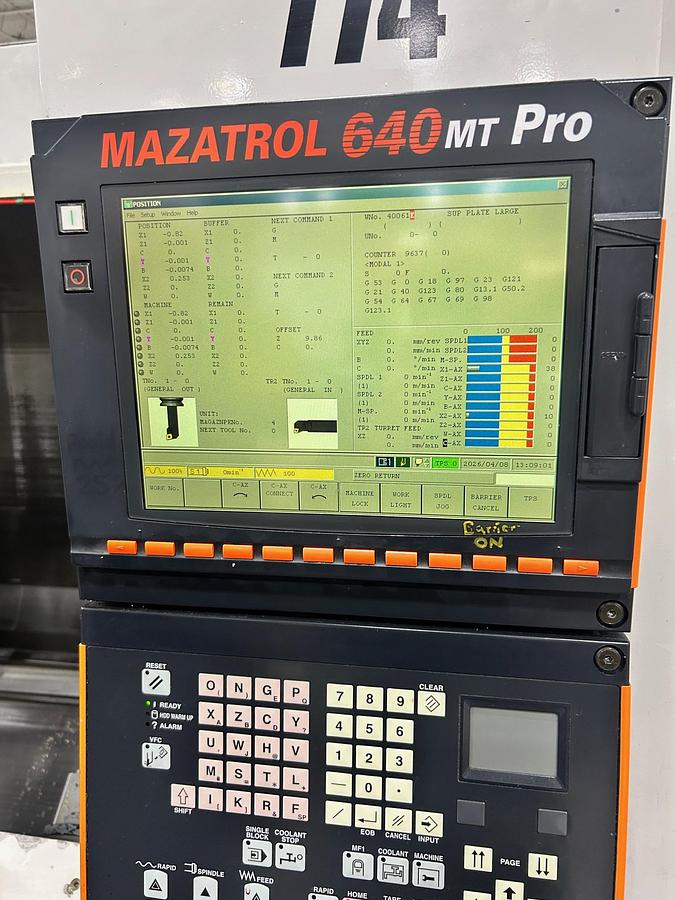

Windows XP Operating System for Mazak

Auto Power Off

15” Color LCD Monitor

Inch/Metric Conversion

LAN Port Interface

**New Spindle installed in 2023**

The 2006 Mazak Integrex 100-IIIST is a versatile CNC lathe designed for complex machining tasks, equipped with a Mazatrol Matrix control system featuring a Voice Advisor. It features both a main and subspindle, each with hydraulic chucks measuring 6 inches, capable of speeds up to 6,000 RPM. The machine boasts a maximum swing of 21.46 inches, with a machining length capacity of 29.65 inches, providing ample space for a variety of workpieces. This model offers comprehensive axis travels, including a 225-degree B-axis tilt and fine C-axis spindle rotation at 0.0001-degree increments, enhancing precision in intricate operations. The X-axis travels are 16.14 inches for the upper turret and 8.66 inches for the lower, while the Y-axis upper turret travel is +/- 2.75 inches, enabling detailed machining from various angles. The rotary tool and spindle motors provide robust power, with maximum rotary tool speeds of 12,000 RPM powered by a 7.5 HP motor. With a 40-station tool changer and a 9-station lower turret, the Integrex 100-IIIST efficiently handles a comprehensive range of tools, thereby maximizing productivity in a compact space. Its dimensions are 121.06 x 97.73 x 88.3 inches, and it weighs approximately 18,078 pounds, making it a durable yet manageable installation for diverse industrial environments.
