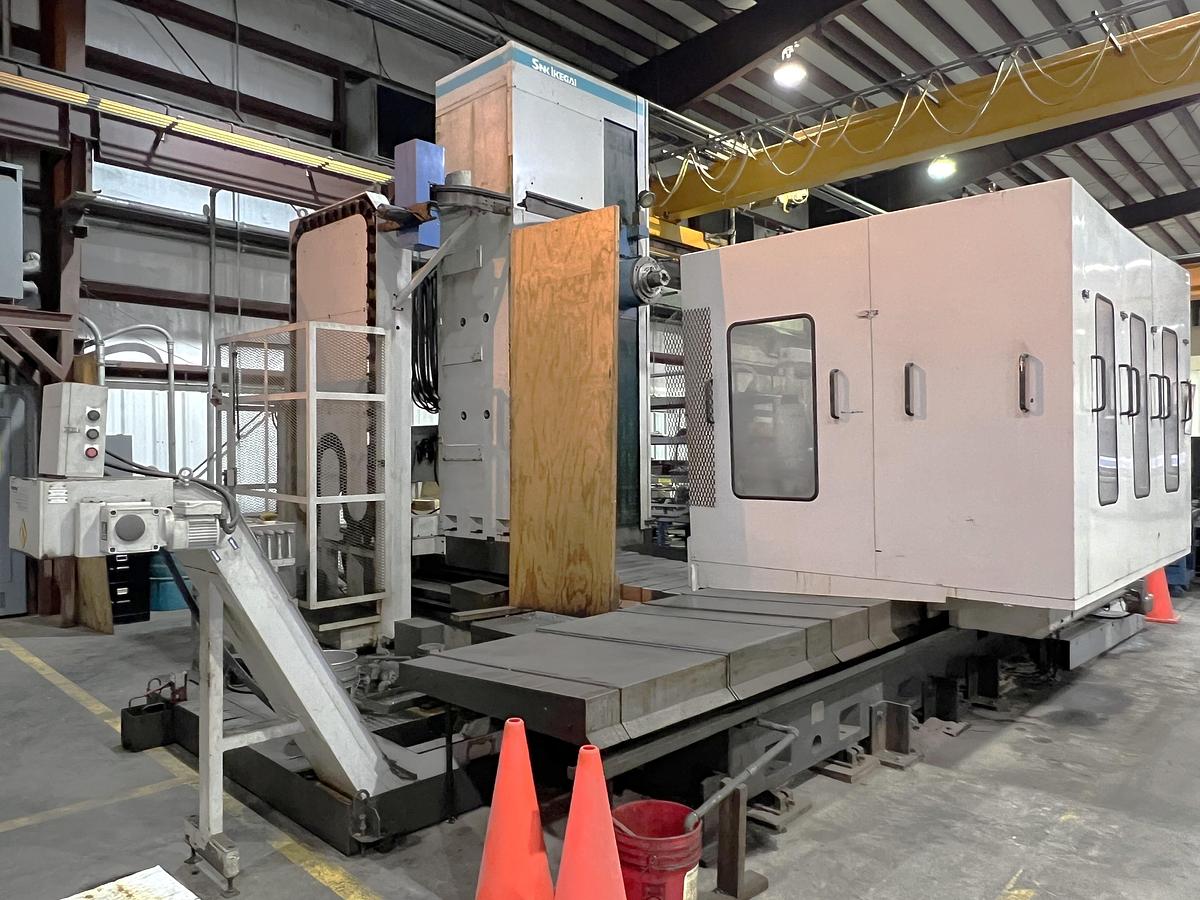

2007 SNK-Ikegai NB130 PE3.5 Table Type CNC Horizontal Boring Mill,

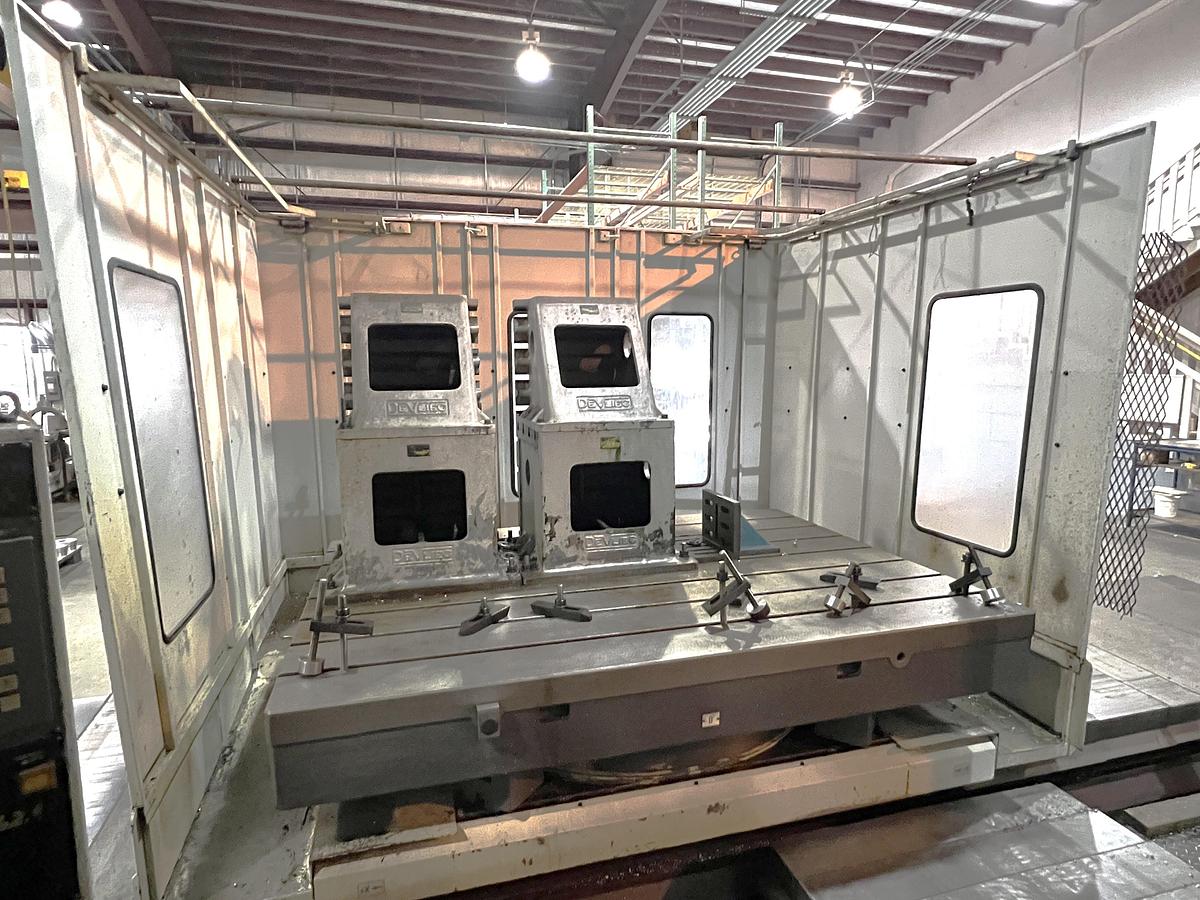

.001 Degree Indexable Rotary Table

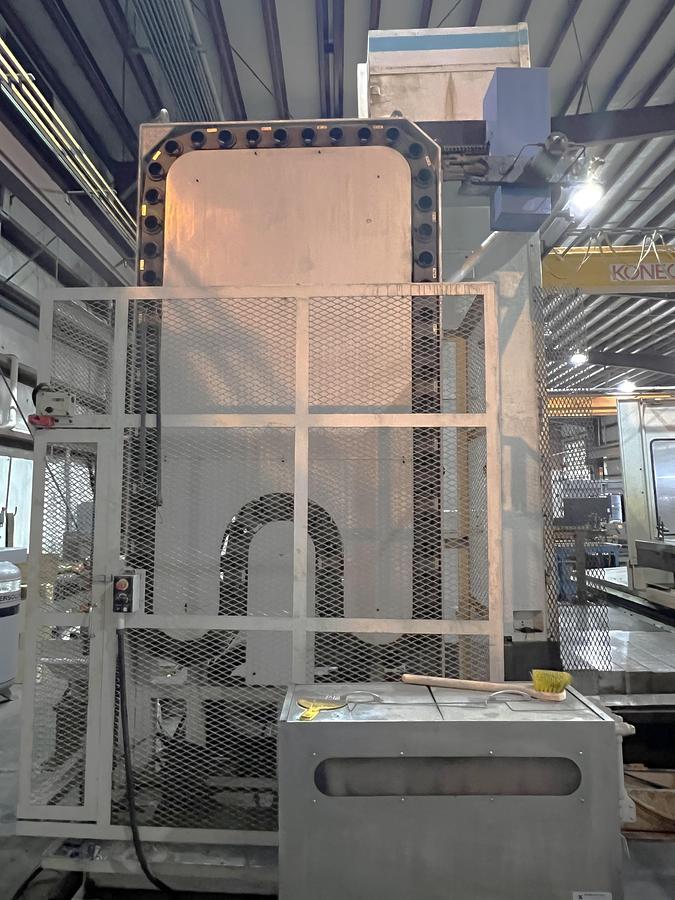

60 Station Tool Changer

Full Coolant Guarding

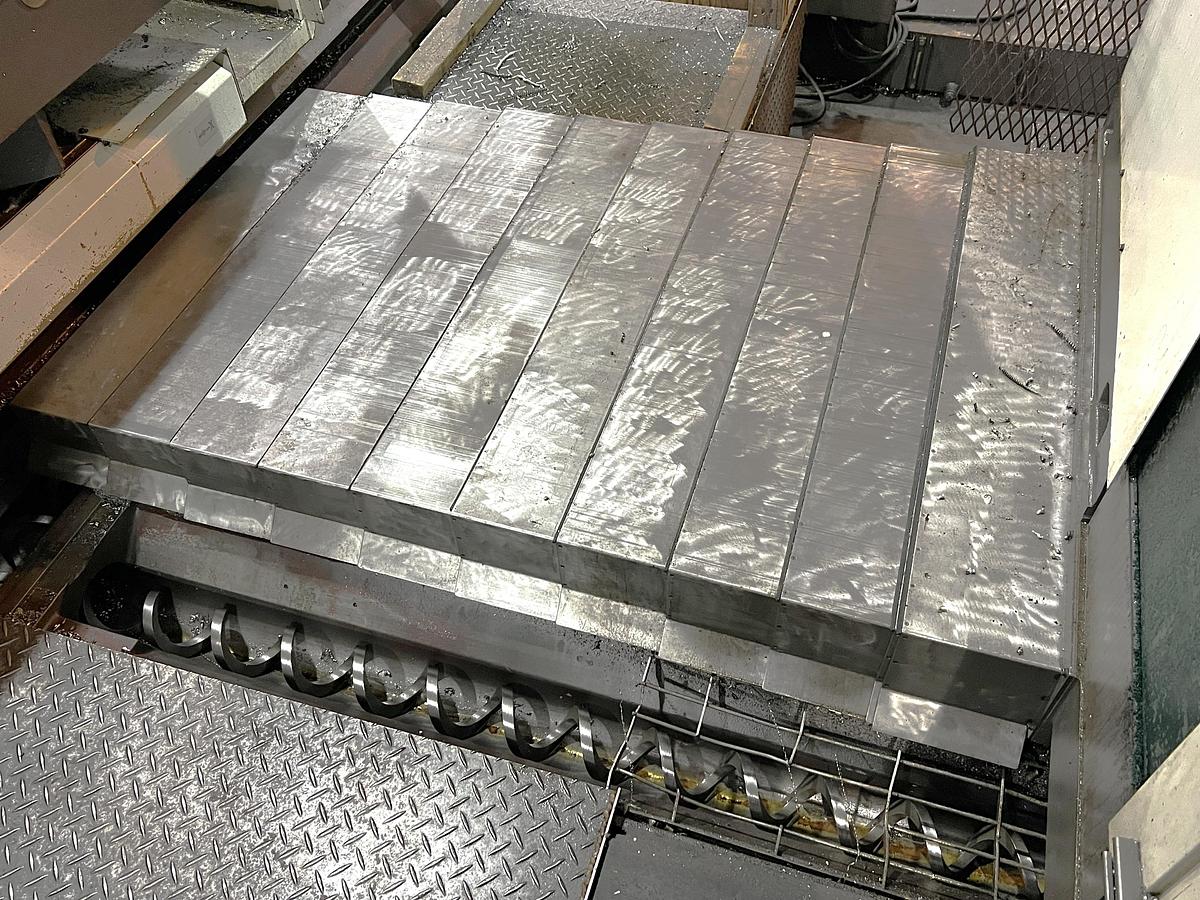

Chip Augers

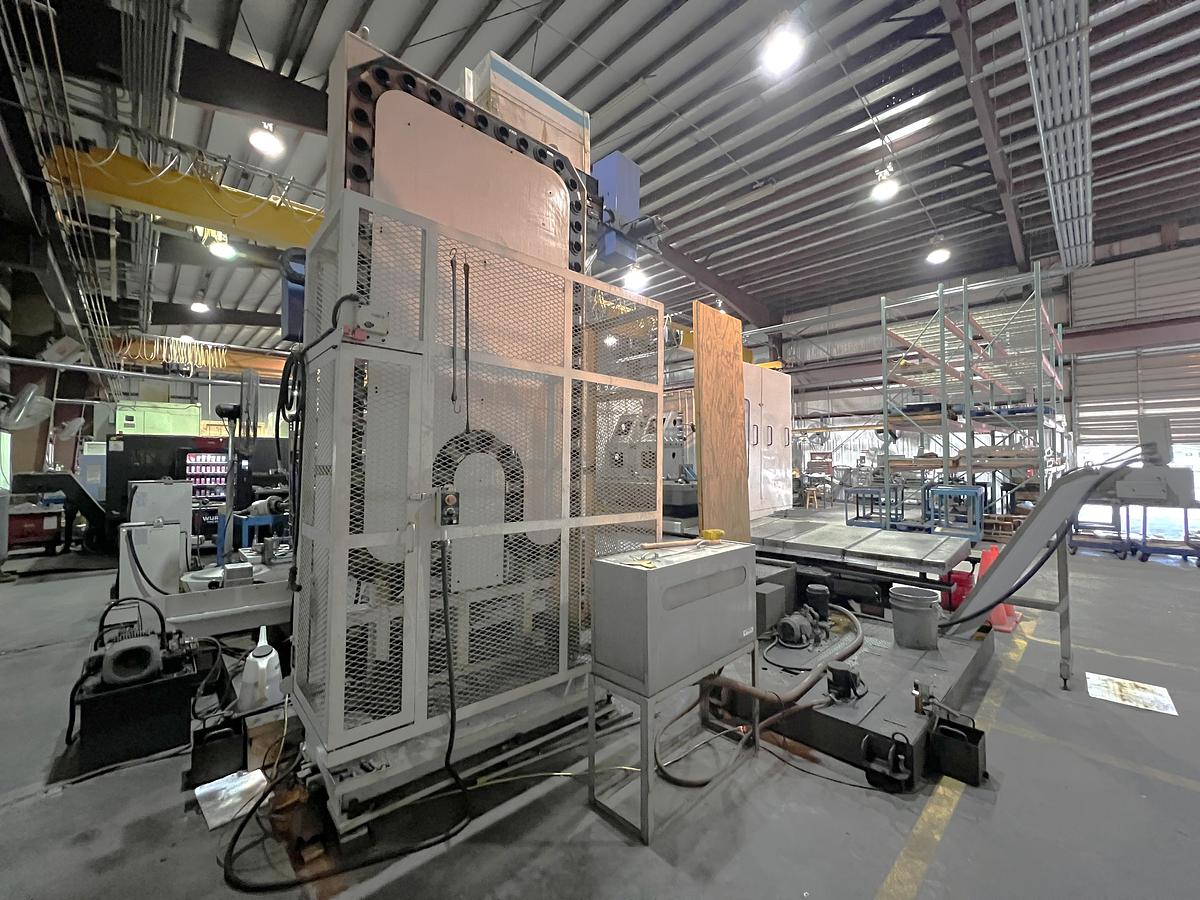

Belt Style Chip Conveyor

Steel Way Covers

Card Interface

RS 232 Port Interface

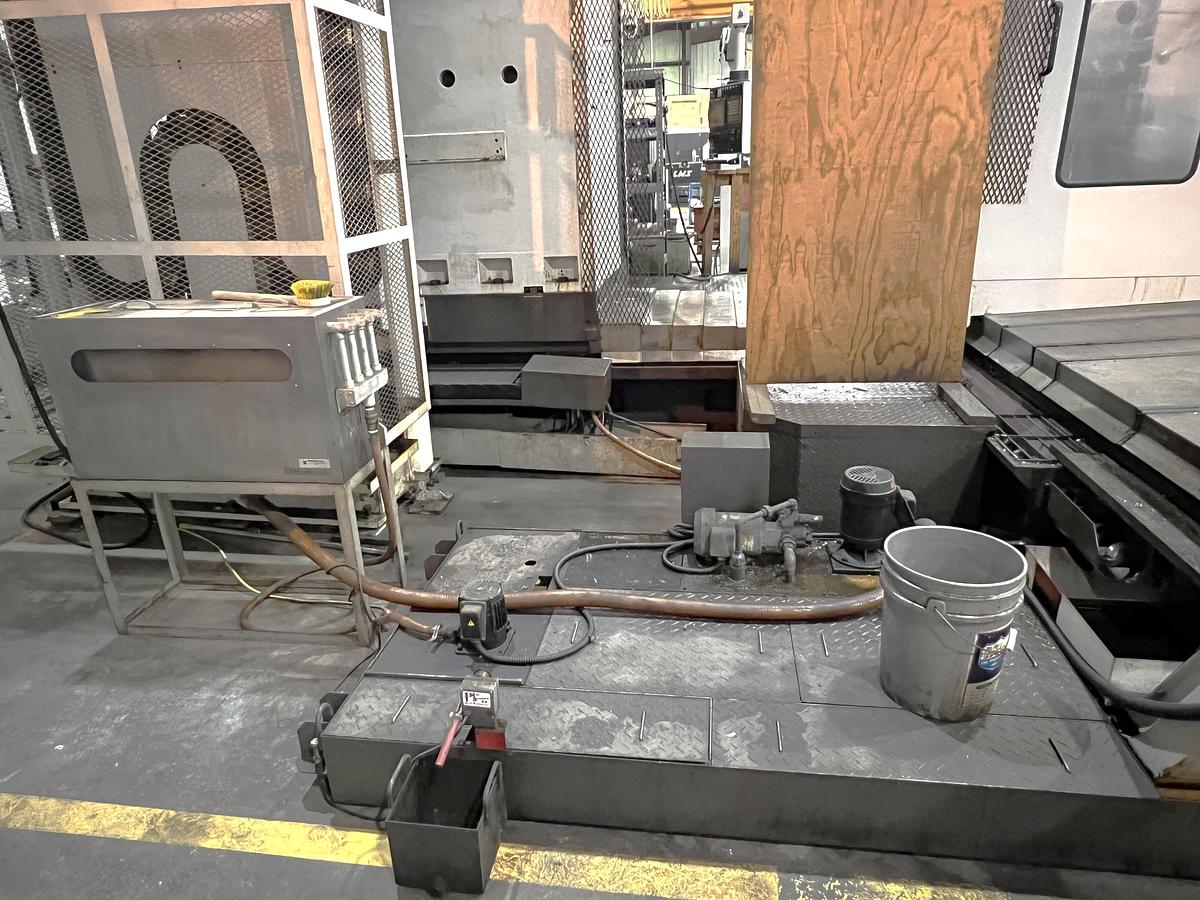

Coolant System with Tank and Pumps

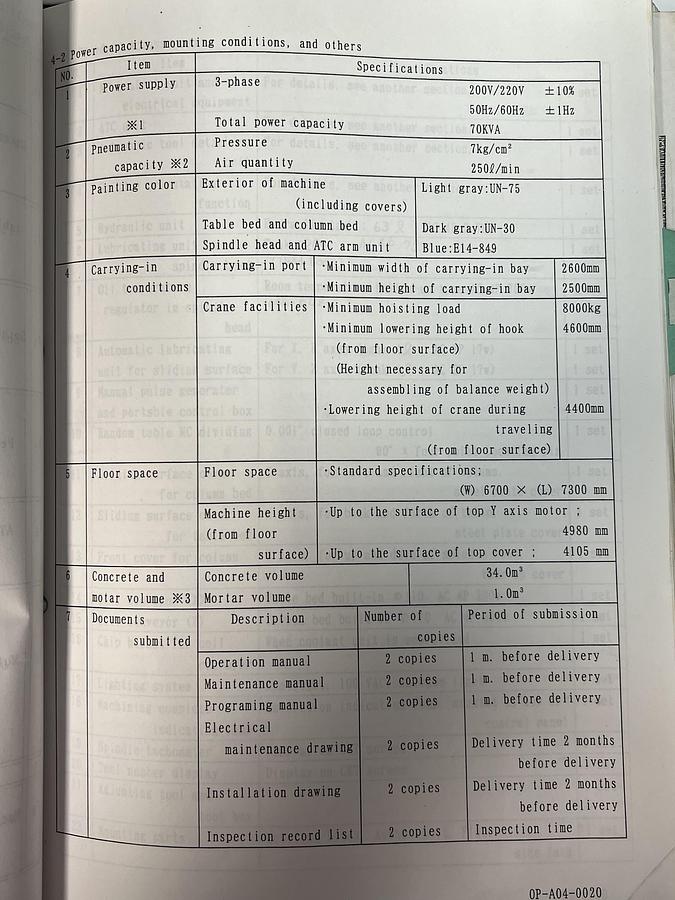

Wired 200/220V Electrics - 70 KVA Required

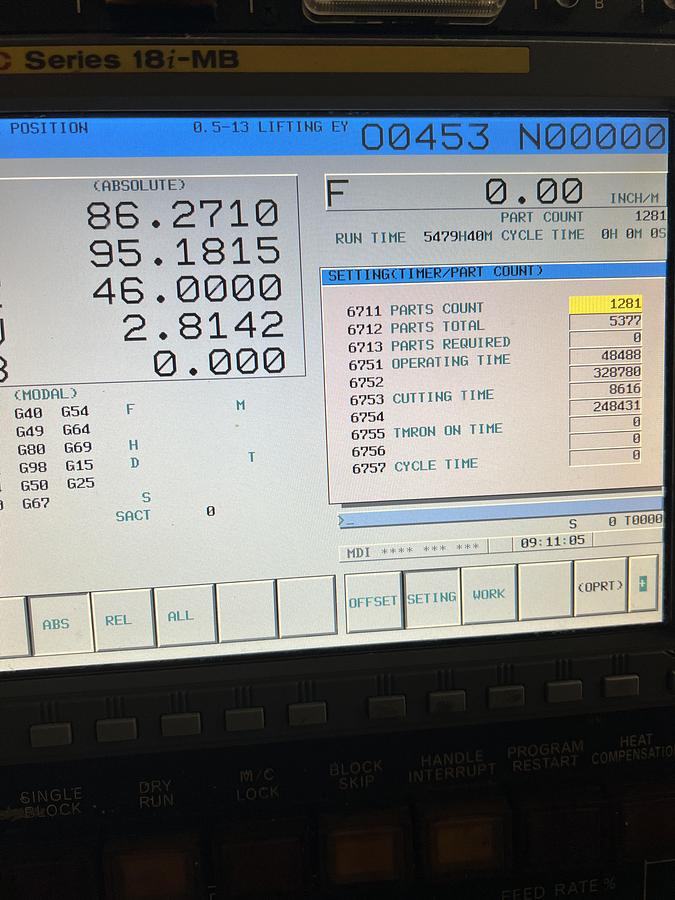

**Power On Time 21,093 Hours**

**Operating Time 6,288 Hours**

**Cutting Time 4,284 Hours**

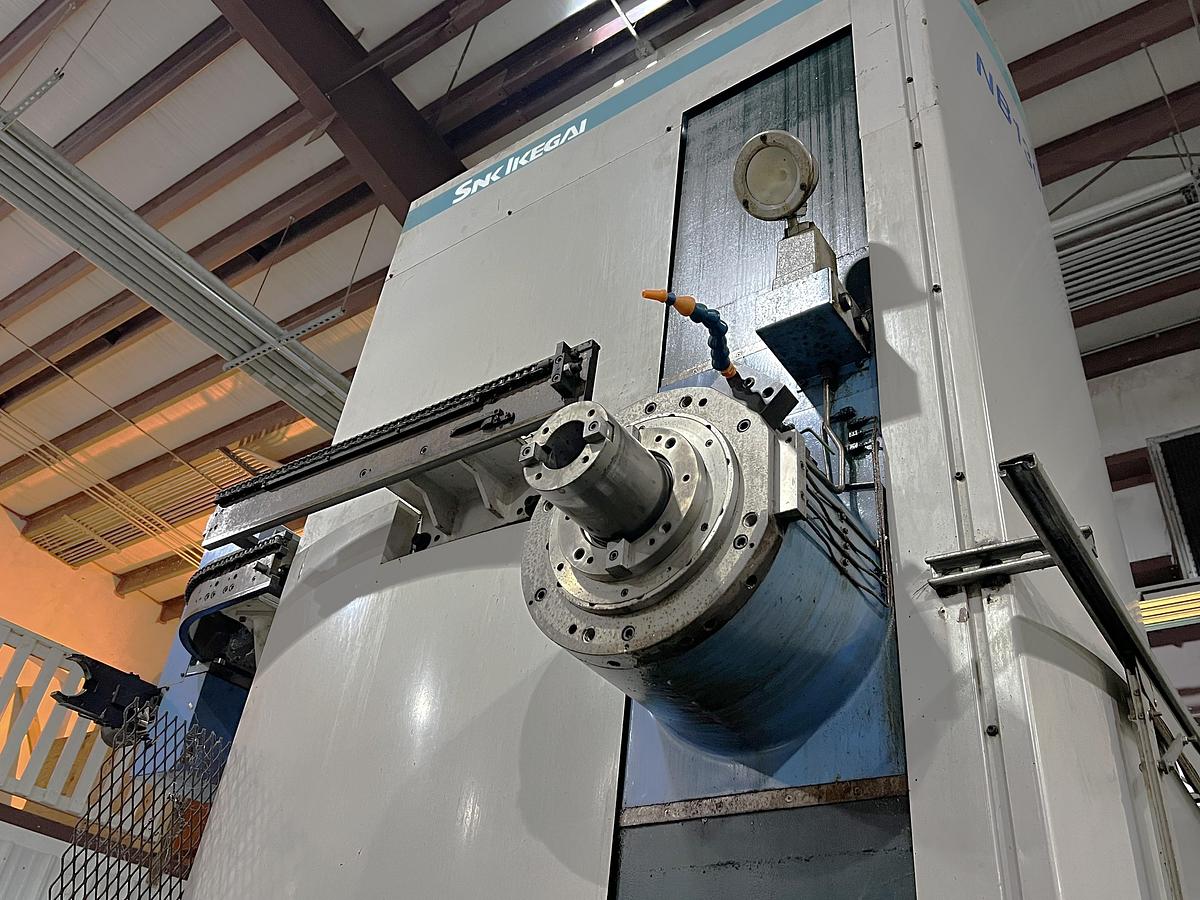

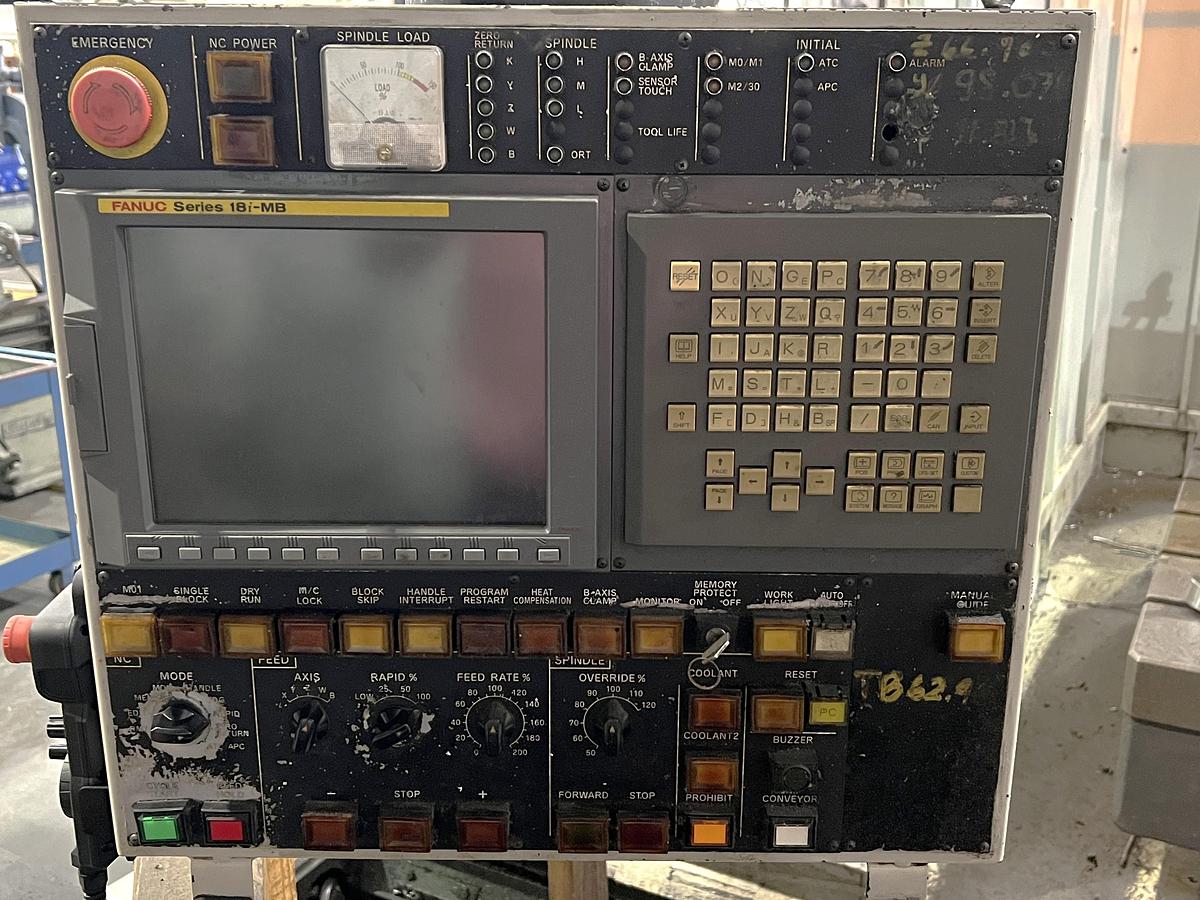

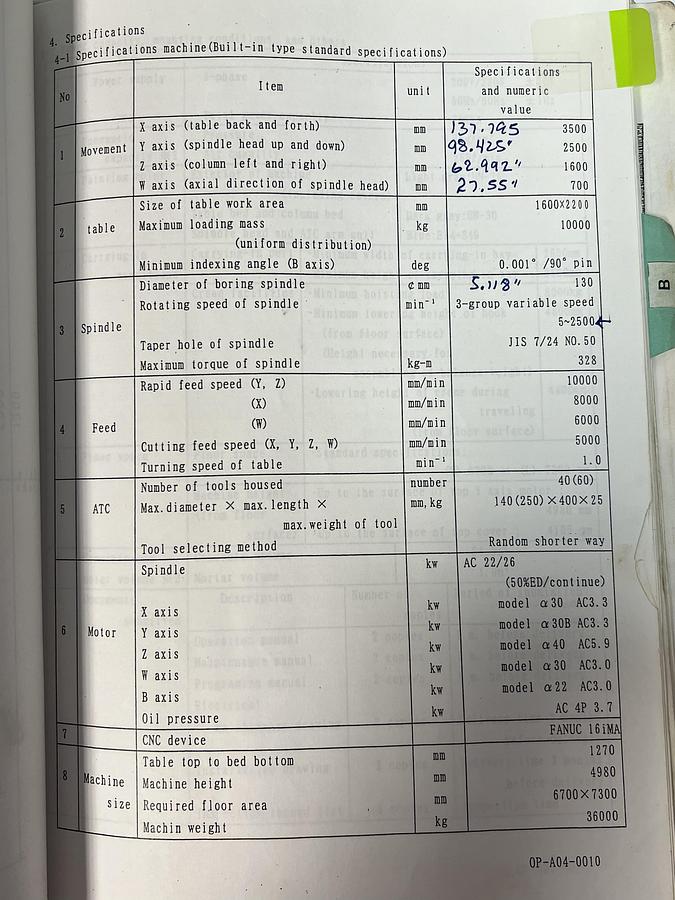

The 2007 SNK-Ikegai NB130 PE3.5 is a robust CNC horizontal boring mill designed for precision and heavy-duty performance. Equipped with a Fanuc Series 18i-MB control, this machine offers an expansive table measuring 86.68" x 63.04", capable of handling loads up to 22,000 lbs. The machine features a B-axis rotary table increment of 0.001 degrees, providing exceptional accuracy for complex operations. With an impressive travel range, the machine allows for X-axis travel of 137.8", Y-axis travel of 98.42", and Z-axis travel of 63", along with a W-axis spindle travel of 27.55". It is powered by a 35 HP spindle motor that supports spindle speeds from 5 to 2,500 RPM, with a sturdy spindle diameter of 5.11" and a #50 spindle taper. The tool magazine can accommodate up to 60 tools, with a maximum tool diameter of 9.85", length of 15.7", and weight of 55 lbs. Rapid traverse rates reach 394 IPM on the X/Y-axis and 236 IPM on the Z/W-axis, enabling efficient operations, while cutting feedrates achieve 197 IPM. The overall dimensions of the machine are 288" x 264" x 197", with a total weight of 79,200 lbs., reflecting its substantial build quality and capability to handle demanding manufacturing environments.
