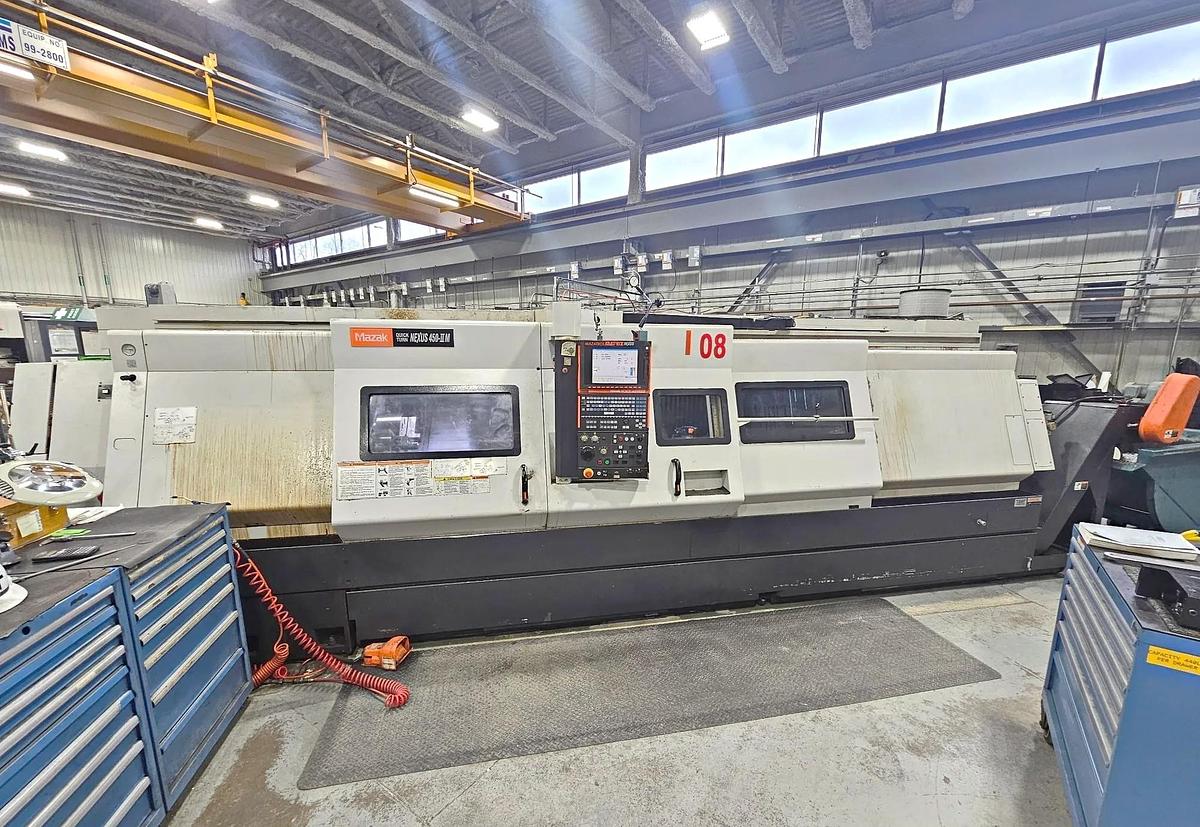

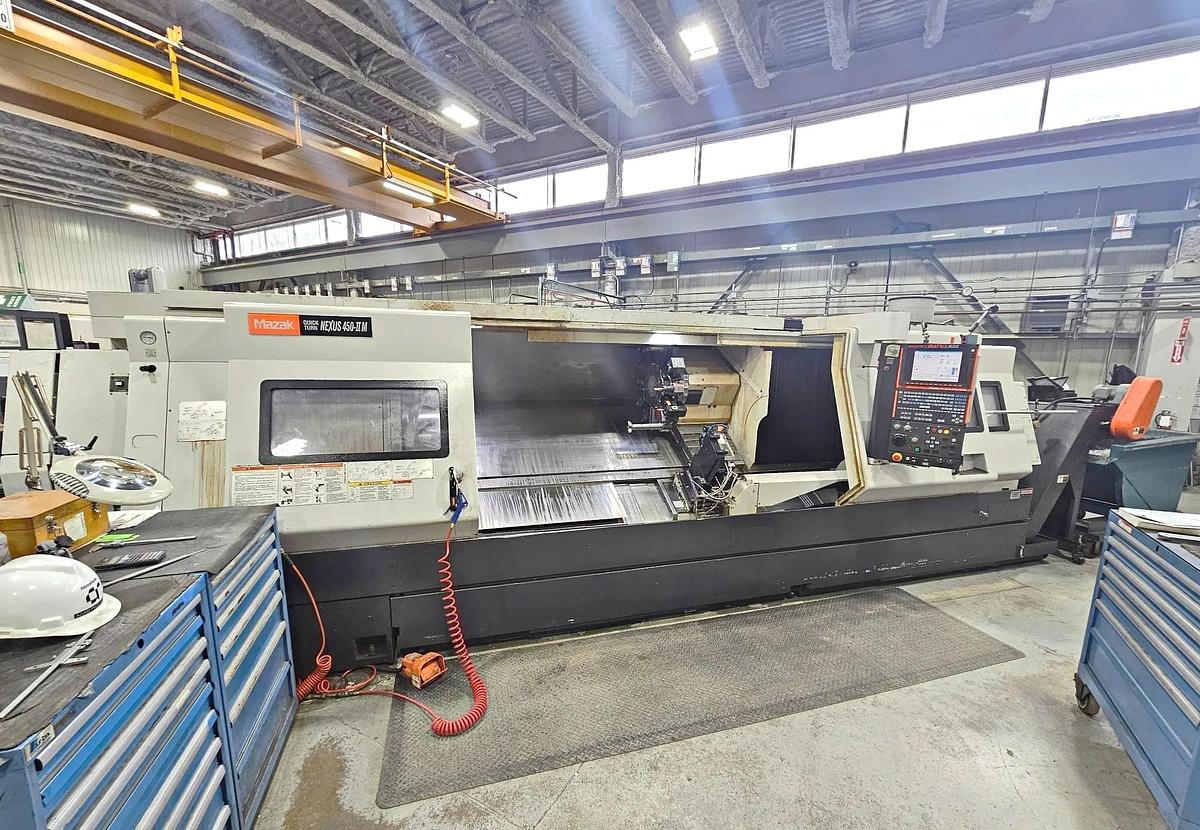

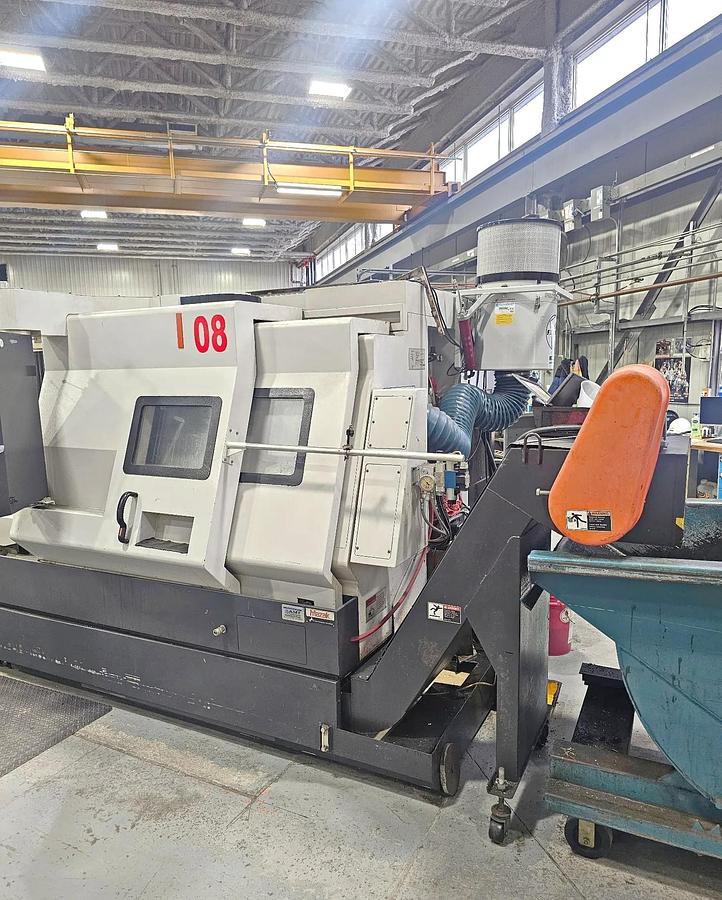

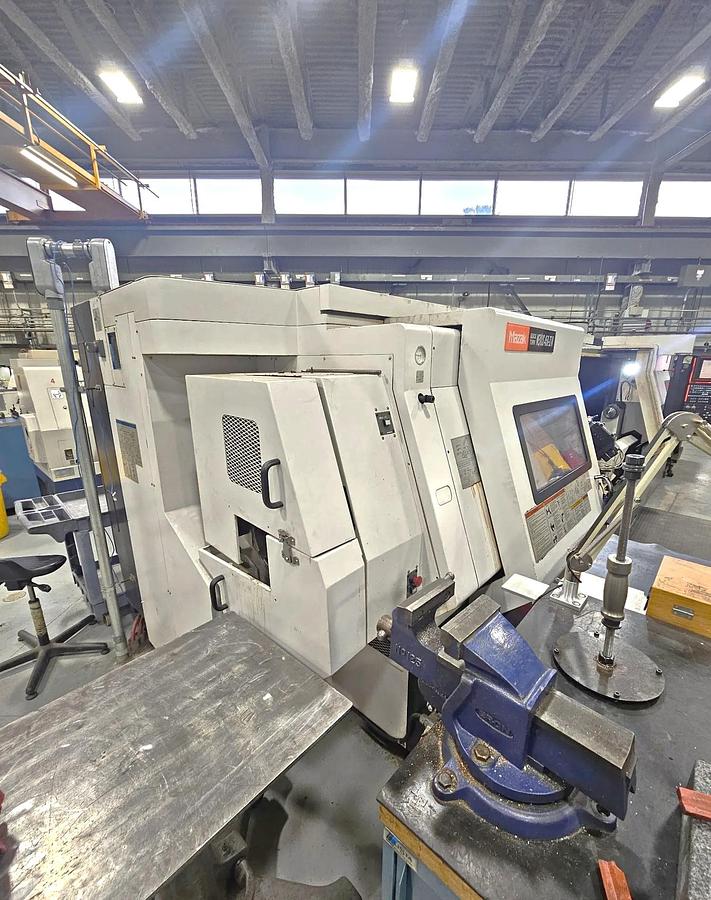

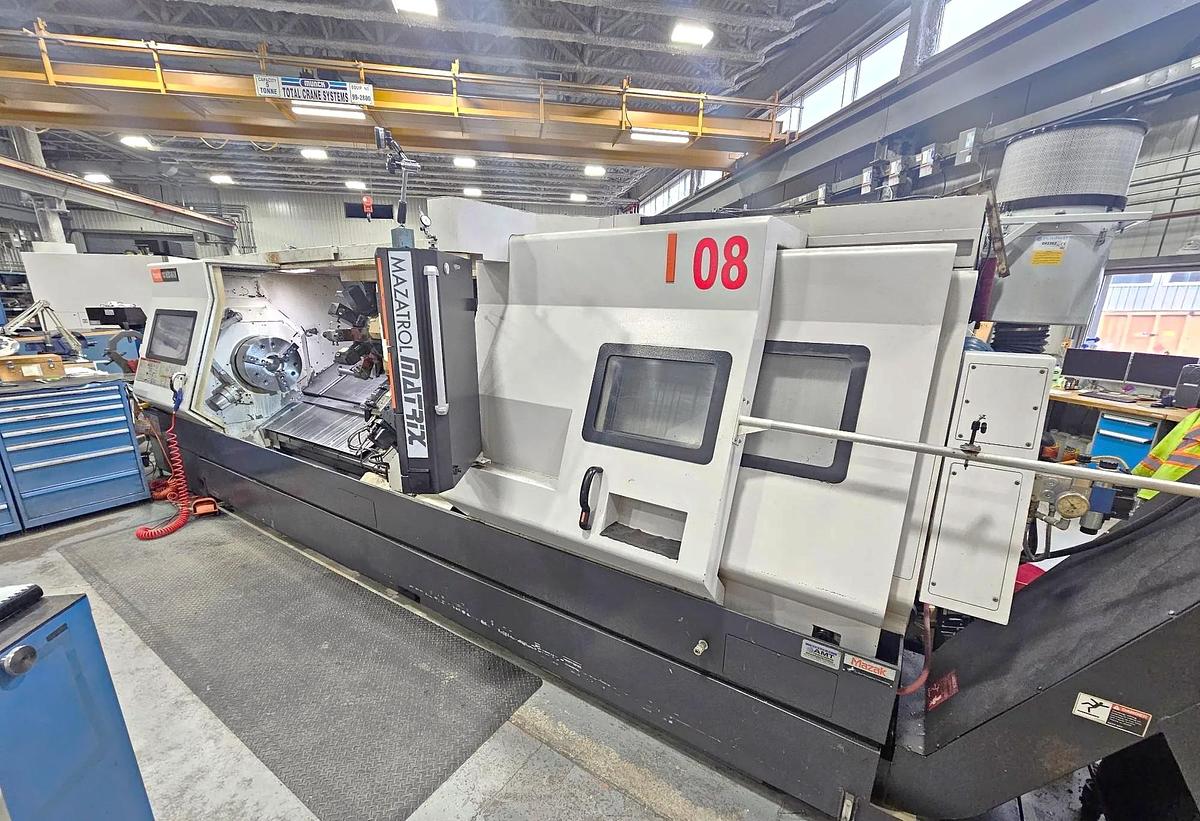

2007 Mazak Nexus QTN 450-IIM/3000 with Full C Axis Spindle Rotation, Milling Capable, 18" Hyd Chuck, 6" Bar Capacity, 120" cc
2007 Mazak Nexus QTN 450-IIM/3000 with Full C Axis Spindle Rotation, Milling Capable, 18" Hyd Chuck, 6" Bar Capacity, 120" cc
$147,000 (USD)
Location:Ontario, Canada
or
Call (863) 439-6066
Description
Full C Axis Spindle Rotation
Live Milling/Drilling Capability

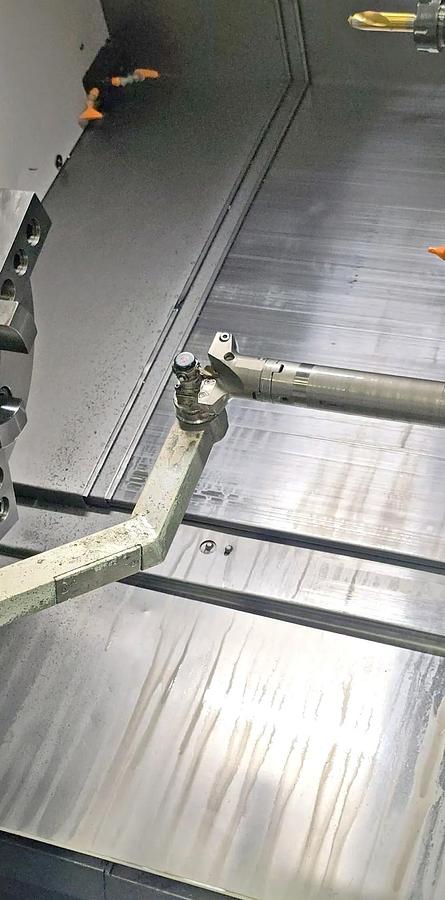

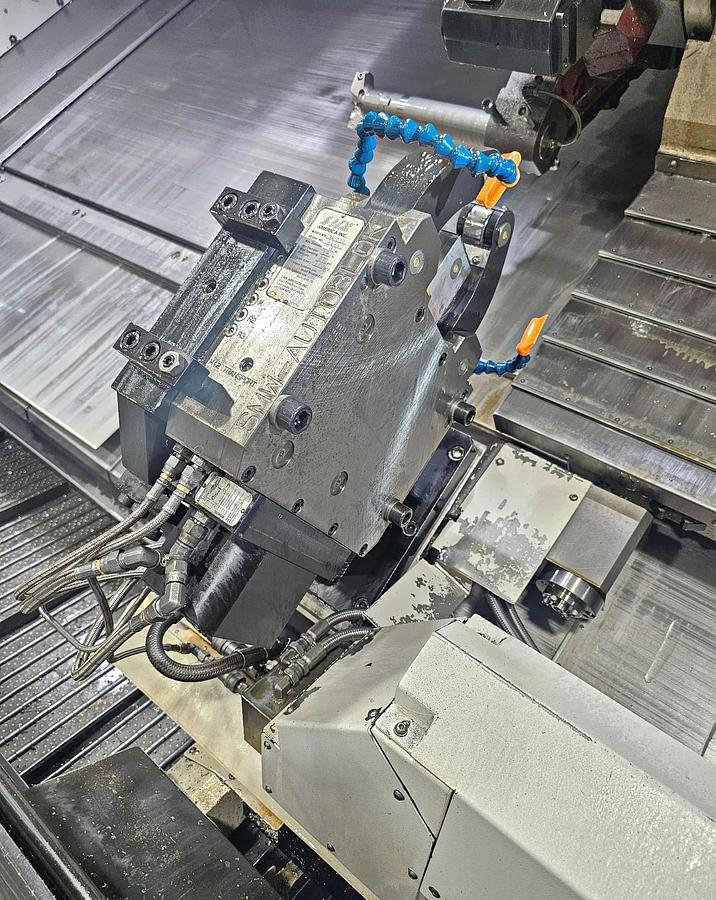

LNS Hydraulic Steady Rest

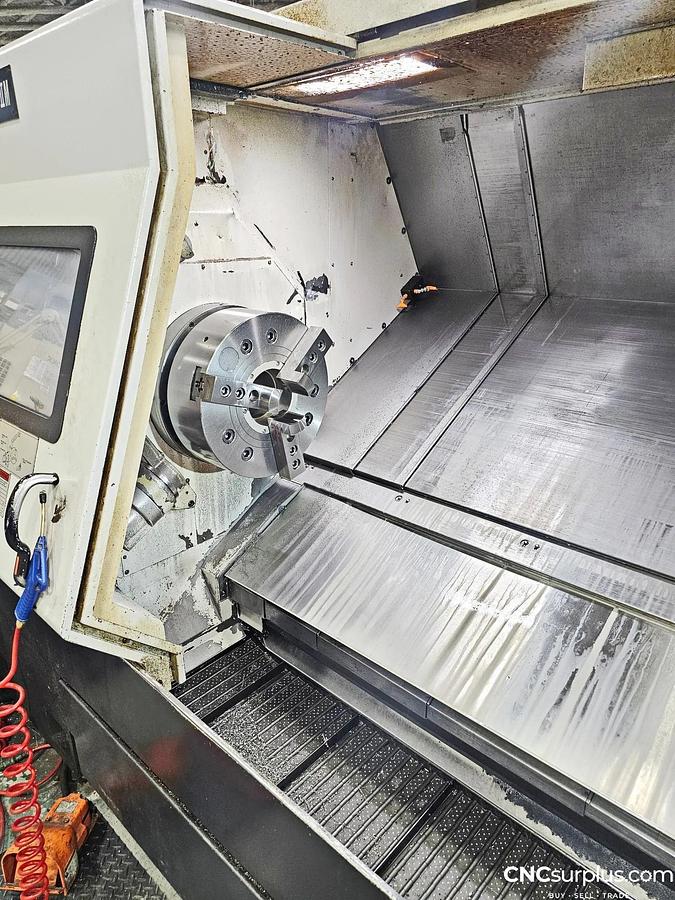

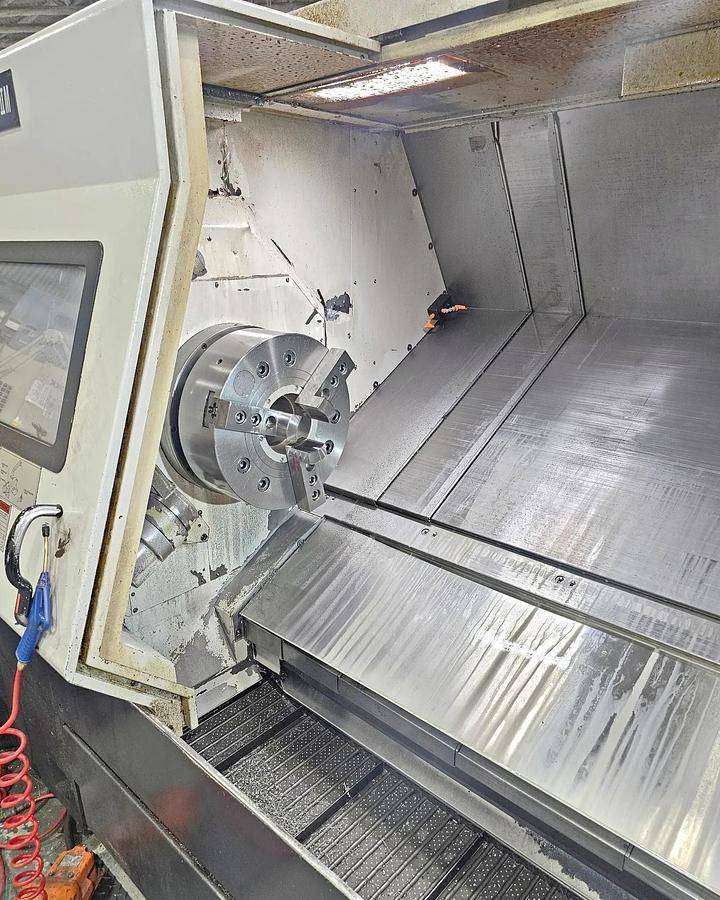

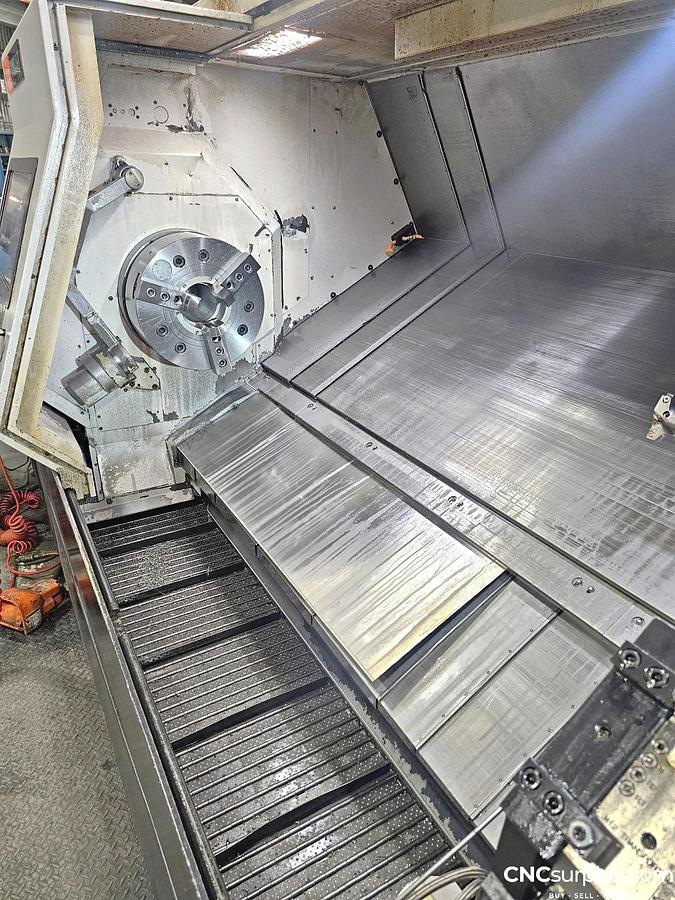

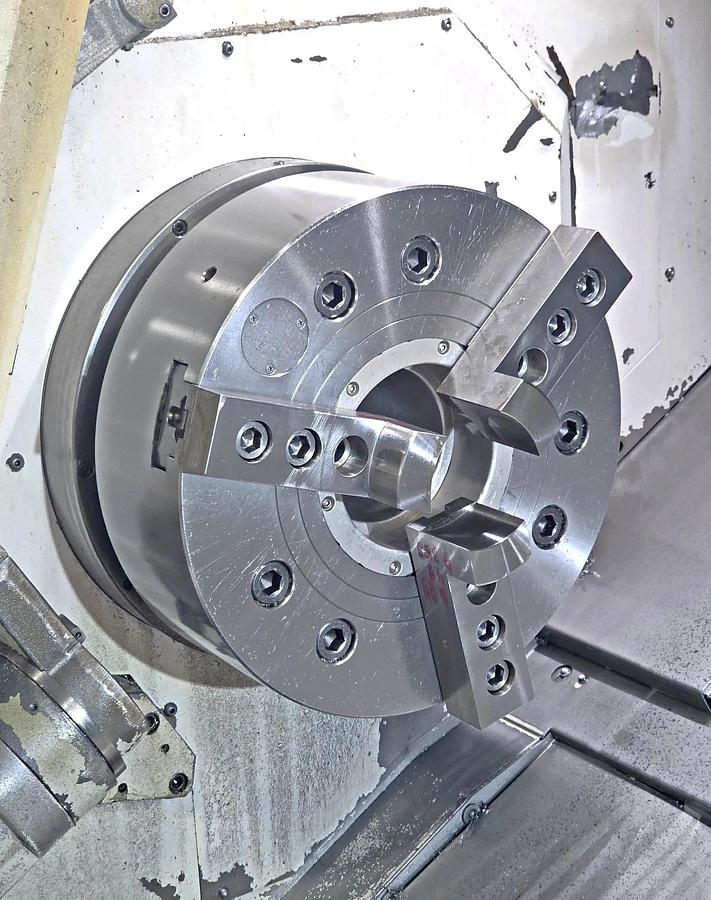

18" Kitagawa 3 Jaw Hydraulic Chuck
Automatic Tool Eye

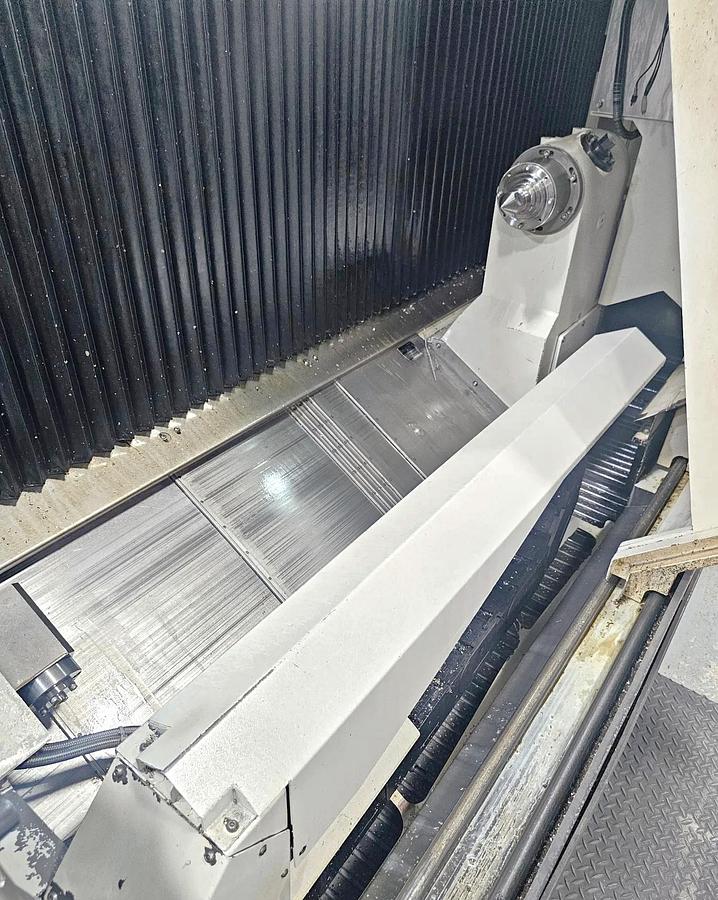

Programmable Tailstock
Chip Conveyor

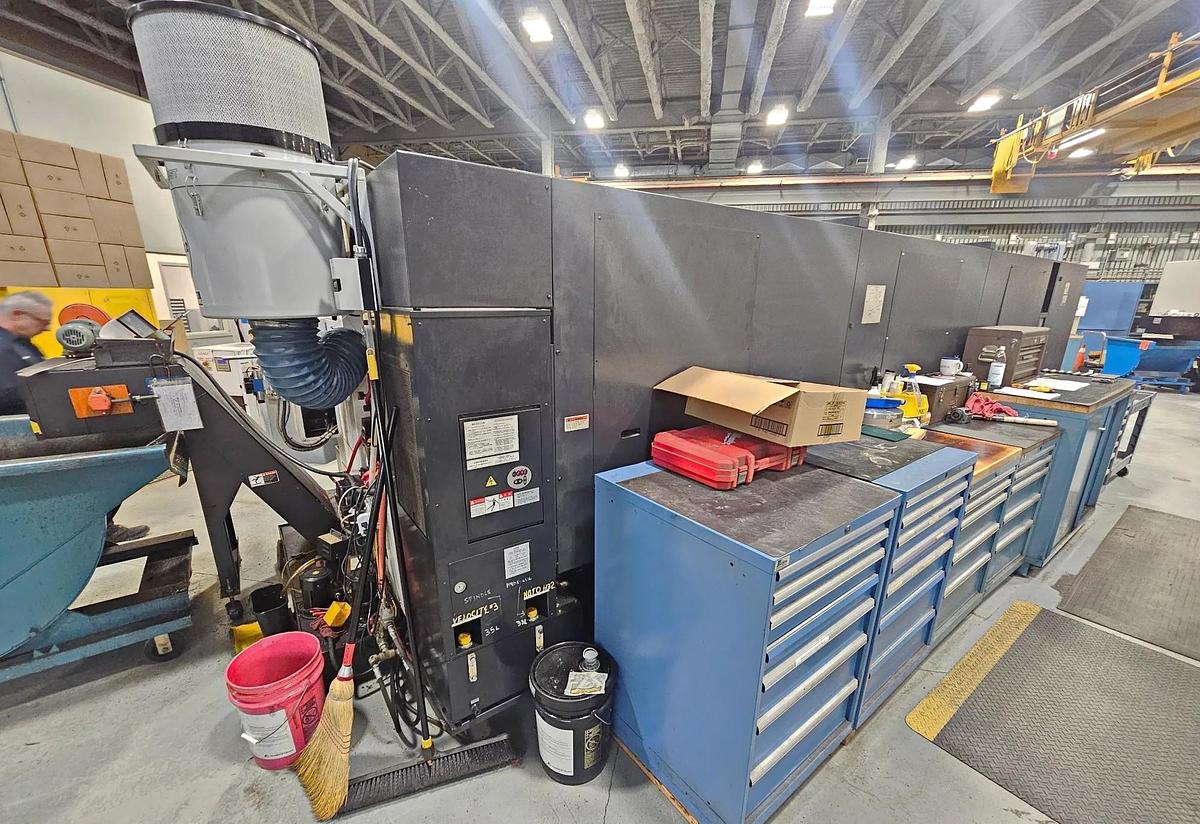

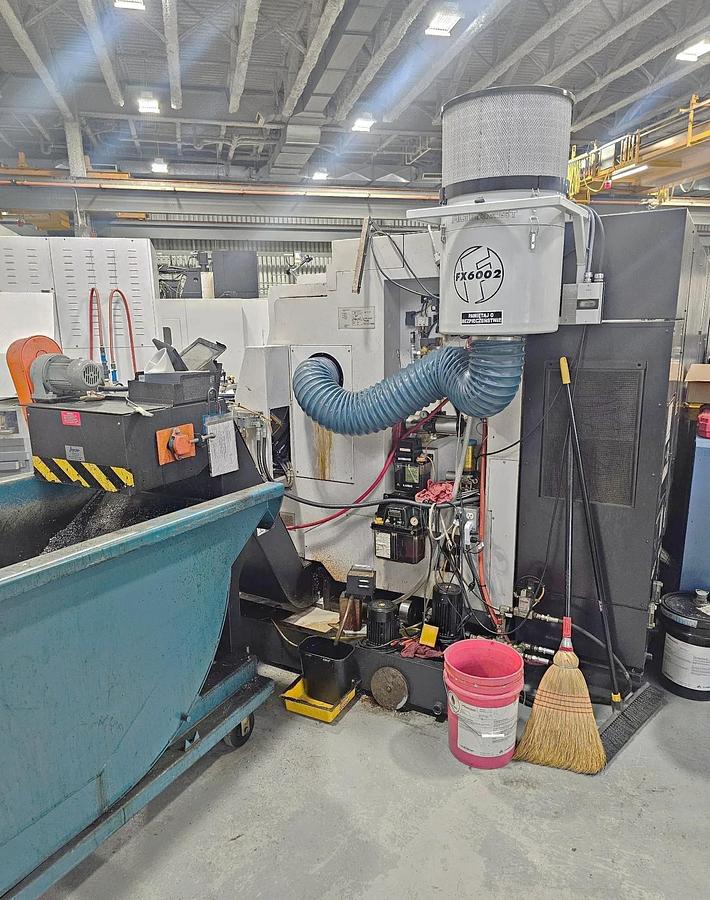

FilterMist Model FX6002 Oil Mist Collector
Mill Synchronous Tapping
EIA/ISO Input Function
EIA Helical Tapping Cycle
EIA Pattern Cycle
Tilted Work Plane
Cylindrical Interpolation
Re-Threading
Threading
Pitch Error Compensation
Polar Coordinates Input
Rotation & Scaling
Spiral Interpolation
Inverse Time Function
Card Interface
USB Port Interface
RS 232 Port Interface
All Available Manuals

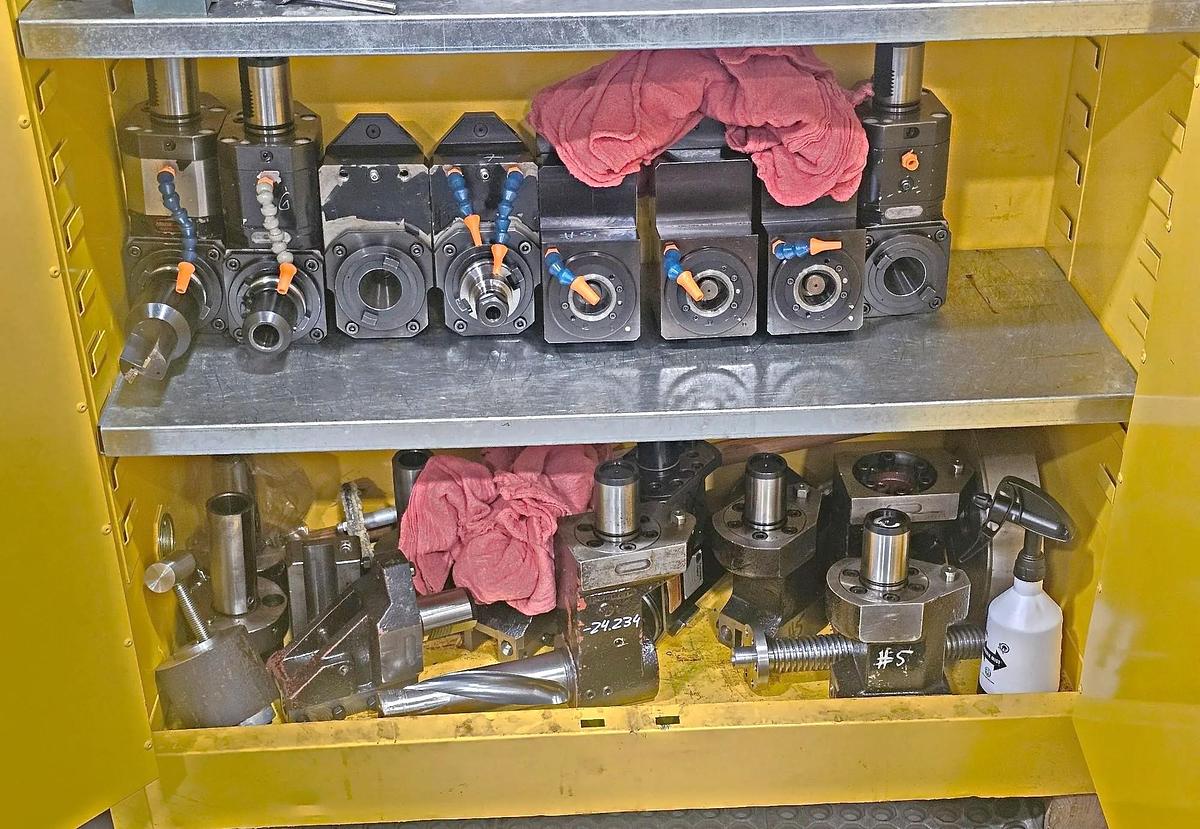

Approximately (8) Static Tool Holders
Some Boring Bar Sleeves and Drill Socket

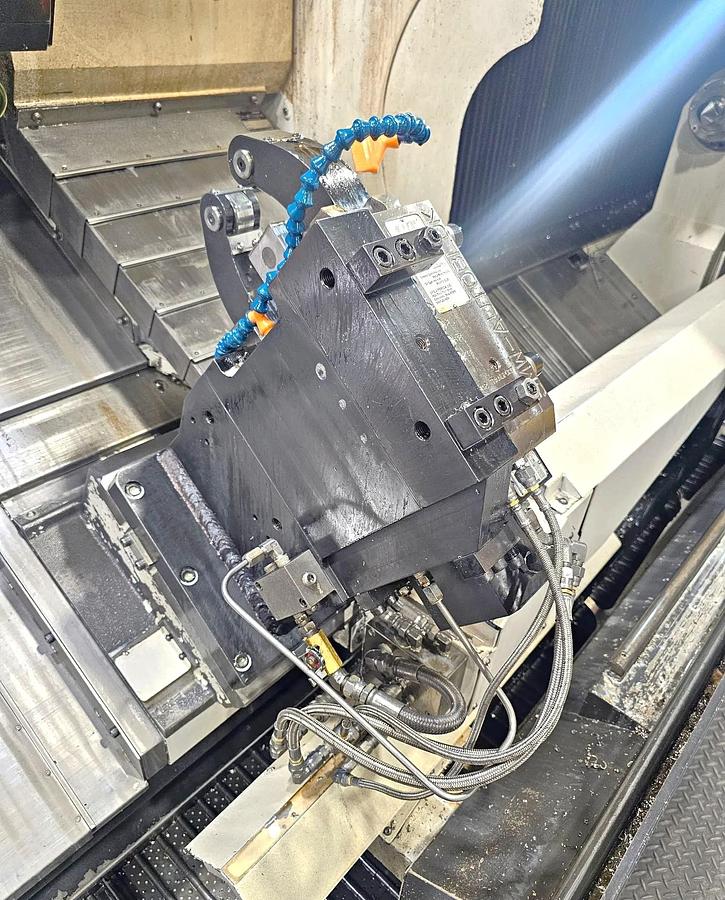

(3) Live Tool Holder
Other Miscellaneous Tooling
Specifications
| Manufacturer | Mazak |
| Model | Nexus QTN 450-IIM/3000 |
| Year | 2007 |
| Condition | Used |
| Stock Number | #120871 |

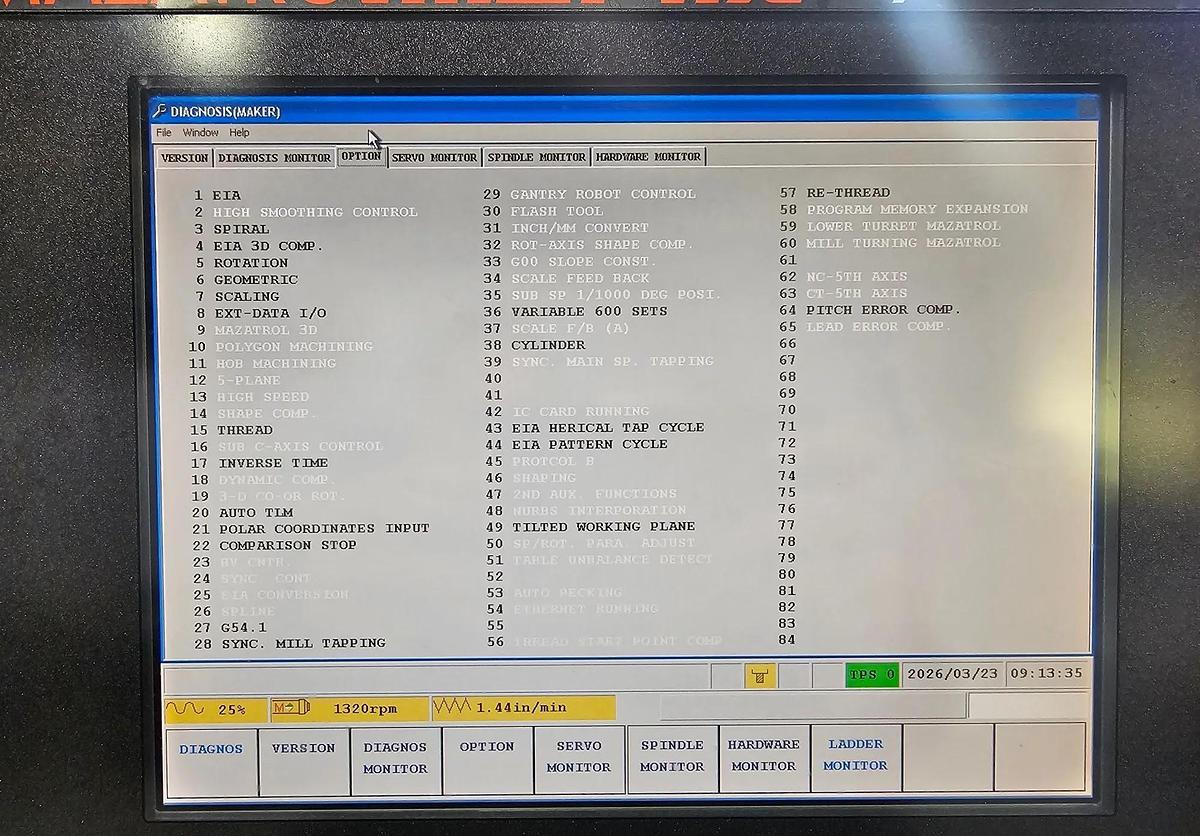

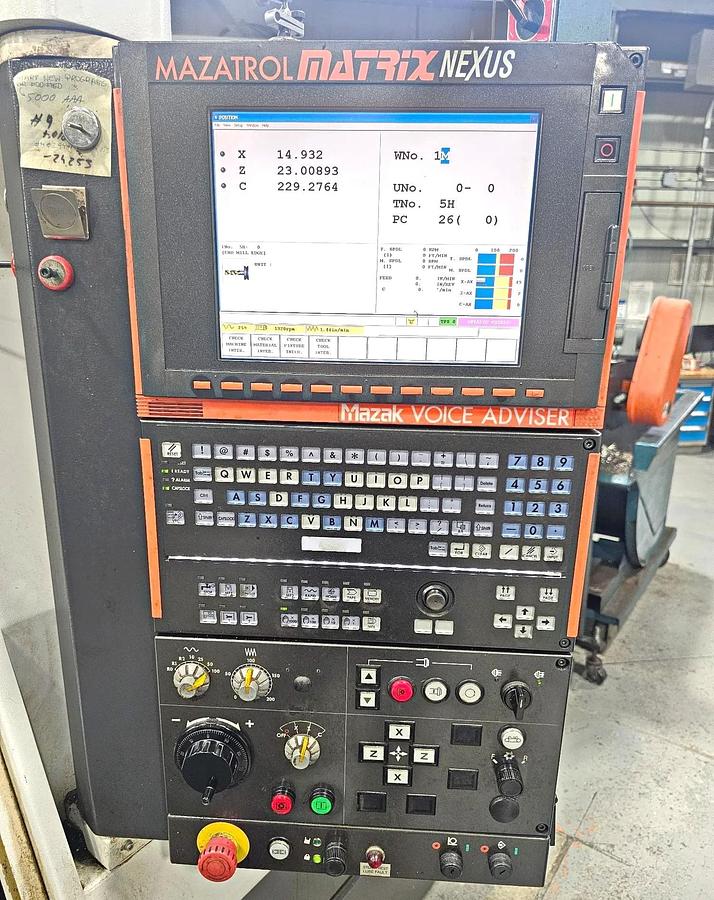

| Machine Control | Mazatrol Matrix Nexus |
| Chuck Size | 18" 3-Jaw Hydraulic Chuck |
| Maximum Swing | 33.26" |
| Maximum Cutting Diameter | 22.83" |
| Maximum Turning Length | 122" |
| Distance Between Centers | 122" |
| X-Axis Travel | 13.38" |
| Z-Axis Travel | 124.8" |
| C Axis Spindle Rotation | .001 Degree |

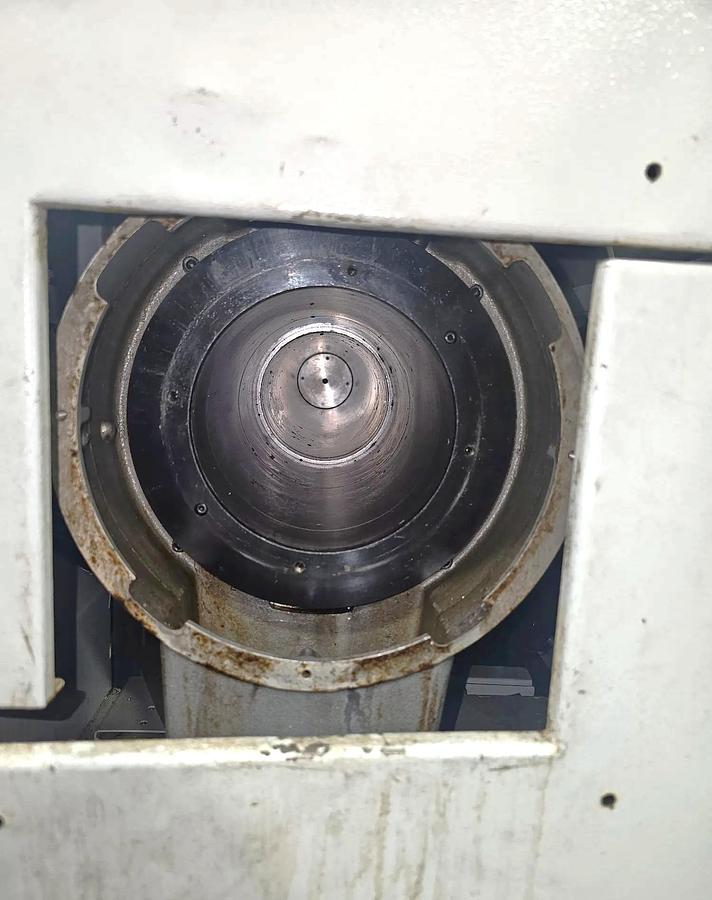

| Spindle Nose / Bore / Bar Capacity | A2-15 / 6.5" / 6.0" |
| Spindle Motor | 50 HP |
| Spindle Torque | 1217 ft/lbs. |
| Spindle Speeds | 2,000 RPM |
| Rotary Tool Speed / Rotary Motor | 4,000 RPM / 10 HP |

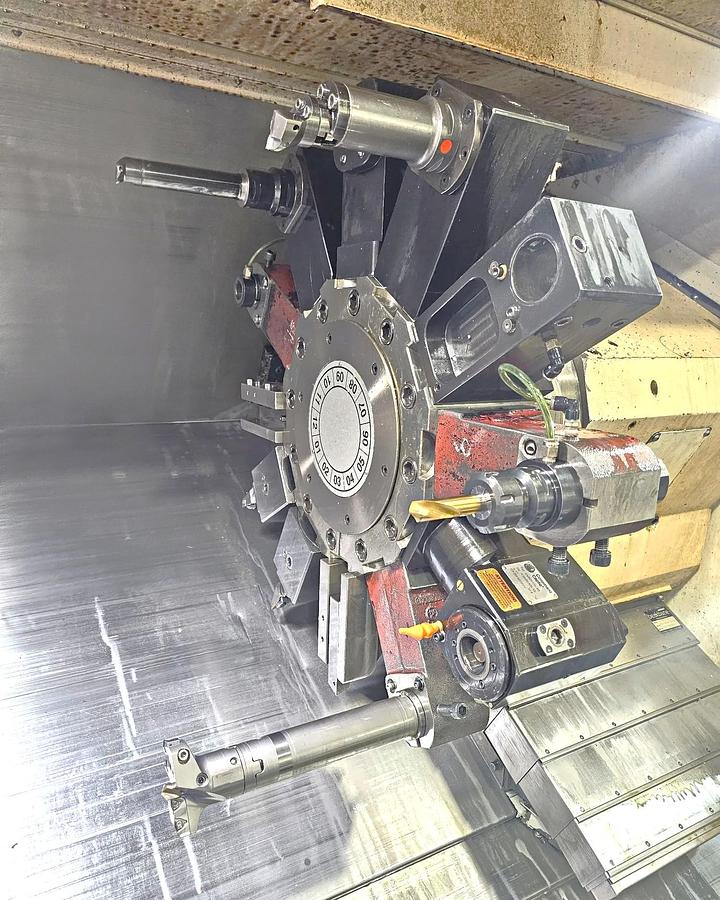

| Number of Turret Positions | 12 Sided / 24 Positions |
| Rapid Traverse Rates | 1181 IPM |
| Tailstock Body Travel | 116.1" |
| Tailstock Quill Diameter / Center | 3.94" / #5 MT |
| Machine Dimensions LxWxH | 280" x 94" x 830" |
| Machine Weight | 33,951 lbs |
