1987 Oliver Model 876/6 Non-Ferrous Precision Automatic Plate Saw with 6" Plate Thickness, 12' x 12' Table, Backgauge, AB Panelview 550
1987 Oliver Model 876/6 Non-Ferrous Precision Automatic Plate Saw with 6" Plate Thickness, 12' x 12' Table, Backgauge, AB Panelview 550
$12,500 (USD)
Location:New Jersey
or
Call (863) 439-6066
Description
Heavy Duty Table - One Piece Base Weldment
Table Feed System - Ballscrew Driven
Backgauge Ballscrew Driven
Acculube Spray System
Hardened THK Ways with Ball Bearings
All Available Manuals
Specifications

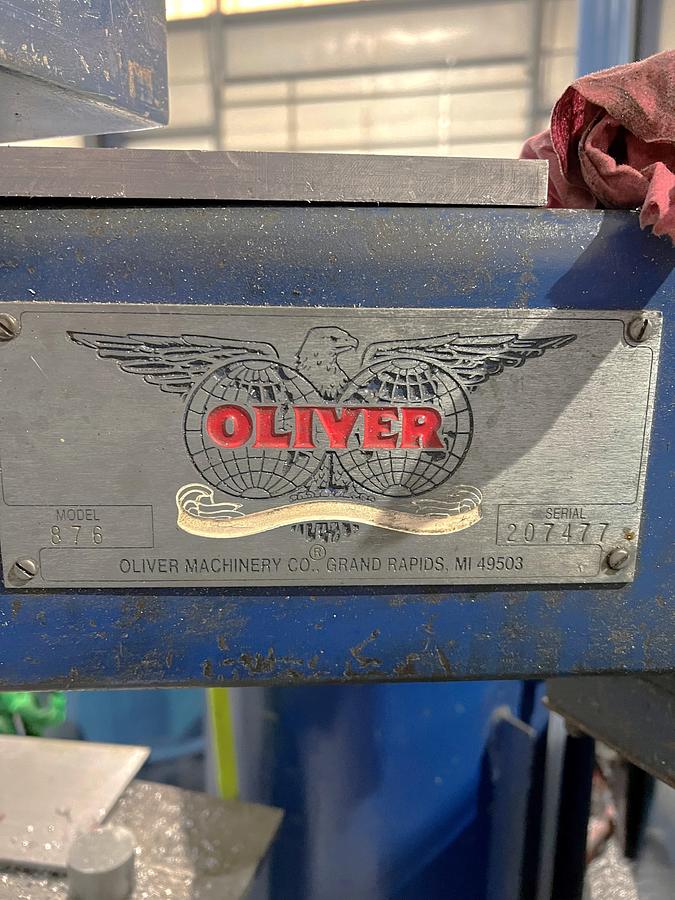

| Manufacturer | Oliver |
| Model | Model 876/6 Non-Ferrous Precision Automatic Plate Saw |
| Year | 1987 |
| Condition | Used |
| Stock Number | #120869 |

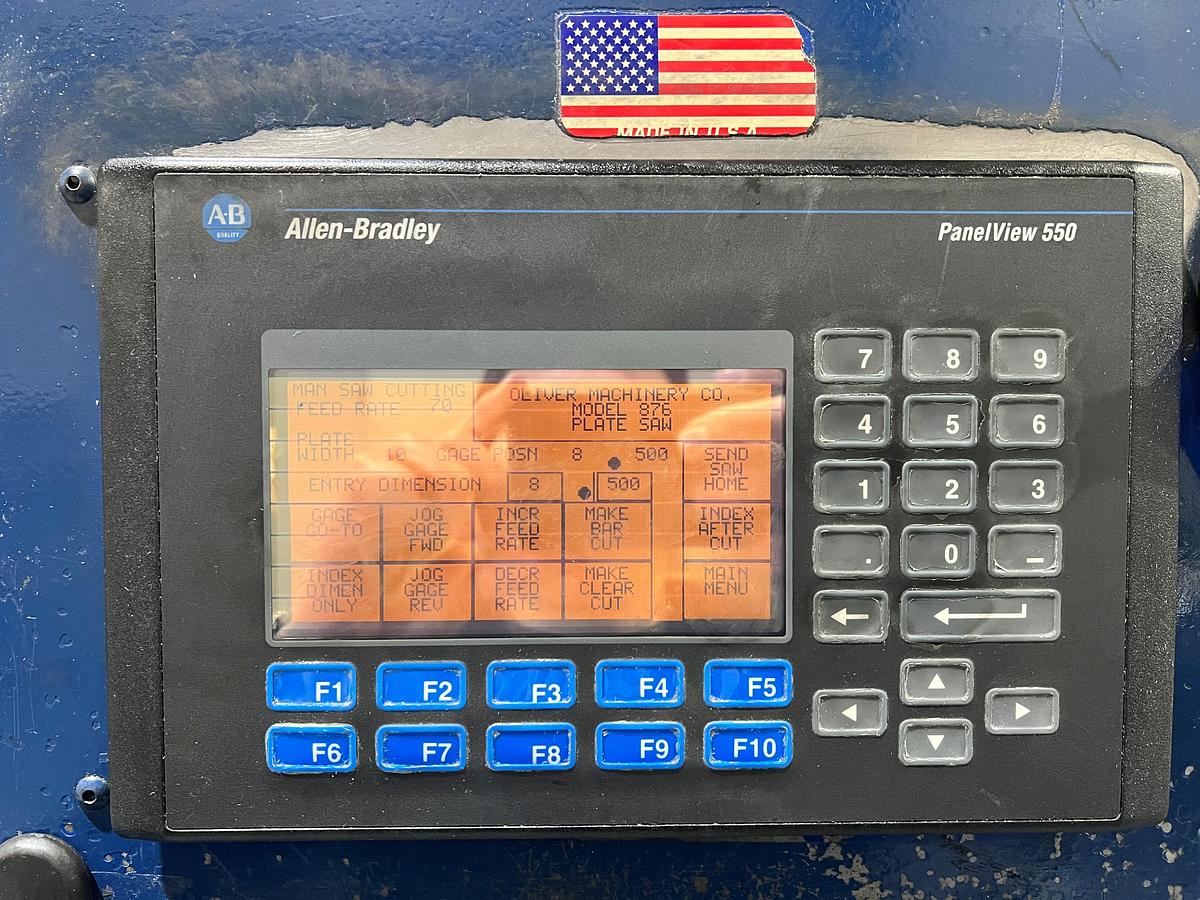

| Machine Control | Allen-Bradley PanelView 550 |
| Maximum Cutting Thickness | 6" |
| Maximum Cutting Length | 12' 2" |
| Backgauge Range | 0 - 144" |
| Blade Motor | 30 HP |
| Blade Size | 14" - 28" Diameter |
| Feed Speeds | 10 - 500 IPM |
| Return Speed | 500 IPM |
| Arbor Speed | 2275 RPM |
| Table Height | 32" |
| Operator Side Table Width | 32" |
| Gauge Side Table Width | 9" |
