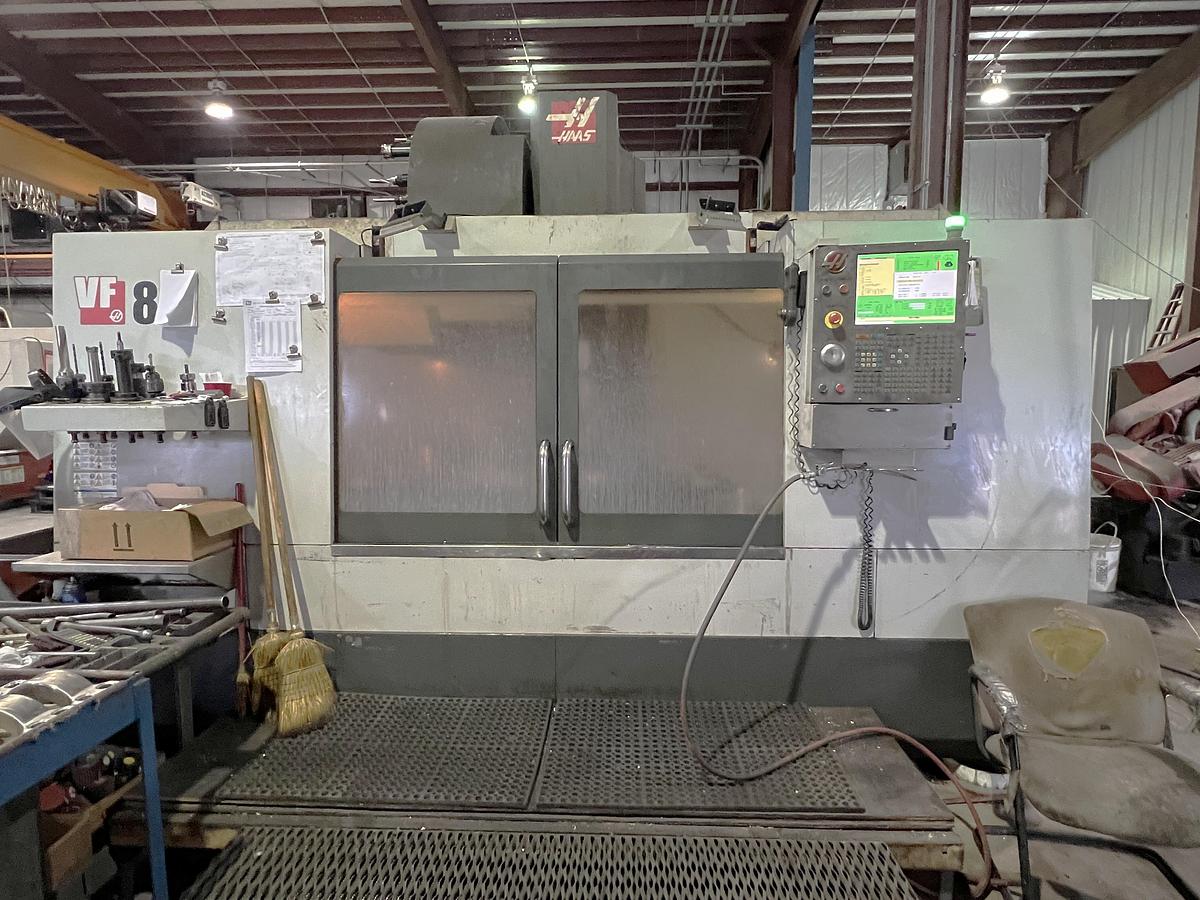

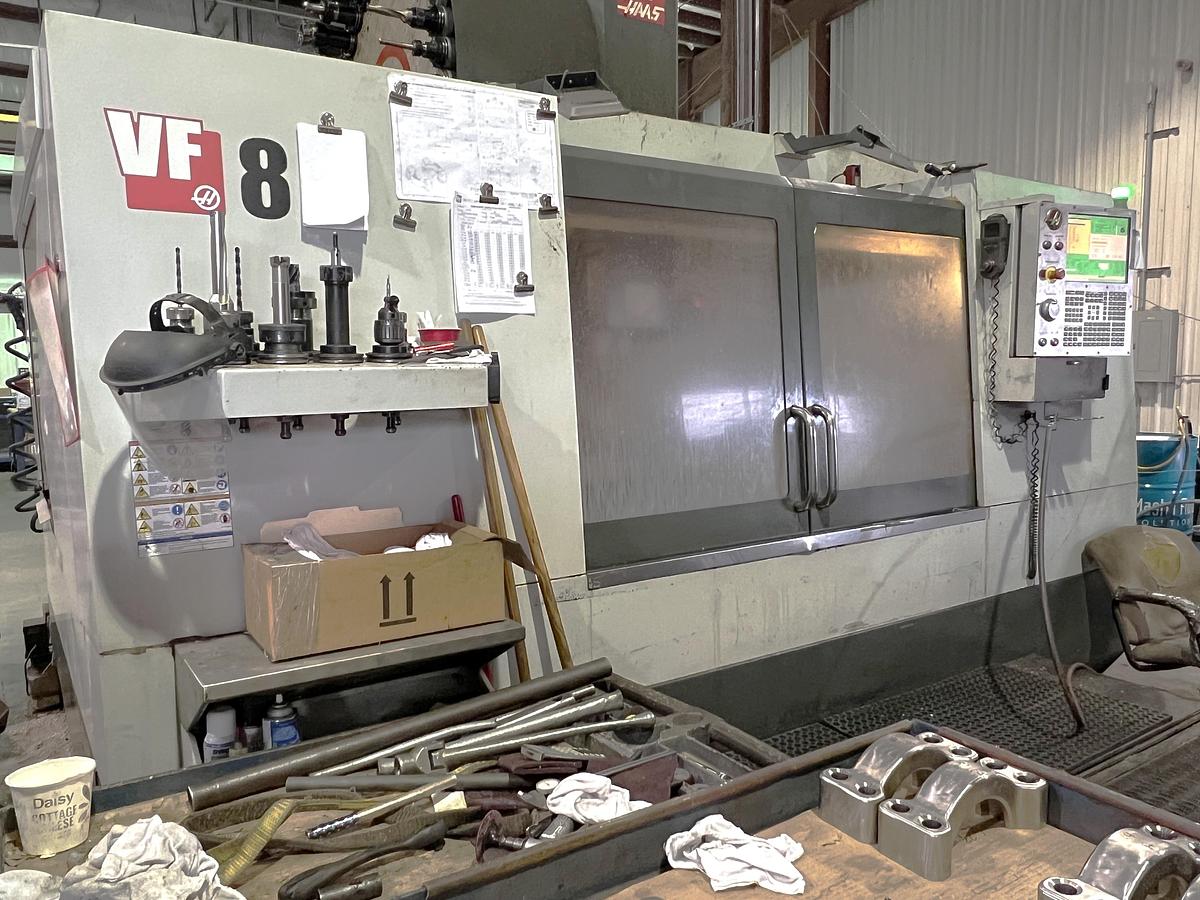

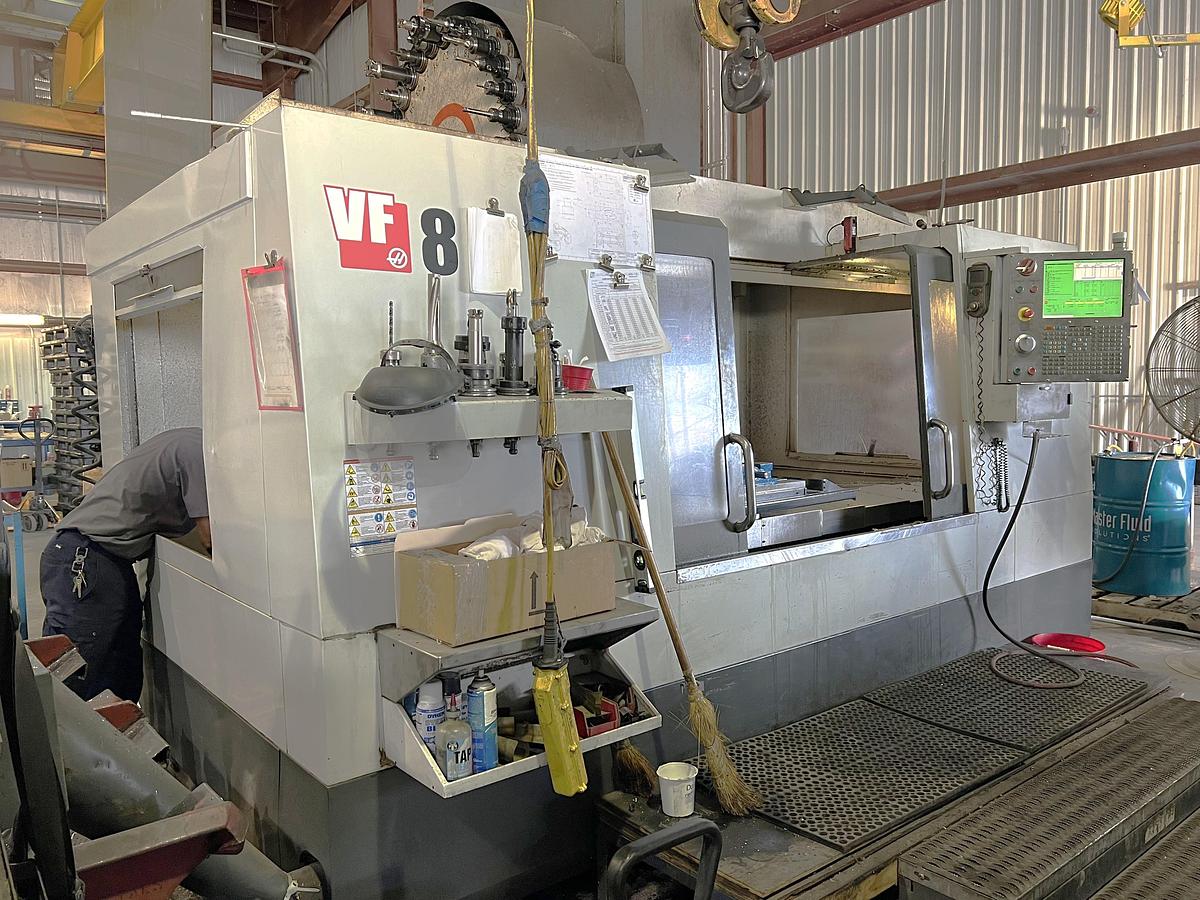

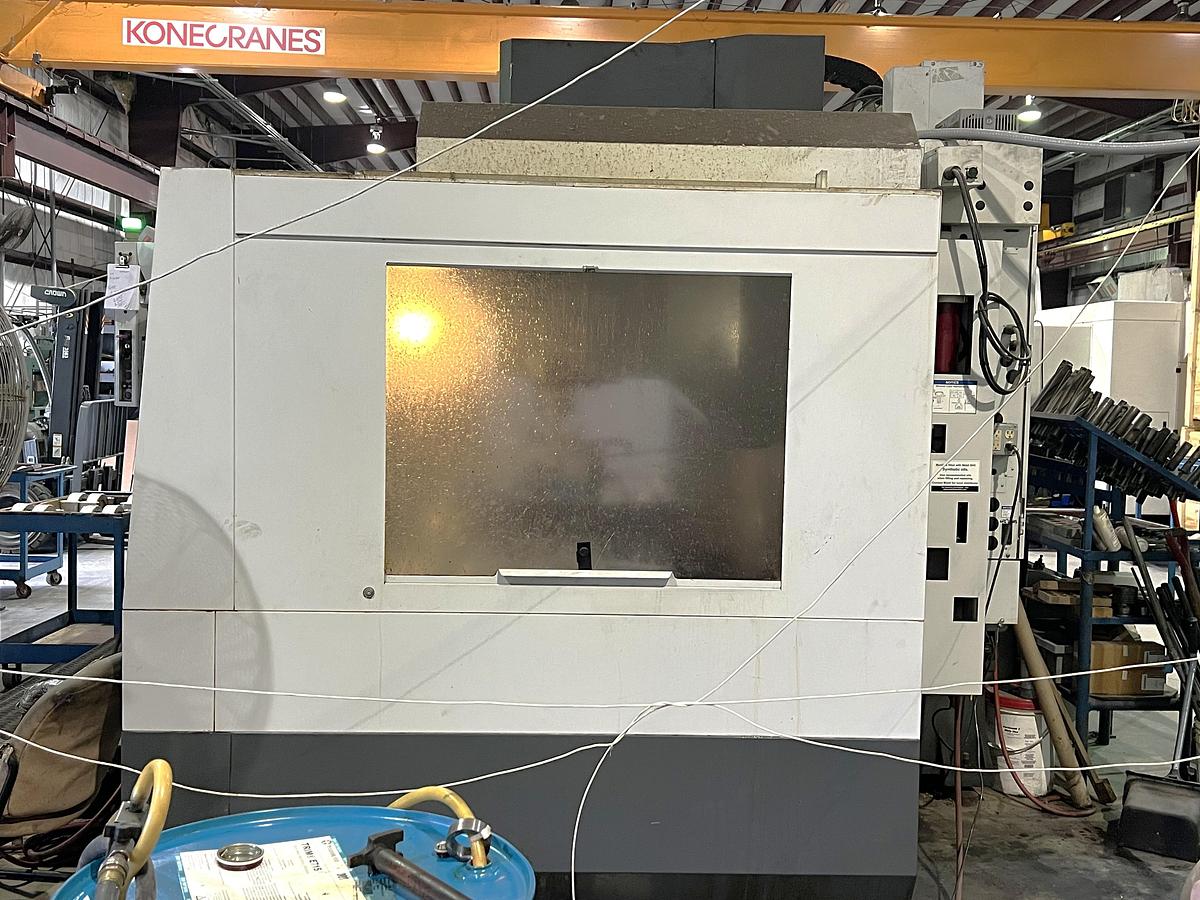

2012 Haas VF8/50 with Coolant Thru Spindle, Haas HRT-310 4th Axis Table, Probe Ready, CAT 50, 7500 RPM, 30 Station ATC, MORE !!
2012 Haas VF8/50 with Coolant Thru Spindle, Haas HRT-310 4th Axis Table, Probe Ready, CAT 50, 7500 RPM, 30 Station ATC, MORE !!
$92,500 (USD)
Location:Louisiana
Description
50 Taper Spindle Option
4th Axis Drive & Wiring

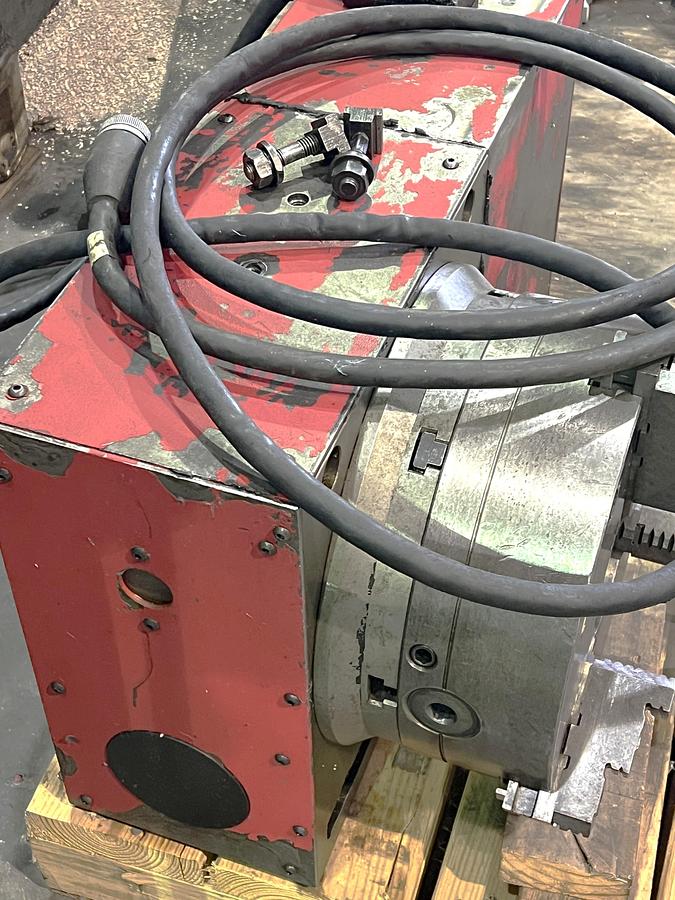

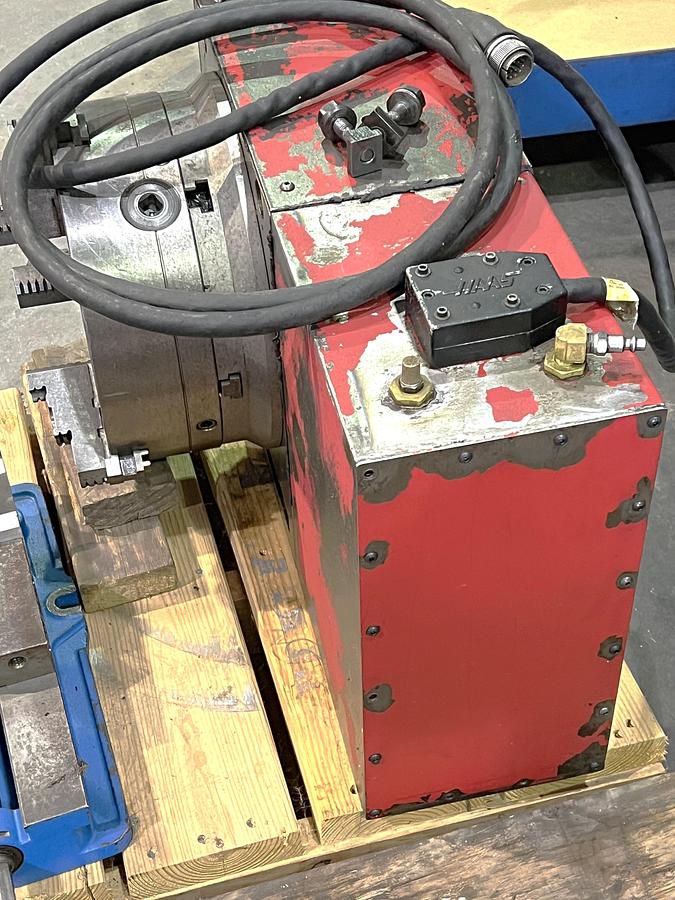

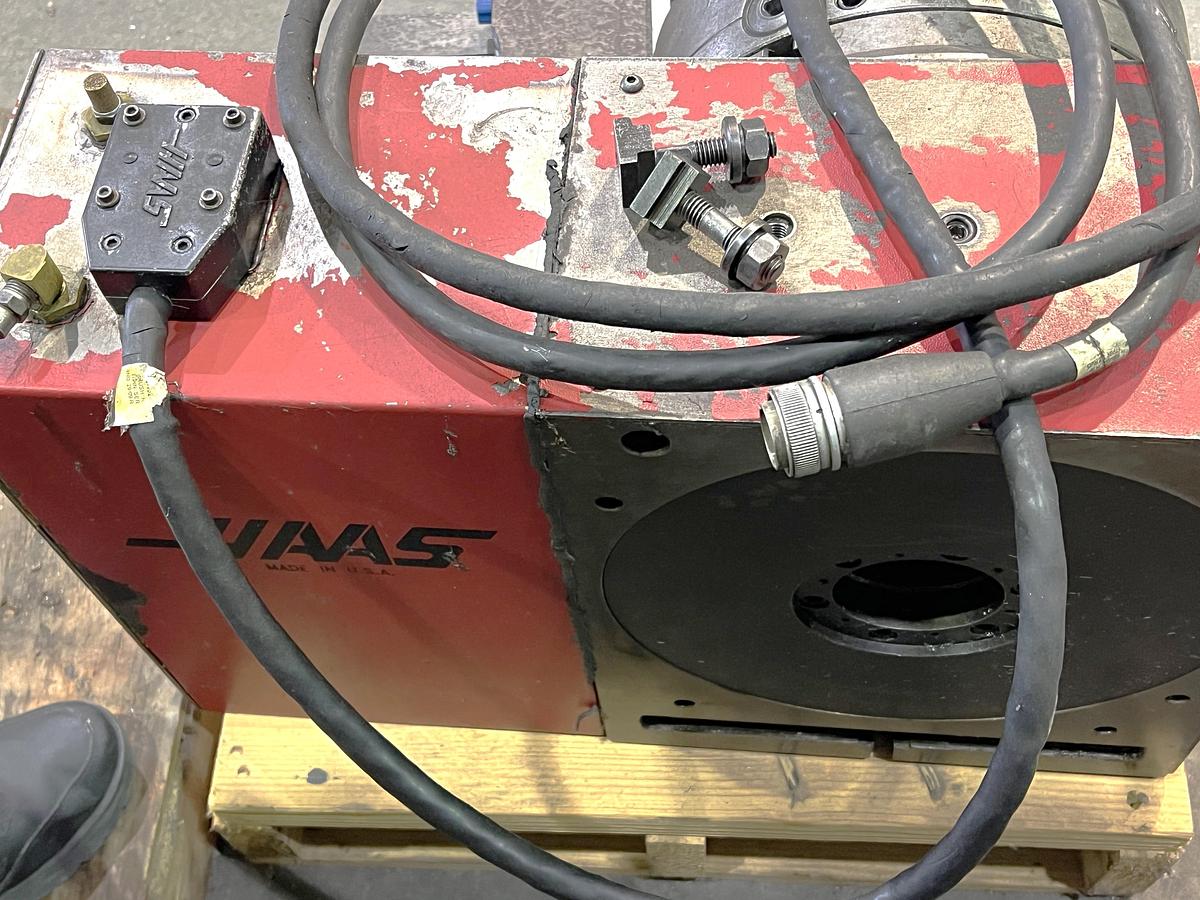

Haas HRT-310 4th Axis Rotary Table - Brush Type
Conversion Box for Running Brush Type Rotary Table
Coolant Through the Spindle - 300 PSI

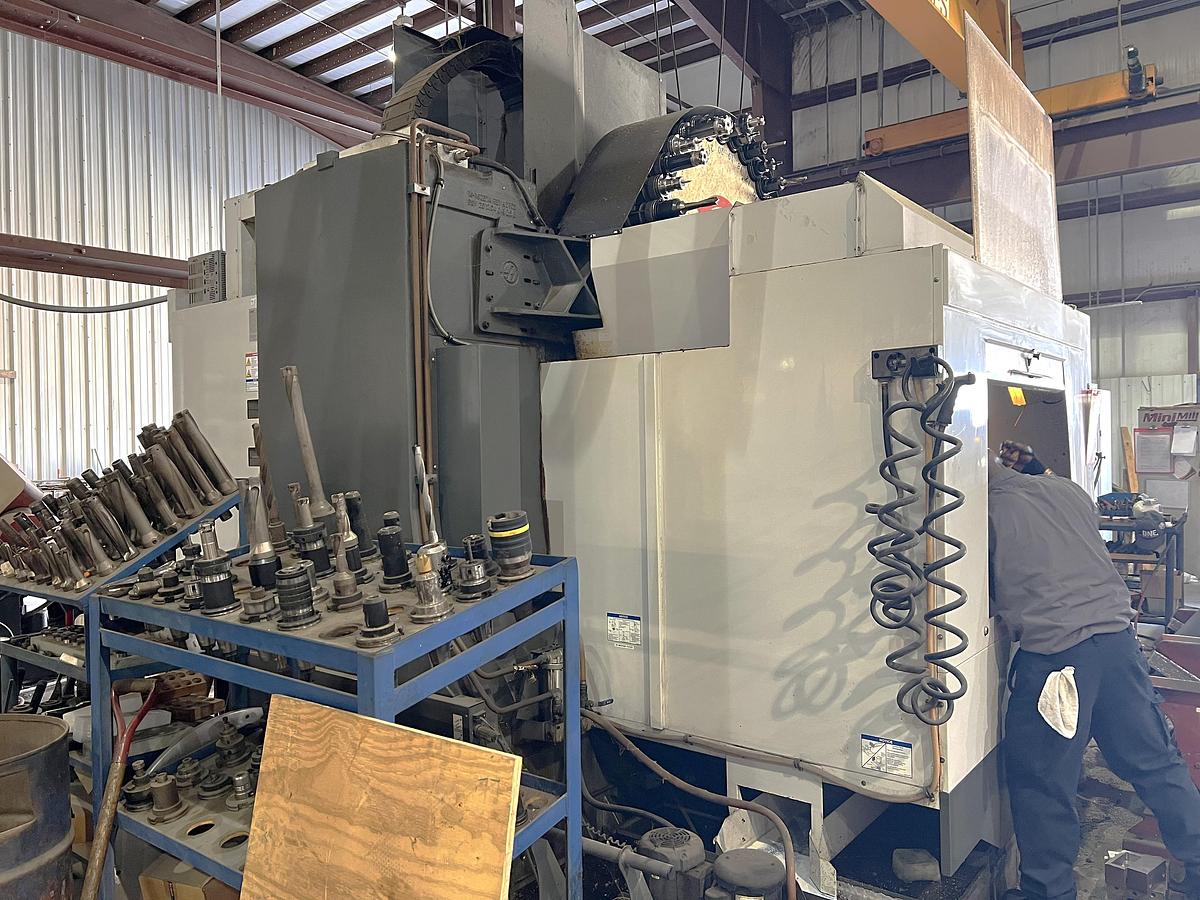

30 Station Side Mounted Tool Changer
Prepped Only for Haas Probing Package (missing both tool probe and part probe)

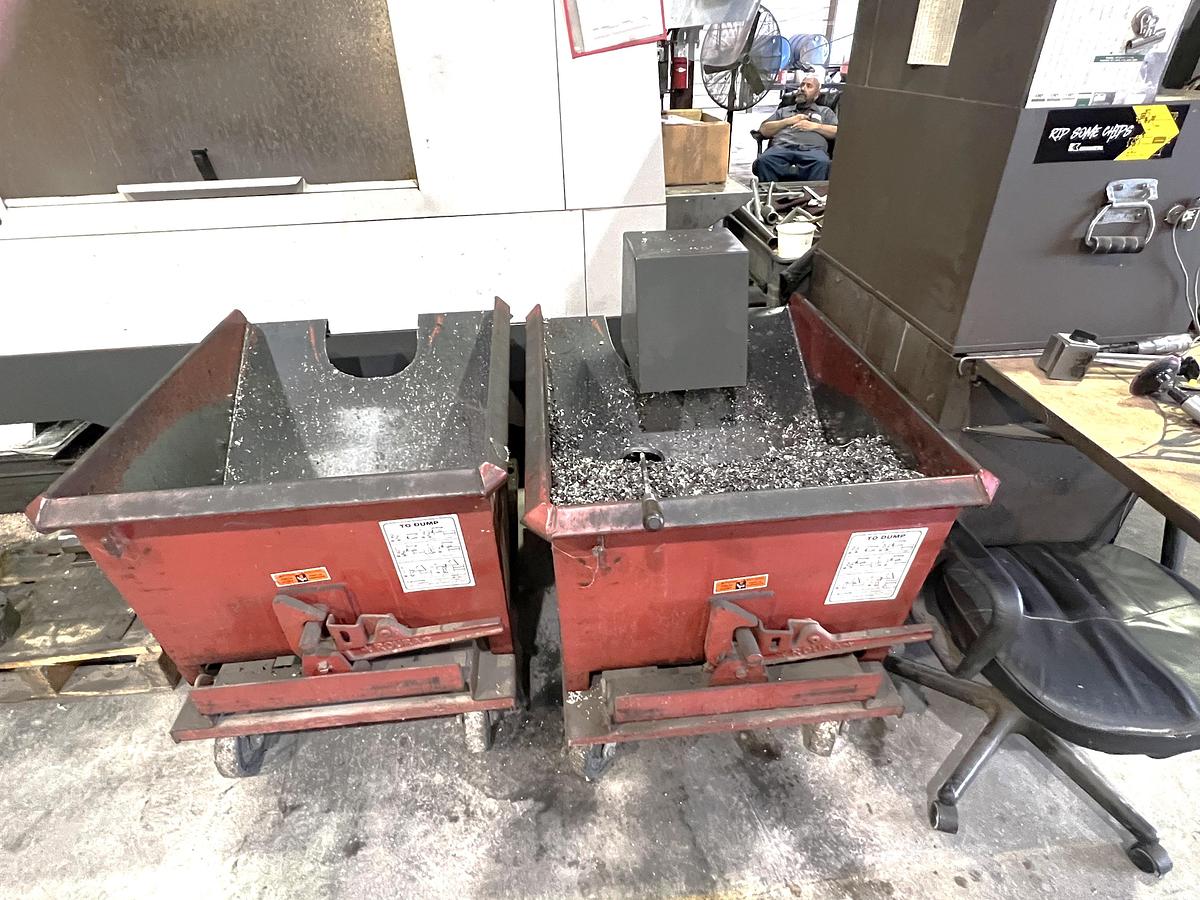

Auger Style Chip Conveyor
Remote Jog Handle
Programmable Coolant Nozzle
User Definable Macros
Spindle Orientation
Coordinate Rotation & Scaling
Haas Intuitive Programming System
2 Speed Gearbox
High Intensity Lighting
Rigid Tapping
95 Gallon Flood Coolant System
Coolant System with Tank & Pump
Memory Key Lock Switch
15" Color LCD Monitor
USB Port Interface
RS-232 Port Interface

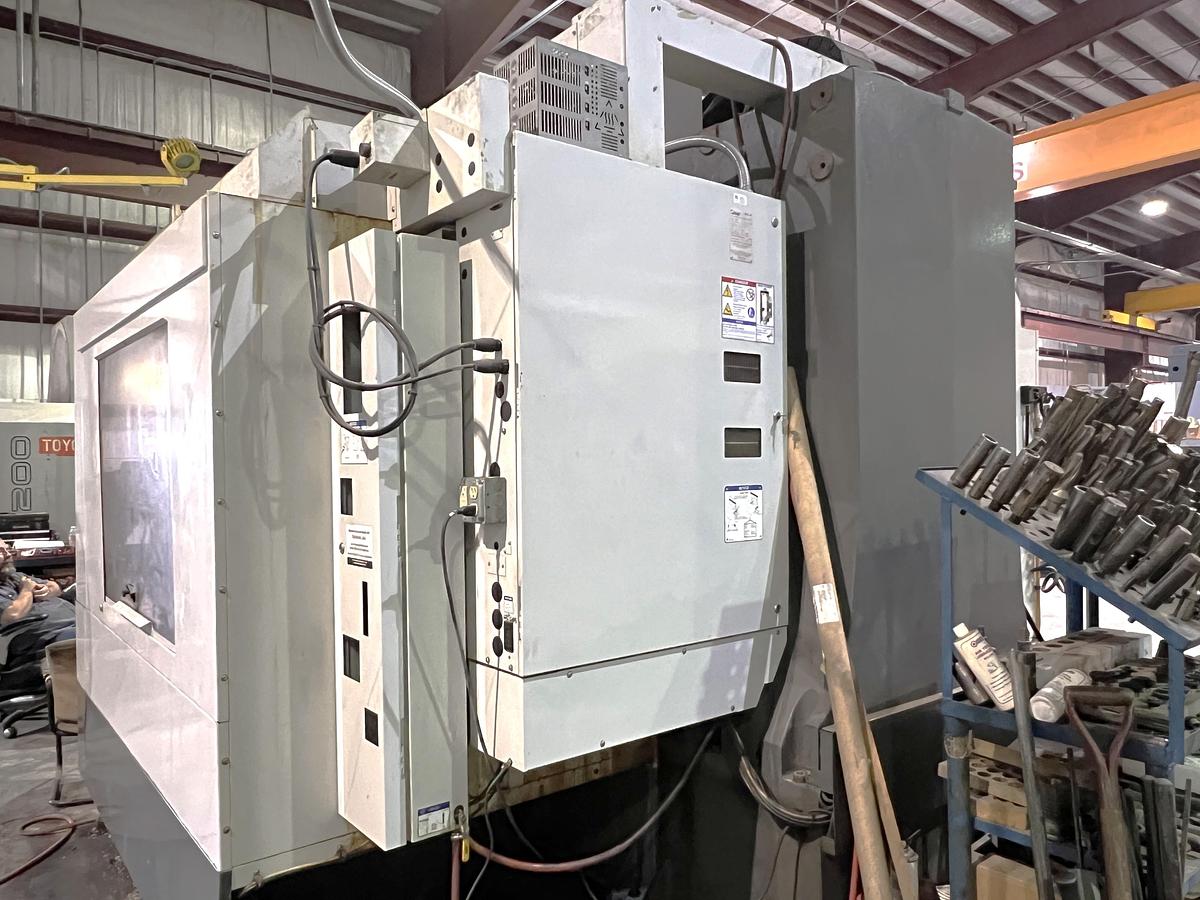

195-260V Electrics - Full Load 85 AMPS

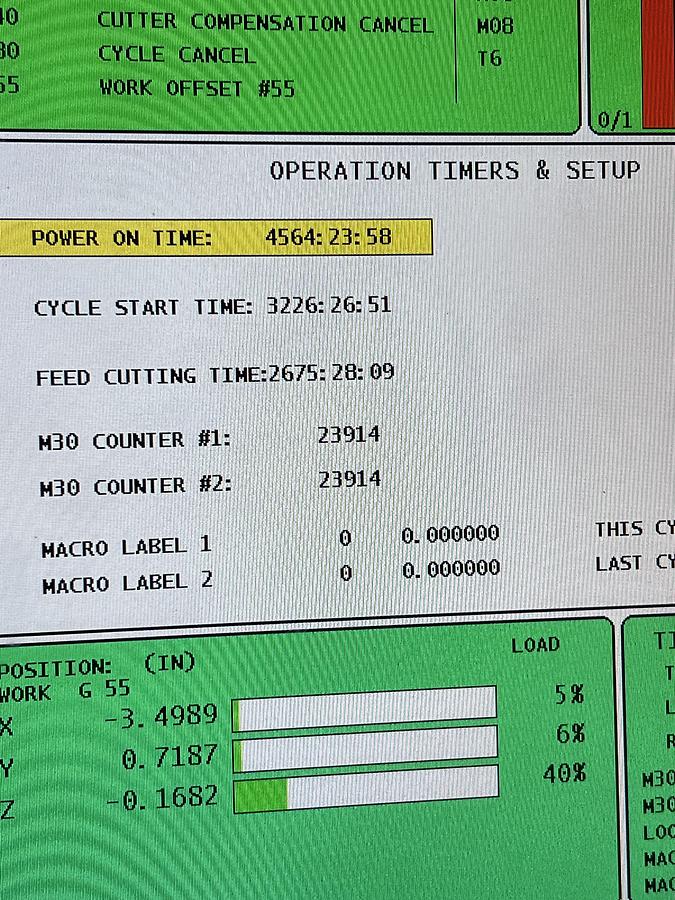

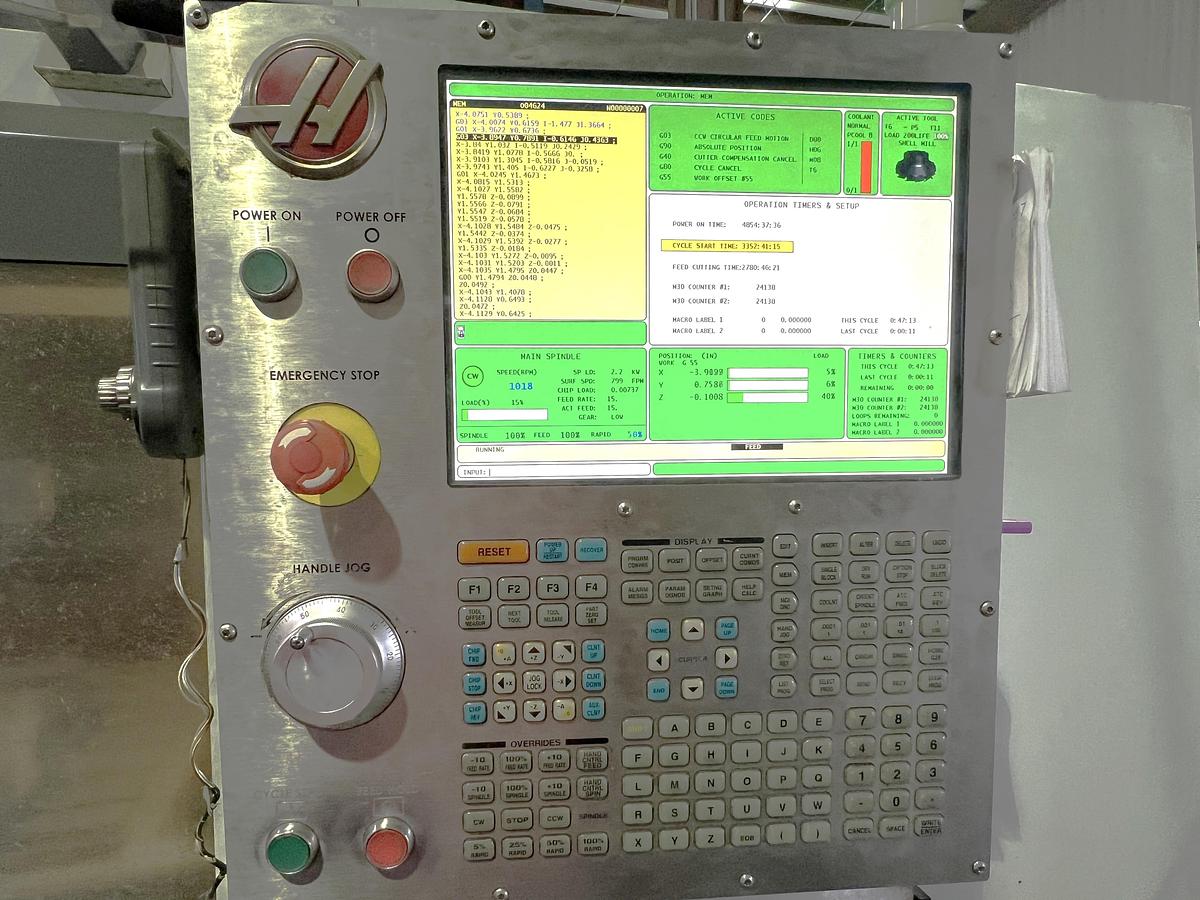

**Power On Hours 4,564**
**Cycle Start Hours 3,226**
**Feed Cutting Hours 2,675**
**These are the hours showing on the hour meter, we do not believe them to be accurate**
Specifications
| Manufacturer | Haas |
| Model | VF8/50 |
| Year | 2012 |
| Condition | Used |
| Stock Number | #120868 |
| Machine Control | Haas CNC Control |

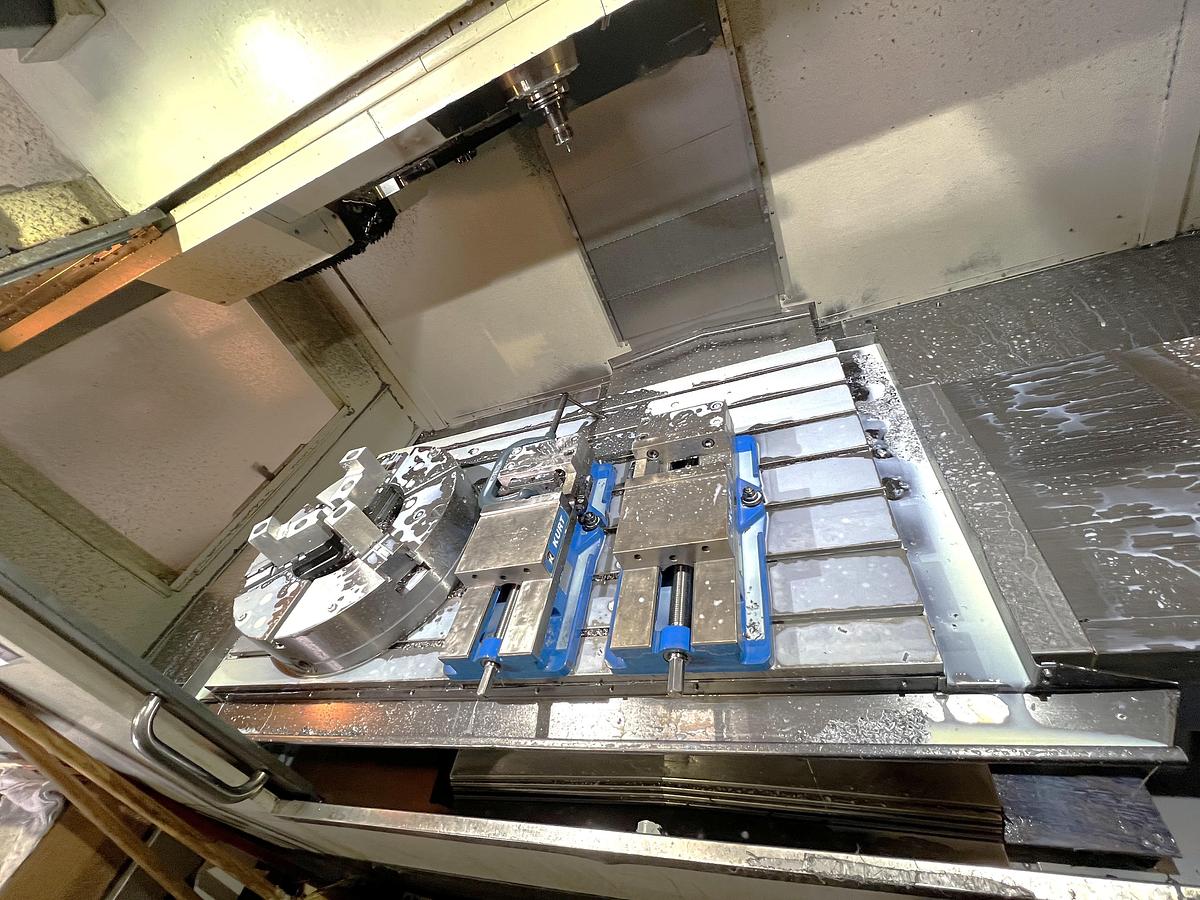

| Table size | 64"x36" |
| Maximum Table Load | 4,000 lbs |
| X-Axis Travel | 64" |
| Y-Axis Travel | 40" |
| Z-Axis Travel | 30" |
| Spindle Taper | CAT 50 |
| Spindle Motor | 30 HP |
| Spindle Speeds | 7,500 RPM |
| Distance Spindle Nose to Table Top | 5" - 35" |
| Tool Magazine Capacity | 30 Position Side Mounted ATC |
| Maximum Tool Diameter / Weight | 5.3" / 25 lbs. |
| Rapid Traverse Rates X / Y, Z | 540 IPM / 600 IPM |
| Machine Dimensions LxWxH | 156"x139"x129" |
| Machine Weight | 24,000 lbs. |
