2015 Doosan Puma 800LM with C Axis & Milling, 31.5" 3 Jaw Rohn Air Chk, 12.6" Bar Cap., 126" Turn Length, New RIP Steady Rest, Tailstock, Conveyor

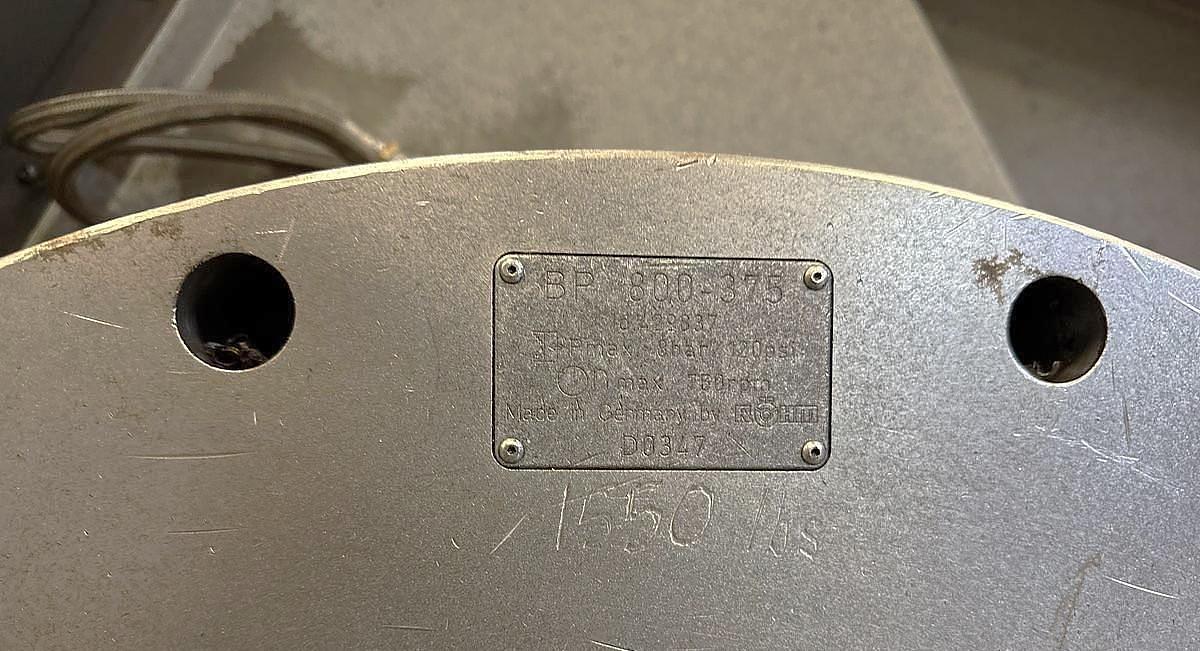

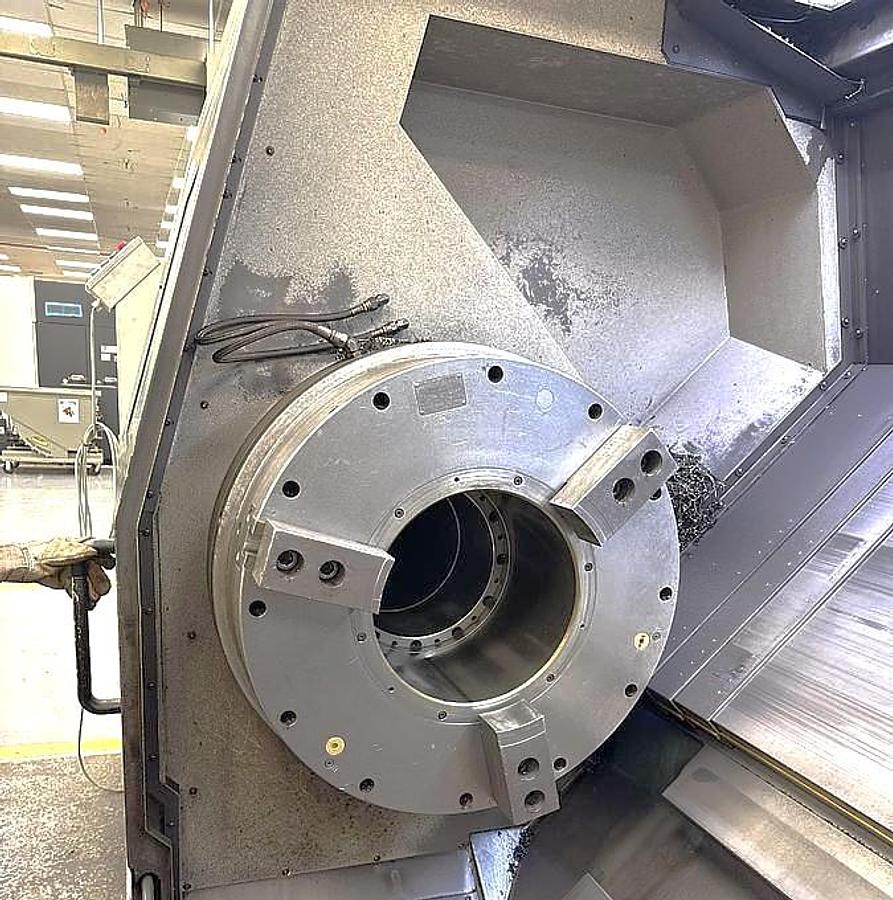

31.5" 3 Jaw Rohm Air Chuck with 14.775" Hole Through

12.6" Bar Capacity

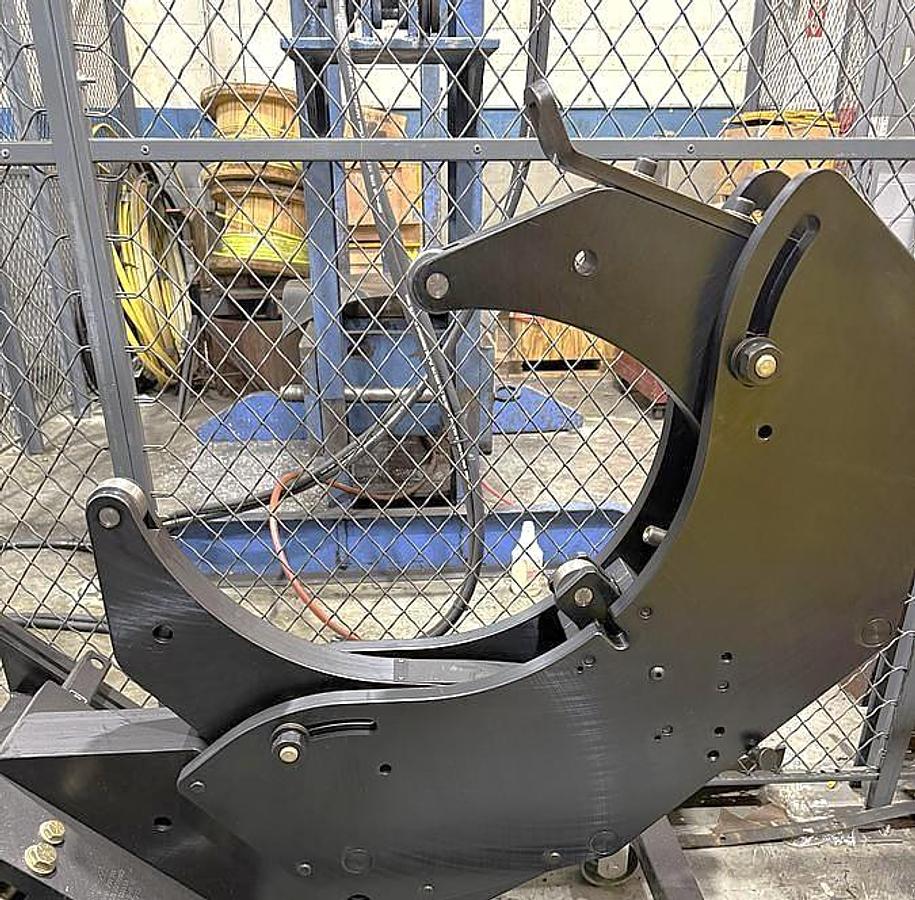

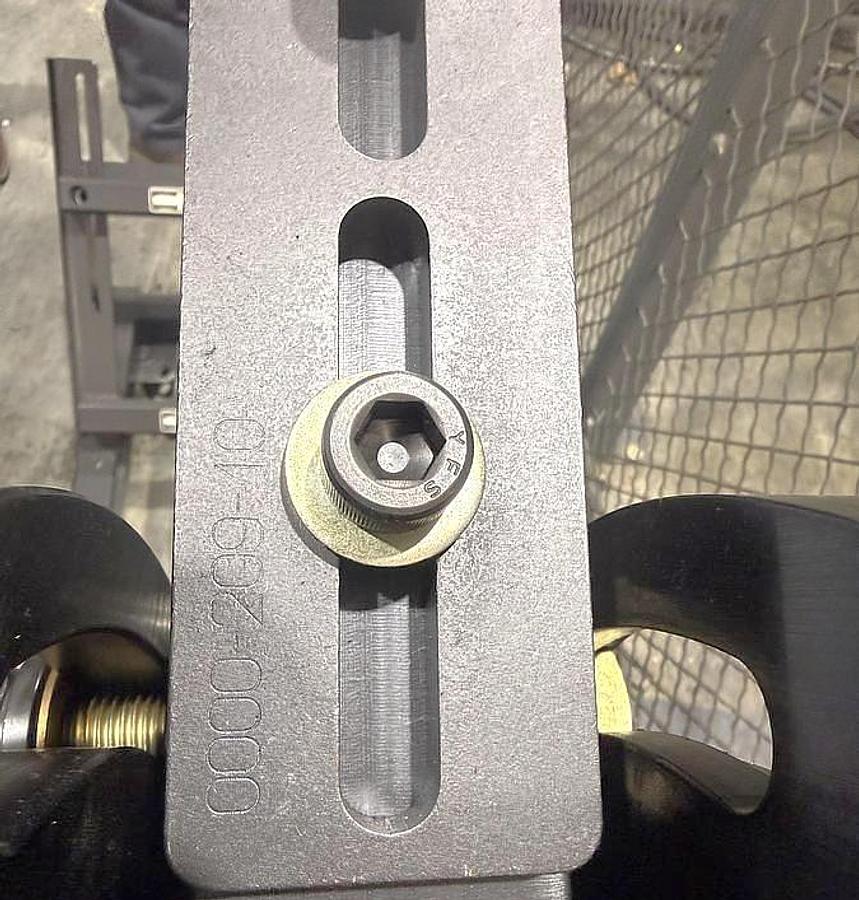

New RIP Manual Steady Rest

Tailstock

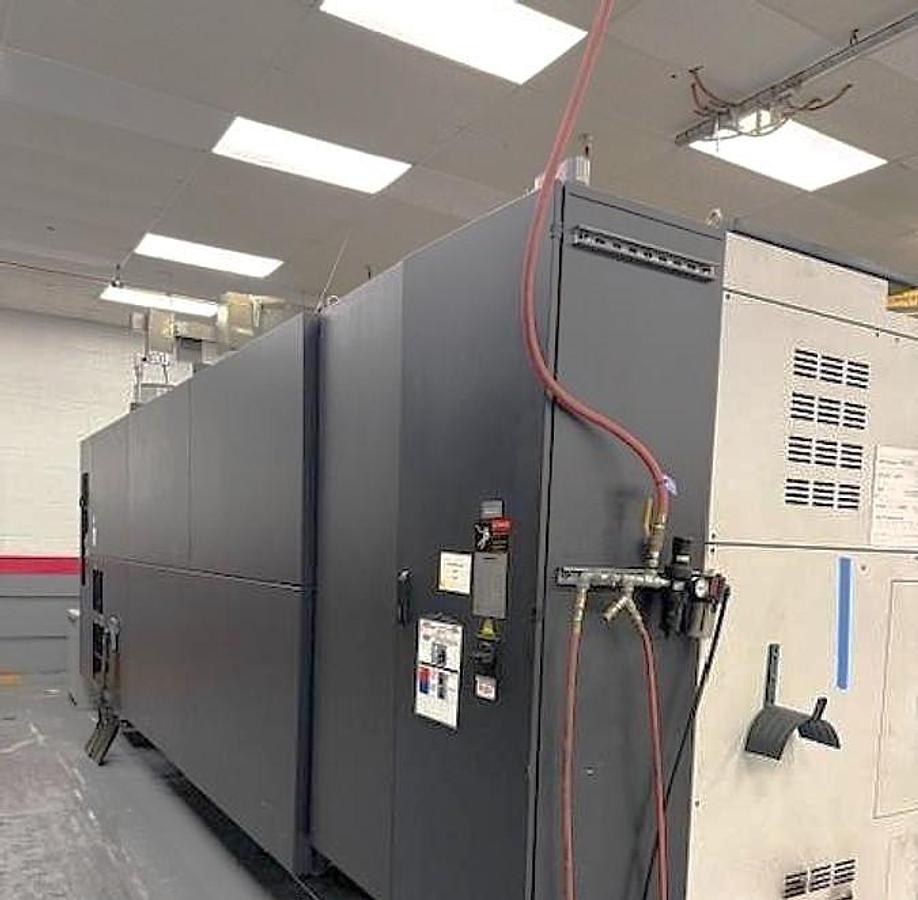

Chip Conveyor

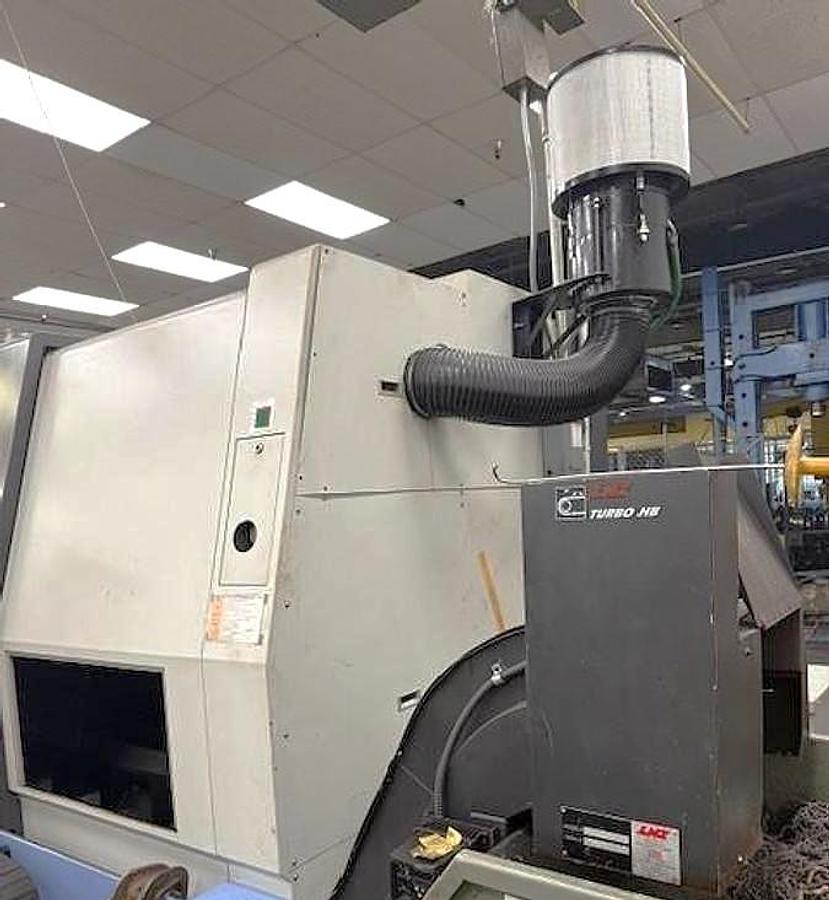

Mist Collector

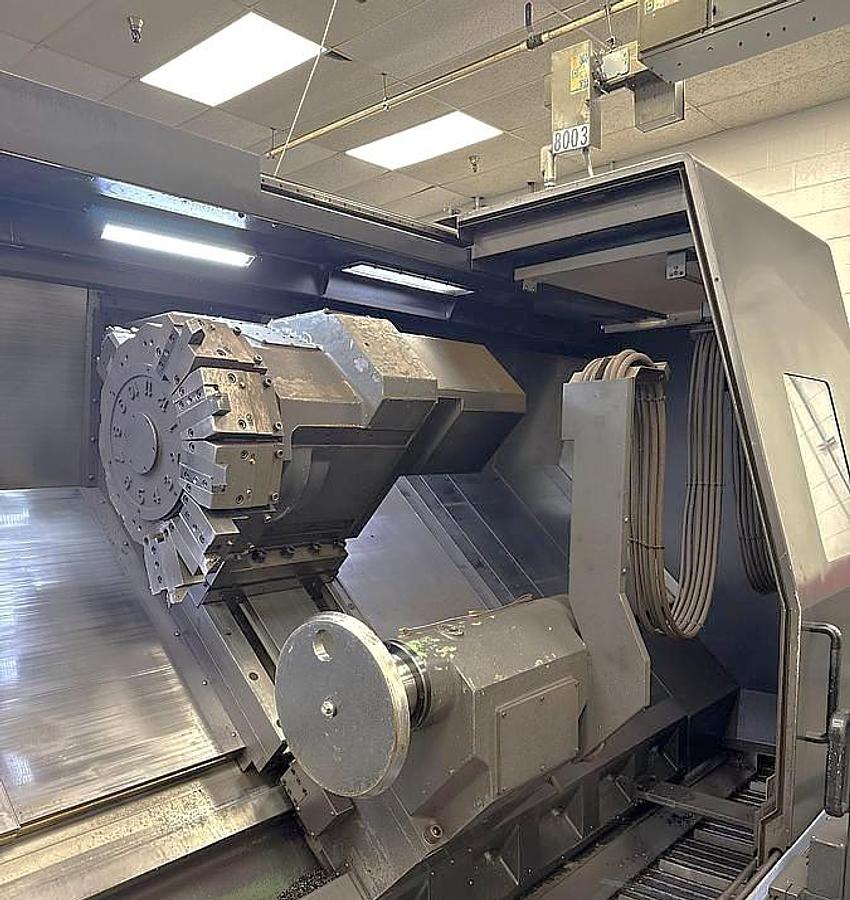

12 Station VDI Style Turret

Coolant System with Tank & Pump

RS 232 Port Interface

Card Interface

Wired 200/220V Electrics

All Available Manuals

All Available Static Tooling

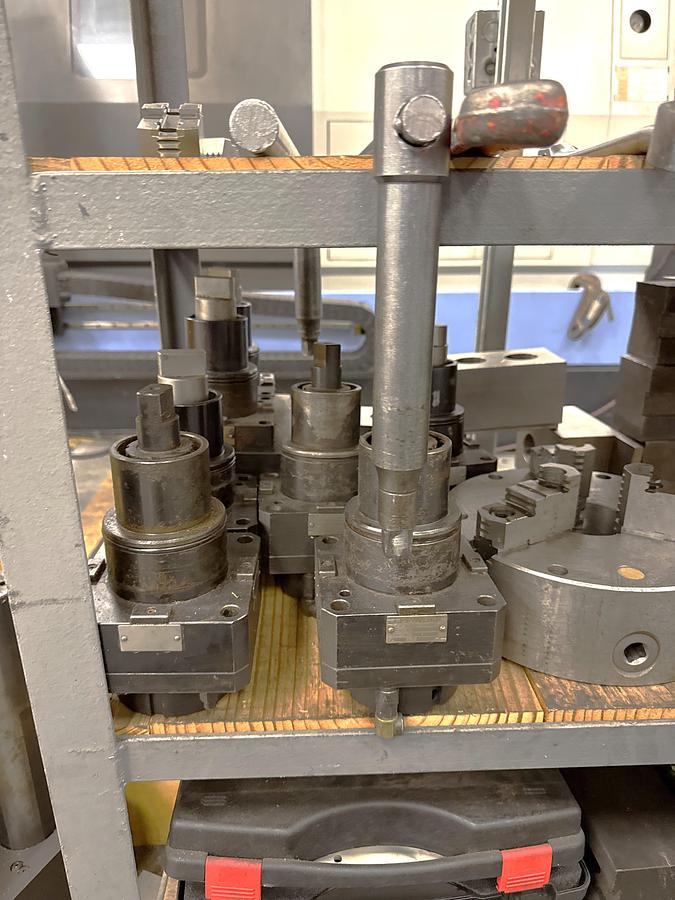

Some Live Tool Holders

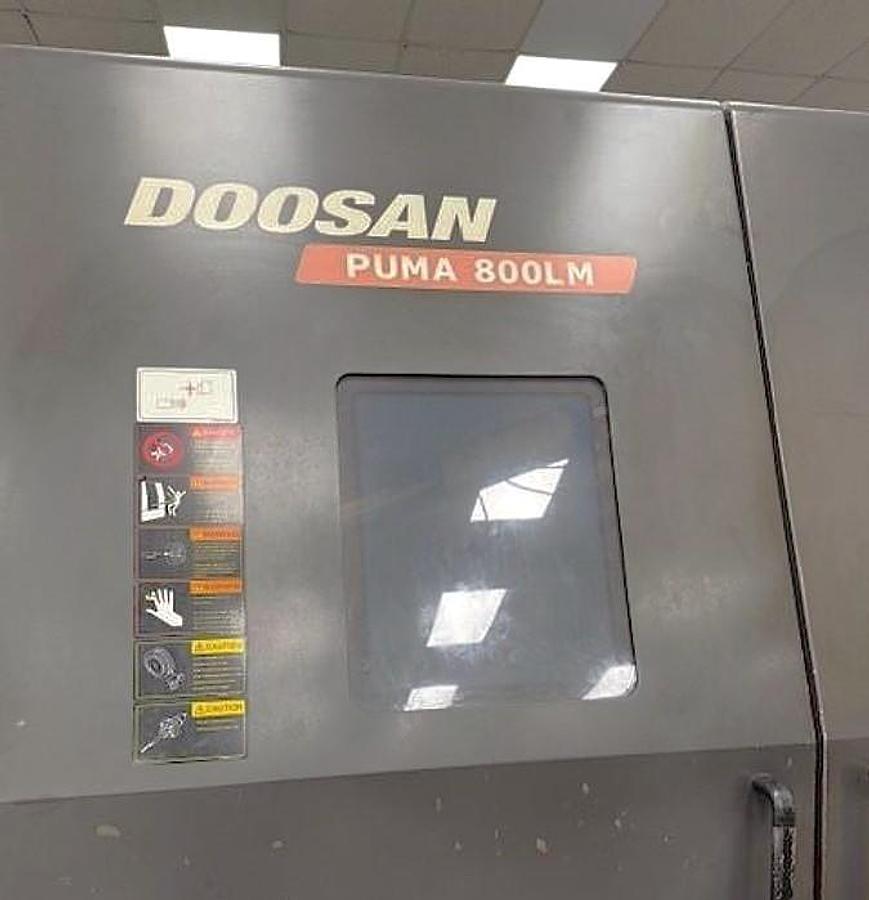

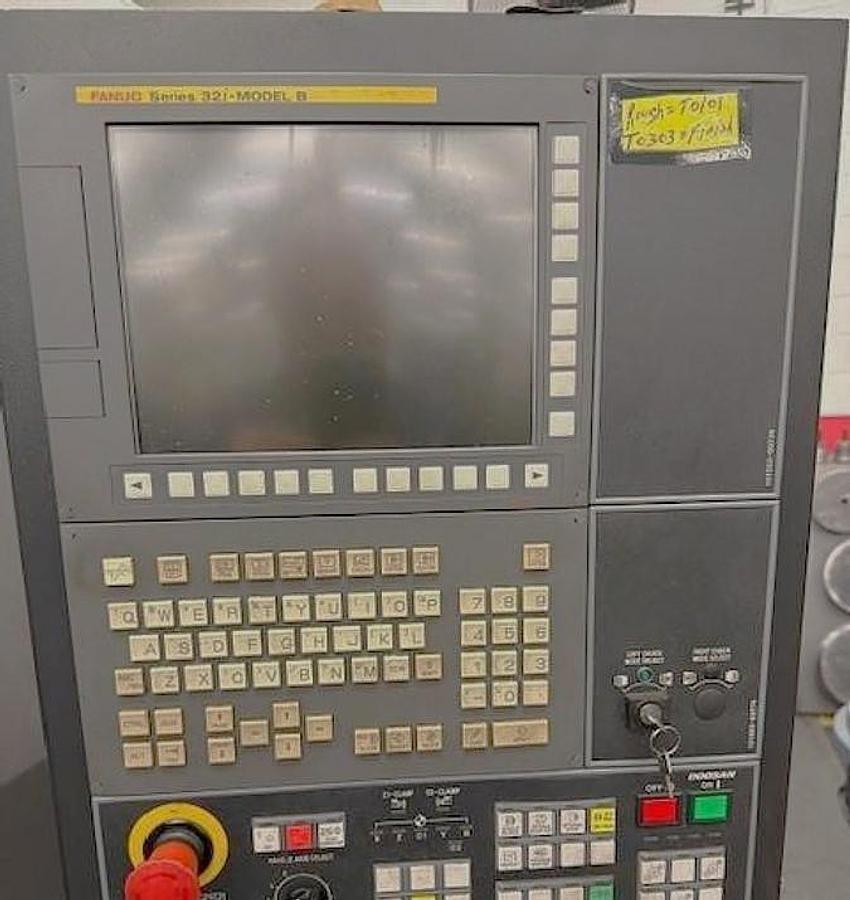

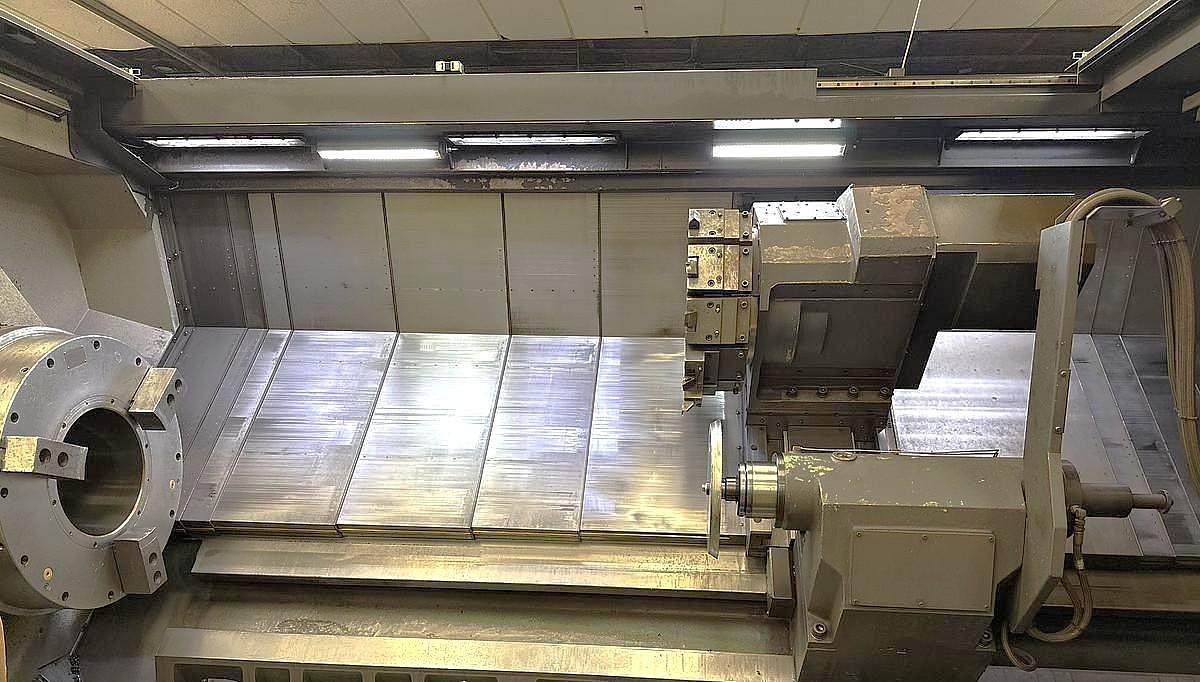

The 2015 Doosan Puma 800LM is a robust, used CNC lathe designed for precision and heavy-duty applications, featuring a Fanuc Series 32i-Model B control system. This model is equipped with a 31.5" 3-jaw Rohm air chuck, supporting a bar capacity of 12.6" and enables a significant maximum swing over bed of 40.6". Its spacious working area allows a maximum turning diameter of 35.4" and an impressive distance between centers of 126", making it suitable for large workpieces. Key features of the Puma 800LM include a powerful spindle with A2-20" nose, capable of speeds ranging from 3 to 750 RPM, backed by a sturdy 60/50 HP motor. The lathe is also equipped with a 12-position bolt-on style turret for versatile tool accommodation. The C-axis capability provides enhanced functionality, with spindle rotation at .001-degree increments. It boasts rapid traverse rates of 472 IPM on the X-axis and 397 IPM on the Z-axis, ensuring efficient workflow. The machine includes a tailstock with a quill diameter of 6.3", quill travel of 5.9", and a #5 MT taper. The physical dimensions are 290" x 104" x 102", extending to 355" in length with the chip conveyor, and it weighs about 48,500 lbs. This lathe is complemented by its new RIP steady rest, tailstock, and conveyor, ready to meet demanding production requirements.
