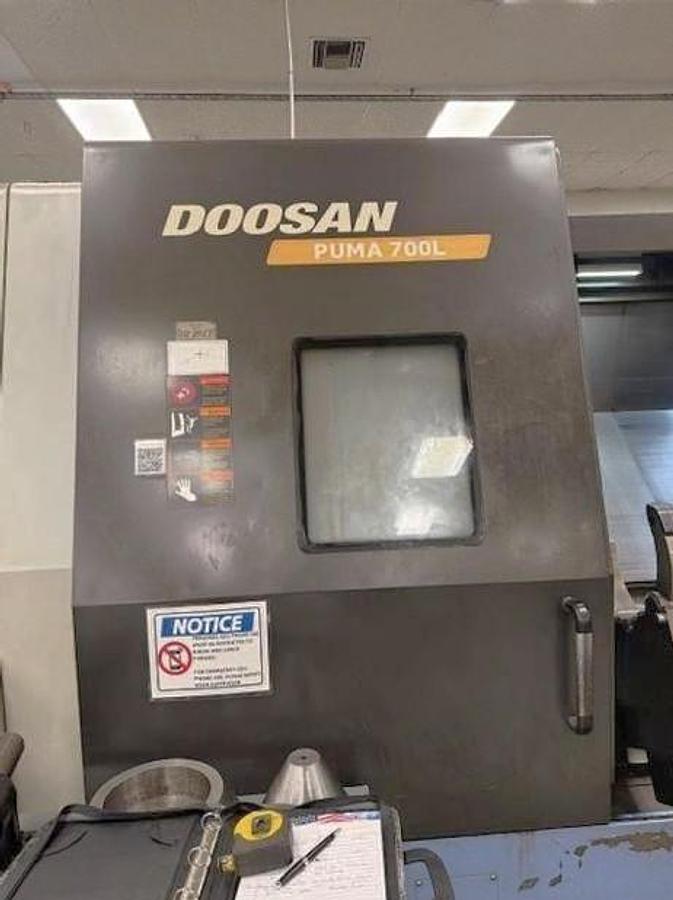

2006 Doosan Puma 700L with 24" Hyd. Chk, 6.5" Bar Cap., 126" Turn Length, SMW Steady Rest, Tailstock, Conveyor, Tool Eye
2006 Doosan Puma 700L with 24" Hyd. Chk, 6.5" Bar Cap., 126" Turn Length, SMW Steady Rest, Tailstock, Conveyor, Tool Eye
$119,500 (USD)
Location:Texas
or
Call (863) 439-6066
Description

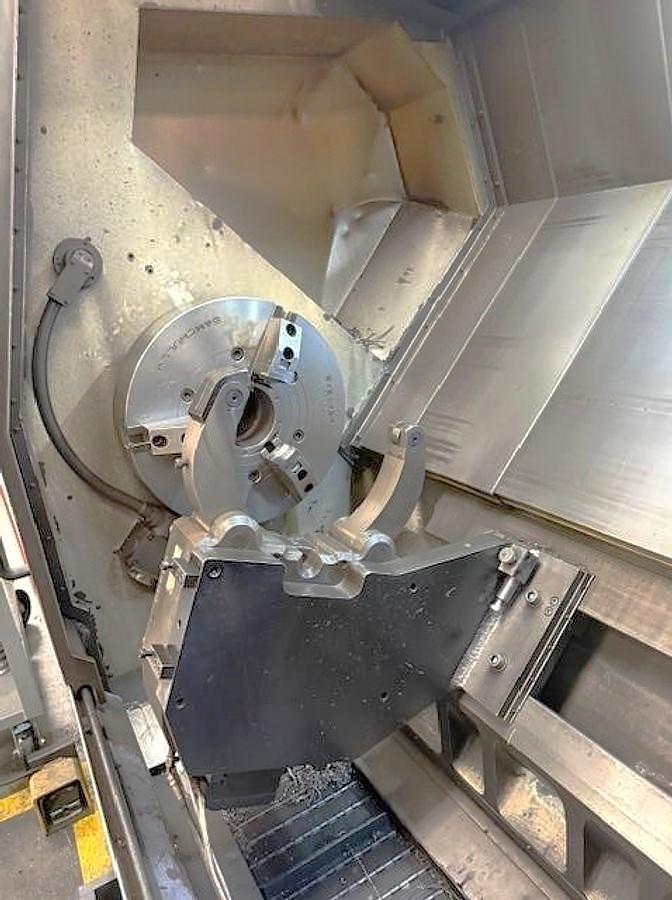

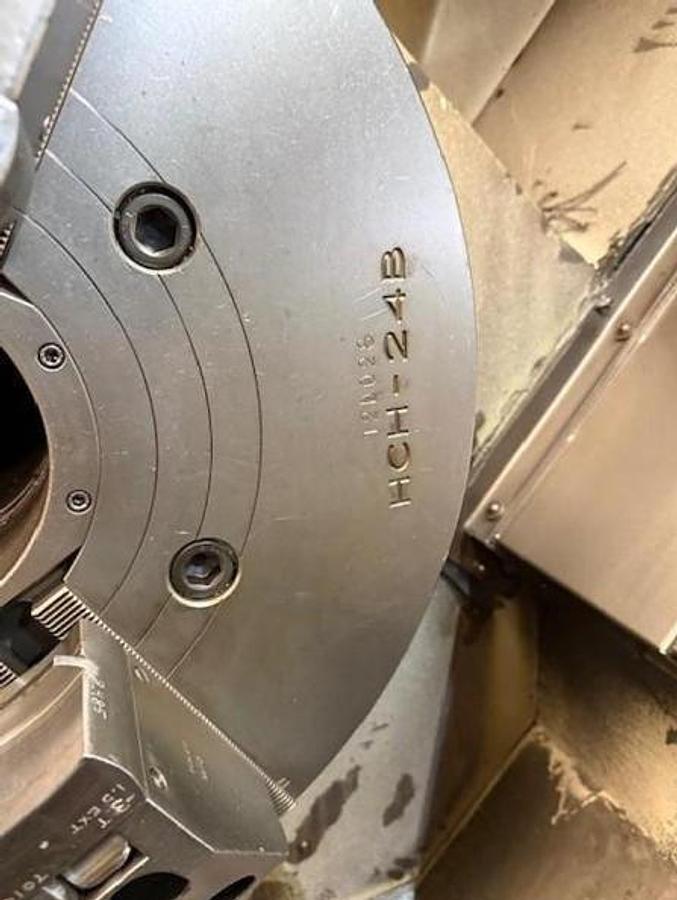

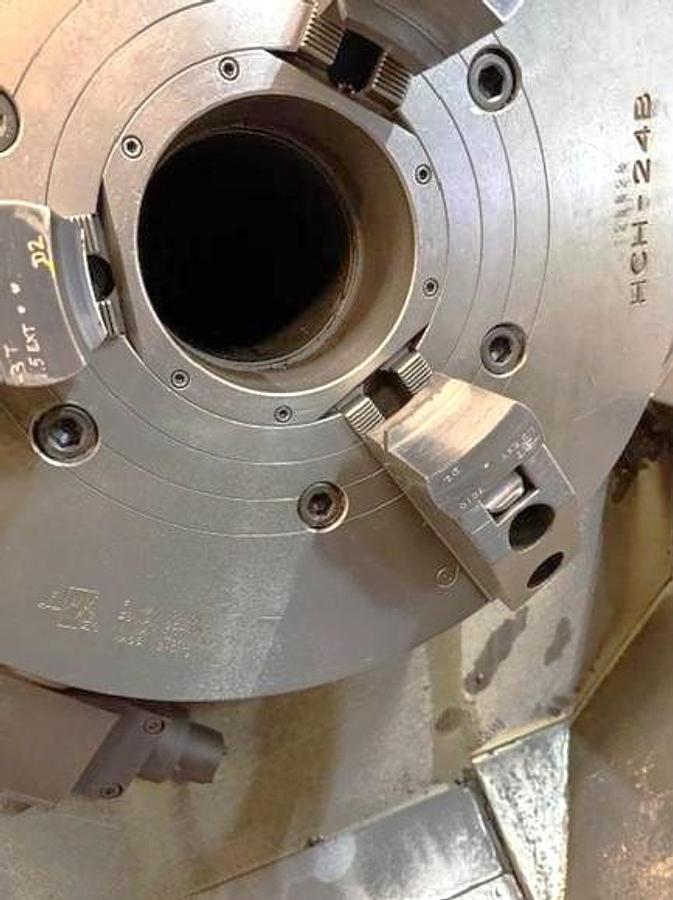

24" Samchully HCH-24 3 Jaw Hydraulic Chuck
6.5" Bar Capacity

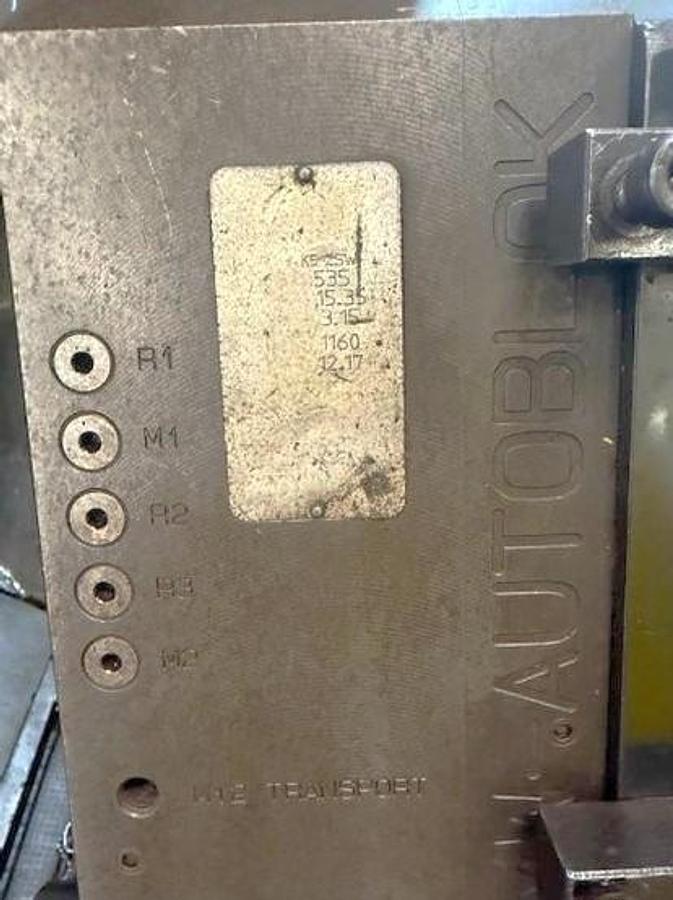

SMW Autoblok Hydraulic Steady Rest
Tailstock
Chip Conveyor
Tool Presetter

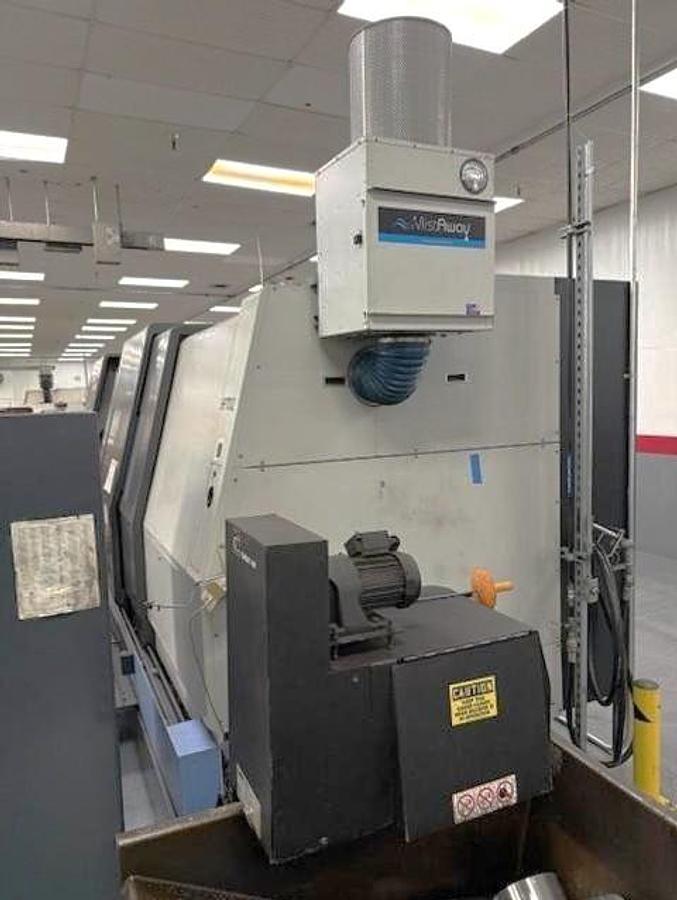

Mist Away Mist Collector

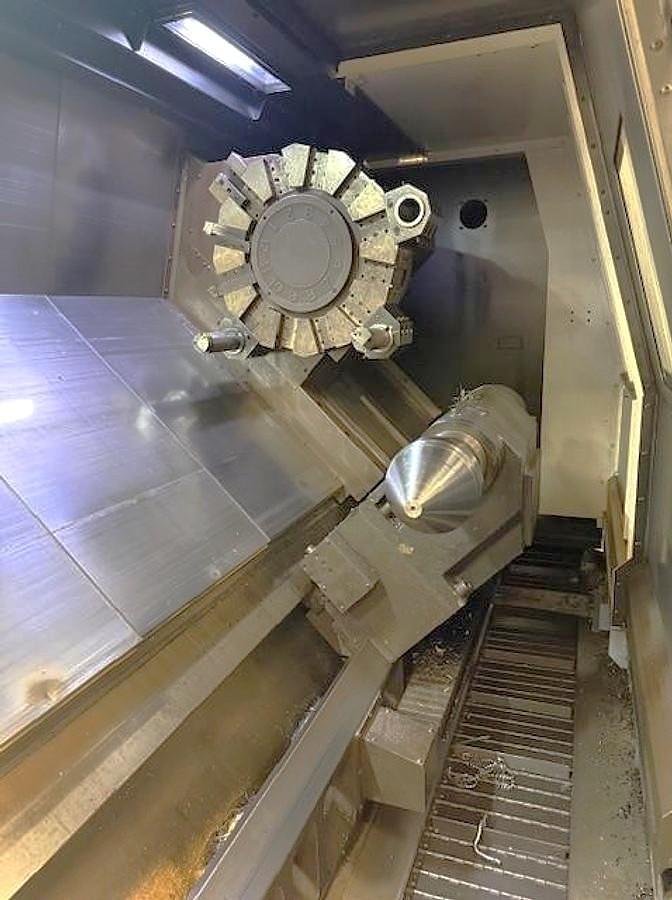

12 Station Bolt On Style Turret
Coolant System with Tank & Pump
RS 232 Port Interface
Card Interface
Wired 200/220V Electrics
All Available Manuals
All Available Tooling (no perishable tooling included, only holders)
Specifications
| Manufacturer | Doosan |
| Model | Puma 700L |
| Year | 2006 |
| Condition | Used |
| Stock Number | #120861 |
| Machine Control | Fanuc Series 32i-Model A Control |
| Chuck size | 24" Hydraulic Chuck |
| Maximum Swing over Bed | 40.6" |
| Maximum turning diameter | 35.4" |
| Maximum Distance Between Centers | 126" |
| Maximum Bar Capacity | 6.5" |
| X axis travel | 18.5" |
| Z axis travel | 133.8" |
| Spindle Nose / Spindle Bore / Bar Capacity | A1-15" / 7.12" / 6.5" |
| Spindle speed | 3 - 1500 RPM (3 Ranges) |
| Spindle motor (30 min / cont) | 60 / 50 HP |
| Turret type | 12 Position Bolt on Style Turret |
| Rapid traverse rates x, z | 472 IPM / 397 IPM |
| Tailstock Quill Diameter / Quill Travel / Taper | 6.3" / 5.9" / #5 MT |
| Machine dimensions | 290" x 104" x 102" (355" length with chip conveyor in place) |
| Machine weight | 48,400 lbs. |
