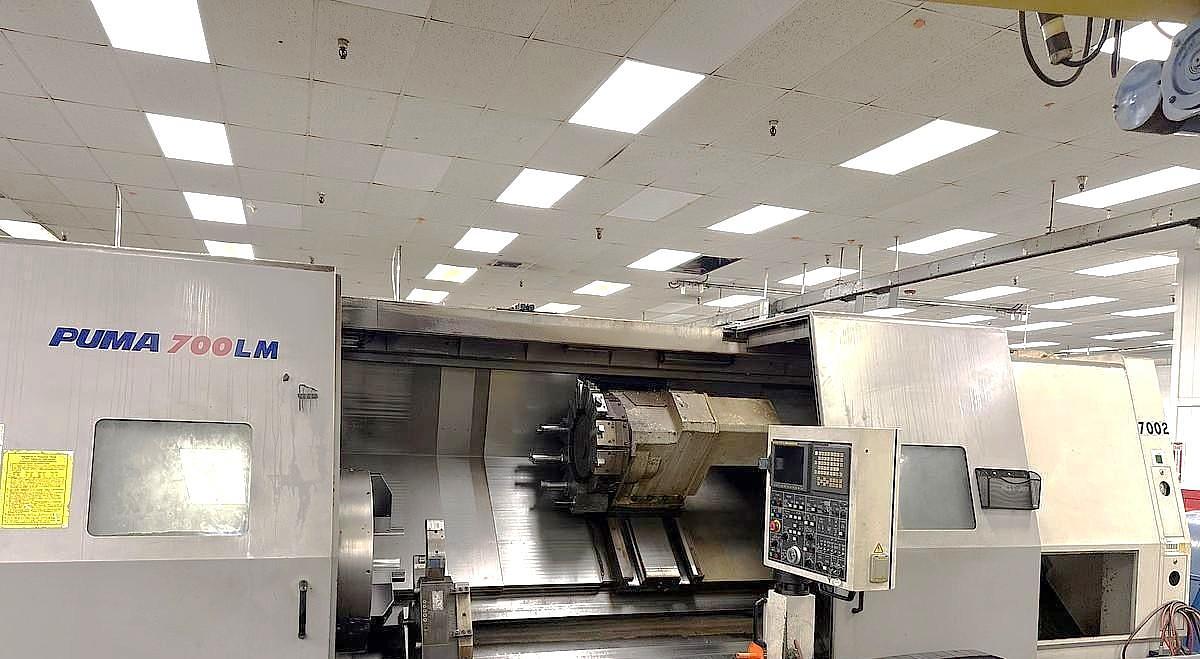

2006 Doosan Puma 700LM with C Axis & Milling, 32" 4 Jaw Man. Chk, 6.5" Bar Cap., 126" Turn Length, SMW Steady Rest, Tailstock, Conveyor

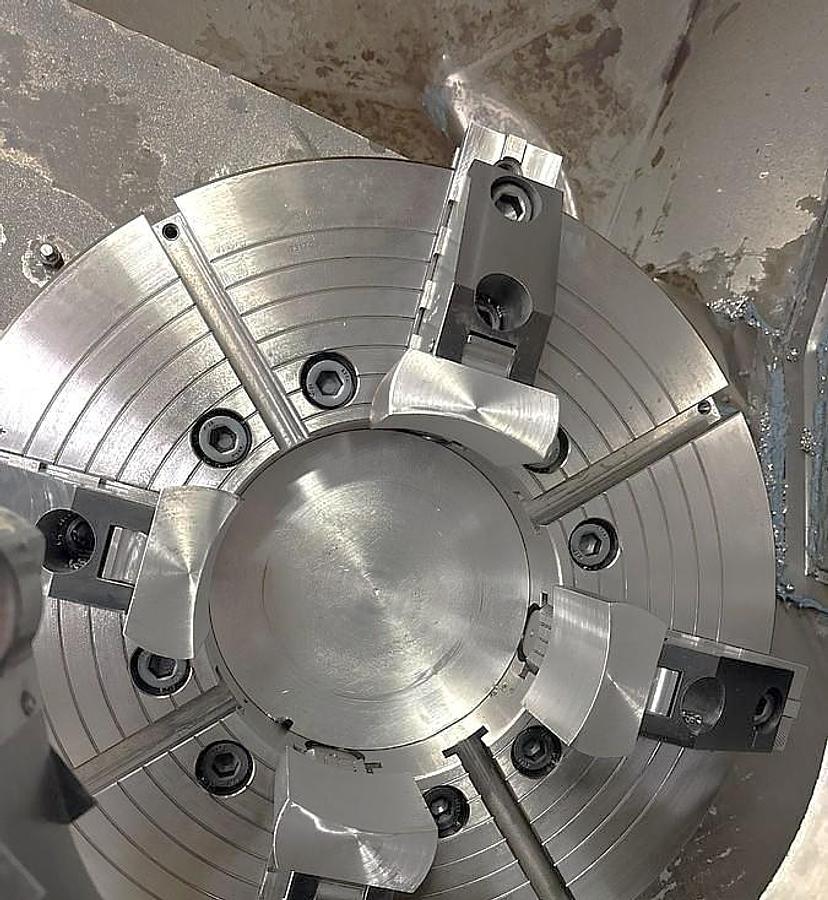

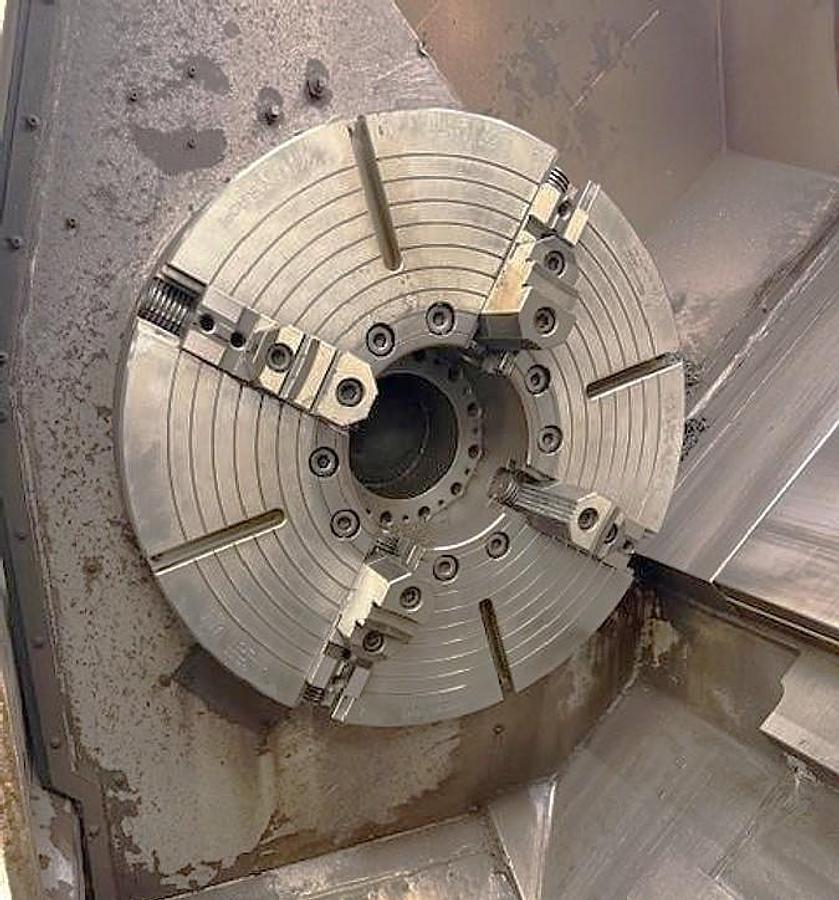

32" 4 Jaw Manual Chuck

6.5" Bar Capacity

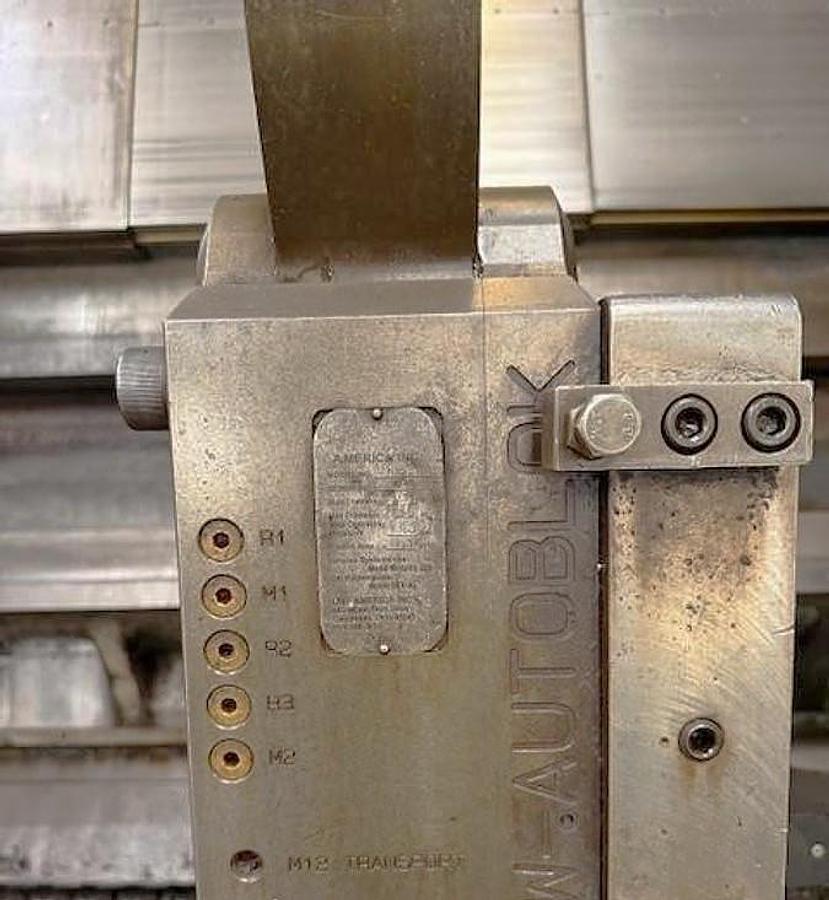

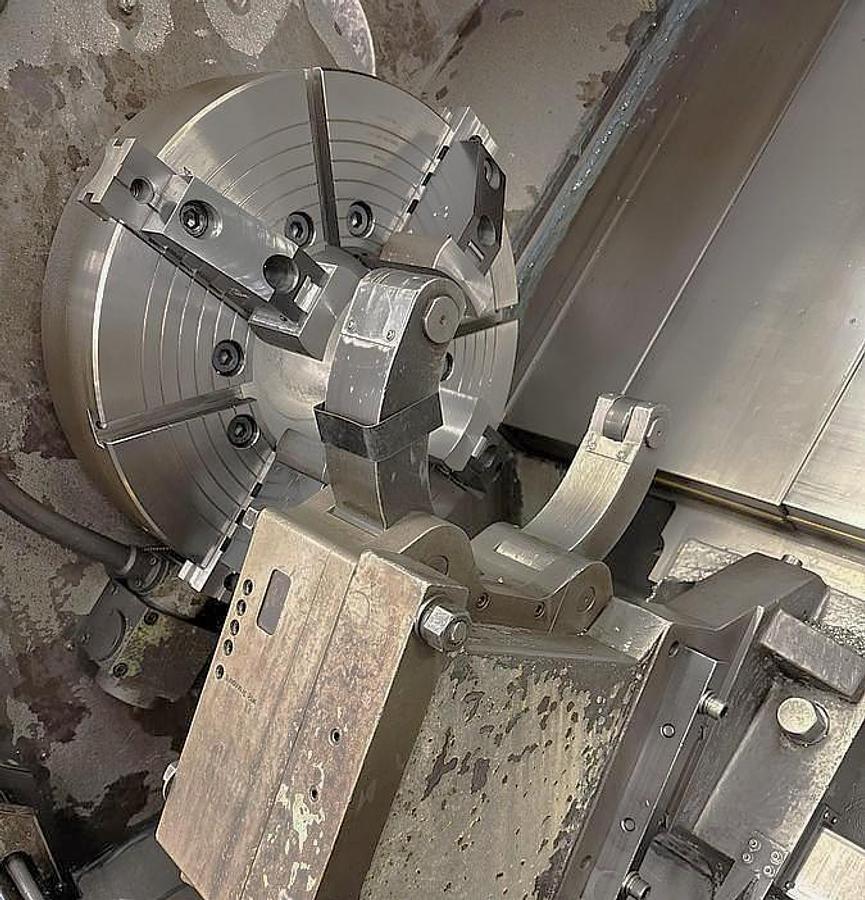

SMW Autoblok Hydraulic Steady Rest with 16" Capacity

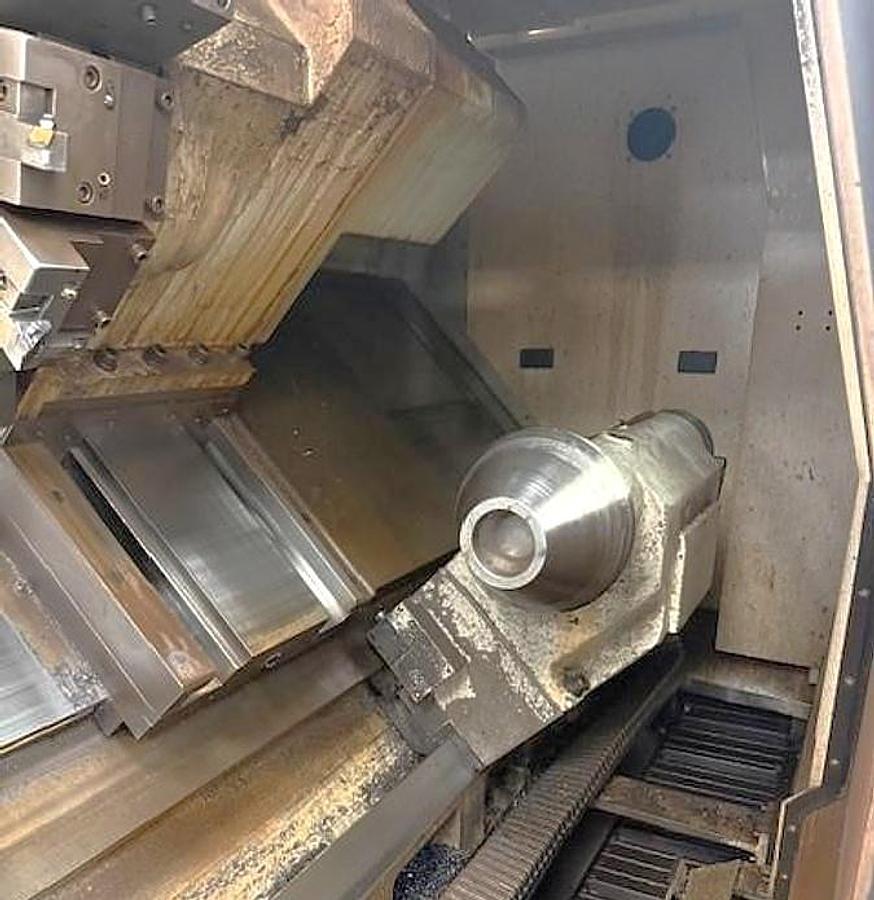

Tailstock

Chip Conveyor

Tool Presetter

High Pressure Coolant System

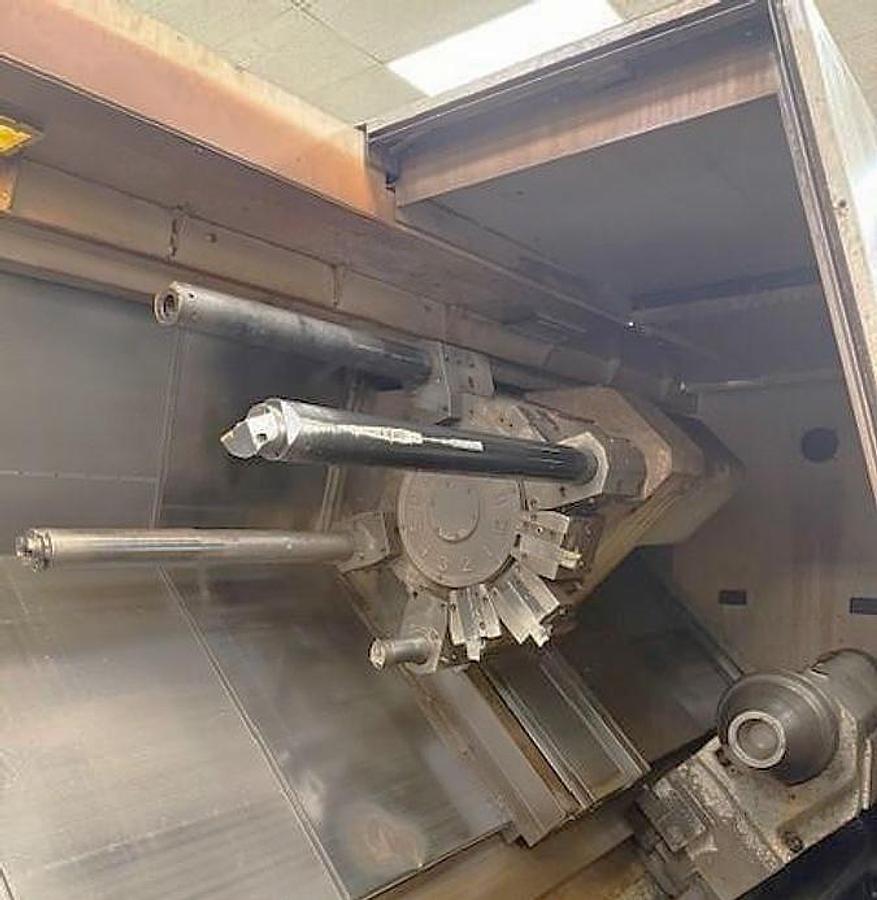

12 Station Bolt On Style Turret

Coolant System with Tank & Pump

RS 232 Port Interface

Card Interface

Wired 200/220V Electrics

All Available Manuals

All Available Tooling (NO Perishable Tooling is Included, Only Tool Holders)

Will Include Some Live Tool Holders

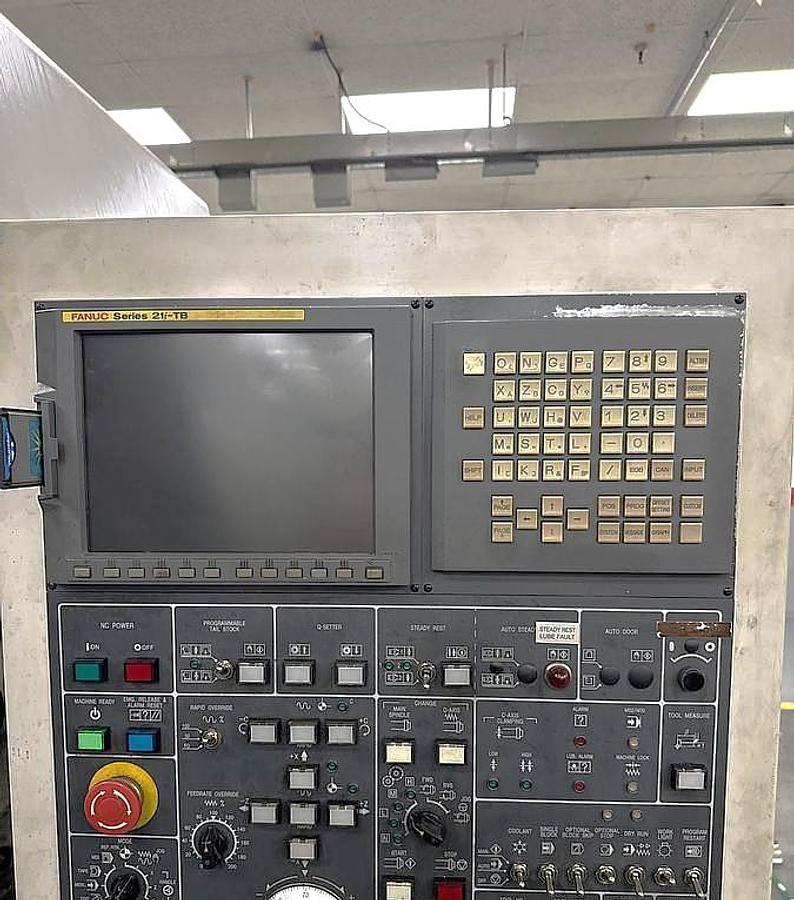

The 2006 Doosan Puma 700LM is a robust and versatile CNC lathe designed for precision and efficiency, ideal for operations needing comprehensive turning capabilities. Equipped with a Fanuc Series 21i-TB Control, this machine offers intuitive management of its diverse functionalities. It features a 32" 4-jaw manual chuck and a generous 6.5" bar capacity, making it suitable for handling large and demanding workpieces with a maximum swing over bed of 40.6" and a maximum turning diameter of 31.5". The Puma 700LM is designed to accommodate longer pieces, with a notable 126" distance between centers. Its travel capacities include an X-axis travel of 18.5" and a Z-axis travel of 133.8", supported by rapid traverse rates of 472 IPM on the X-axis and 397 IPM on the Z-axis. The machine’s spindle operates in three ranges with speeds from 3 to 1500 RPM, powered by a robust 60 HP motor, allowing for high performance even under demanding conditions. Additional features like the SMW steady rest, tailstock, conveyor, and a 12-position bolt-on style turret enhance its operational flexibility. The rotary tool is capable of speeds ranging from 30 to 3,000 RPM, driven by a powerful 15 HP motor. These specifications, combined with the machine's sturdy build weighing 48,400 lbs., make the Doosan Puma 700LM a reliable choice for various complex machining tasks.
