Hwacheon Mega 95/3000 with 48.4" Max Turn Diameter, 118" Max Length, 6" Bar Capacity, Steady Rest, Tailstock, 24" 3 Jaw Chuck
Hwacheon Mega 95/3000 with 48.4" Max Turn Diameter, 118" Max Length, 6" Bar Capacity, Steady Rest, Tailstock, 24" 3 Jaw Chuck
Contact us for price
Location:Ohio
or
Call (863) 439-6066
Description
24" 3 Jaw Manual Chuck
12 Position Hydraulic Turret Heavy Duty Tailstock w/ One Shot Lubrication

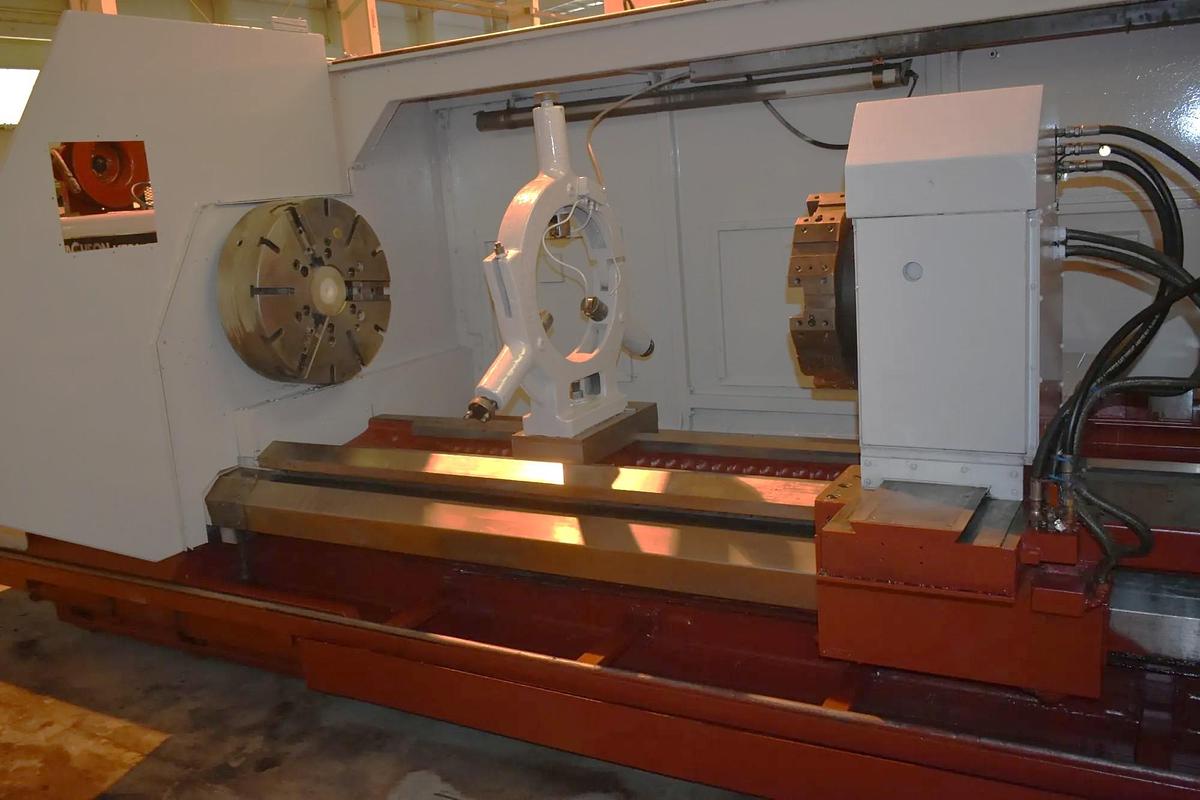

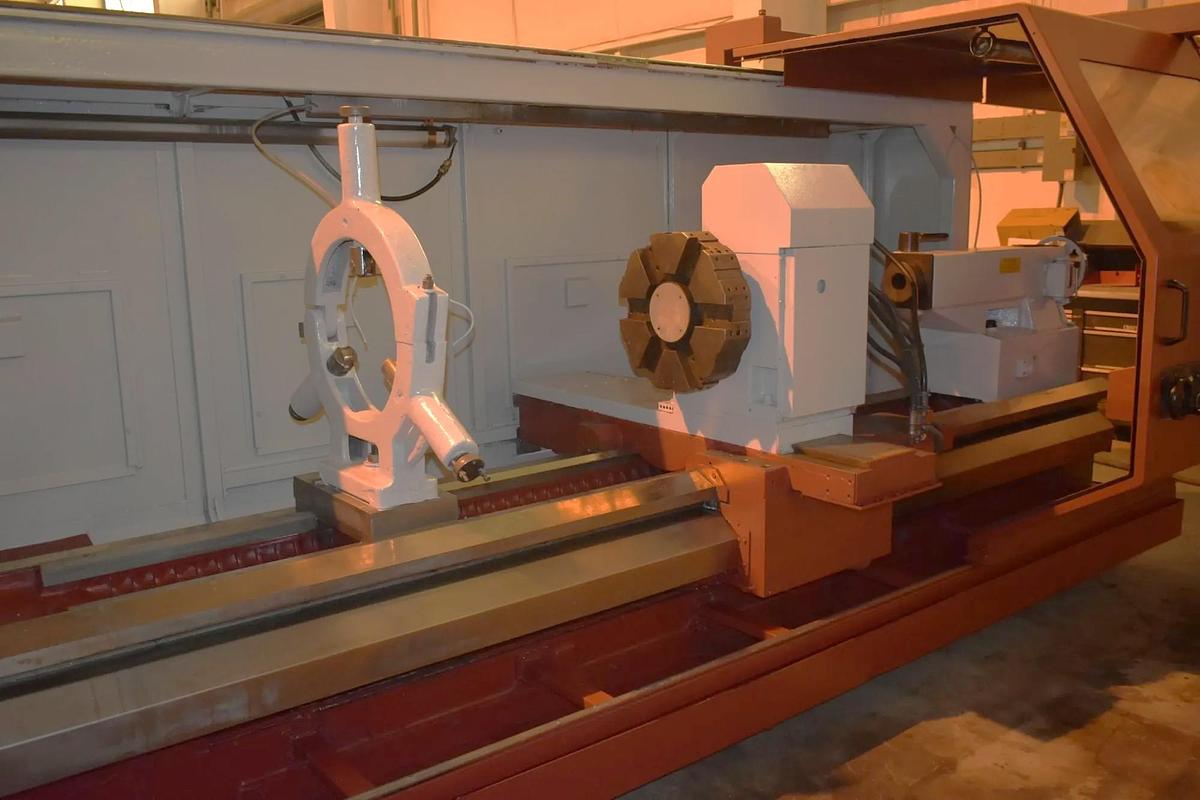

Steady Rest
Chip Conveyor
6" Bar Capacity

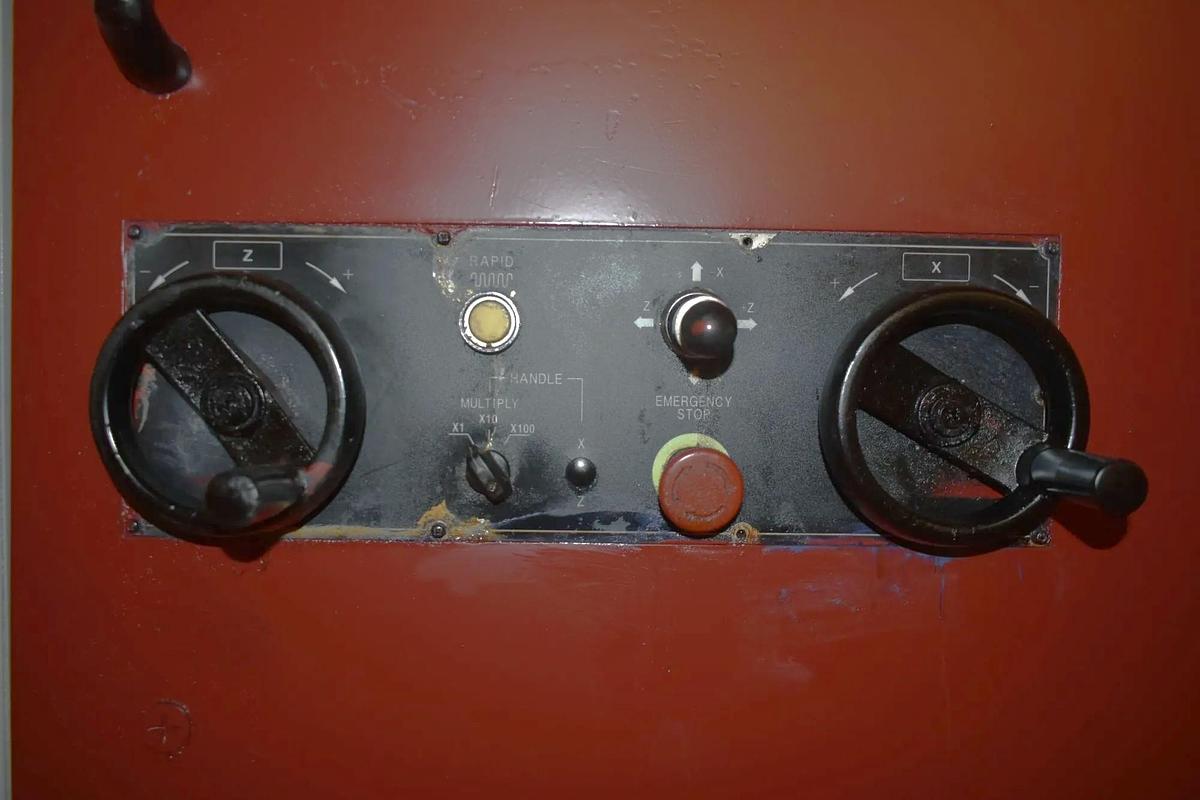

48.4" Turning Diameter in Gap Manual Hand Wheels Status Lights
Coolant System with Full Length Tank & Pump All Available Tooling All Available Manuals
Specifications
| Manufacturer | Hwacheon |
| Model | Mega 95/3000 |
| Condition | Used |
| Stock Number | #120857 |

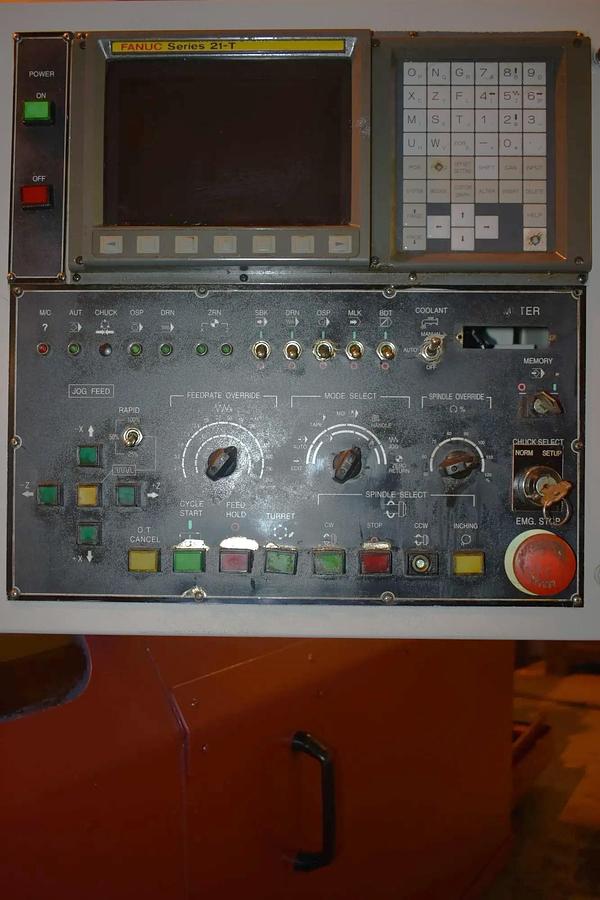

| Control | Fanuc 21T Series Control |
| Chuck Size | 24" 3 Jaw Manual Chuck |
| Maximum Swing Over Bed / Gap | 38.6" / 48.4" |
| Maximum Swing Over Cross Slide | 26.2" |
| Maximum Turning Length | 118" |
| X-Axis Travel | 19.09" |
| Z-Axis Travel | 118" |
| Spindle Speed | 40 - 1,000 RPM |
| Spindle Nose / Bore / Bar Capacity | A2-15" / 6" / 6" |
| Spindle Motor | 30 HP |
| Number of Turret Positions | 12 Position Turret |
| Rapid Travers Rates | 236 IPM |
| Tailstock Body Travel / Quill Travel | NA / 10.2" |
| Machine Dimensions LxWxH | 236" x 99" x 85" |
| Machine Weight | 22,000 lbs |
