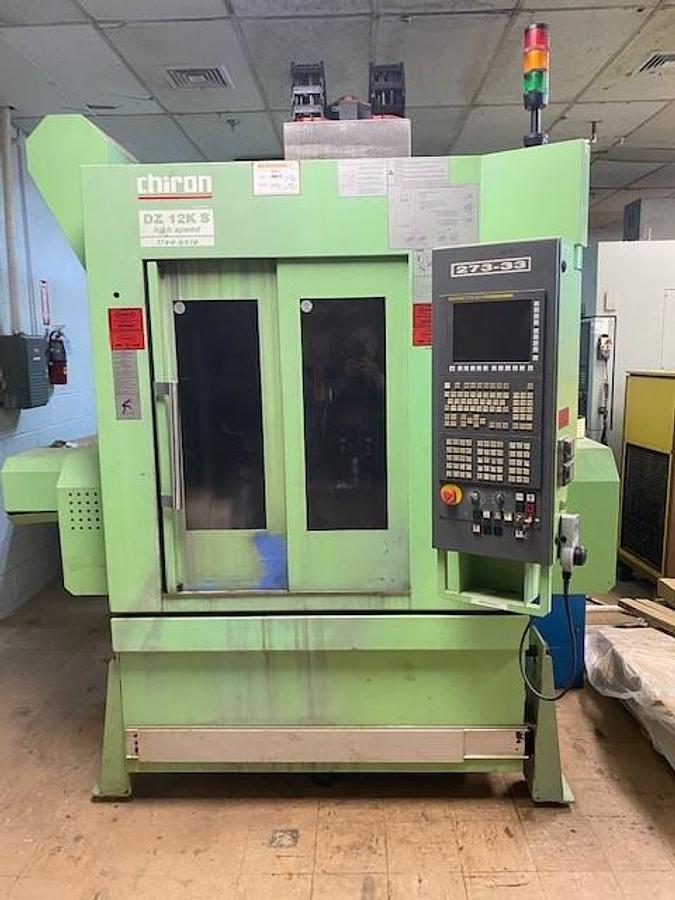

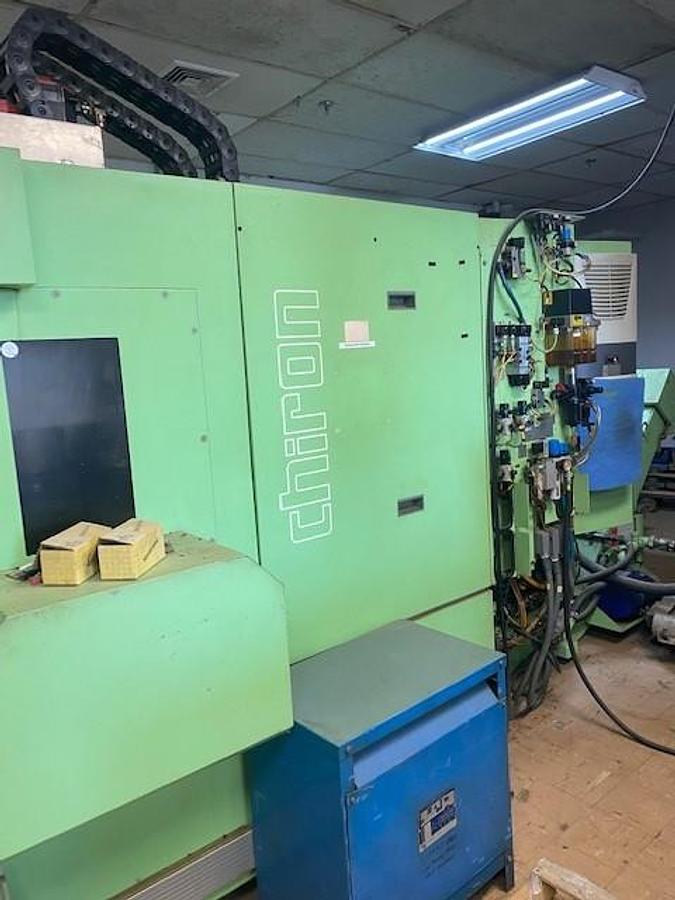

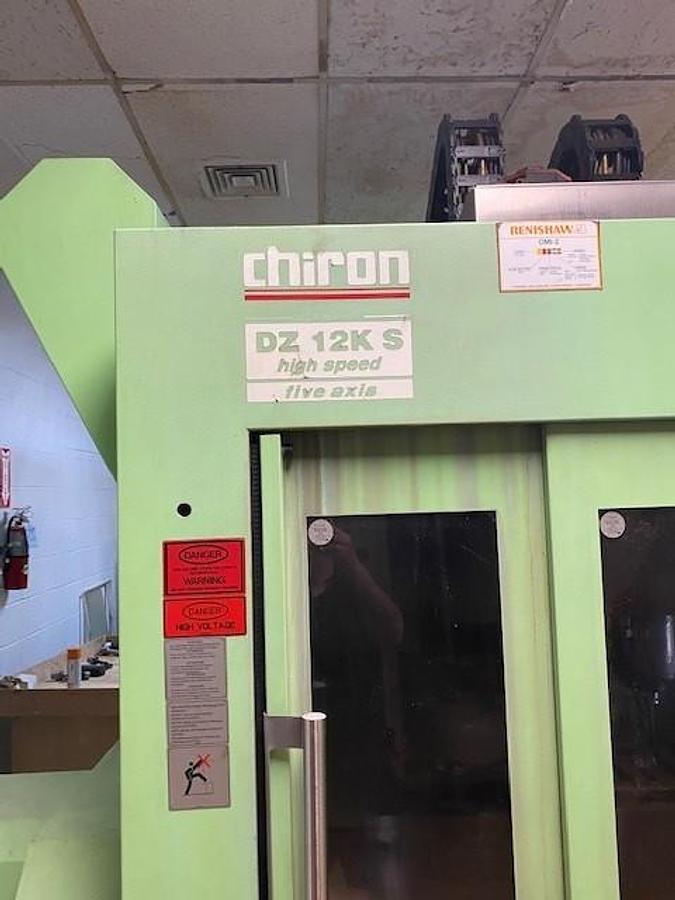

2003 Chiron DZ-12K S High Speed 5 Axis VMC, Fixed Table Design, Twin Spindle, Rotary/Tilt Type Table
2003 Chiron DZ-12K S High Speed 5 Axis VMC, Fixed Table Design, Twin Spindle, Rotary/Tilt Type Table
$22,500 (USD)
Location:New Jersey
or
Call (863) 439-6066
Description
Fixed Table Design

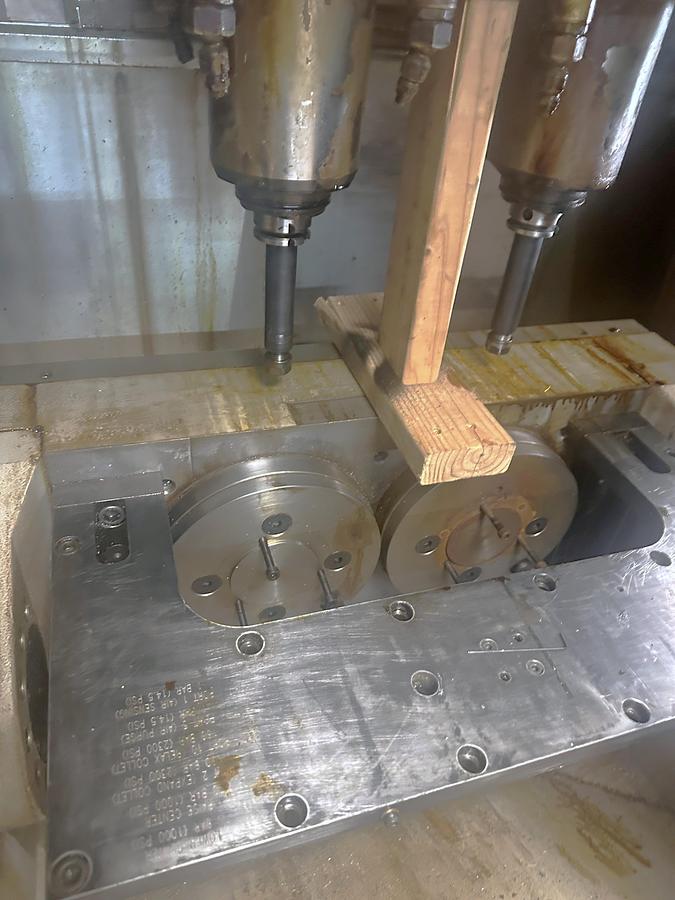

Rotary Tilt Style 5 Axis Table
Twin Spindle Design
Side Mounted Tool Changer
3 Color Machine Status Condition Lights
Remote Jog Handle
Specifications
| Manufacturer | Chiron |
| Model | DZ-12K S High Speed 5 Axis VMC |
| Year | 2003 |
| Condition | Used |
| Stock Number | #120841 |
| Machine Control | Fanuc Series 31i Model A5 Control |
| Table Size | not available |
| Table load capacity | not available |
| X-axis travel | 21.67" |
| Y-axis travel | 15.76" |
| Z-axis travel | 14.18" |
| C-Axis Movement - Rotation | +/- 360 Degrees |
| A-Axis Movement - Tilting | +/- 120 Degrees |
| Spindle taper | # HSK-A50 |
| Spindle speed | up to 15,000 RPM |
| Tool magazine capacity | 2 x 16 Positions |
| Max. tool diam./length/weight | 3.94"/6.3"/17 lbs. |
| Tool change time t to t / c to c | .9 sec. / 2.1 sec. |
| Rapid traverse x, y / z | 2955 IPM |
| Machine dimensions | not available |
| Machine weight | 11,500 lbs. |
