2009 Hwacheon Mega T130 CNC T-Lathe w/ 51.18" Swing, 35.83" Max Cut Diam., 400 RPM, 6.1" Bore, 40" Chuck, 4 Pos. Trt., Siemens Cntrl

40" 3 Jaw Manual Chuck

Chip Conveyor

6.1" Spindle Bore

Manual Jog Handles

Manual Pulse Generator

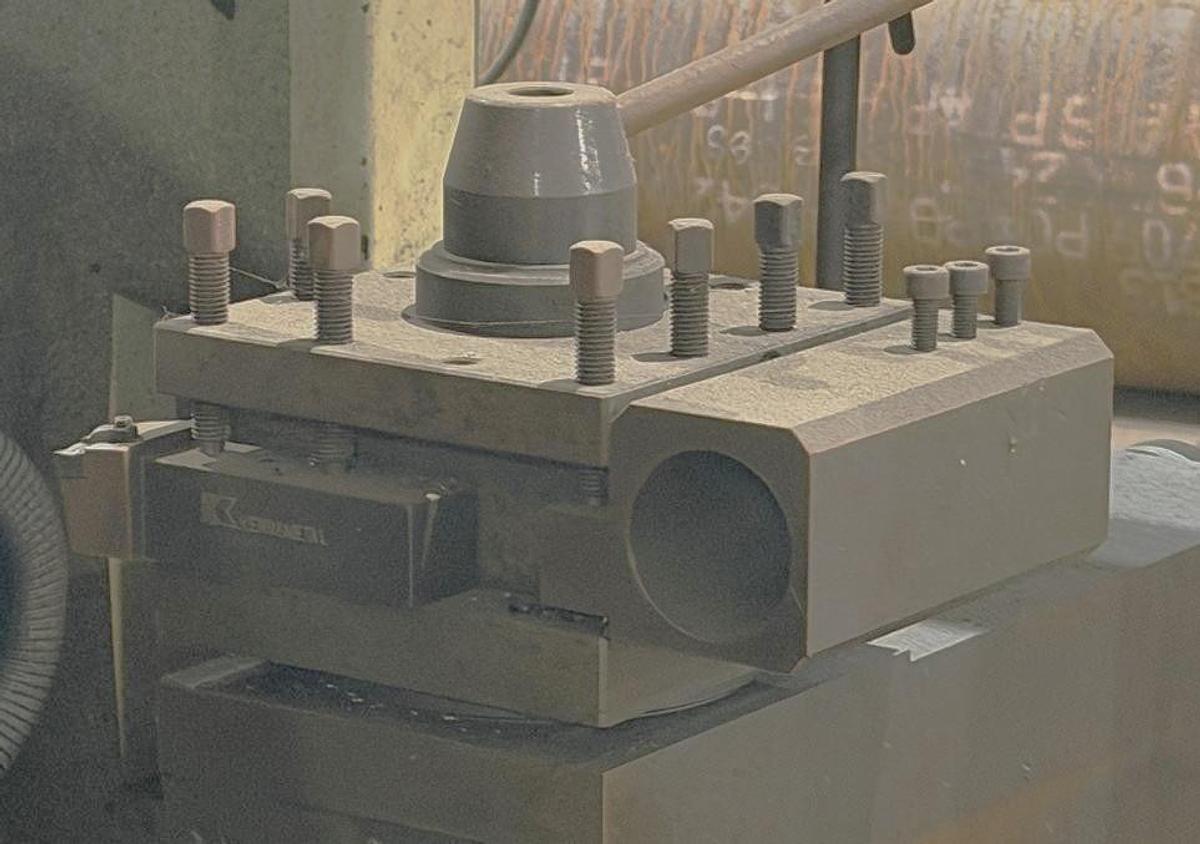

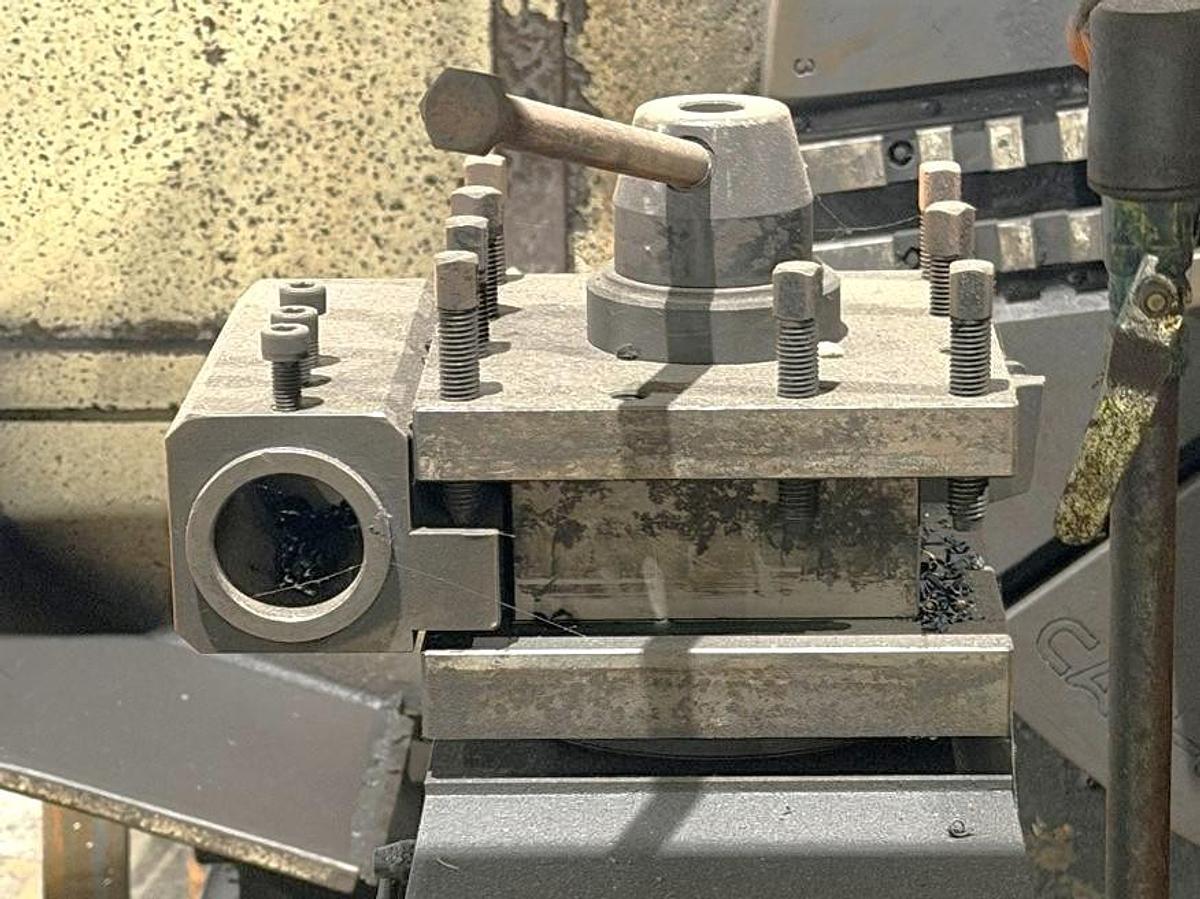

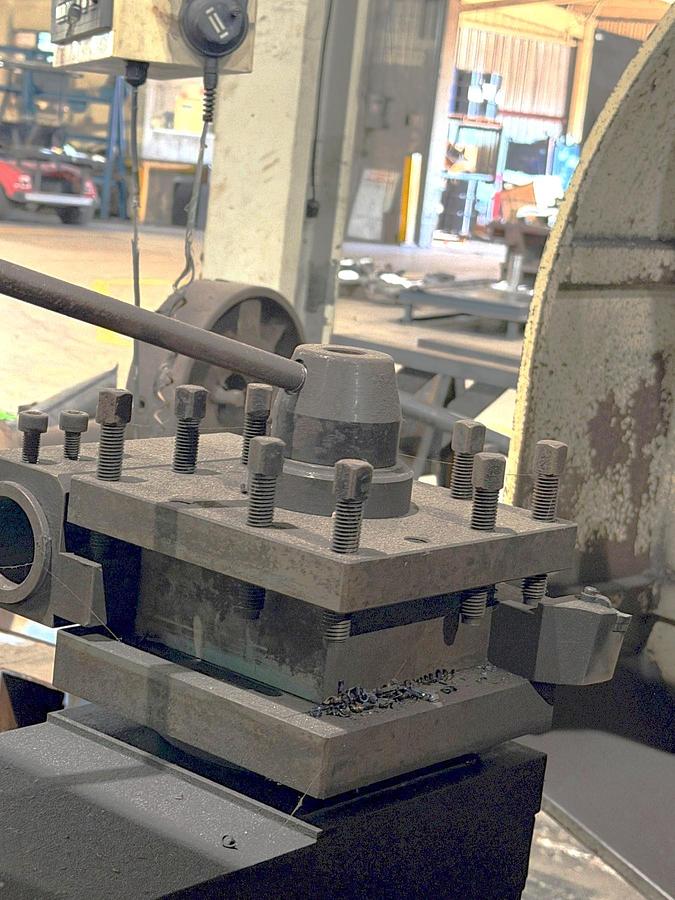

4 Station Manually Indexable Turret

Coolant System with Tank & Pump

RS 232 Port Interface

All Available Tool Holders

All Available Manuals

The Hwacheon Mega T130 CNC T-Lathe offers robust performance tailored for precision and heavy-duty tasks. With a maximum swing of 51.18 inches and a maximum cutting diameter of 35.4 inches over the cross slide, this machine handles large workpieces efficiently. It boasts a 40-inch 3-jaw manual chuck and a spindle bore of 6.1 inches, ensuring versatility for various applications. Equipped with a Siemens 828D control system, the lathe facilitates seamless operation and precise machining. Its spindle speed ranges from 4 to 400 RPM, powered by a 30 HP motor, making it suitable for both slow and rapid cutting tasks. The machine features a four-position turret and offers X-axis travel of up to 21.3 inches and Z-axis travel of 47.2 inches, supporting detailed and extensive workpiece maneuverability. Built for industrial use, the Mega T130 can manage workpieces weighing up to 3,300 pounds and boasts a sturdy construction with a total weight of 18,000 pounds. The lathe's dimensions are 172 inches by 98 inches by 89 inches, ensuring it fits within standard shop spaces while maintaining impressive capabilities. With electric requirements of 45 Kva and 125 amps, it's suitable for environments with substantial power availability.
