2023 Haas Super Mini Mill 2 with Haas Probing, Hi Spd Machining, Chip Auger, 20 ATC, 10k RPM, Tooling, Orange Vise
2023 Haas Super Mini Mill 2 with Haas Probing, Hi Spd Machining, Chip Auger, 20 ATC, 10k RPM, Tooling, Orange Vise
Contact us for price
Location:Washington, DC
or
Call (863) 439-6066
Description
Haas WIPS Renishaw Tool & Part Probe
Rigid Tapping
10,000 RPM Spindle
High Speed Machining
High Flow Coolant System & Pump
Auger Style Chip Conveyor
Programmable Air
Spindle Orientation
User Definable Macros
Coordinate Rotation & Scaling
Haas Visual Part Programming System
15" Color LCD Monitor
Memory Key Lock Switch
USB Port Interface
RS 232 Port Interface
All Available Manuals
220V 3-phase Power
Approximately (10) Tool Holders

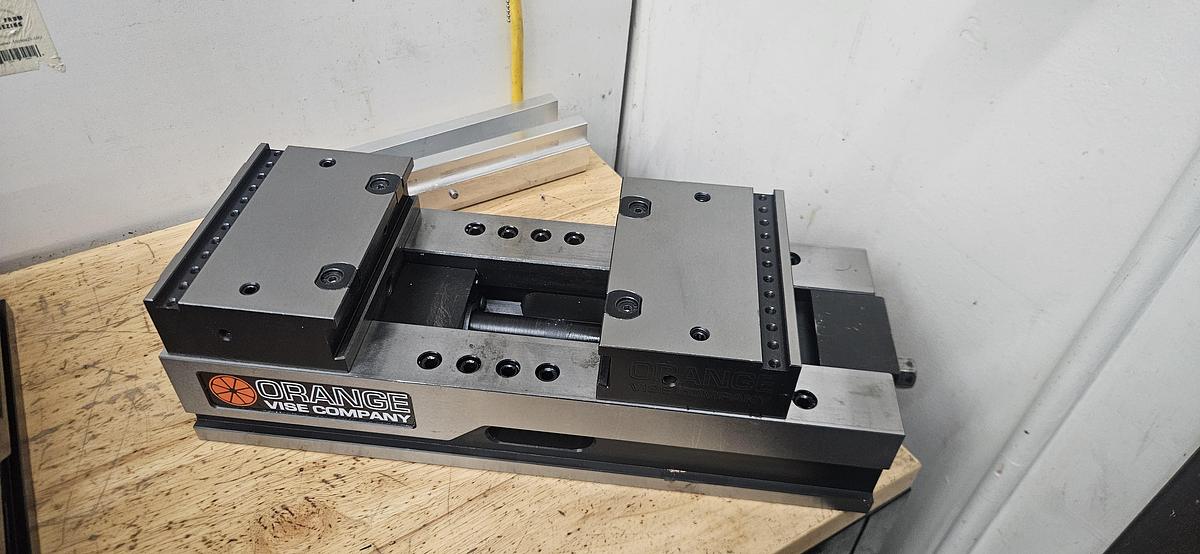

Orange Vise (Over $2k new)
**ONLY 1,331 Spindle Run Hours**
**Price New as Equipped at $73,775 Today**
**Super Mini Mill 2 is No Longer Made and Offers the Larger 20" x 16" Travels in X and Y Axis'**
Specifications
| Manufacturer | Haas |
| Model | Super Mini Mill 2 |
| Year | 2023 |
| Condition | Used |
| Stock Number | #120836 |
| Machine Control | Haas CNC Control |
| Table Size | 40" x 14" |
| Maximum Table Load | 500 lbs |
| X-Axis Travel | 20" |
| Y-Axis Travel | 16" |
| Z-Axis Travel | 14" |
| Spindle Taper | CAT 40 |
| Spindle Speed | 10,000 RPM |
| Spindle Motor | 15 HP |
| Rapid Traverse Rates | 1200 IPM |
| Tool Magazine Capacity | 20 Station Umbrella Style Tool Changer |
| Distance Spindle Nose to Table Top | 4" - 18" |
| Maximum Tool Diameter / Length / Weight | 3.5" / NA / 12 lbs |
| Machine Dimensions LxWxH | 91"x88"x100" |
| Machine Weight | 6,000 lbs |
