2019 Haas VF-2SS, WIPS Part & Tool Probing, Auger, High Spd Machining, 4th Drive, 2000 Cut Hrs.
2019 Haas VF-2SS, WIPS Part & Tool Probing, Auger, High Spd Machining, 4th Drive, 2000 Cut Hrs.
Contact us for price
Location:Washington, DC
or
Call (863) 439-6066
Description

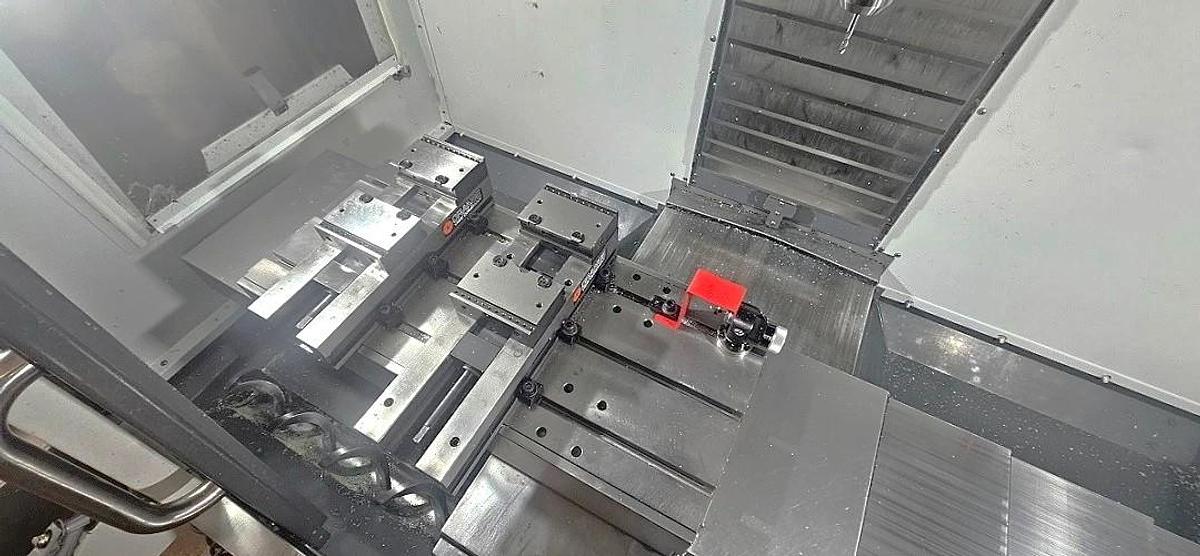

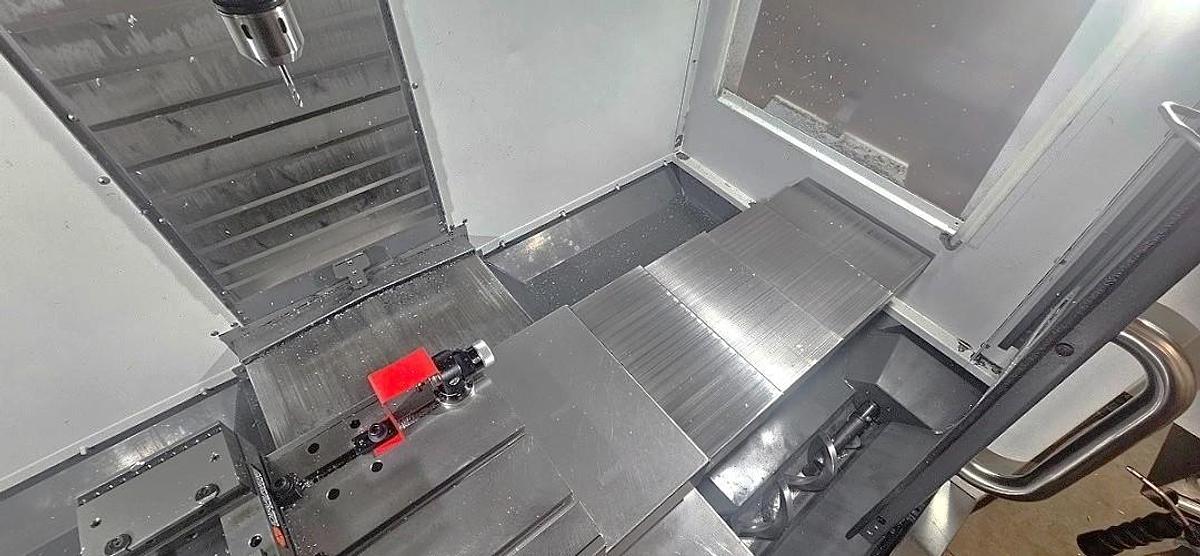

WIPS Wireless Intuitive Probing System, Renishaw Tool & Part Probes
4th Axis Drive & Wiring
Auger Style Chip Conveyor
High-Speed Machining

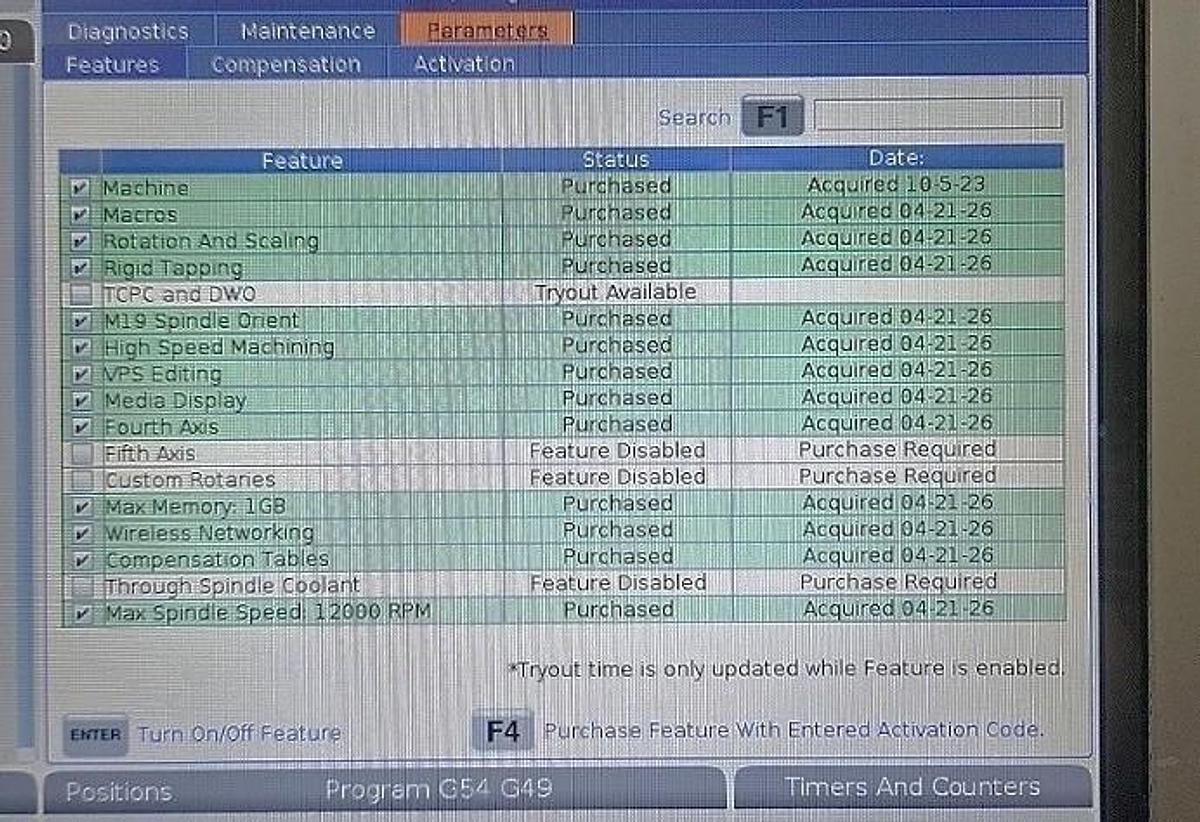

Coordinate Rotation & Scaling
Spindle Orientation
User Definable Macros
Haas Intuitive Programming System
Haas VPS Editing
Media Display by M-Code
Rigid Tapping
1 GB Programming Storage
Compensation Tables
15" Color LCD Monitor
Coolant System with Tank & Pump
Wireless Networking
USB Port Interface
RS 232C Port Interface for DNC Operation
Wired 220V Electrics
**Cycle Start Hours 4,013**
**Feed Cutting Hours 2,079**
Specifications
| Manufacturer | Haas |
| Model | VF-2SS |
| Year | 2019 |
| Condition | Used |
| Stock Number | #120834 |
| Machine Control | Haas NextGen Control |
| Table Size | 36" x 14" |
| Maximum Table Load | 1,500 lbs. |
| Spindle Nose to Table Top | 4" - 24" |
| X Axis Travel | 30" |
| Y Axis Travel | 16" |
| Z Axis Travel | 20" |
| Spindle Taper | CAT 40 |
| Spindle Speeds | 12,000 RPM |
| Spindle Motor | 30 HP - Direct Drive |
| Number of Tool Positions | 24+1 Station Side Mounted ATC |
| Rapid Traverse Rates (X, Y, Z) | 1400 IPM |
| Cutting Feedrates | 0.1 - 833 IPM |
| Machine Dimensions | 88" x 93" x 106" |
| Machine Weight | 9,000 lbs. |
