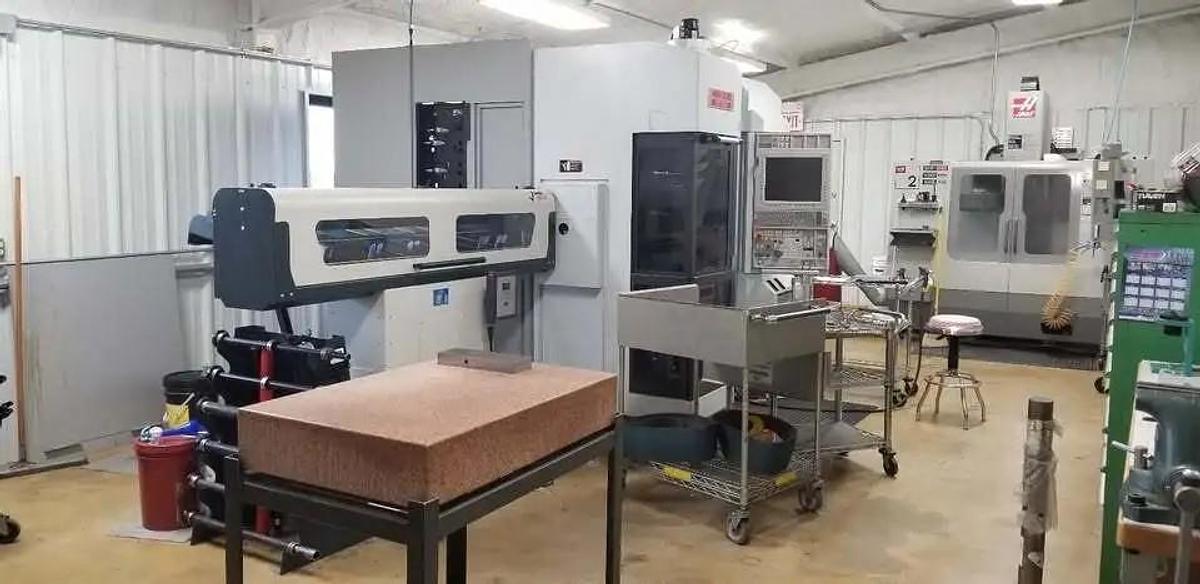

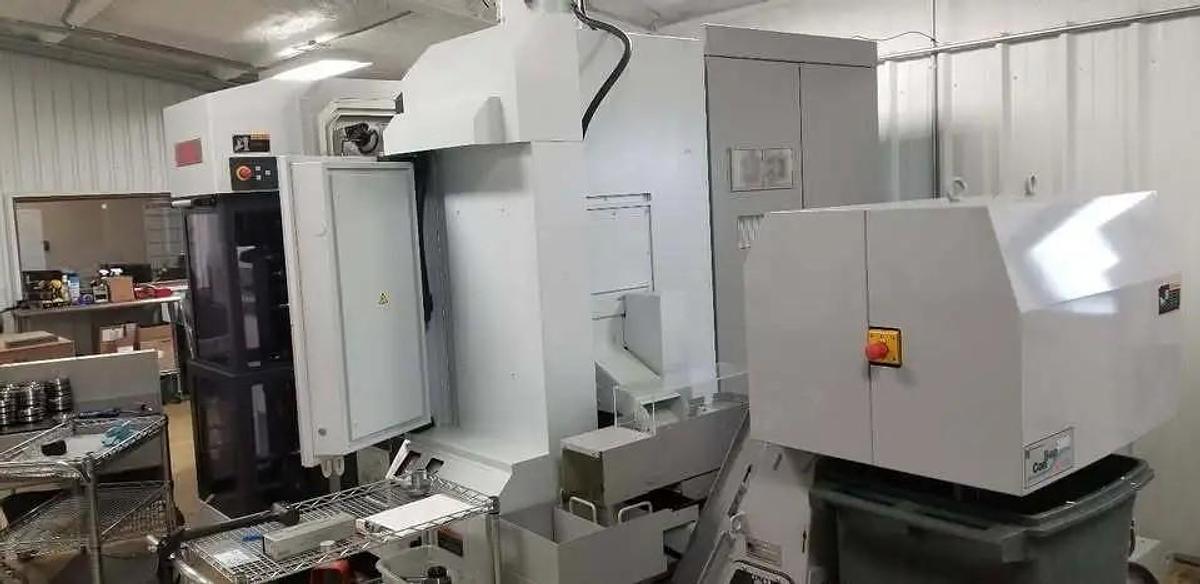

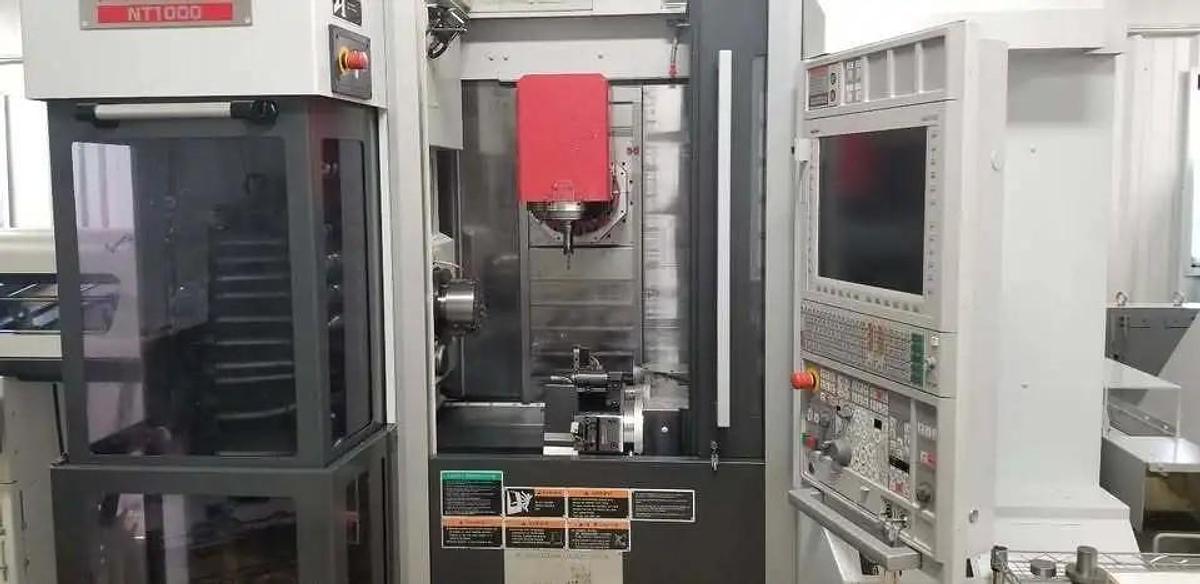

2010 Mori Seiki NT1000 SZ with C Axis Spindle Rotation, Live Milling, Y Axis, B Axis Pendulum Head, Lower Turret, Barfeed, MORE !!
AFFORDABLE MULTI AXIS MACHINING !!
2010 Mori Seiki NT1000 SZ with C Axis Spindle Rotation, Live Milling, Y Axis, B Axis Pendulum Head, Lower Turret, Barfeed, MORE !!
Contact us for price
Location:Illinois
or
Call (863) 439-6066
Description
Full C Axis Spindle Rotation
Milling/Drilling Capability
Y-Axis Milling on B-Axis Head
Subspindle
3D Interference Check w/Open CNC Function 3rd/4th Reference Return
38 Station Tool Changer
10 Station Lower Turret
LNS Quick Load Servo 80 S2 Barfeed
Barfeeder Interface
Parts Catcher
Workpiece Unloading Conveyor
Chip Conveyor
Collet Chuck on Main Spindle
5" 3 Jaw Solid Hydraulic Chuck on Subspindle
Renishaw OMP60 In Machine Work Measuring Probe
Tool Presetter

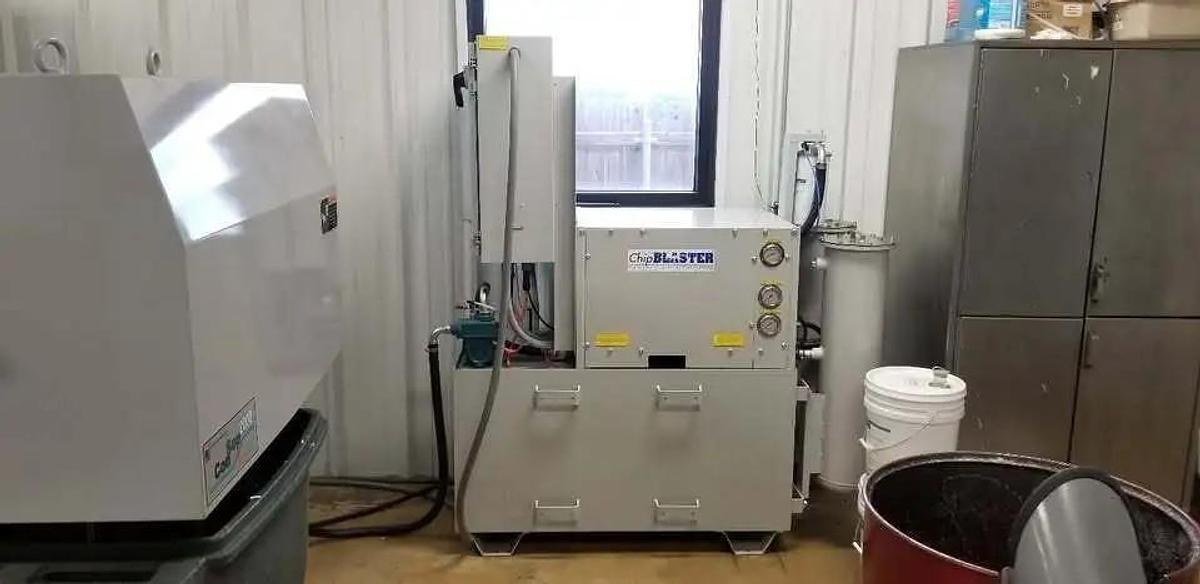

High Pressure Coolant
Air Blow Through Main & Subspindle
No Live Tooling on the Lower Turret
Simultaneous 5 Axis Machining
640 M Part Program Storage
Tilted Workplane
Nano Smoothing
Load Monitor B
Coolant System with Tank & Pump
Flash Memory Card Interface
RS 232 Port Interface
Specifications
| Manufacturer | Mori Seiki |
| Model | NT1000 WZ |
| Year | 2010 |
| Condition | Used |
| Stock Number | #120832 |

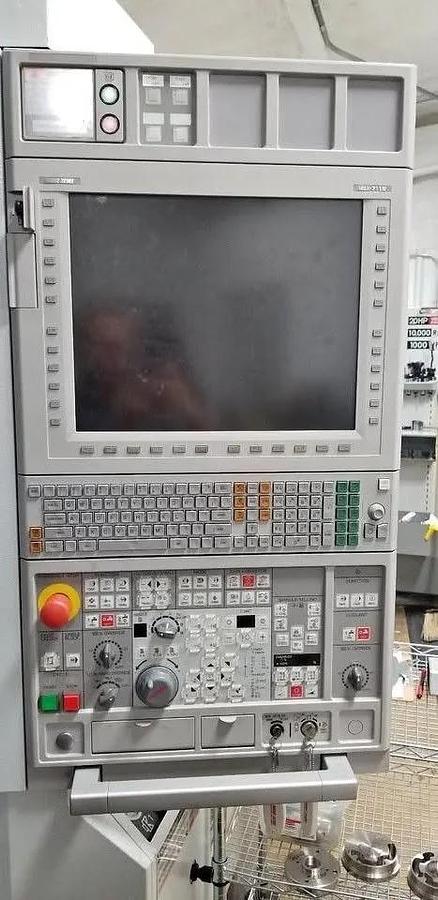

| Machine Control | Mori-Mitsubishi MSX-711 IV with MAPPS IV |
| Maximum swing | 14.5" |
| Maximum Turning Diameter Upper B Axis / Lower Turret | 14.5" / 11.8" |
| Maximum Turning Length | 16.7" |
| Maximum Bar Capacity | 2.05" |
| X axis travel | 15" |
| Y axis travel | +/- 4.1" |
| Z axis travel | 18.1" + 6.1" |
| B axis | +/- 120 Degrees |
| X2 axis lower travel | 6.1" |
| Z2 axis travel | 24" |
| Spindle Nose /Spindle Bore - Main | A2-5" / 2.4" |
| Maximum spindle speeds (main & sub) | 6,000 RPM / 1000 RPM |
| Main Spindle Motor / Subspindle Motor | 15 HP / 10 HP |
| B Axis Mill Spindle Taper | CAPTO C5 |
| C Axis Spindle Rotation - Both | .001 Degree Full C Axis |
| Milling Spindle Speed | 12,000 RPM |
| B Axis Spindle Motor | 12 HP |
| B-Axis Spindle Speed | 20,000 RPM |
| Tool magazine | 38 Tool Stations |
| Maximum Tool Diameter / Length / Weight | 5.1" / 9.8" / 11 lbs. |
| Number of Lower Turret Positions | 10 Station Turret |
| Rapid Traverse Rates X, Y / Z | 1575 IPM / 1970 IPM |
| Machine Dimensions LxWxH | 98" x 107" x 100" |
| Machine weight | 19,700 lbs. |
