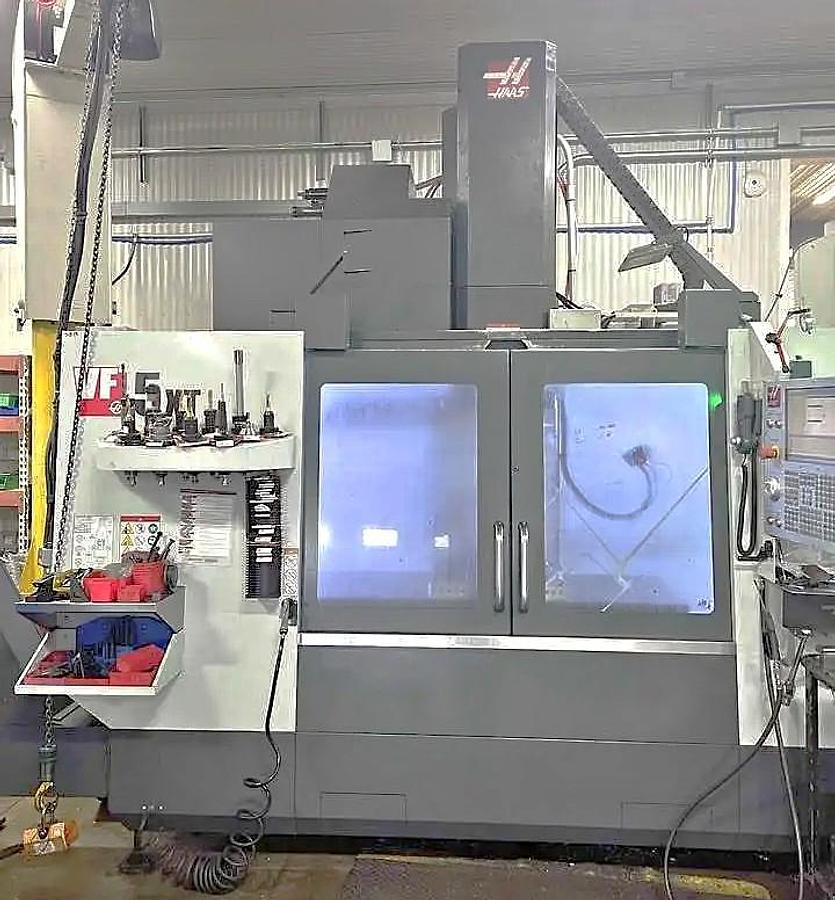

2019 Haas VF-5/50 XT with Coolant Thru Spindle, Haas Probing, 50 Taper, Extended X 60" Travel, 7500 RPM, 60 HP, 30 ATC

2019 Haas VF-5/50 XT with Coolant Thru Spindle, Haas Probing, 50 Taper, Extended X 60" Travel, 7500 RPM, 60 HP, 30 ATC
$119,500 (USD)
Location:Pennsylvania

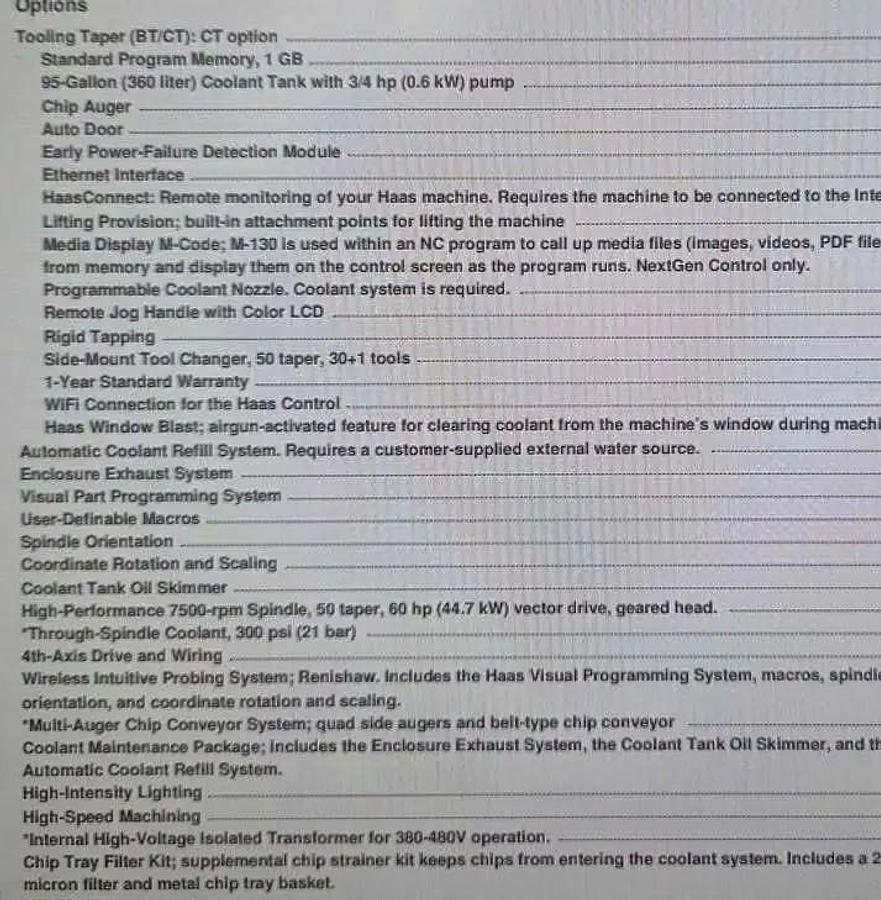

Description
300 PSI Coolant Thru the Spindle
High Performance 7,500 RPM Spindle with 50 taper, 60 HP, 2 Speed Gearbox

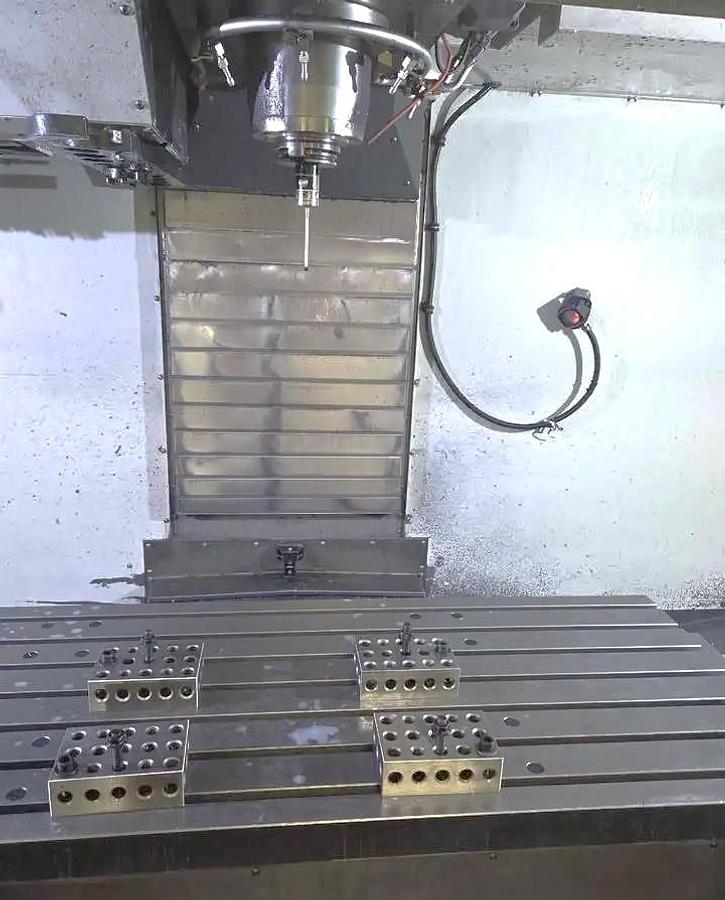

Haas Wireless Probing System - Renishaw Tool & Part Probing
4th Axis Drive & Wiring
30 Station Side Mounted Tool Changer
50 Taper Spindle - 2 Speed Geared Head
High Speed Machining
Remote Jog Handle w/Color LCD
Spindle Orientation
Coordinate Rotation & Scaling
User Definable Macros
Haas Visual Part Programming System
Haas Visual Part System Editing
Programmable Coolant Nozzle
Multi Auger Chip Conveyor System
Belt Style Chip Conveyor
Coolant Maintenance Package
Enclosure Exhaust System
Auto Door
Internal High Voltage Transformer 380V - 480V Operation
Oil Skimmer
15" Color LCD Monitor
Rigid Tapping
Haas Window Air Blast
High Intensity Lighting
Automatic Coolant Refill System
1 GB Programming Memory
Memory Lock Keyswitch
Compensation Tables
Wireless Networking
WiFi Connection for Haas Control
Ethernet Interface
USB Port Interface
RS 232 Port Interface
Coolant System with 95 Gallong Tank & Pump
Early Power Failure Detection Module
Haas Connect-Remote Monitoring for Haas Machine
Media Display by M-Code M130

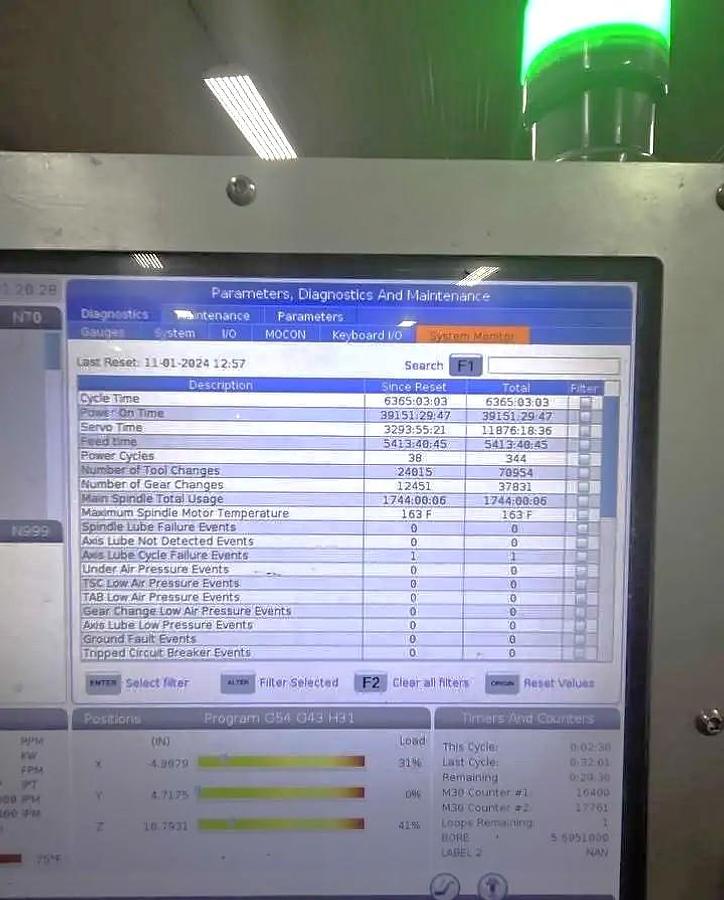

**Feed Time Hours 5,413**
**Spindle Run Hours 1,744**
**Price New as Equipped Today at $247,735**
Specifications
| Manufacturer | Haas |
| Model | VF-5/50 XT |
| Year | 2019 |
| Condition | Used |
| Stock Number | #120829 |
| Machine Control | Haas NextGen Control |
| Table size | 62" x 23" |
| Maximum Table Load | 4,000 lbs |
| X-axis travel | 60" |
| Y-Axis Travel | 26" |
| Z-Axis Travel | 25" |
| Distance Spindle Nose to Table Top | 7" - 32" |
| Spindle Taper | CAT 50 |
| Spindle Speed | 7,500 RPM - 2 Speed Geared |
| Spindle Motor | 60 HP |
| Tool Magazine Capacity | 30+1 Station Side Mounted Tool Changer |
| Machine Dimensions LxWxH | 168"x102"x118" |
| Machine Weight | 16,250 lbs |
