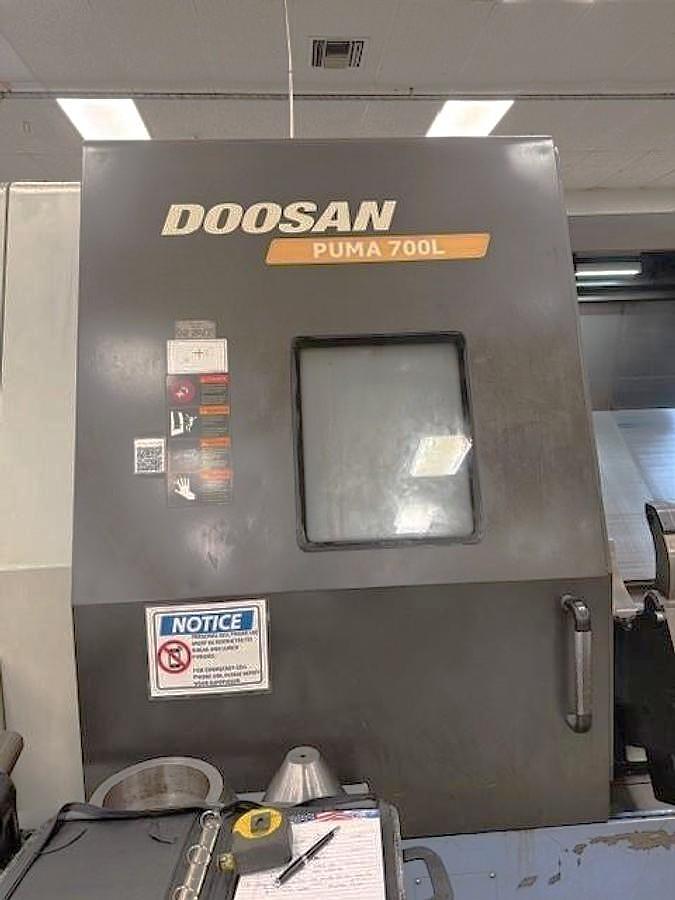

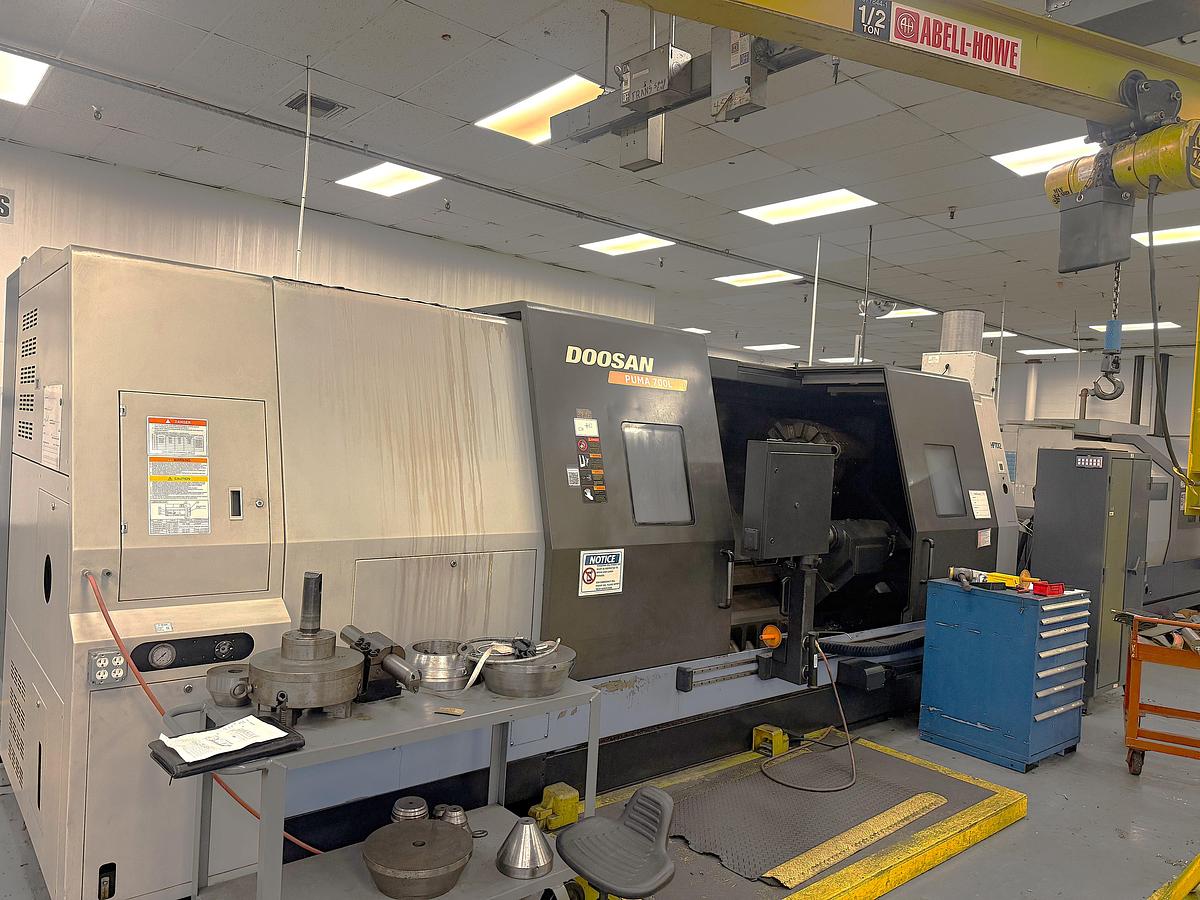

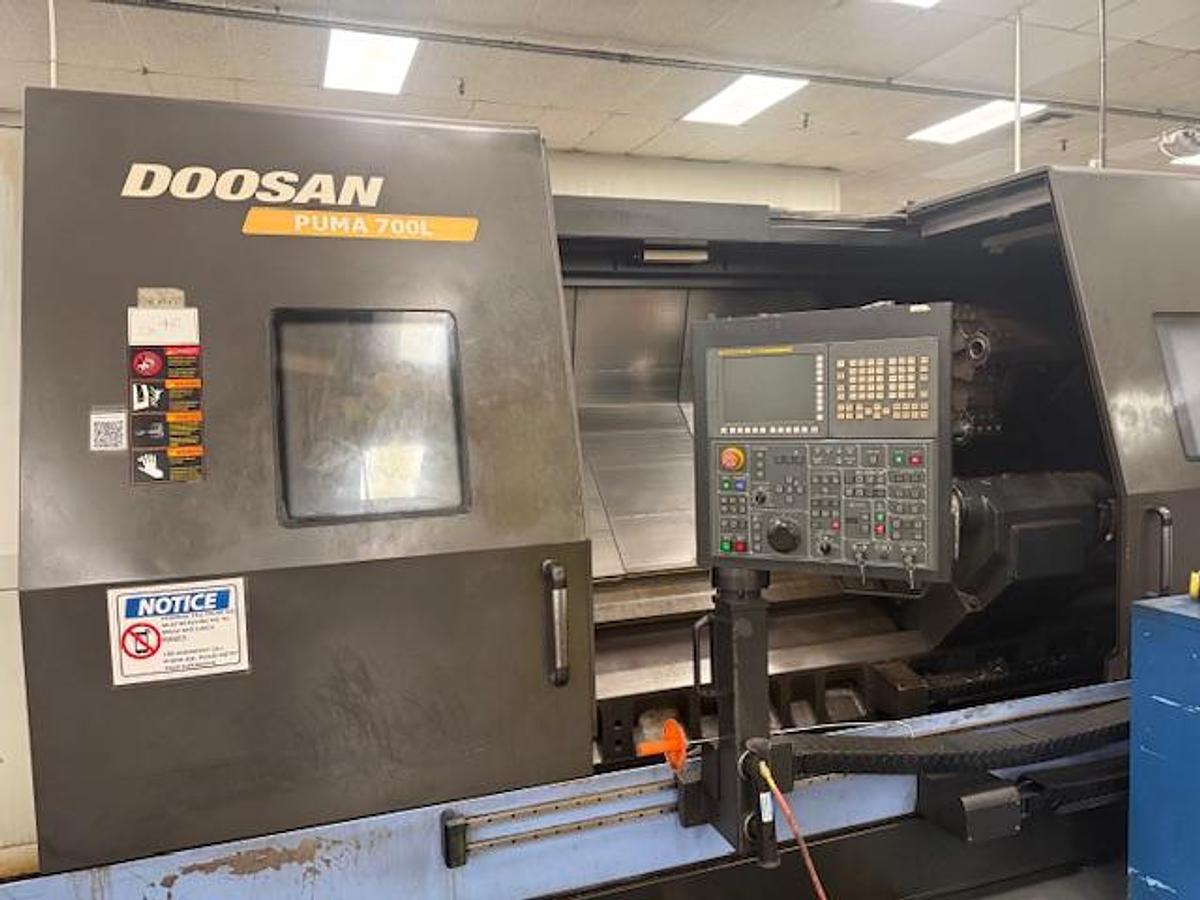

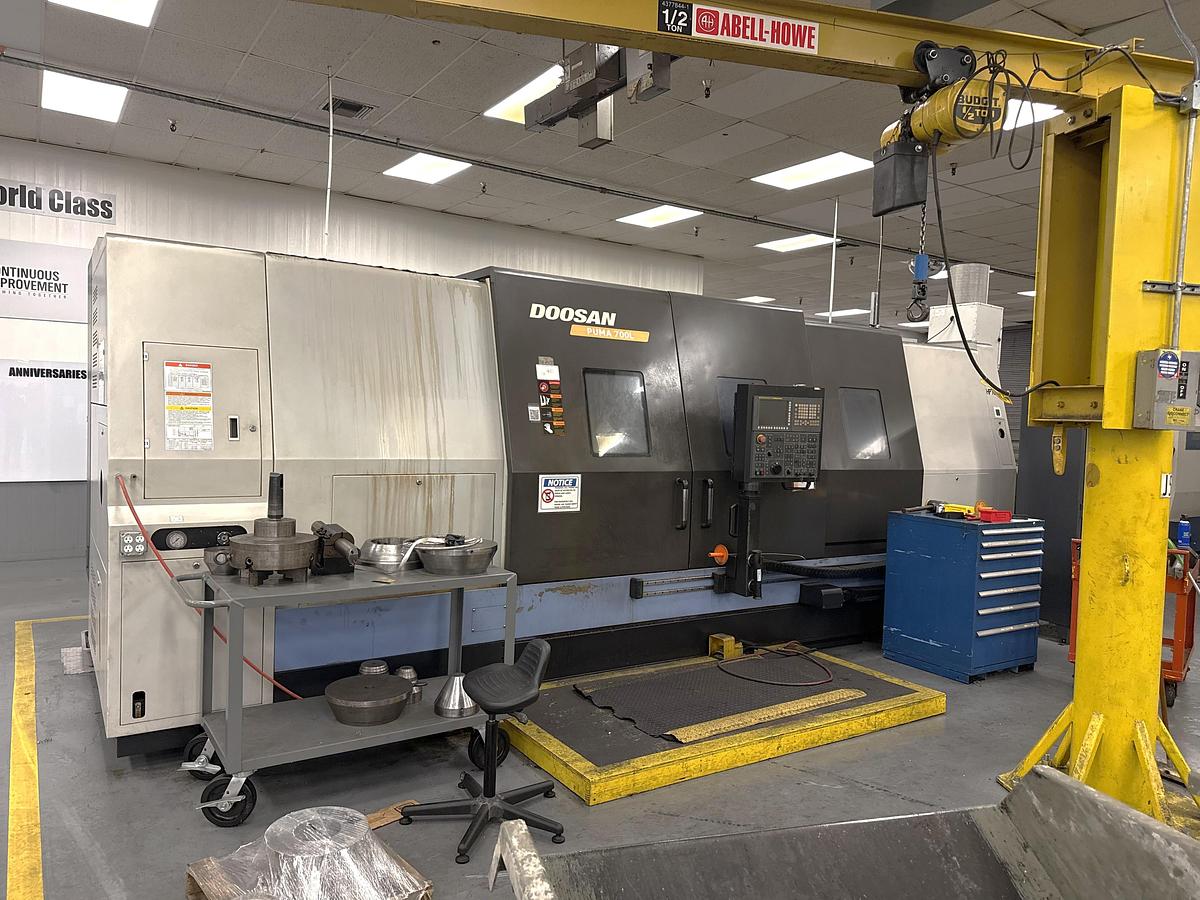

2012 Doosan Puma 700L with 24" Hyd. Chk, 6.5" Bar Cap., 126" Turn Length, SMW Steady Rest, Tailstock, Conveyor, Tool Eye

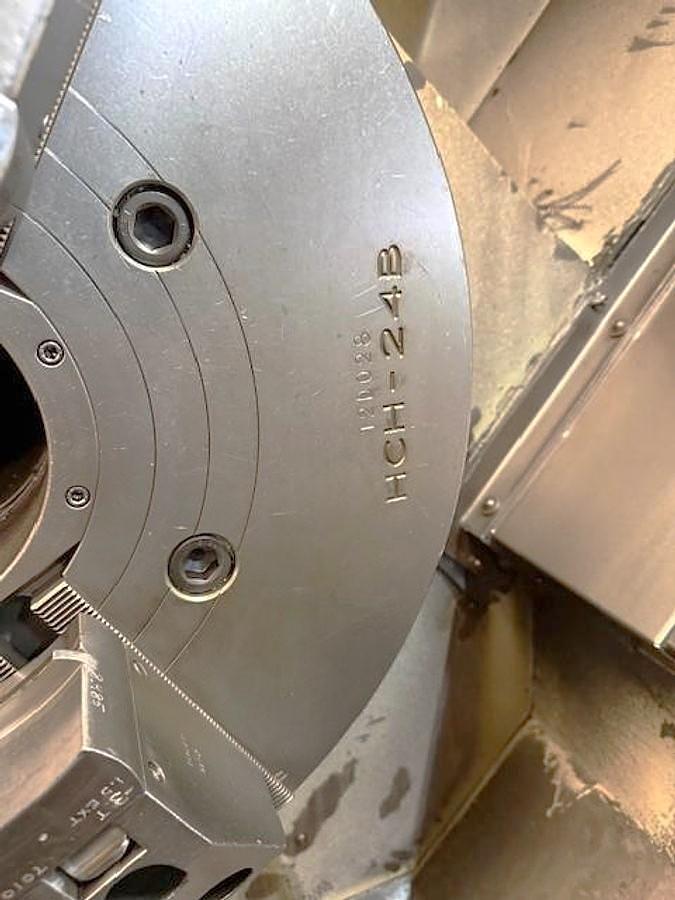

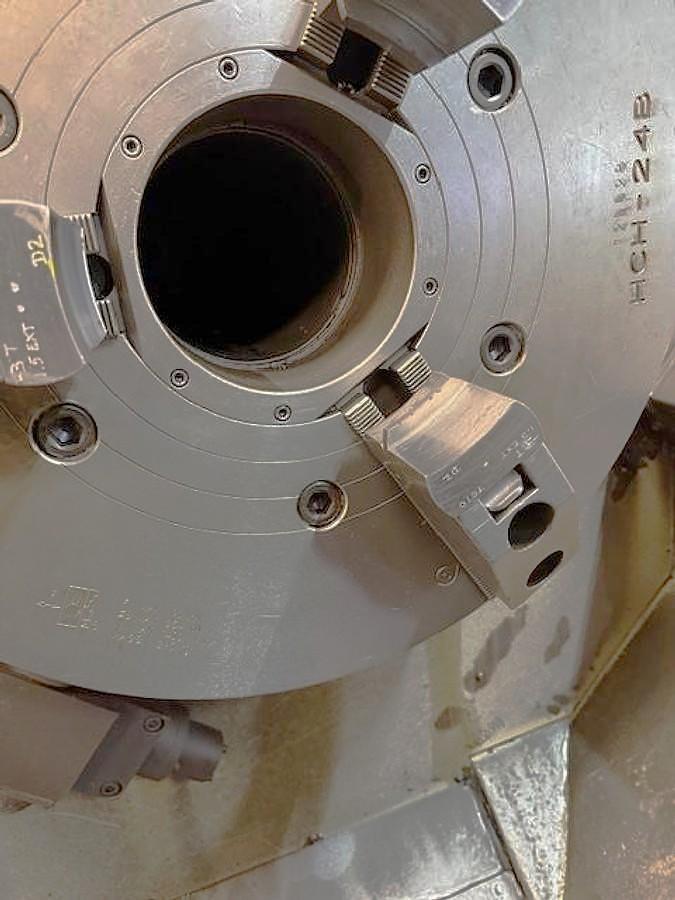

24" Samchully HCH-24 3 Jaw Hydraulic Chuck

6.5" Bar Capacity

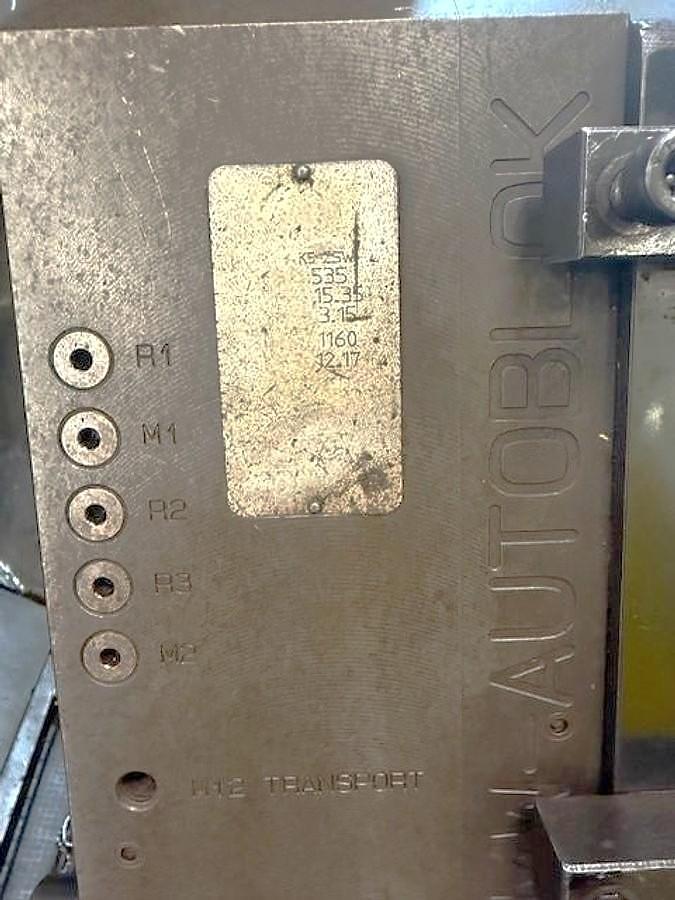

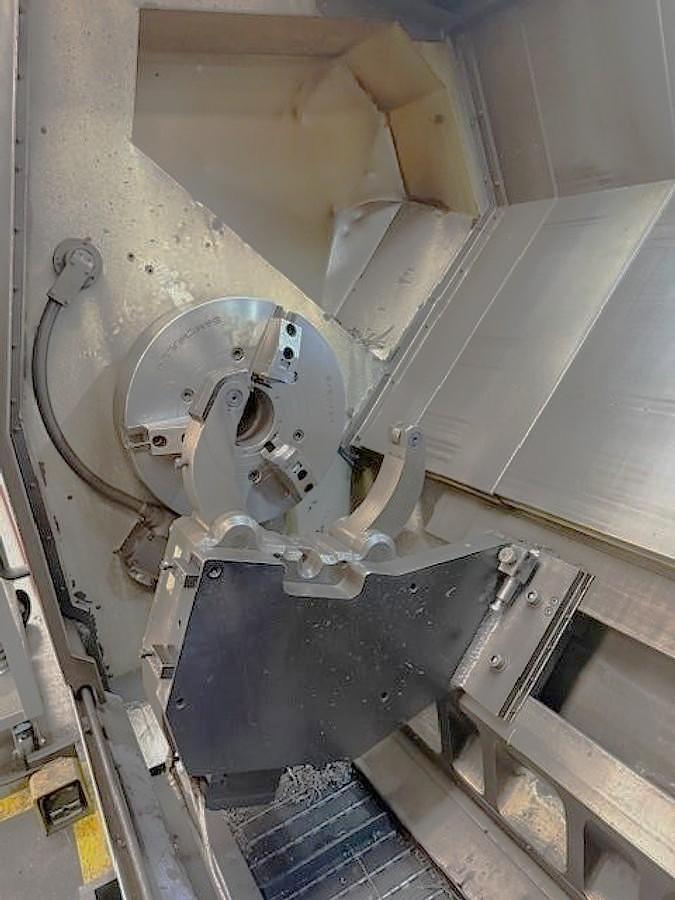

SMW Autoblok Hydraulic Steady Rest with 16" Capacity

Tailstock

Chip Conveyor

Tool Presetter

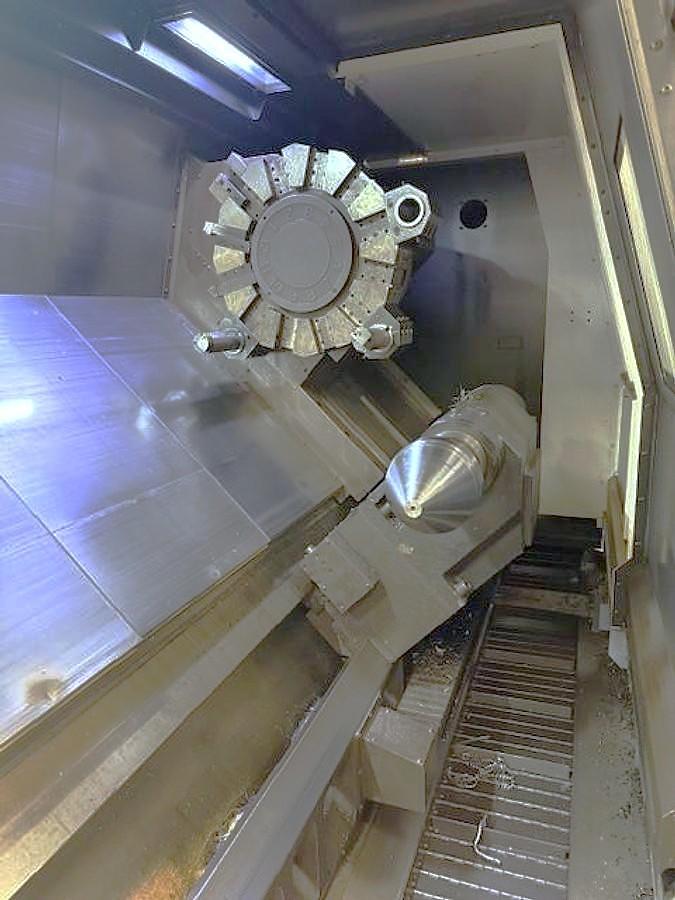

12 Station Bolt On Style Turret

Coolant System with Tank & Pump

RS 232 Port Interface

Card Interface

Wired 200/220V Electrics

All Available Manuals

All Available Tooling

**Power On Hours 44,192**

**Operating Hours 6,007**

**Machine Cutting Hours 9,280**

The 2012 Doosan Puma 700L is a robust CNC lathe, ideal for heavy-duty turning operations. It features a Fanuc Series 32i-Model A control system and includes a 24" hydraulic chuck, allowing for efficient handling of large workpieces. With a maximum swing over bed of 40.6" and a turning diameter of 35.4", it can accommodate sizeable components. The turning length extends up to 126", supported by an SMW steady rest and a tailstock to ensure precision and stability. This model has a significant bar capacity of 6.5", suitable for heavy-duty applications, and operates with a spindle speed range of 3 to 1500 RPM, powered by a 60/50 HP motor. The machine's spindle system includes an A1-15" nose and a 7.12" bore, further enhancing its versatility. The X and Z axis travels are 18.5" and 133.8" respectively, with rapid traverse rates of 472 IPM (X-axis) and 397 IPM (Z-axis), ensuring swift maneuverability. The equipment also includes a 12-position bolt-on style turret, providing flexibility for various tooling setups. A chip conveyor system is in place for efficient waste management. The machine measurements are notably 290" x 104" x 102", extending to 355" in length when the chip conveyor is attached. With a substantial weight of 48,400 lbs., the Doosan Puma 700L is a heavy-duty machine designed for demanding industrial settings.
