2008 Haas GT-10 Chucker with 5" Chuck, 8 Station Turret, Coolant Tank & Pump,

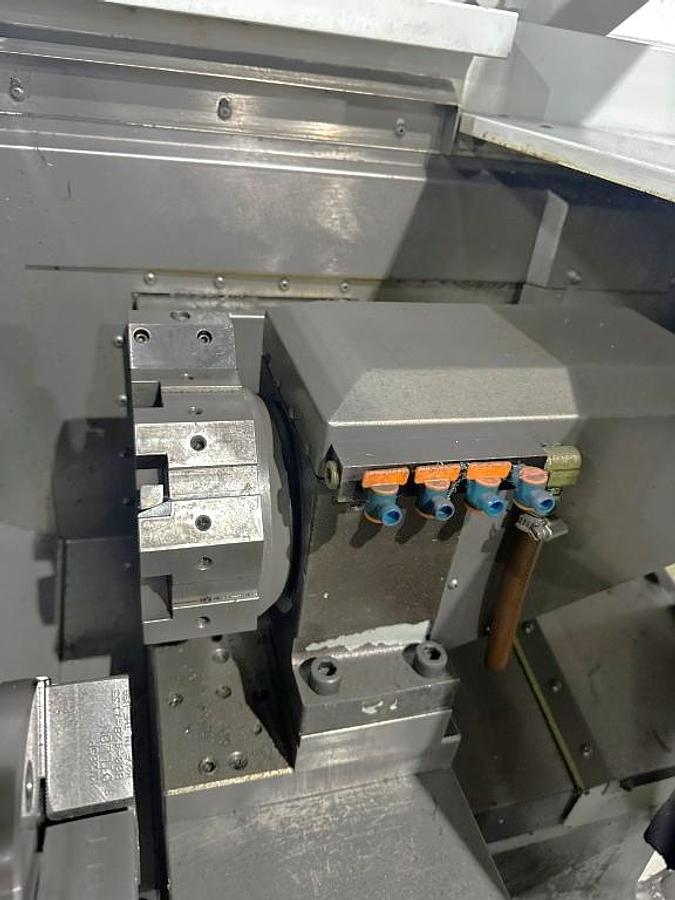

8 Station Turret

5" 3 Jaw Chuck

Chuck Pedal for Jaws Open/Close

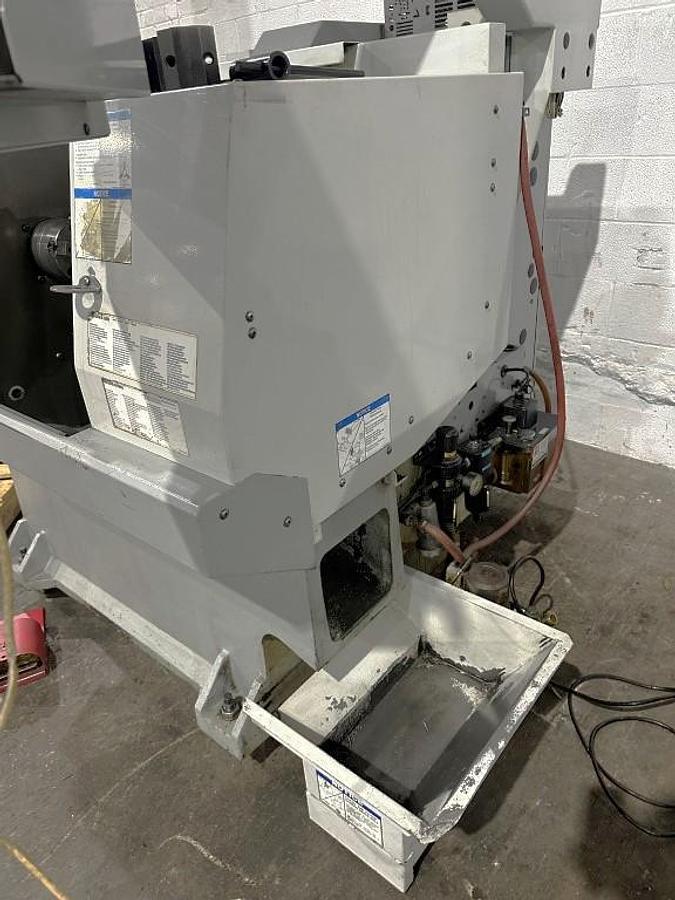

Coolant System with Tank & Pump

USB Port Interface

RS 232 Port Interface

Miscellaneous Tool Blocks & Wedges

Able to be wired either Three Phase 208V or Single Phase 240V Electrics

**Machine Manufactured new in October of 2008**

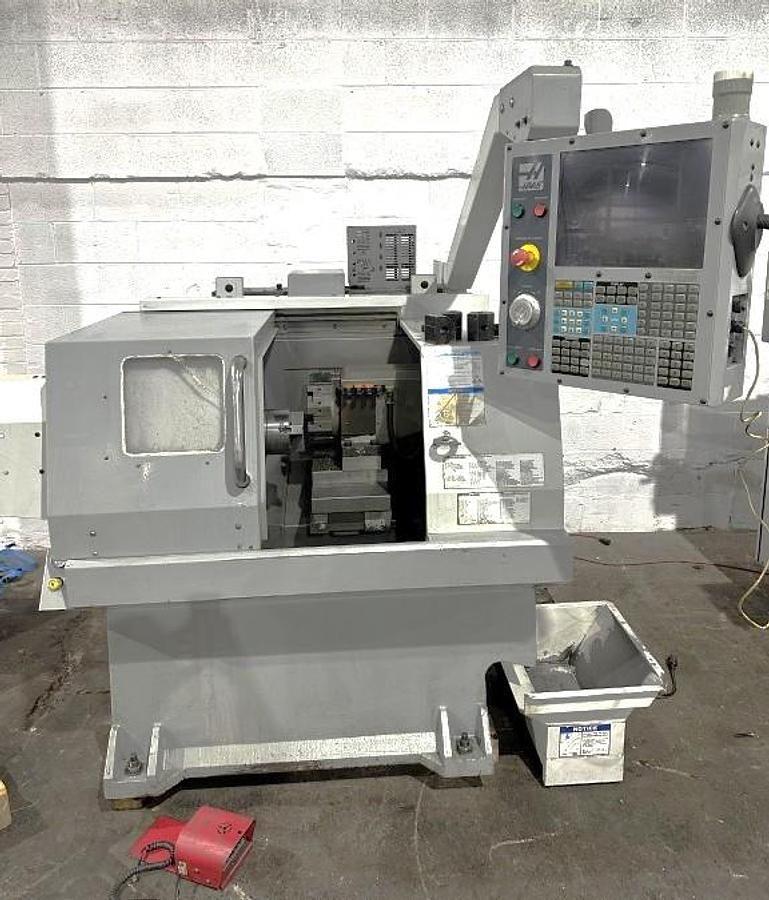

The 2008 Haas GT-10 Chucker is a reliable CNC lathe, ideal for precision machining tasks. It features a 5-inch 3-jaw chuck, offering a maximum swing over the bed of 16.25 inches and a maximum turning diameter of 10 inches. The machine is equipped with an 8-station turret, providing versatility for various applications. With a maximum turning length of 10 inches and bar capacity of 1.18 inches, the GT-10 is well-suited for small to medium-sized parts. This lathe delivers precise operations with its X-axis travel of 6 inches and Z-axis travel of 8 inches. It is powered by a 7.5 HP motor, driving the spindle speed up to 3,000 RPM, with 42 ft./lbs. of spindle torque, making it suitable for a wide range of materials. The spindle features an A2-5 nose and a spindle bore of 1.38 inches, enhancing its capability to handle diverse cores. Additionally, the machine includes a coolant tank and pump, contributing to efficient thermal management during prolonged operations. The rapid traverse rates of 710 IPM ensure quick positioning for enhanced productivity. Weighing 4,055 lbs., the Haas GT-10 Chucker combines durability with precision, offering a valuable asset for any manufacturing setup.
