2010 Haas VF8/50 with Haas Probing, 30 Station Side Mounted ATC, High Pressure Coolant, High Speed Machining, 50 Taper Option
2010 Haas VF8/50 with Haas Probing, 30 Station Side Mounted ATC, High Pressure Coolant, High Speed Machining, 50 Taper Option
$97,500 (USD)
Location:Michigan
or
Call (863) 439-6066
Description
50 Taper Spindle Option
Haas Probing Package with Tool & Part Probes
High Pressure Coolant

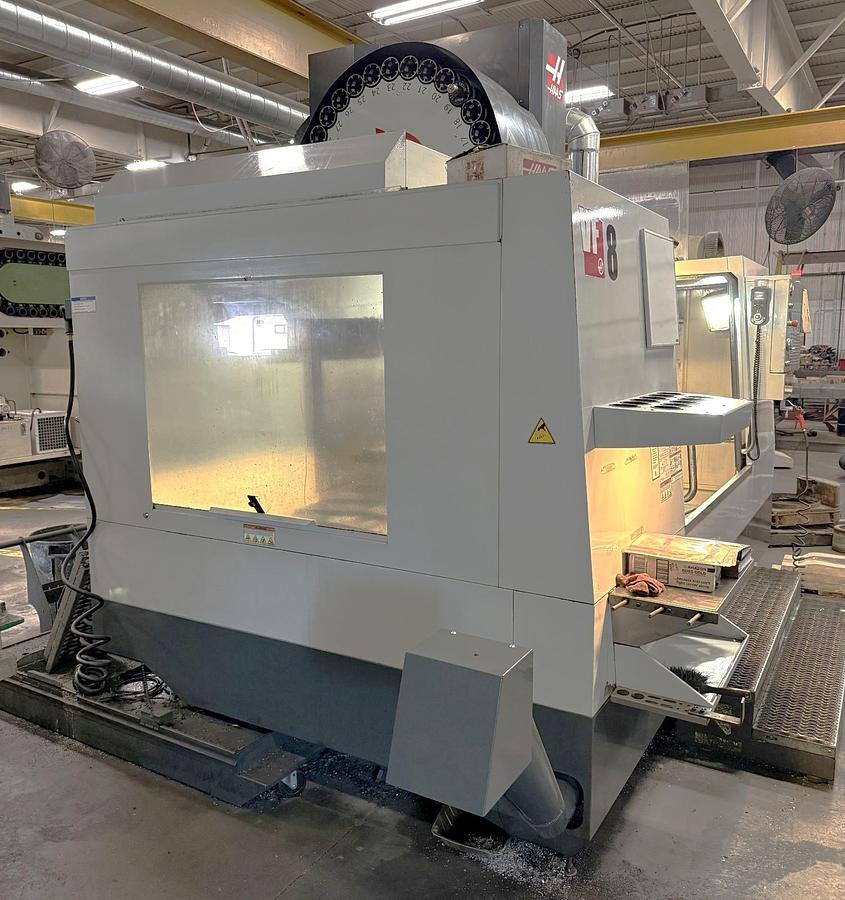

30 Station Side Mounted Tool Changer
Rigid Tapping
Chip Auger Conveyor
High Speed Machining with Look Ahead
Remote Jog Handle
Programmable Coolant Nozzle
Auto Air Gun
Spindle Orientation

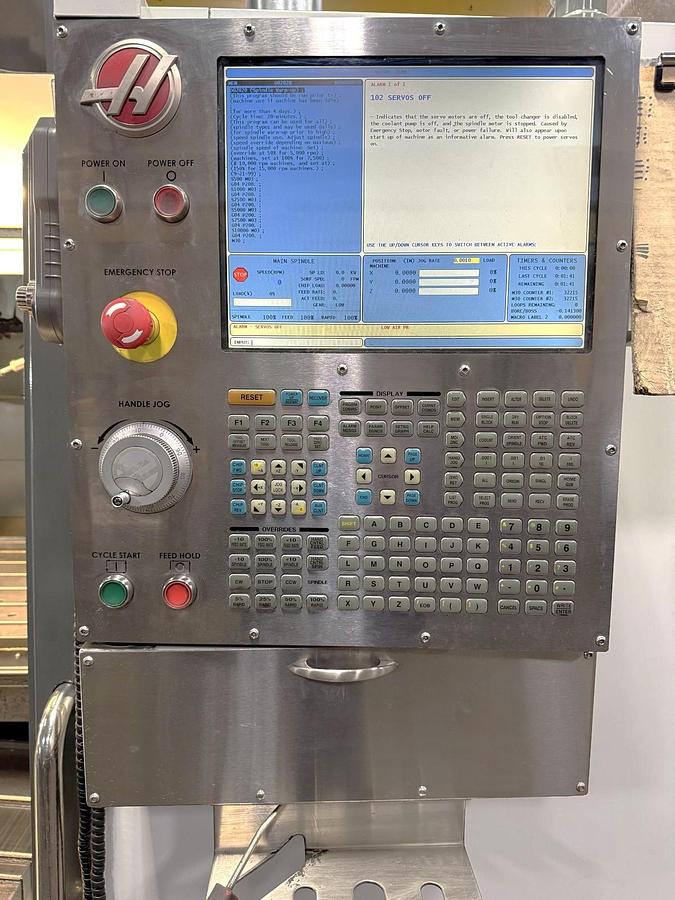

Haas Intuitive Programming System
Coordinate Rotation & Scaling
User Definable Macros
750 MB Expanded Programming Memory
Linear Scales on All 3 Axis'
2 Speed Gearbox
Rigid Tapping
High Intensity Lighting
Coolant System with Tank & Pump
Ethernet Interface
USB Port Interface
RS 232 Port Interface
Memory Key Lock Switch
Specifications
| Manufacturer | Haas |
| Model | VF8/50 |
| Year | 2010 |
| Condition | Used |
| Stock Number | #120821 |
| Machine Control | Haas CNC Control |

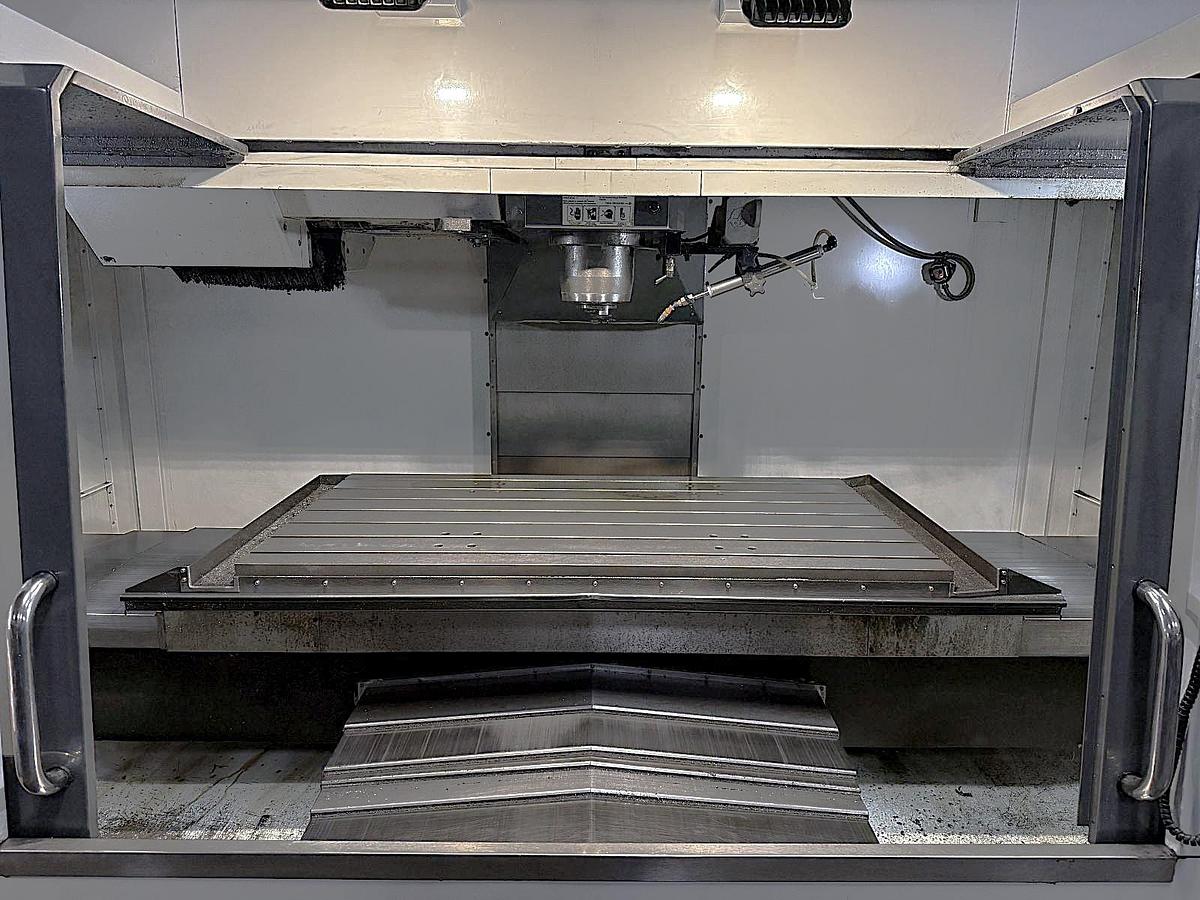

| Table size | 64"x36" |
| Maximum Table Load | 4,000 lbs |
| X-Axis Travel | 64" |
| Y-Axis Travel | 40" |
| Z-Axis Travel | 30" |
| Spindle Taper | CAT 50 |
| Spindle Motor | 30 HP |
| Spindle Speeds | 7,500 RPM |
| Distance Spindle Nose to Table Top | 5" - 35" |
| Tool Magazine Capacity | 30 Position Side Mount |
| Maximum Tool Diameter / Weight | 5.3" / 25 lbs. |
| Rapid Traverse Rates X / Y, Z | 540 IPM / 600 IPM |
| Machine Dimensions LxWxH | 156"x139"x129" |
| Machine Weight | 24,000 lbs. |
