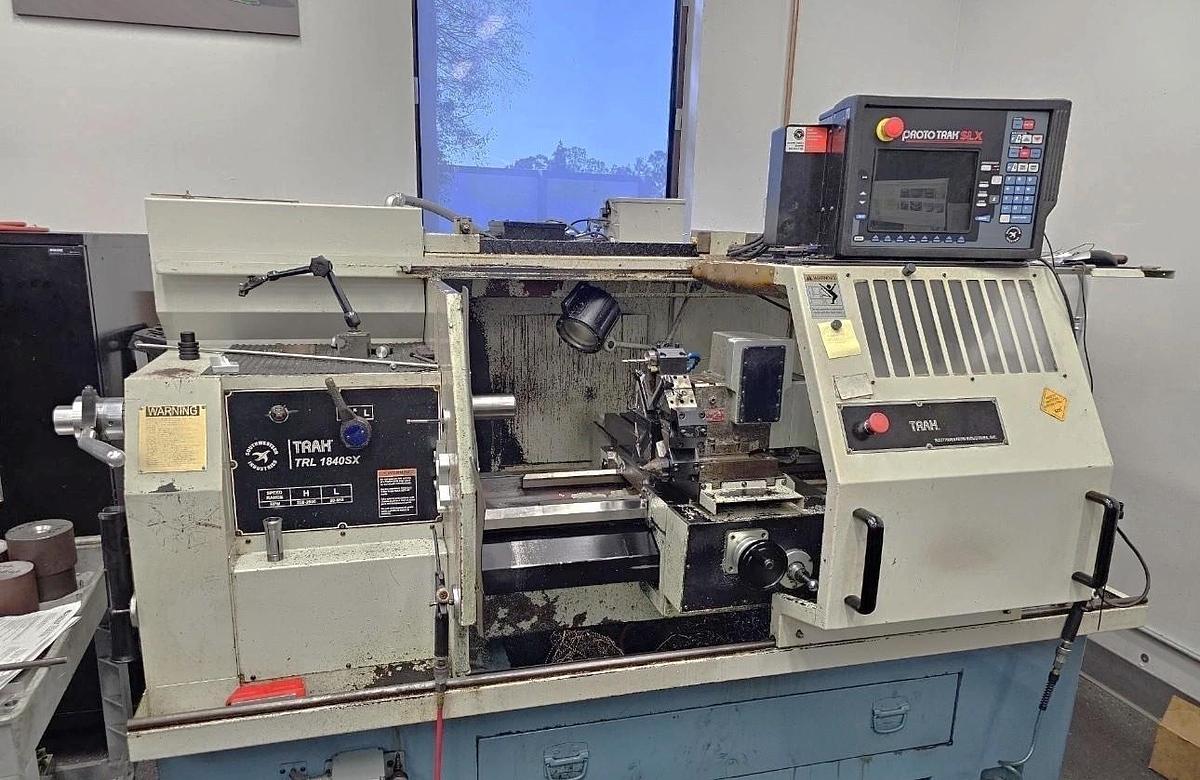

2009 Southwestern Industries TRAK TRL 1840SX with Tailstock, 8 Pos. Indexable Turret, Collet Chuck, Geared, SLX Control
2009 Southwestern Industries TRAK TRL 1840SX with Tailstock, 8 Pos. Indexable Turret, Collet Chuck, Geared, SLX Control
$26,950 (USD)
Location:California
or
Call (863) 439-6066
Description
Dorian Smartdex 8 Station Indexable Turret
Tailstock
Electronic Handwheels and Joystick
3 Speed Geared
5C Collet Nose
Collet Closer
Work Light
10.4" Color Active Matrix Screen
USB Port Interface
RS232 Port Interface
Coolant System with Pump
Specifications
| Manufacturer | Southwestern Industries |
| Model | TRAK TRL 1840SX |
| Year | 2009 |
| Condition | Used |
| Stock Number | #120820 |
| Machine Control | Prototrak SLX Control |
| Chuck Size | 5C Collet Nose |
| Maximum Swing over Bed | 18.5" |
| Maximum Swing Over Cross Slide | 9" |
| Distance Between Centers | 40.25" |
| Spindle Nose / Spindle Bore | D1-6" / 2.36" |
| Spindle Speeds | 50 - 2,500 RPM - 3 Ranges 50-270 / 150-850 / 450-2500 |
| Number of Tool Positions | 8 Station Indexable Turret |
| Spindle Motor | 10 HP |
| Rapid Traverse Rates X/Z | 100 IPM / 150 IPM |
| Tailstock Quill Diameter / Quill Travel / Taper | 2.96" / 7.125" / #5MT |
| Power Requirements | 220V / 3 Phase / 60Hz |
| Machine Dimensions LxWxH | 91"x53"x70" |
| Machine Weight | 4,500 lbs |
