2023 Haas VM-6 with Haas Probing Package, 15,000 RPM, 30 Station Side Mount ATC, PCool, Chip Auger, Linear Scales

2023 Haas VM-6 with Haas Probing Package, 15,000 RPM, 30 Station Side Mount ATC, PCool, Chip Auger, Linear Scales
$169,500 (USD)
Location:Texas
Description
15,000 RPM Spindle
30 Station Side Mounted Tool Changer
Haas WIPS Probing Package with Tool and Part Probing
Programmable Coolant Nozzle
Linear Scales ($15,000 Option)
Rigid Tapping
Auto Air Gun
Auger Style Chip Conveyor
User Definable Macros
Spindle Orientation
Coordinate Rotation and Scaling
Visual Part Programming System
Remote Jog Handle
High Intensity Lighting

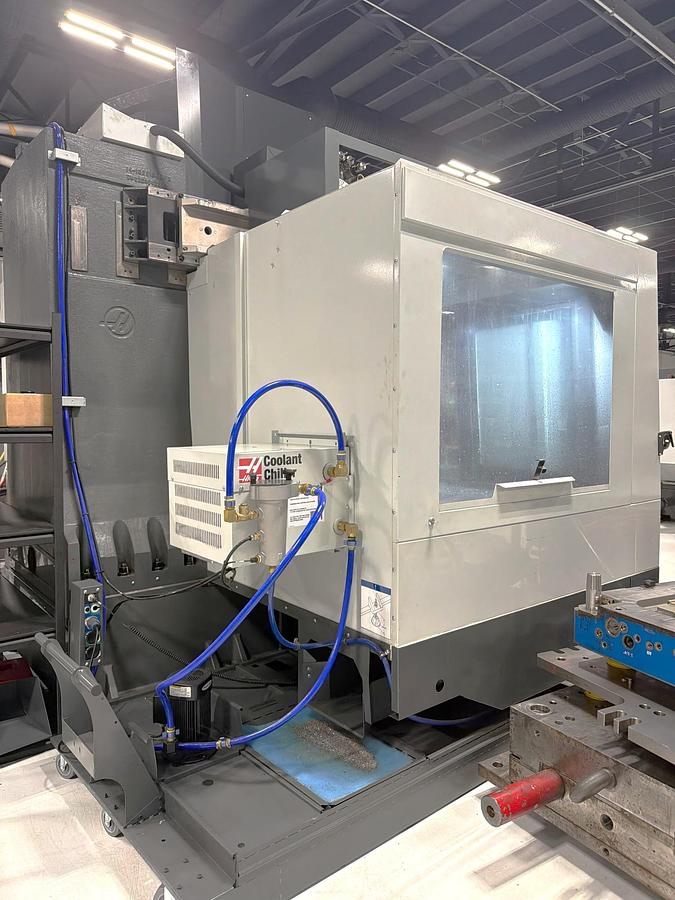

Coolant Chiller Unit
Chip Filter
Multi Stage Coolant Pump
Chip Wash Down Feature
64 GB Expanded Programming Memory
WiFi w/ Ethernet Interface
USB Port Interface
RS 232 Port Interface
Window Air Blast
Coolant System with Tank & Pump
Advanced Tool Management
15" Color Monitor
Early Power Failure Detection Module
Media Display by M-Code
95 Gallon Coolant Tank
Haas Safe Run
Haas Drop
Haas Connect
ECO Mode
Low Voltage Transformer
Wired 220V Electrics
**Machine Manufactured in August of 2023**
**Price today new as equipped at $225,000**
Specifications
| Manufacturer | Haas |
| Model | VM-6 |
| Year | 2023 |
| Condition | Used |
| Stock Number | #120819 |
| Table Size | 64" x 28" |
| Maximum Table Load | 4,000 lbs. |
| Distance Spindle Nose to Table Top | 4" - 34" |
| X-Axis Travel | 64" |
| Y-Axis Travel | 32" |
| Z-Axis Travel | 30" |
| Spindle Taper | CAT 40 |
| Spindle Speed | 15,000 RPM |
| Spindle Motor | 30 HP |
| Number of Tool Positions | 30 Station Side Mounted ATC |
| Tool Change Time Tool to Tool | 1.6 seconds |
| Rapid Traverse Rates X / Y, Z | 540 IPM / 600 IPM |
| Machine Dimensions | 195" x 102" x 129" |
| Machine Weight | 24,000 lbs. |
