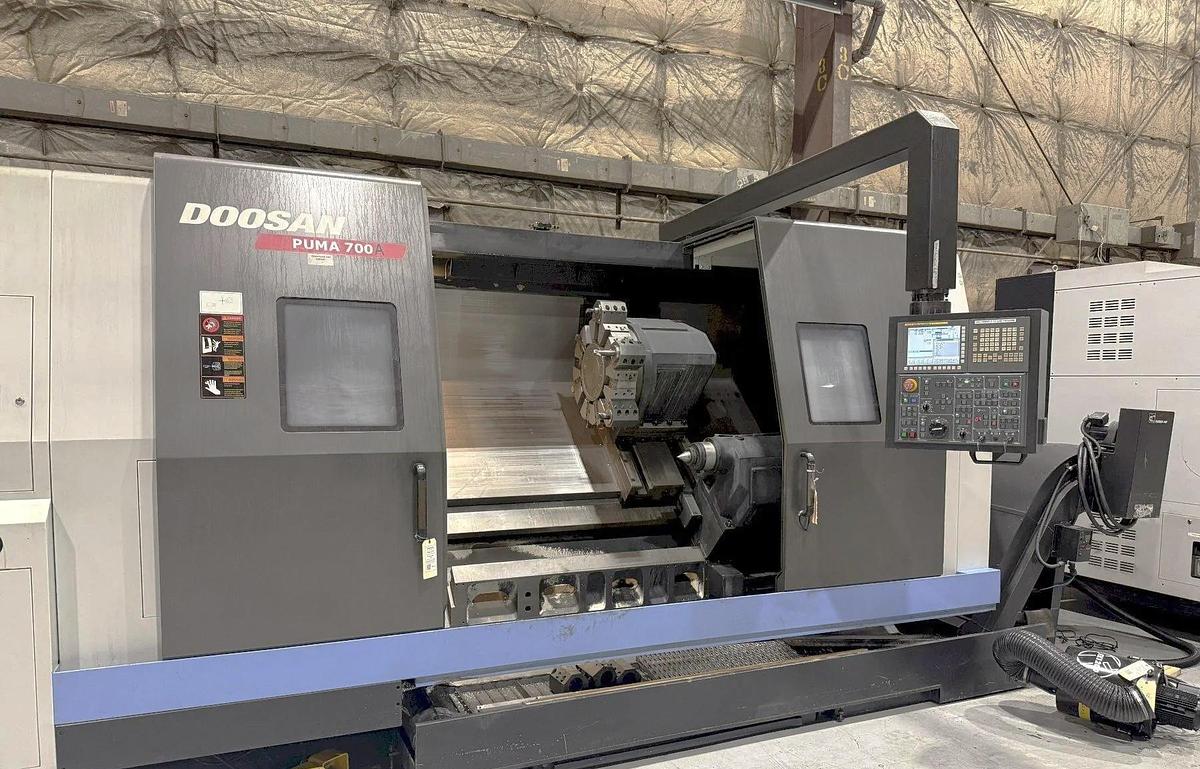

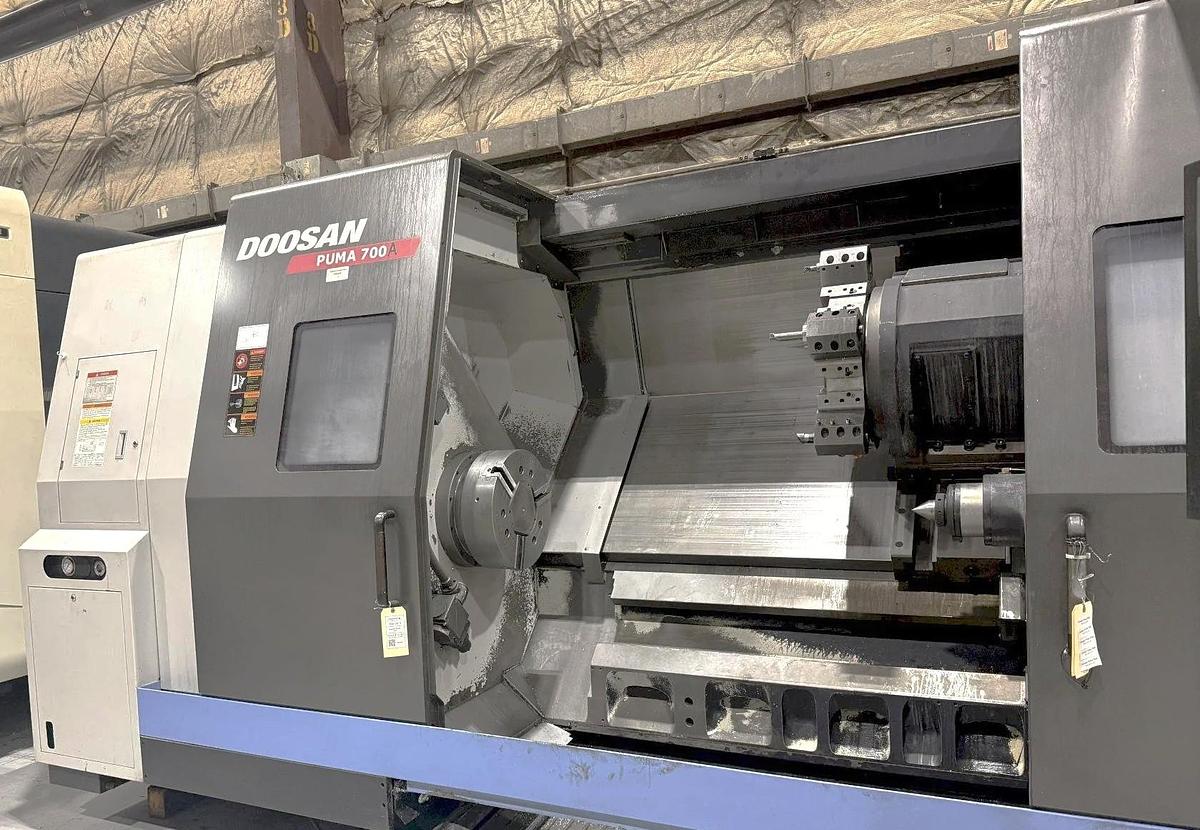

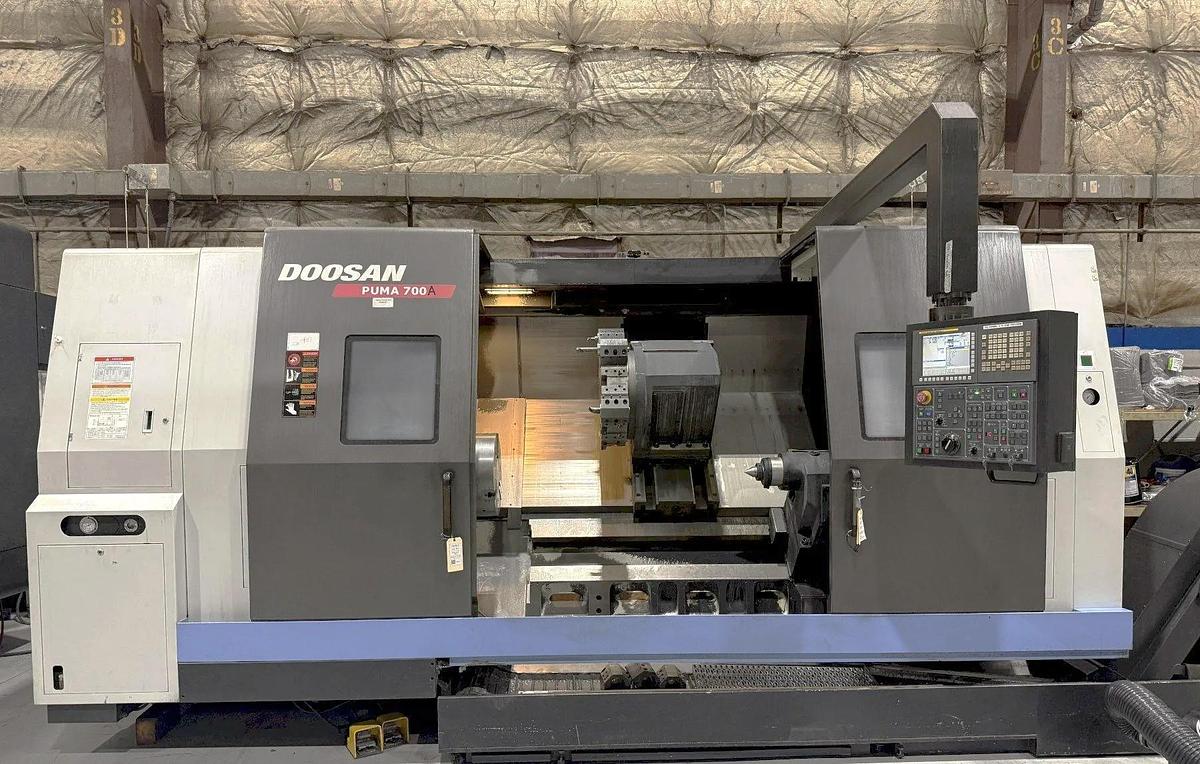

2013 Doosan Puma 700A with 18" Hyd. Chuck, 6.5" Bar Capacity, 63" cc, Tailstock, Chip Conveyor, Tool Presetter, Fanuc 32i Cntrl
2013 Doosan Puma 700A with 18" Hyd. Chuck, 6.5" Bar Capacity, 63" cc, Tailstock, Chip Conveyor, Tool Presetter, Fanuc 32i Cntrl
$157,000 (USD)
Location:Michigan
or
Call (863) 439-6066
Description

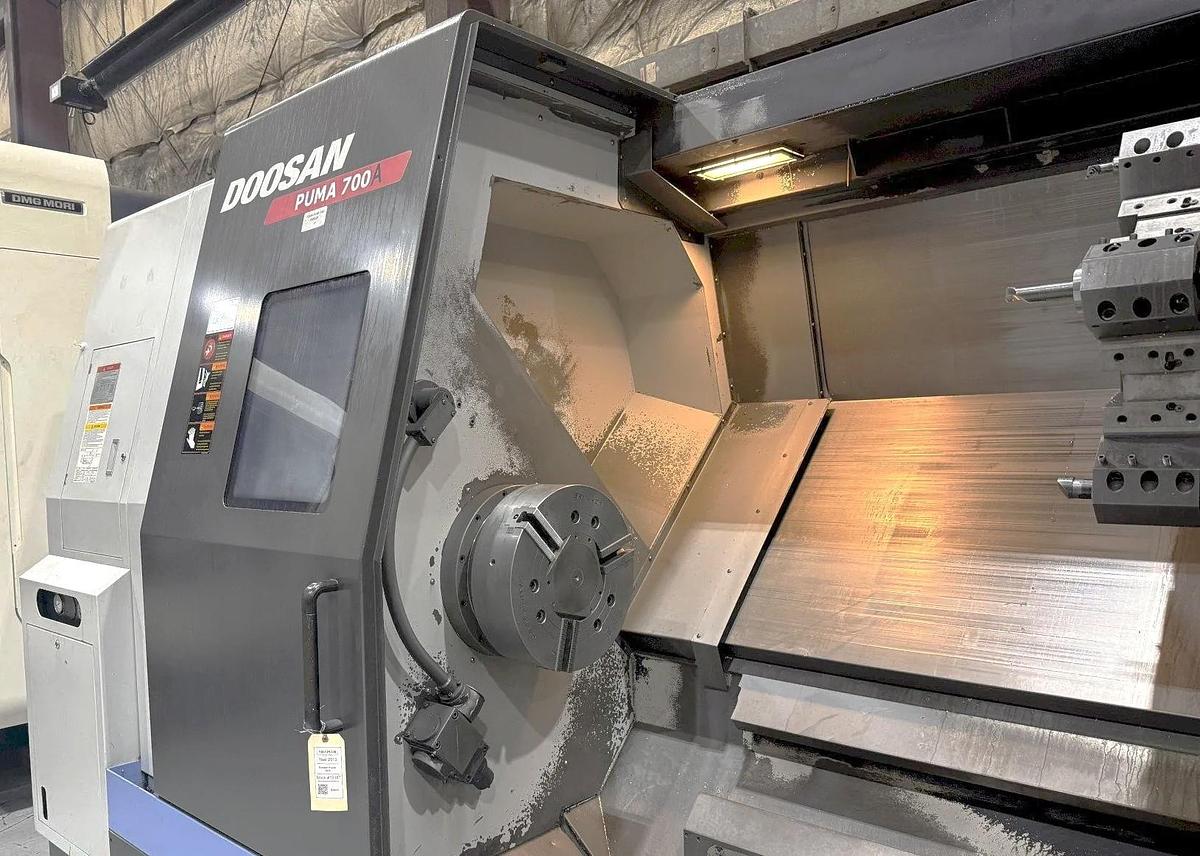

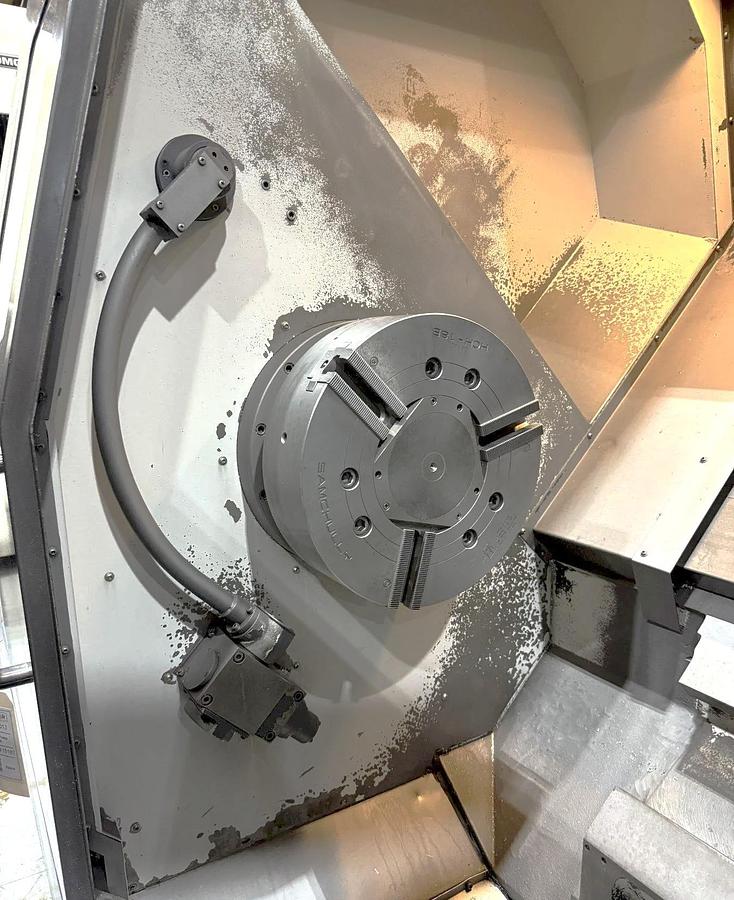

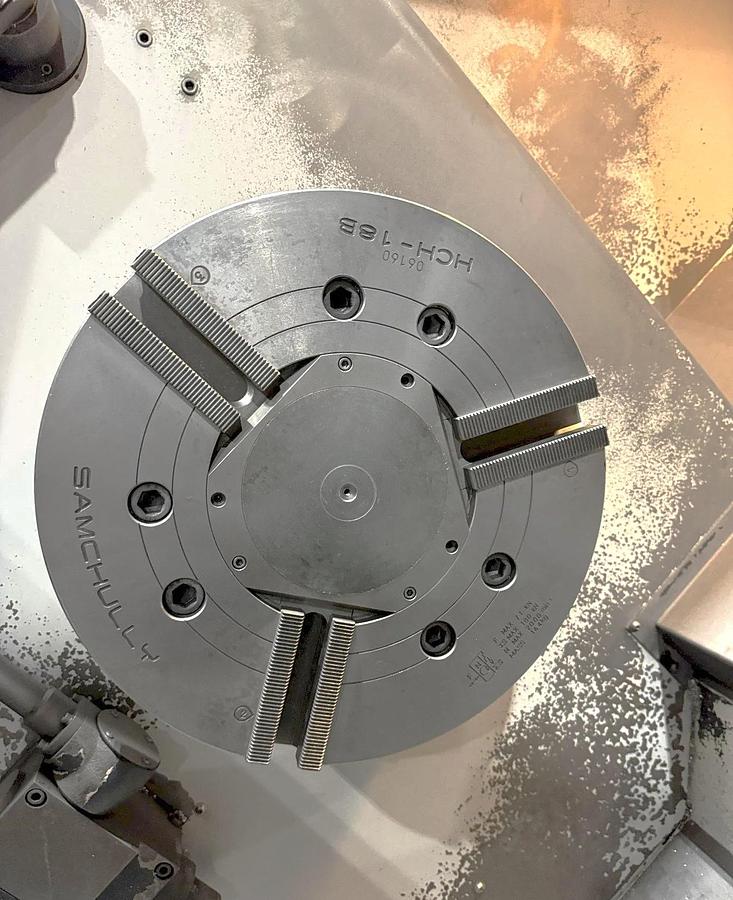

18" Samchully HCH-18B 3 Jaw Hydraulic Chuck
6.5" Bar Capacity

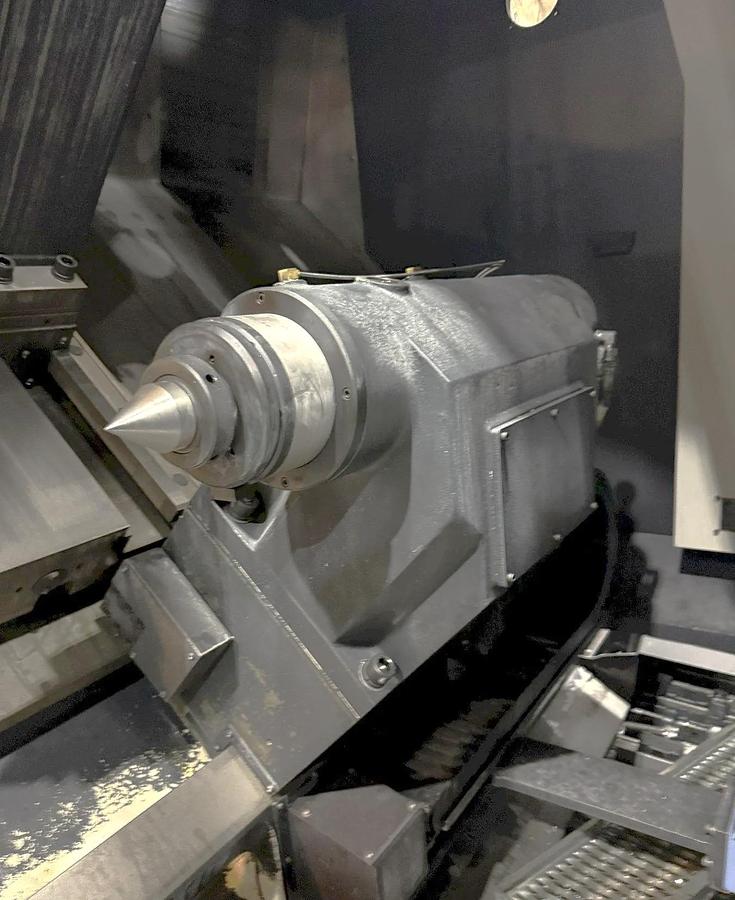

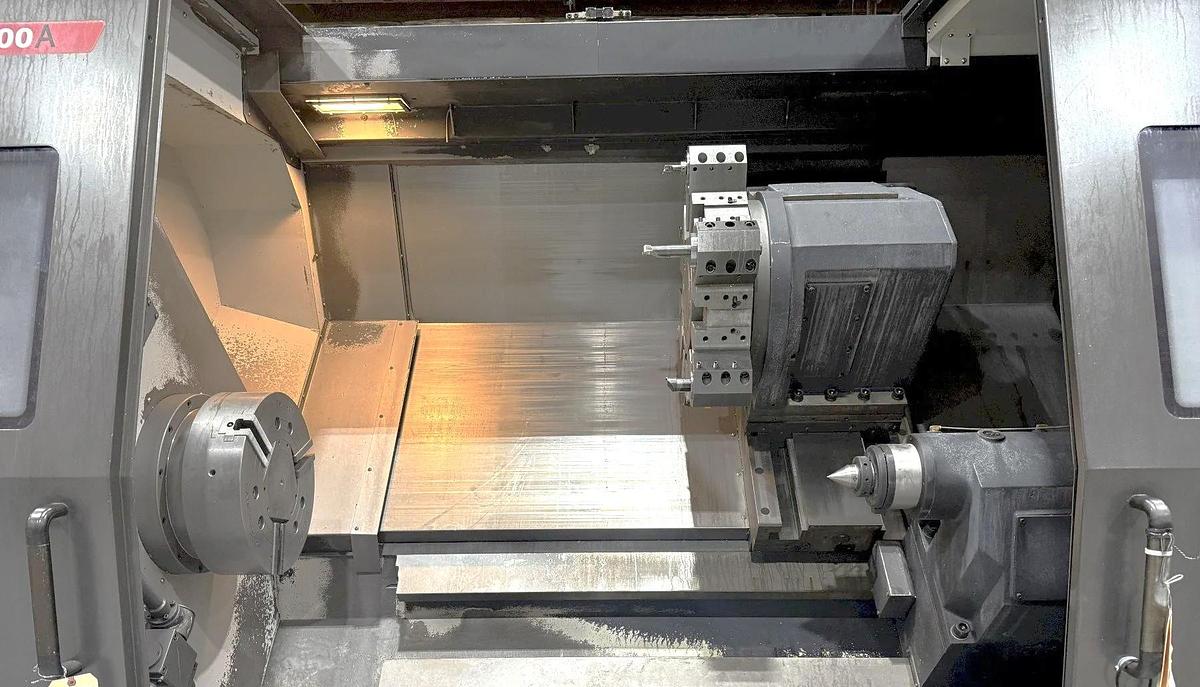

Tailstock

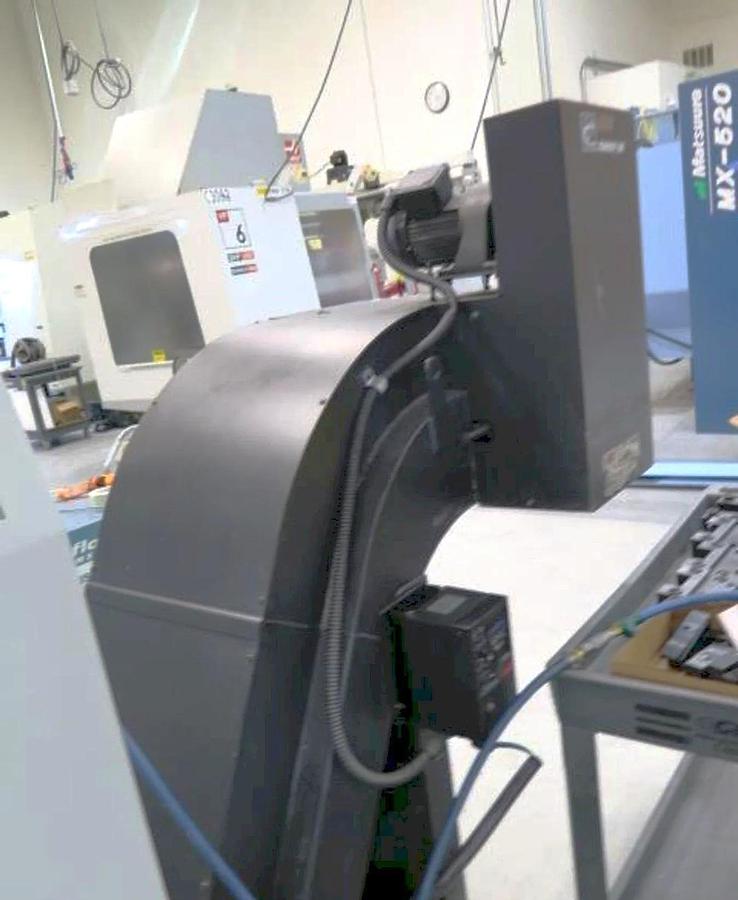

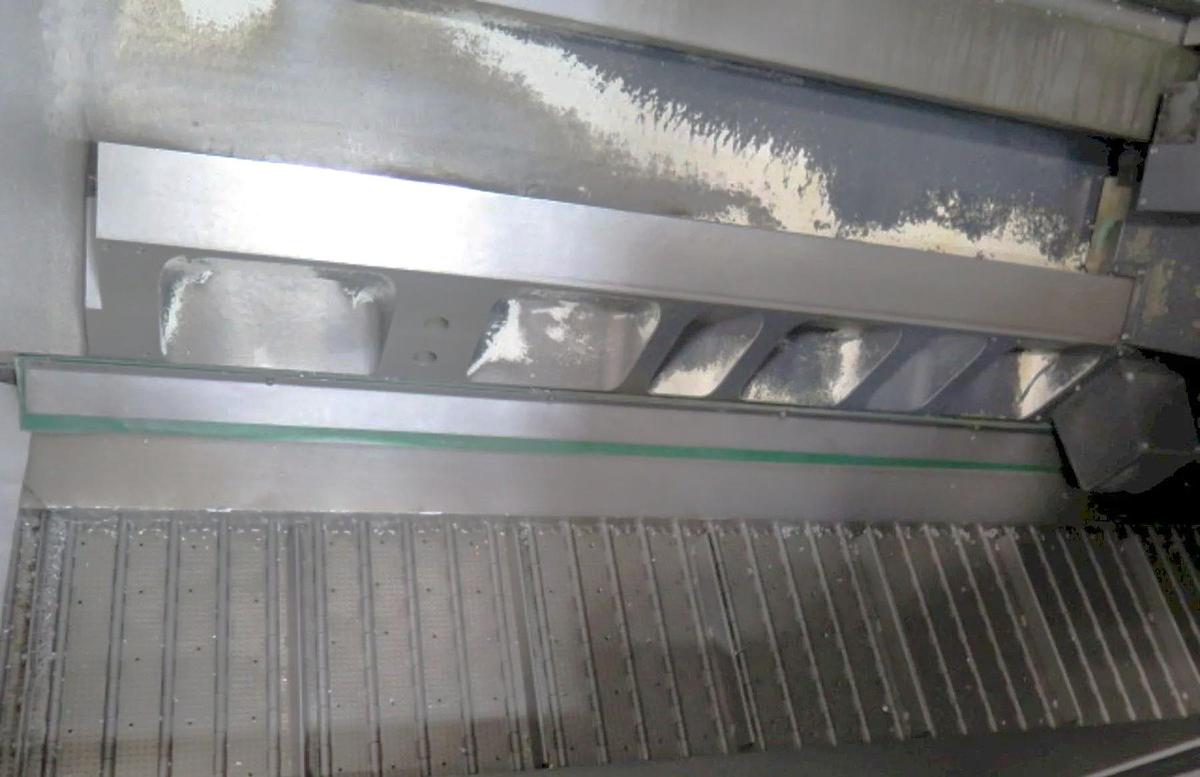

Chip Conveyor

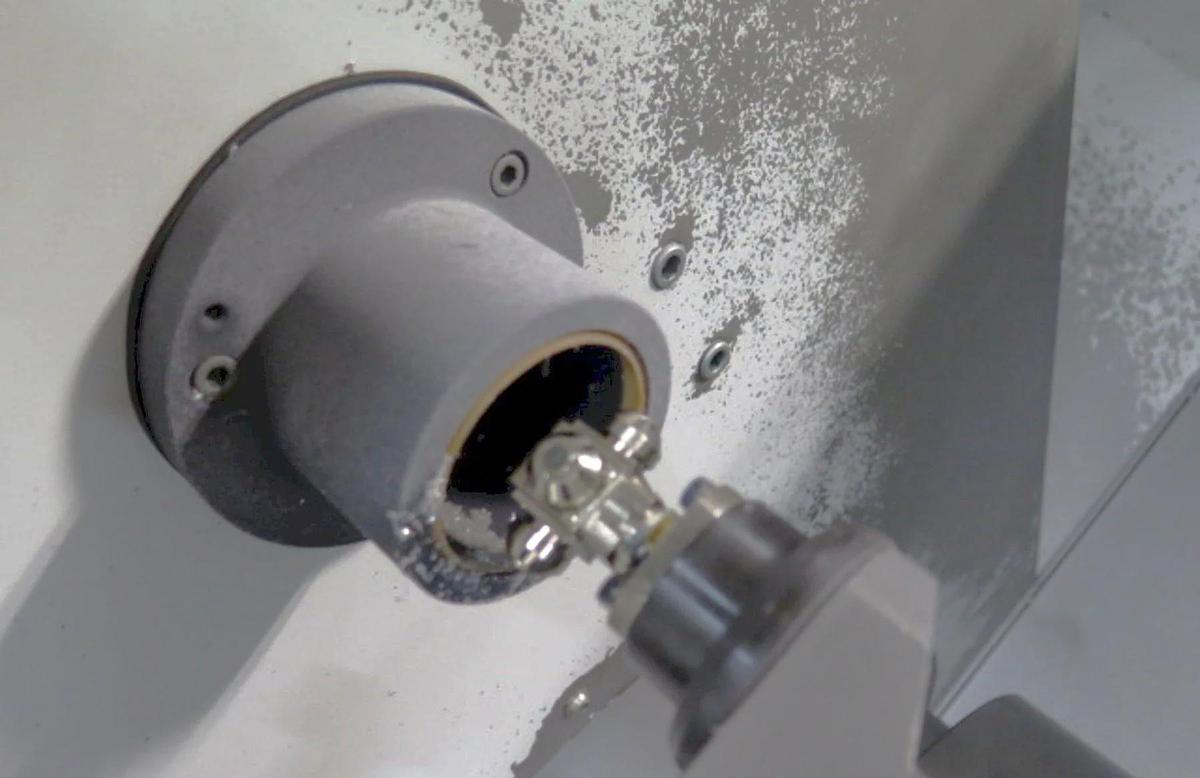

Tool Presetter

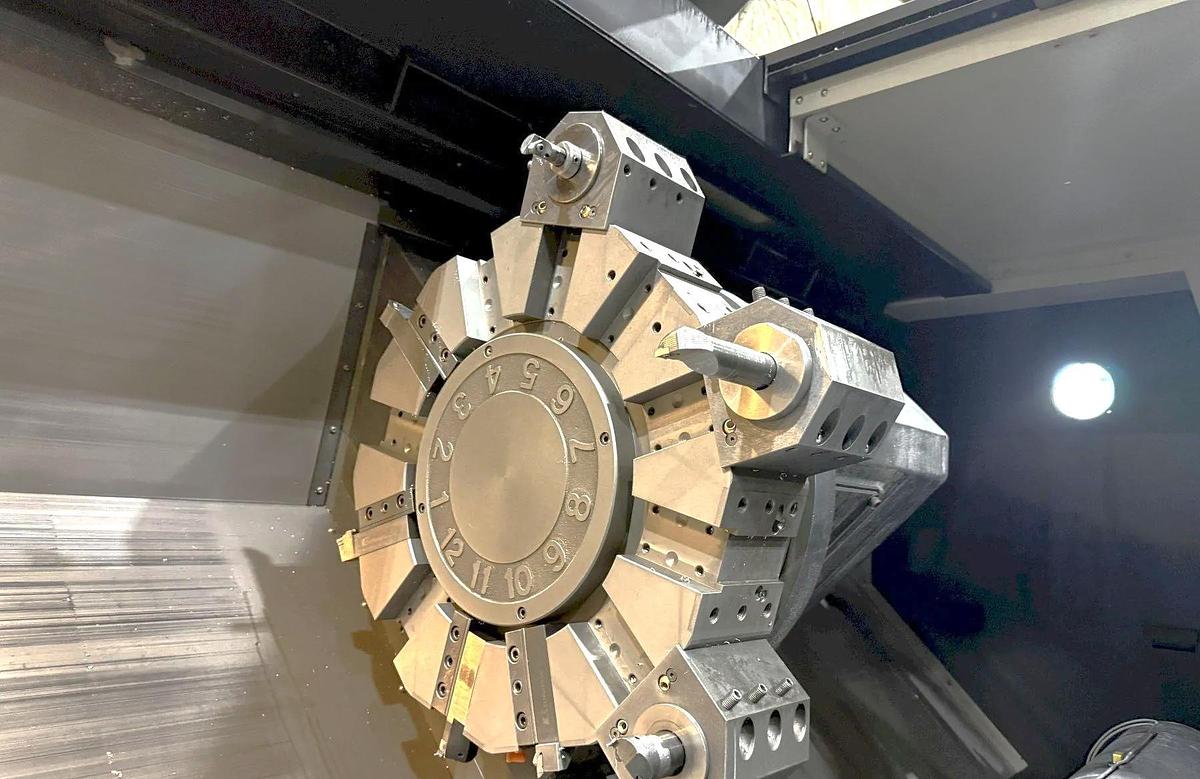

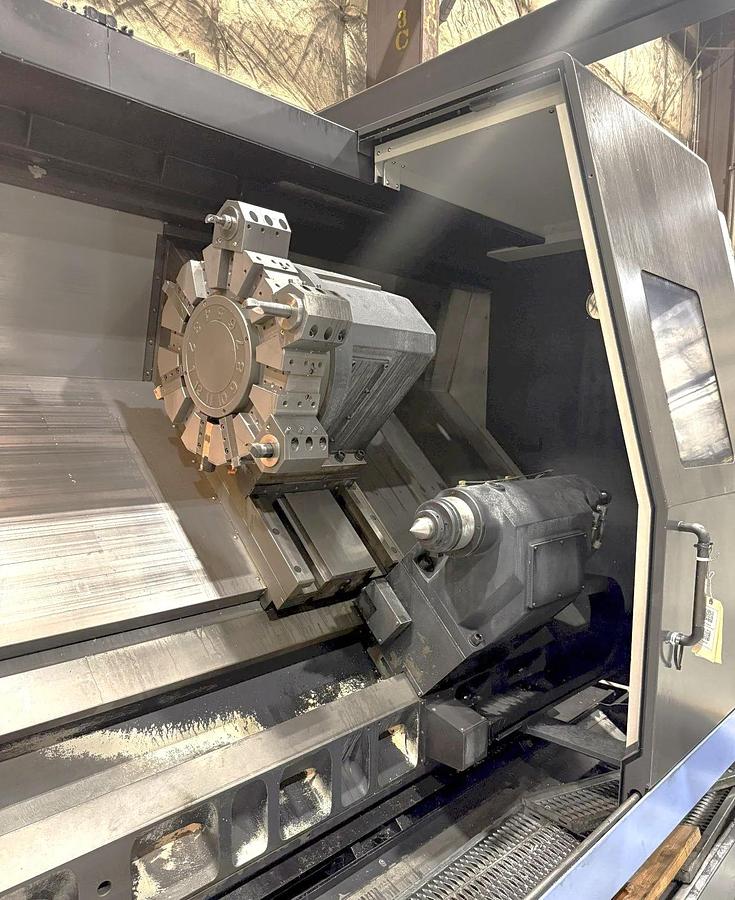

12 Station Bolt On Style Turret
Coolant System with Tank & Pump
RS 232 Port Interface
Card Interface
All Available Manuals
**2,624 Run Time Hours**
Specifications
| Manufacturer | Doosan |
| Model | Puma 700A |
| Year | 2013 |
| Condition | Used |
| Stock Number | #120817 |

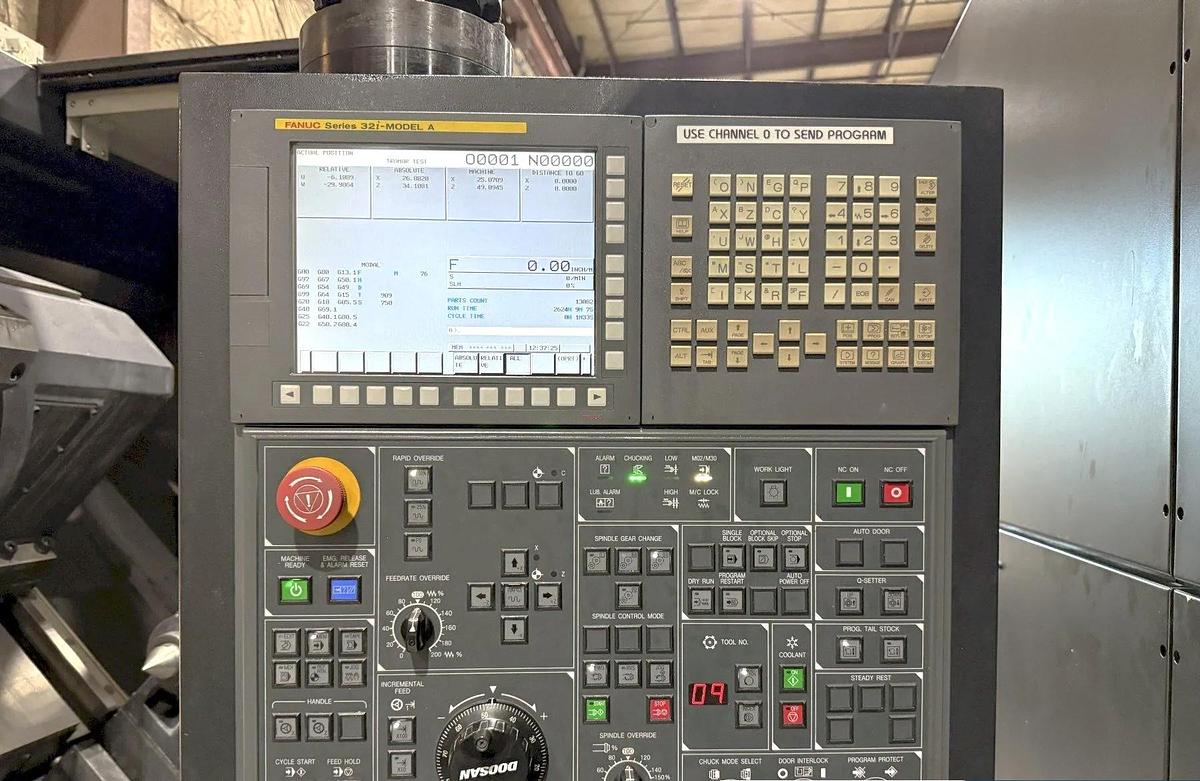

| Machine Control | Fanuc Series 32i-Model A Control |
| Chuck size | 18" Hydraulic Chuck |
| Maximum Swing over Bed | 40.6" |
| Maximum turning diameter | 35.4" |
| Maximum Distance Between Centers | 63" |
| Maximum Bar Capacity | 6.5" |
| X axis travel | 18.5" |
| Z axis travel | 65" |
| Spindle Nose / Spindle Bore / Bar Capacity | A1-15" / 7.12" / 6.5" |
| Spindle speed | 3 - 1500 RPM (3 Ranges) |
| Spindle motor (30 min / cont) | 60 / 50 HP |
| Turret type | 12 Position Bolt on Style Turret |
| Rapid traverse rates x, z | 472 IPM / 397 IPM |
| Tailstock Quill Diameter / Quill Travel / Taper | 6.3" / 5.9" / #5 MT |
| Machine dimensions | 227" x 124" x 110" |
| Machine weight | 36,400 lbs. |
