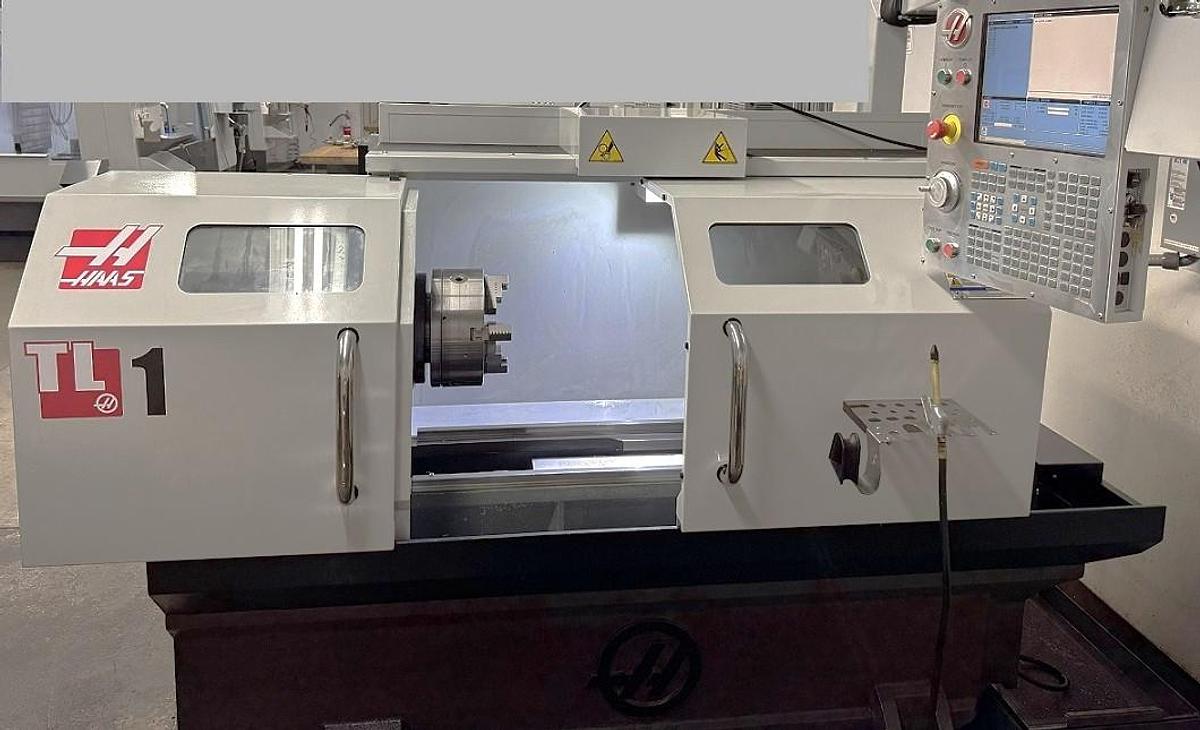

2015 Haas TL-1 Chucker with A2-6" Nose, 3.5" Big Bore, Tool Post, 8" Chuck, 2000 RPM, Coolant, USB Port
2015 Haas TL-1 Chucker with A2-6" Nose, 3.5" Big Bore, Tool Post, 8" Chuck, 2000 RPM, Coolant, USB Port
$23,500 (USD)
Location:Oregon
or
Call (863) 439-6066
Description
3.5" Big Bore Option with A2-6" Spindle Nose
2,000 RPM Spindle

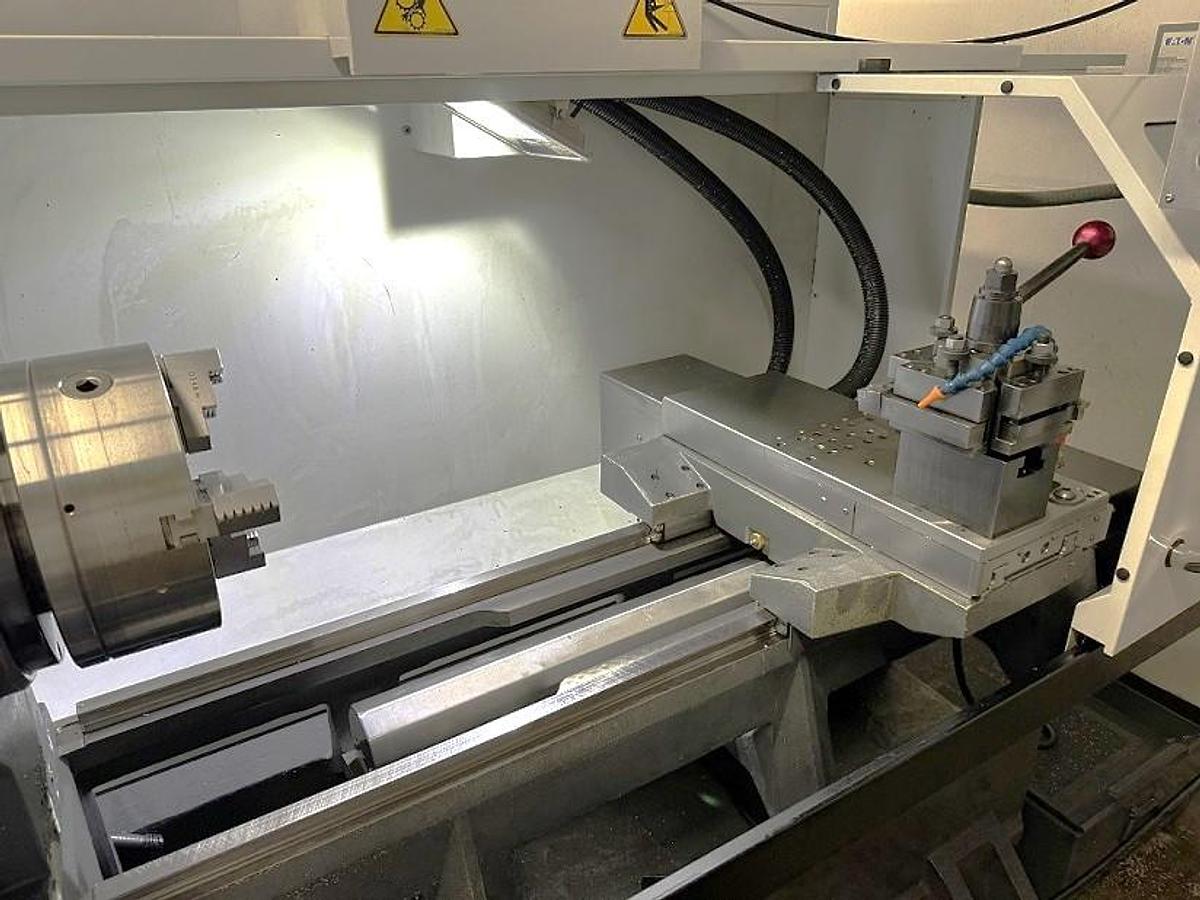

Tool Post with a few holders
8" 3 Jaw Manual Chuck

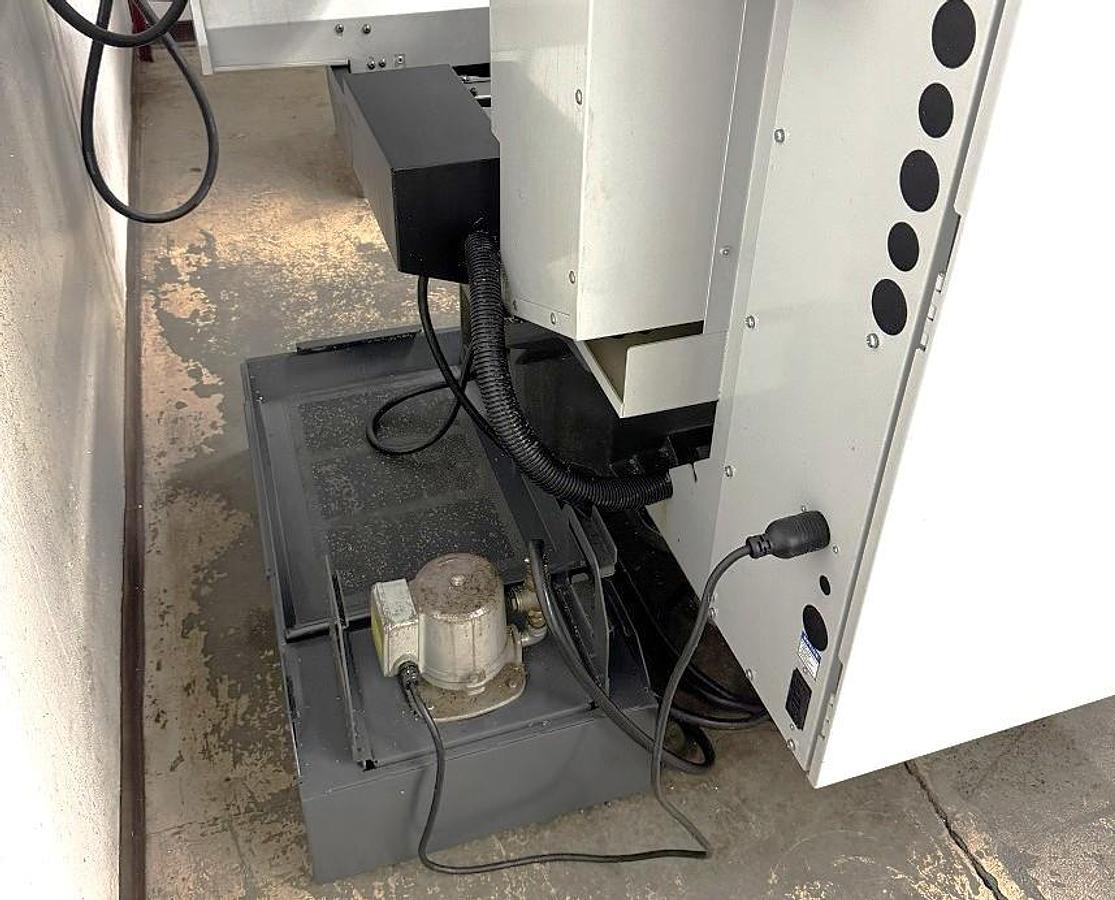

Haas Visual Part Programming Software Coolant System with Tank & Pump Integral Chip-Flow Channel Full Enclosure Doors
USB Port Interface RS 232 Port Interface
**Low Cutting Hours**
**Same Shop Also has a 2019 Haas TL-1 Chucker w/ 3.5" Bore & 4 Station Turret Available**
**New as equipped is nearly $60,000**
Specifications
| Manufacturer | Haas |
| Model | TL-1 Chucker |
| Year | 2015 |
| Condition | Used |
| Stock Number | #120814 |

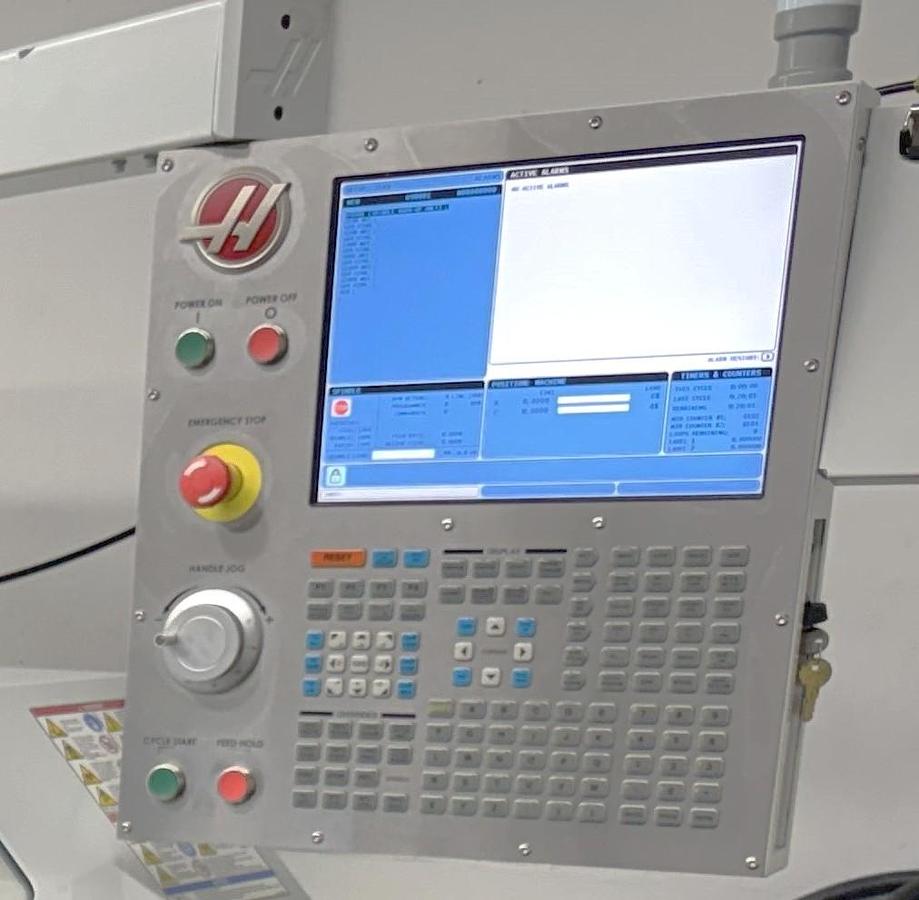

| Control | Haas CNC Control |
| Chuck Size | 8" 3 Jaw Chuck |
| Maximum Swing over Bed | 16" |
| Maximum Swing Over Cross Slide | 8.5" |
| Maximum Cutting Diameter | 16" |
| Maximum Machining Length | 30" |
| X-axis travel | 8" |
| Z-Axis Travel | 30" |
| Spindle Nose / Spindle Bore | A2-6" / 3.5" |
| Spindle Speeds | 2,000 RPM |
| Spindle Motor | 10 HP |
| Number of Turret Positions | Tool Post |
| Rapid Traverse Rates X/Z | 75 IPM / 150 IPM |
| Machine Dimensions | 88" x 56" x 75" |
| Machine Weight | 4,100 lbs. |
