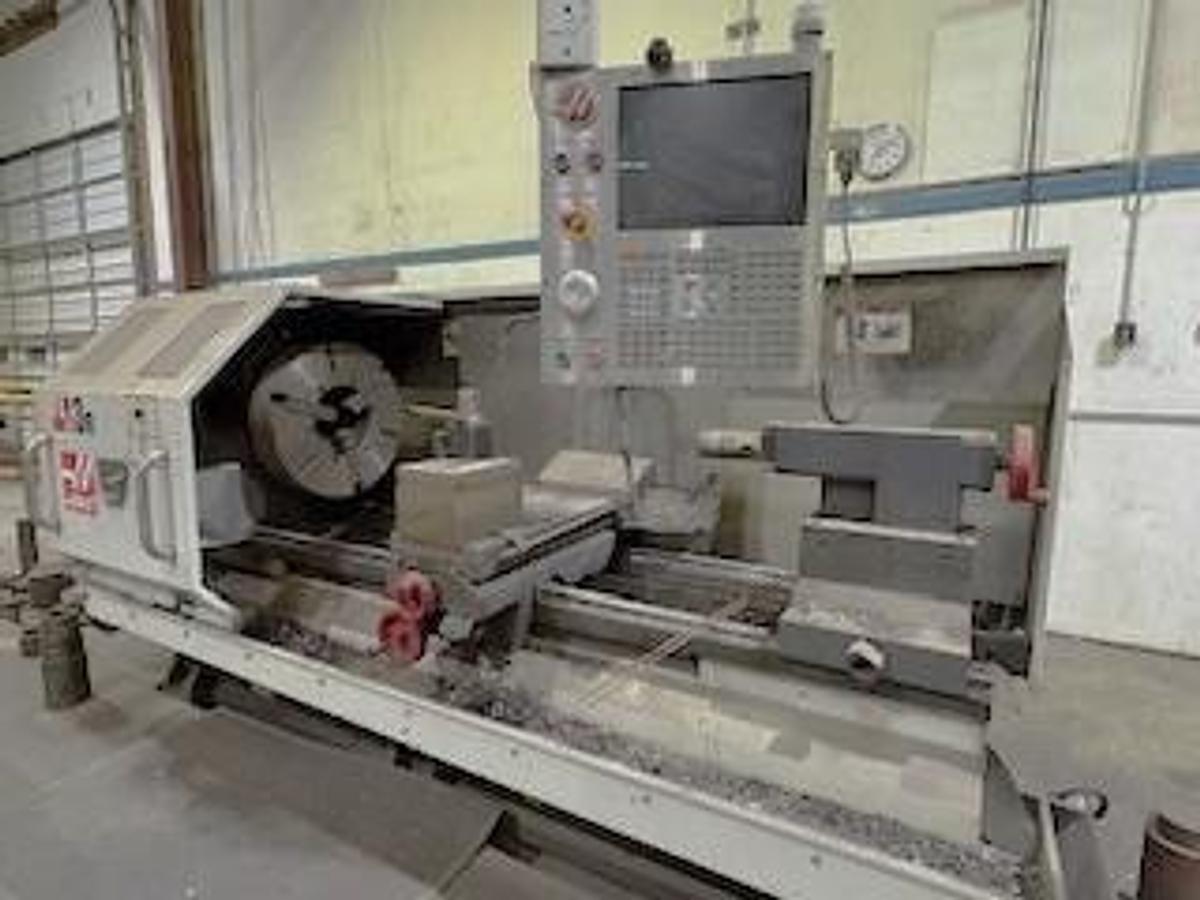

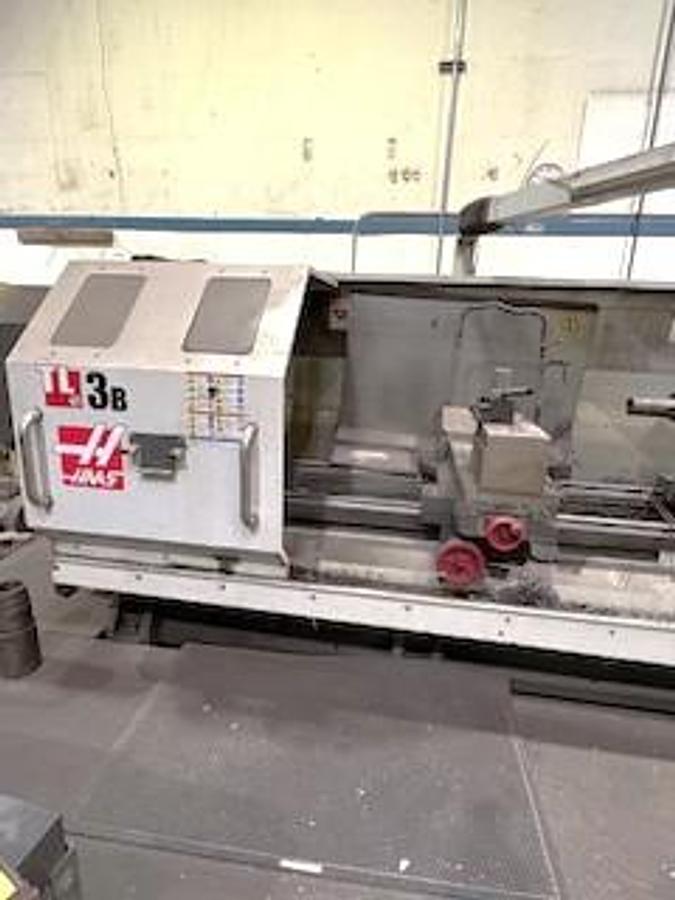

2014 Haas TL-3B Big Bore with 8.5" Bar Capacity, (2) 24" Manual Chucks, Aloris Tool Post, Hand Wheels
2014 Haas TL-3B Big Bore with 8.5" Bar Capacity, (2) 24" Manual Chucks, Aloris Tool Post, Hand Wheels
$69,500 (USD)
Location:Alabama
or
Call (863) 439-6066
Description
24" 3-Jaw Front Manual Chuck

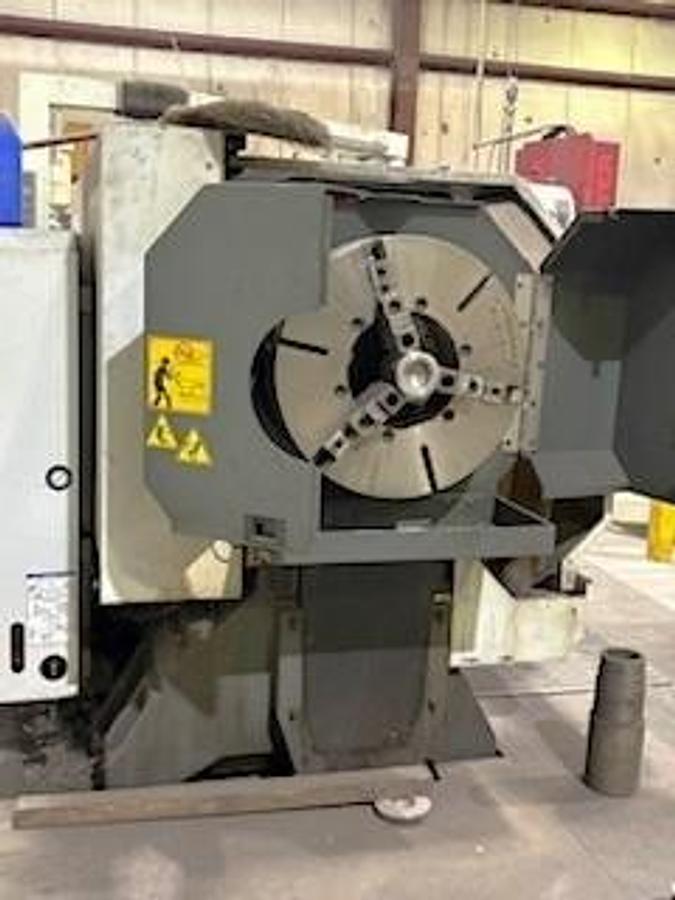

24" 3-Jaw Rear Manual Chuck
Tailstock

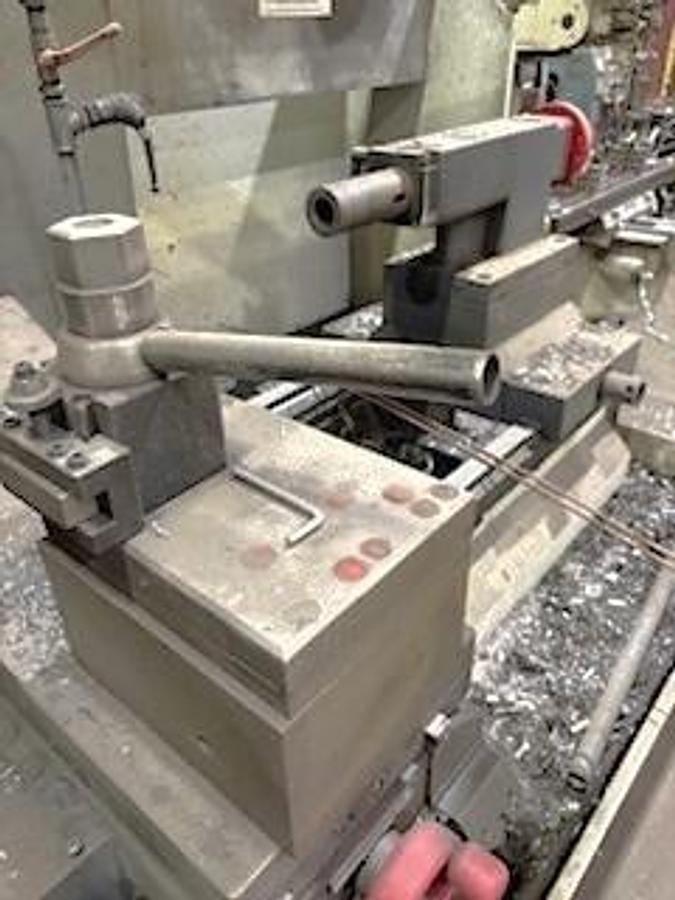

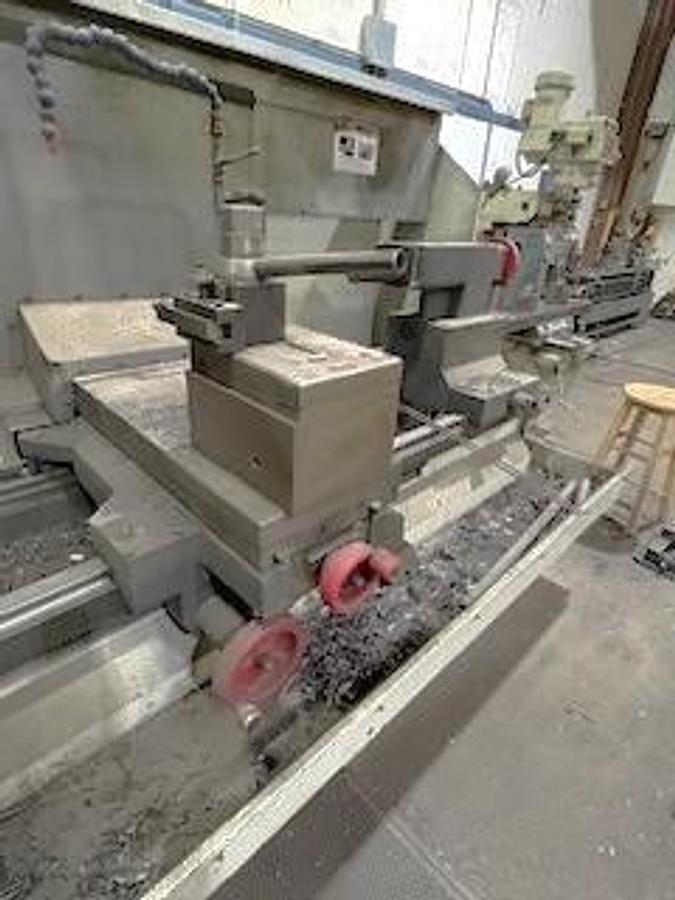

Aloris Tool Post
Intuitive Programming System
Coolant Splash Guarding
Memory Lock Key Switch
Coolant System with Tank/Pump
USB Port Interface
2-Speed Gearbox
Wired 354-480V Electrics
**Machine Manufactured New in September of 2014**
Specifications
| Manufacturer | Haas |
| Model | TL-3B Big Bore |
| Year | 2014 |
| Condition | Used |
| Stock Number | 27 |
| Machine Control | Haas CNC Control |
| Chuck Sizes | 24" 3-Jaw Front / 4" 3-Jaw Rear |
| Maximum Swing | 30" |
| Maximum Swing Over Cross Slide | 18.5" |
| Maximum Machining Diameter | 30" |
| Distance Between Centers | 60" |
| X-axis travel | 16" |
| Z-Axis Travel | 60" |
| Spindle Nose / Spindle Bore | A2-15" / 8.5" |
| Spindle Speeds | 0 - 650 RPM |
| Spindle Motor | 40 HP |
| Number of Tool Positions | Aloris Tool Post |
| Rapid Traverse Rates X/Z | 75 IPM / 150 IPM |
| Tailstock Bore Taper | #5 MT |
| Machine Dimensions LxWxH | 132"x97"x79" |
| Machine Weight | 9,624 lbs |
