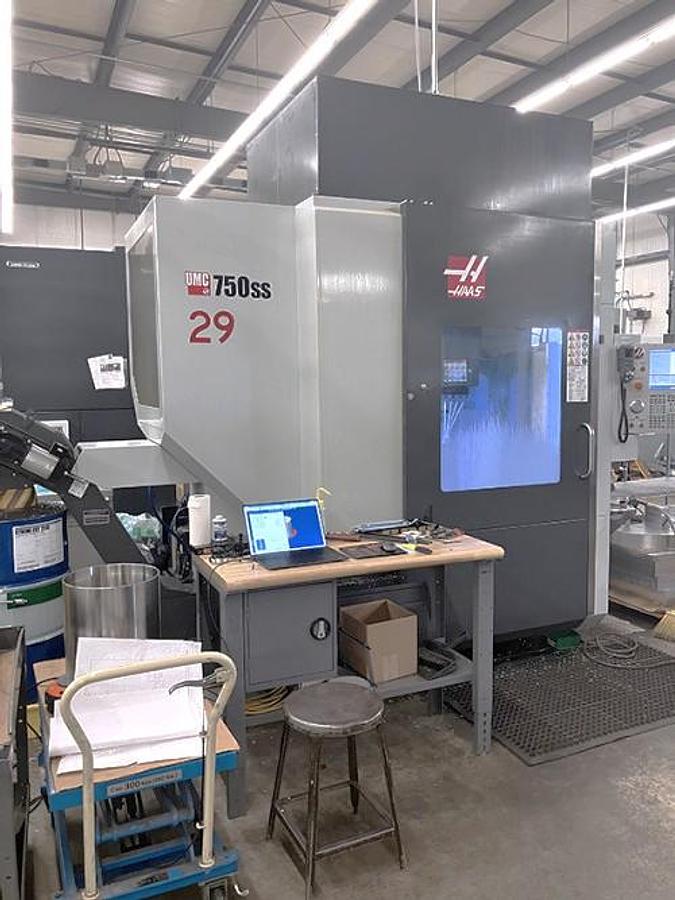

2018 Haas UMC-750SS with Probing, Coolant Thru Spindle, 15,000 RPM, 40 ATC, Chip Conveyor, less than 7,400 Cutting Hours
2018 Haas UMC-750SS with Probing, Coolant Thru Spindle, 15,000 RPM, 40 ATC, Chip Conveyor, less than 7,400 Cutting Hours
$139,500 (USD)
Location:New Jersey
or
Call (863) 439-6066
Description
Trunnion Style 5th Axis Table
Coolant Through the Spindle
Programmable Coolant Nozzle
Haas Wireless Probing Package
Spindle Orientation
Coordinate Rotation & Scaling
User Definable Macros
Haas Intuitive Programming System

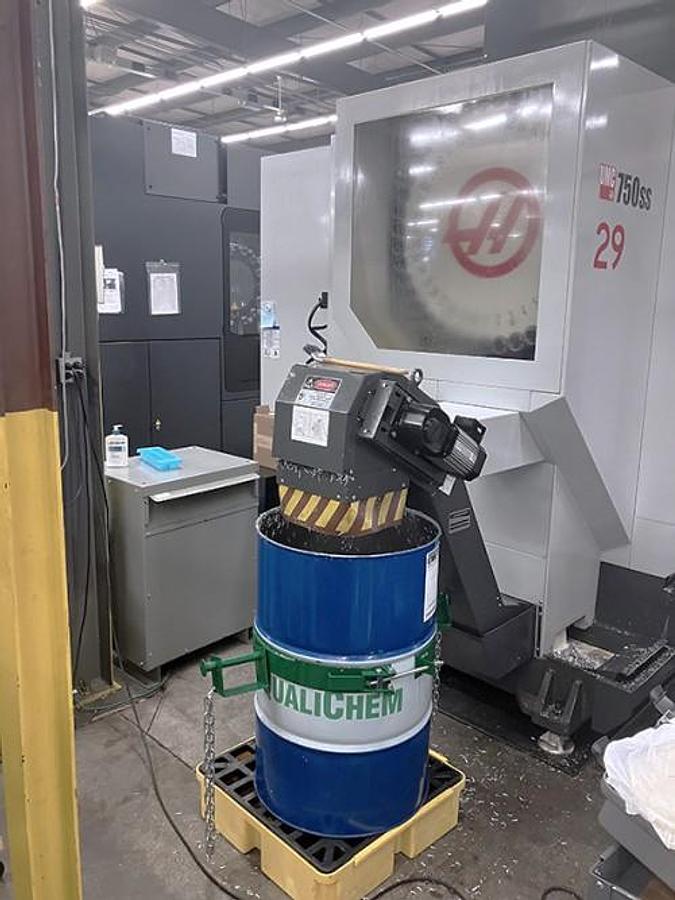

Belt Chip Conveyor
40 Station Tool Changer
Rigid Tapping
Remote Jog Handle
USB Port Interface
RS 232 Port Interface

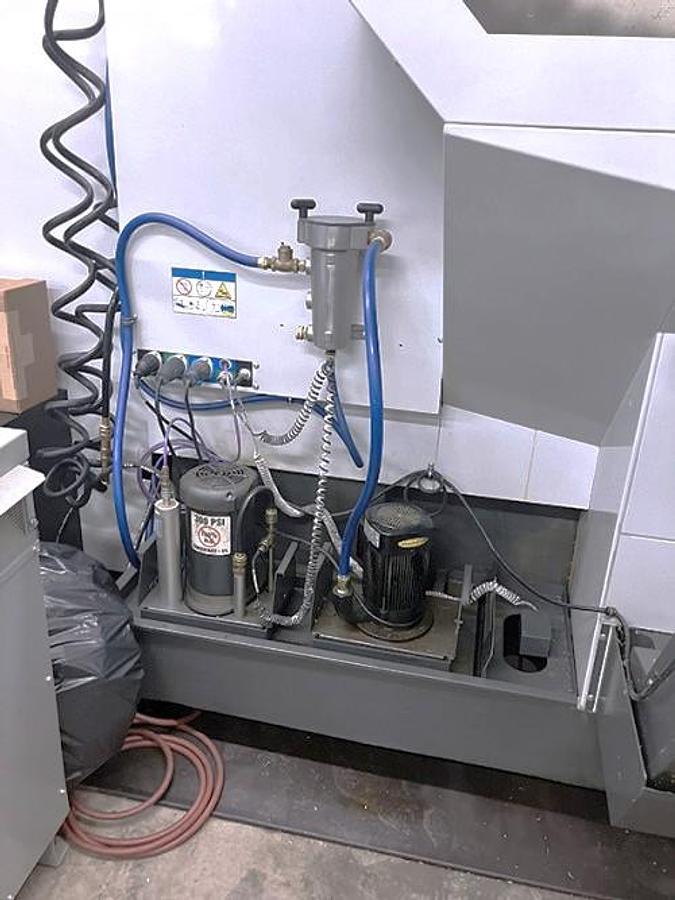

Coolant System with Tank & Pump
All Available Manuals

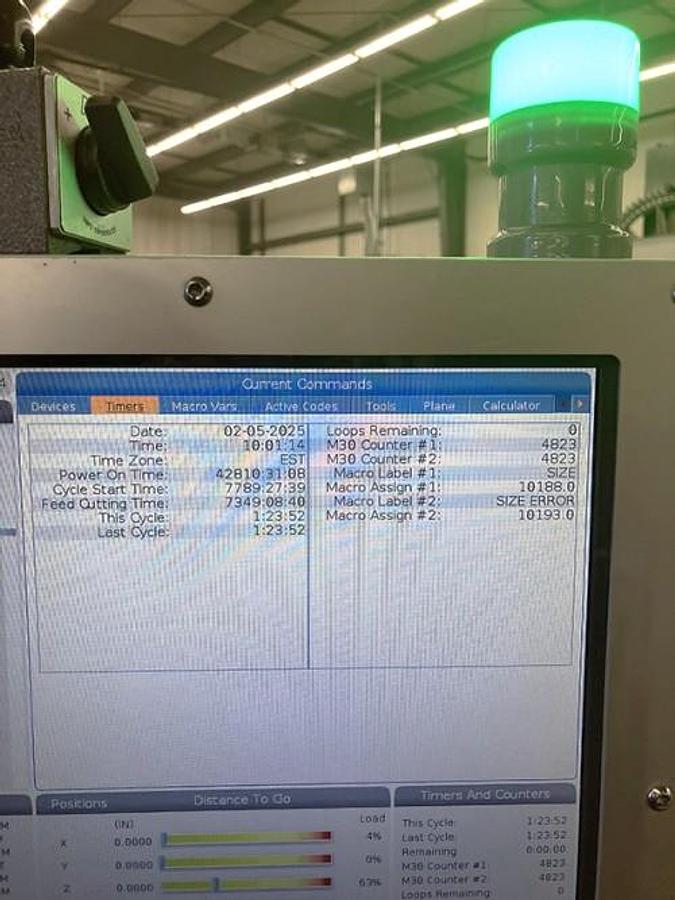

**Cycle Start Hours 7,789**
**Feed Cutting Hours 7,349**
Specifications
| Manufacturer | Haas |
| Model | UMC-750SS |
| Year | 2018 |
| Condition | Used |
| Stock Number | 26 |
| Table size | 19.7" x 24.8" |
| Table load capacity | 660 lbs |
| X axis travel | 30" |
| Y axis travel | 20" |
| Z axis travel | 20" |
| B axis rotate of trunnion | -35 Degrees to 110 Degrees |
| C axis table rotation | .001 Degree Positioning |
| Spindle taper | CAT #40 |
| Spindle speed | 15,000 RPM |
| Spindle motor | 30 HP |
| Distance Spindle Nose to Table Top | 4" - 24" |
| Tool magazine | 40 + 1 Position Toolchanger |
| Maximum Tool Diameter / Length / Weight | 5" / 12" / 12 lbs. |
| Rapid traverse rates | 1200 IPM |
| Maximum feed rates | 650 IPM |
| Machine dimensions | 157" x 94" x 101" |
| Machine weight | 19,100 lbs |
