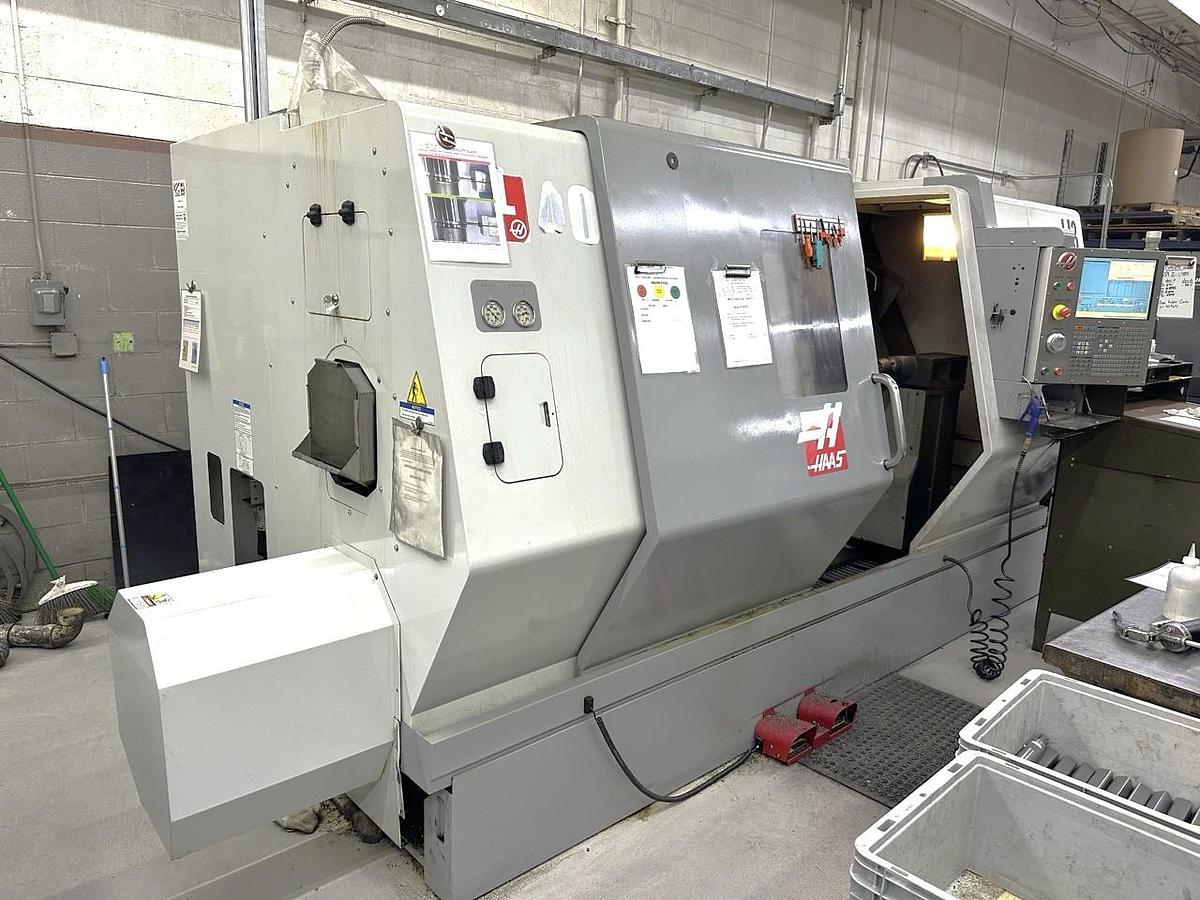

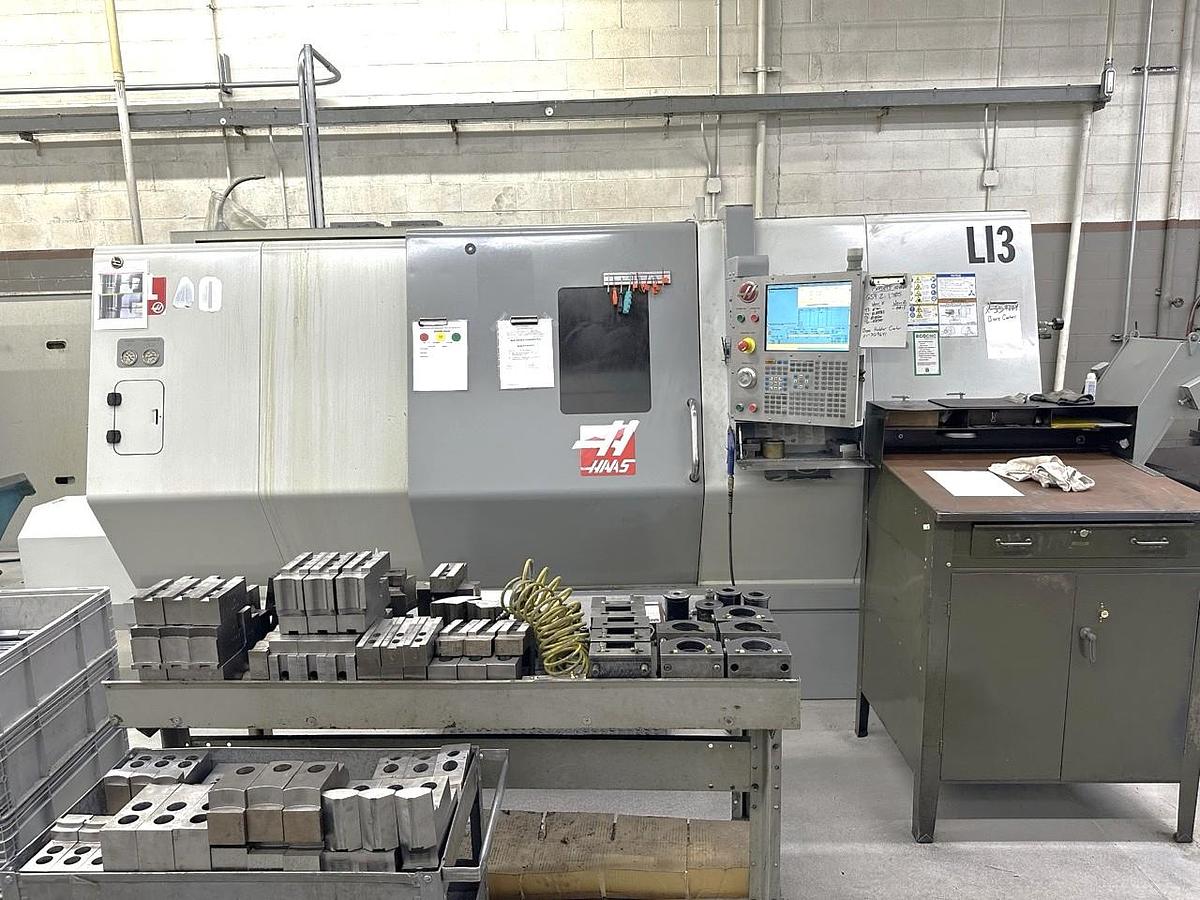

2011 Haas SL-40T with 15" Hyd. Chuck, Tool Presetter, Tailstock, Chip Conveyor, Geared Head, Block Style Turret, 7700 Spindle Hrs.
2011 Haas SL-40T with 15" Hyd. Chuck, Tool Presetter, Tailstock, Chip Conveyor, Geared Head, Block Style Turret, 7700 Spindle Hrs.
$39,900 (USD)
Location:Wisconsin
or
Call (863) 439-6066
Description

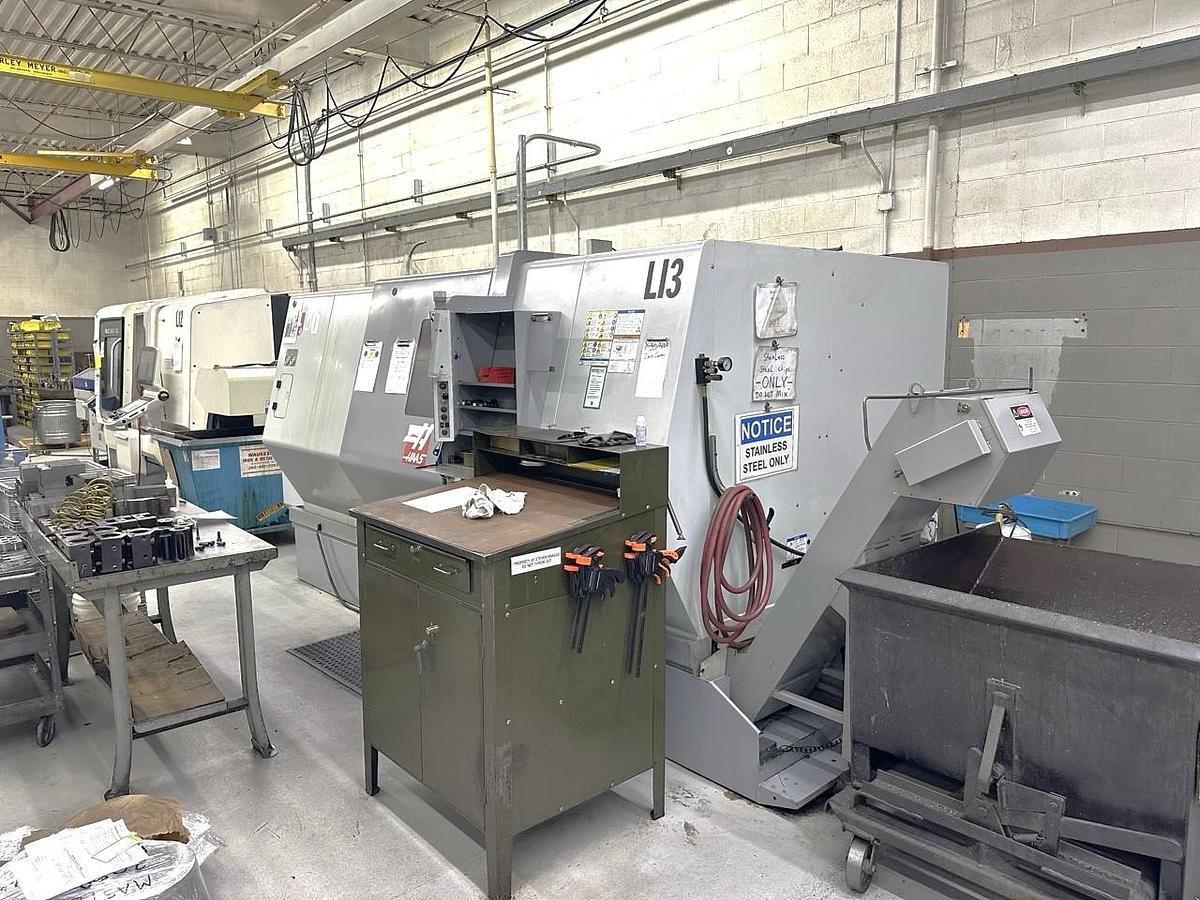

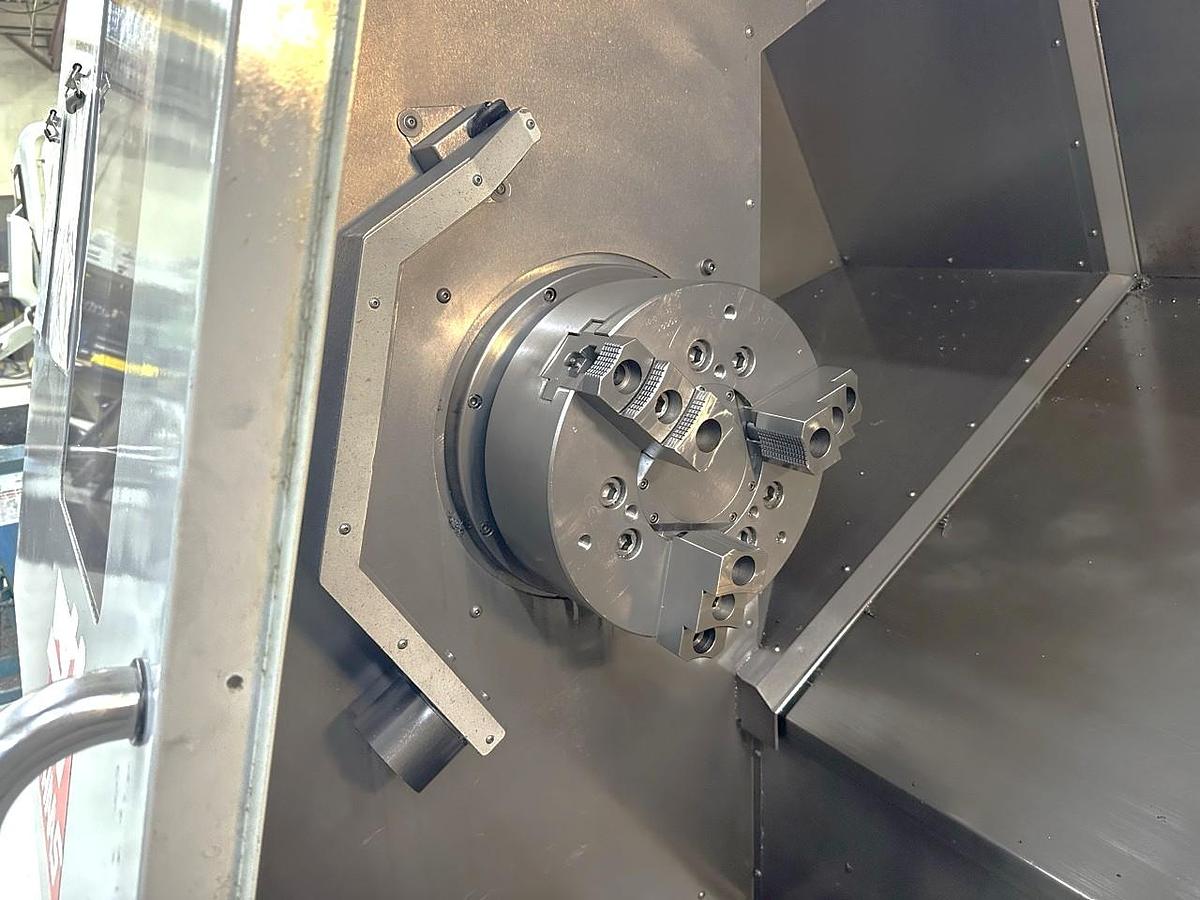

15" 3 Jaw Hydraulic Chuck 4" Bar Capacity Tool Presetter Chip Conveyor - Belt Style

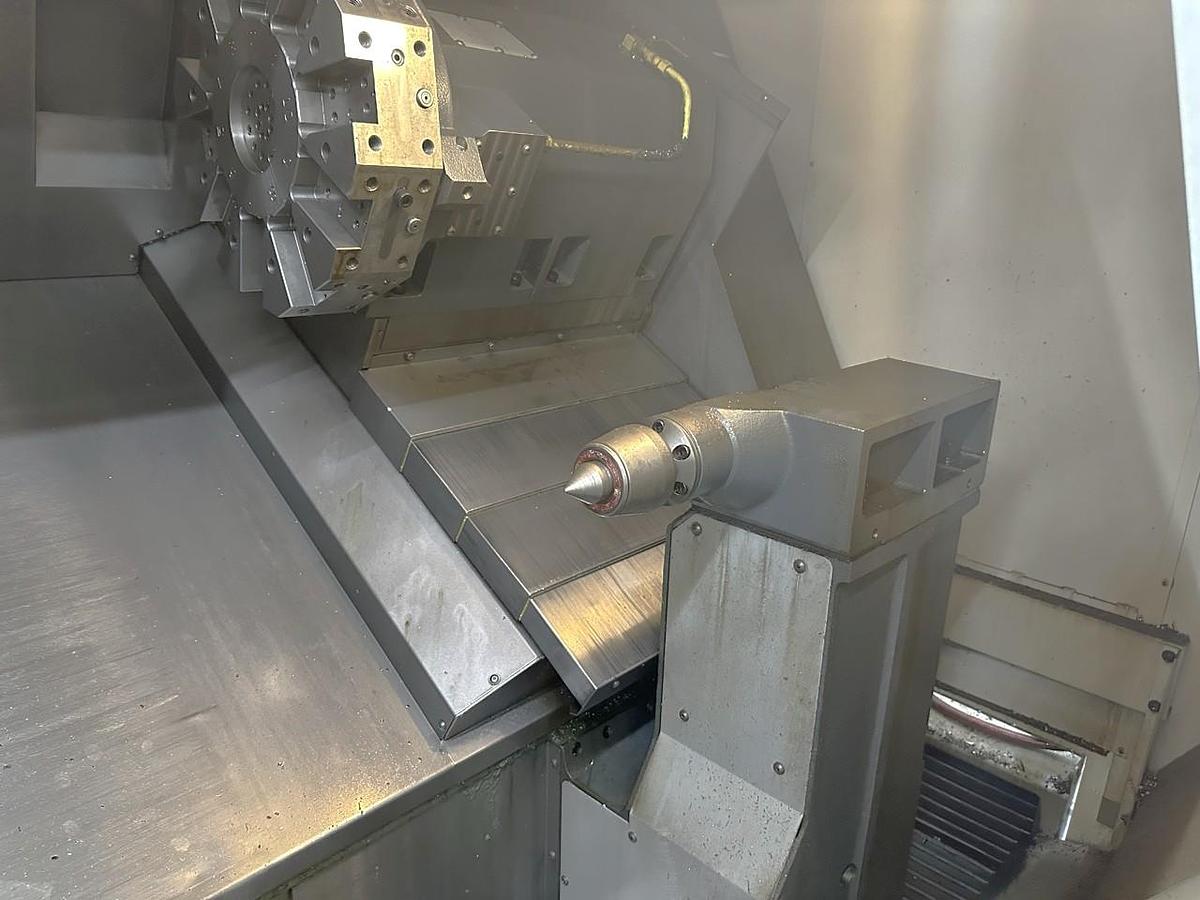

Fully Programmable Tailstock
2 Speed Geared Headstock
USB Port Interface RS 232 Port Interface Rigid Tapping 95 Gallon Coolant Tank with Pump
Foot Pedals for Chuck and Tailstock Actuation All Available Manuals

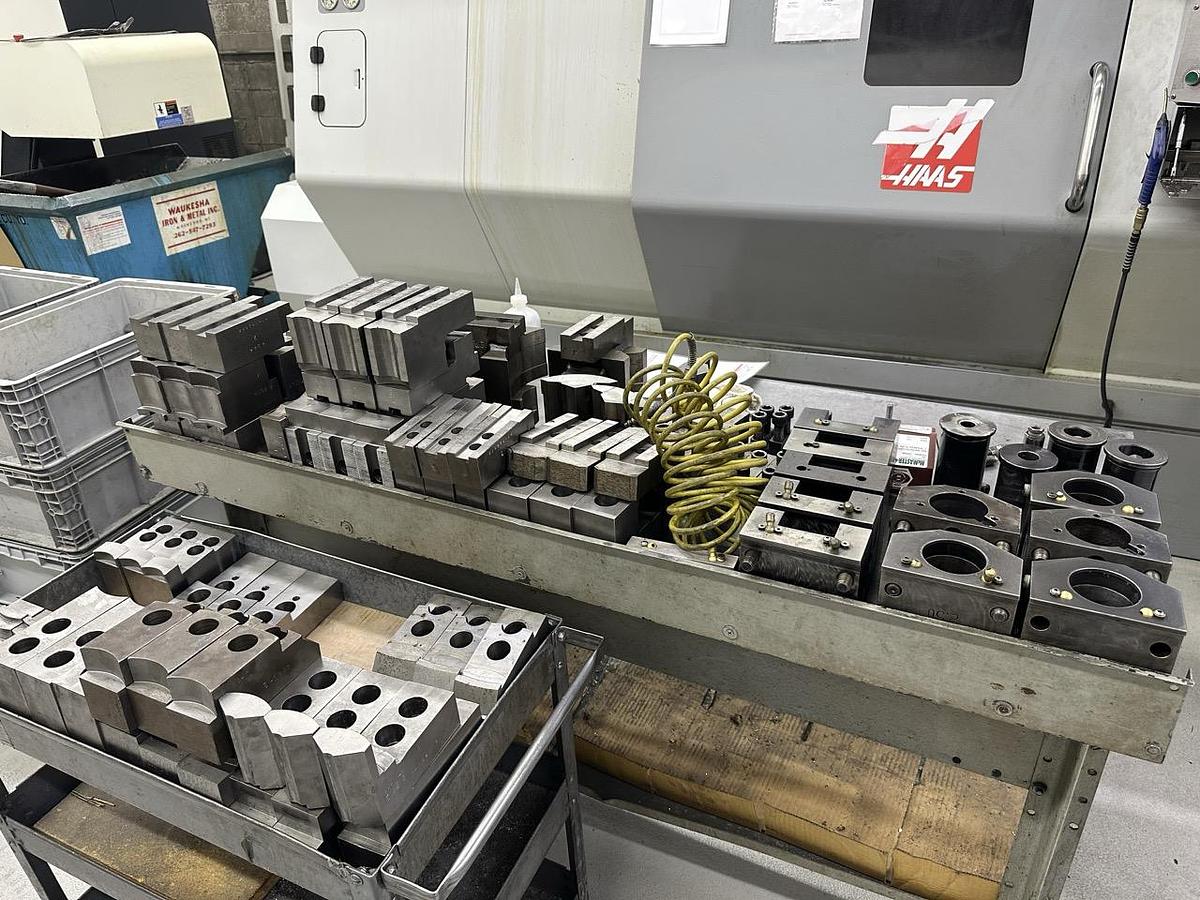

All Available Tool Blocks & Chuck Jaws, Boring Bar Sleeves

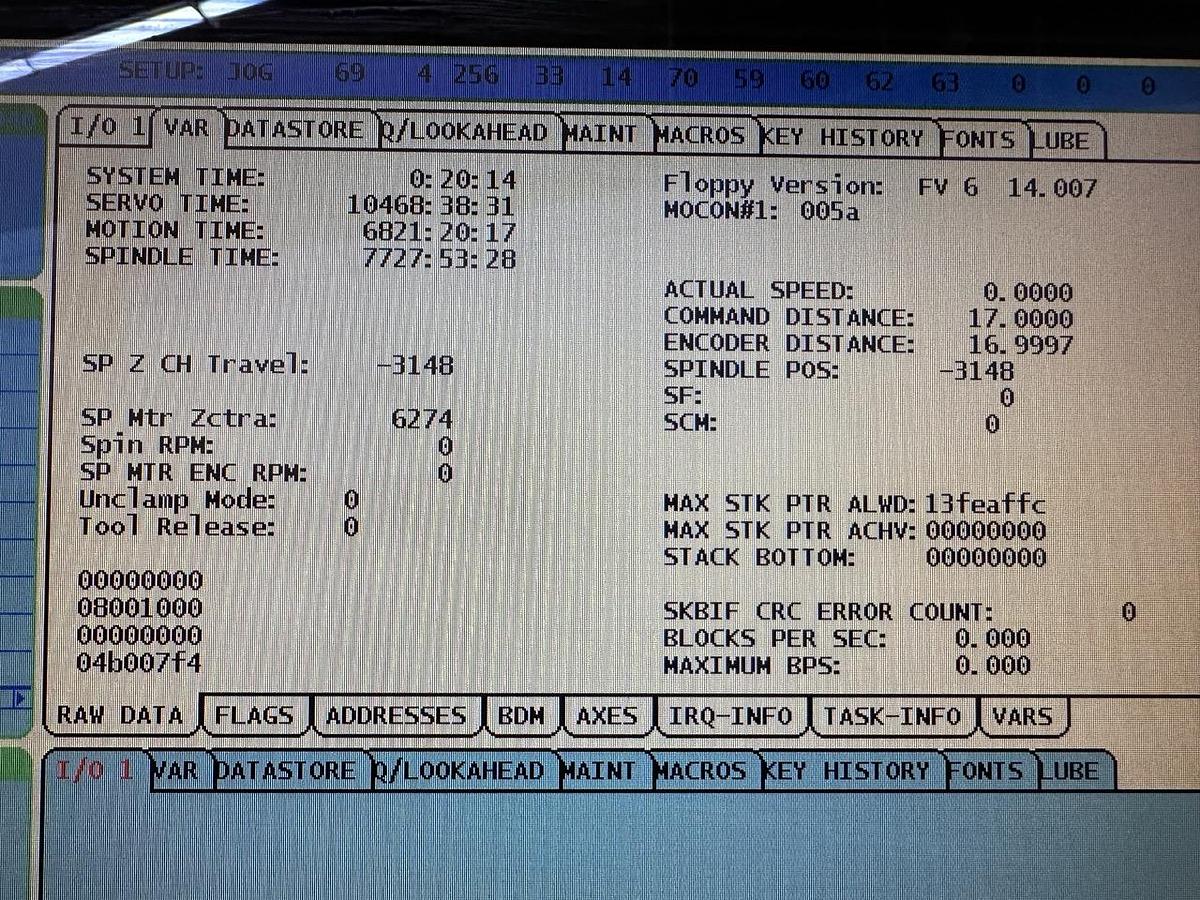

**Servo On Time 10,468 Hours**
**Motion Hours 6,821**
**Spindle Hours 7,727**
Specifications
| Manufacturer | Haas |
| Model | ST-40T |
| Year | 2011 |
| Condition | Used |
| Stock Number | 25 |
| Control | Haas CNC Control |
| Maximum Swing | 40" |
| Maximum Swing Over Cross Slide | 25" |
| Maximum Cutting Diameter | 25.5" |
| Maximum Cutting Length | 44" |
| Maximum Distance Between Centers | 51" |
| Maximum Bar Capacity | 4" |
| X-Axis Travel | 17" |
| Z-Axis Travel | 44" |
| Spindle Nose / Spindle Bore | A2-8" / 4.62" |
| Spindle Speeds | 2,400 RPM |
| Spindle Motor | 55 HP |

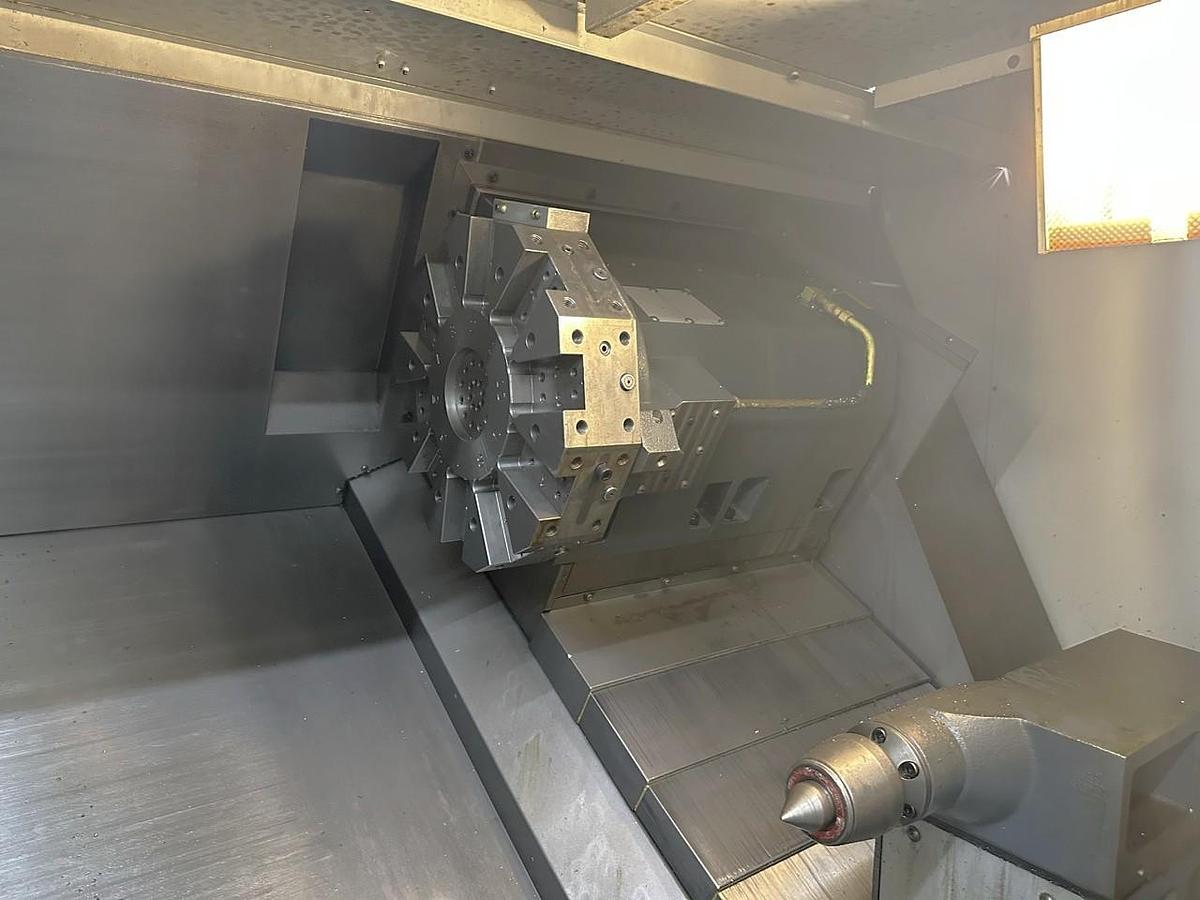

| Number of Turret Positions | 10 Station Bolt On Turret |
| Rapid Traverse Rates | 710 IPM |
| Tailstock Body Travel / Tailstock Taper | 44" / MT #5 |
| Machine Dimensions | 170" x 102" x 89" |
| Machine Weight | 25,000 lbs. |
