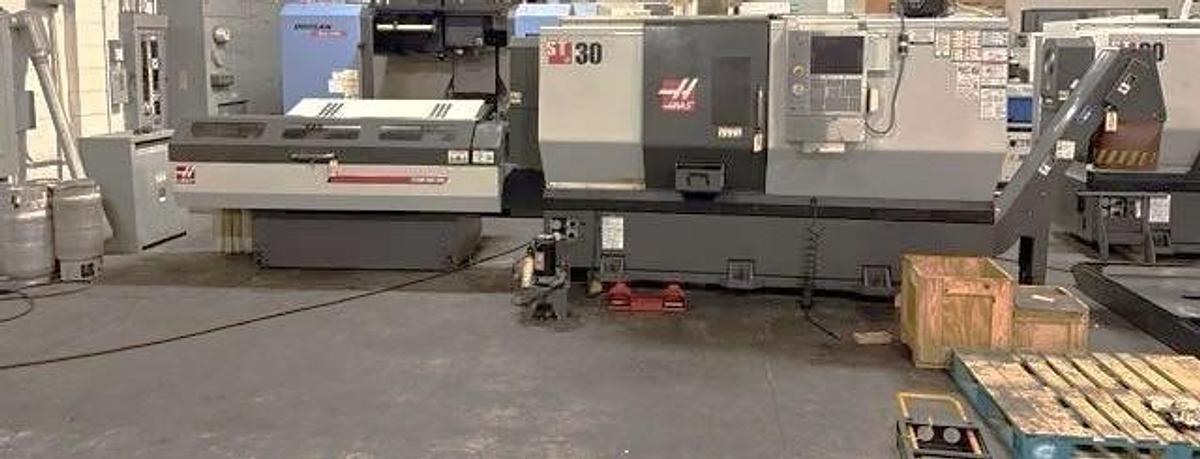

2010 Haas ST-30M with Haas Barfeed, C Axis, Milling Capability, Tailstock, Chip Conveyor, Parts Catcher, Tool Presetter

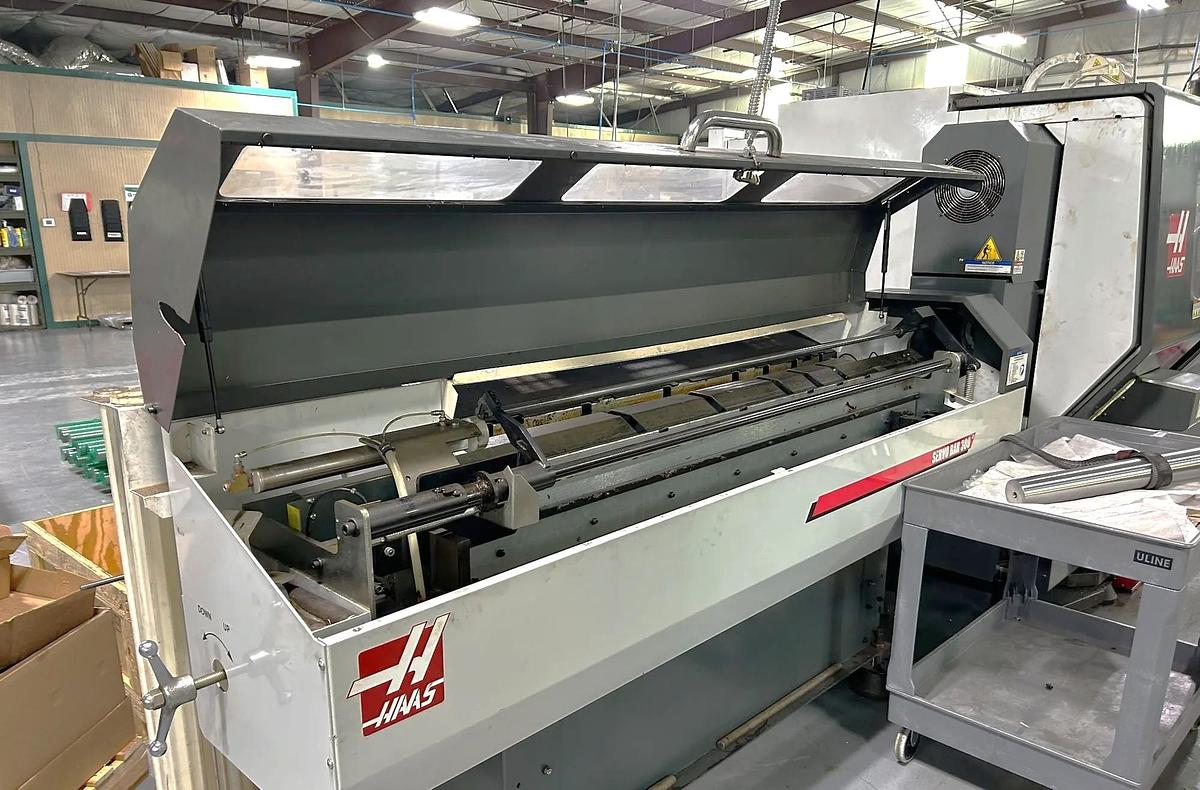

Haas Servo 300 Barfeeder

Full C Axis Spindle Rotation

Live Milling/Drilling Capabilities

Tool Presetter

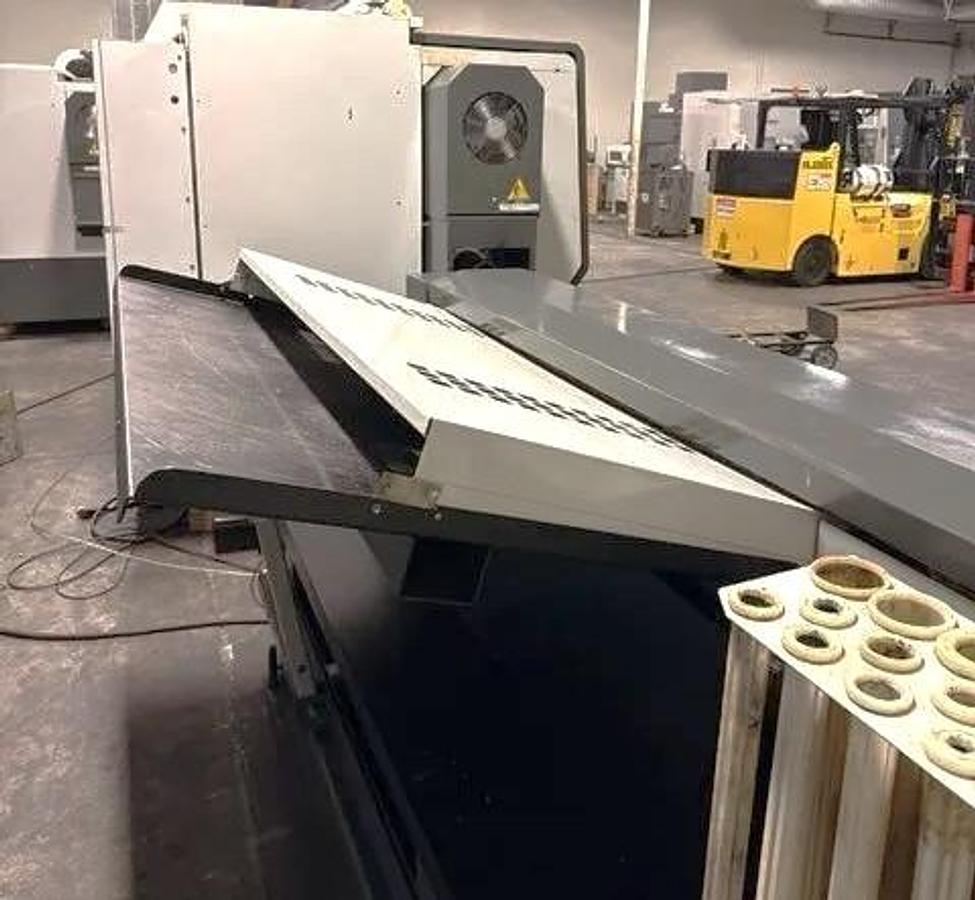

Parts Catcher

10" 3 Jaw Hydraulic Chuck

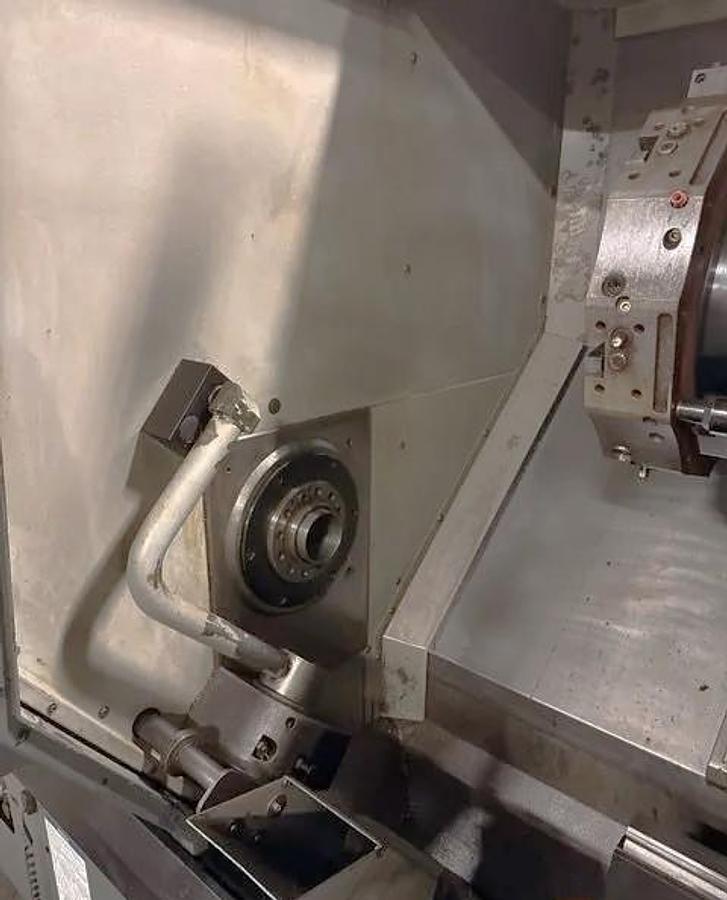

Programmable Tailstock

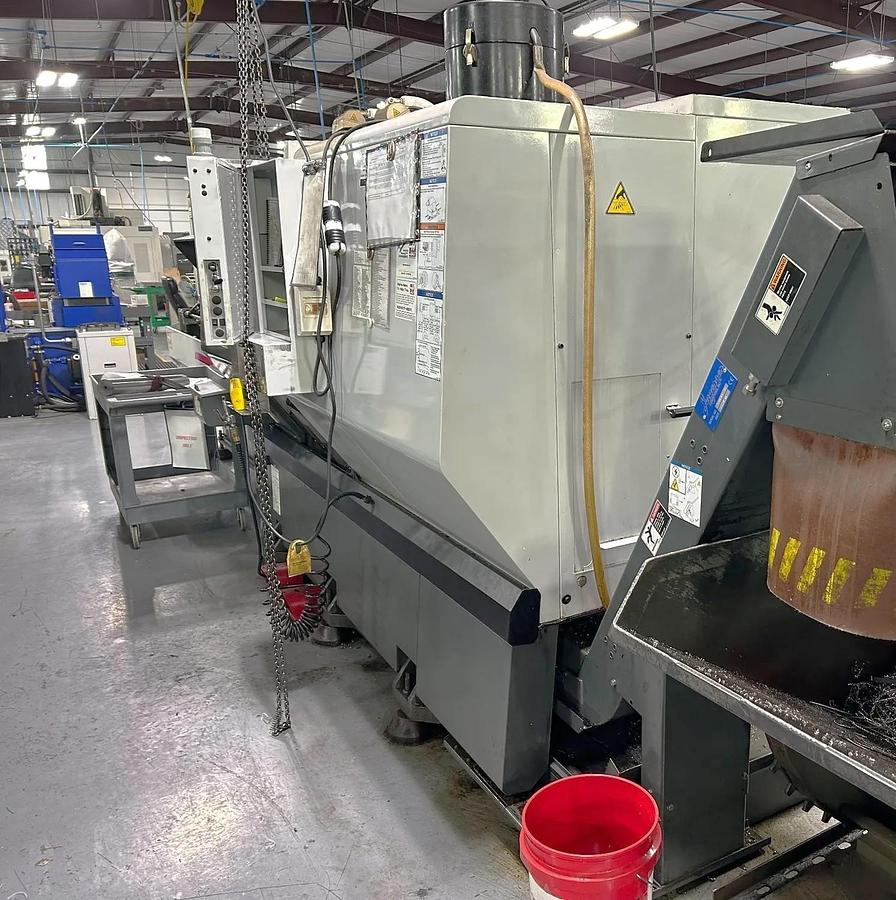

Chip Conveyor

Rigid Tapping

Spindle Orientation

RS 232 Port Interface

All Available Tool Blocks

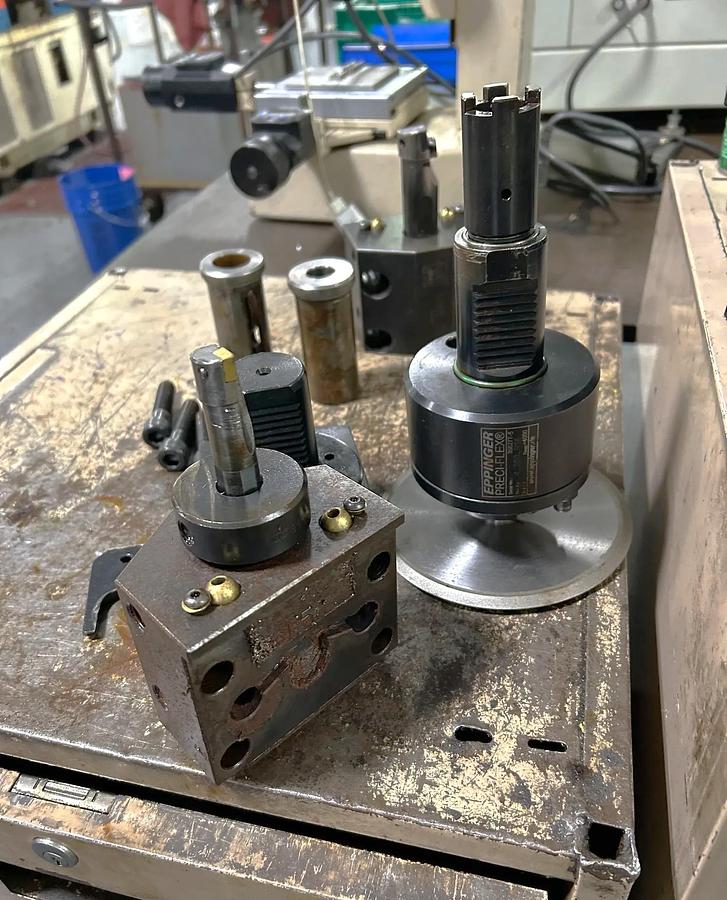

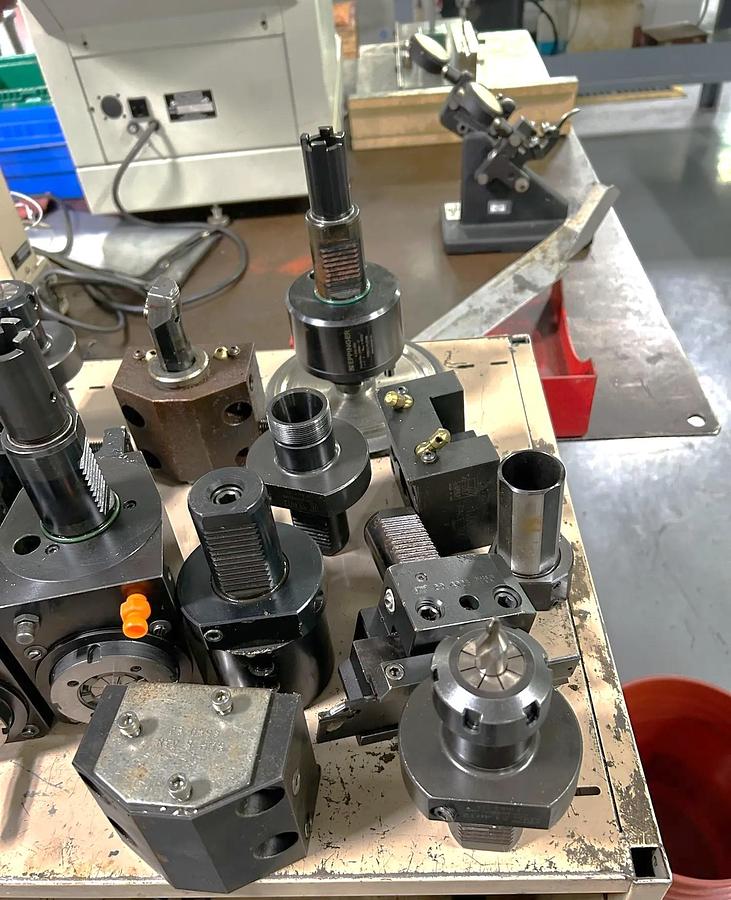

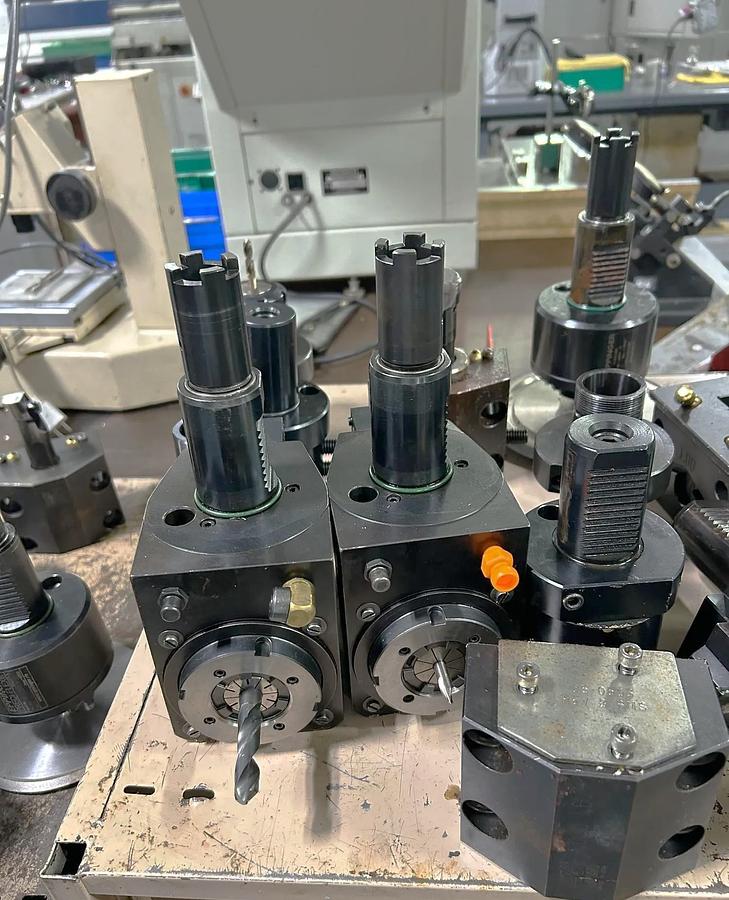

Live Tool Holders

Coolant System with Tank & Pump

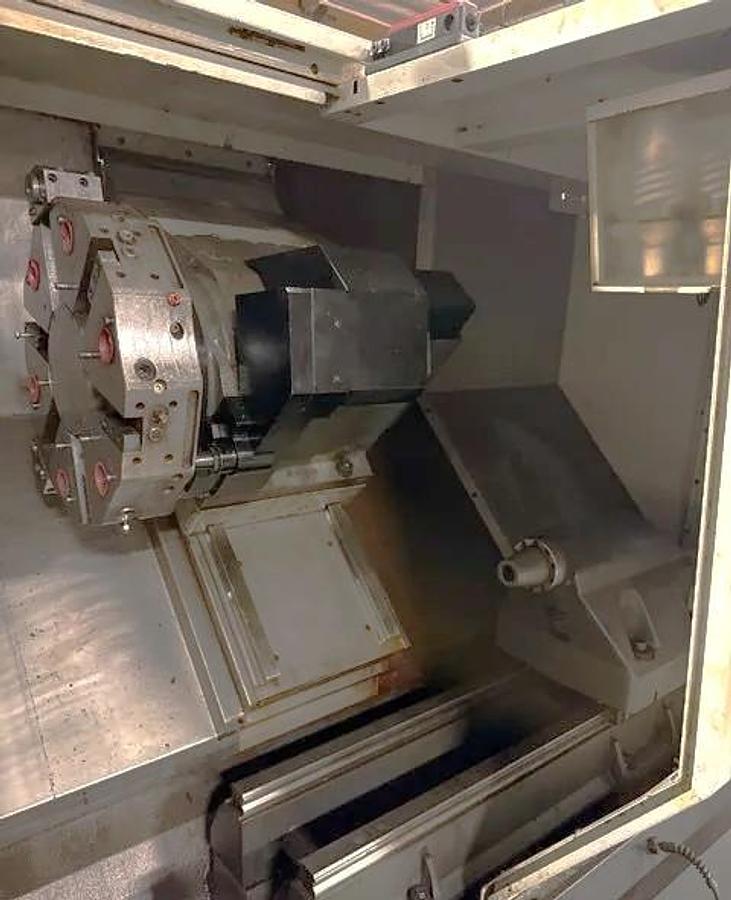

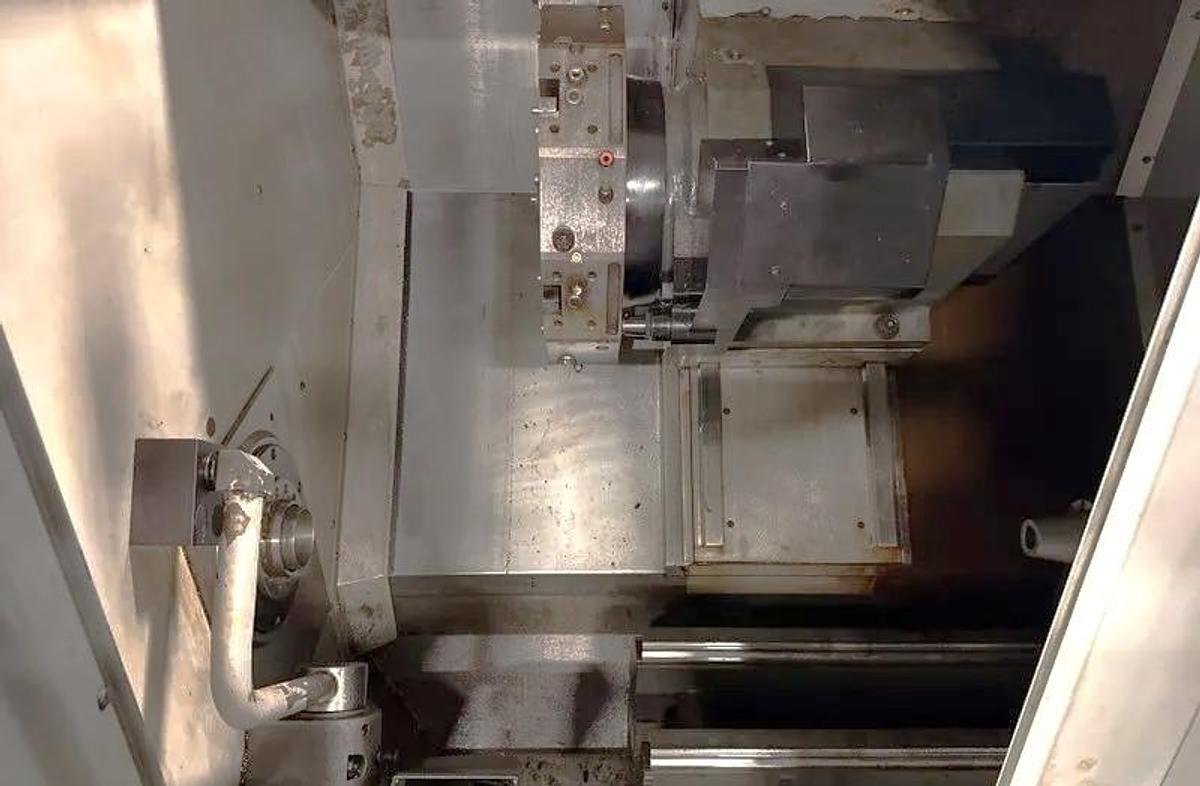

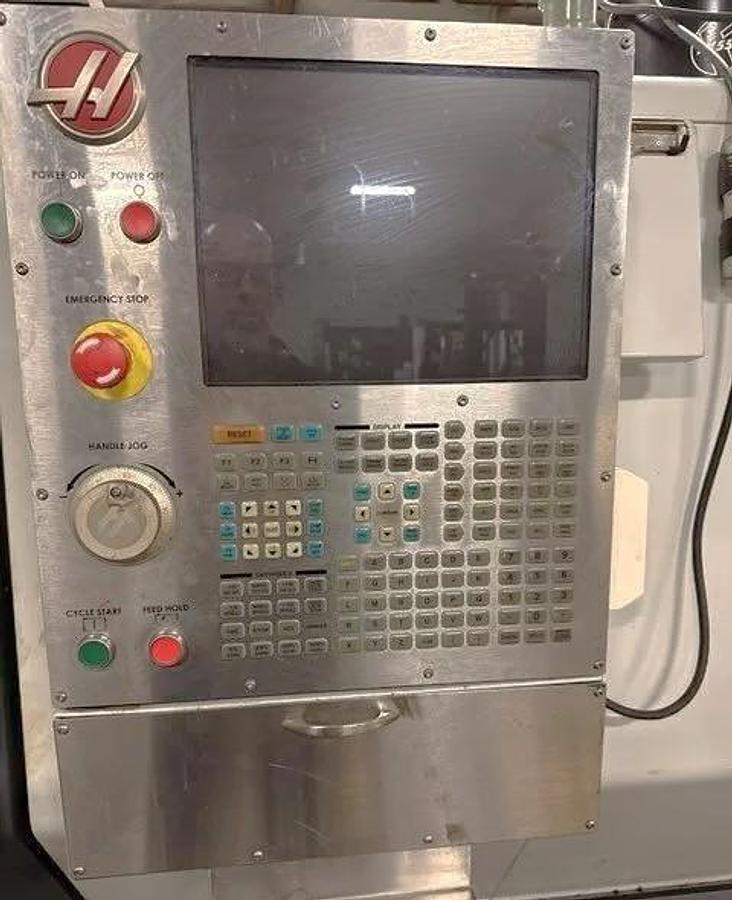

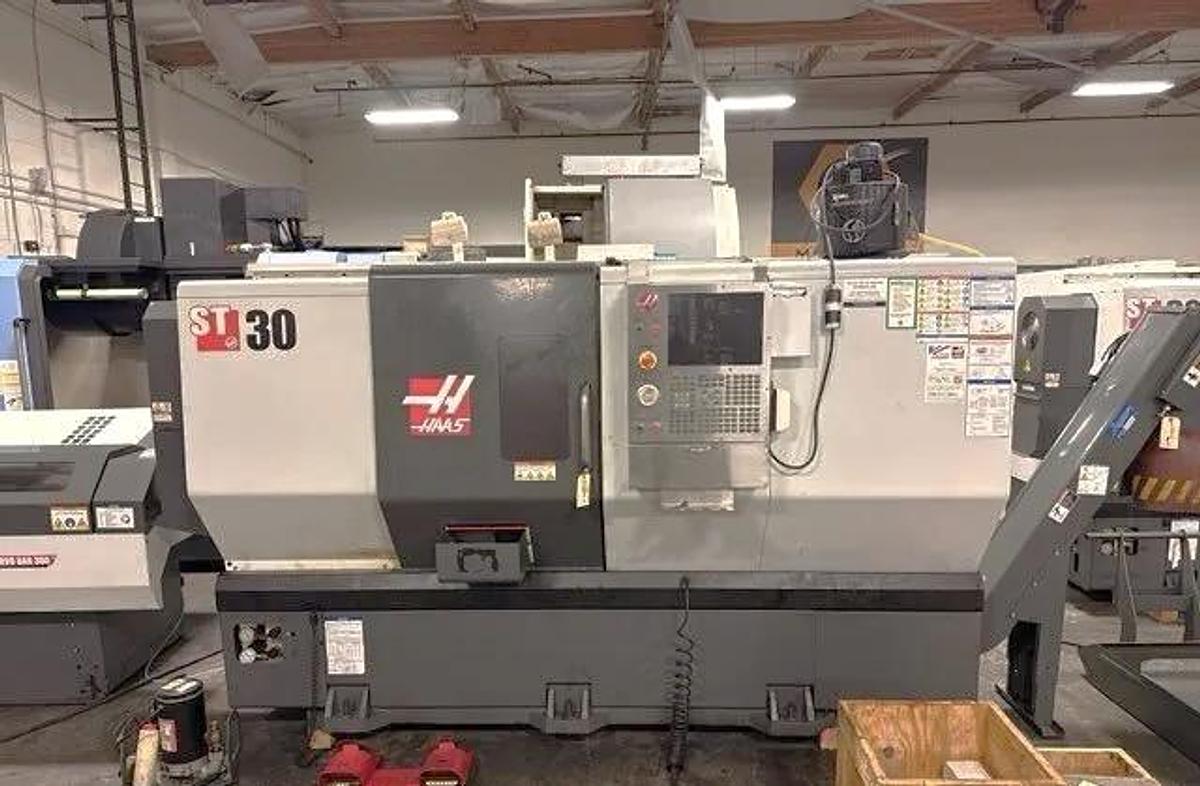

The 2010 Haas ST-30M is a versatile CNC lathe featuring a Haas CNC Control system. It offers a robust milling capability with a 10" 3-jaw hydraulic chuck and can handle a maximum swing of 31.5". The lathe supports a maximum turning diameter of 21" and a machining length of up to 26". Its maximum bar capacity is 3", supported by a spindle nose of A2-6". The machine boasts a spindle speed range of 30 to 3,400 RPM, powered by a 30 HP motor. It includes C Axis spindle rotation with a precision of 0.001 degrees, enhancing its milling functions. The ST-30M houses a 12-position turret, where all positions are live, enabling more complex operations. Additional features include a tailstock with 20" body travel and MT #4 taper, a chip conveyor, a parts catcher, and a tool presetter. The machine has rapid traverse rates of 945 ipm on both X and Z axes. Measuring 171" x 90" x 83" and weighing 12,540 lbs., this lathe is suitable for various industrial applications, providing reliability and precision for both small and large-scale productions.
