2011 You-Ji YV1200 ATC Remote Jog Handle, Chip Conveyor

49.21" 4 Jaw Chuck

32" 3-Jaw Chuck

Remote Jog Handle

Chip Conveyor

16 Station Tool Changer

RS 232 Port Interface

Miscellaneous Tooling

All Available Manuals

220V 65KVA

**Run Time Hours 13,524**

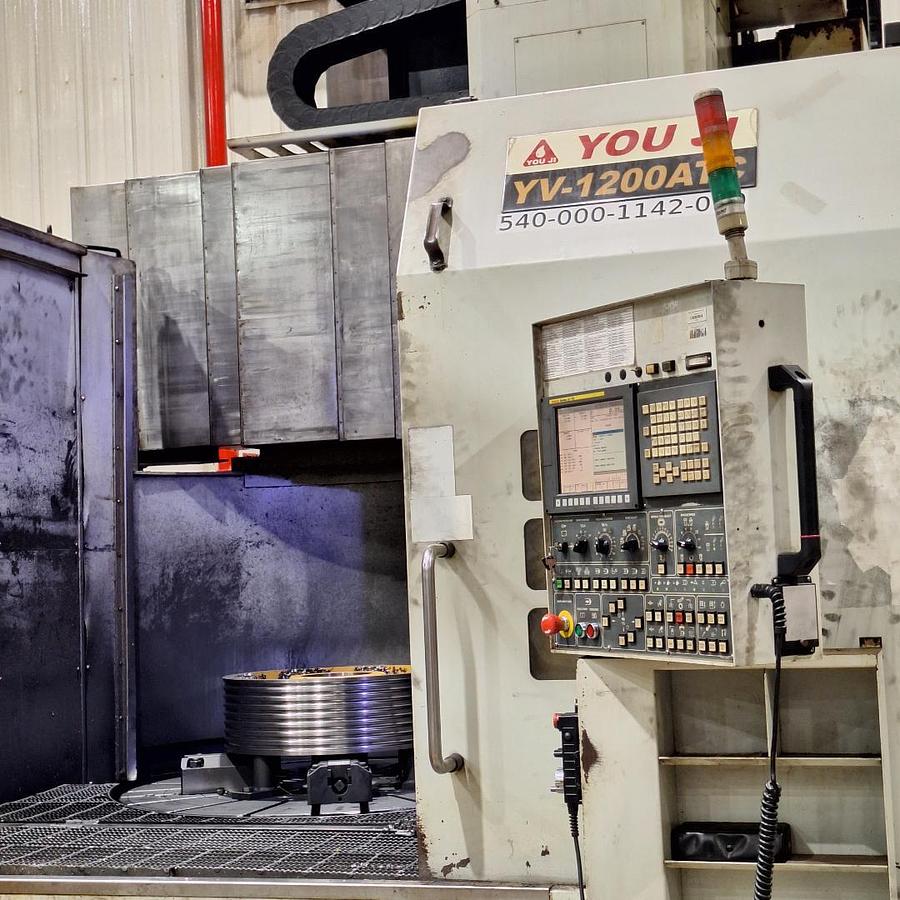

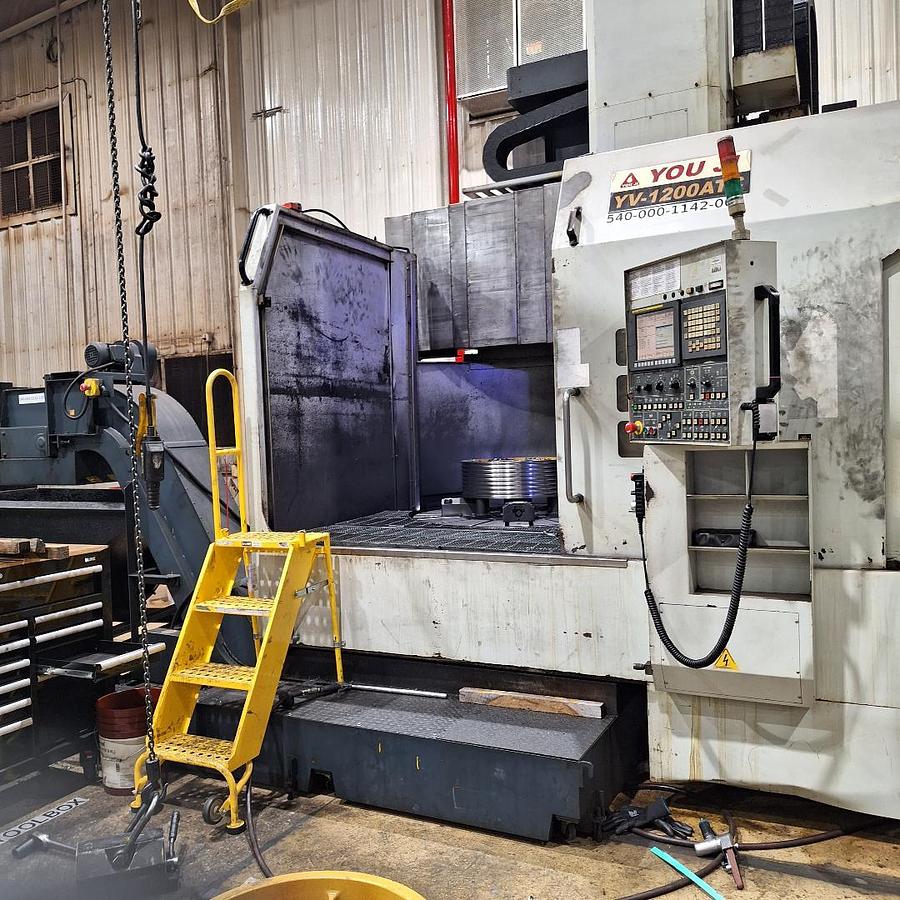

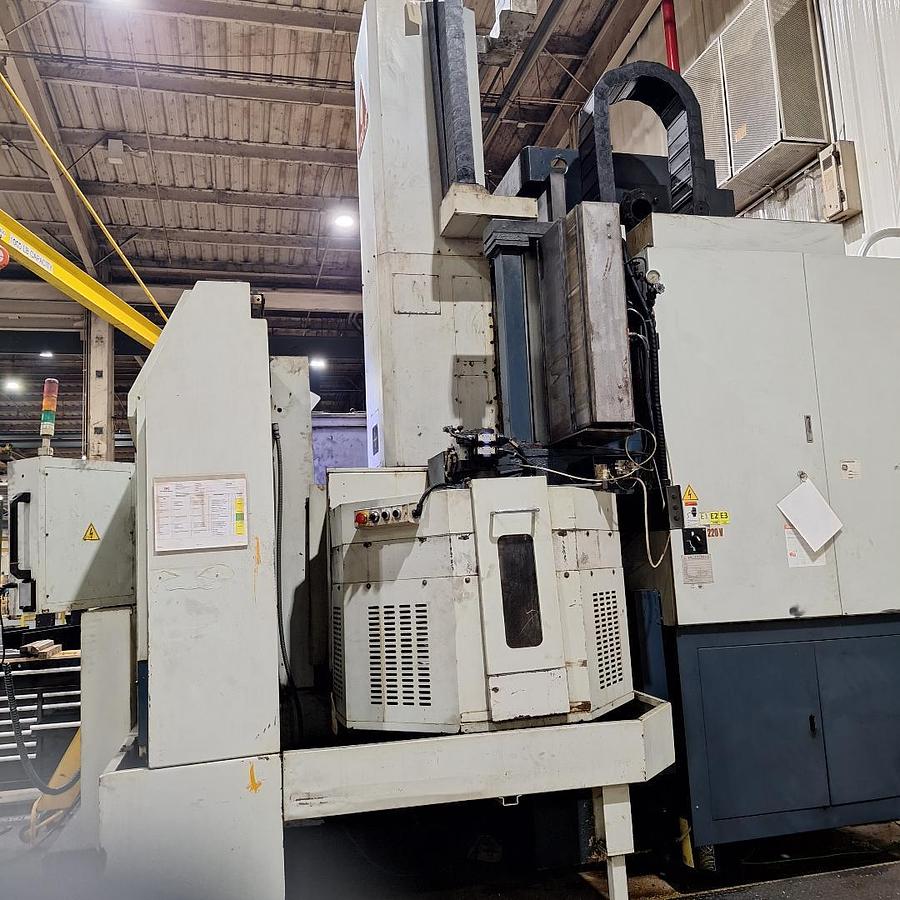

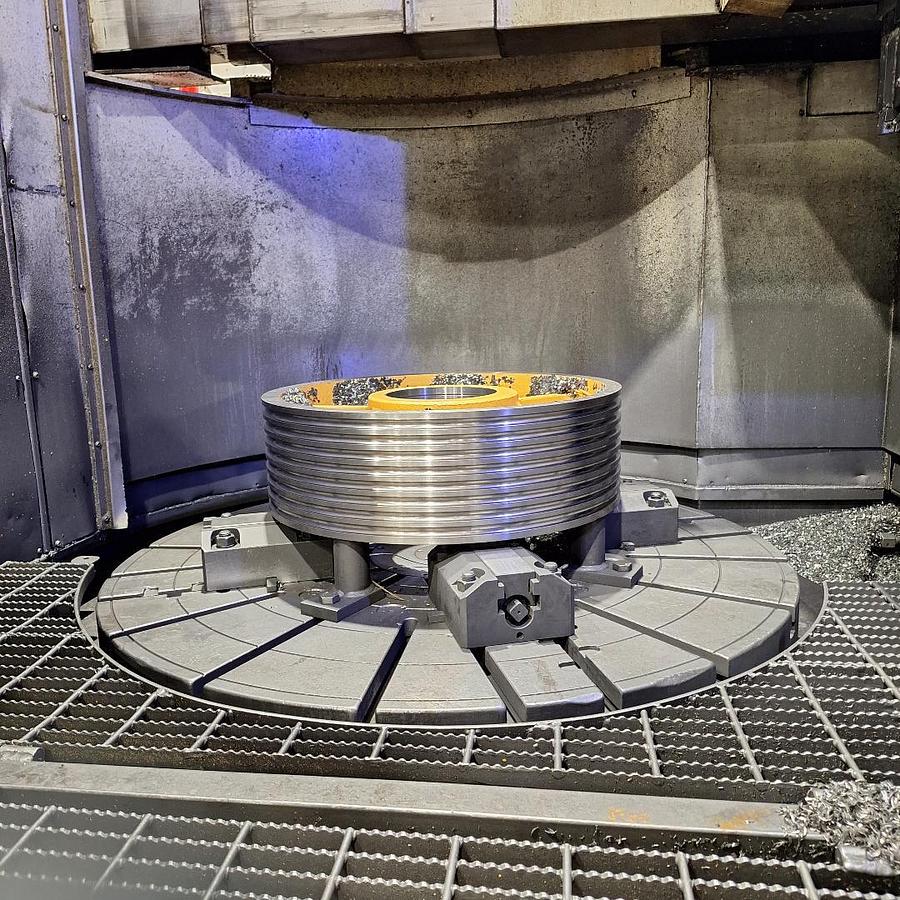

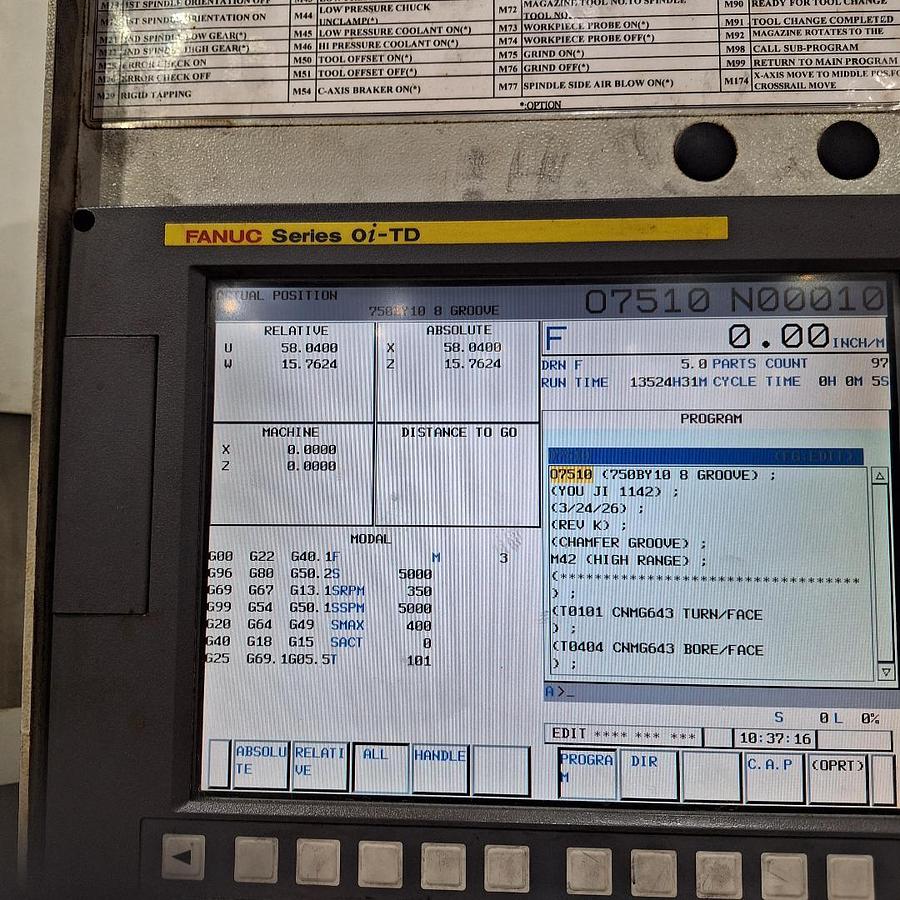

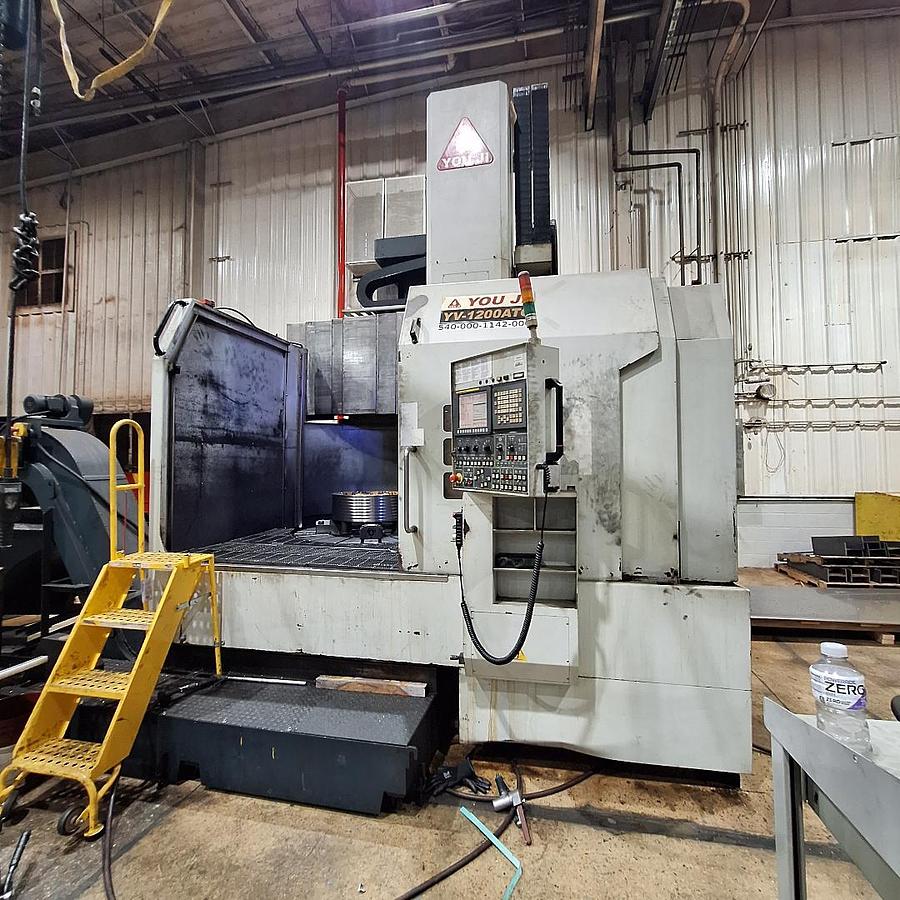

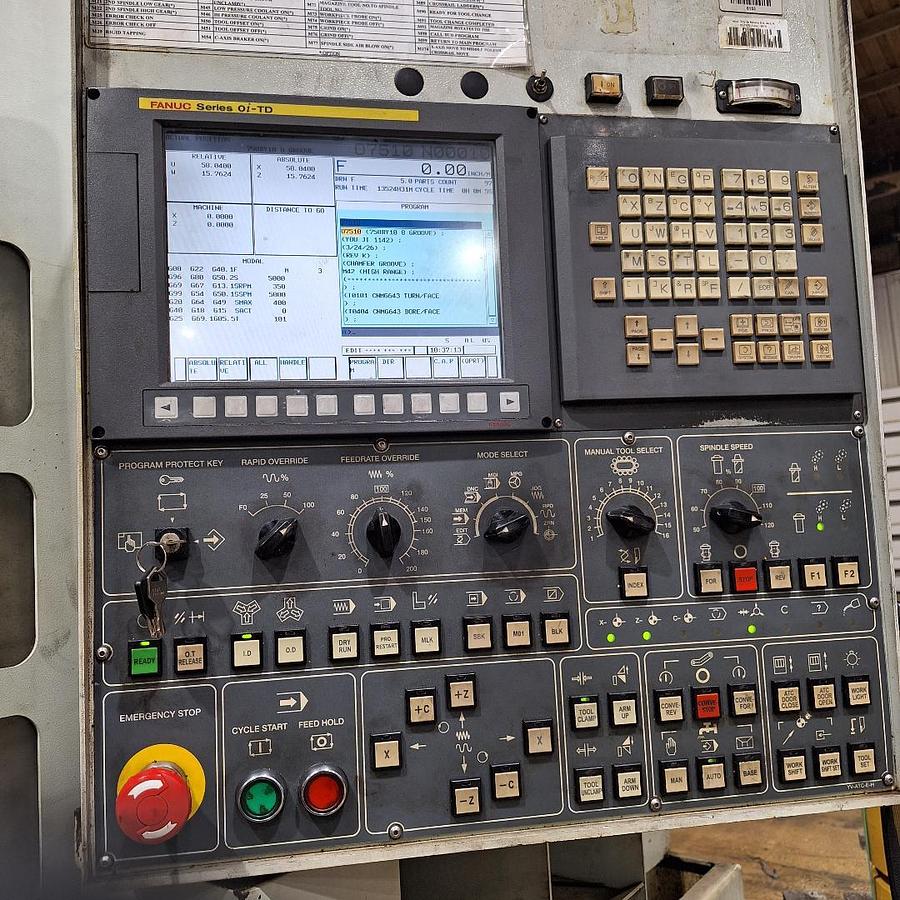

This 2011 You-Ji YV1200 ATC CNC vertical boring mill is equipped with a Fanuc 0i-TD control system, ensuring accurate and efficient operations. It features a 49.21" table diameter capable of handling a maximum load of 11,023 lbs. The maximum swing is 63", with a turning diameter reaching up to 53.15" and a turning height of 47.2", offering substantial capacity for large workpieces. The machine boasts X-axis travel of 36.81", Z-axis travel of 35.43", and cross rail travel of 29.5", providing flexibility for various machining requirements. It operates at table speeds ranging from 2 to 350 RPM, powered by a 60 HP motor with a two-speed geared transmission for optimal performance. Cutting feed rates range from 0.03 to 78.74 inches, and the rapid traverse rates are 472 IPM for the X-axis and 393 IPM for the Z-axis. Additionally, this model includes a remote jog handle and a chip conveyor, enhancing operator convenience and machine cleanliness. The overall dimensions of the machine are 157" by 236", weighing in at a substantial 51,000 lbs., indicating its robust build. The You-Ji YV1200 is an excellent choice for industries requiring reliable and precise vertical boring operations.
