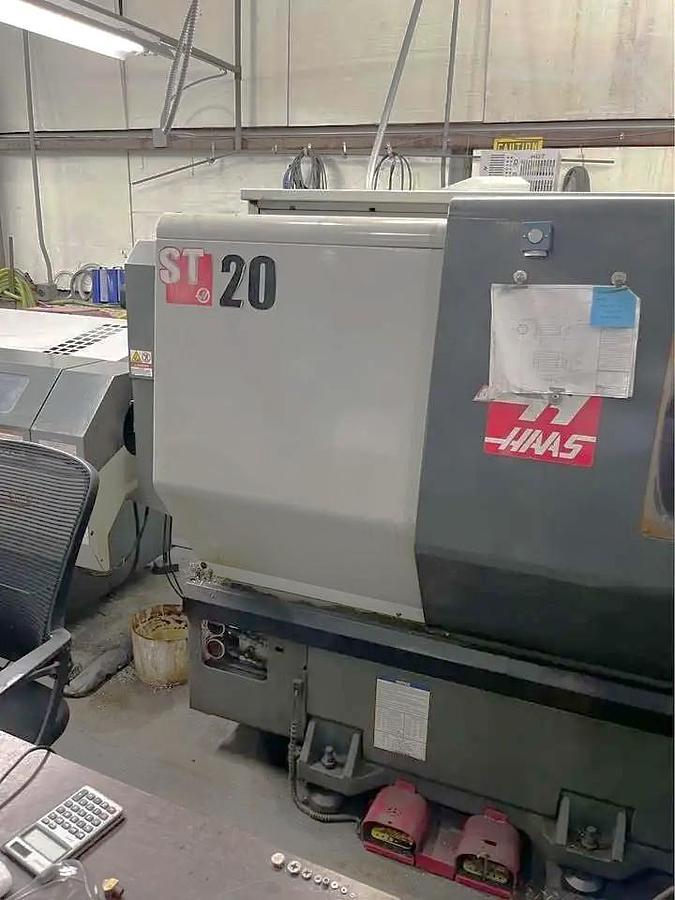

2011 Haas ST-20 with Tailstock, Haas Servo 300 Barfeeder, Chip Conveyor, Tool Presetter, Collet Chuck, Mist Buster
2011 Haas ST-20 with Tailstock, Haas Servo 300 Barfeeder, Chip Conveyor, Tool Presetter, Collet Chuck, Mist Buster
$36,500 (USD)
Location:Florida
or
Call (863) 439-6066
Description

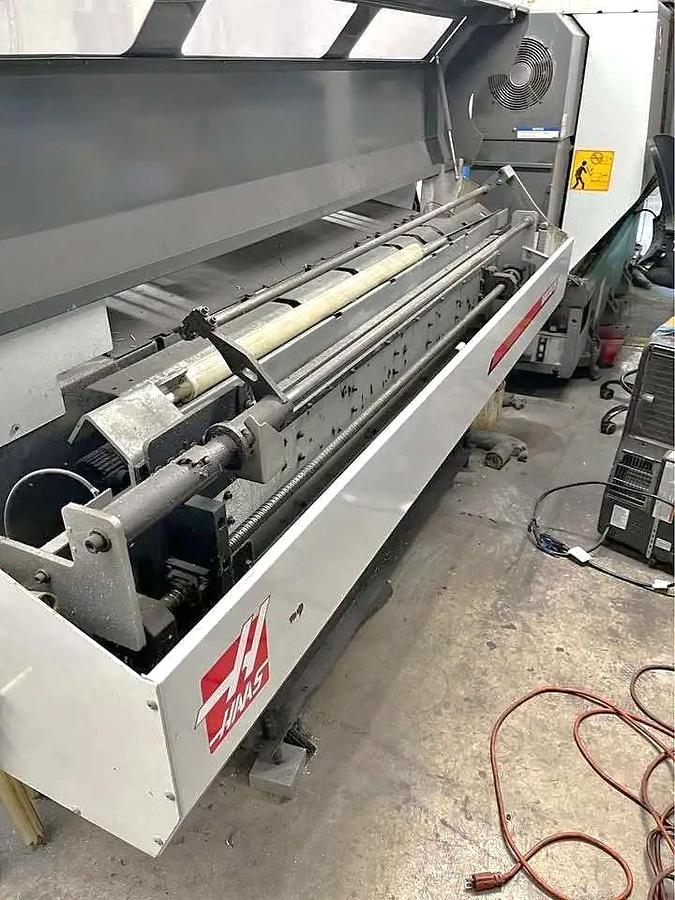

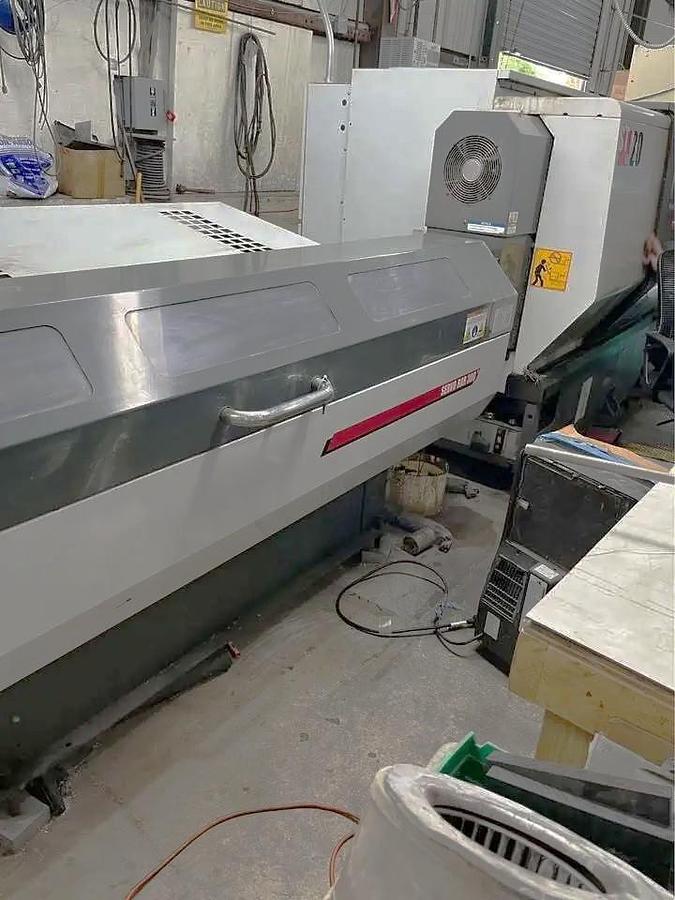

Haas Servo 300 Barfeed
Collet Chuck

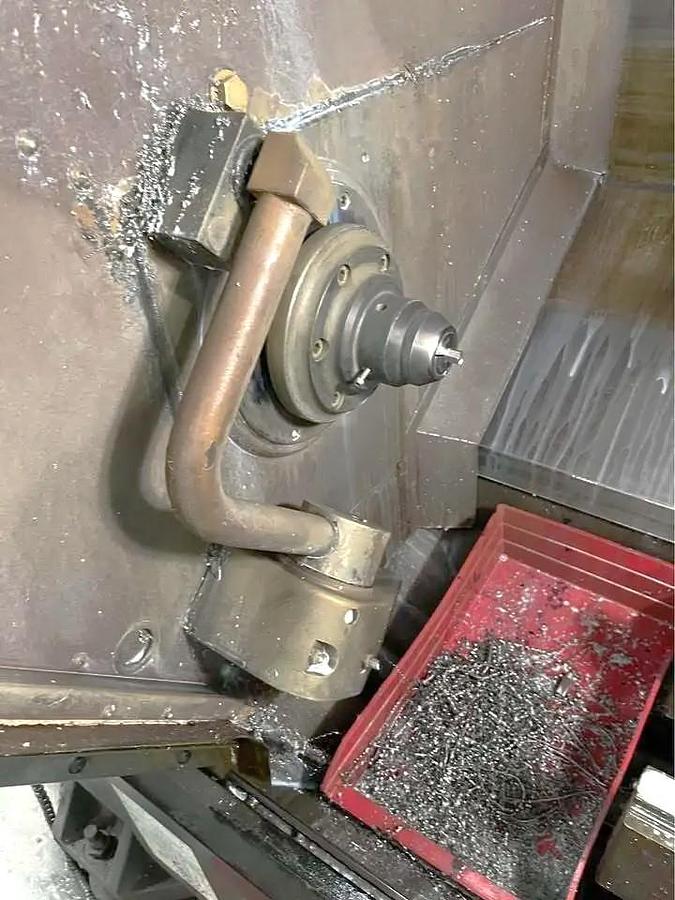

Programmable Tailstock
Chip Conveyor
Tool Presetter

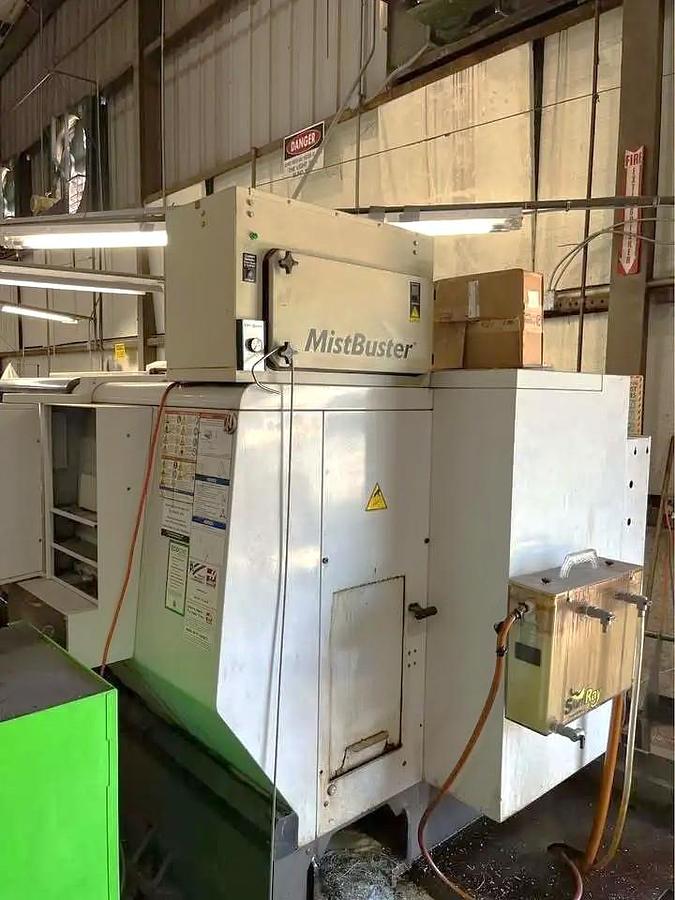

Mist Buster Mist Collector
Rigid Tapping
Coolant System with Tank & Pump
USB Port Interface
RS 232 Port Interface
Foot Pedals for Chuck and Tailstock
All Available Tooling

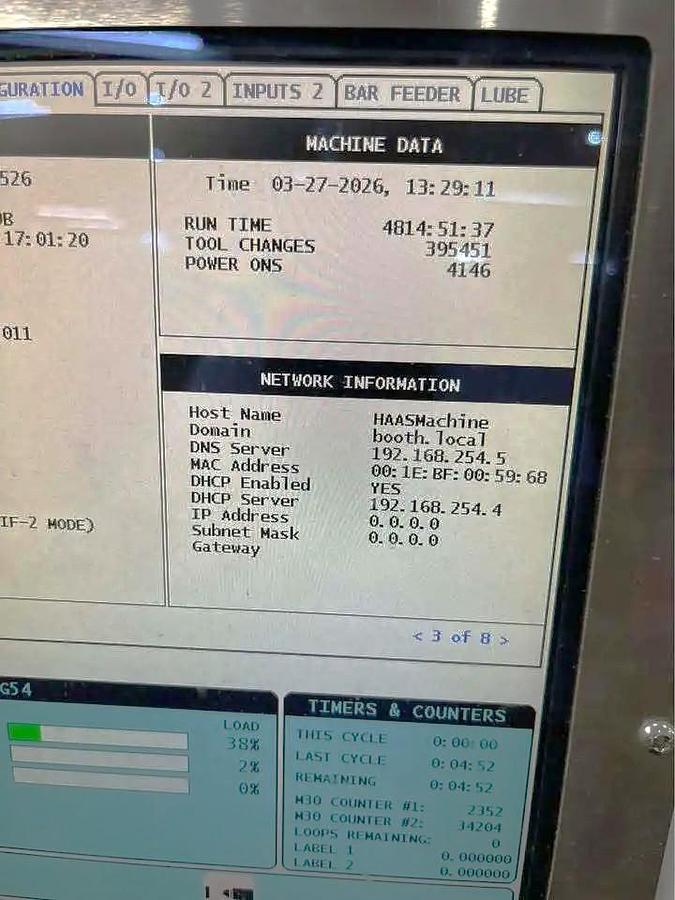

**4,814 Run Time Hours**
Specifications
| Manufacturer | Haas |
| Model | ST-20 |
| Year | 2011 |
| Condition | Used |
| Stock Number | 120782 |

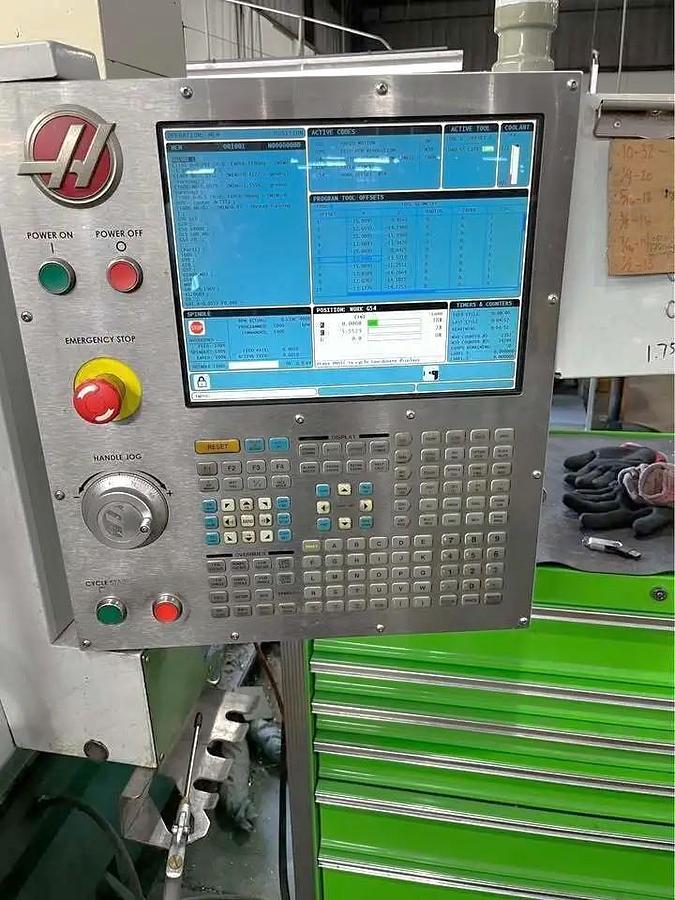

| Machine Control | Haas CNC Control |
| Chuck Type | Collet Chuck |
| Maximum Swing/Over Carriage | 23" / 9.5" |
| Maximum Turning Diameter / Length | 10.3" / 20" |
| Center Distance | 24" |
| Spindle Nose / Bore / Bar Capacity | A2-6" / 3" / 2" |
| Spindle Speed | 5,000 RPM |
| Spindle Motor | 20 HP |

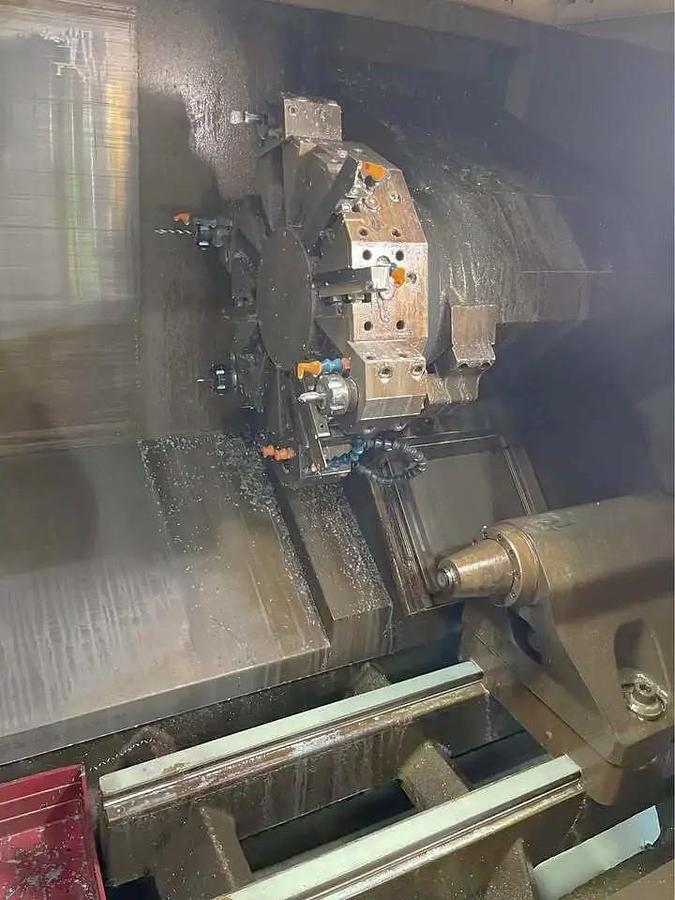

| Number of Turret Positions | 12 Station Block Style |
| Rapid Traverse Rates | 710 IPM |
| Tailstock Body Travel / Center | 20" / #4 MT |
| Machine Dimensions LxWxH | 126.5" x62"x72" |
| Machine Weight | 9,000 lbs |
