2014 Haas ST-40 with Tailstock, Chip Conveyor, 15" Hydraulic Chuck, Tool Presetter, Remote Jog Handle, 3,278 Feed Cut Hours
2014 Haas ST-40 with Tailstock, Chip Conveyor, 15" Hydraulic Chuck, Tool Presetter, Remote Jog Handle, 3,278 Feed Cut Hours
$69,900 (USD)
Location:Texas
or
Call (863) 439-6066
Description

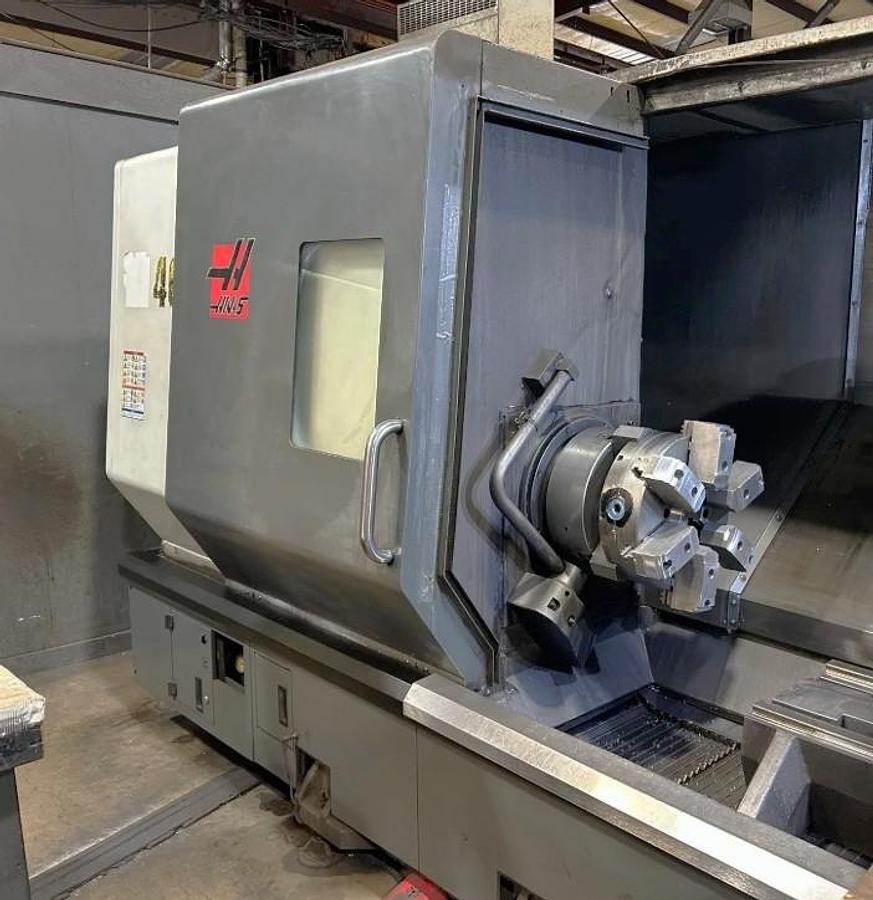

15" 3 Jaw Hydraulic Chuck

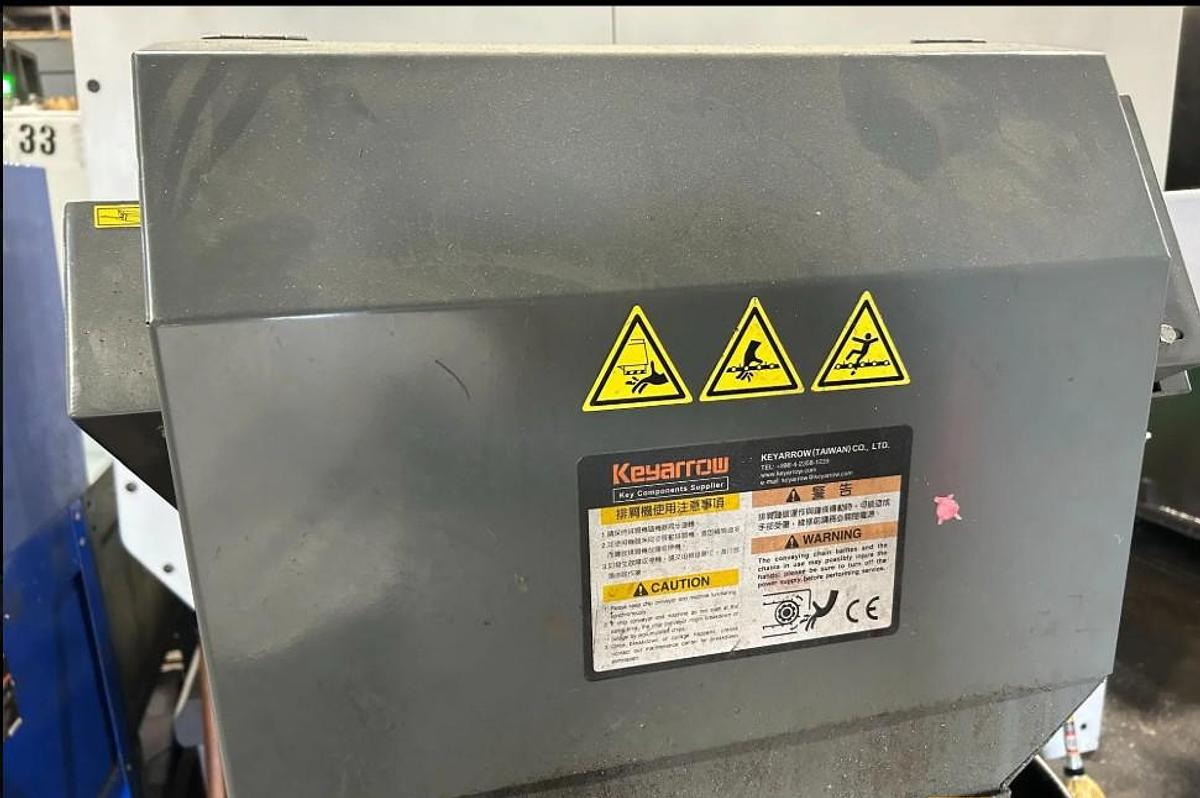

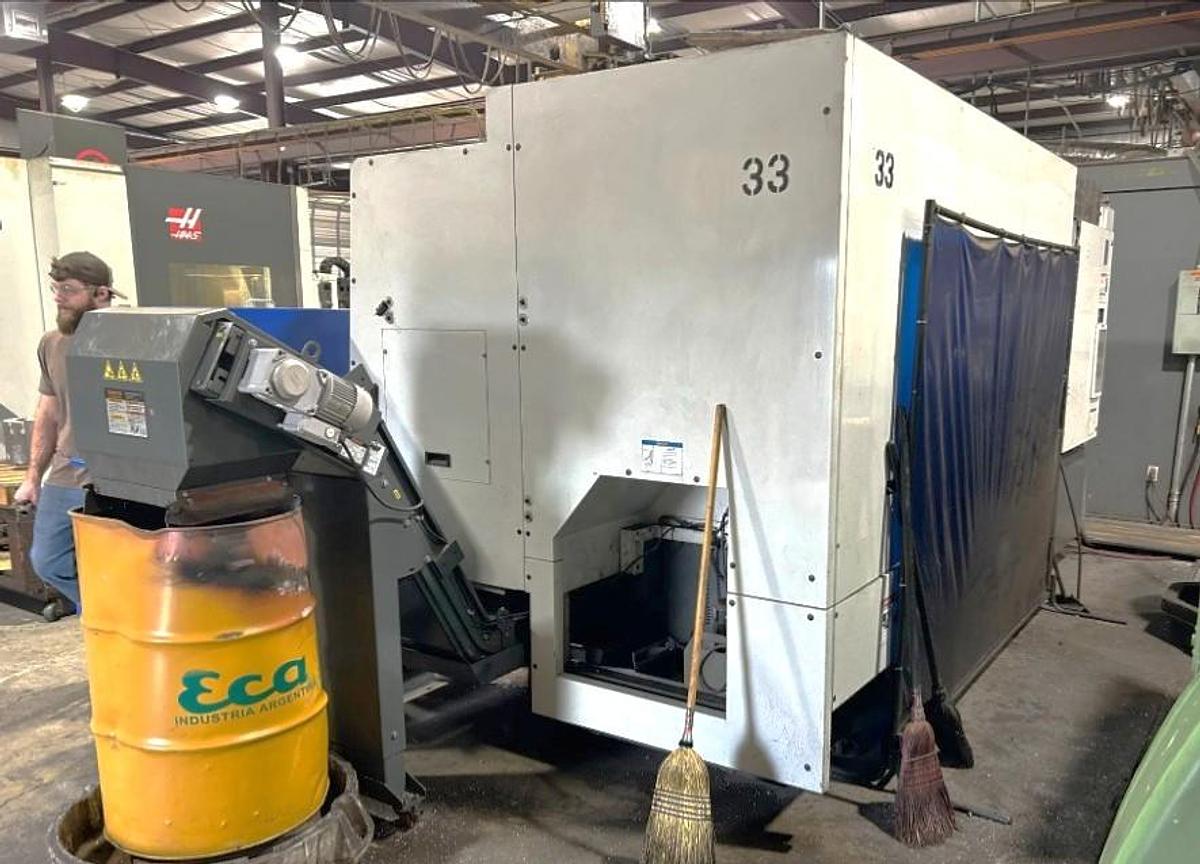

Tool Presetter Chip Conveyor - Belt Style Fully Programmable Tailstock
Remote Jog Handle 2 Speed Geared Headstock USB Port Interface RS 232 Port Interface Rigid Tapping 15" Color LCD Monitor

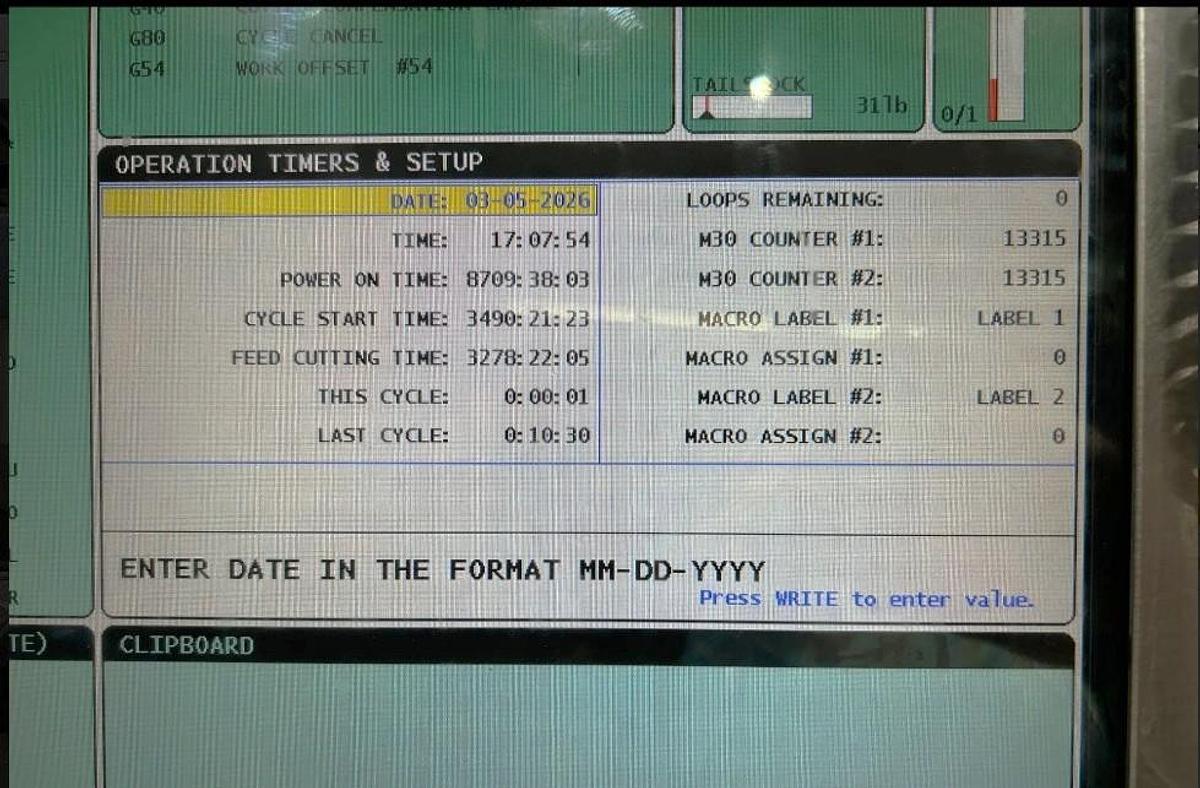

**Power On Hours 8,709**
**Cycle Start Hours 3,490**
**Feed Cutting Hours 3,278**
Specifications
| Manufacturer | Haas |
| Model | ST-40 |
| Year | 2014 |
| Condition | Used |
| Stock Number | 120777 |
| Control | Haas CNC Control |
| Chuck Size | 15" 3-Jaw Hydraulic Chuck |
| Maximum Swing | 40" |
| Maximum Swing Over Cross Slide | 25.5" |
| Distance Between Centers | 44" |
| X-Axis Travel | 17" |
| Z-Axis Travel | 44" |
| Spindle Nose / Spindle Bore / Bar Capacity | A2-8"/ 4.62" / 4" |
| Spindle Speed | 2,400 RPM |
| Spindle Motor | 40 HP |

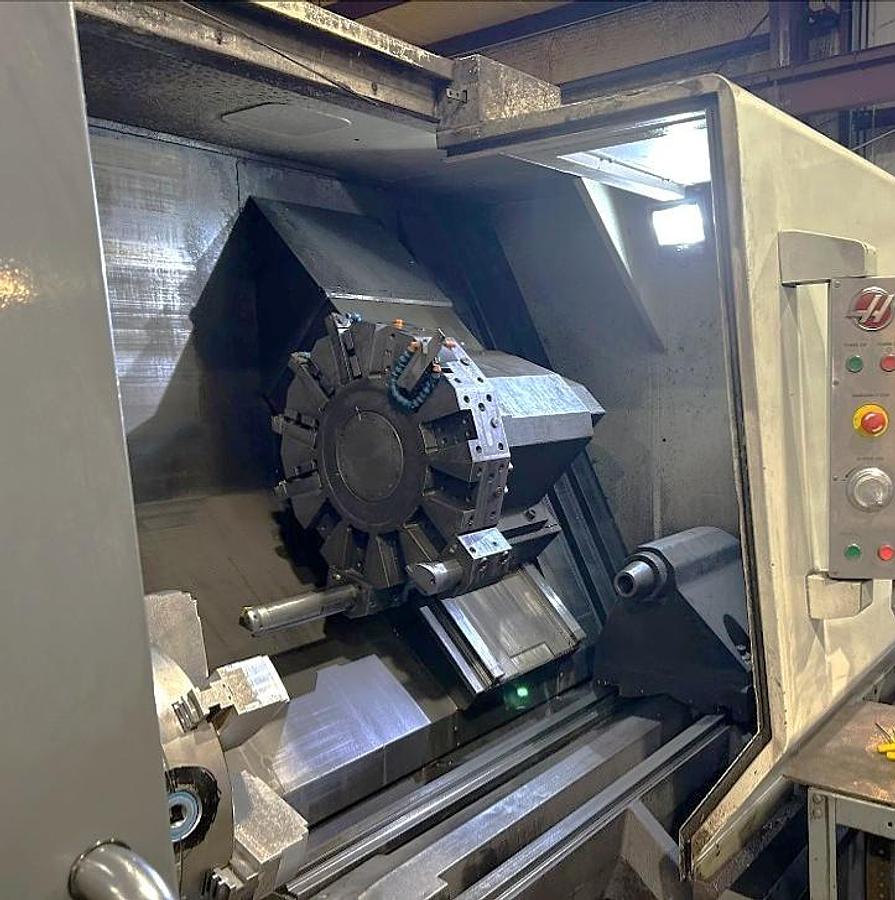

| Number of Turret Positions | 12 Station Bolt on Style Turret |
| Rapid Traverse Rates | 710 IPM |
| Tailstock Center | #5 MT |
| Machine Dimensions LxWxH | 150"x77"x74" |
| Machine Weight | 27,000 lbs |
