2012 Doosan Puma TT1800SY, LNS S2 Barfeed, LNS Blaze Air Unloader, Tool Presetter, Parts Catcher High Pressue Chip Blaster Coolant System
2012 Doosan Puma TT1800SY, LNS S2 Barfeed, LNS Blaze Air Unloader, Tool Presetter, Parts Catcher High Pressue Chip Blaster Coolant System
Contact us for price
Location:Illinois
or
Call (863) 439-6066
Description
Full C Axis Spindle Rotation
Live Milling/Drilling Capability Y Axis Capability on Upper Turret

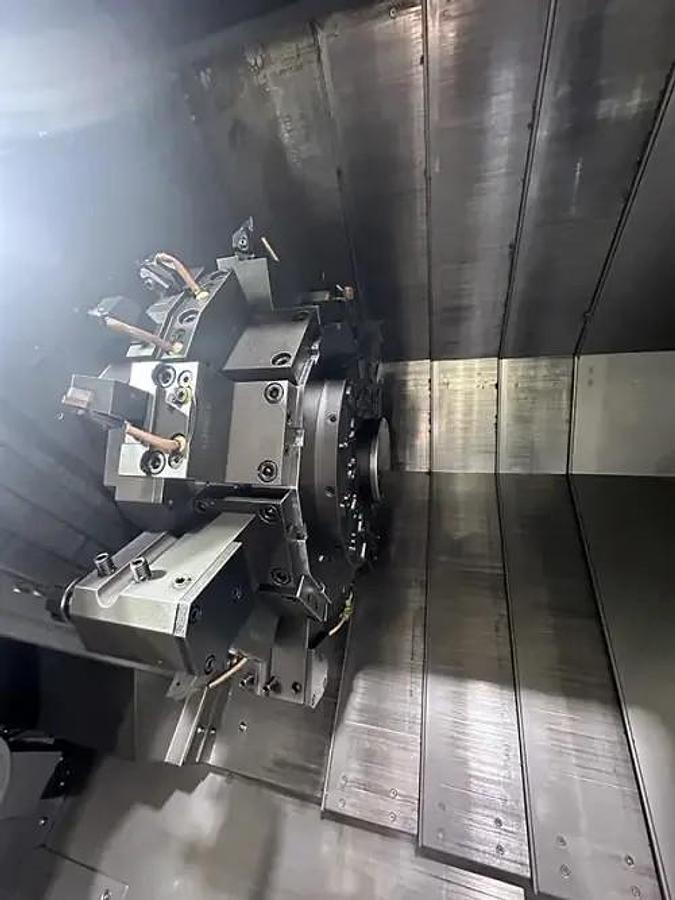

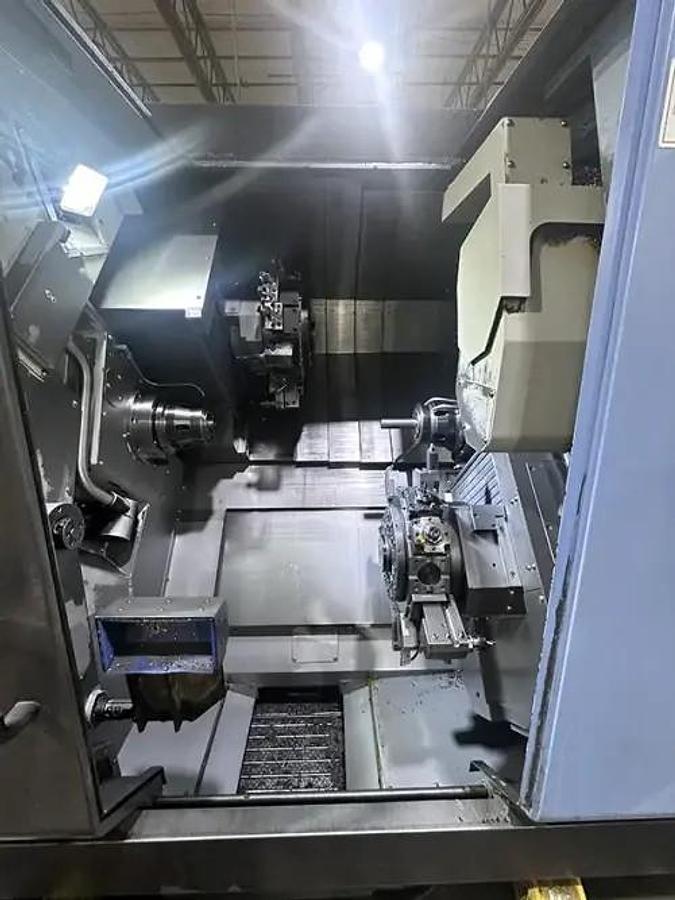

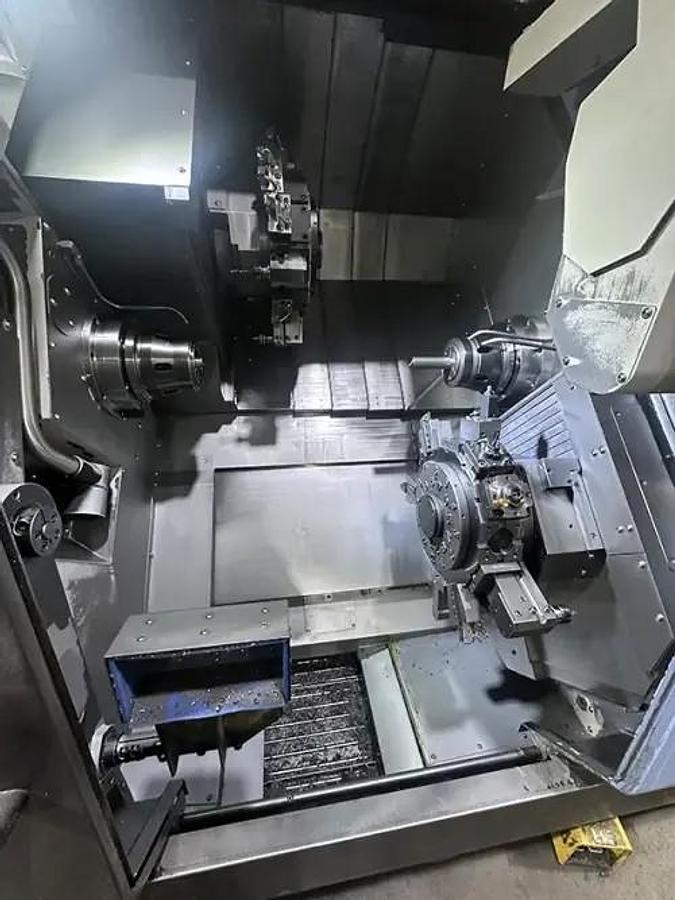

Twin Turret Design with Upper and Lower Turrets

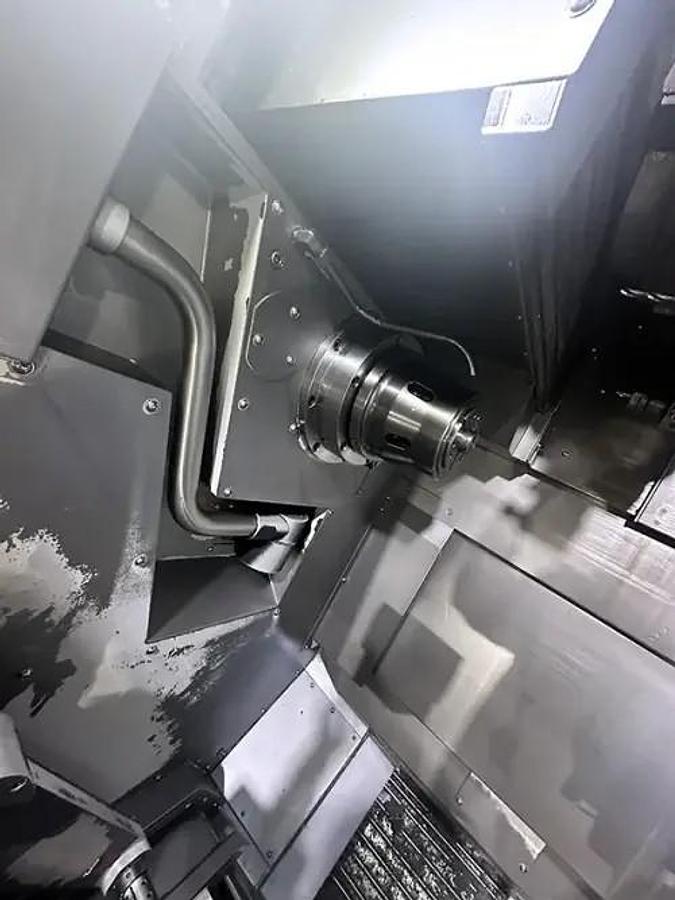

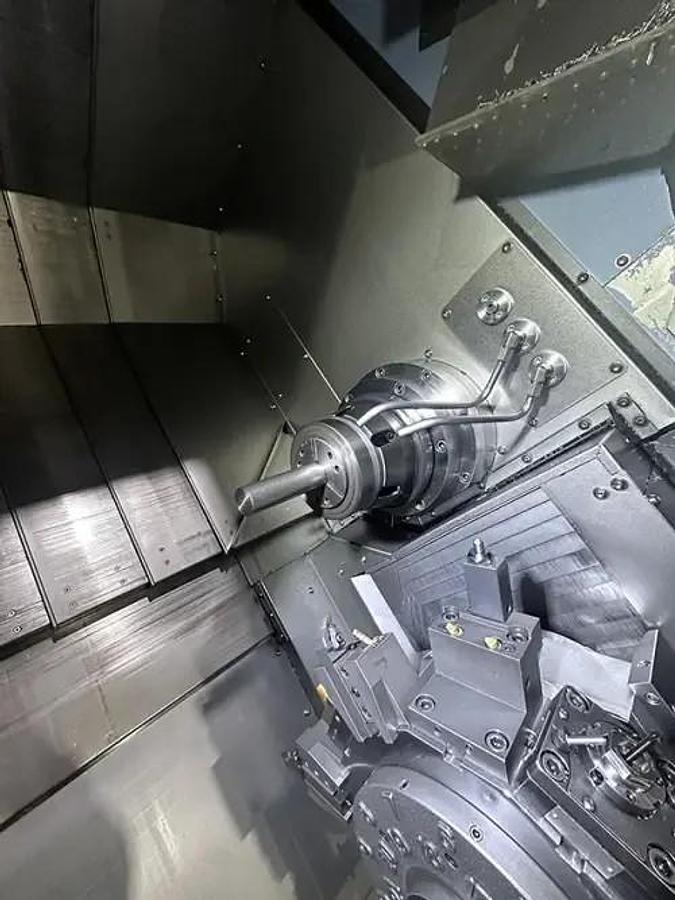

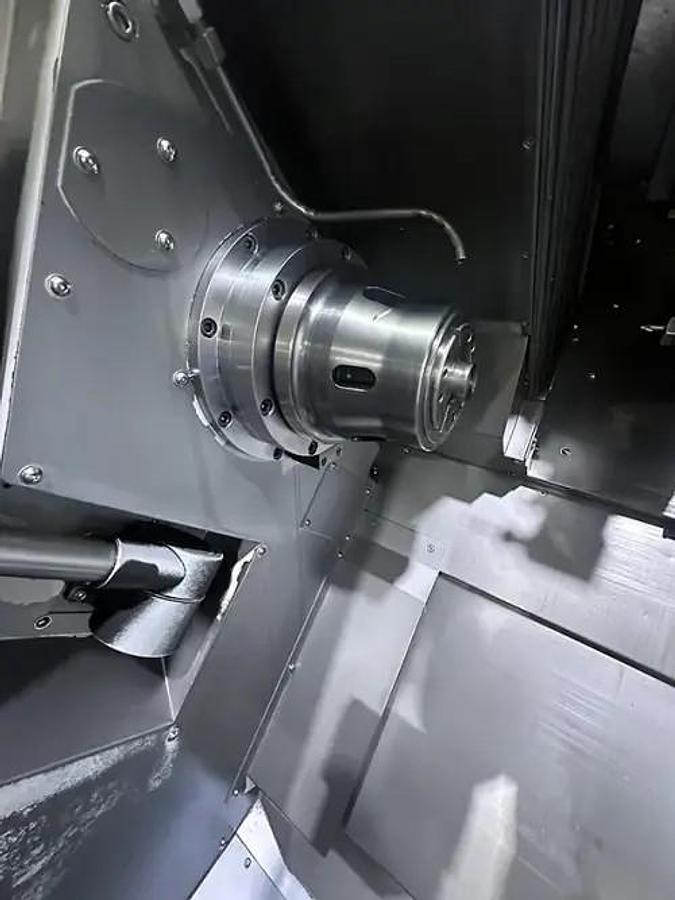

Dual Spindle Design
LNS Blaze Air Unloader

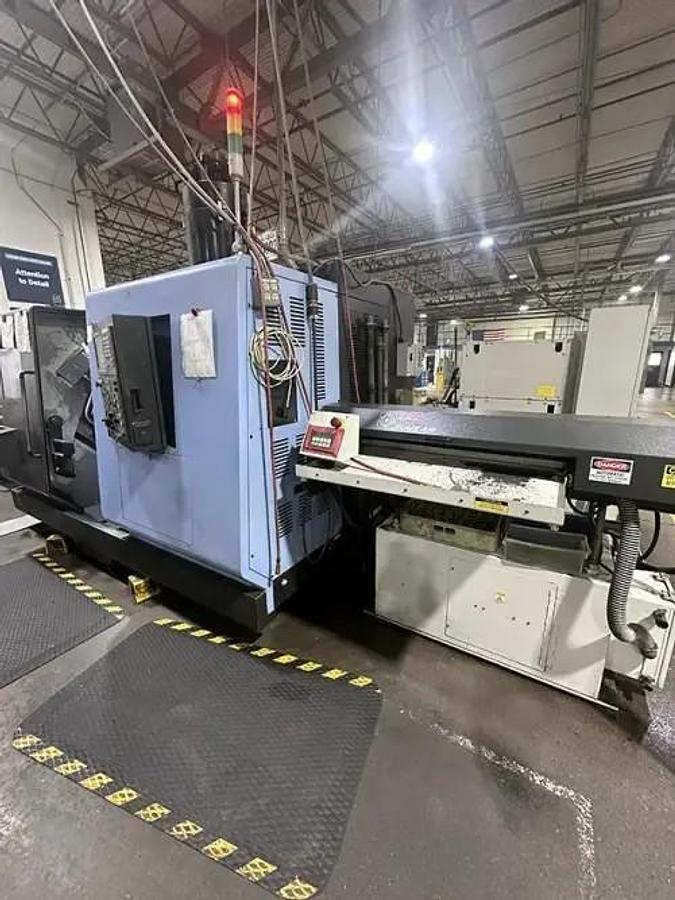

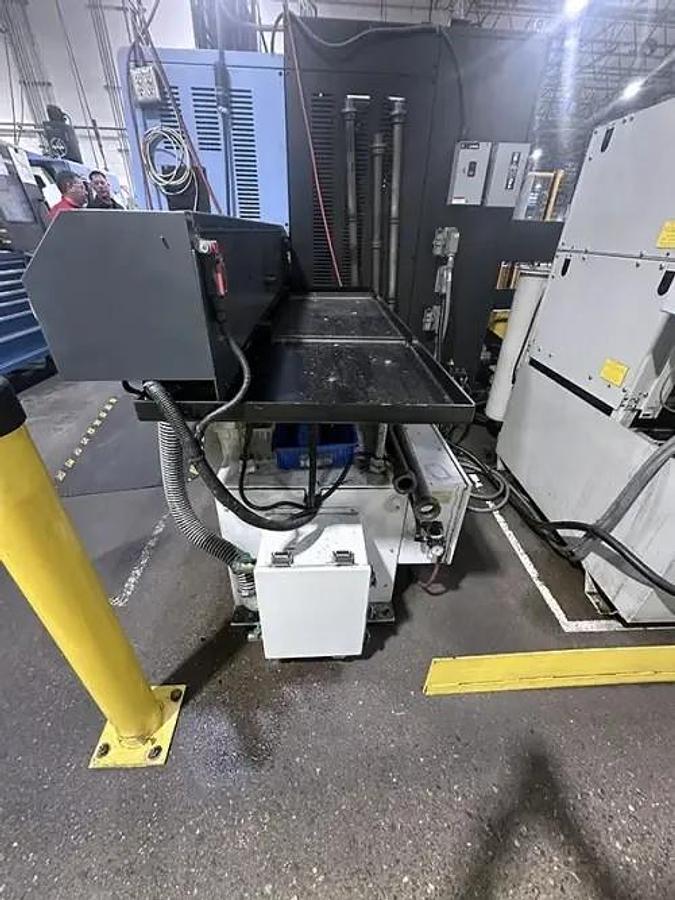

LNS Quick Six S2 Barfeed

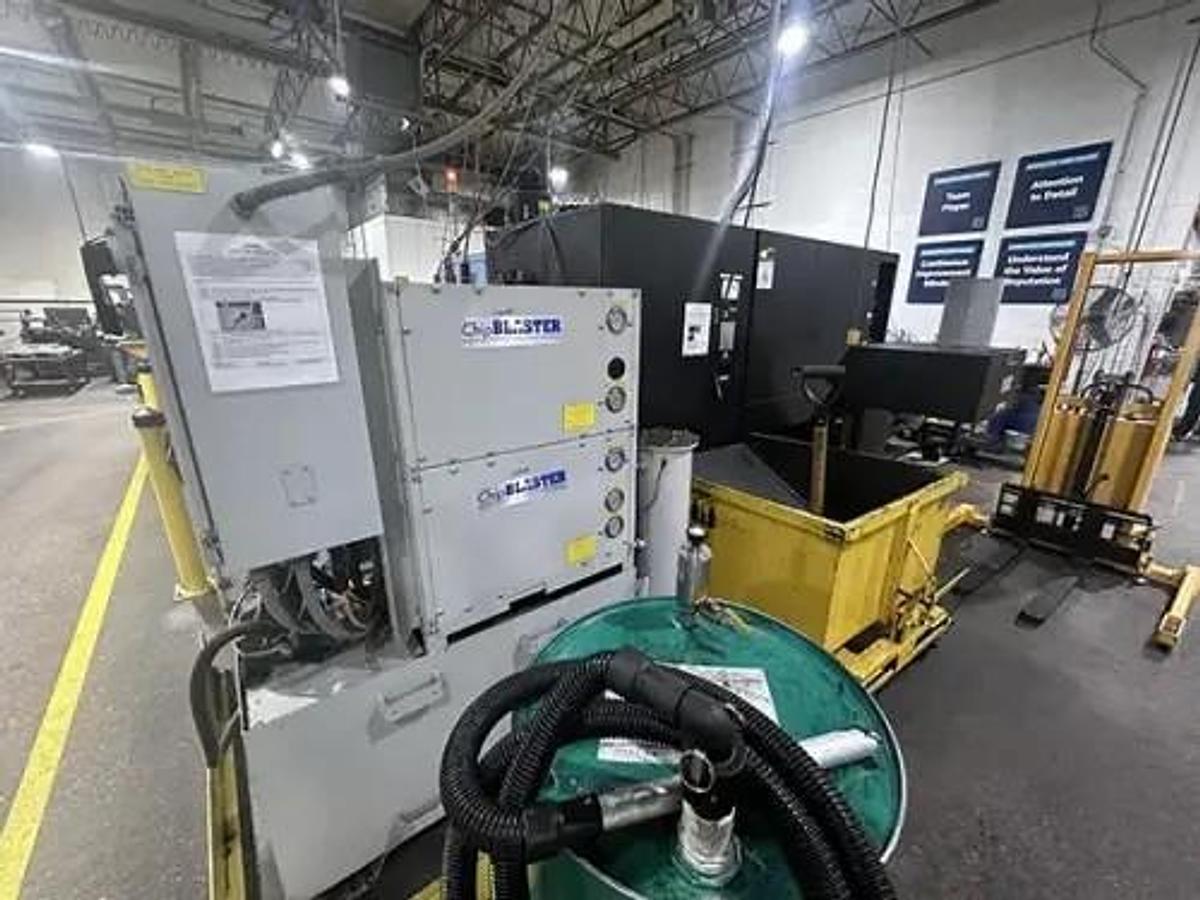

Chip Blaster High Pressure Coolant System
Tool Presetter
Parts Catcher
PCMCIA Card Interface Ethernet Interface RS 232 Port Interface Boxed Ways
Coolant Tank with Pump All Available Manuals
Specifications
| Manufacturer | Doosan |
| Model | Puma TT1800SY, LNS S2 Barfeed, LNS Blaze Air Unloader, Tool Presetter, Parts Catcher High Pressue Chip Blaster Coolant System |
| Year | 2012 |
| Condition | Used |
| Stock Number | 120775 |

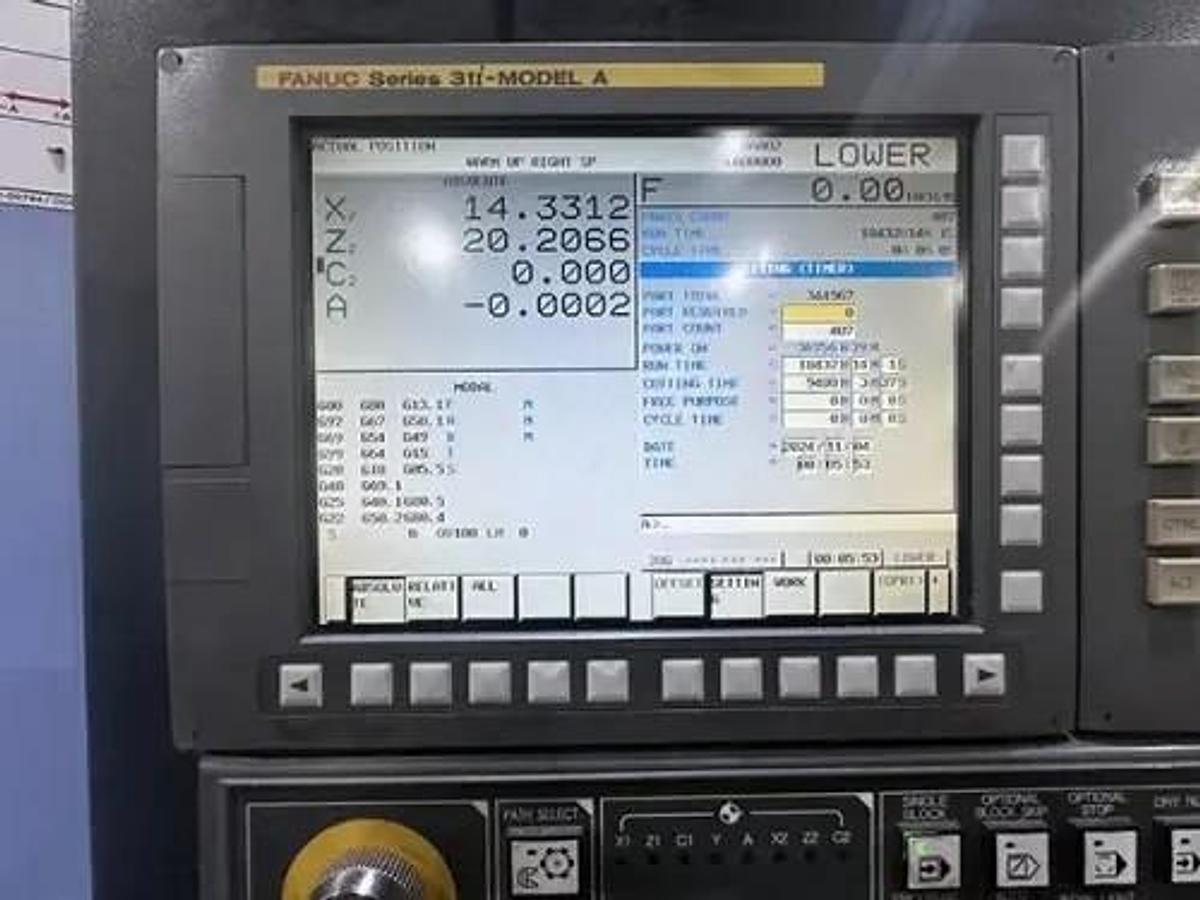

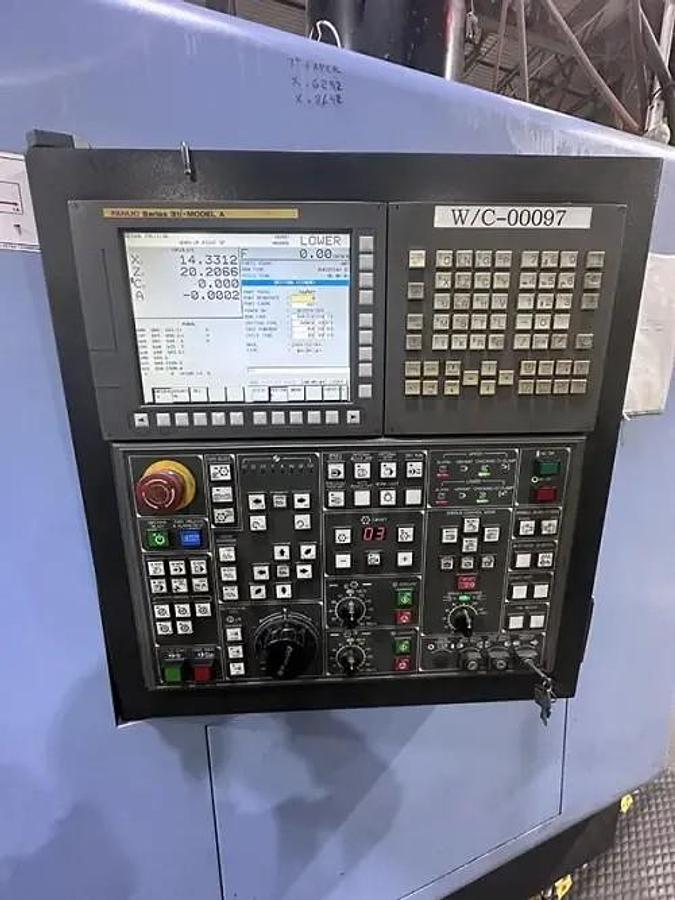

| Control | Fanuc 31i-A Control |
| Chuck Size | None Included |
| Maximum Swing over Bed | 9.05" |
| Maximum Cutting Diameter | 9.05" |
| Maximum Machining Length | 9.1" |
| Maximum Distance Between Centers | 38.5" |
| Maximum Bar Capacity | 2.625" |
| X1-Axis Travel / X2-Axis Travel | 6.5" / 7.5" |
| Y-Axis Travel | 3.93" |
| Z1-Axis Travel / Z2-Axis Travel | 31.5" / 28.3" |
| C Axis Spindle Rotation | .001 Degrees - both Spindles |
| A-Axis Travel - Subspindle | 30.3" |
| Spindle Nose / Spindle Bore | A2-6" / 3.0" - both Spindles |
| Main & Subspindle Speeds | 5,000 RPM |
| Spindle Motor - Both Spindles | 30 HP |
| Rotary Tool Speed / Rotary Motor | 5,000 RPM / 7.5 HP |

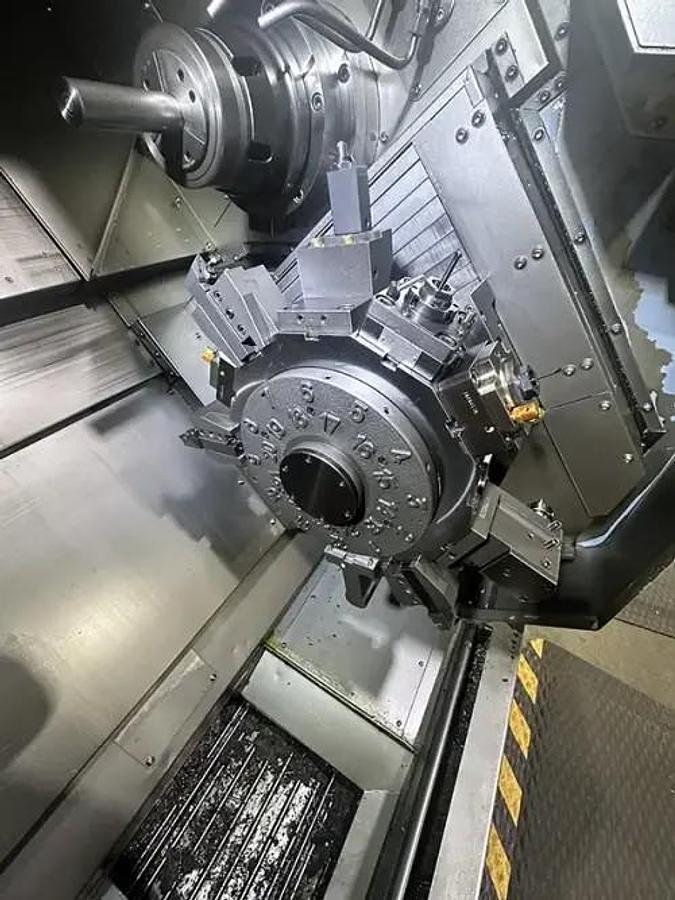

| Number of Turret Positions | 12 Station Turret - Each |
| Rapid Traverse Rates X / Y / Z | 787 IPM / 295 IPM / 984 IPM |
| Machine Dimensions | 154" x 82" x 82" |
| Machine Weight | 17,196 lbs. |
