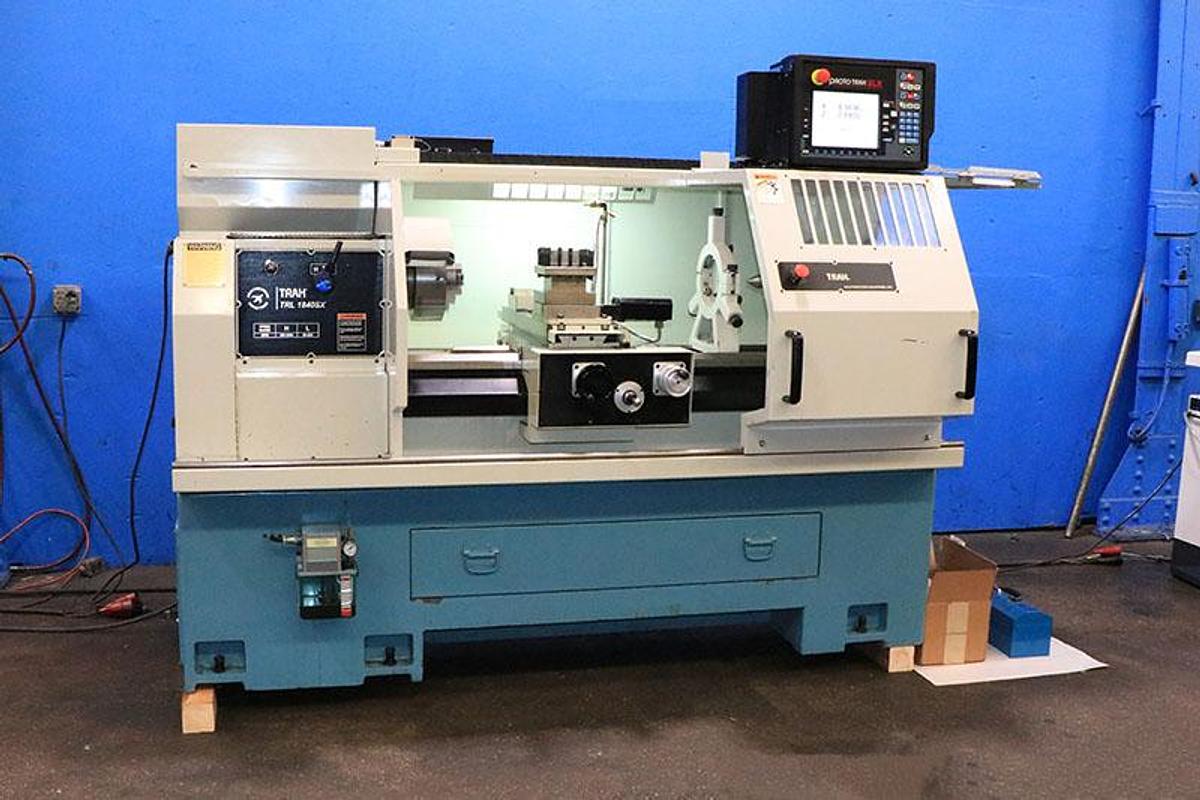

2008 Southwestern Industries TRAK TRL 1840SX with Steady Rest, Tailstock, 4 Pos. Indexable Turret, SLX Cntrl.
2008 Southwestern Industries TRAK TRL 1840SX with Steady Rest, Tailstock, 4 Pos. Indexable Turret, SLX Cntrl.
Contact us for price
Location:Connecticut
or
Call (863) 439-6066
Description

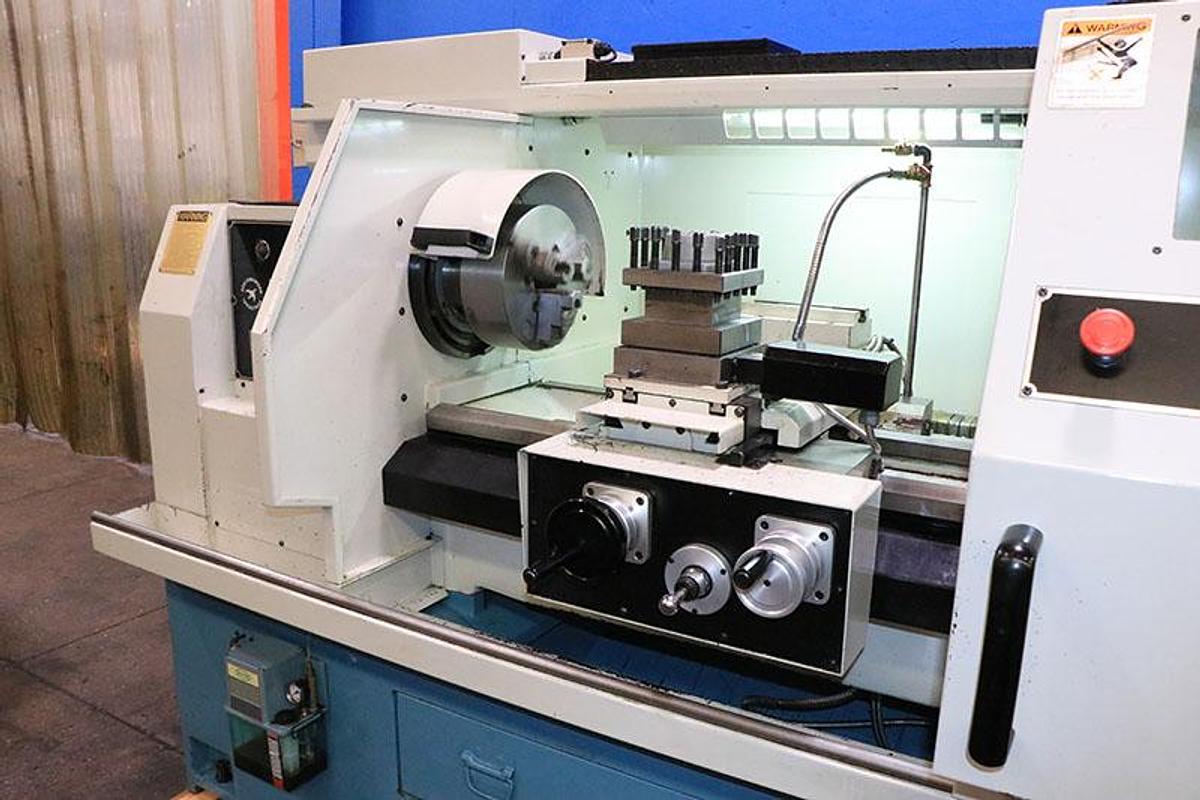

4 Station Indexable Turret

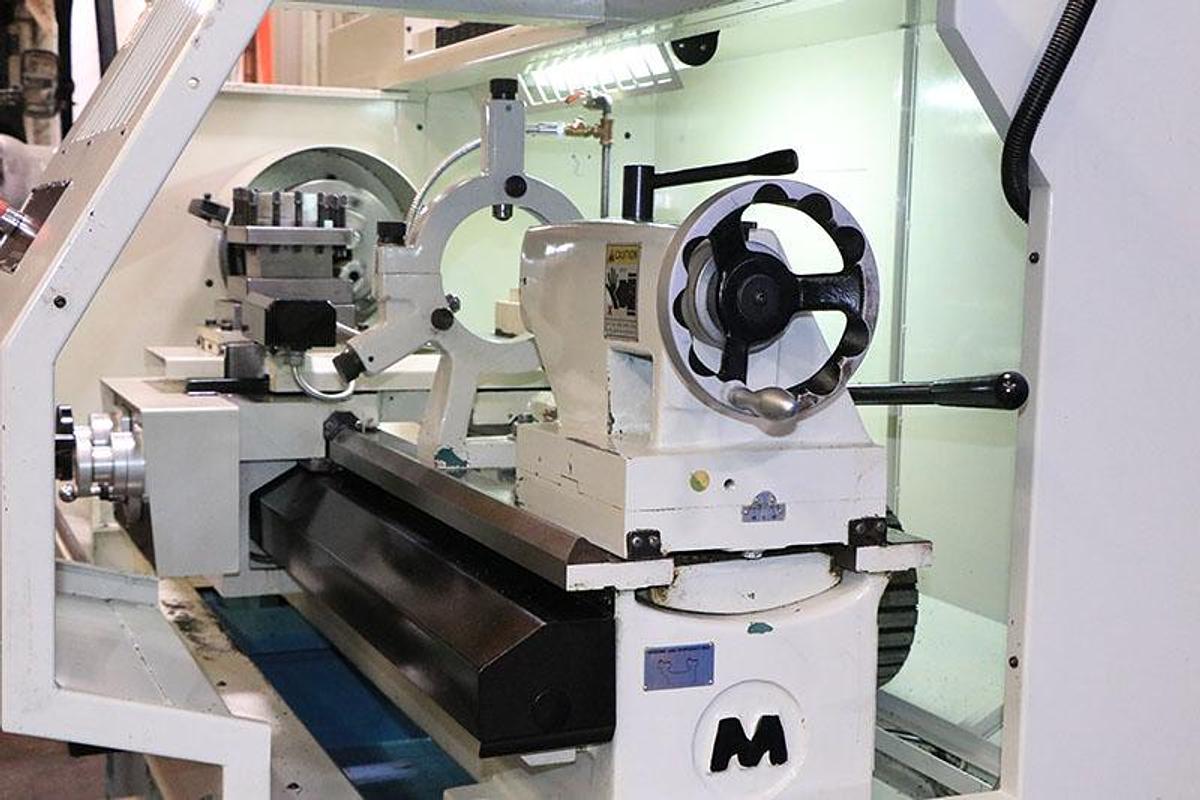

Tailstock

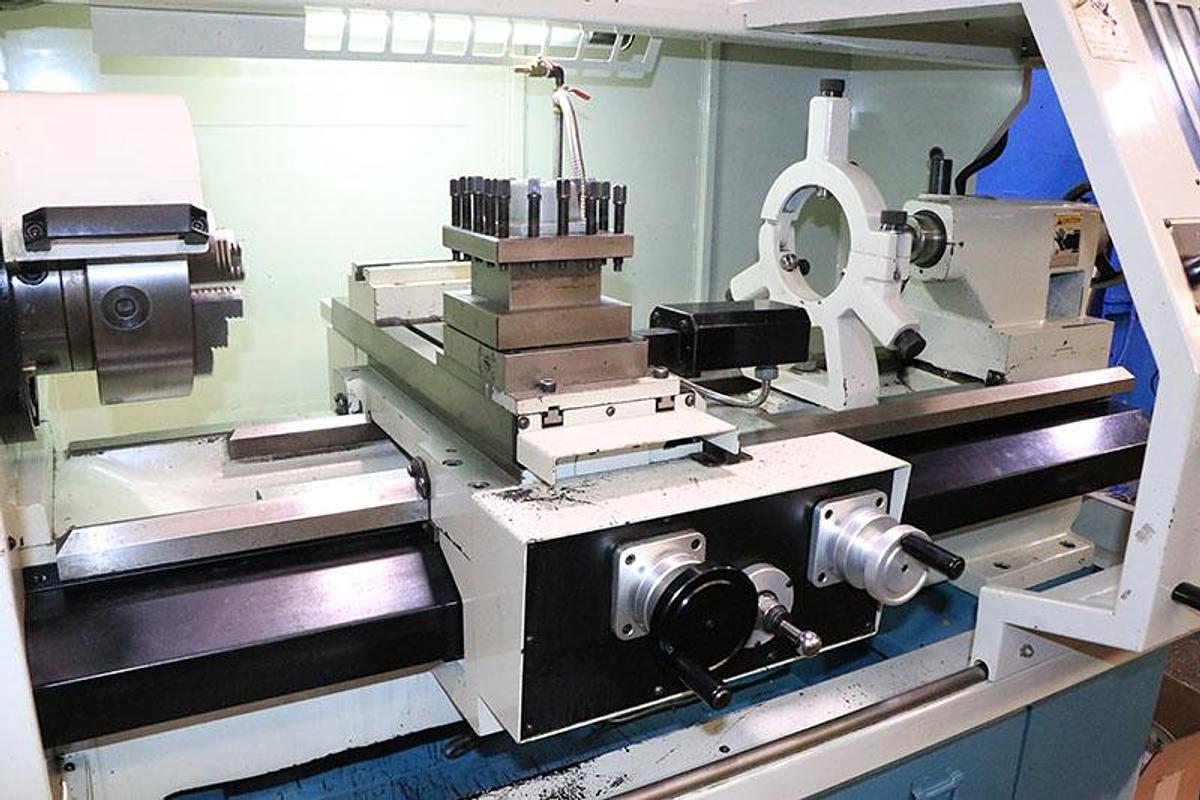

Steady Rest
Electronic Handwheels and Joystick
10.4" Color Active Matrix Screen
USB Port Interface
RS232 Port Interface
Advanced Features
Network, Tracking

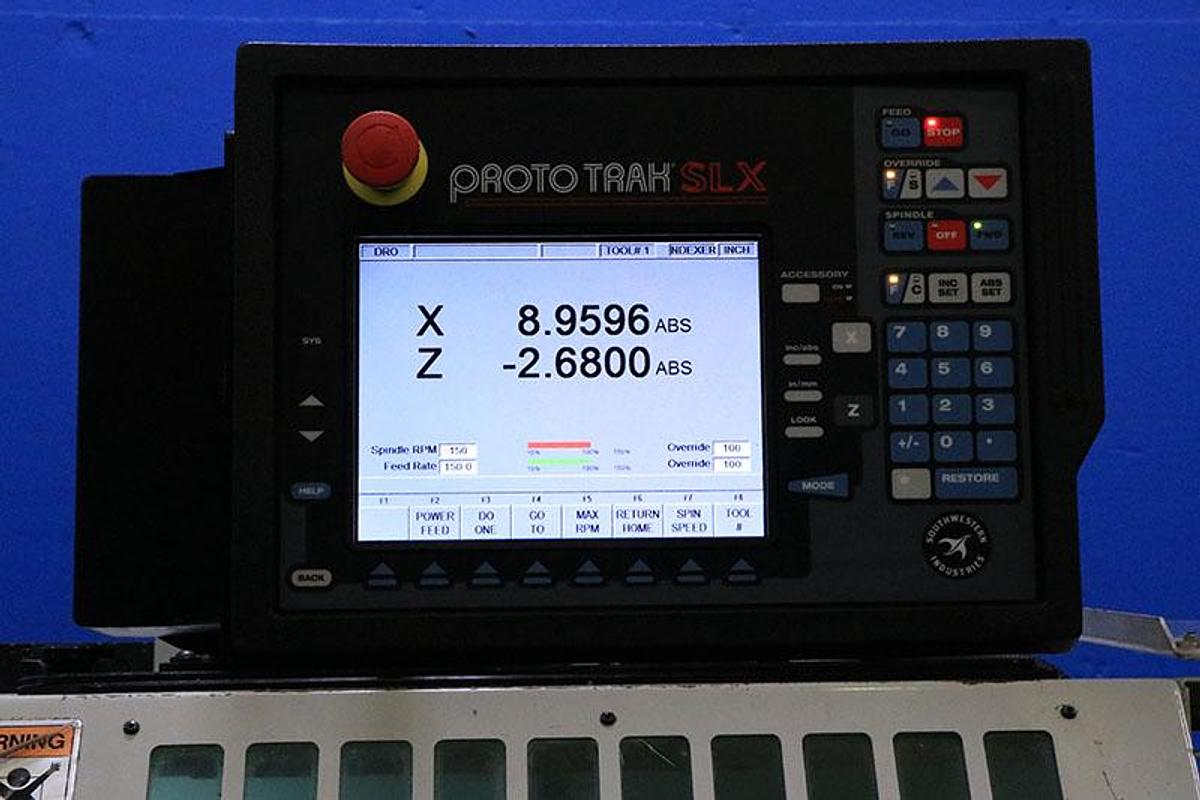

Two Axis Digital Readout During Manual Operation
AC Spindle Drives
Coolant System with Pump
Specifications
| Manufacturer | Southwestern Industries |
| Model | TRAK TRL 1840SX |
| Year | 2008 |
| Condition | Used |
| Stock Number | 120773 |

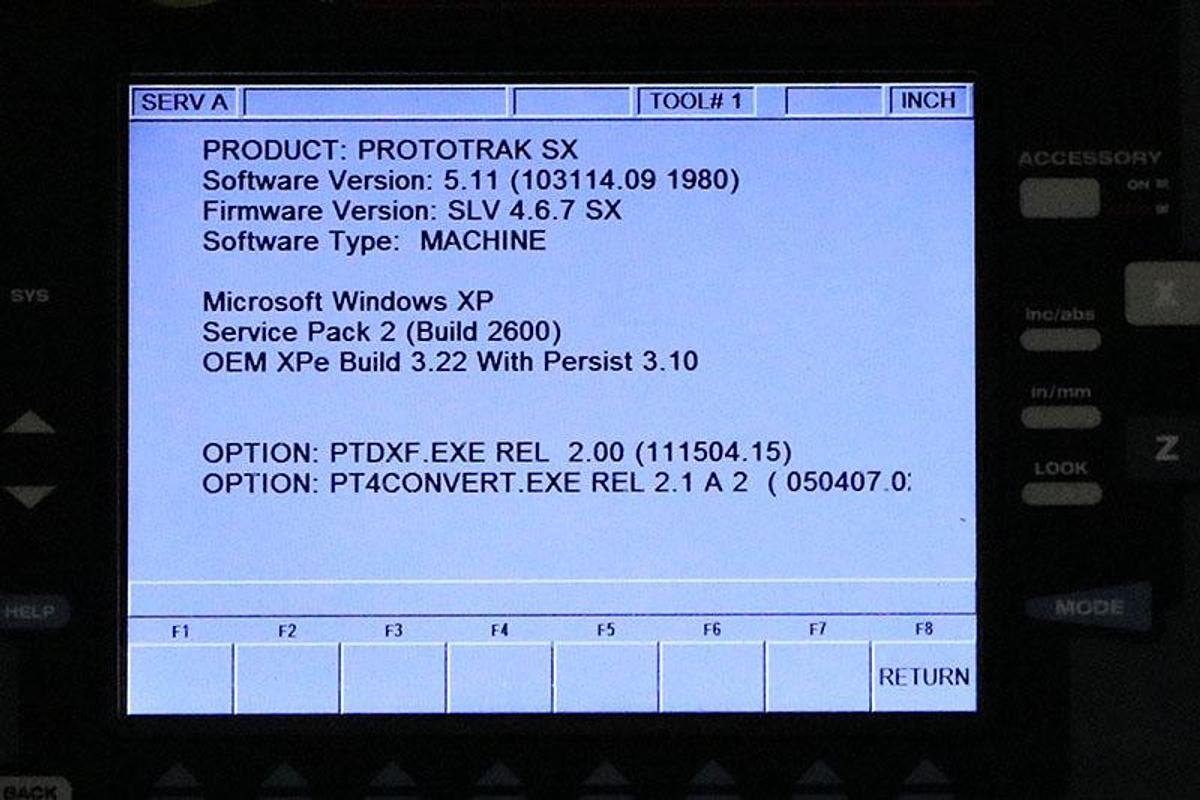

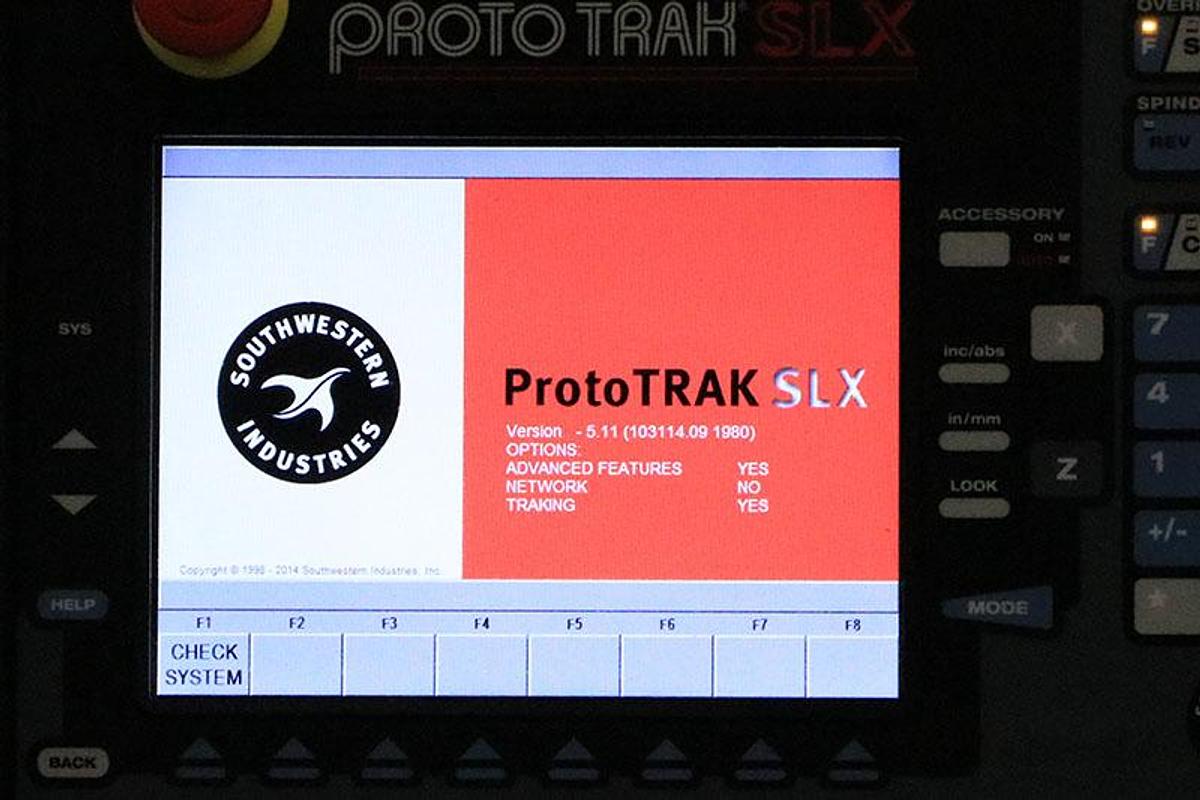

| Machine Control | Prototrak SLX Control |
| Chuck Size | 10" 3-Jaw Manual |
| Maximum Swing over Bed | 18.5" |
| Maximum Swing Over Cross Slide | 9" |
| Distance Between Centers | 40.25" |

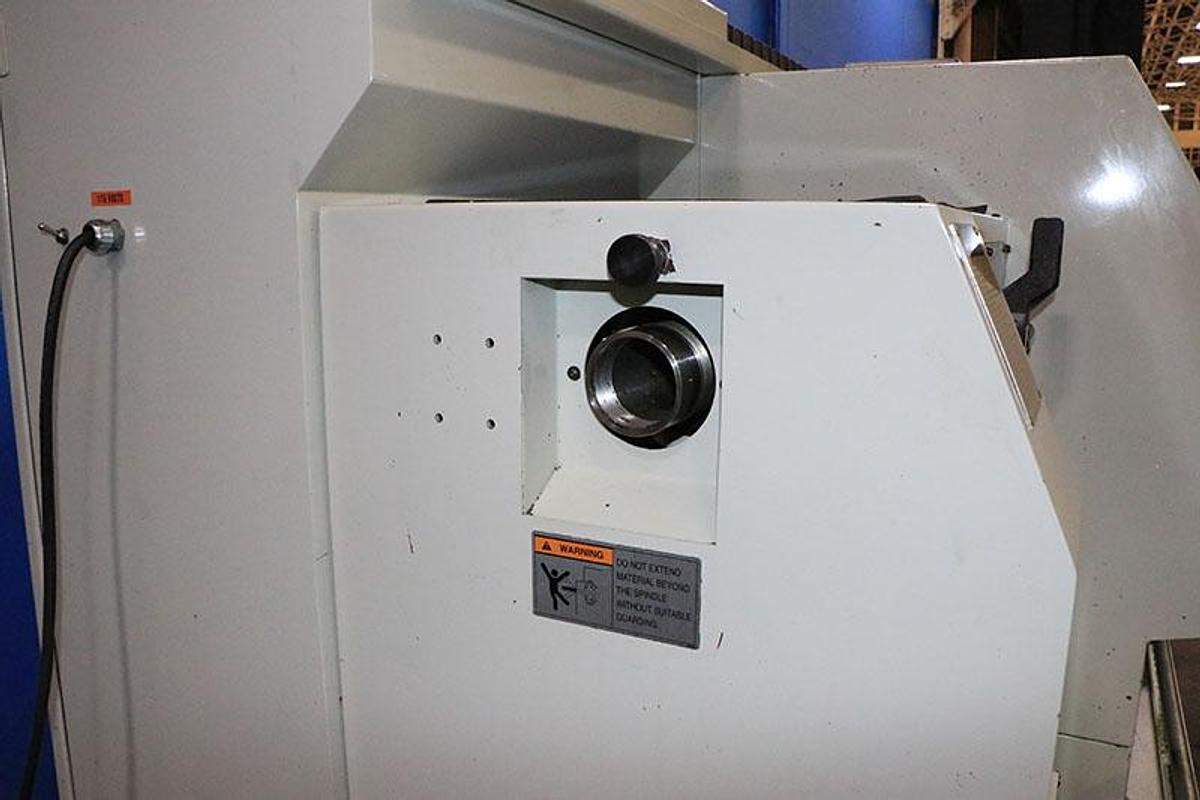

| Spindle Nose / Spindle Bore | D1-6" / 2.36" |

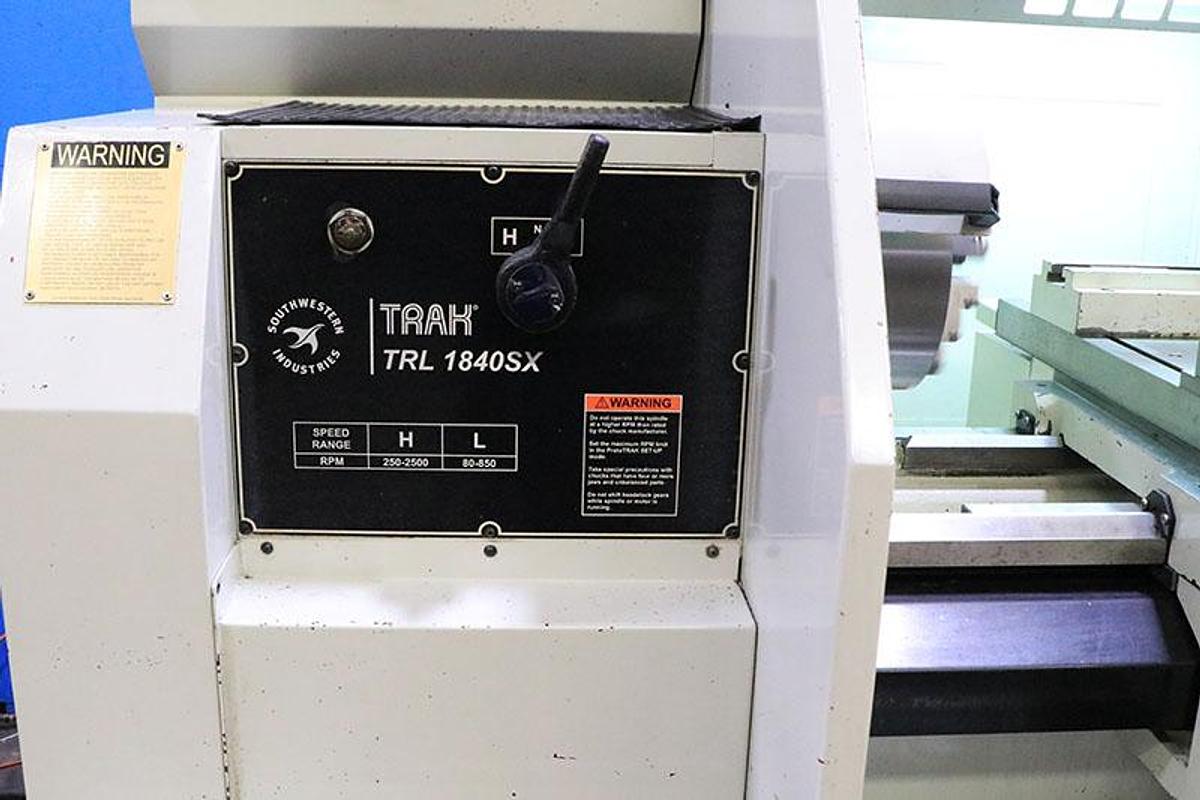

| Spindle Speeds | 50 - 2,500 RPM - 3 Ranges 50-270 / 150-850 / 450-2500 |
| Number of Tool Positions | 4 Station Indexable Turret |
| Spindle Motor | 10 HP |
| Rapid Traverse Rates X/Z | 100 IPM / 150 IPM |
| Tailstock Quill Diameter / Quill Travel / Taper | 2.96" / 7.125" / #5MT |
| Power Requirements | 220V / 3 Phase / 60Hz |
| Machine Dimensions LxWxH | 91"x53"x70" |
| Machine Weight | 4,500 lbs |
