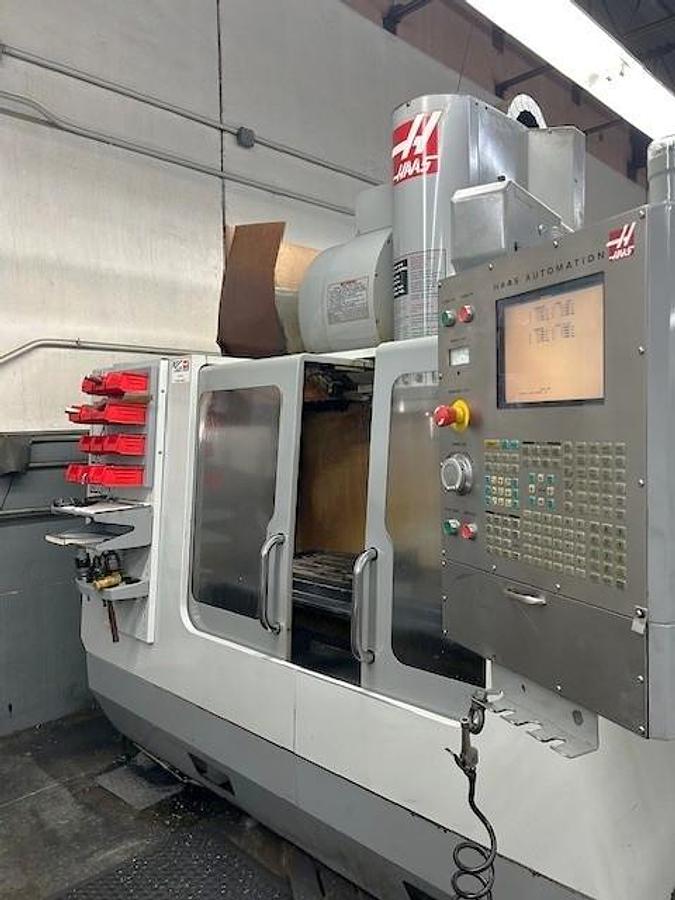

2005 Haas VF4SS w/ 4th Axis Drive, Haas HRT-210 Rotary Table, Prog. Coolant, BT40 - VIDEO AVAILABLE
2005 Haas VF4SS w/ 4th Axis Drive, Haas HRT-210 Rotary Table, Prog. Coolant, BT40 - VIDEO AVAILABLE
$24,500 (USD)
Location:New York, NY
or
Call (863) 439-6066
Description
4th Axis Drive & Wiring

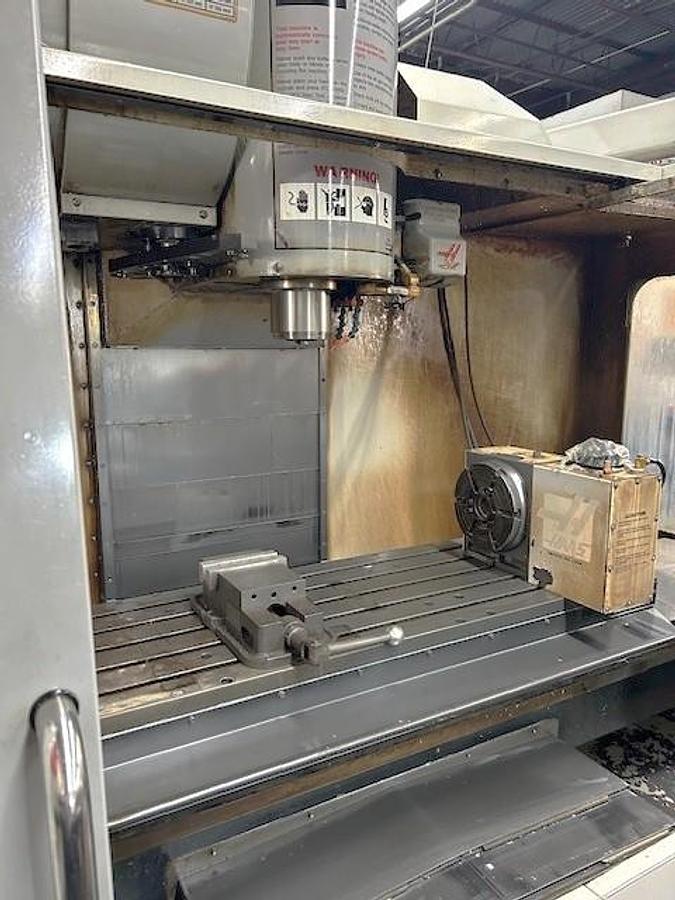

Haas HRT210 4th Axis Rotary Table
24 Station Side Mounted Tool Changer
Programmable Coolant Nozzle
Rigid Tapping
Coolant Tank with Pump
Inline Direct Drive 12,000 RPM Spindle
RS 232C Port Interface for DNC Operation
All Available Manuals
Wired 208/230V Electrics
Some BT40 Tool Holders
Specifications
| Manufacturer | Haas |
| Model | VF4SS |
| Year | 2005 |
| Condition | Used |
| Stock Number | 120762 |
| Table size | 52" x 18" |
| Max table load | 1,750 lbs |
| X axis travel | 50" |
| Y axis travel | 20" |
| Z axis travel | 25" |
| Spindle taper | BT #40 |
| Spindle speed | 12,000 RPM |
| Spindle motor | 30 HP - Direct Drive |
| Spindle nose to table top | 4.2" - 29.2" |
| Number of tool positions | 24 + 1 Position Side Mount |
| Max tool weight | 12 lbs. |
| Rapid feed rate (x,y,z) | 1,400 IPM |
| Cutting feed rate | 0.1 - 833 IPM |
| Machine dimensions | 152" x 99" x 106" |
| Machine weight (approximately) | 13,800 lbs. |
