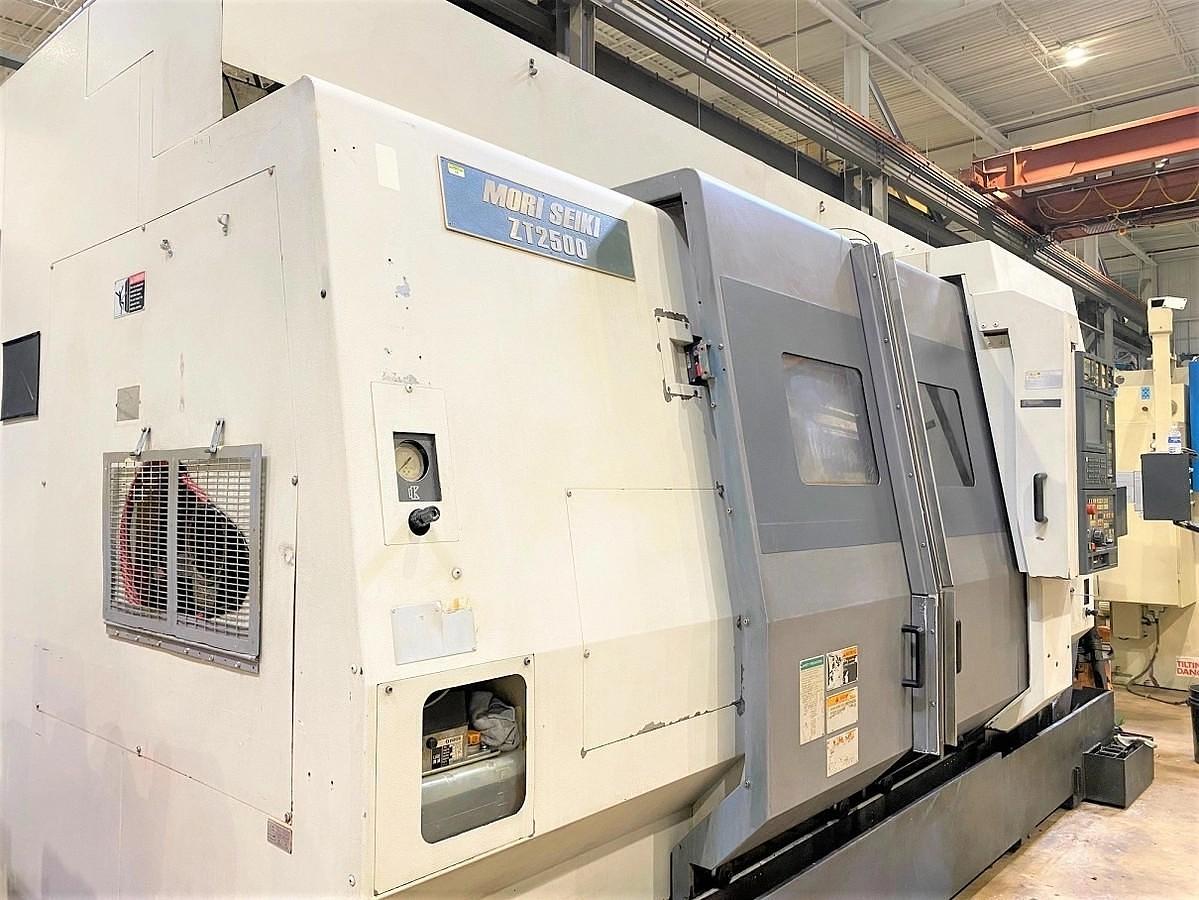

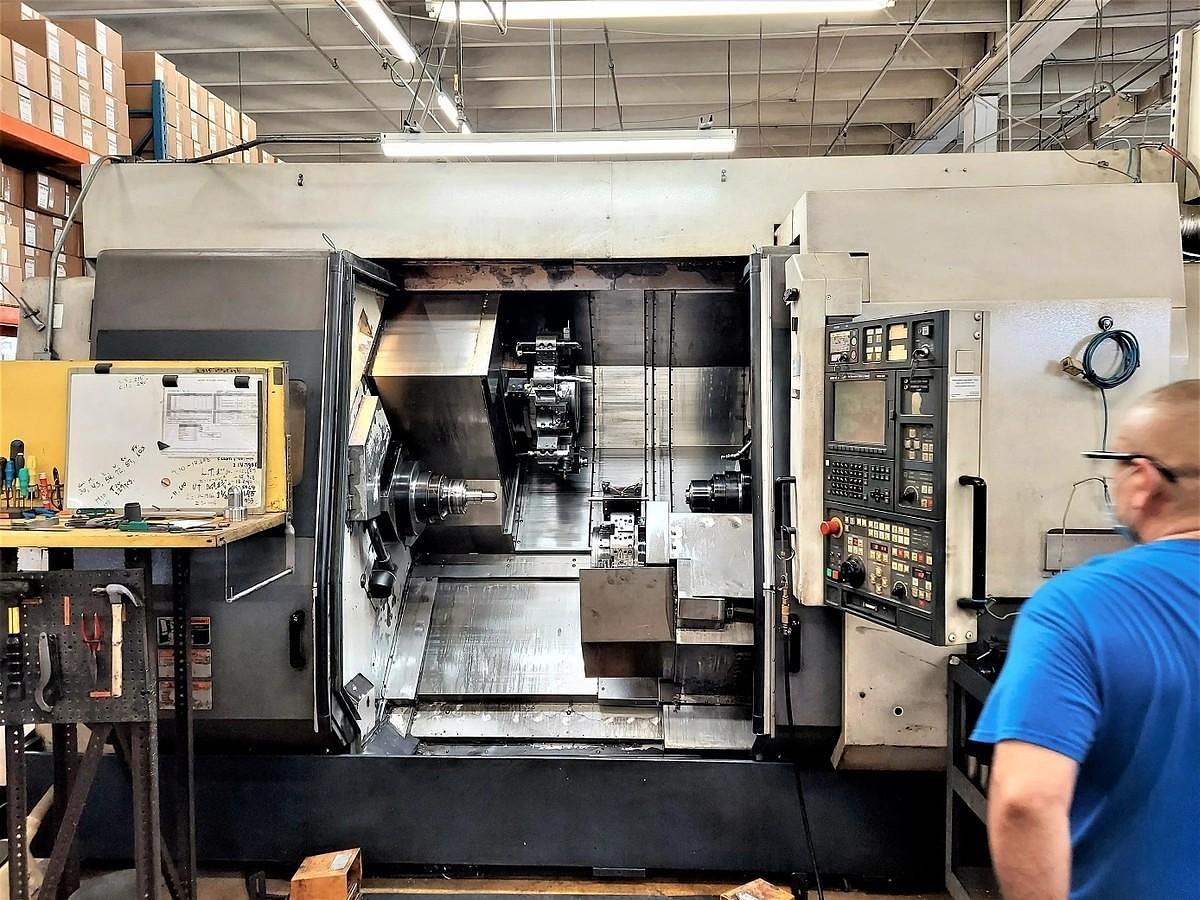

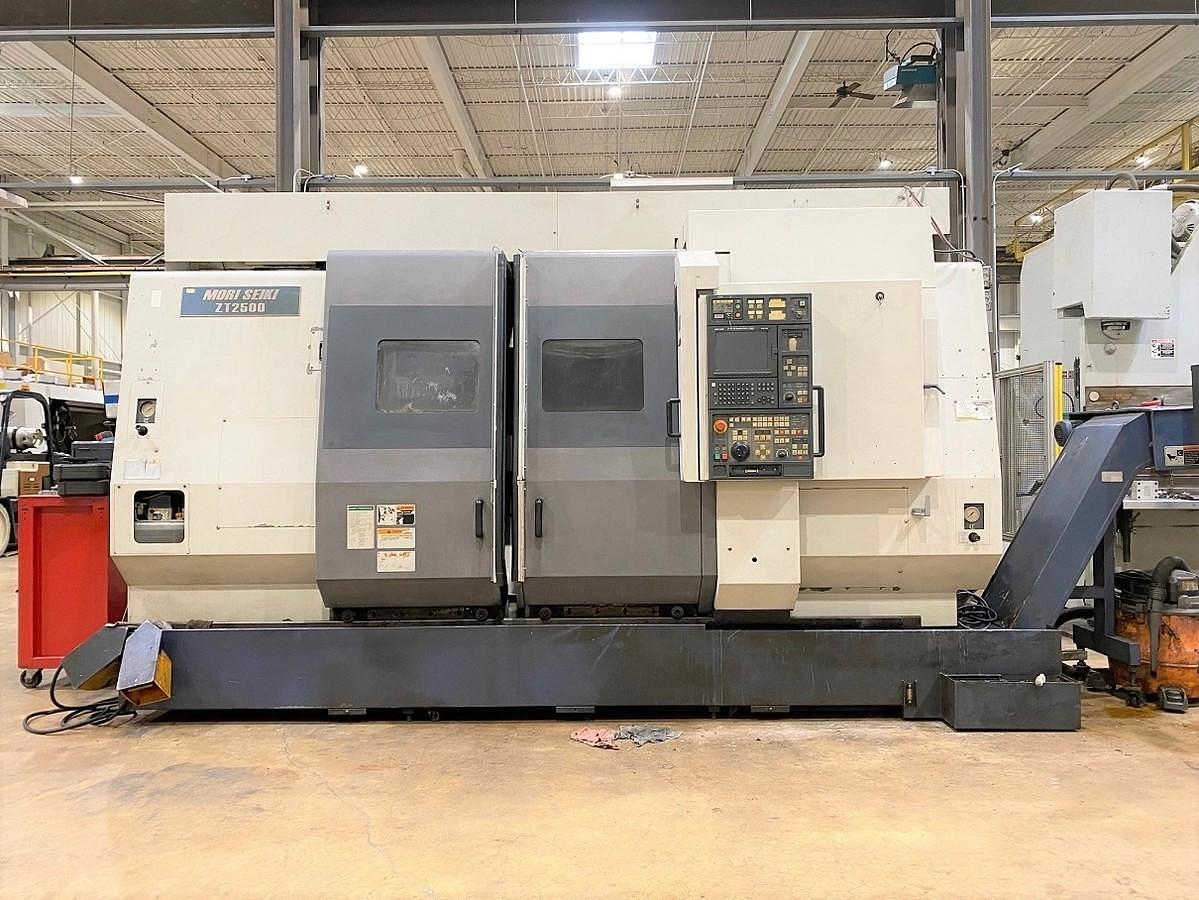

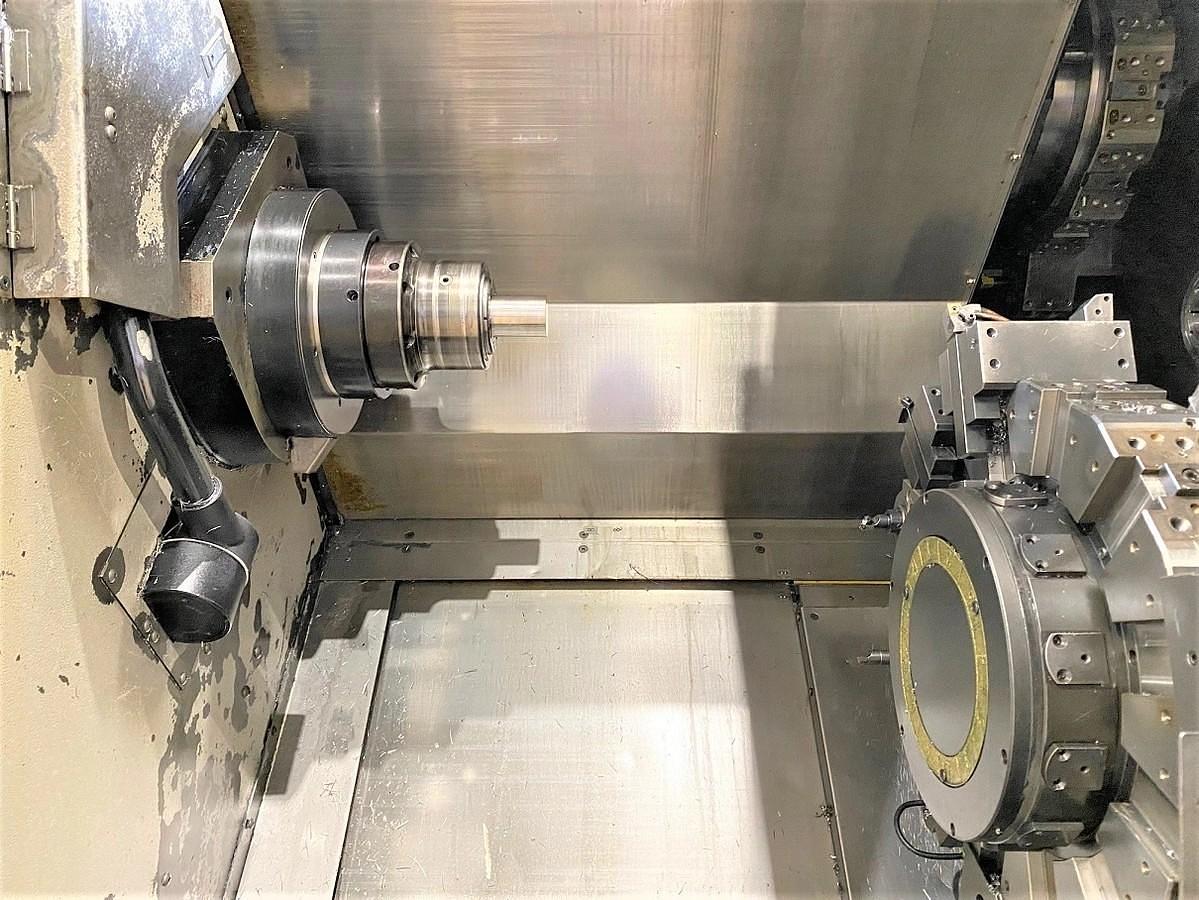

2001 Mori Seiki ZT2500Y
2001 Mori Seiki ZT2500Y
Contact us for price
Location:Illinois
or
Call (863) 439-6066
Description

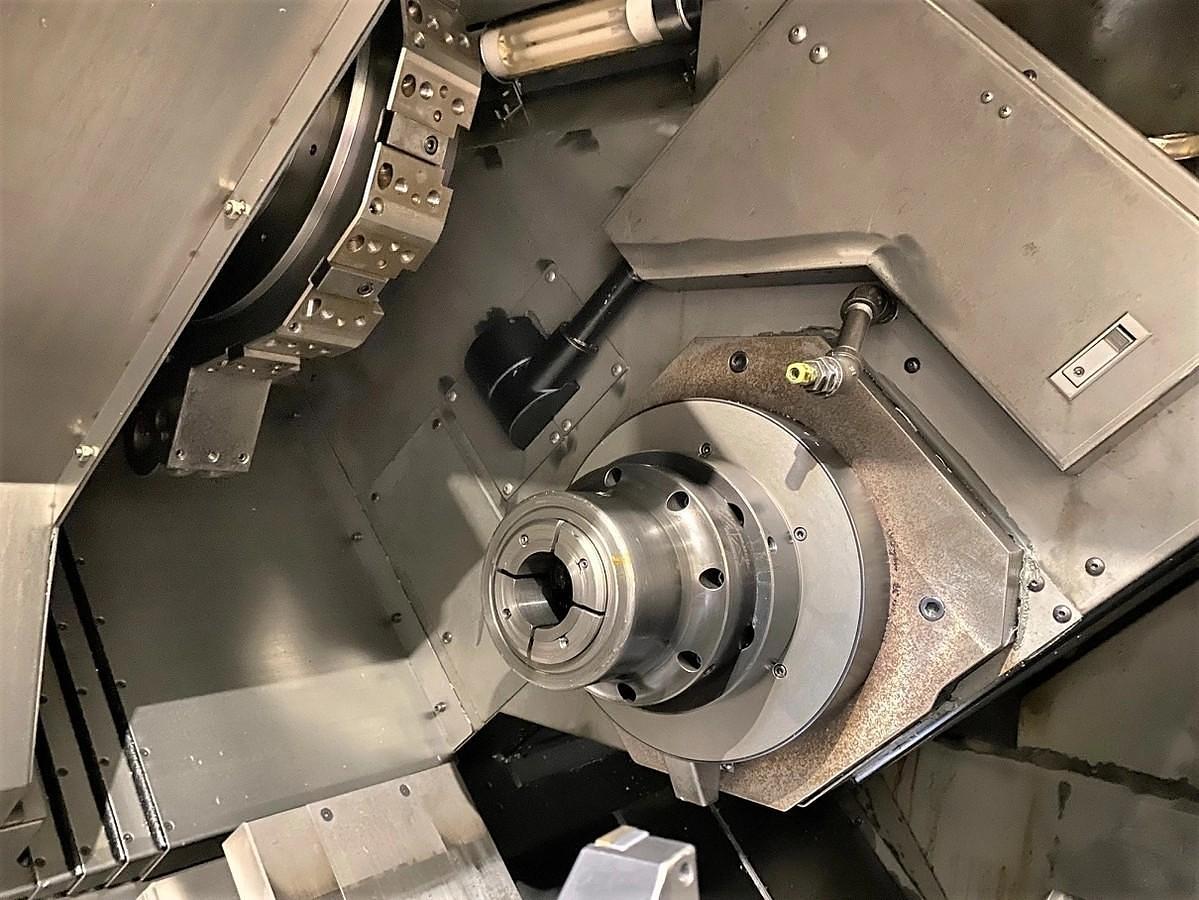

(2) 3-J Collet Chucks
Chip Conveyor
Y-Axis

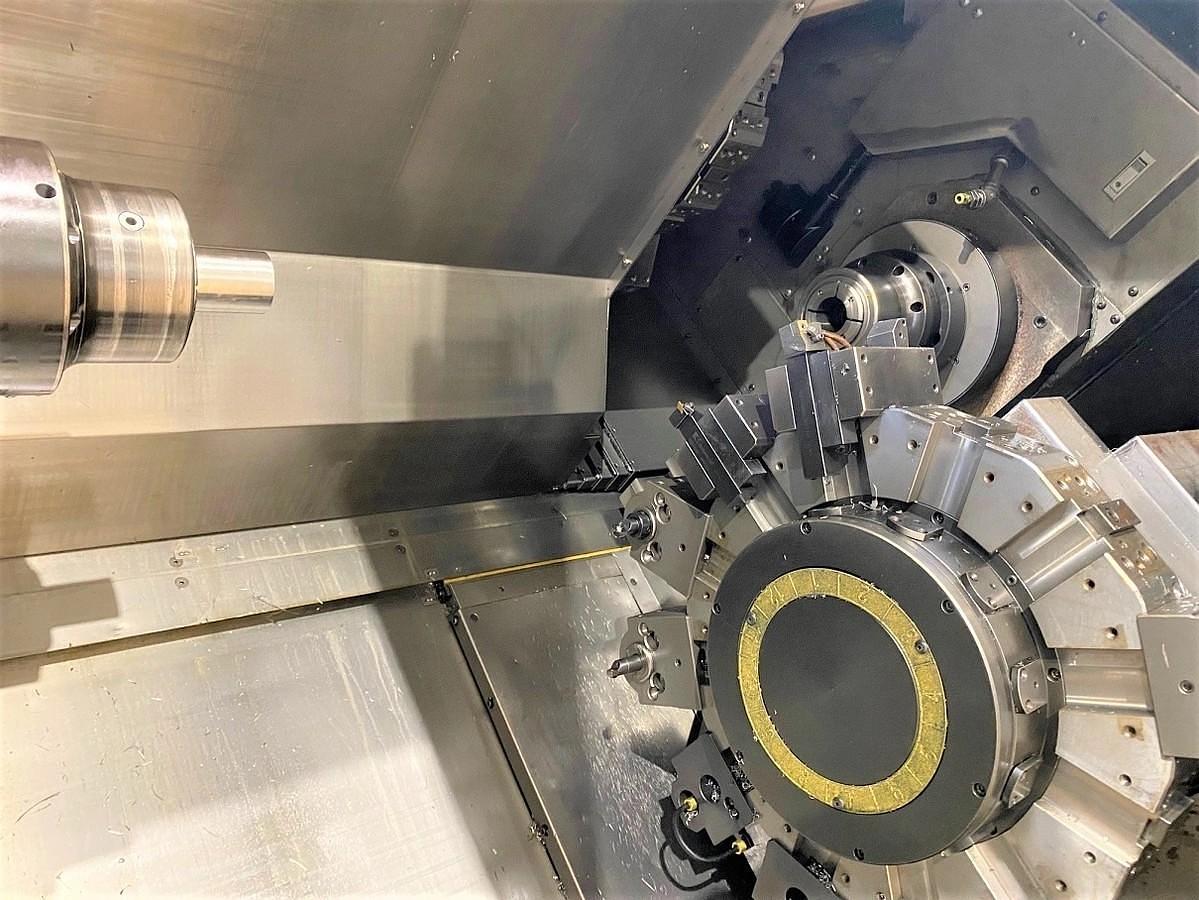

Live Tooling
Subspindle
Tool Presetter
Live Milling on all 12 Stations (Both) Live Tooling on Lower Turret not Curretnly Functional

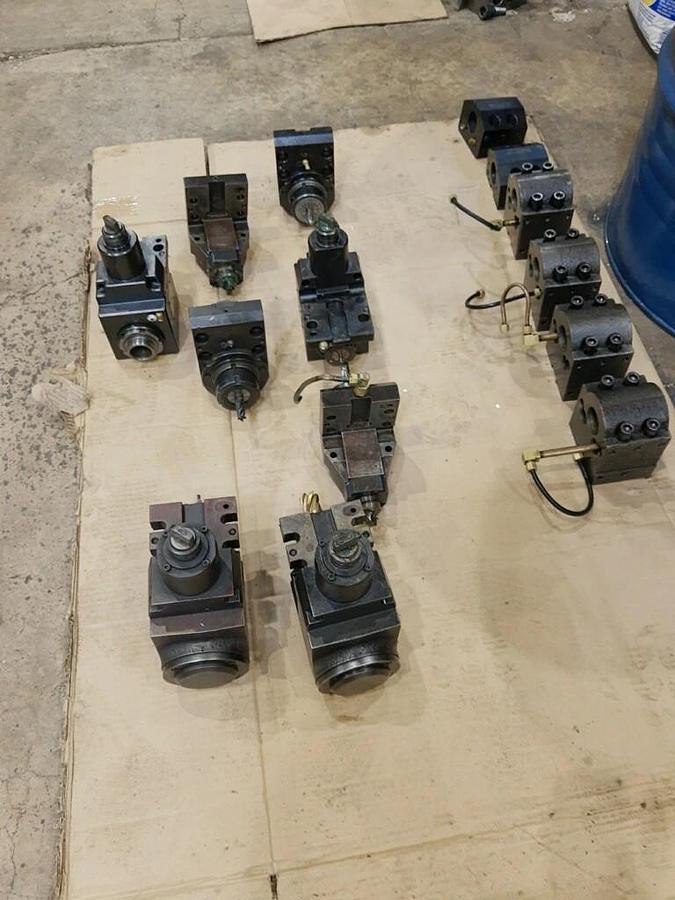

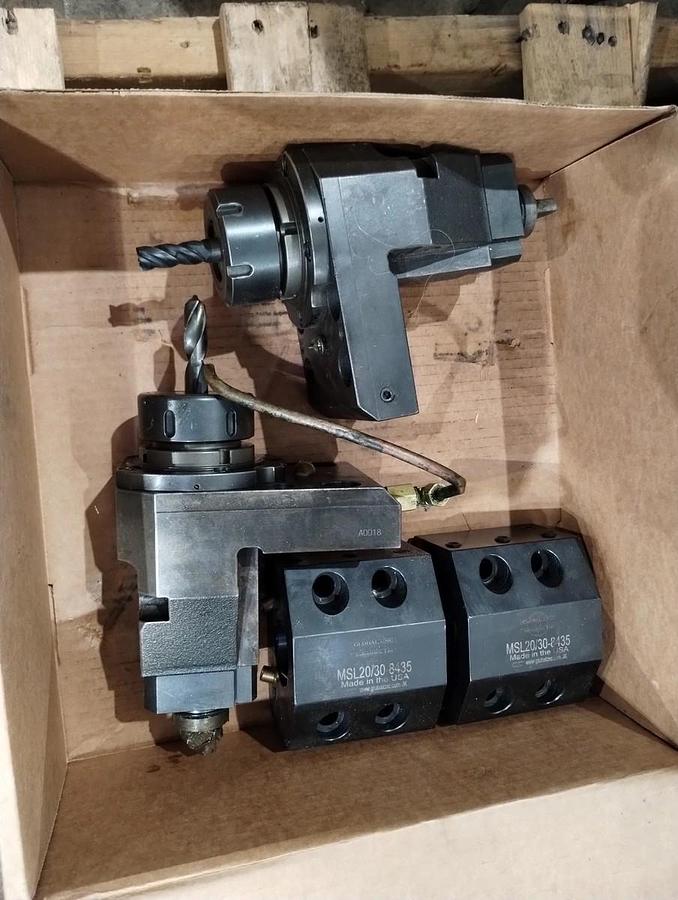

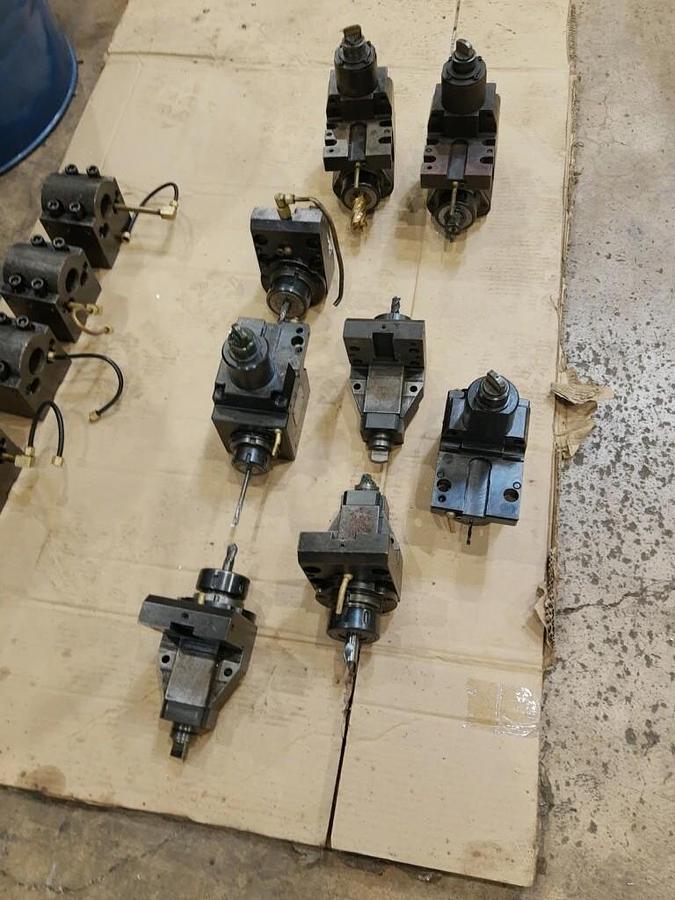

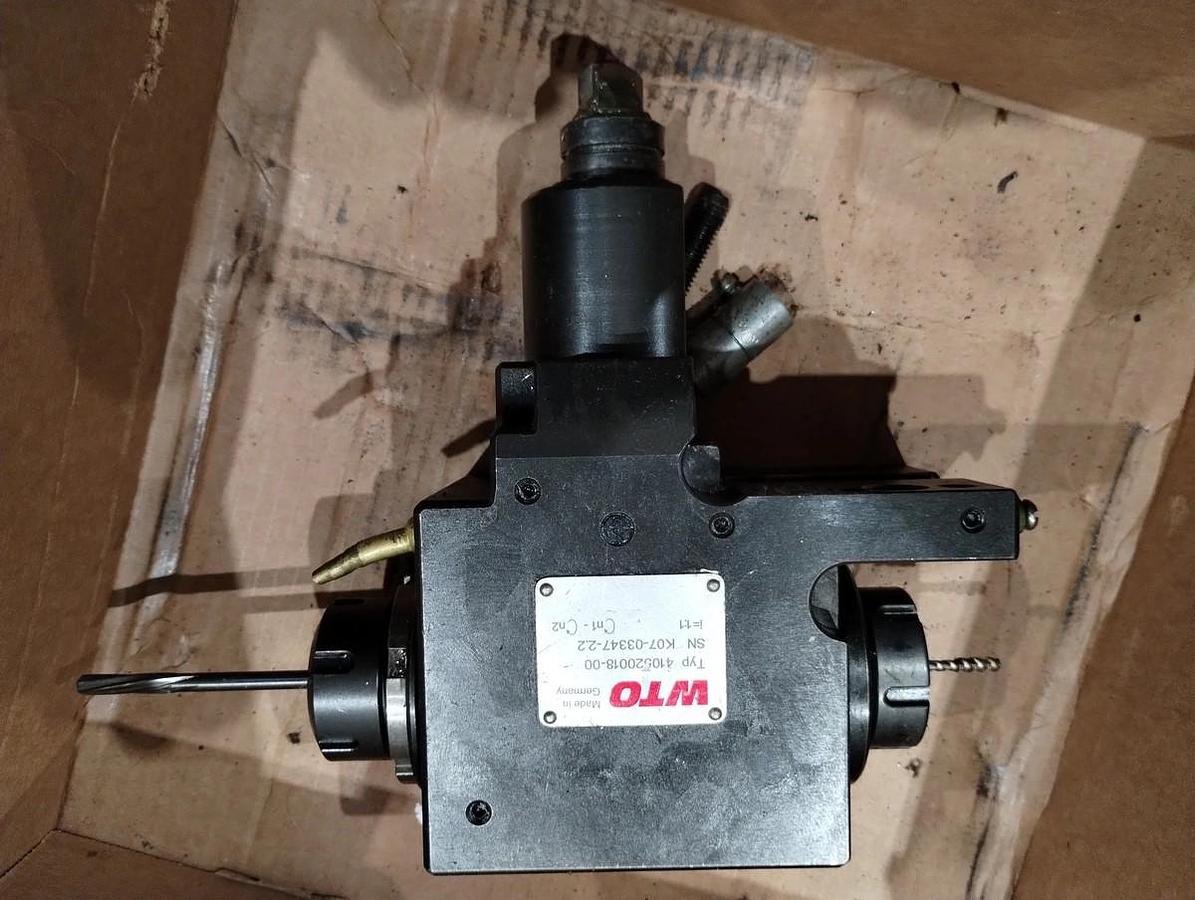

Approximately 10 Live Tool Holders

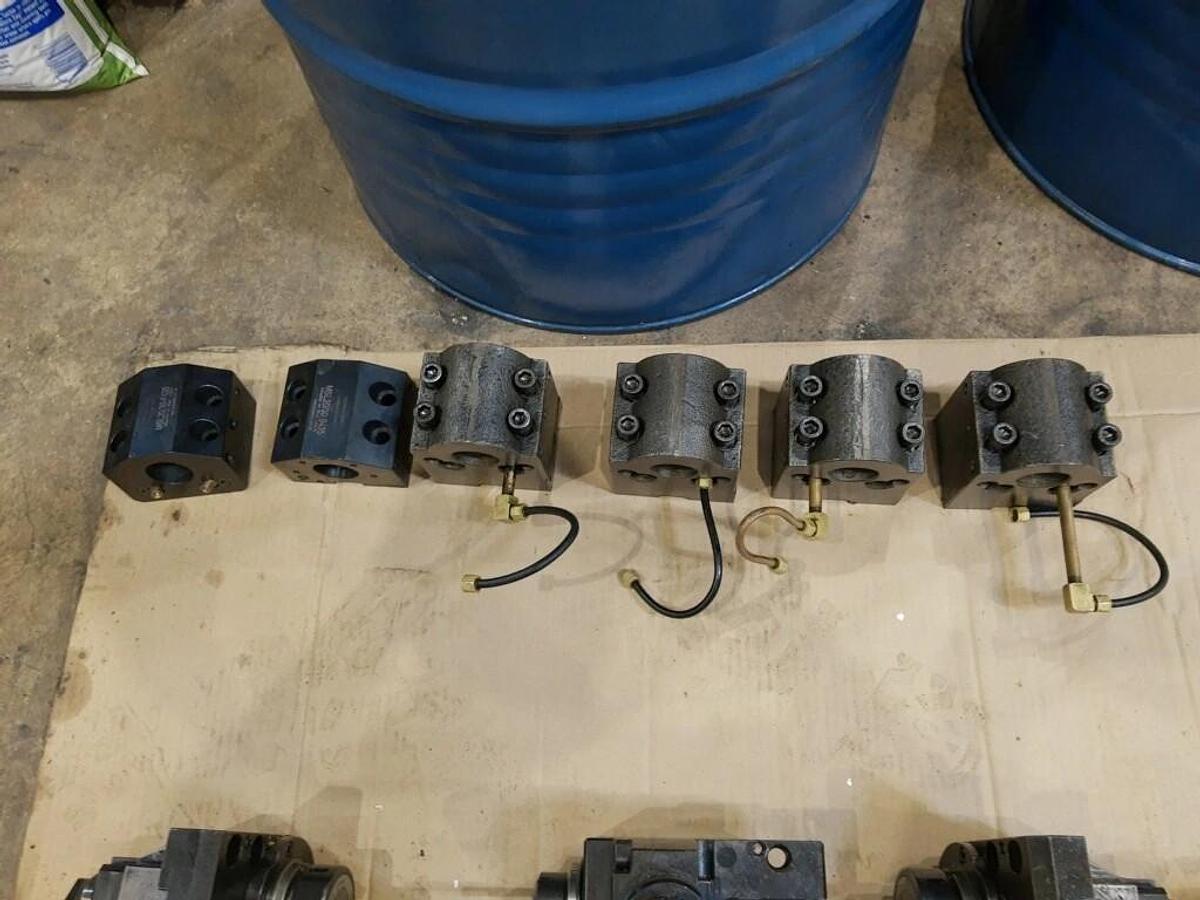

Miscellaneous Static Tool Holders
2-Chiller Units
Dust Collector
All Available Manuals
Specifications
| Manufacturer | Mori Seiki |
| Model | ZT2500Y |
| Year | 2001 |
| Condition | Used |
| Stock Number | 120760 |

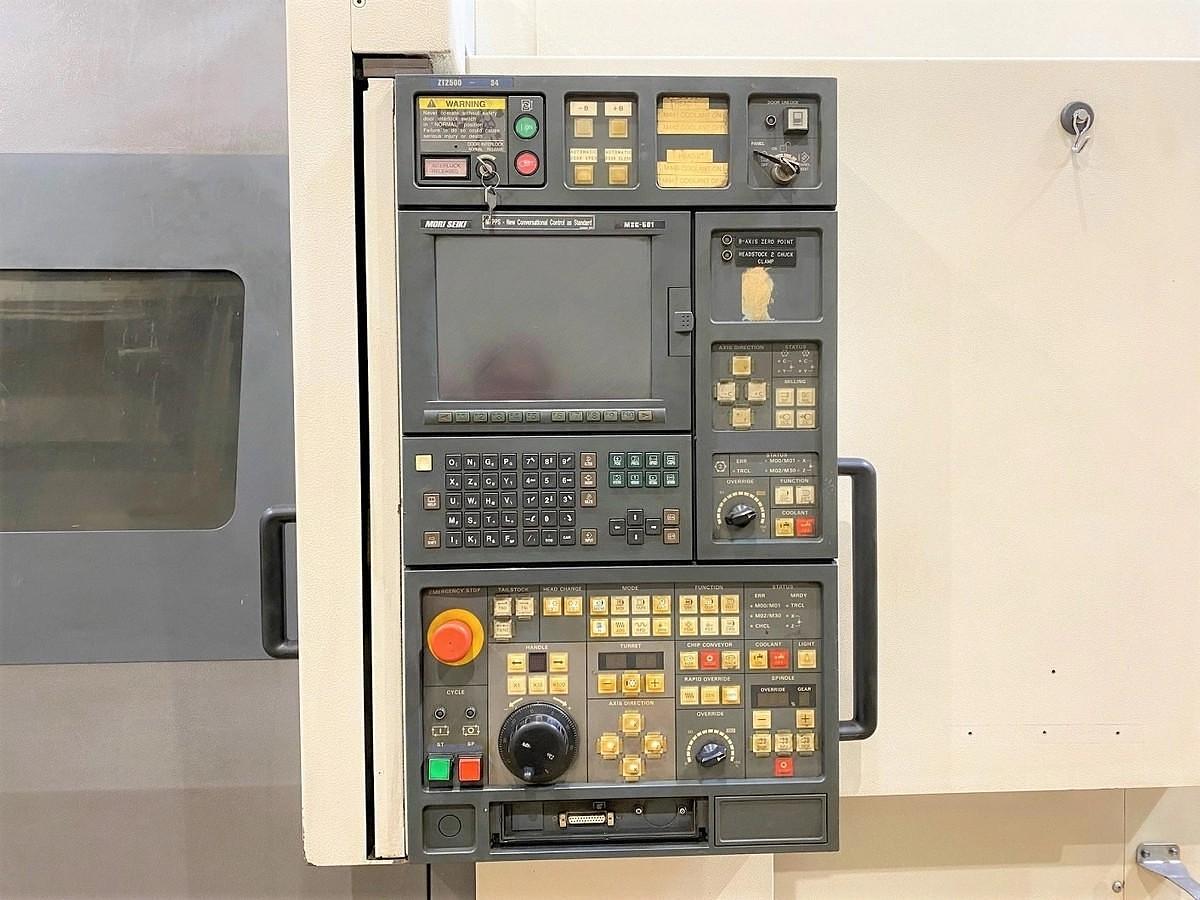

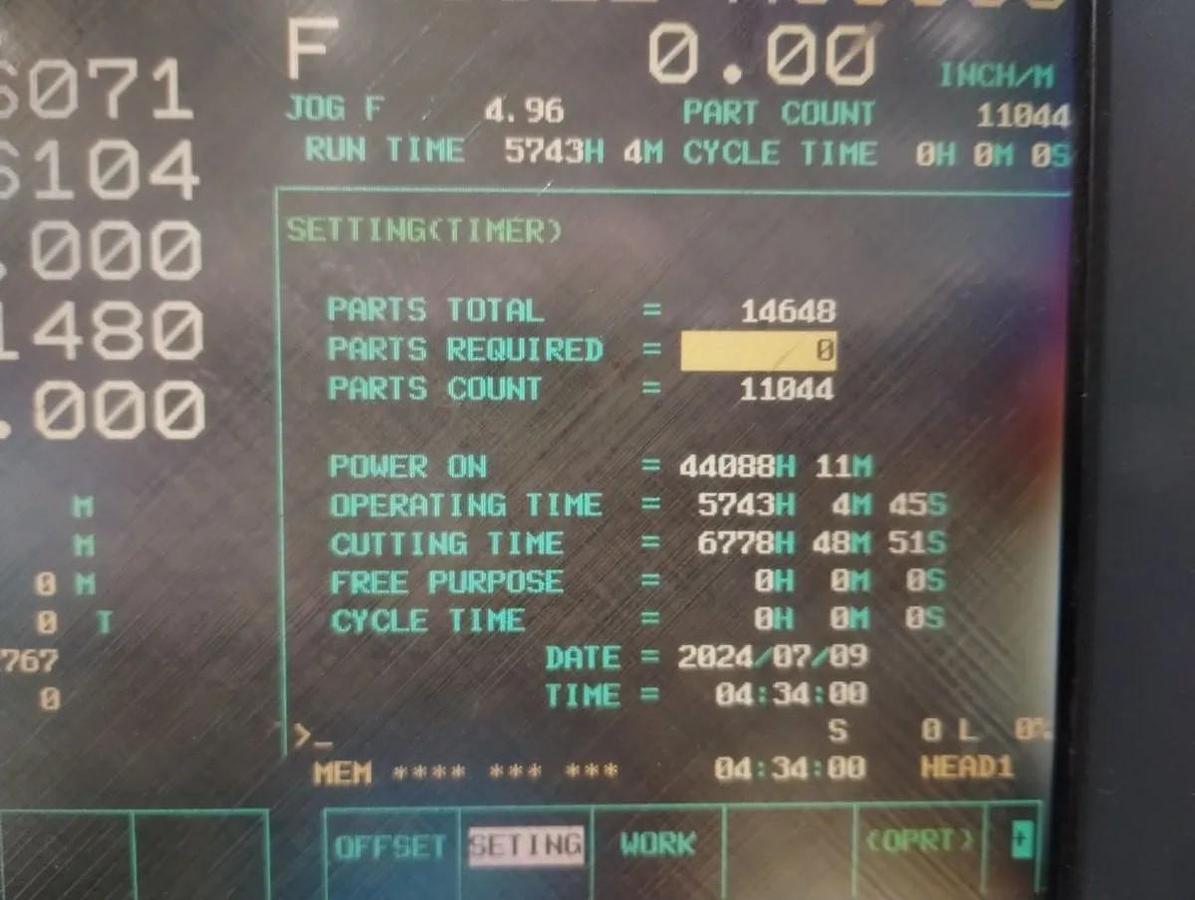

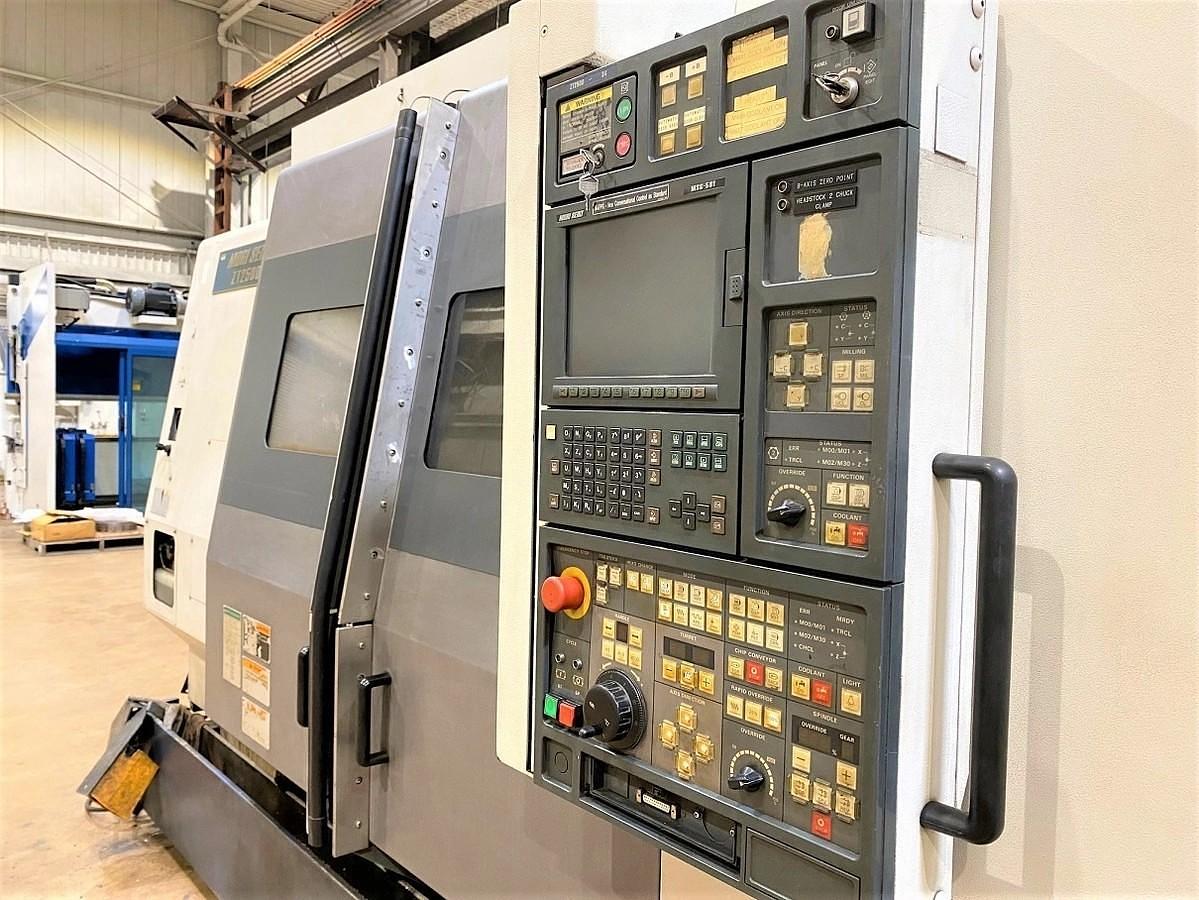

| Machine Control | Mori MSX-501 III |
| Chuck Size | 3-J Collet Chucks |
| Maximum Swing | 14.96" |
| Distance Between Spindles | 51.18" |
| Maximum Turning Diameter | #1 14.96", #2 14.17" |
| Maximum Turning Length | 51.18" |
| X-axis travel | #1 11.02", #2 7.87" |
| C-Axis Rotation | .001 Degrees |
| Y-Axis Travel | +/- 2.76" |
| Z-Axis Travel | 38.78" |
| B-Axis Travel (Subspindle) | 38.78" |
| Spindle Nose / Bore / Bar Capacity | A2-8 / 3.58" / 3.07" |
| Spindle Speeds | 40-4,000 rpm |
| Number of Turrets | 2 |
| Number of Turret Positions | 12 |
| Rotary Tool Speed / Rotary Motor | 4,000 rpm / 6 hp |
| Rapid Traverse Rates | 944 ipm |
| Machine Dimensions LxWxH | 185"x106"x108" |
| Machine Weight | 28,600 lbs |
| Chip Conveyor | 205"x70"x57" Aprx 450 lbs |
| Chiller Unit | 31"x20"x42" (2-Units) 150 lbs each |
| Dust Collector | 22.5"x17.5"x74" 120 lbs |
| Pallet of Miscellaneous Parts | 40"x33"x16" 80 lbs |
| Pallet of Guarding | 36"x36"x41.5" 80 lbs |
