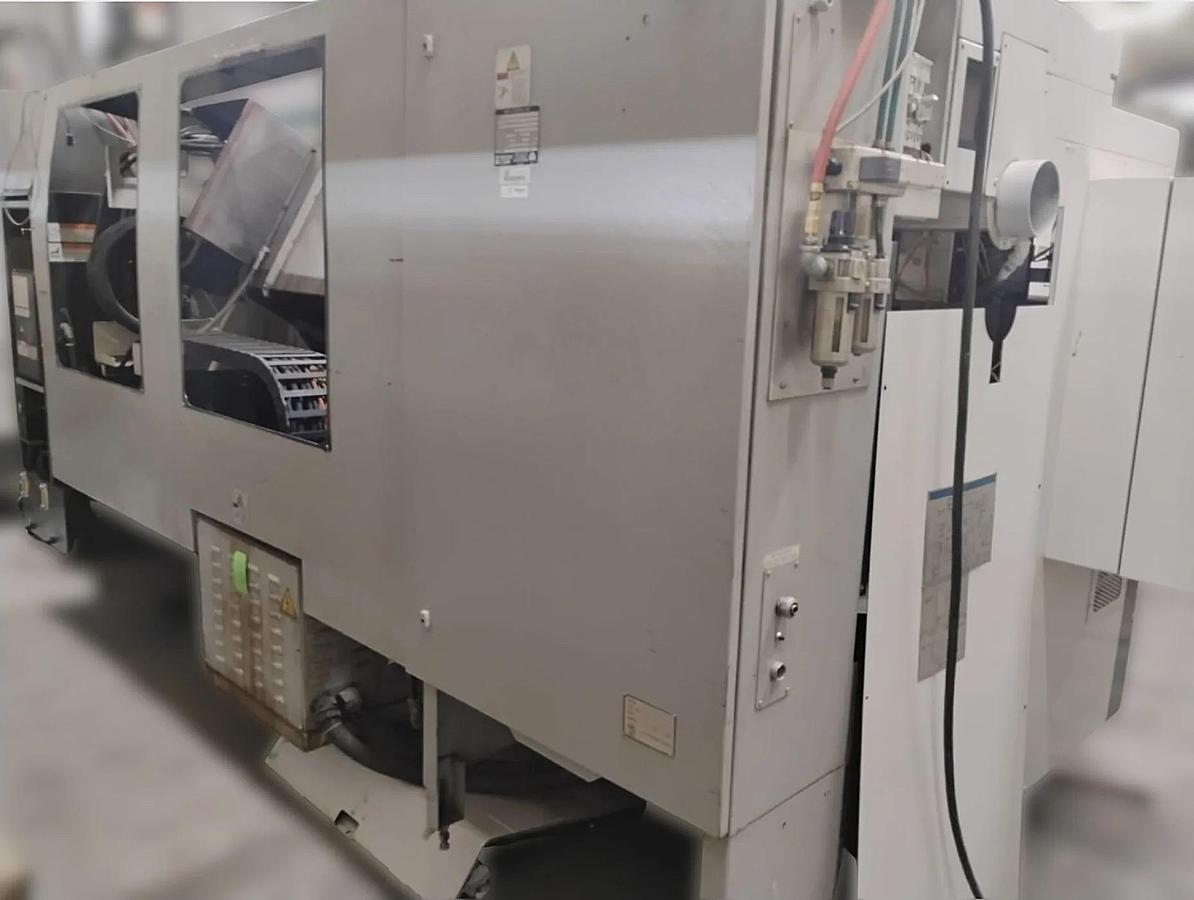

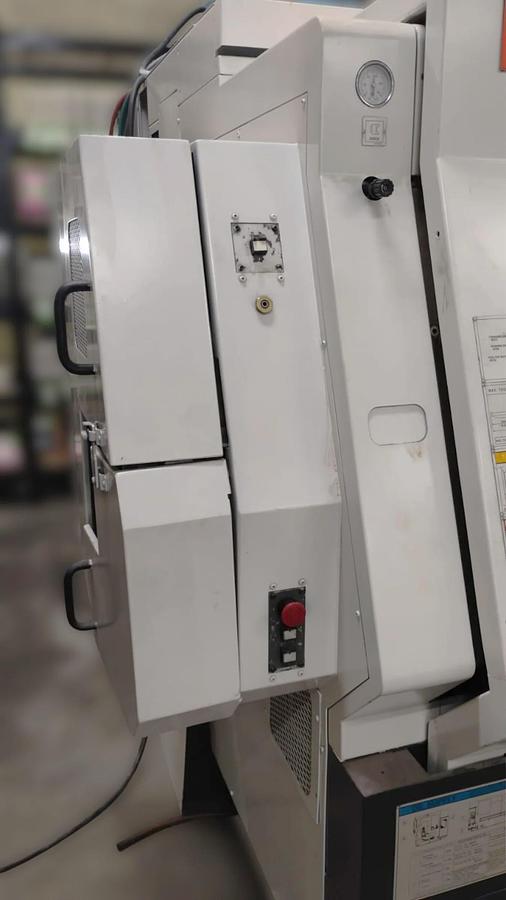

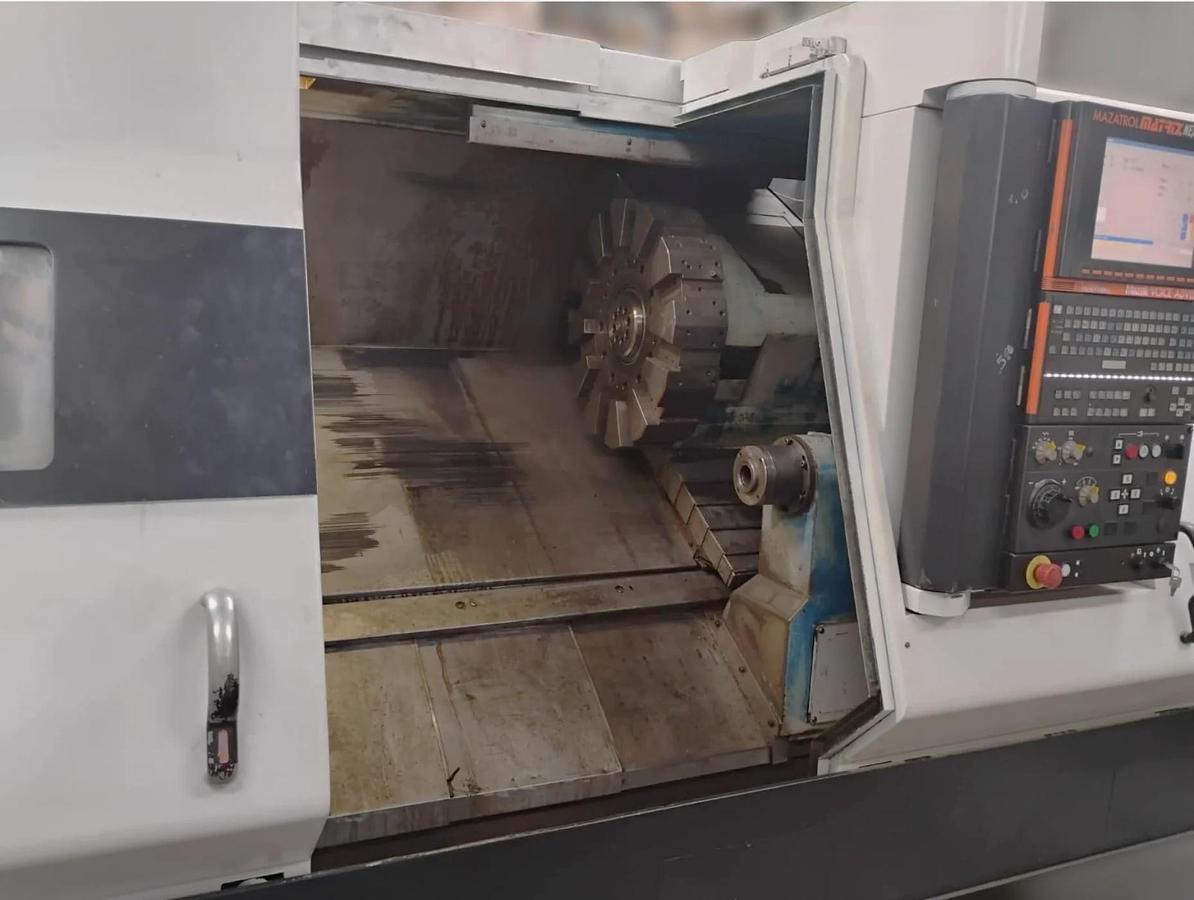

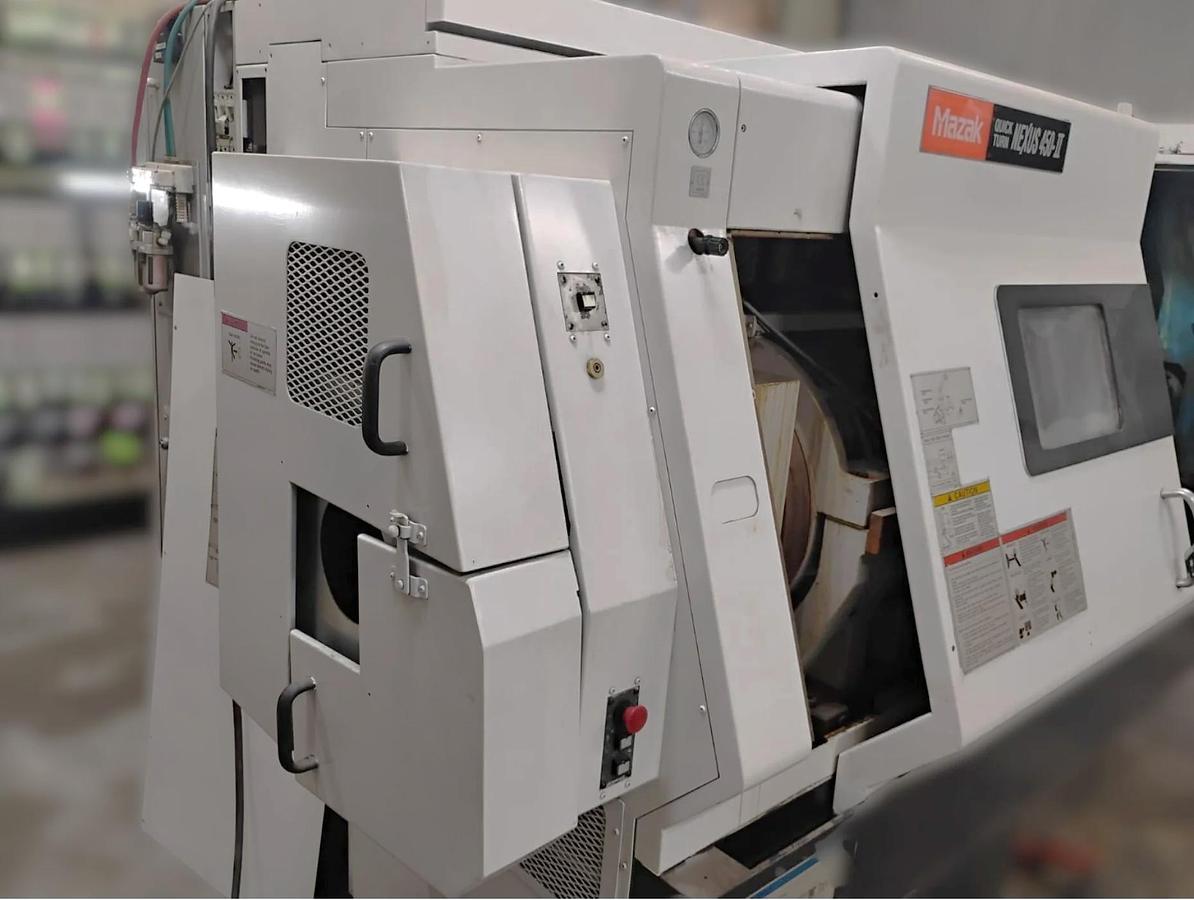

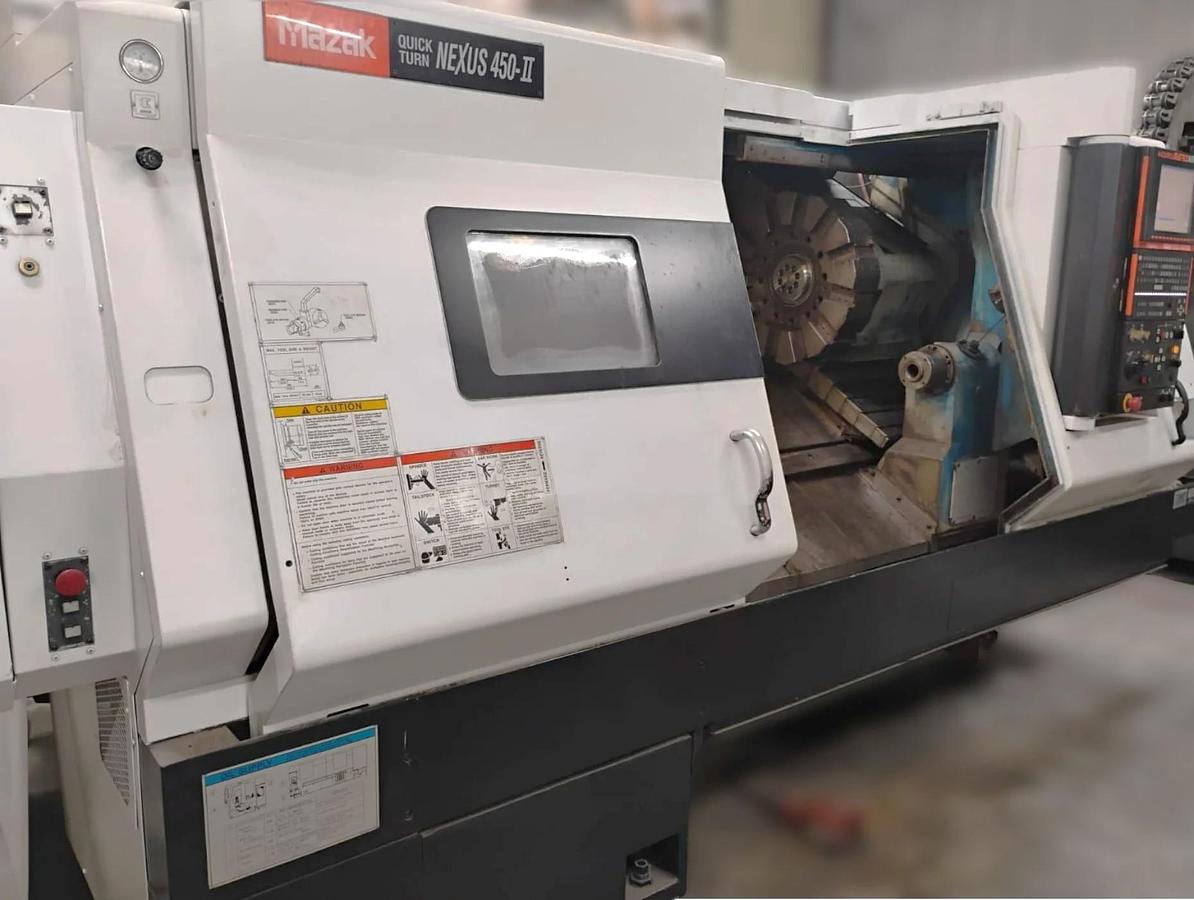

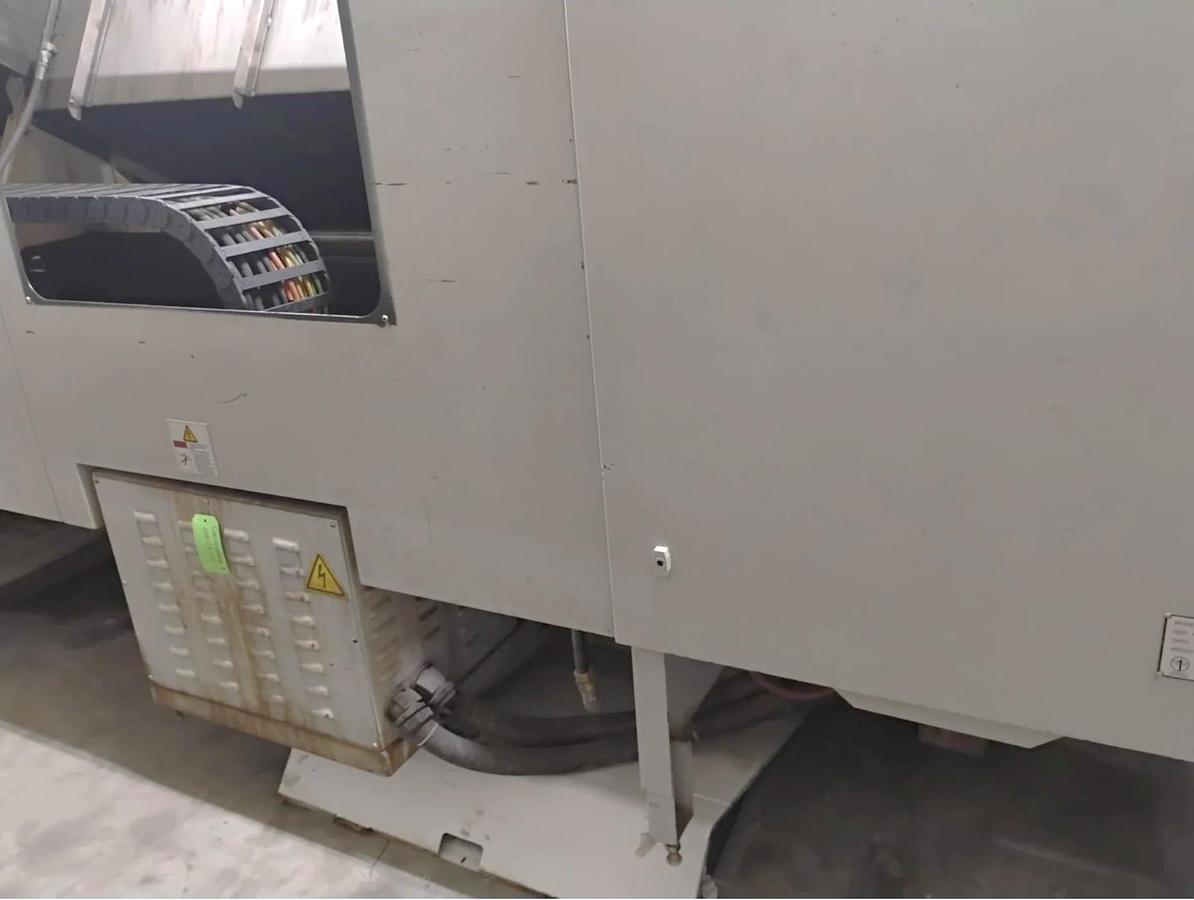

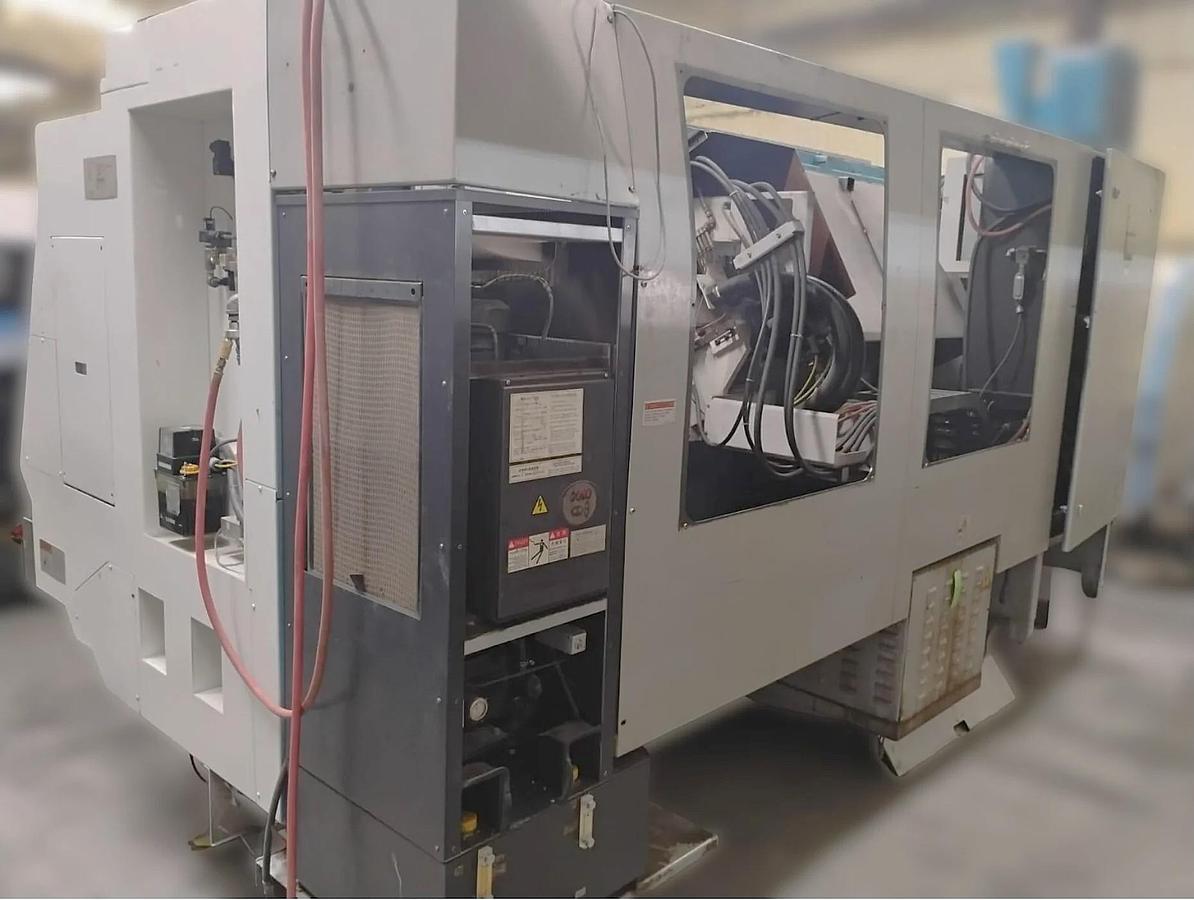

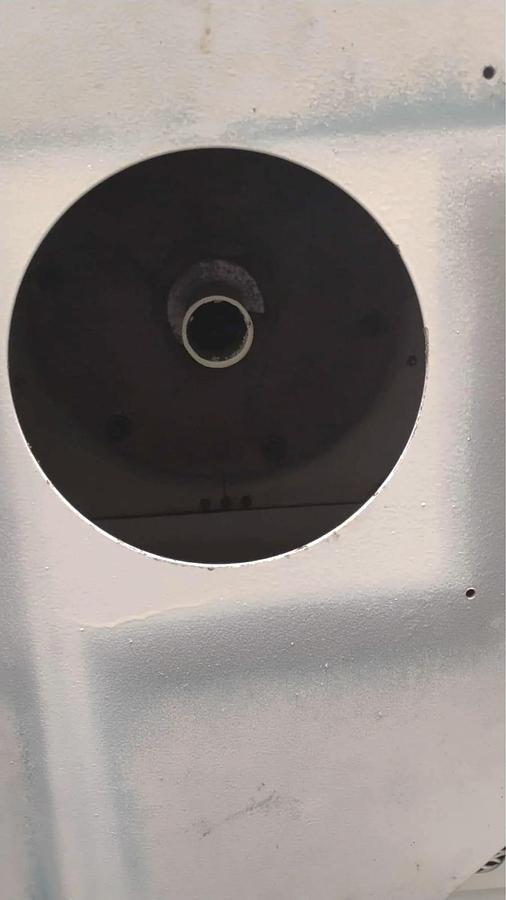

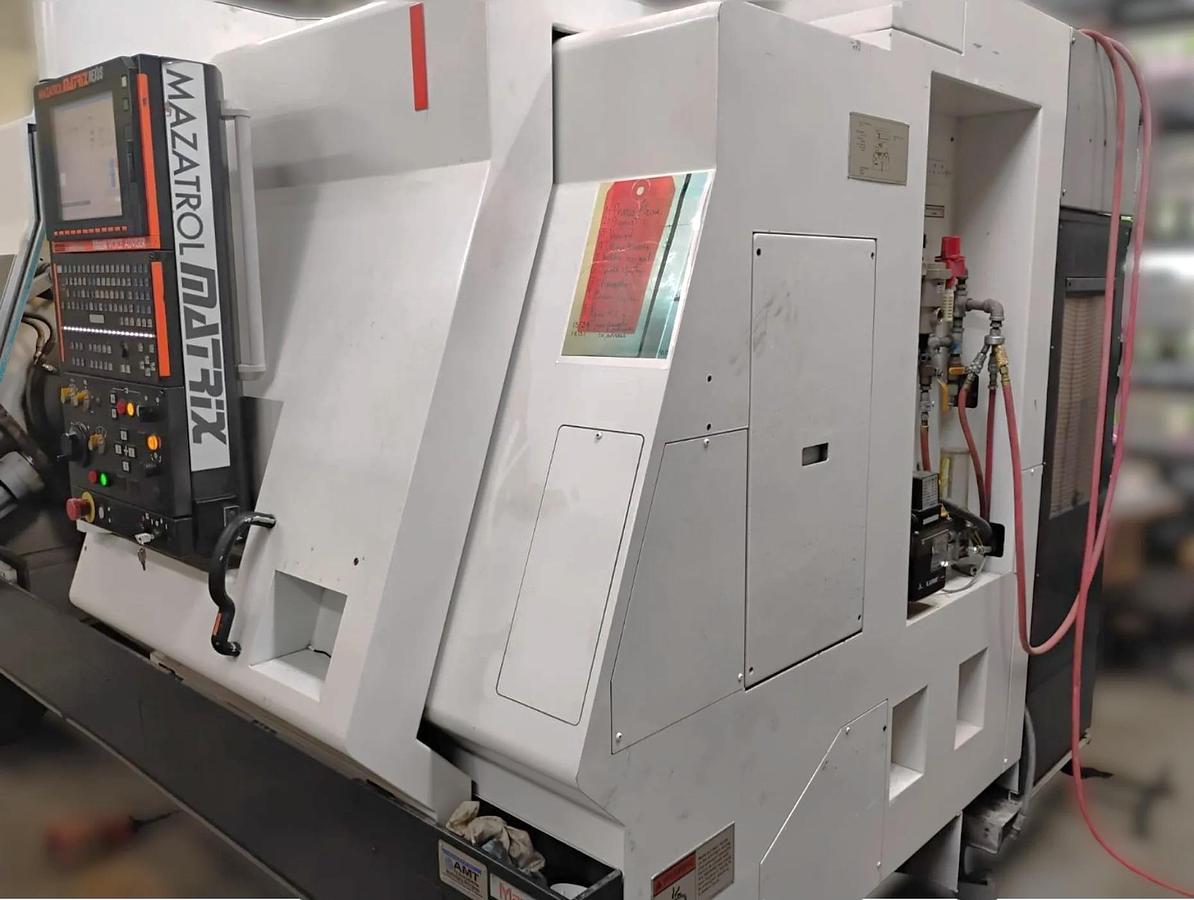

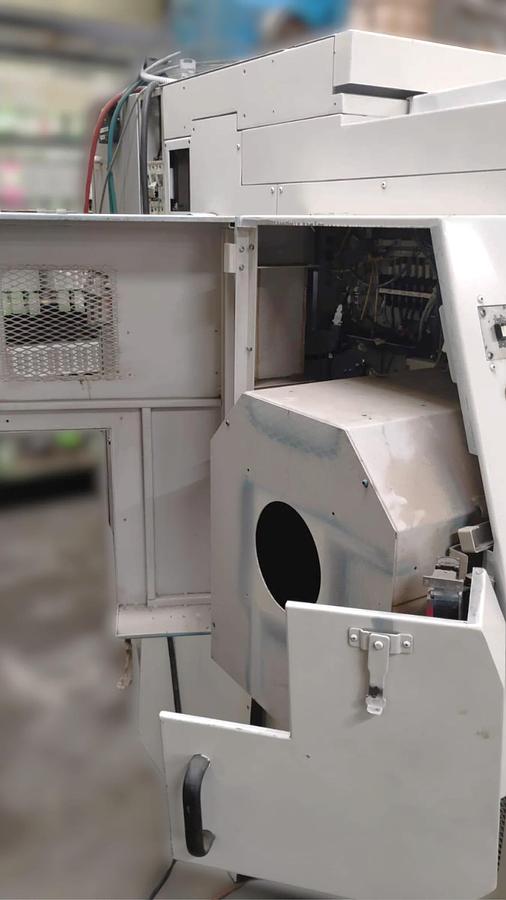

2007 Mazak Nexus QTN 450-II/1000 Big Bore with Chip Conveyor, 18" Air Chuck, 7" Bar Cap., Tailstock, Prep for Rear Chuck, EIA Programming
2007 Mazak Nexus QTN 450-II/1000 Big Bore with Chip Conveyor, 18" Air Chuck, 7" Bar Cap., Tailstock, Prep for Rear Chuck, EIA Programming
$79,000 (USD)
Location:Texas
or
Call (863) 439-6066
Description
18" 3 Jaw Air Chuck for full bore capability
Prep for Rear Chuck Mount
Programmable Tailstock
Chip Conveyor
Tool Presetter
EIA/ISO Programming
EIA Helical Tapping Cycle
EIA Pattern Cycle
Spiral Interpolation
Coordinate Rotation & Scaling
Geometric
External Data Input / Output
Polar Coordinates Input
Comparison Stop
G54.1
Variable 600 Sets
Pitch Error Compensation
12.1" Color LCD USB Interface (2 Ports) LAN Port Interface
RS 232 Port Interface
Multi-Tap Transformer (currently wired 208V)
Coolant System with Tank and Pump Windows XP Operation System All Available Manuals All Available Tooling
Specifications
| Manufacturer | Mazak |
| Model | Nexus QTN 450-II/1000 Big Bore |
| Year | 2007 |
| Condition | Used |
| Stock Number | 120758 |
| Control | Mazatrol Matrix Nexus |
| Chuck Size | 18" 3 Jaw Air Chuck |
| Maximum Swing | 33.268" |
| Maximum Turning Diameter | 22.835" |
| Maximum Turning Length | 40.3" |
| Maximum Bar Capacity | 7.0" (due to use of air chuck) |
| X-Axis Travel | 12.13" |
| Z-Axis Travel | 42.13" |
| Spindle Nose / Spindle Bore | A2-15" / 7.1" |
| Spindle Speeds | 2,000 RPM - Geared |
| Spindle Motor | 50 HP |
| Number of Turret Positions | 12 Position Turret |
| Rapid Traverse Rates | 1181 IPM |
| Tailstock Body Travel / Center | 40.375" / MT #5 |
| Machine Dimensions | 178"x99"x84" |
| Machine Weight | 21,283 lbs. |
