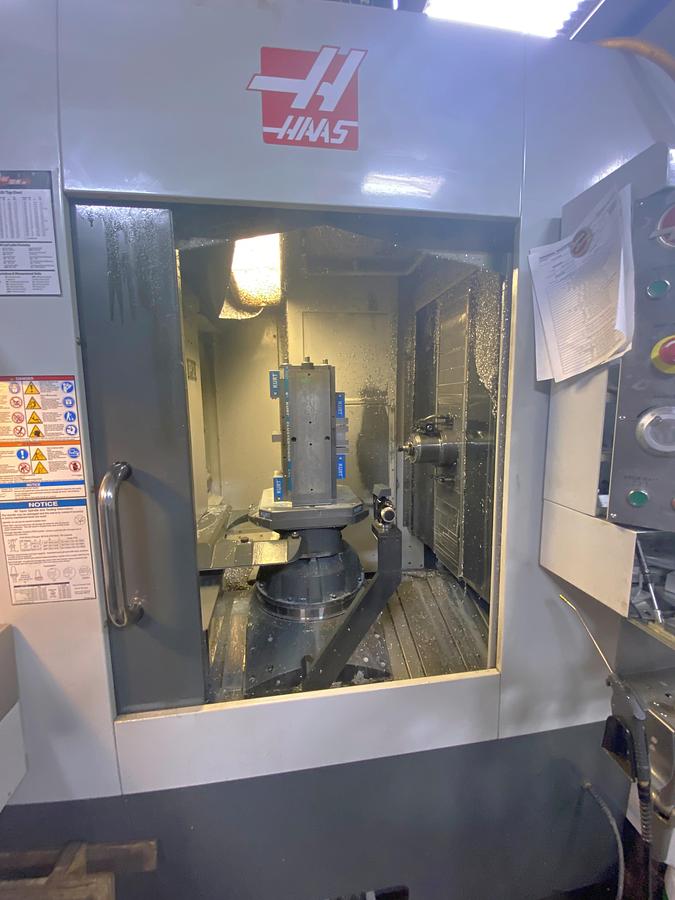

2013 Haas EC-400 with Full 4th Axis Rotary Tbl, Coolant Thru Spindle, Tool & Part Probing, 40 Station ATC, Hi-Spd Machining
2013 Haas EC-400 with Full 4th Axis Rotary Tbl, Coolant Thru Spindle, Tool & Part Probing, 40 Station ATC, Hi-Spd Machining
$69,500 (USD)
Location:New Jersey
or
Call (863) 439-6066
Description
2 Pallet Changer System
Full 4th Axis Rotary Table
Renishaw Wireless Intuitive Probing System (WIPS)
Coolant Thru the Spindle
12,000 RPM Spindle
40 Station Tool Changer
Chip Conveyor
High Speed Machining
Rigid Tapping
User Macros
Coordinate Rotation & Scaling
Spindle Orientation
Intuitive Programming System
Wired 195-260V Electrics
**Machine Manufactured New in December of 2013**
Specifications
| Manufacturer | Haas |
| Model | EC-400 |
| Year | 2013 |
| Condition | Used |
| Stock Number | 120756 |
| Pallet size / number of pallets | 15.75"x15.75" / 2 Pallet Changer |
| Table load capacity | 1,000 lbs |
| Pallet indexing | .001 Degree Full 4th Axis |
| X-axis travel | 22" |
| Y-axis travel | 25" |
| Z-axis travel | 22" |
| Spindle taper | CAT 40 |
| Spindle speed | 12,000 RPM |
| Spindle motor | 20 HP |
| Tool magazine capacity | 40 Station Tool Changer |
| Cutting feedrate | 500 IPM |
| Max. tool diameter | 3.0" |
| Rapid traverse rates | 1,000 IPM |
| Tool change time (tool to tool / chip to chip) | 2.1 seconds / 3.7 seconds |
| Machine dimensions lxwxh | 133" x 135" x 101" |
| Machine weight | 21,000 lbs. |
