2007 Haas SL-40T with Tailstock, Chip Conveyor, 15" Hydraulic Chuck, 4" Bar Capacity, Tool Presetter, Aux Coolant Filter
2007 Haas SL-40T with Tailstock, Chip Conveyor, 15" Hydraulic Chuck, 4" Bar Capacity, Tool Presetter, Aux Coolant Filter
$46,500 (USD)
Location:California
or
Call (863) 439-6066
Description

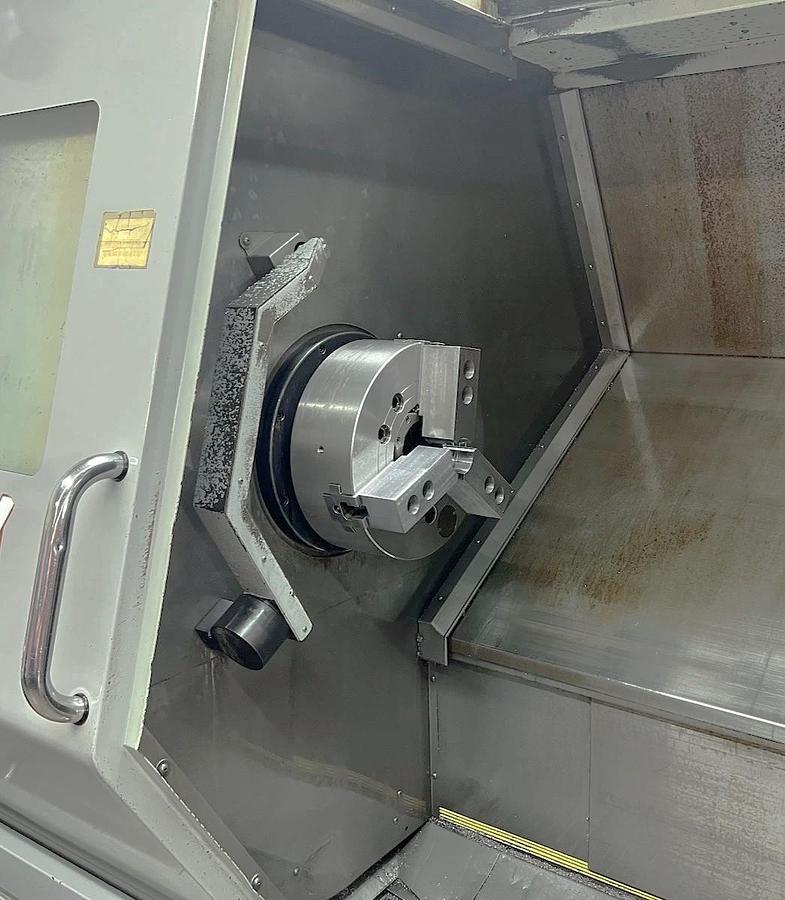

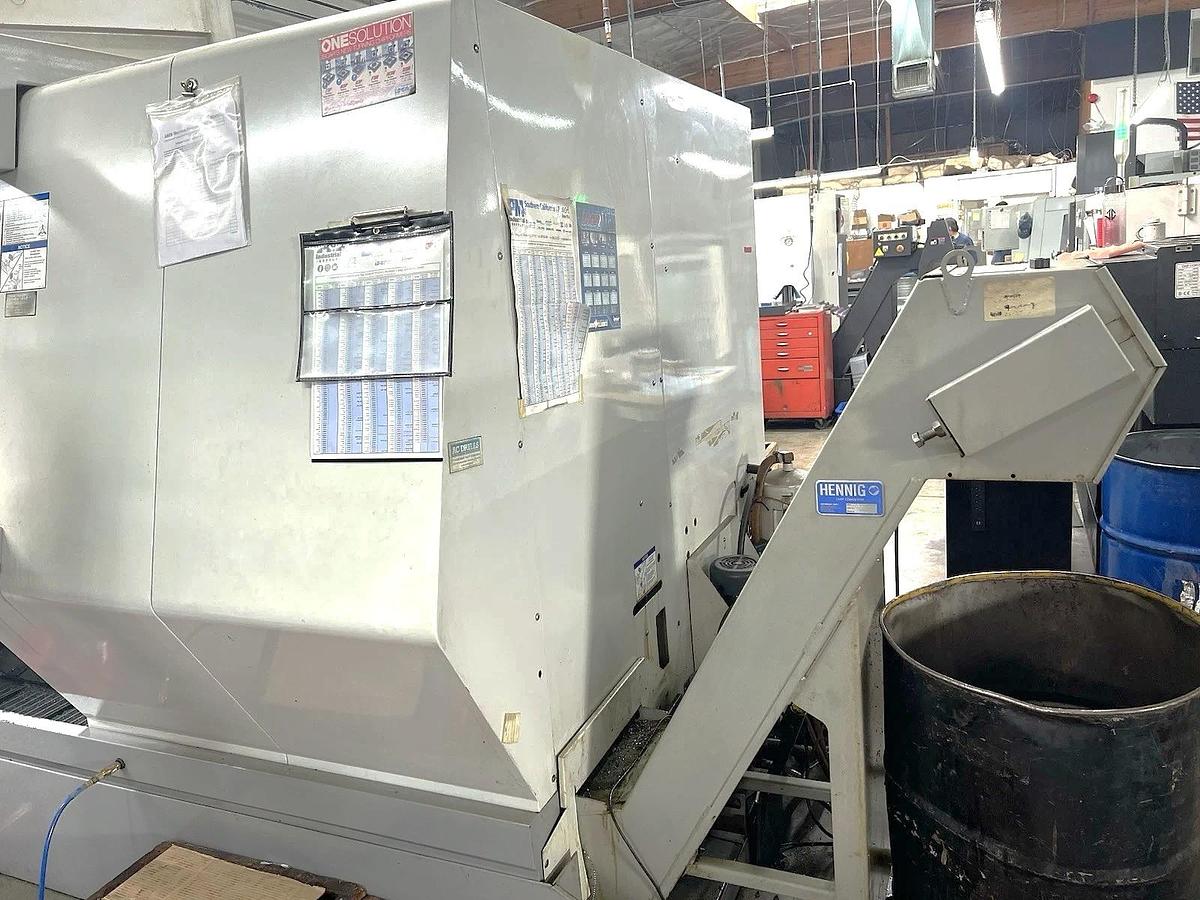

15" 3 Jaw Hydraulic Chuck 4" Bar Capacity Tool Presetter Chip Conveyor - Belt Style

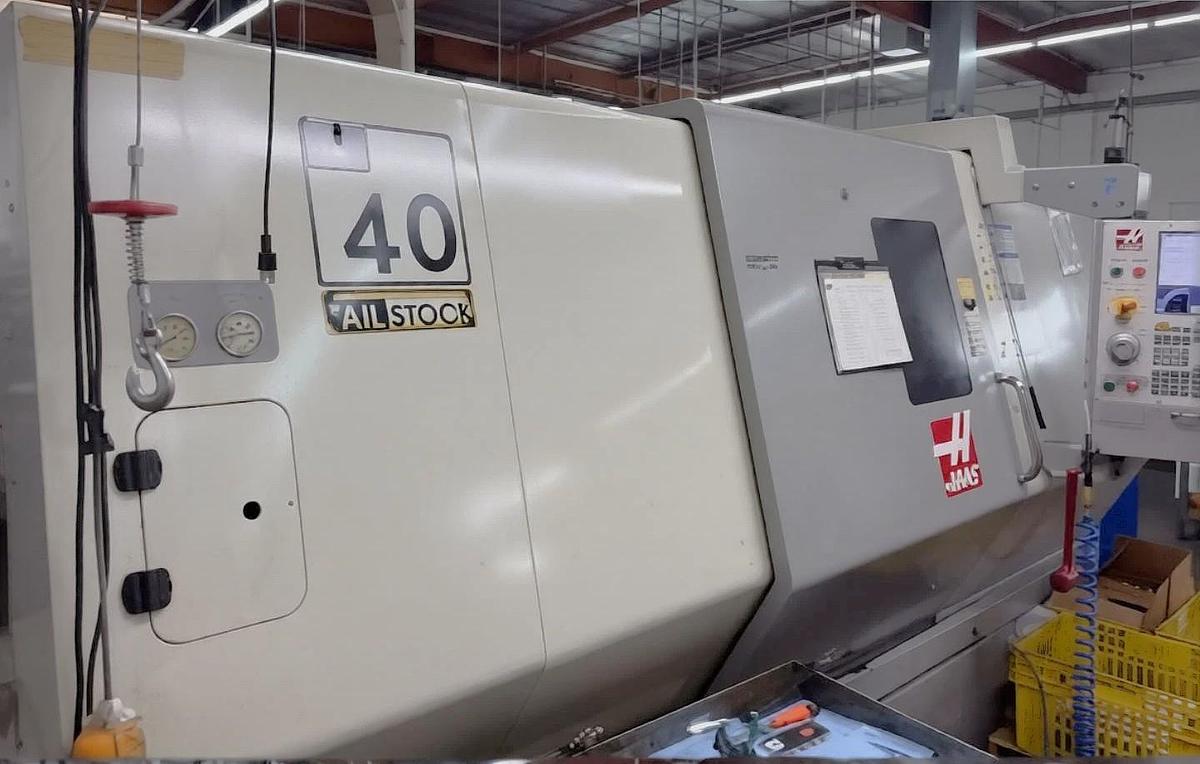

Fully Programmable Tailstock
10 Station Bolt on Style Turret

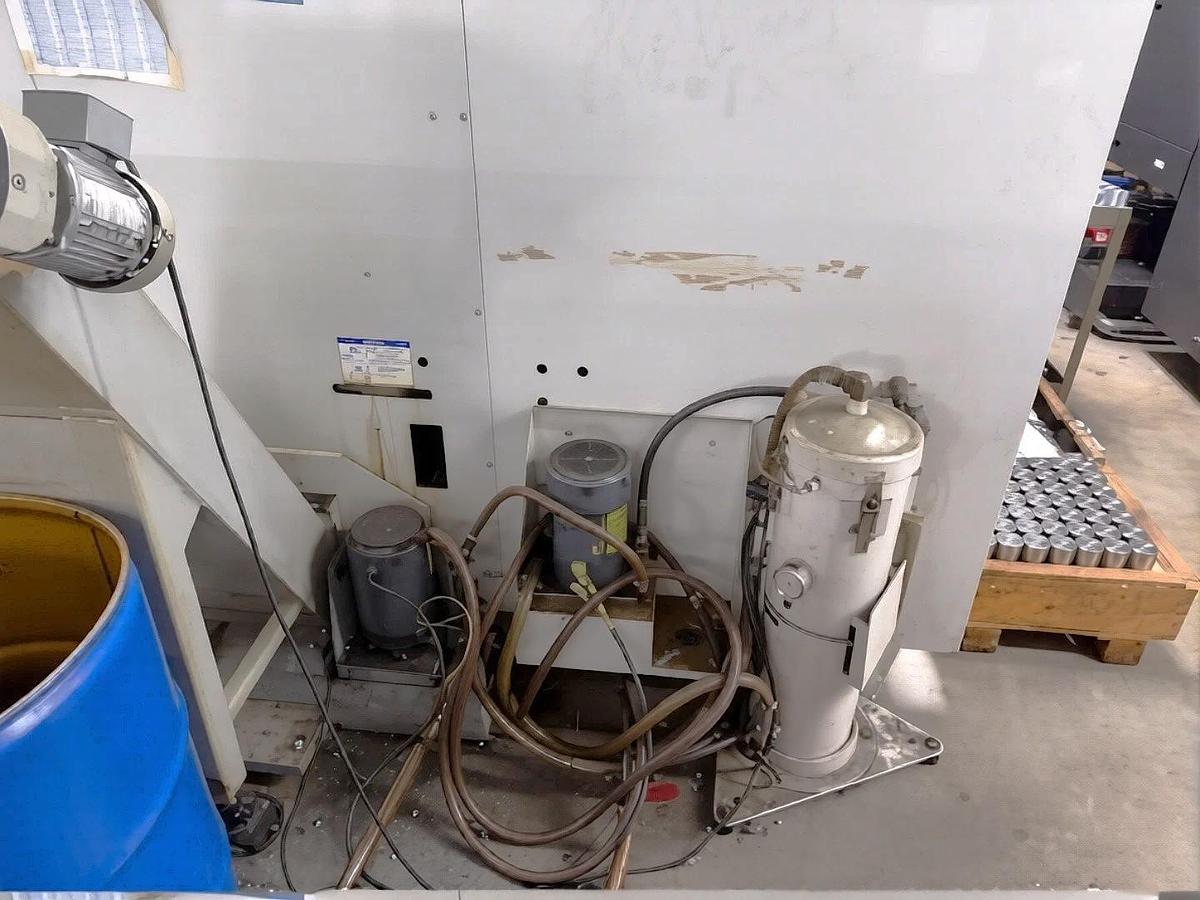

Auxiliary Coolant Filter System
RS 232 Port Interface Rigid Tapping 95 Gallon Coolant Tank with Pump

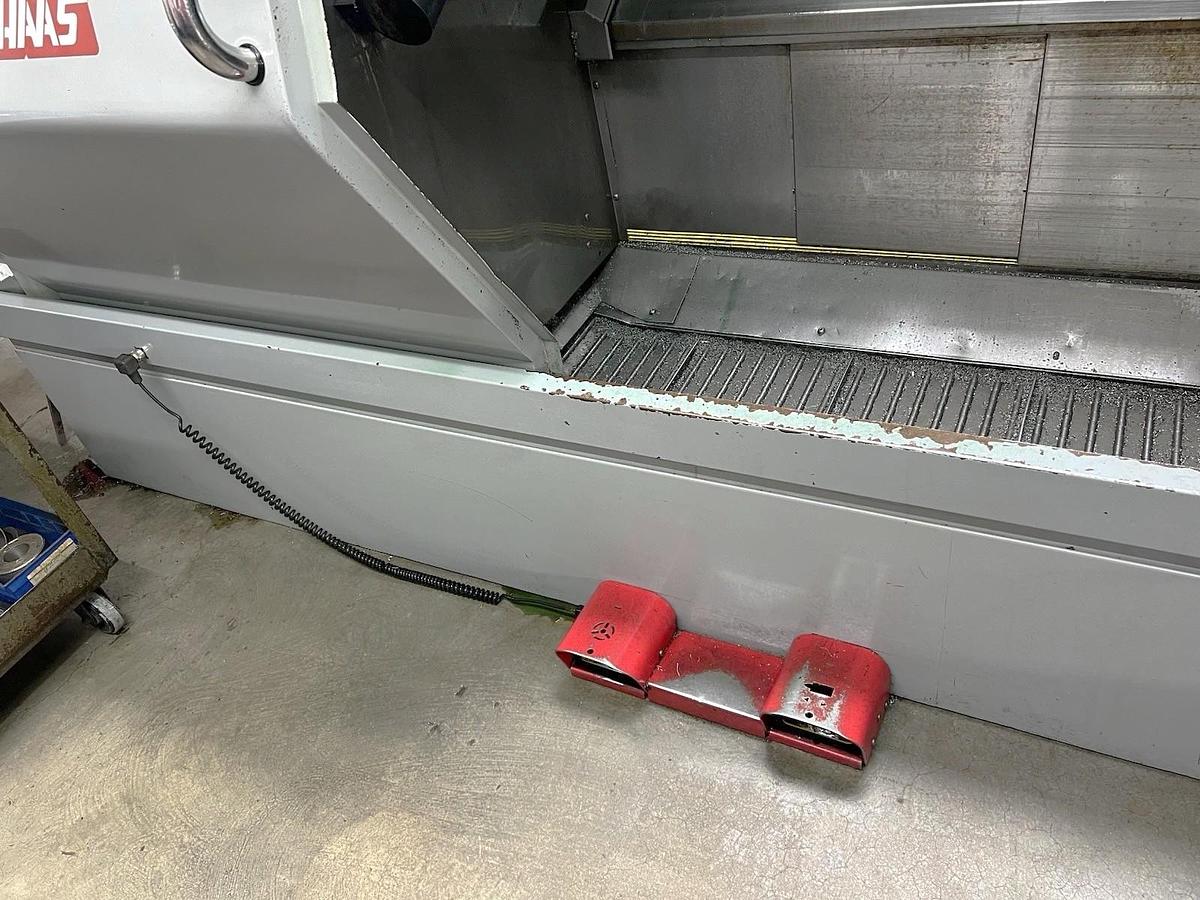

Foot Pedals for Chuck and Tailstock All Available Manuals
All Available Tool Blocks
Wired 208/250V Electrics

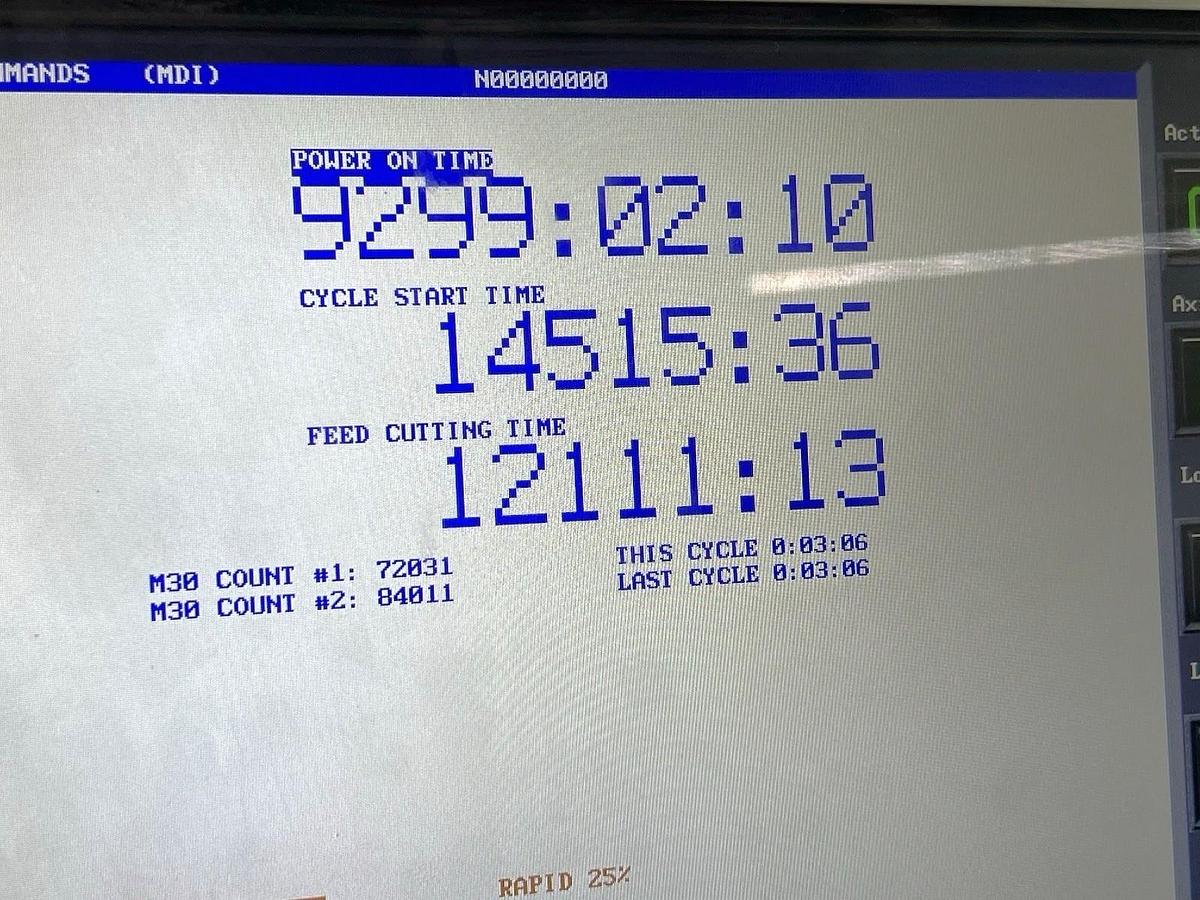

**Machine Showing 12,111 Feed Cutting Hours**
**Manufactured new in December of 2007**
Specifications
| Manufacturer | Haas |
| Model | ST-40T |
| Year | 2007 |
| Condition | Used |
| Stock Number | 120754 |

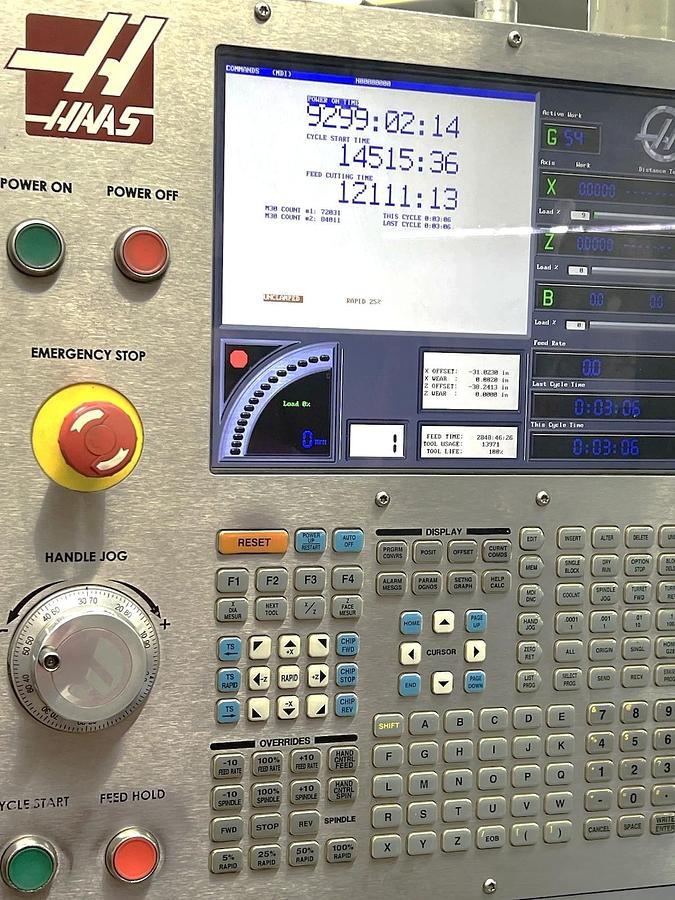

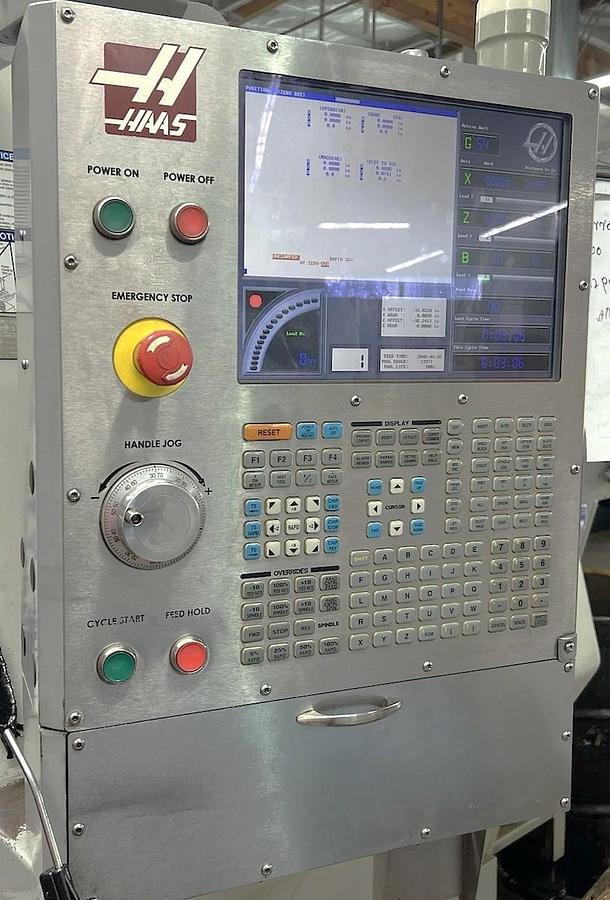

| Control | Haas CNC Control |
| Chuck Size | 15" 3 Jaw Hydraulic Chuck |
| Maximum Swing | 40" |
| Maximum Swing Over Cross Slide | 25" |
| Maximum Cutting Diameter | 25.5" |
| Maximum Cutting Length | 44" |
| Maximum Distance Between Centers | 51" |
| Maximum Bar Capacity | 4.06" |
| X-Axis Travel | 17" |
| Z-Axis Travel | 44" |
| Spindle Nose / Spindle Bore | A2-8" / 4.62" |
| Spindle Speeds | 2,400 RPM |
| Spindle Motor | 40 HP |
| Number of Turret Positions | 10 Station Turret |
| Rapid Traverse Rates | 710 IPM |
| Tailstock Body Travel / Tailstock Taper | 44" / MT #5 |
| Machine Dimensions | 170" x 102" x 89" |
| Machine Weight | 23,000 lbs. |
