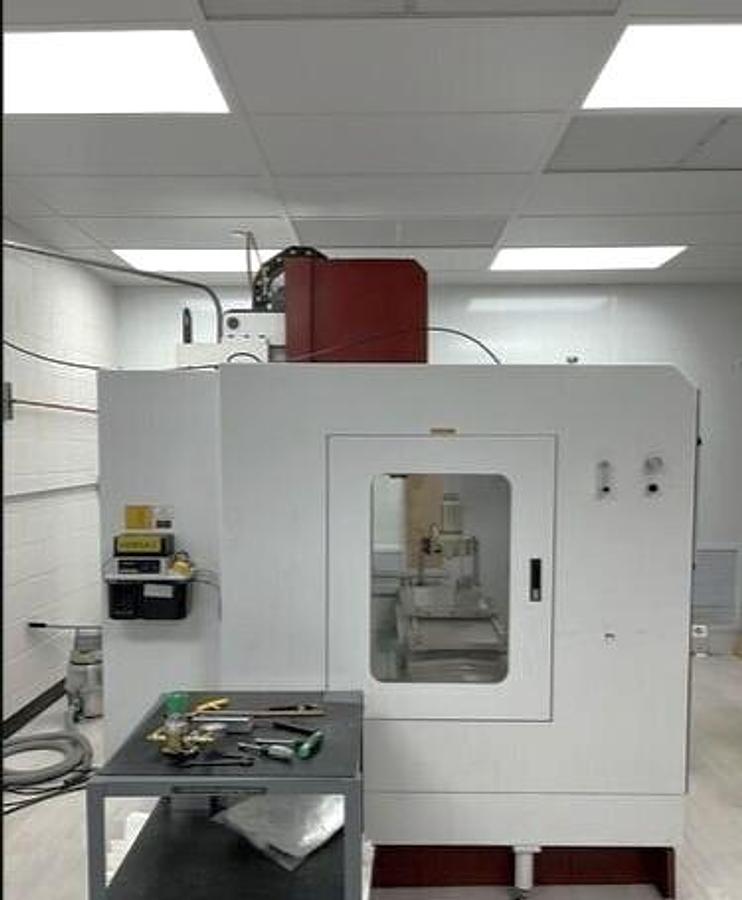

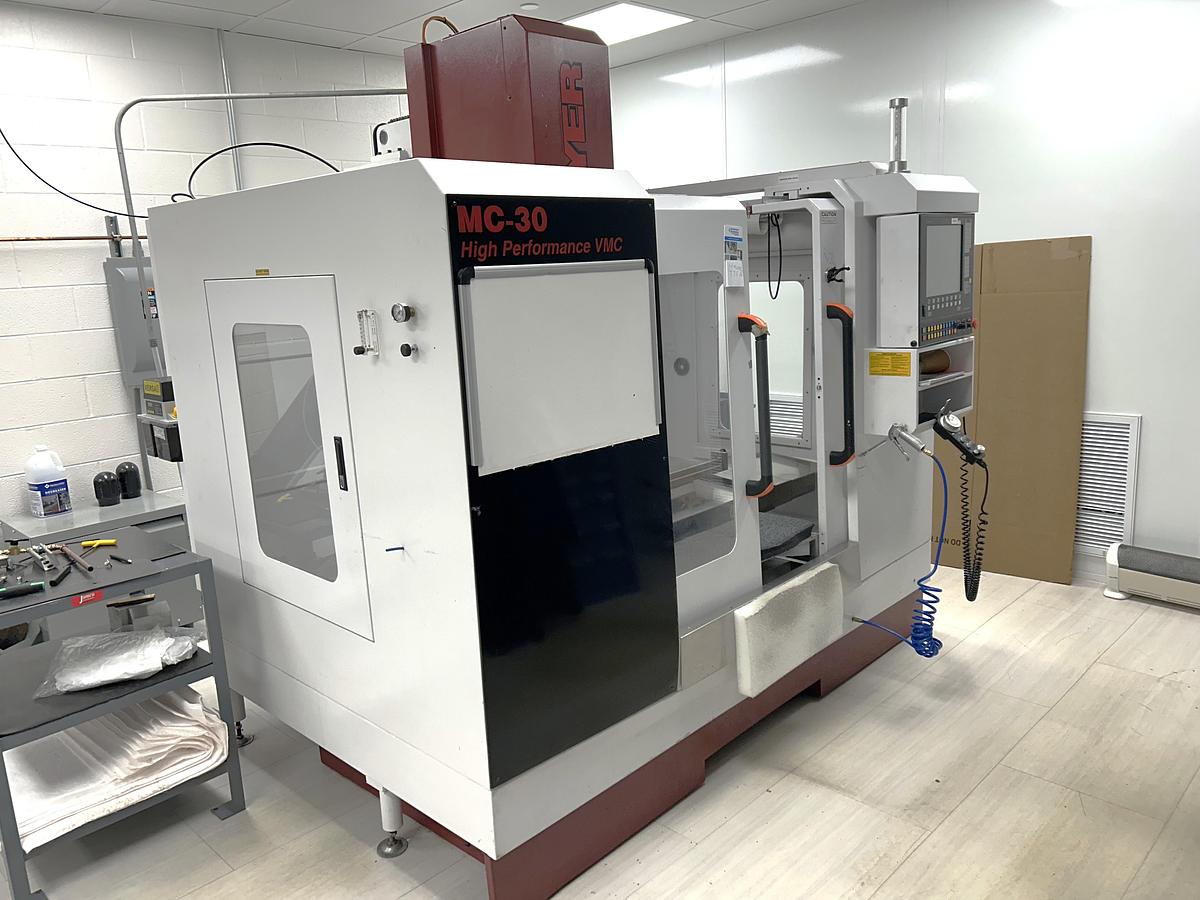

2015 Fryer MC-30 with Remote Jog Handle, NO coolant system, NO Tool Changer

2015 Fryer MC-30 with Remote Jog Handle, NO coolant system, NO Tool Changer

$18,950 (USD)

Location:Illinois

or
Call (863) 439-6066

Description

Remote Jog Handle

Software Version 840DSL-71, V04.05+SP03+HF02

All Available Manuals

Wired 440V Electronics


**No Tool Changer on this unit**

**ONLY USED FOR DRY CUTTING, NO COOLANT SYSTEM**

Show All

Specifications

ManufacturerFryer
ModelMC-30
Year2015
ConditionUsed
Stock Number120748

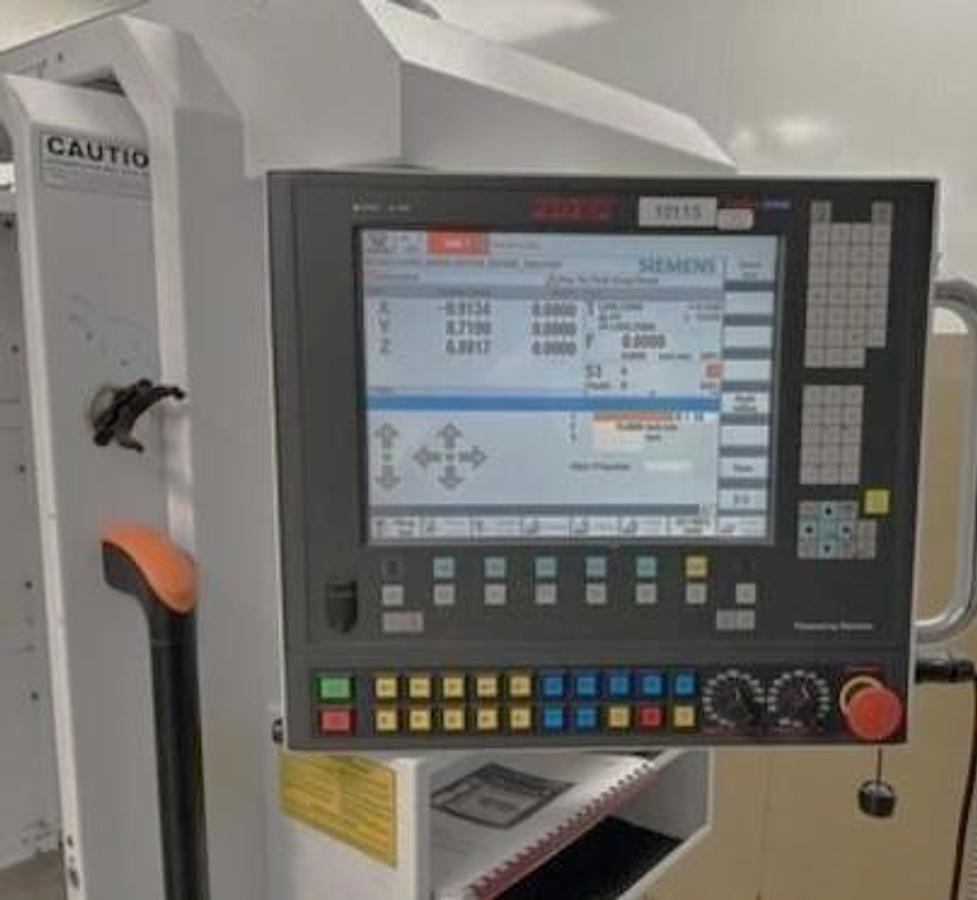

ControlSiemens 840D SL Control
Table Size31.5" x 16.5"
Maximum Table Load2,500 lbs
X-Axis Travel30"
Y-Axis Travel18"
Z-Axis Travel22"
Spindle TaperCAT 40
Spindle Speed8,500 RPM
Spindle Motor30 HP
Spindle Center to Column18"
Distance Spindle Nose to Table Top3" - 25"
Rapid Traverse Rates X, Y / Z1200 IPM / 900 IPM
Machine Dimensions LxWxH93" x 86" x 76"
Machine Weight9,000 lbs.
