2017 Haas ST-15 with Tool Presetter, Tailstock, 8" Chuck, Chip Conveyor, A/C for Cabinet, 12"x16" Capacity, 5500 Spindle Hours
2017 Haas ST-15 with Tool Presetter, Tailstock, 8" Chuck, Chip Conveyor, A/C for Cabinet, 12"x16" Capacity, 5500 Spindle Hours
$36,500 (USD)
Location:Texas
or
Call (863) 439-6066
Description
Chip Conveyor
Tailstock with Hydraulic Quill
8.3" 3 Jaw Hydraulic Chuck
Tool Presetter
CabCool: Cabinet A/C Unit
Rigid Tapping
USB Port Interface
RS232 Port Interface

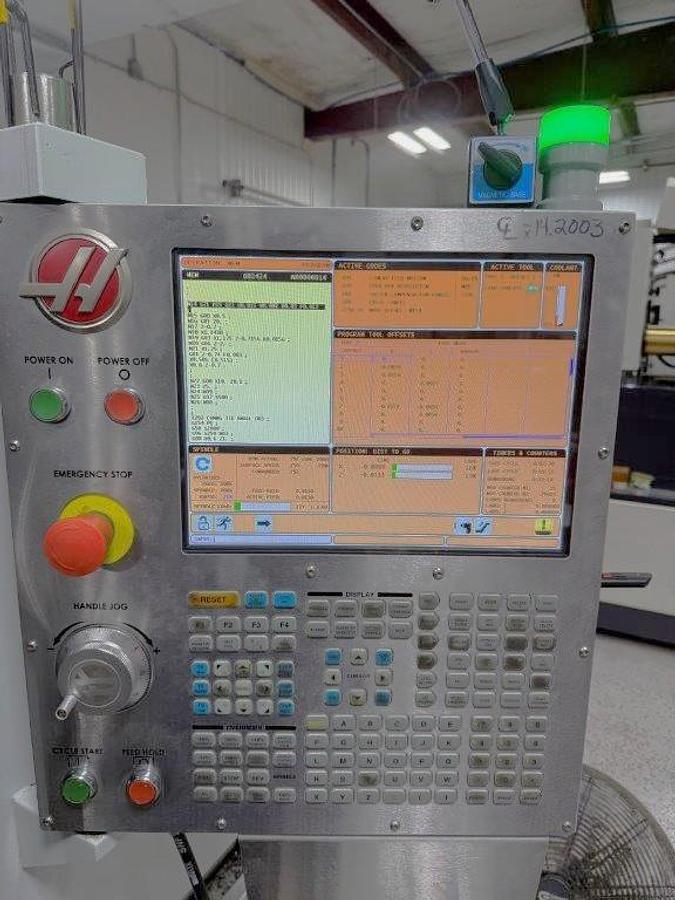

15" LCD Monitor
Coolant System with Tank & Pump
Wired 220V Electrics

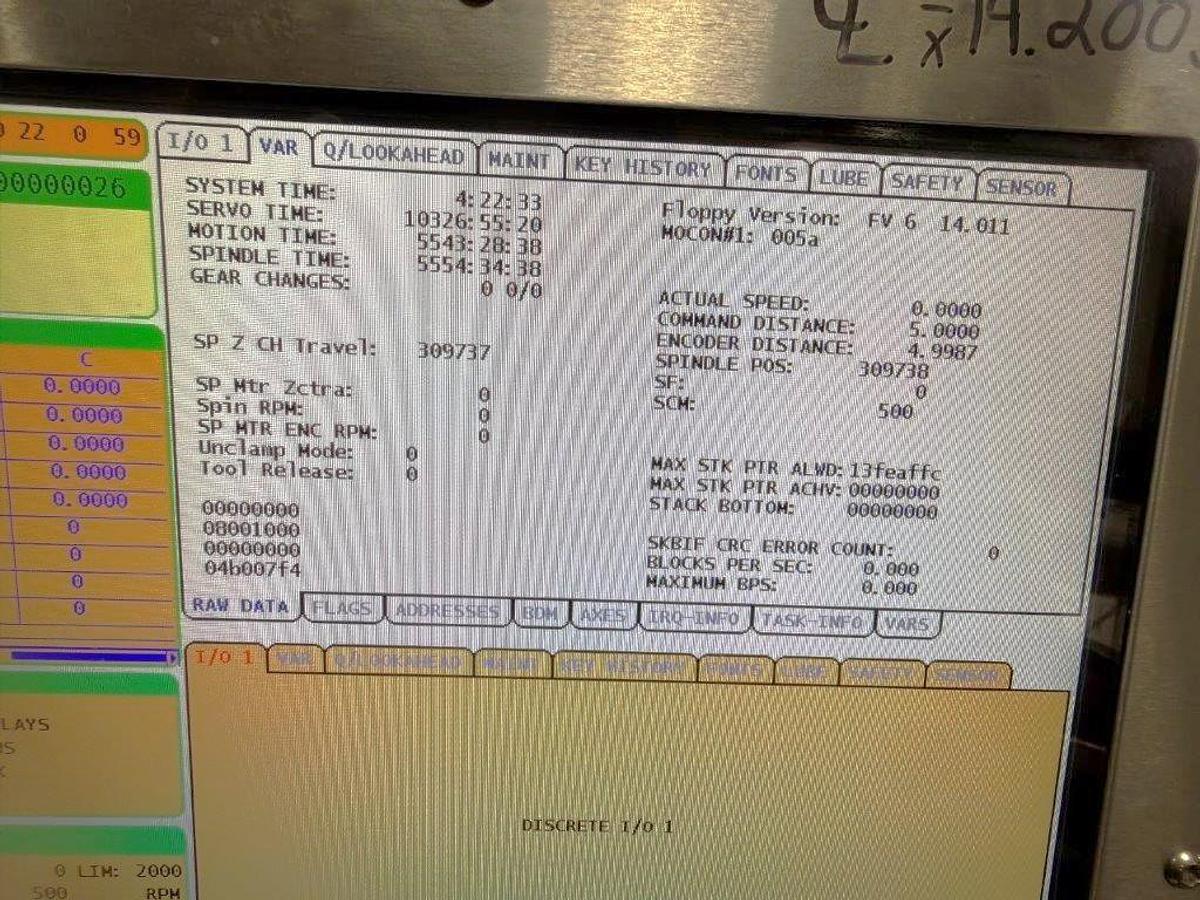

**Servo On Hours 10,326**
**Spindle Run Time 5,554**
**New Replacement cost is $88,991**
**One owner machine, new machine due to come in April**
Specifications
| Manufacturer | Haas |
| Model | ST-15 with Tool Presetter, Tailstock, 8" Chuck, Chip Conveyor, A/C for Cabinet, 12"x16" Capacity, 5500 Spindle Hours |
| Year | 2017 |
| Condition | Used |
| Stock Number | 120747 |
| Chuck Size | 8.3" 3 Jaw Hydraulic Chuck |
| Maximum Swing | 16.5" |
| Maximum Cutting Diameter | 12" |
| Maximum Cutting Length | 16" |
| X-Axis Travel | 7.9" |
| Z-Axis Travel | 16" |
| Spindle Nose / Spindle Bore / Bar Capacity | A2-6" / 3" / 2.5" |
| Spindle Speed | 4,000 RPM |
| Spindle Motor | 20 HP |
| Number of Turret Positions | 12 Position Block Turret |
| Rapid Traverse Rates | 1,200 IPM |
| Tailstock Quill Travel | 3.8" |
| Tailstock Center | MT#3 |
| Machine Weight | 7,900 lbs |
