2004 Takumi V-22 with Coolant Thru Spindle, Conveyor, 24 Pos. Side Mount ATC, RJH, Boxed Ways, Fanuc Control
2004 Takumi V-22 with Coolant Thru Spindle, Conveyor, 24 Pos. Side Mount ATC, RJH, Boxed Ways, Fanuc Control
$32,500 (USD)
Location:Ontario, Canada
or
Call (863) 439-6066
Description

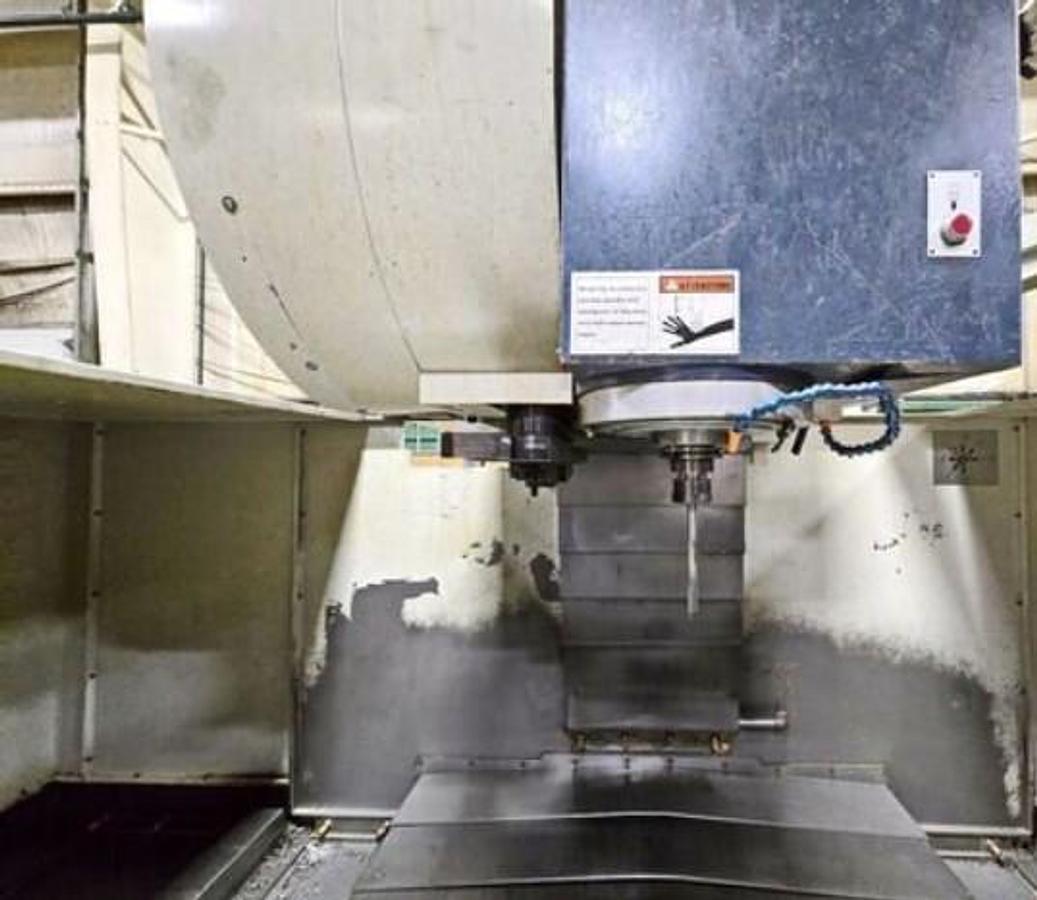

Coolant Through the Spindle

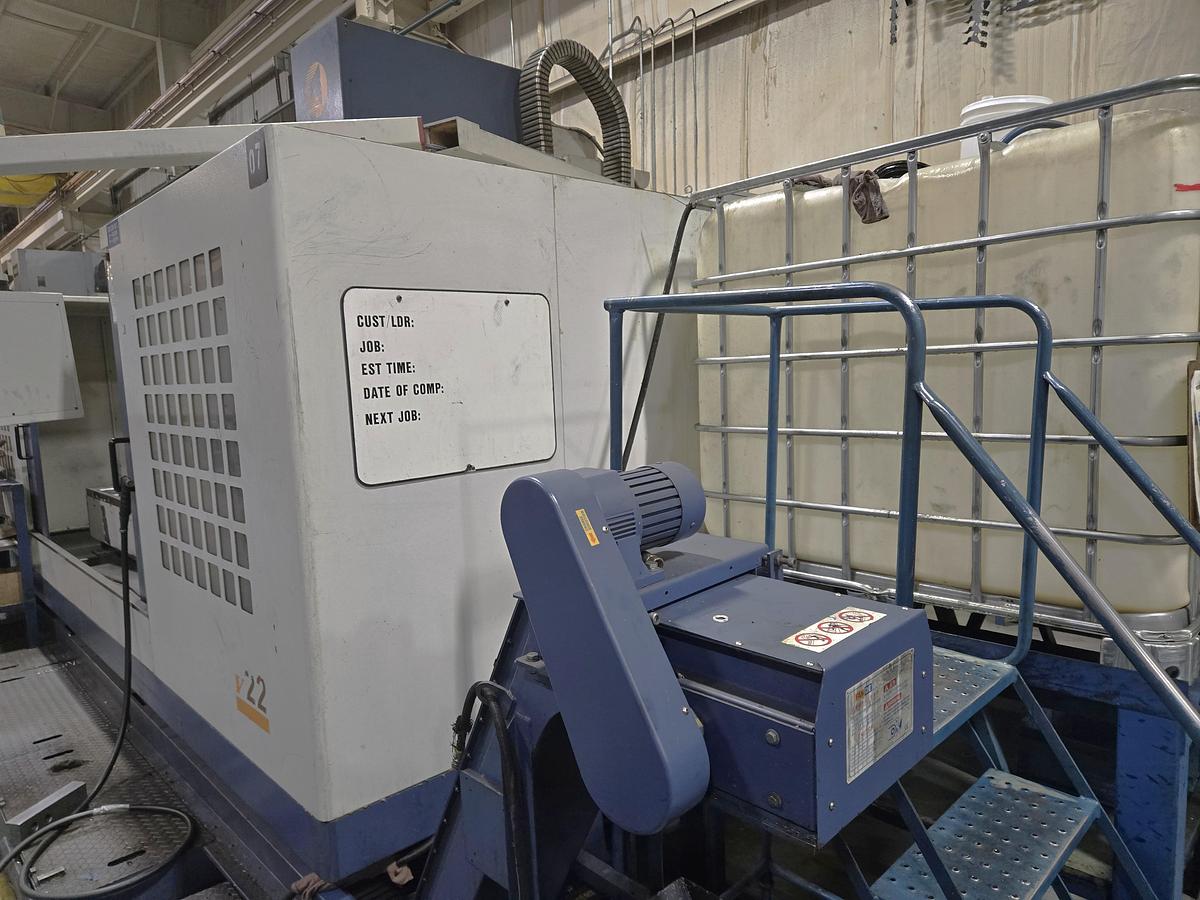

Dual Chip Conveyors 24 Station Side Mounted Tool Changer Manual Pulse Generator RS-232C Port Interface
Boxed Way Contruction
Rigid Tapping
Flood Coolant
Coolant System with Tank & Pump
Helical Interpolation
Work Light
3 Color Machine Status Condition Lights
All Available Manuals
**Machine is Currently Holding Accuracy of .001 to .0025” linear and circular, Machine under power for viewing**
Specifications
| Manufacturer | Takumi |
| Model | V-22 |
| Year | 2004 |
| Condition | Used |
| Stock Number | 120745 |
| Machine Control | Mitsubishi Control |

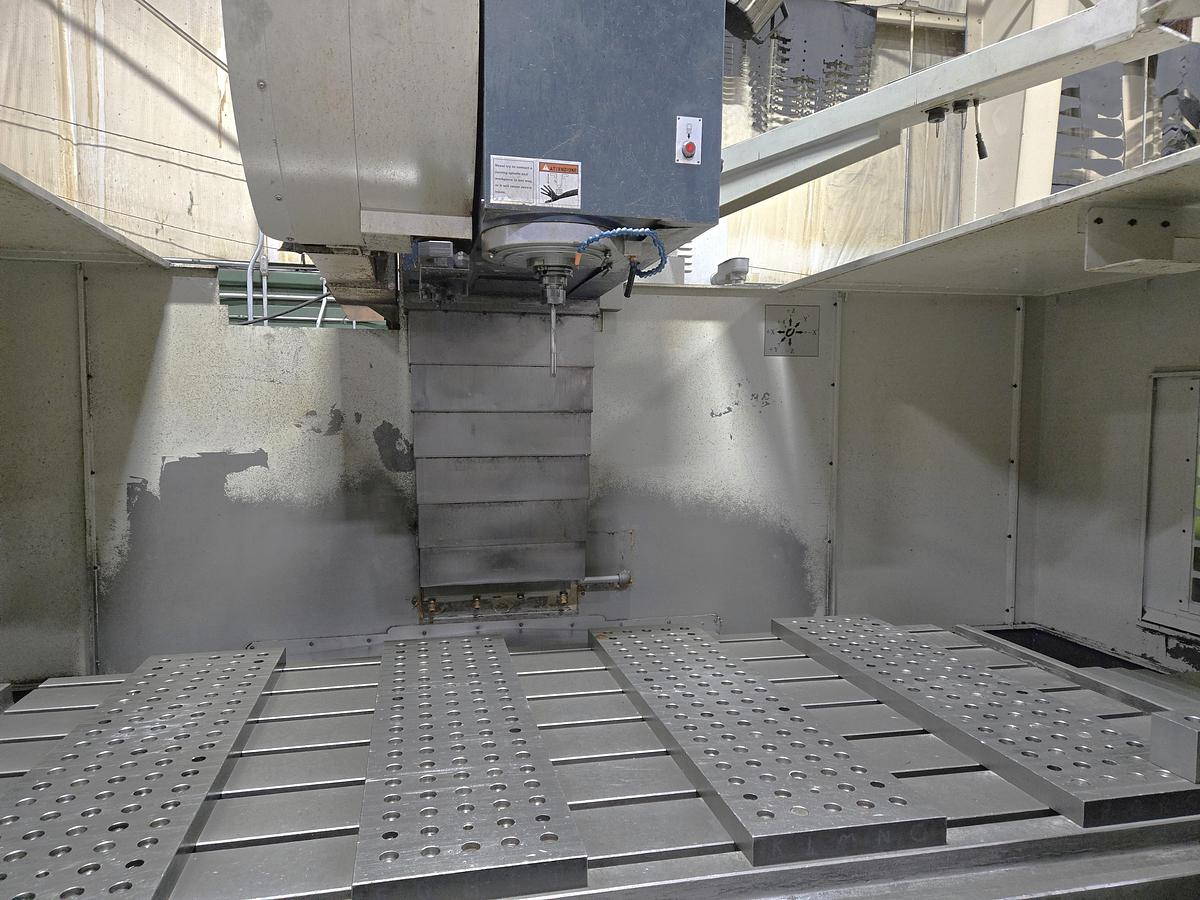

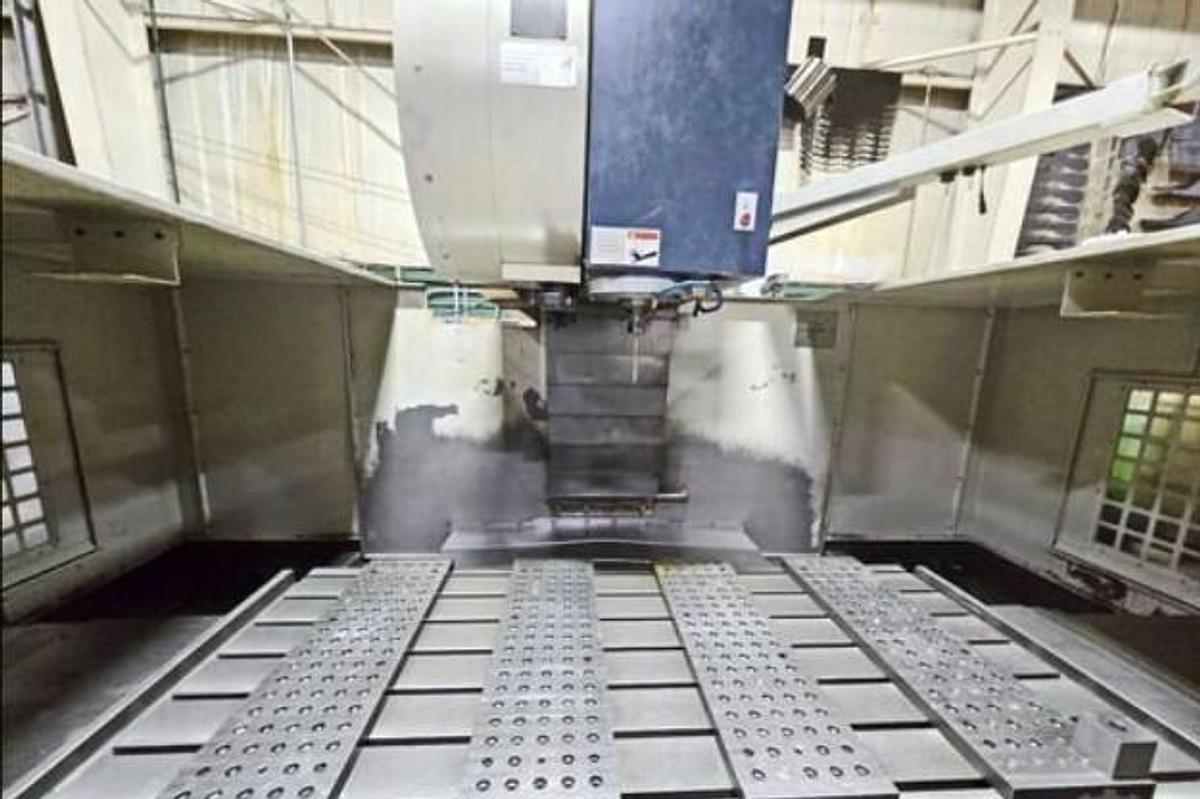

| Table size | 86.6" x 40.35" |
| Table load capacity | 6,614 lbs. |
| X-axis travel | 86.58" |
| Y-axis travel | 41.79" |
| Z-axis travel | 29.72" |
| Spindle taper | CAT 50 |
| Spindle speed | 60 - 6,000 RPM |
| Spindle motor (2 speed geared) | 35 HP |
| Spindle nose to table top | 37.4" |

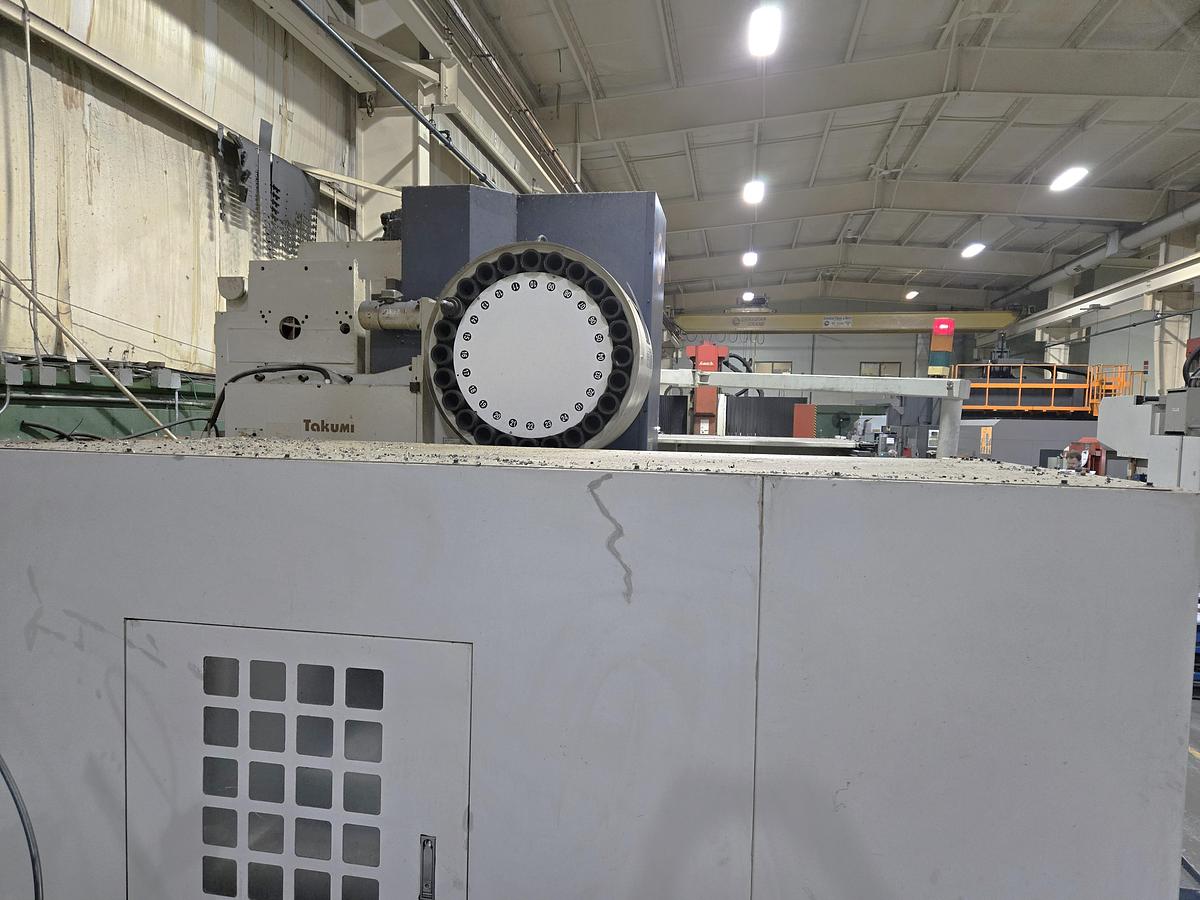

| Tool magazine capacity - side mount | 24 Position ATC |
| Tool change time (chip-to-chip) | 7 seconds |
| Maximum tool diameter/length/weight | 7.87"/11.8"/33 lbs. |
| Rapid traverse rates x, y / z | 787 IPM |
| Cutting feedrates | 393.7 IPM |
| Machine dimensions | 225" x 156" x 138" |
| Machine weight | 43,431 lbs. |
