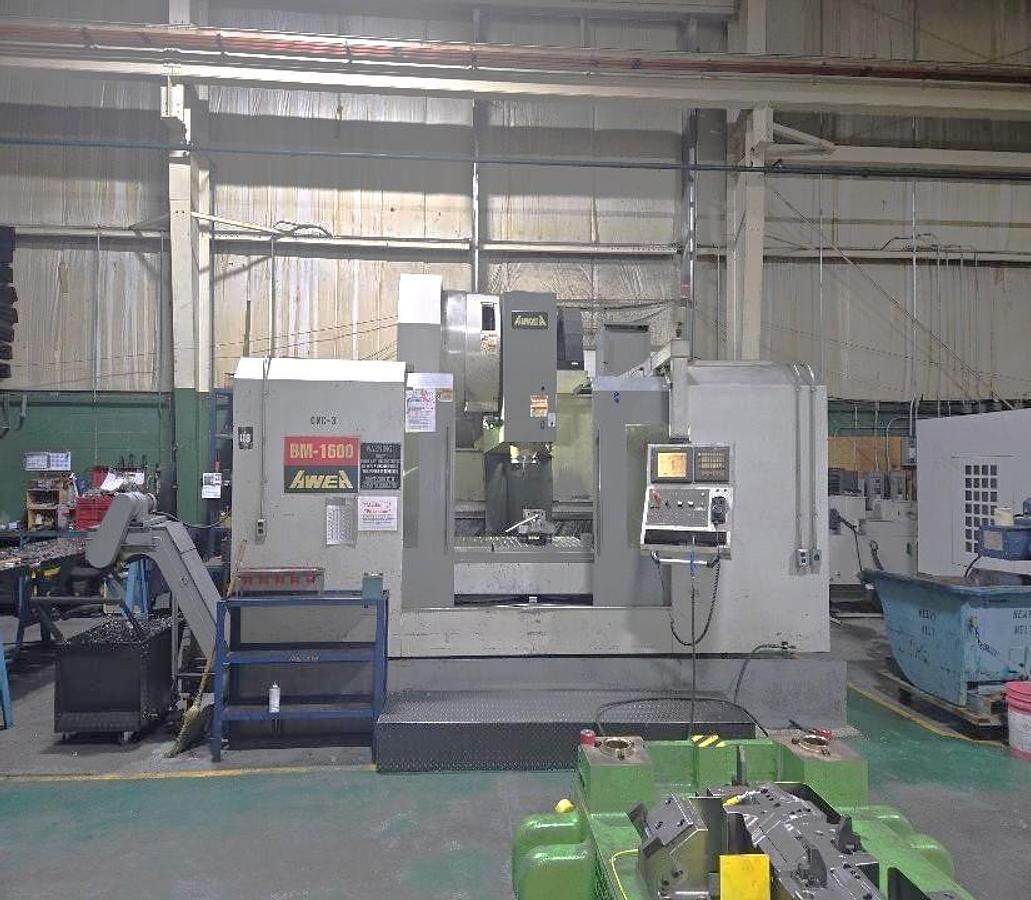

2005 Awea BM-1600 with Chip Conveyor, 24 Station Side Mount ATC, RJH, Boxed Ways, Fanuc Control
2005 Awea BM-1600 with Chip Conveyor, 24 Station Side Mount ATC, RJH, Boxed Ways, Fanuc Control
$22,500 (USD)
Location:Ontario, Canada
or
Call (863) 439-6066
Description
Chip Conveyor 24 Station Side Mounted Tool Changer Manual Pulse Generator RS-232C Port Interface
Boxed Way Contruction
Rigid Tapping
Flood Coolant
Coolant System with Tank & Pump
Helical Interpolation
Work Light
All Available Manuals
**Rear Y Axis Way Cover is Currently Removed and Using Plastic Sheeting Temporarily. Way Covers are Available But Need to Be Repaired**
**Machine is Currently Holding Accuracy of .001 to .0015” linear and circular, Machine under power for viewing**
Specifications
| Manufacturer | Awea |
| Model | BM-1600 |
| Year | 2005 |
| Condition | Used |
| Stock Number | 120744 |
| Machine Control | Fanuc 18-iM Control |

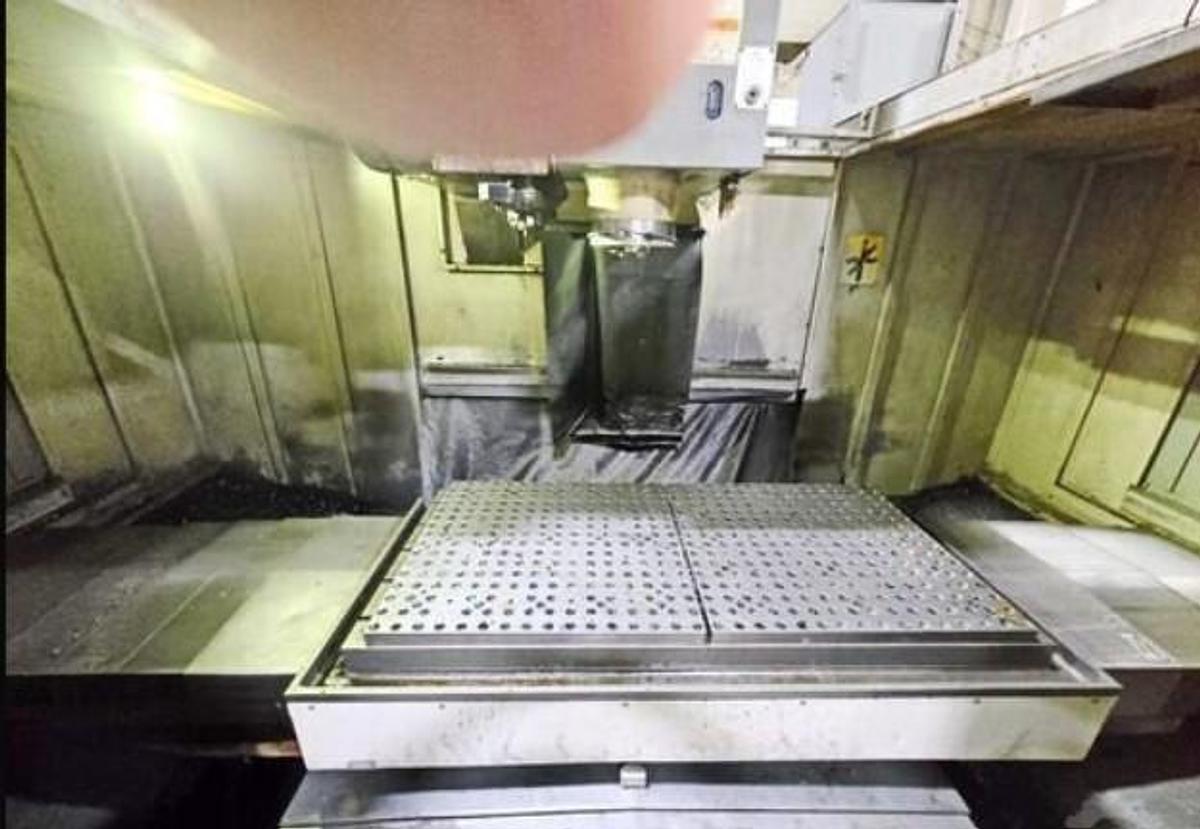

| Table size | 78.7" x 31.5" |
| Table load capacity | 4,400 lbs. |
| X-axis travel | 63" |
| Y-axis travel | 31.5" |
| Z-axis travel | 31.5" |

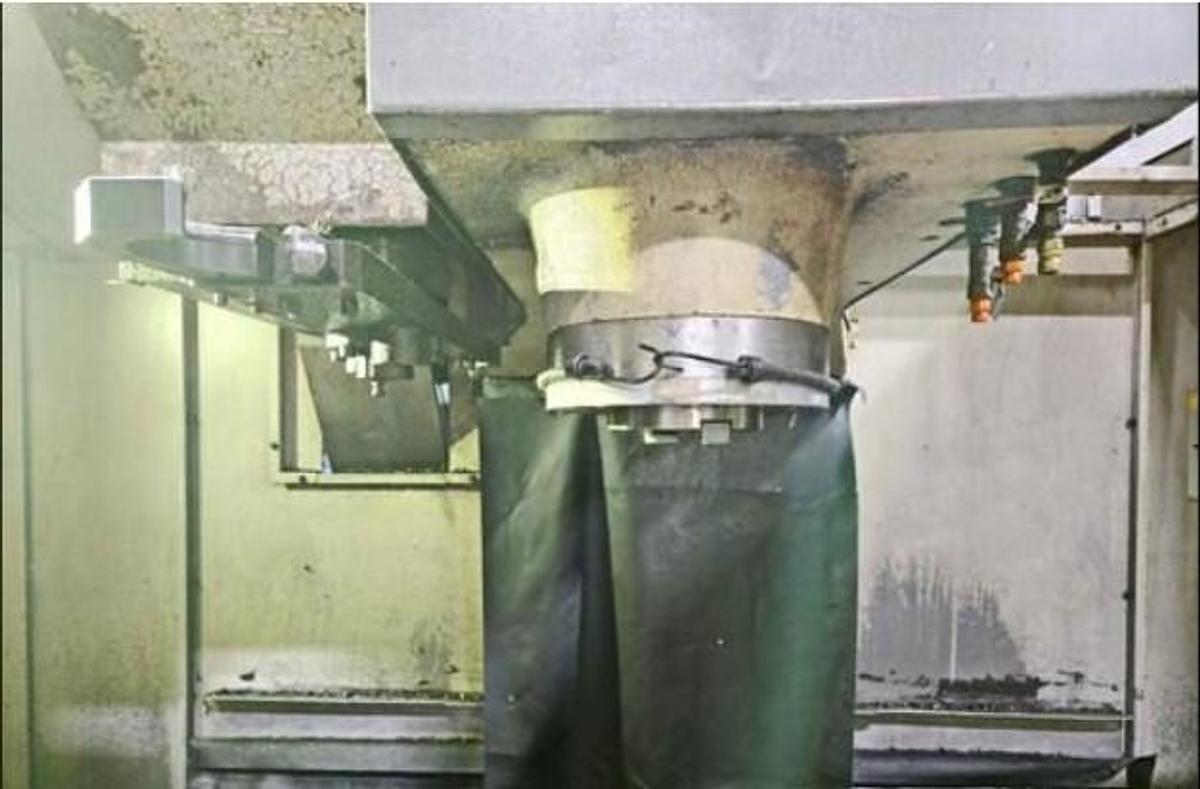

| Spindle taper | CAT 50 |
| Spindle speed | 60 - 6,000 RPM |
| Spindle motor (2 speed geared) | 25 HP |
| Spindle center to column | 35.4" |
| Spindle nose to table top | 7.87" - 39.3" |

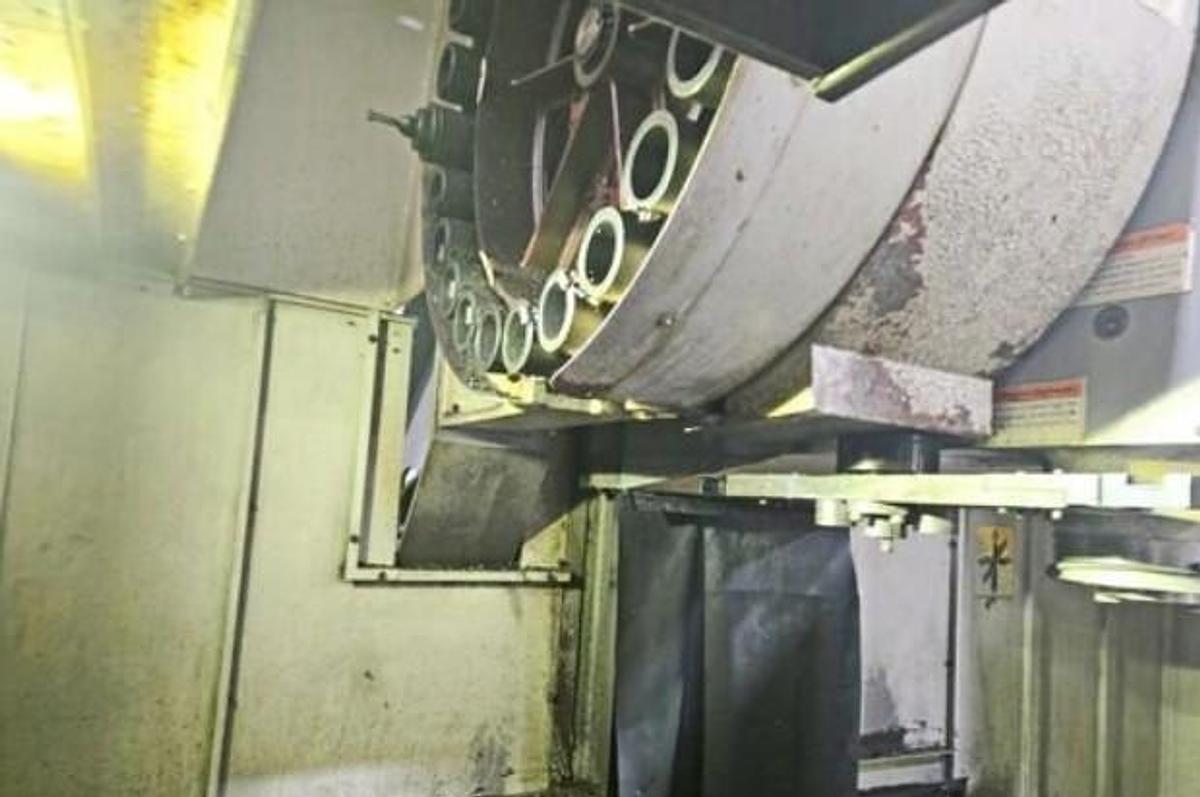

| Tool magazine capacity - side mount | 24 Position ATC |
| Tool change time (chip-to-chip) | 7 seconds |
| Maximum tool diameter/length/weight | 7.87"/11.8"/33 lbs. |
| Rapid traverse rates x, y / z | 787 IPM |
| Cutting feedrates | 393.7 IPM |
| Machine dimensions | 185" x 128" x 122" |
| Machine weight | 35,000 lbs. |
