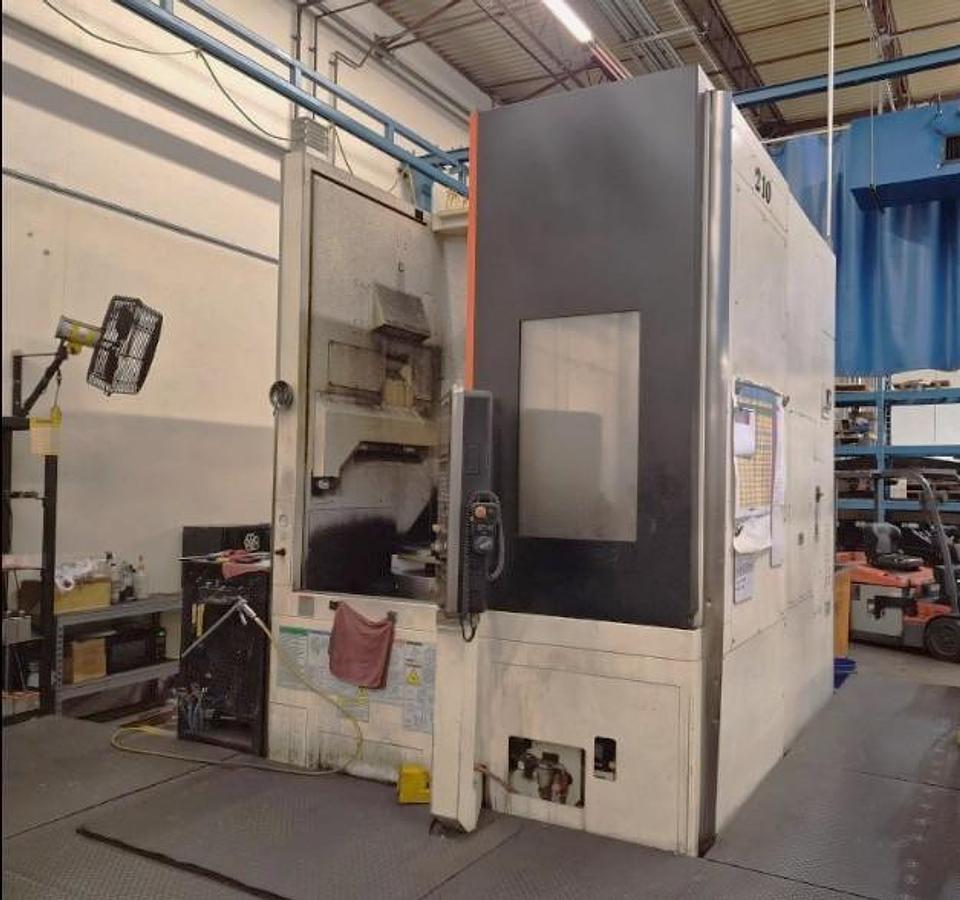

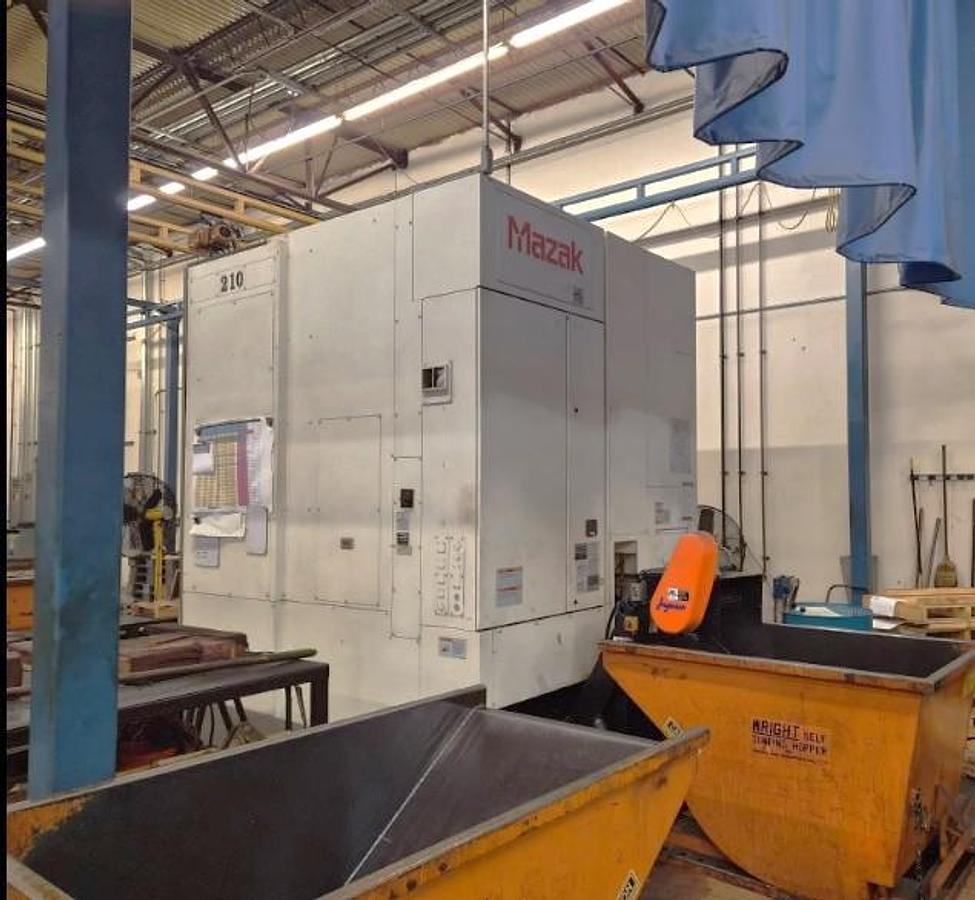

Mazak Megaturn Nexus 900 with 36" Table, Chip Conveyor, Remote Jog Handle
Mazak Megaturn Nexus 900 with 36" Table, Chip Conveyor, Remote Jog Handle
$169,900 (USD)
Location:California
or
Call (863) 439-6066
Description
36" Table Chip Conveyor Hand Held Remote Jog Handle Absolute Positioning USB Port Interface Flash Drive Interface LAN & Modem Port Interface
Multi Tap Transformer All Available Manuals All Available Tooling
Specifications
| Manufacturer | Mazak |
| Model | Megaturn Nexus 900 |
| Year | 2015 |
| Condition | Used |
| Stock Number | 120743 |

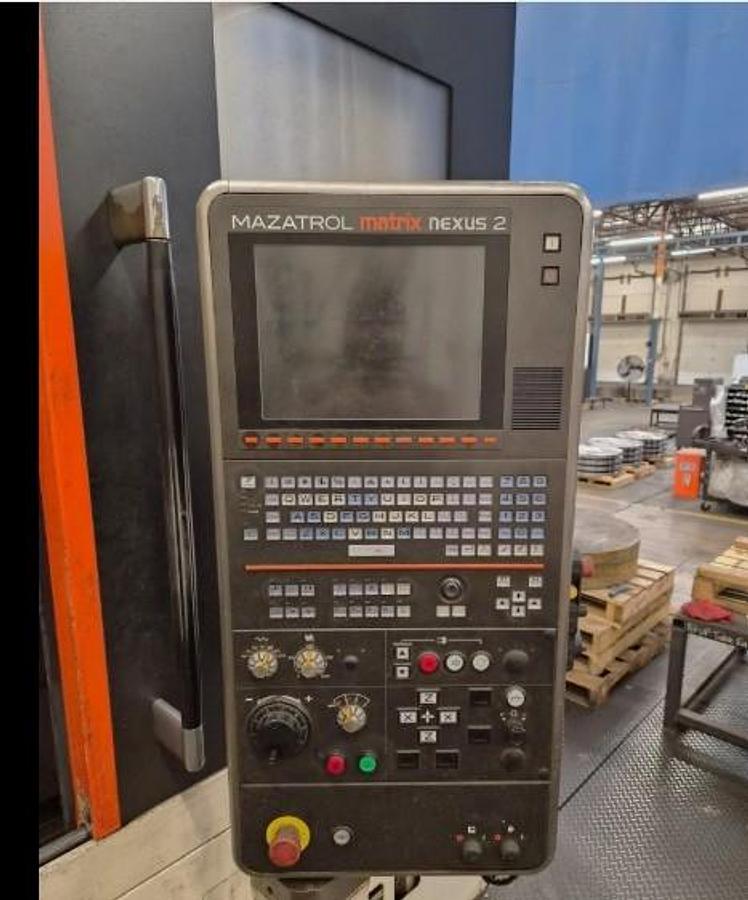

| Control | Mazatrol Matrix Nexus 2 Control |

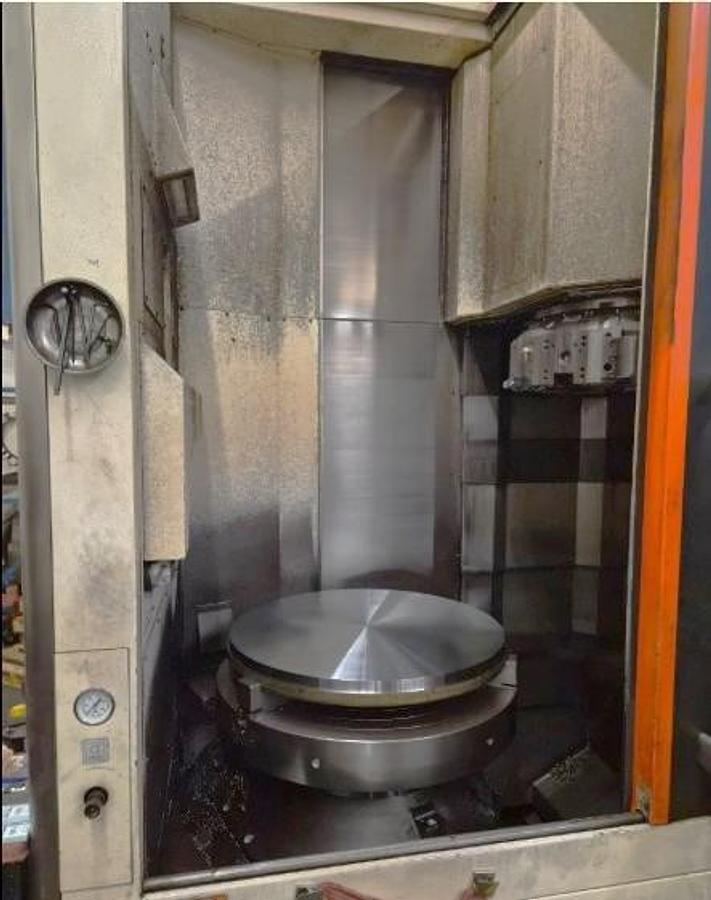

| Table Diameter | 36" |
| Maximum Workpiece Weight | 6,614 lbs. |
| Maximum Swing | 39.37" |
| Maximum Cutting Diameter | 36.22" |
| Maximum Workpiece Height | 31.49" |
| X-Axis Travel | 18.5" |
| Z-Axis Travel | 34.25" |
| Table Speed | 1 - 1,250 RPM |
| Speed Ranges | 1 Range |
| Table Motor | 40 HP |
| Maximum Torque | 2,696 ft./lbs. |

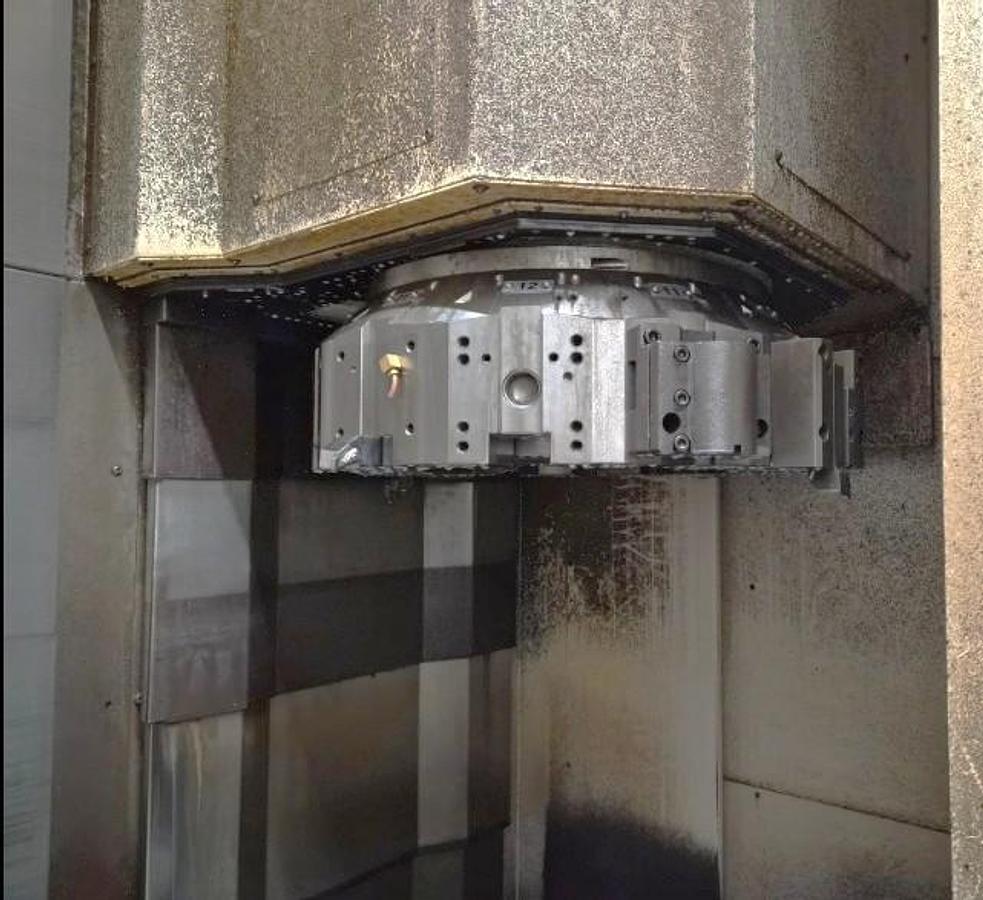

| Number of Tool Positions | 12 Position ATC |
| Rapid Traverse Rates | 945 IPM |
| Machine Dimensions | 152" x 93.5" x 134" |
| Machine Weight | 32,865 lbs. |
