2022 Haas ST-25Y Chucker (no tailstock) with 10" Chuck, 3" Bar Capacity, Milling, Y Axis, Conveyor, Auto Parts Loader System
2022 Haas ST-25Y Chucker (no tailstock) with 10" Chuck, 3" Bar Capacity, Milling, Y Axis, Conveyor, Auto Parts Loader System
$105,000 (USD)
Location:Oregon
Description
C Axis Spindle Rotation
Live Milling/Drilling Capability
6,000 RPM Live Milling Option
Y Axis Capability

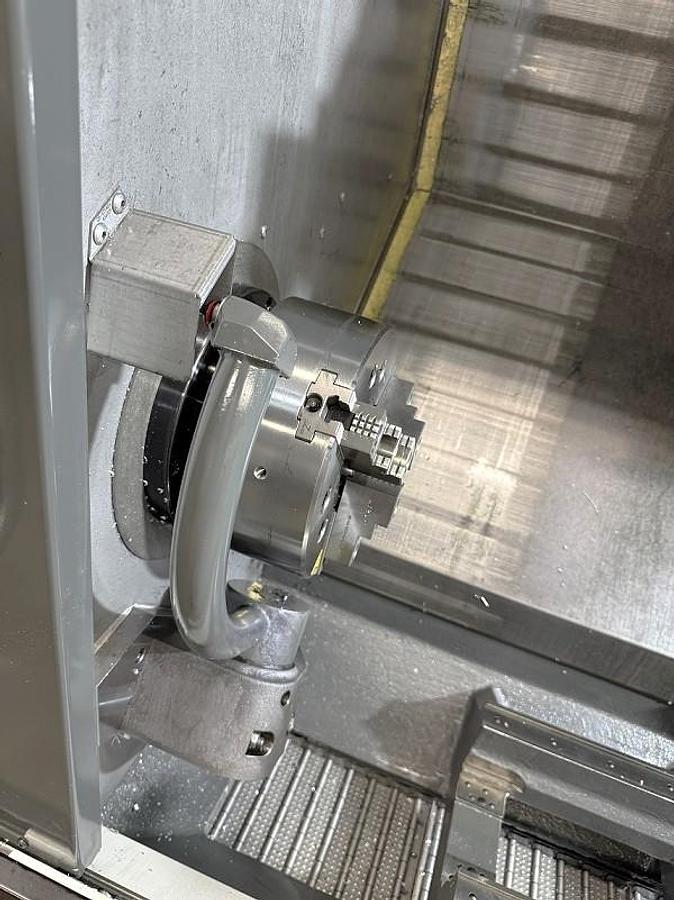

10" 3 Jaw Hydraulic Chuck

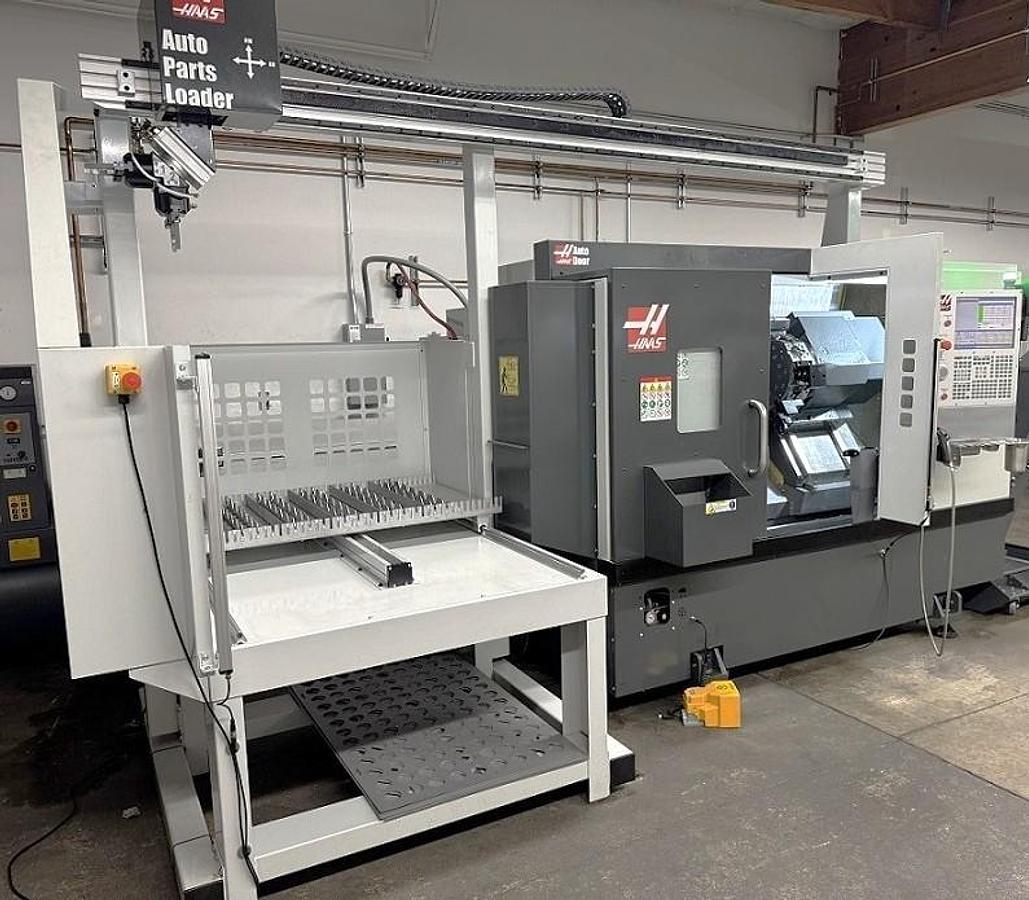

Haas Automatic Parts Loader System
Auto Door
Chip Conveyor - Belt Type
Auto Parts Catcher
Tool Presetter
Auto Jet Air Blast
Wireless Intuitive Probing System
Remote Jog Handle
Coolant System with Tank & Pump
Haas Visual Part Programming System
Spindle Orientation
Media Display M Code M130
Haas Connect
1 GB Program Storage
Rigid Tapping
15" LCD Color Monitor
Early Power Failure Detection Module

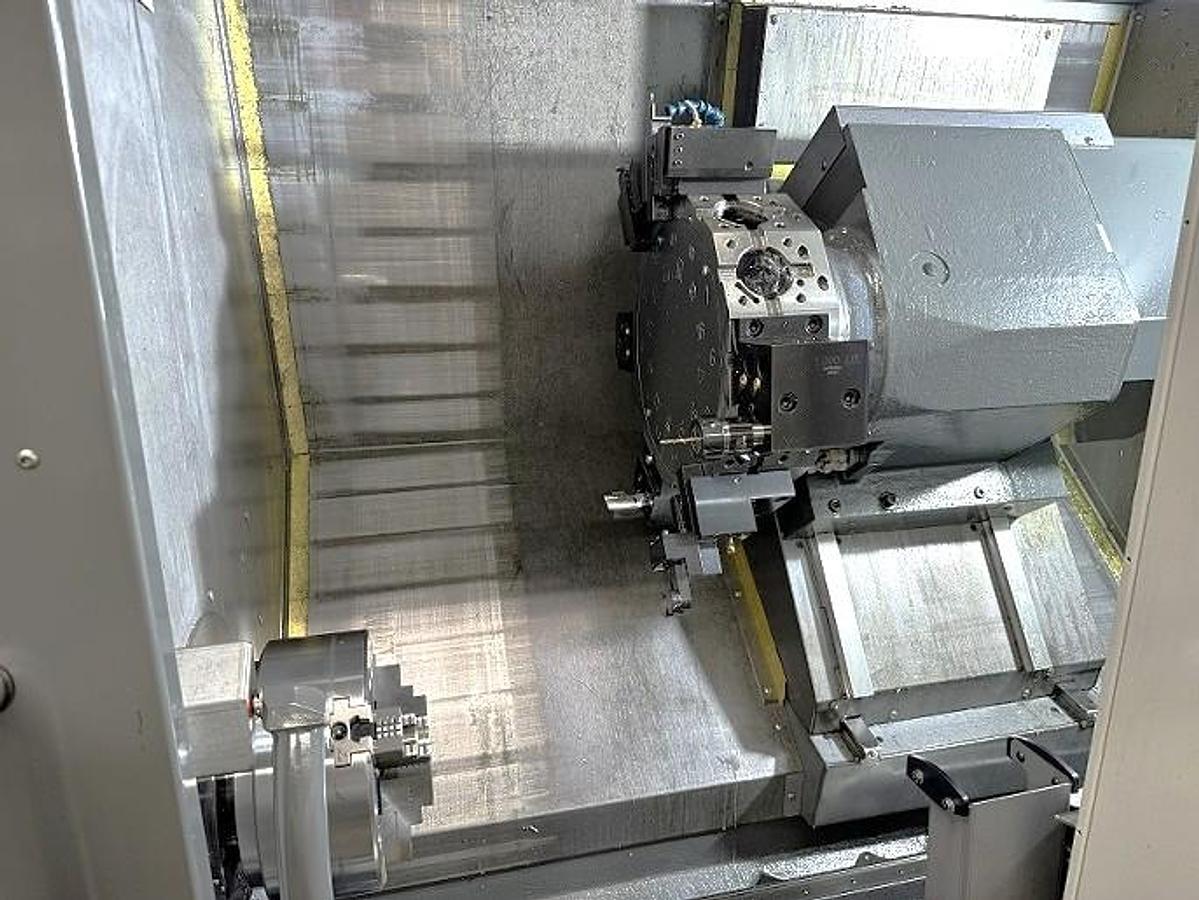

24 Station BMT Type Turret
Memory Lock Key Switch
USB Port Interface
RS 232 Port Interface
All Available Tool Blocks
**Power On Hours 2,700**
**Feed Cutting Hours ONLY 180**
**Price New as Equipped with Current Discounting at $165,000**
Specifications
| Manufacturer | Haas |
| Model | ST-25Y |
| Year | 2022 |
| Condition | Used |
| Stock Number | 120736 |
| Machine Control | Haas NextGen Control |
| Chuck Size | 10" 3-Jaw Hydraulic |
| Maximum Swing Over Cross Slide | 21" |
| Maximum Machining Diameter | 11.75" |
| Maximum Machining Length | 22.5" |
| Maximum Bar Capacity | 3.0" |
| X-Axis Travel | 8.4" |
| Y-Axis Travel | +/- 2.0" |
| Z-Axis Travel | 22.5" |
| C Axis Spindle Rotation | 0.01 Degree |
| Spindle Nose / Spindle Bore | A2-6" / 3.5" |
| Spindle Speeds | 3,400 RPM |
| Spindle Motor | 30 HP |
| Spindle Torque | 300 ft./lbs. @ 500 RPM |
| Rotary Tool Speed / Rotary Motor | 6,000 RPM / 5 HP |
| Number of Turret Positions | 12 Bolt on Style - BMT65 Type |
| Rapid Traverse Rates X, Y / Z | 472 IPM / 945 IPM |
| Tailstock Taper | MT #4 |
| Machine Dimensions LxWxH | 142" x 90" x 92" less loader |
| Machine Weight | 12,300 lbs. |
