1985 Shizuoka Millmaster B-5V

Box Way Construction

Swing Arm Tool Change

Coolant System

Misc. Tooling

All Available Manuals

Low Run Time Hours

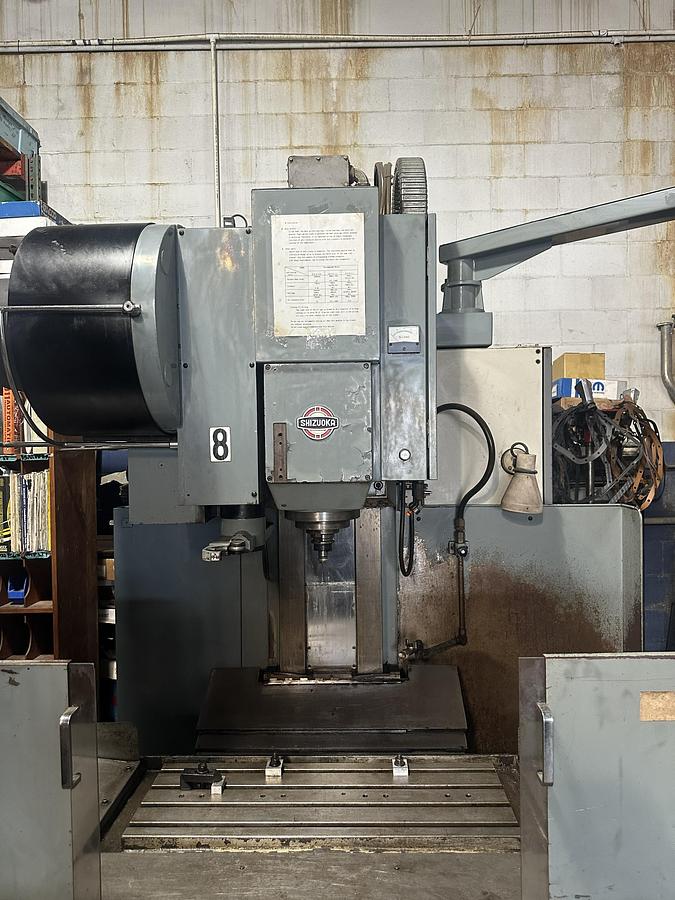

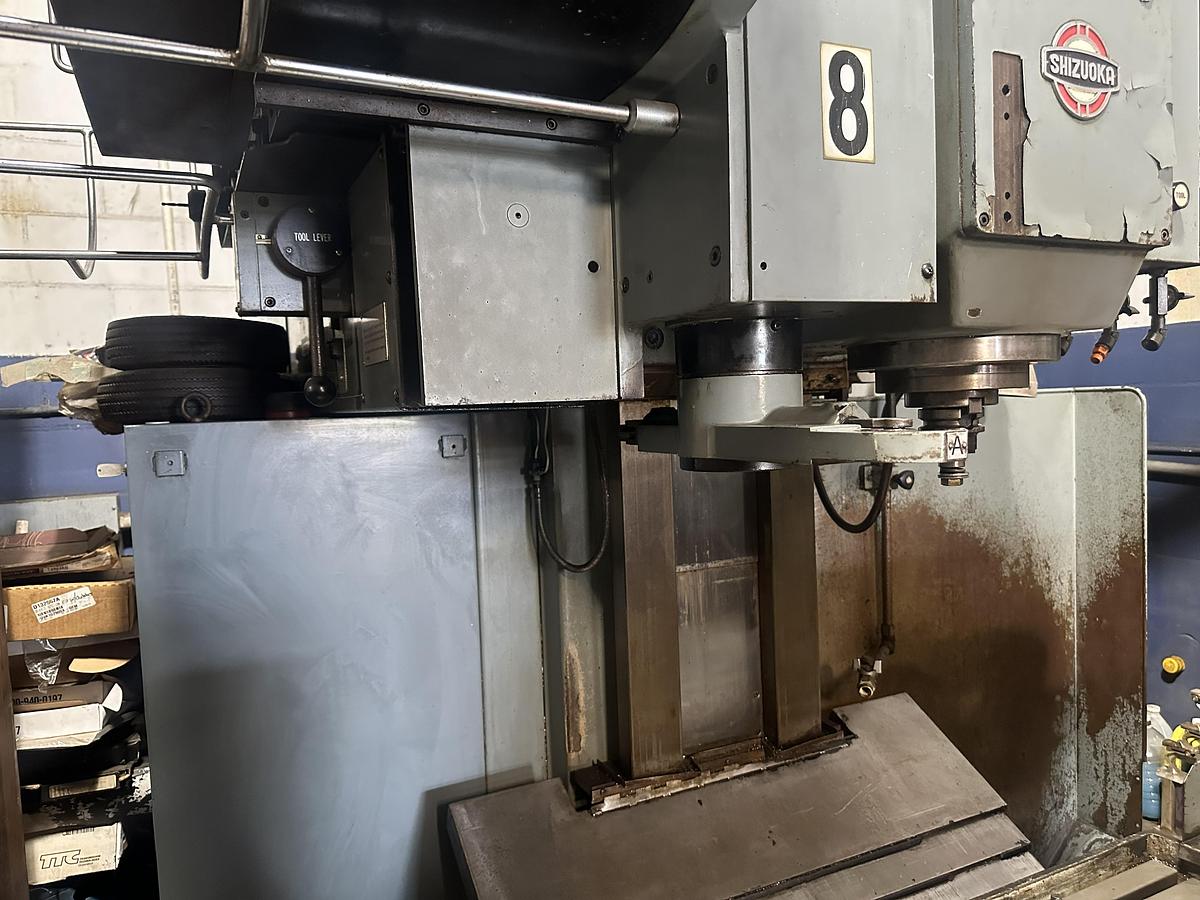

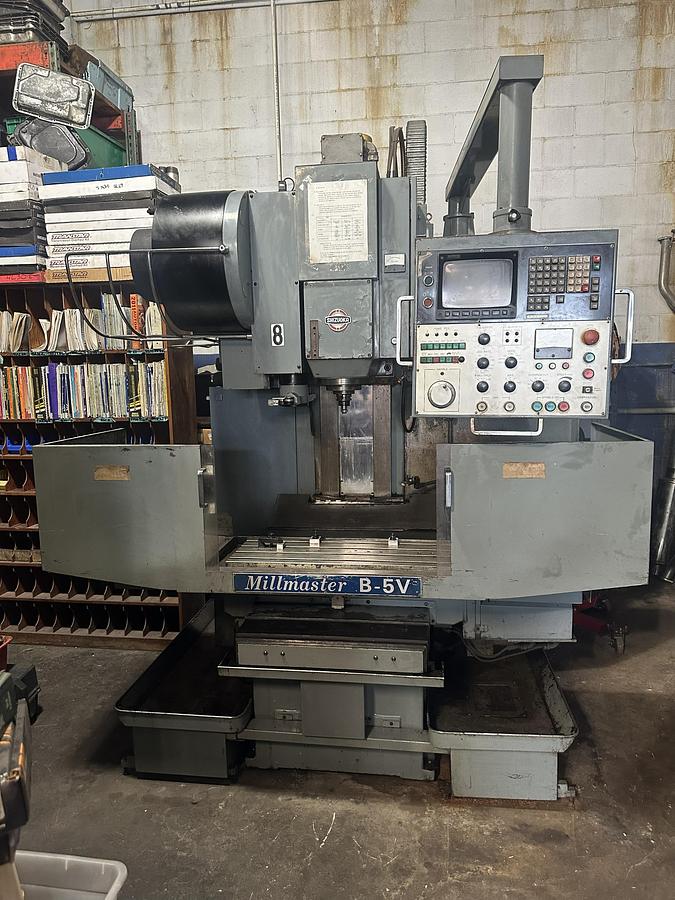

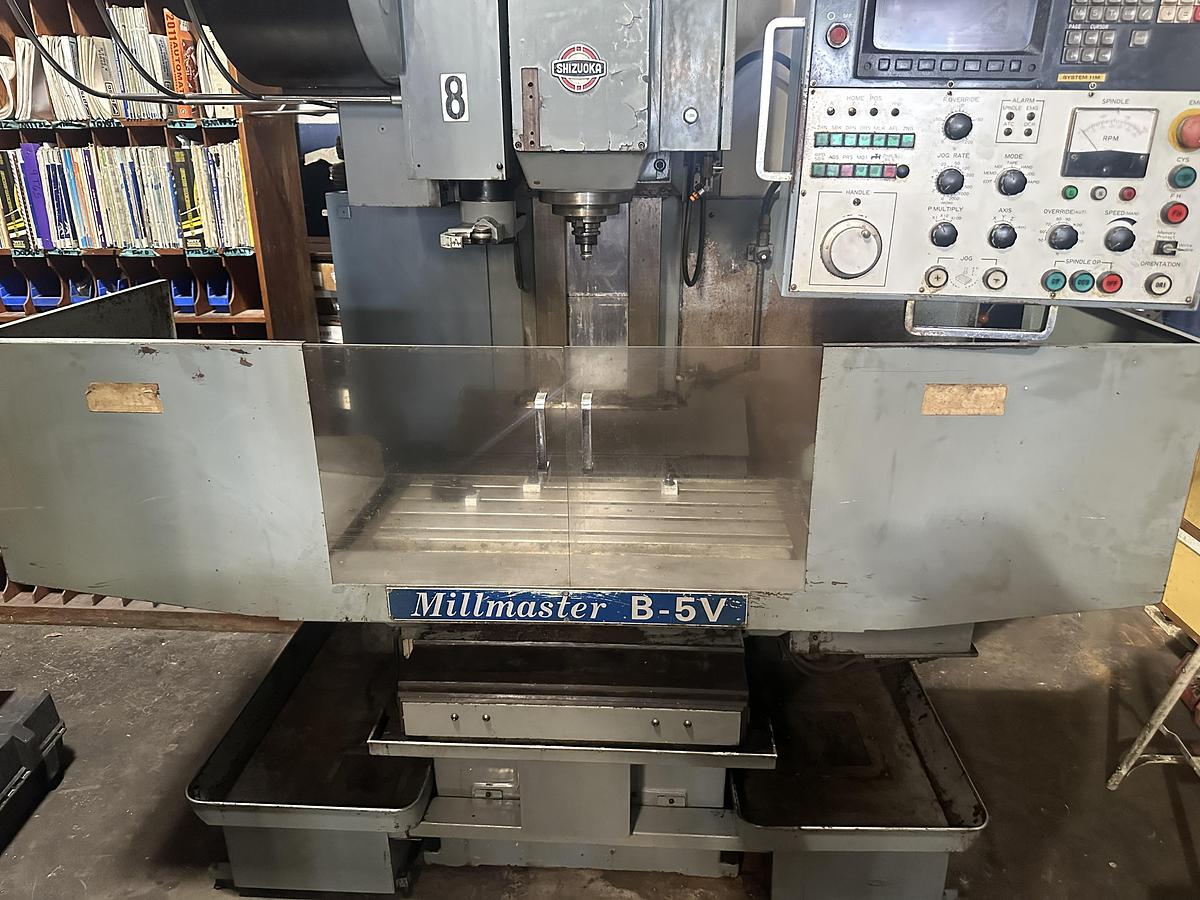

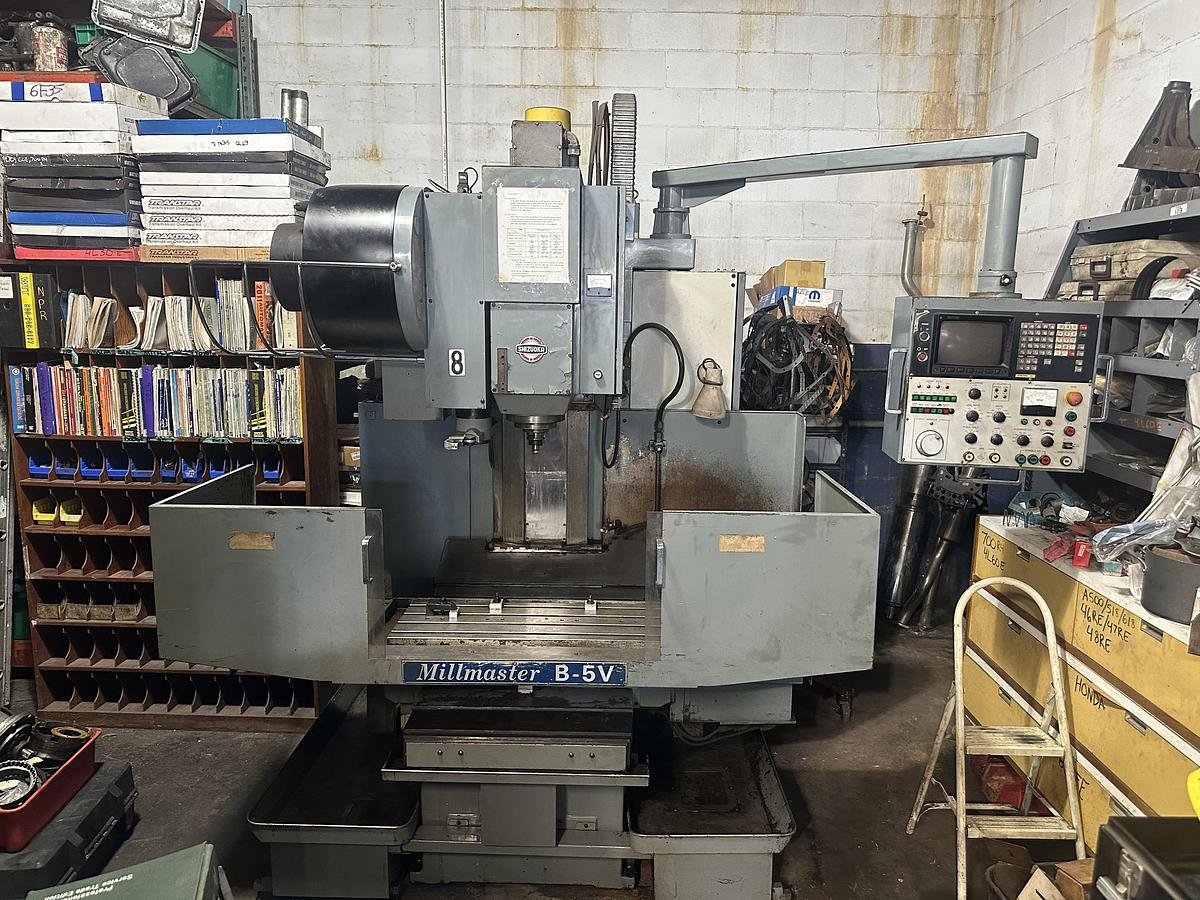

The 1985 Shizuoka Millmaster B-5V is a reliable used CNC vertical machining center, equipped with a Fanuc 11M control system. This machine offers a table size of 43" by 13" and a maximum table load capacity of 1,080 lbs, making it suitable for handling larger workpieces. With an X-axis travel of 28", a Y-axis travel of 16", and a Z-axis travel of 19", it provides ample movement to accommodate various machining tasks. The Millmaster B-5V features a BT40 spindle taper with a spindle speed of up to 6,000 RPM, powered by a robust 15 HP spindle motor. Its 30-station tool changer enhances productivity by reducing manual intervention. The overall dimensions of the machine are 80"x85"x110", and it has a total weight of 10,000 lbs, ensuring stable operation and precision. Ideal for workshops requiring dependable performance, this machining center combines advanced features with sturdy construction. It may be considered an attractive option for facilities looking for a balance between capability and durability.
