2013 Mazak Nexus QTN 400-II/2000
2013 Mazak Nexus QTN 400-II/2000
Contact us for price
Location:Alabama
or
Call (863) 439-6066
Description

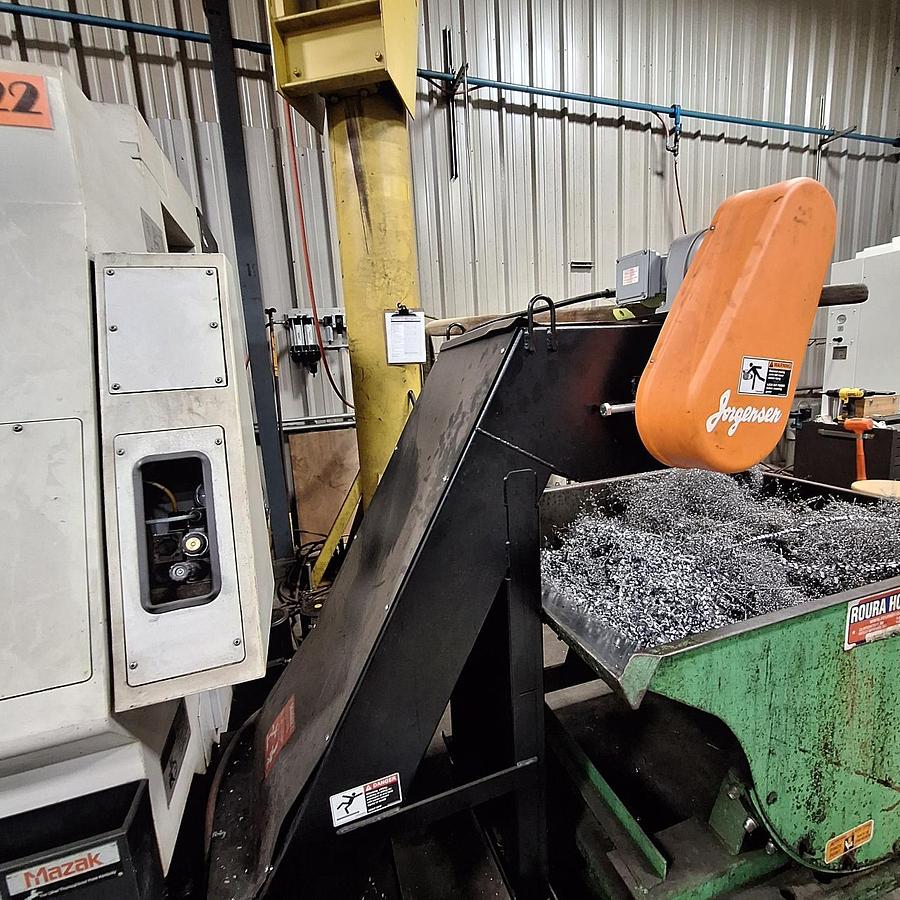

15" 3-Jaw Chuck Side Exit Chip Conveyor Automatic Tool Eye Programmable Tailstock High Power Coolant 12.1" Color LCD User Macro Multitap Transformer Tool Path Storage Chuck Open/Close Confirm Windows XP Operation System Mazak Relocation Device All Available Manuals All Available Tooling
Spindle Rebuilt Recentely
**Steady Rest in Picture does not go with the machine**
Specifications
| Manufacturer | Mazak |
| Model | Nexus QTN 400-II/2000 |
| Year | 2013 |
| Condition | Used |
| Stock Number | 120728 |

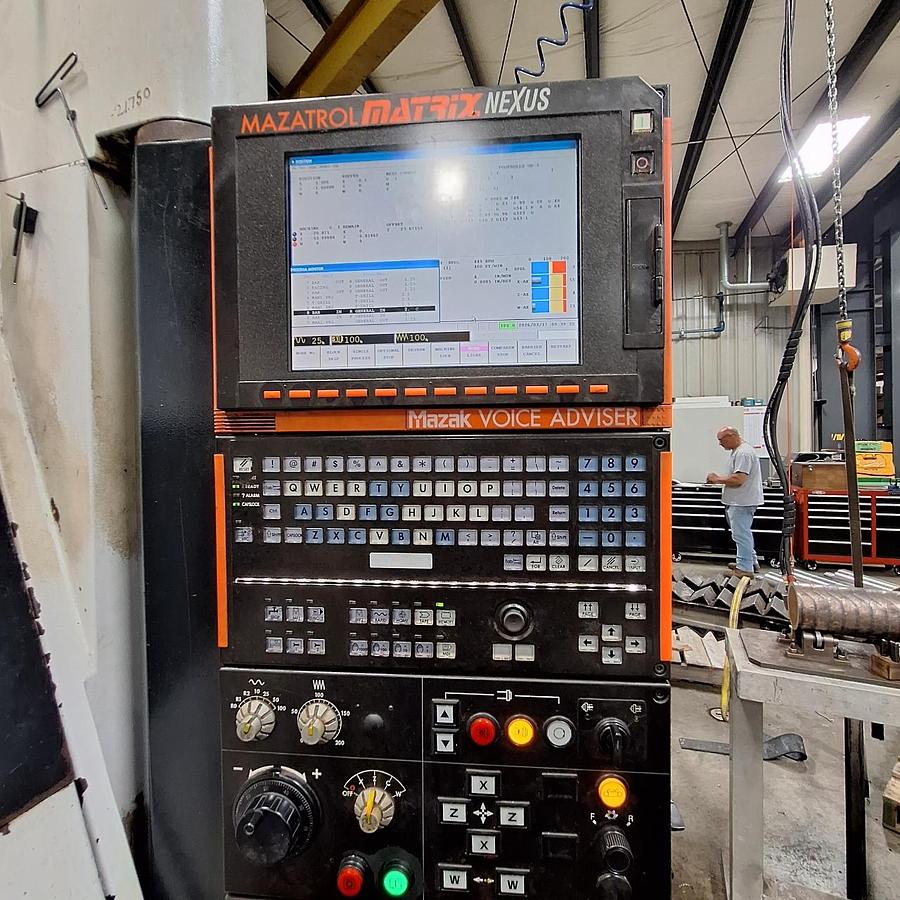

| Control | Mazatrol Matrix Nexus 2 |

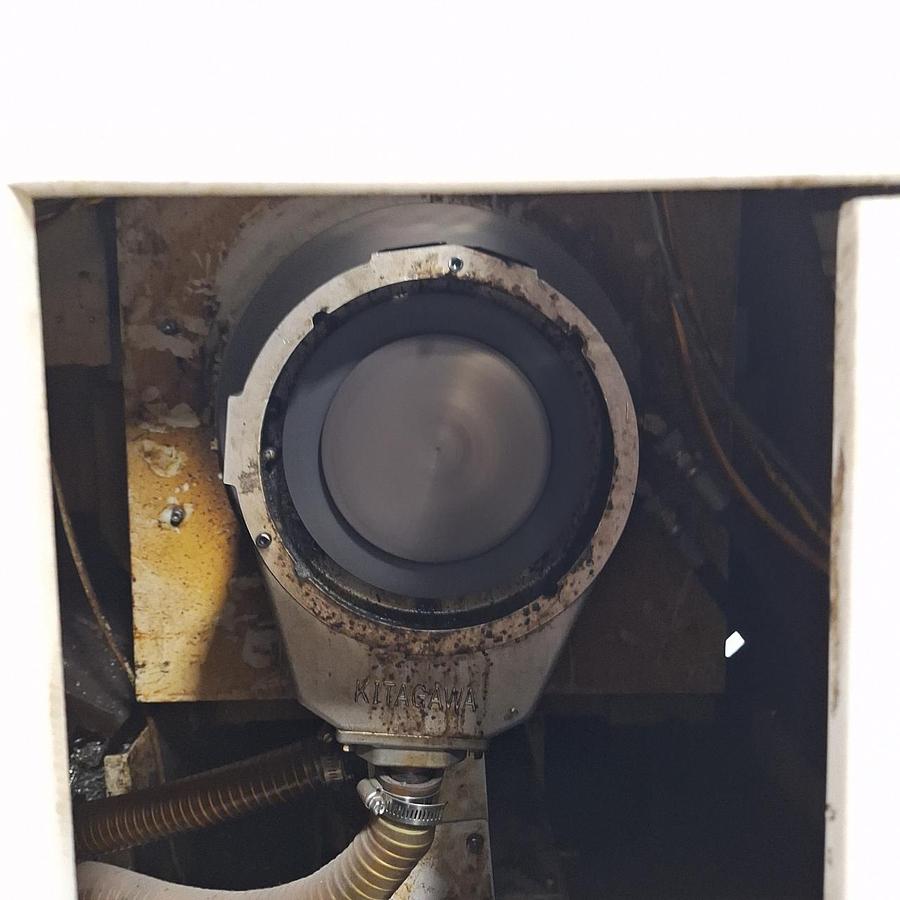

| Chuck Size | 15" 3-Jaw Hydraulic |
| Maximum Swing | 33.268" |
| Maximum Turning Diameter | 22.835" |
| Maximum Turning Length | 81.69" |
| Maximum Bar Capacity | 5.2" with these chucks |
| X-Axis Travel | 12.13" |
| Z-Axis Travel | 83.5" |
| Spindle Nose / Spindle Bore | A2-11" / 5.2" |
| Spindle Speeds | 2,500 RPM |
| Spindle Motor | 50 HP |
| Number of Turret Positions | 12 Position Turret |
| Rapid Traverse Rates | 1181 IPM |
| Tailstock Body Travel / Center | 80.375" / MT #5 |
| Machine Dimensions | 156"x90"x80" |
| Machine Weight | 25,283 lbs. |
