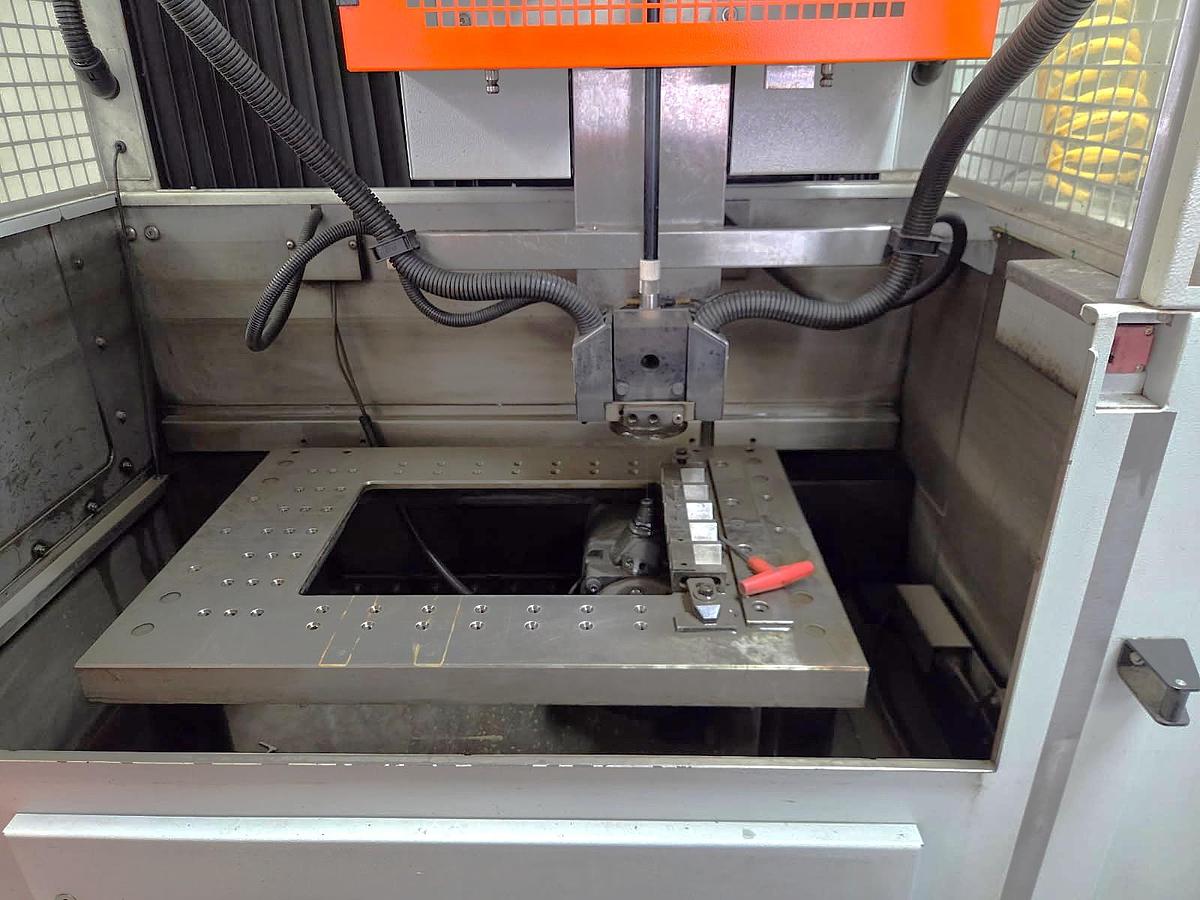

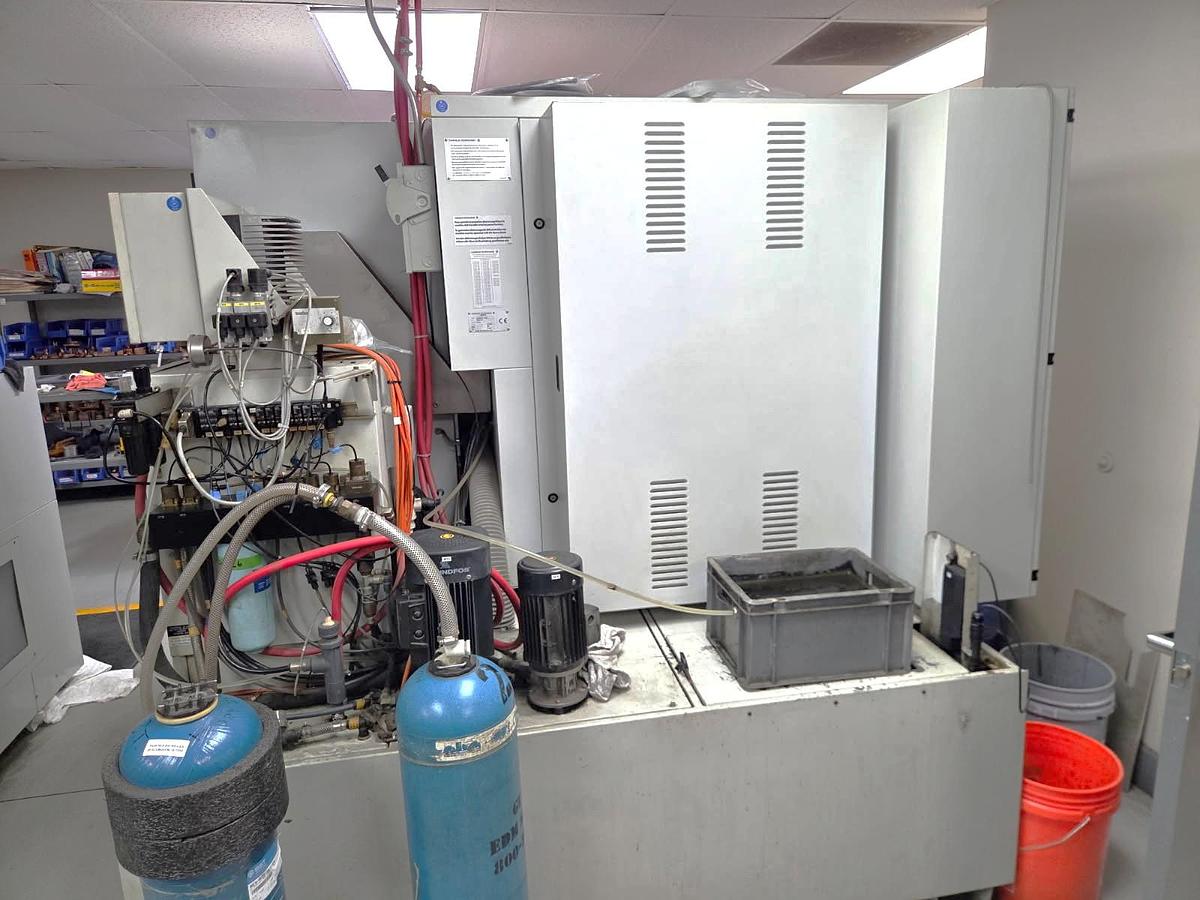

2002 Charmilles Robofil 240 CNC Wire EDM

Submerged Cutting

Auto Wire Threading (Needs Repair)

Remote Jog Handle

.010" Diameter Wire Guides

Wired 400V Three Phase Power

17,000 Hours

**Well Maintained Machine from Tool Room Environment**

The 2002 Charmilles Robofil 240 is a used CNC Wire EDM machine known for its precision in creating complex geometries and fine finishes. It features a table size of 26.77" x 17.72" and is capable of handling workpieces up to 39.4" x 21.65" x 8.66", with a maximum weight capacity of 1,653 lbs. The machine provides X, Y, and Z axis travels of 13.76", 8.66", and 8.66", respectively, along with U and V axis travels of 13.76" and 8.66". This model allows for wire diameter use ranging from .004" to .012" and efficiently manages taper angles of +/- 30 degrees at a height of 8.66". Designed for robust performance, the Robofil 240 features a significant dielectric capacity of 200 gallons, ensuring prolonged and effective operations. Despite its substantial capabilities, the machine maintains a manageable footprint with dimensions of 79.5" x 81" x 79" and a total weight of 5,402 lbs., making it a compact solution for precision machining needs in industrial environments. This model is suited for applications that demand high-quality finishes and intricate details, making it a valuable asset for manufacturers seeking both reliability and efficiency in wire EDM processes.
